Sealing a heavy-gauge battery cable or a marine wire splice demands tubing that won’t split under heat and delivers a water-tight bond that electrical tape can never match. A standard 2:1 ratio often leaves a loose fit around connectors, but the right 1-1/2-inch diameter sleeve with a true 3:1 shrink ratio and a fully wetted adhesive liner transforms a messy splice into a permanent, professional-grade insulation job.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing polyolefin formulations, adhesive melt points, and UL certifications to sort through the many options for large-diameter heat shrink tubing, ensuring this guide targets only the products that deliver on their shrink ratio claims and adhesive seal integrity.
Whether you are rewiring a boat’s bilge pump or protecting solar array cabling from UV and salt spray, choosing the premium 1 1/2 heat shrink tubing means prioritizing a true dual-wall adhesive-lined construction that resists moisture, abrasion, and vibration over the long haul.
How To Choose The Best 1 1/2 Heat Shrink Tubing
Selecting the right 1.5-inch heat shrink tubing for your project goes beyond simply matching the diameter. You need to consider shrink ratio, adhesive lining, wall construction, and the operating temperature range to ensure a reliable, long-lasting insulation solution that won’t crack or slip over time.
Shrink Ratio: The 3:1 Advantage for 1.5-Inch Tubing
A 2:1 shrink ratio means a 1.5-inch tube will only shrink down to 0.75 inches, which is often too large for snug coverage around a standard 4 AWG or 2 AWG cable lug. A 3:1 ratio, however, shrinks to 0.5 inches, allowing that same large tubing to tightly conform to a much smaller connector or a bundle of thinner wires. For 1-1/2 inch tubing, the 3:1 ratio is the preferred standard because it provides the versatility to handle irregularly shaped terminals and creates a more compressive, gap-free seal.
Adhesive-Lined Dual Wall vs. Single Wall Construction
Single-wall tubing provides basic electrical insulation and mechanical protection, but it does not seal out moisture. Dual-wall tubing has an inner layer of hot-melt adhesive that, when heated, flows into the crevices around a wire or connector. Once cooled, this glue creates a permanent, water-tight and air-tight barrier that prevents corrosion, making it essential for marine, automotive, and outdoor applications. Always verify the product explicitly states it has an adhesive liner — if it does not, it will not seal.
UL Certification and Material Compliance
For any wiring that carries voltage, especially in vehicles or at home, UL 224 certification is the mark of a safe, flame-retardant polyolefin tube that self-extinguishes and can withstand 600V of electrical stress. Additionally, RoHS compliance ensures the material is free from harmful substances. A UL-listed product is less likely to burn through or drip molten material if exposed to a short circuit or high heat, offering critical safety that generic, uncertified tubing simply cannot match.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Wirefy 1-1/2″ | Premium Roll | Large-scale professional jobs | 50 Ft, 3:1 Ratio, Adhesive Lined | Amazon |
| NeoWire 1-1/2″ | Premium Value | Heavy-duty marine wiring | 19 Ft, 3:1 Ratio, Dual Wall | Amazon |
| Helixal 1.5″ | Mid-Range Roll | Continuous bulk sealing projects | 20 Ft, 3:1 Ratio, Flame Retardant | Amazon |
| Kable Kontrol 1-1/2″ | Mid-Range Clear | Visual inspection of connections | 10 Ft, 2:1 Ratio, Clear Polyolefin | Amazon |
| YUKSY 1.5″ | Value Kit | Quick single-splice repairs | 4 Ft, 3:1 Ratio, UL Certified | Amazon |
| ELECFUN 1-1/2″ | Versatile Twin Pack | Color-coded power/ground runs | 8 Ft, 3:1 Ratio, Red & Black | Amazon |
| MILAPEAK 6-Size Kit | Entry-Level Assortment | Small repairs and DIY variety | 36 Pcs, 3:1 Ratio, Glue Lined | Amazon |
In‑Depth Reviews

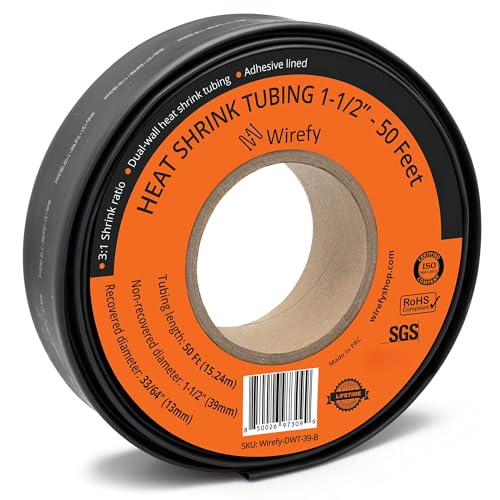

1. Wirefy 1-1/2″ Heat Shrink Tubing
The Wirefy 1-1/2″ tubing is the definitive choice for serious wiring installs where a single roll must cover dozens of heavy-gauge connections. With 50 feet of continuous material, a true 3:1 shrink ratio, and an aggressive adhesive liner, this polyolefin tube recovers to one-third of its 1.5-inch diameter, creating a compressive, water-resistant seal around cables as small as 1/2 inch. The dual-wall construction meets the demands of commercial electricians and marine technicians who need a reliable, long-term moisture barrier.
Customer feedback consistently highlights the visible adhesive extrusion at the ends after shrinking, confirming a complete seal around the wire. The material is rated for 600V and demonstrates good resistance to common automotive fluids and mechanical abrasion. Users note that the tube has a slight stiffness before heating, which makes it easy to slide over large lugs without collapsing, and it shrinks evenly without burning or delaminating when applied with a standard heat gun.
While this is the most substantial upfront investment in the category, the cost-per-foot on this 50-foot spool is highly competitive compared to buying multiple shorter assortments. This is the optimal purchase for anyone planning to seal multiple solar panel cables, trailer wiring harnesses, or industrial control panels and wants a single, consistent material source for the entire project.
Why it’s great
- Generous 50-ft length provides material for many large splices
- Adhesive liner creates visible, verified waterproof seal
- Dual-wall construction resists fluid and abrasion
Good to know
- Higher initial cost than short rolls
- Tubing may extend slightly during shrinking, requiring careful length cutting

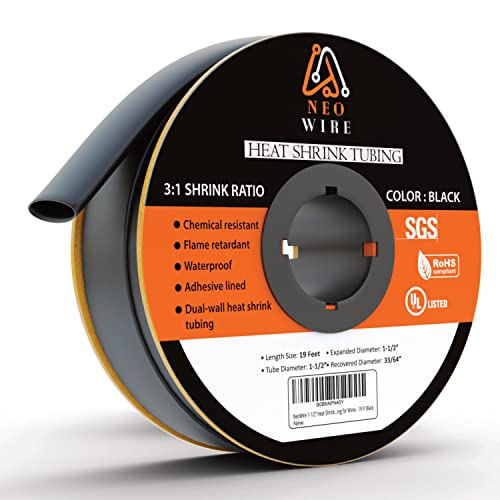

2. NeoWire 1-1/2″ Heat Shrink Tubing
The NeoWire 1-1/2″ tubing offers a premium dual-wall adhesive-lined experience in a compact 19-foot roll, making it ideal for targeted repair jobs where you need top-tier sealing without buying a massive bulk spool. The 3:1 shrink ratio is fast and aggressive, allowing the 38.1mm diameter tube to contract instantly around connectors as small as 16 AWG wire, conforming to irregular shapes without leaving air gaps. The inner adhesive layer melts cleanly and bonds firmly, providing a permanent seal resistant to moisture and fuel.
Users report that this tubing is noticeably thick and durable, providing excellent strain relief and protection against tearing. It is rated to operate between -67°F and 275°F, making it suitable for engine bay and outdoor installations. The sleeve shrinks tightly around oversized battery lugs and even works as a grip repair for tool handles, thanks to its robust wall thickness and adhesive grip. The absence of printed markings on the tube ensures a clean, professional appearance for visible engine or audio system wiring.
Some buyers note that the 19-foot length is enough for several large splices but may not be sufficient for a complete rewire of a boat or an RV. However, for the price point, the NeoWire delivers a premium level of material quality and a reliable adhesive flow that smaller kits sometimes lack. It is a strong recommendation for anyone who needs a dependable, medium-sized roll for critical connections.
Why it’s great
- Thick dual-wall provides excellent mechanical protection
- Inner adhesive creates a strong, permanent waterproof bond
- Clean, unmarked surface for a professional finish
Good to know
- 19 ft length is moderate and may not cover large projects
- Requires heat gun temperature above 212°F to fully activate adhesive

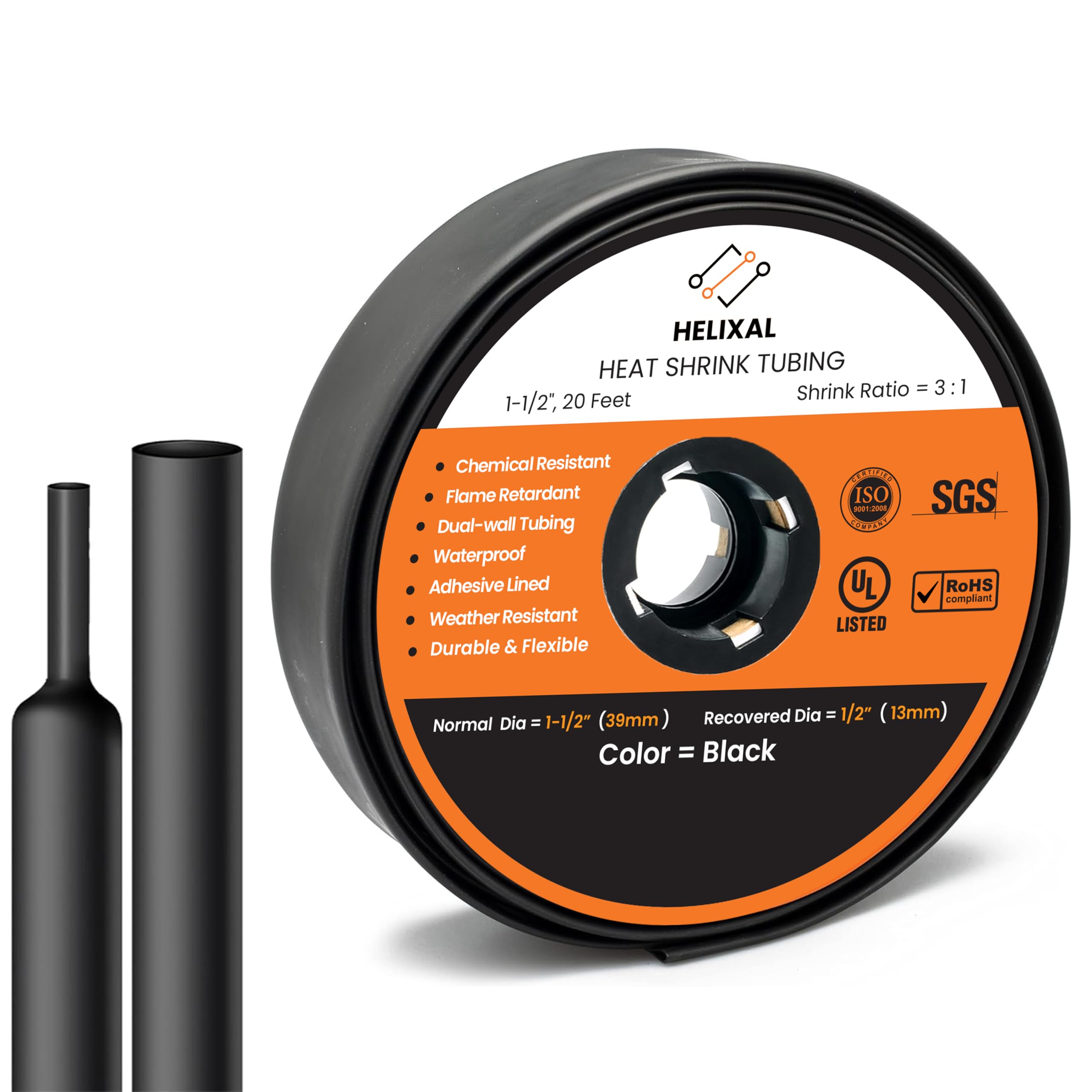

3. Helixal 1.5″ Heat Shrink Tubing
The Helixal 1.5-inch heat shrink tubing is engineered for efficiency, offering a 20-foot continuous roll with a 3:1 shrink ratio and a flame-retardant polyolefin formulation. This tubing is specifically designed to create a watertight and airtight seal along the entire length of a connection, making it a solid choice for outdoor electrical repairs and automotive wiring that will be exposed to the elements. The dual-wall construction ensures the adhesive liner melts and flows into the cable strands for a grip that is stronger than the wire itself.
Customers praise this roll for its consistent quality and the fact that it can be cut to any custom length, eliminating the waste that comes with pre-cut kits. The tubing is flexible during installation but stiffens after shrinking, providing robust strain relief. The black color is deep and consistent, resisting UV degradation better than clear alternatives. The adhesive output is generous, often visibly beading at the tube ends to confirm the seal is complete.
This product sits in a competitive middle ground — it offers more material than short 4-foot sections but at a lower price per foot than the premium 50-foot spool. It is an excellent choice for a mechanic or DIYer who has a few large projects coming up and wants a versatile, easy-to-use tubing that shrinks quickly without melting thin wires. The flame-retardant property adds a layer of safety for high-temperature environments.
Why it’s great
- 20 ft roll offers a good balance of length and cost
- Flame-retardant material for engine bay safety
- Adhesive liner creates a strong, visible waterproof seal
Good to know
- Does not include pre-cut lengths; requires scissors
- Some users found the tube thickness slightly thinner than premium brands
4. Kable Kontrol 1-1/2″ Heat Shrink Tubing
The Kable Kontrol 1-1/2″ tubing stands out because of its clear polyolefin material, a specific advantage for applications where you need to visually inspect a solder joint or connector after sealing. This is a 2:1 shrink ratio tube, so it will shrink from 1.5 inches down to 0.75 inches, making it best suited for larger cables (such as 2 AWG or 4 AWG) or for bundling multiple wires together where a snug fit is still achievable. It is MIL-Spec compliant (AMS-DTL-23053/5) and operates reliably from -67°F to 275°F.
As a single-wall tubing without an adhesive liner, it does not create a waterproof seal. Instead, its primary role is electrical insulation, strain relief, and color coding (since clear tubing allows the wire color to show through). Buyers have used it effectively to mark positive battery cable runs inside an RV where the jacket color needed to be visible underneath. The 10-foot length is practical for running identification sleeves along a specific cable route.
It is critical to note that this product is not for applications requiring a water-tight barrier. However, for interior electrical panel work, hobby electronics, or lab use where flexibility and transparency are prioritized, this is a unique and valuable offering. The flame-retardant rating (except for clear) ensures it meets safety standards for use in equipment.
Why it’s great
- Clear material allows visual inspection of sealed connections
- MIL-Spec compliance guarantees quality and performance
- Good for cable bundling and strain relief
Good to know
- Single-wall with no adhesive liner — not waterproof
- 2:1 ratio offers less shrinkage than 3:1 options
5. YUKSY 1.5″ 3:1 Waterproof Heat Shrink Tubing
The YUKSY 1.5-inch heat shrink tubing is a strong entry-level option that packs all the essential features of a premium tube into a budget-friendly 4-foot length. It uses a true 3:1 shrink ratio with a dual-wall adhesive liner, meaning it will shrink from 1.5 inches down to about 0.5 inches and form a waterproof, corrosion-resistant seal around your splice. The UL certification and RoHS compliance confirm the material meets safety standards for 600V electrical insulation.
This tubing is praised by users for its solid thickness and “good tightness” after shrinking. It has been used successfully for marine wiring, solar cable connections, and even for rubberizing tool handles by sliding the tube over the grip area and heating it. The adhesive inner wall activates sufficiently at standard heat gun temperatures, and the tube does not curl or burn easily. It provides a consistent, tidy connection that feels robust and durable.
The main limitation is the short 4-foot length — you get one piece, which is fine for one or two large splices but not for multiple repairs. If you only need to fix a single battery cable on a lawnmower or seal a connection on a trailer, this is an extremely cost-effective way to get a professional-grade, waterproof result without buying a whole roll.
Why it’s great
- UL certified and RoHS compliant for safe electrical use
- Adhesive-lined dual wall creates a waterproof seal
- Affordable for single large-splice projects
Good to know
- Only 4 ft of tubing, limiting project scale
- Some users needed a heat gun, not a lighter, to fully activate the glue
6. ELECFUN 1-1/2″ Marine Grade Heat Shrink Tubing
The ELECFUN 1-1/2″ marine grade heat shrink tubing delivers a clever twin-pack of 4-foot black and 4-foot red lengths, giving you 8 feet total. This color-coding system is a significant advantage for car audio installations or any project where you need to clearly distinguish power (red) from ground (black) cables. The 3:1 shrink ratio ensures the 40mm diameter tube contracts down to about 12.7mm, providing a tight, compressive fit around large ring terminals or lugs.
The dual-wall adhesive-liner is activated at a shrink temperature of 80-125°C, and users report that the glue flows out nicely to seal the ends. The material is UL-listed and compliant with SGS, RoHS, and CE standards, ensuring a safe, flame-retardant operation. The tubing is thick yet flexible enough to slide over connectors easily, and it stiffens into a durable, scratch-resistant sleeve after cooling. This is a popular choice among car audio enthusiasts for securing 0 or 4 AWG power wire lugs.
The 4-foot limit per color means you cannot do a full wiring harness in one color, but for the intended purpose of identifying two specific cable runs, it is perfectly sized. The separate red and black pieces allow for a clean installation without needing to overlay labels or paint.
Why it’s great
- Red and black tubing for easy polarity identification
- Certified to multiple international safety standards
- Thick, durable walls with good adhesive flow
Good to know
- Each color is only 4 ft, limiting total coverage per color
- Pressure packed in a smaller box, may appear flattened before use
7. MILAPEAK 36pcs 3:1 Dual Wall Heat Shrink Tubing
The MILAPEAK 36-piece kit is the most versatile assortment on this list, providing 6 sizes ranging from 1.5 inches down to 1/4 inch, all with a 3:1 shrink ratio and adhesive lining. This kit is designed for the generalist — someone who needs to have the right size on hand for an emergency repair on a large cable, but also wants smaller tubing for sensor wires and smaller electronics. The 1.5-inch tubes in the kit are 3 inches long, which is sufficient for covering a ring terminal and a small section of cable.
The tubing is made from polyolefin and is both UL certified for 600V and RoHS compliant. Users appreciate the internal hot-melt glue that creates a solid, impermeable seal against salt water and other liquids. The glue activates at temperatures above 212°F, and the tubing shrinks evenly without cracking. The assortment comes in black, blending in well with standard automotive wiring.
While the 1.5-inch pieces are short at only 3 inches each, this is perfectly adequate for most terminal splices. The real value of this kit is having 32 other pieces of tubing in smaller diameters, making it an excellent addition to a general toolbox or glove box. If you need a long continuous run of 1.5-inch tubing, then a dedicated roll is better. For ad-hoc repairs, this kit is invaluable.
Why it’s great
- Includes 6 popular sizes for multiple repair scenarios
- Glue-lined tubing seals out moisture and salt water
- UL certified for electrical safety
Good to know
- 1.5 inch tubes are only 3 inches long
- Pre-cut lengths limit customization for very long splices
FAQ
Can I use a lighter to shrink 1-1/2 inch heat shrink tubing?
What does a 3:1 shrink ratio mean for a 1.5 inch tube?
Is clear heat shrink tubing as durable as black tubing?
Final Thoughts: The Verdict
For most users, the 1 1/2 heat shrink tubing winner is the Wirefy 1-1/2″ 50ft Roll because it offers the best long-term value with a proven adhesive liner and consistent 3:1 shrinkage for large projects. If you want professional color-coded wiring, grab the ELECFUN 8ft Twin Pack. And for the best all-around repair kit, nothing beats the MILAPEAK 36-Piece Assortment.
