A wobbly front end or a gritty steering feel after a few wet rides is the fastest way to sap the confidence out of any bike. That precise, silent rotation between your fork and frame depends entirely on one small, often overlooked component: the headset. Choosing the right one means the difference between predictable handling and a constant fight with a loose or binding stem.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours researching the mechanical specifications, bearing types, and real-world durability of bicycle drivetrain and steering components to help riders make informed choices.
This guide covers the top options for upgrading or replacing your bike’s steering assembly, breaking down which models offer the best durability and performance when searching for the best 1 1/8 headset.
How To Choose The Best 1 1/8 Headset
The key to a good headset is matching the design to your riding style and frame specifications. You need to look past the generic 1-1/8″ steerer diameter and confirm the head tube diameter and cup type required by your frame before you buy anything.
Bearing Type: Cartridge vs. Loose vs. Sealed
Cartridge bearings (also called sealed cartridge bearings) are the gold standard. They come pre-assembled with races and seals, making them drop-in replacements that are smooth and require minimal maintenance. Loose ball bearings are cheaper and adjustable but require periodic cleaning and greasing, and they are more susceptible to contamination. Sealed loose-ball designs like the FSA The Pig offer better dirt protection than basic loose-ball headsets but still lack the smoothness of a true cartridge bearing.
Cup Design: External vs. Semi-Integrated vs. Integrated
Your frame’s head tube dictates the cup style. External cups (EC 34/28.6) press into the frame’s head tube and are common on older frames, mountain bikes, and cruisers. Semi-integrated (ZS 44/28.6) cups sit inside the head tube. Integrated (IS 42/42) headsets skip the cups entirely, using bearings that slide directly into the head tube. Measure your frame’s current headset or check the manufacturer specs to be certain.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Cane Creek 40-Series | Premium | Overall durability | Sealed Cartridge Bearings | Amazon |
| Odyssey Pro Conical | Premium | BMX / Aggressive riding | Sealed Bearings, 12mm Stack | Amazon |
| Odyssey Integrated Pro | Mid-Range | BMX / Integrated frames | 45×45 Bearings, 41.8mm OD | Amazon |
| Origin8 Pro Threadless | Premium | Weight conscious riders | Sealed Cartridge, 136g | Amazon |
| Ritchey Comp Logic | Mid-Range | Road / Gravel conversion | Cartridge Bearing, Aluminum | Amazon |
| FSA The Pig | Budget | Heavy-duty / Touring | Loose Ball, Chromoly | Amazon |
| MACHSWON External | Budget | Entry-level replacement | Sealed Bearings, Aluminum | Amazon |
In‑Depth Reviews
1. Cane Creek 40-Series External Cup Complete for 34mm Head-Tube
The Cane Creek 40-Series represents the benchmark for reliability in the mid-premium headset space. It features durable 6061 T-6 aluminum cups with an innovative Clip-Seal that secures the top assembly and protects the compression ring from dirt ingress, a critical feature for longevity on any bike.
Its sealed ZN40 cartridge bearings spin with a smoothness comparable to the more expensive 110-Series, while the steel crown race incorporates low-friction face-seals to keep out debris at the lower bearing. Reviewers consistently note a night-and-day improvement over cheaper non-cartridge bearing models, especially regarding steering stability under braking and over bumps.
The internal components are cross-compatible across the 10, 40, and 110 series, meaning replacement parts are easy to source. Its main caveat is the lack of detailed installation documentation, but this is a minor hurdle for the permanent, rattle-free performance it delivers. It is the standard by which others should be measured.
Why it’s great
- Smooth sealed cartridge bearings comparable to pricier models
- Innovative Clip-Seal and low-friction face seals for dirt protection
- Replaceable internal parts across multiple series
Good to know
- Installation instructions are sparse; research bearing and race orientation beforehand
- Heavier than some high-end aluminum options
2. Odyssey Pro Conical Headset
Odyssey has engineered the Pro Conical specifically for the demands of aggressive BMX and mountain bike riding where impacts and twisting forces are extreme. Its defining feature is the unique conical top cap, which distributes steering loads more evenly than a flat cap and presents a lower profile that channels dirt away from the upper bearing.
Built with precision-tapered 45-degree sealed bearings, this integrated headset (41.8mm OD) fits standard 42mm BMX head tubes and Campagnolo-standard frames. It comes with a 12mm stack height dust cap plus color-matched 3mm and 2mm spacers, giving you precise tuning for fork fit. Riders with tall forks, like the Odyssey R32, appreciate the taller stack as it reduces the need for external spacers above the stem.
The sealed bearings are laser-etched with the Odyssey logo and deliver a consistent smooth feel with zero play after months of hard riding. The only downside is the slightly taller stack height, which could be an issue for frames with very short head tubes, but for serious riders, this is the go-to for durability.
Why it’s great
- Conical top cap for improved load distribution and dirt shedding
- High-quality sealed bearings for long-term smoothness
- Includes color-matched spacers for precise stack tuning
Good to know
- Taller stack height may not suit frames with very short head tubes
- Integrated design requires a frame with a 42mm head tube
3. Odyssey Integrated Pro 1-1/8″ 45×45 Black Headset
This non-conical version of the Odyssey Pro shares its parent’s DNA with precision 45-degree sealed bearings but in a more streamlined, low-profile package. It is designed for riders who want a clean, integrated look with a low stack height that keeps the stem and the top of the head tube tight for a compact front end.
The 41.8mm outer diameter ensures a press-fit compatibility with standard 42mm BMX and Campagnolo head tubes. It comes with laser-etched bearings and a set of color-matched spacers (10mm, 3mm, and 2mm) to fine-tune the fit. Customer testimonials confirm its longevity, with one rider reporting years of smooth performance on a Colony BMX frame without needing replacement or adjustment.
One verified user reported a bearing failure within the first two days, but the overwhelming majority of feedback highlights its easy installation and rugged quality. It’s the best option for BMX riders and MTB users with integrated frames who value durability and a low, unobtrusive steering assembly.
Why it’s great
- Low stack height for a sleek front-end aesthetic
- Durable sealed bearings with long-term reliability
- Includes multiple color-matched spacers for fitment
Good to know
- Some reports of isolated bearing failure
- Not suitable for BMX frames requiring a 45×45 semi-integrated standard
4. Origin8 Pro Threadless Headset, 1-1/8″
The Origin8 Pro is a featherweight champion at just 136 grams for the complete assembly, including the top cap and star nut. This makes it a prime upgrade for weight-conscious road and XC riders who want to shave grams without sacrificing bearing quality. Its sealed cartridge bearings and cleanly machined aluminum cups are a direct upgrade over stock headsets on many mid-range bikes.
The external cup design (EC34/28.6 and EC34/30) makes it a direct fit for frames with standard 34mm head tubes and 1-1/8″ steerers. Installation is straightforward: freeze the cups and tap them into the frame with a rubber mallet. Riders report that the bearings spin incredibly smooth and fast, and the low-friction seals keep dirt out during dusty rides.
One note of caution: for fixed-gear freestyle or hardcore street riding, some users found the aluminum cups less durable than steel alternatives under severe sideways loading. For general road, gravel, or MTB use, it represents a fantastic balance of weight, price, and smooth performance.
Why it’s great
- Exceptionally light at 136g including top cap and star nut
- Smooth sealed cartridge bearings with tight manufacturing tolerances
- Easy DIY installation with cup freezing technique
Good to know
- Aluminum cups less impact resistant than steel for freestyle riding
- Lower cup is large, may slightly raise the headtube-to-fork clearance on some frames
5. Ritchey Comp Logic Threadless Headset
Ritchey’s Comp Logic headset uses a clever design philosophy: a smaller upper angular contact cartridge bearing for reduced weight at the top, paired with larger lower bearings for increased stiffness and durability where loads are highest. This asymmetric approach makes it a smart choice for road bikes, gravel conversions, and lighter trail riding.
The cups are precision-machined from aluminum and are anodized black for a discreet finish. The sealed design uses Ritchey’s own grease to keep the bearings spinning smoothly. It includes the star nut and crown race in the box, making it a complete drop-in replacement for most 1-1/8″ threadless forks with a 34mm head tube.
Performance is generally excellent, with customers praising its smoothness and reliability on road builds. However, a notable report of a lower cup bearing failing during a fork reinstall and another rider explicitly stating they wouldn’t trust it for true mountain bike abuse suggests that its strength is in less extreme applications. For road or cyclocross, it is a fantastic value.
Why it’s great
- Clever design with smaller upper bearing for weight savings
- Complete package includes star nut and crown race
- Smooth sealed cartridge bearings
Good to know
- Questionable durability for aggressive mountain bike riding
- Bearing quality may be inconsistent across units

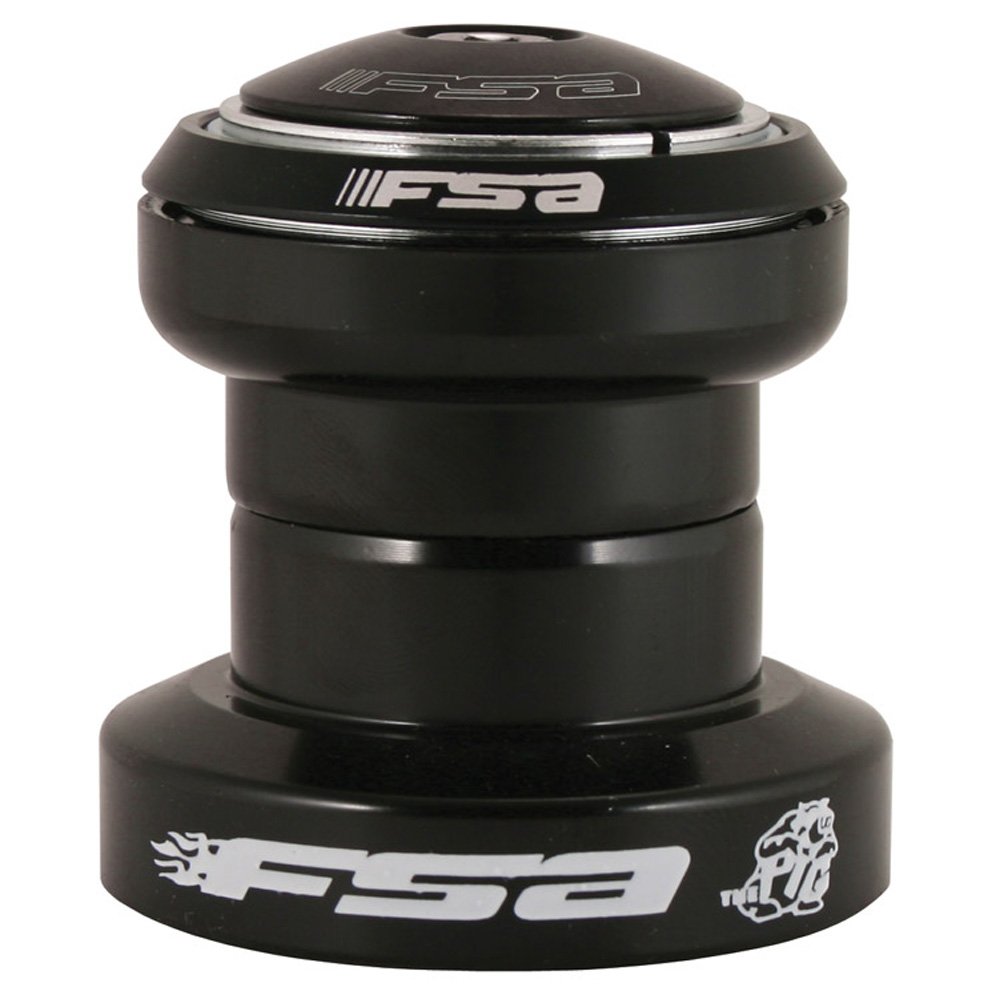

6. FSA The Pig Headset
The FSA The Pig earns its name with a forged chromoly construction and oversized lower ball bearings. It is a throwback to a time when headsets were built like tanks: heavy, durable, and serviceable. It is not a sealed cartridge bearing unit but uses 1/4″ caged ball bearings that are robust and easy to maintain.
Its oversized lower cup and crown race handle massive loads, making it a legendary choice for tandems, touring bikes, and e-bikes where weight is not a concern but strength is paramount. It is also gyro-compatible, which is a specific requirement for flatland BMX or dirt jumpers. The anodized finish (black or silver) is built to last.
Be aware that the “sealed” description on some listings is a misnomer; this headset uses standard loose ball bearings with a dust seal. It requires periodic disassembly, cleaning, and re-greasing to stay smooth. For a budget-minded builder who values repairability over convenience, this is an outstanding option.
Why it’s great
- Extremely durable chromoly construction for high-load applications
- Very smooth action with oversized lower bearings
- Gyro compatible for BMX flatland
Good to know
- Not sealed bearings; requires regular maintenance and greasing
- Heavier than aluminum cartridge-bearing alternatives
7. MACHSWON MTB Mountain Racing Road Bike 1-1/8″ Threadless Sealed Headset
The MACHSWON is the entry-level workhorse that proves you don’t have to spend a lot to get sealed bearings. Made from advanced aluminum alloy, it weighs only about 112 grams and is designed for 34mm frame head tubes with a 28.6mm fork steerer diameter. It’s an external cup design that is straightforward to install.
For the price, it delivers acceptable smoothness thanks to its sealed bearings. It is specifically suited for budget replacements on mountain bikes, road bikes, or cruisers where the original headset has worn out. The lack of branding on the parts gives it a clean, understated look.
The primary limitation noted by users is the absence of dust seals on the bearings. While the bearings are sealed, the lack of an external wiper or labyrinth seal means they are more vulnerable to water and dirt ingress over time. For a fair-weather commuter or occasional rider, this is a perfectly fine, low-cost solution. For heavy wet-weather riding, a model with better sealing is advisable.
Why it’s great
- Low cost sealed bearing headset
- Lightweight at just 112 grams
- Clean, unbranded exterior aesthetic
Good to know
- No external dust seals, less weather-resistant
- Budget build quality and materials
FAQ
Can I replace a loose-ball headset with a sealed cartridge headset?
How do I know if I need an external, integrated, or semi-integrated headset?
Final Thoughts: The Verdict
For most users, the best 1 1/8 headset winner is the Cane Creek 40-Series because it offers smooth, sealed cartridge bearings, excellent seal integrity, and a track record of long-term durability across road and trail bikes. If you want a lightweight option for a performance road build, grab the Origin8 Pro. And for aggressive BMX riding where strength is non-negotiable, nothing beats the Odyssey Pro Conical.
