Your engine’s injectors and fuel pump live or die by the cleanliness of the fuel entering them. A 10 micron fuel filter sits at the critical threshold — small enough to trap rust, sand, and microbial sludge, yet large enough to avoid starving your fuel system of flow under load. Choosing the wrong filter means either letting damaging particles through or clamping down so tight that your engine struggles to breathe at wide-open throttle.
I’m Min — the co-founder and writer behind Gadgets Feed. I analyze technical filtration specifications, flow rate charts, and thread compatibility data to find which 10 micron fuel filters deliver genuine protection without restricting fuel delivery in real-world marine, agricultural, and automotive applications.
After reviewing dozens of models across different price tiers and use cases, I’ve identified the top contenders that balance micron accuracy, flow capacity, and build quality for the best 10 micron fuel filter to match your specific fuel system needs.
How To Choose The Best 10 Micron Fuel Filter
Not all 10 micron fuel filters are built alike. Three factors determine whether a filter protects or sabotages your fuel system: the physical filtration media, the flow capacity relative to your engine’s demand, and the thread pattern that connects it to your fuel lines.
Filtration Type: Particulate vs. Water Separation
A standard 10 micron particulate filter traps solid particles like dirt, rust, and metal shavings. A water-separating 10 micron fuel filter uses a hydrophobic media that also coalesces and holds water droplets. For marine outboards, diesel generators, and agricultural equipment exposed to condensation or contaminated fuel, choose a water-separating model. For inline automotive or race applications where fuel is dry, a particulate filter suffices.
Flow Rate and Port Thread Compatibility
Every 10 micron fuel filter lists a flow rate in gallons per minute (GPM). Your engine’s fuel pump should not exceed 80% of that rating at full throttle, or the filter becomes a restriction. Equally critical is the thread specification — 1”-12 UNF, 3/4” NPT, AN-10, ZG1/4-19 — which must match your filter head, fuel pump, or line fittings exactly. Forcing mismatched threads causes leaks that compromise the entire filtration system.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Aeromotive 12301 | Inline Billet | High-Performance Fuel Systems | 10-micron cellulose, AN-10 ports | Amazon |
| EVIL ENERGY Inline | Universal Inline | Custom AN Line Builds | 10-micron stainless steel element | Amazon |
| LTZLL 1200KTF7018 | Transfer Tank Assembly | Farm & Construction Tanks | 3/4″ NPT, 18 GPM, 50 PSI | Amazon |
| ATRACYPART Fuel Tank Kit | Spin-On Head Kit | DIY Transfer Tank Install | 3/4″ NPT cast-aluminum head | Amazon |
| Fill-Rite F1810PM0 | Spin-On Particulate | Medium-Flow Transfer Systems | 1″-12 UNF thread, up to 25 GPM | Amazon |
| iFJF R12T | Water Separator | Marine & Tractor Diesel Engines | ZG1/4-19 ports, 15 GPH flow | Amazon |
| Seachoice 50-20913 | Marine Outboard | Yamaha Outboard Replacement | Direct fit Sierra 18-7866 / Yamaha | Amazon |
In‑Depth Reviews
1. Aeromotive 12301 – 10 Micron Inline Fuel Filter
The Aeromotive 12301 is CNC-machined from 6061-T6 billet aluminum with a bright-dip red anodized finish that resists corrosion inside high-pressure fuel systems. Its replaceable 10 micron cellulose element flows up to 2,000 lb/hr with less than 1 PSI pressure drop, making it suitable for engines producing well over 1,000 horsepower on gasoline or diesel.
Female AN-10 inlet and outlet ports provide secure connections in custom fuel line setups, and adapter fittings let you step down to AN-8 or AN-6 sizes if your system requires smaller line diameters. The O-ring sealed housing supports up to 70 PSI, so it works reliably after the fuel pump in both carbureted and EFI installations.
Every component from the billet cap to the spring-loaded element retention is designed for repeated service — unscrew the cap, swap the cellulose element, and reassemble without special tools. For builders demanding maximum flow with zero restriction at the 10 micron threshold, the Aeromotive 12301 is the definitive choice.
Why it’s great
- Ultra-low pressure drop under high flow
- Replaceable 10 micron cellulose element
- Billet aluminum housing resists corrosion
Good to know
- Requires AN fittings separate from purchase
- Post-pump only — not for suction-side use
2. EVIL ENERGY Inline Fuel Filter – 10 Micron
The EVIL ENERGY inline filter uses an aluminum alloy canister and a stainless steel filter element rated for 10 micron filtration. Unlike disposable spin-on filters, the stainless steel element is removable and cleanable — you can rinse it with solvent and reinstall it, reducing long-term replacement costs for hobbyists and racers who service their fuel systems frequently.
It ships with AN-6, AN-8, and AN-10 adapters plus a mounting bracket, so it fits into nearly any custom fuel line configuration without sourcing extra parts. The O-rings at both end caps seal tightly against the aluminum housing, and the inlet/outlet arrows ensure proper flow direction from the spring-compressed end toward the open end of the element.
The universal fit covers passenger cars, trucks, ATVs, motorcycles, and marine applications. Just note that the manufacturer explicitly states this filter is not for E85 fuel — the O-ring material degrades with high ethanol concentrations — so stick to gasoline and diesel.
Why it’s great
- Cleanable stainless steel element saves money
- Comes with three sizes of AN adapters
- Includes mounting bracket for clean install
Good to know
- Not compatible with E85 fuel blends
- Stainless element may clog faster than cellulose

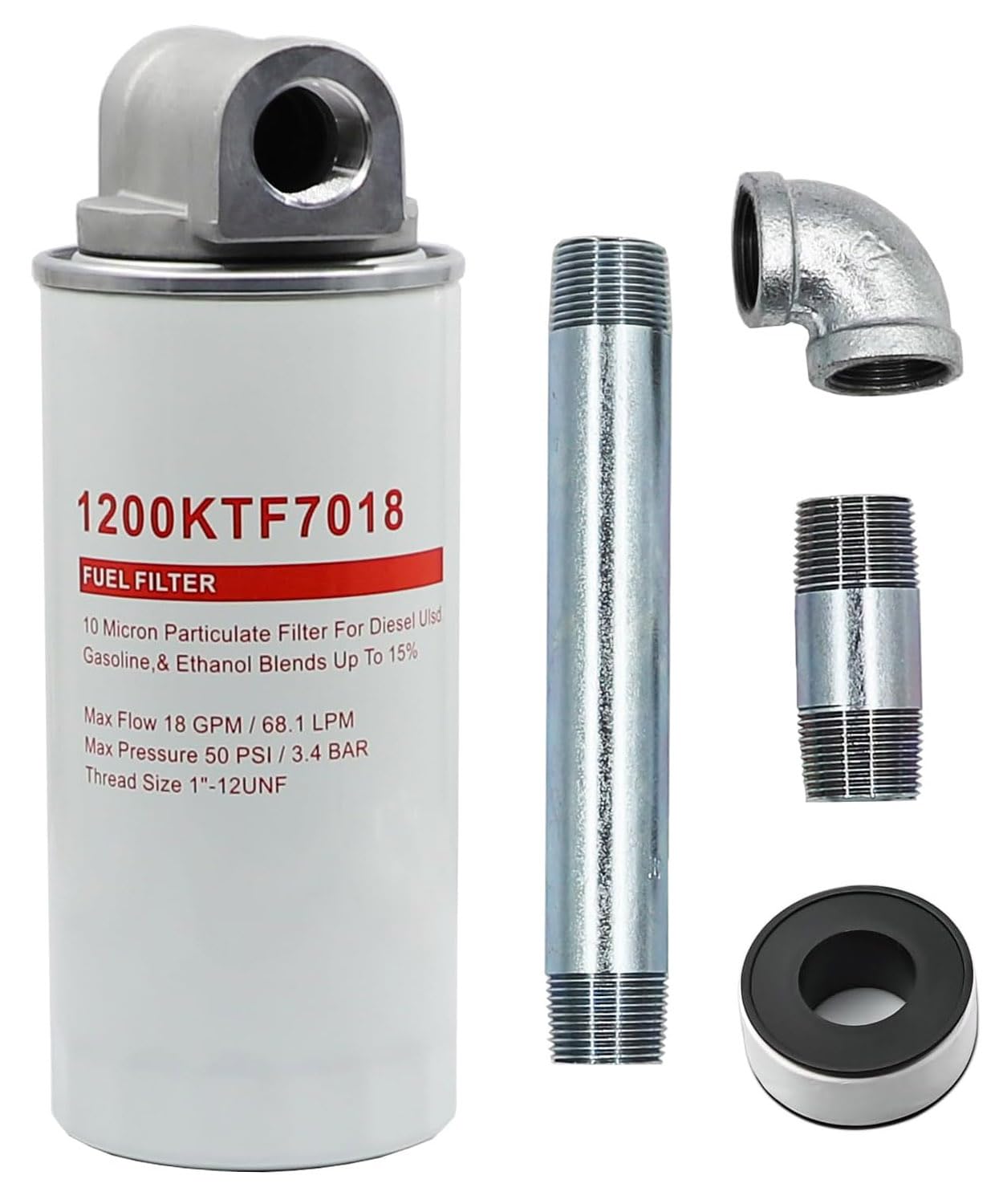

3. LTZLL 1200KTF7018 Fuel Filter Assembly – 10 Micron
The LTZLL 1200KTF7018 is a complete spin-on filter assembly with a 3/4″ NPT cast-aluminum head and a 10 micron particulate filter cartridge. It delivers 18 GPM at 50 PSI, exactly the flow band required for fuel transfer tanks in construction and agricultural settings where diesel is pumped from bulk storage into equipment.
This assembly directly replaces Fill-Rite models including FR112, FR1210G, FR610G, and Grainger equivalents, making it a drop-in solution for existing transfer pump setups. The aluminum head resists corrosion from diesel and gasoline, and the cartridge traps rust, sand, dirt, and metal shavings as small as 10 microns.
Users consistently report that it filters fuel effectively on farm transfer tanks and provides extra insurance against injector pump damage from contaminated supply. The 1-year warranty and strict production tolerances add confidence for a component that sees daily exposure to moisture and temperature swings.
Why it’s great
- Complete assembly ready for 3/4″ NPT lines
- Direct replacement for common Fill-Rite heads
- 18 GPM flow suits transfer tank demands
Good to know
- Not recommended for aviation or race fuel
- Cartridge is particulate-only, not water-separating

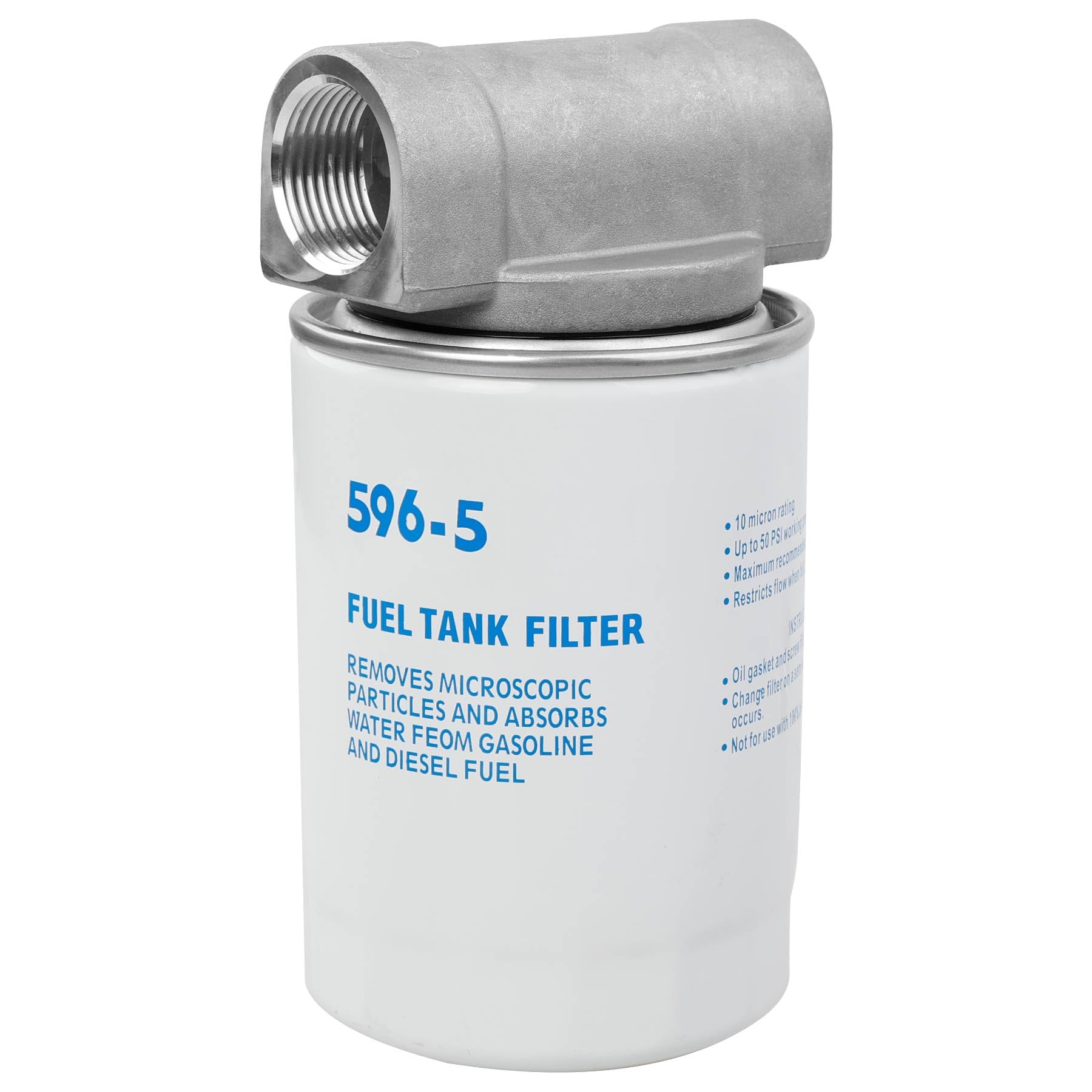

4. ATRACYPART Fuel Tank Filter Kit – 10 Micron
The ATRACYPART kit bundles a 3/4″ NPT cast-aluminum filter head with a spin-on 10 micron filter cartridge, giving you everything needed to add filtration to a fuel transfer tank or bulk storage system. The head is machined with clear flow direction markings and smooth threads that users report fit standard NPT fittings without binding or galling.
The spin-on cartridge uses Type 596 media with water-absorbing material, so it captures both particulate contamination and small amounts of water that condense inside storage tanks. This dual-action protection is rare at the entry-level price point — most budget kits rely on particulate-only media.
Compatibility covers gasoline, diesel, and kerosene across a wide range of vehicles from lawn mowers and golf carts to trucks and RVs. For anyone setting up a slip tank or wanting a secondary 10 micron polish after a primary water separator, this kit provides a well-machined, leak-free foundation.
Why it’s great
- Water-absorbing media in budget-friendly kit
- Clear flow markings on machined aluminum head
- Broad vehicle compatibility list
Good to know
- Filter cartridge uses proprietary media type
- Not rated for aviation or competition fuel
5. Fill-Rite F1810PM0 – 10 Micron Spin-On Fuel Filter
The Fill-Rite F1810PM0 is a 10 micron particulate spin-on filter with a 1″-12 UNF thread — the standard size for Fill-Rite filter heads and many commercial fuel transfer pumps. It handles up to 25 GPM flow, which covers medium to high-output transfer scenarios where you need to move fuel from a bulk tank quickly without sacrificing filtration.
The filter media traps dirt, rust, and sediment down to 10 microns, protecting downstream pumps and engine injectors. It is compatible with diesel, gasoline, kerosene, B20 biodiesel, and E15 ethanol blends, so it works across mixed-fuel fleets without media degradation.
The spin-on design allows tool-free replacement during routine maintenance, and the canister is built to withstand the physical demands of fueling environments. Users note that it is significantly cheaper through Amazon than at local parts stores, and the 8-year spare part availability supports long-term service planning.
Why it’s great
- High 25 GPM flow capacity
- Standard 1″-12 UNF thread for broad compatibility
- Compatible with biodiesel and ethanol blends
Good to know
- Particulate-only — no water separation
- Thread is 1″-12 UNF, not 3/4″ NPT as sometimes assumed

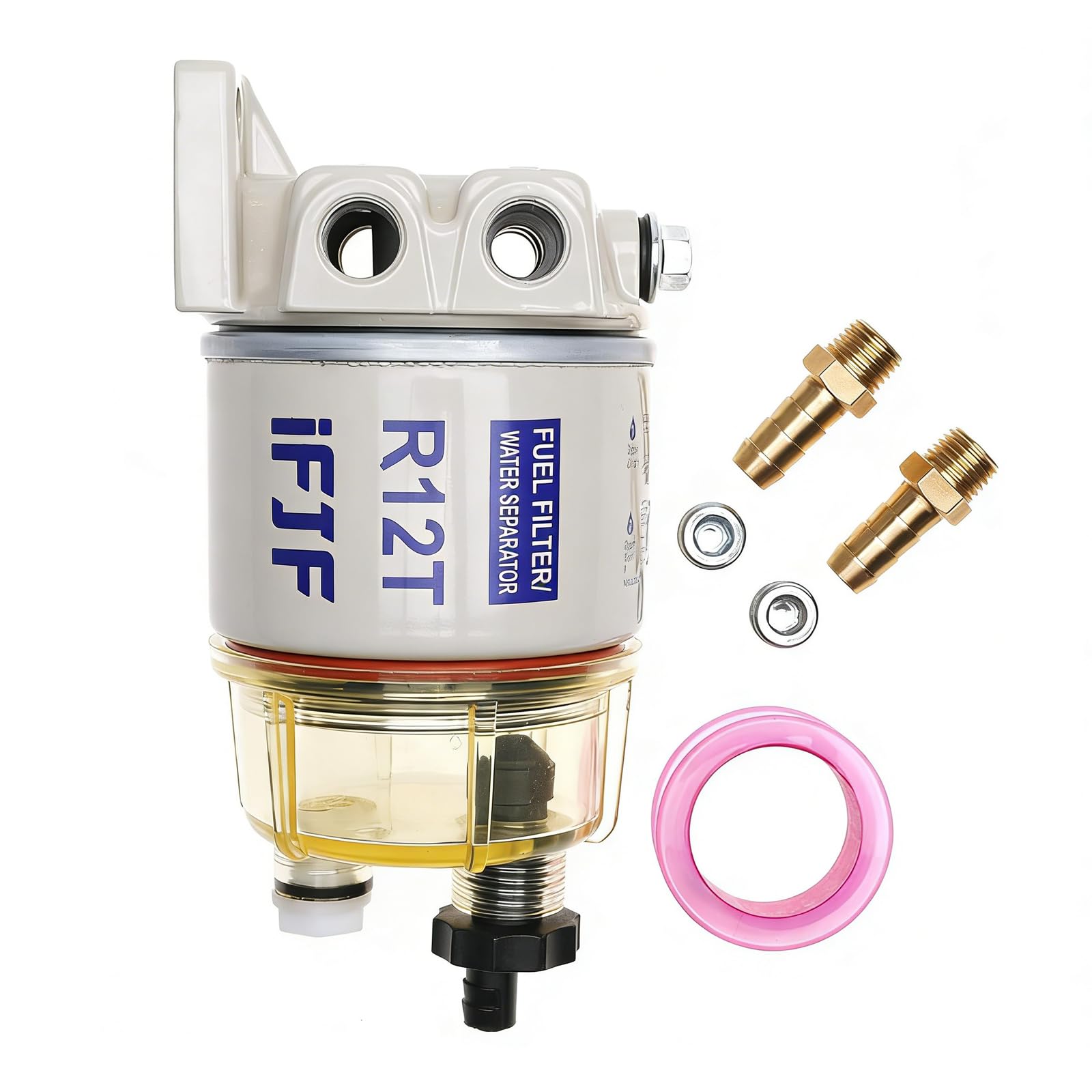

6. iFJF R12T Fuel Water Separator – 10 Micron
The iFJF R12T is a compact fuel water separator assembly with a clear nylon collection bowl that lets you visually inspect for water accumulation. Its 10 micron filter media captures particles while the hydrophobic barrier coalesces water droplets, making it ideal for diesel engines on outboard boats, tractors, and skid steers where moisture in fuel is a persistent problem.
The 4-port design (2 inputs, 2 outputs) with ZG1/4-19 threads offers flexible mounting in tight engine compartments. Proper installation requires lubricating the O-rings between the base, tank, and bowl before assembly, and using diesel-resistant thread compound on the plugs for unused ports — skipping these steps is the primary cause of the leakage issues reported by a minority of users.
With a flow rate of 15 GPH (57 LPH), this separator is sized for small to medium diesel engines rather than high-output pumps. The replacement filters are inexpensive and widely available through the same standard S3240/R12T cross-reference, keeping long-term operating costs low for seasonal equipment.
Why it’s great
- Visible water collection in clear nylon bowl
- Compact 4-port design for tight mounting
- Replaceable filters use common S3240 standard
Good to know
- O-ring and thread prep critical to prevent leaks
- 15 GPH flow limits use to smaller engines

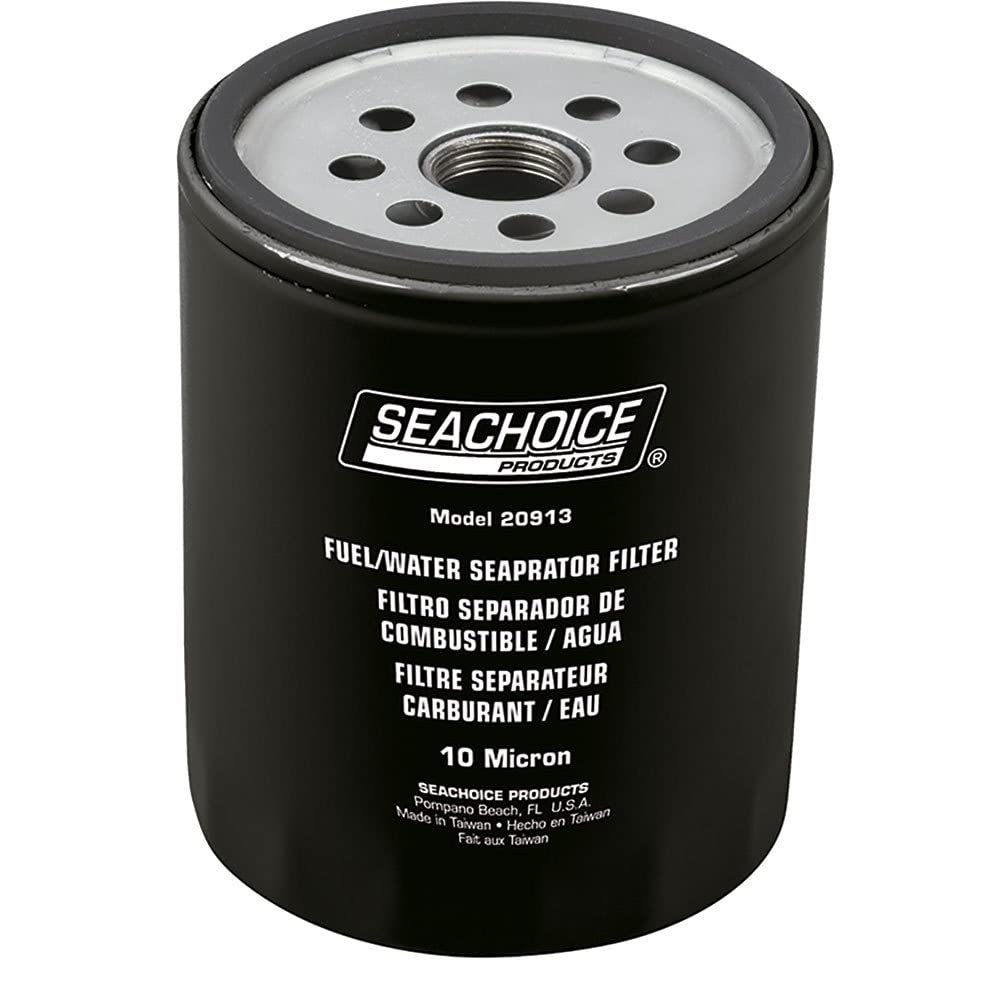

7. Seachoice 50-20913 – 10 Micron Marine Fuel Filter
The Seachoice 50-20913 is a direct OEM replacement for Sierra 18-7866 and Yamaha outboard fuel systems, providing 10 micron filtration at a fraction of the marina parts counter price. The metal canister construction meets original equipment specifications, and the 1-year warranty backs its reliability on saltwater and freshwater engines alike.
Verified users with engines ranging from vintage 2-stroke Yamahas to 2007 F250 4-stroke outboards confirm the fit is exact — no adapter rings or thread reducers needed. The filter reliably removes water and solid contaminants from the fuel system, which directly protects the outboard’s injectors and high-pressure pump from corrosion and wear.
At roughly a quarter of the cost of the Yamaha-branded equivalent, this filter lets you maintain the recommended annual replacement schedule without stretching your maintenance budget. For any boater running a compatible Yamaha or Sierra-compatible outboard, the Seachoice 50-20913 delivers factory-specified protection at a commodity price.
Why it’s great
- Exact OEM fit for Yamaha and Sierra outboards
- Metal canister meets OE specs
- Significant savings over dealer parts
Good to know
- Vehicle-specific — only fits listed outboards
- Not designed for inline or universal installations
FAQ
Can I use a 10 micron diesel filter on a gasoline engine?
How often should I replace a 10 micron fuel filter?
What thread size does my fuel system need?
Final Thoughts: The Verdict
For most users, the best 10 micron fuel filter winner is the LTZLL 1200KTF7018 assembly because it delivers a complete, ready-to-install 3/4″ NPT system with 18 GPM flow at a price that undercuts Fill-Rite equivalents while matching their performance specs. If you need water-separating protection for a marine outboard or tractor diesel, grab the iFJF R12T for its clear collection bowl and compact 4-port design. And for a high-performance inline system with AN fittings and no measurable flow restriction, nothing beats the Aeromotive 12301.
