A 100-inch TV represents a serious investment in home theater immersion, but the real engineering challenge begins when you try to get that massive screen off the floor and onto the wall. The sheer weight, the wide VESA patterns, and the torque created when fully extended demand a mount built with thicker steel, reinforced dual arms, and a weight capacity that leaves nothing to chance.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing the engineering specifications, weight ratings, and real-world installation feedback for heavy-duty full-motion TV mounts that can handle 100-inch class displays.
This guide breaks down the nine strongest contenders on the market, from value-packed mid-range options to premium behemoths rated for over 260 pounds. It is your definitive resource for finding the best 100-inch tv mount for your specific wall configuration and viewing needs.
How To Choose The Best 100-Inch TV Mount
Choosing a mount for a 100-inch TV is fundamentally different from picking one for a standard 55-inch set. The margin for error shrinks dramatically because the leverage forces at full extension are immense. You need to prioritize structural integrity, wall compatibility, and adjustability over everything else.
Weight Capacity and Load Testing
A 100-inch TV typically weighs between 110 and 165 pounds. The advertised weight capacity on a mount isn’t just a number — it’s your safety buffer. Look for mounts that are rated at least 50 pounds above your TV’s actual weight. Even more important is whether the manufacturer performs load testing beyond the rating; many premium mounts now undergo 4x or 3x load tests to prove their arms won’t sag or bend under duress.
VESA Pattern Coverage
The VESA pattern defines the distance between the four mounting holes on the back of your TV. For 100-inch class displays, the pattern can range from 600x400mm all the way up to 900x600mm. If your mount’s maximum VESA is only 800x600mm, you might not be able to bolt it onto a TV with a 900x600mm pattern. Always confirm your TV’s exact VESA dimensions against the mount’s supported range before purchasing.
Wall Stud Spacing and Mounting Surface
Most 100-inch TV mounts are designed to span two studs spaced at 16, 18, or 24 inches apart. Some heavy-duty models offer four-stud mounting plates that distribute the load across a wider section of the wall. Never attempt to mount a 100-inch TV on drywall alone — a concrete, brick, or wood stud wall is mandatory. Also check whether the mount’s wall plate is long enough to reach your specific stud spacing.
Extension Depth and Retraction Profile
Full-motion mounts for 100-inch TVs vary in how far they extend from the wall, typically ranging from 25 to 43 inches. Longer extension arms provide more viewing flexibility for corner placements or L-shaped rooms, but they also create more leverage stress. The retraction distance is equally important — some mounts fold back to just 2.5 inches, giving a nearly floating look, while others stay 3.5 inches or more off the wall.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| USX STAR 100-Inch Mount | Mid‑Range | Best Overall Value | 220‑lb capacity, 28″ extension, 6‑arm design | Amazon |
| FORGING MOUNT w/ Power Strip | Mid‑Range | Built‑in Power & USB | 220‑lb capacity, integrated 2‑outlet strip + 2 USB | Amazon |
| monTEK 200‑lb Mount | Mid‑Range | Budget‑Friendly Full Motion | 200‑lb capacity, 25.1″ extension, 4x load tested | Amazon |
| FORGING MOUNT XXL 275‑lb | Mid‑Range | Maximum Extension Reach | 275‑lb capacity, 42.9″ extension, 6‑arm steel | Amazon |
| HOME VISION 100‑Inch Mount | Mid‑Range | Wide Stud Spacing Support | 220‑lb capacity, 30.2″ extension, fits 12‑24″ studs | Amazon |
| VIVO MOUNT‑VW120M | Premium | Heaviest Capacity Mid‑Price | 264‑lb capacity, 27.7″ extension, preassembled | Amazon |
| monTEK XXL 265‑lb | Premium | Top‑Tier Strength & Preassembly | 265‑lb capacity, 27.7″ extension, quick‑lock release | Amazon |
| Perlegear PGXLF03B | Premium | Thinnest Retraction Profile | 225‑lb capacity, 31.69″ extension, retracts to 2.48″ | Amazon |
| Mount‑It! MI‑14010 | Premium | Lifetime Warranty Premium | 264‑lb capacity, 27.7″ extension, ±5° leveling | Amazon |
In‑Depth Reviews
1. USX STAR 100-Inch TV Wall Mount
The USX STAR mount earns the top spot because it strikes an ideal balance between price, weight capacity, and articulation range. With six thickened steel arms supporting a 220-pound load and extending 28 inches from the wall, this mount gives you the long-reach flexibility typically reserved for premium models at a mid-range price point. It supports VESA patterns up to 900x600mm, covering virtually every 100-inch TV on the market today.
What sets it apart is its 10-year product support and the preassembled three-step installation process that reduces setup time significantly. Real buyers report mounting 160-pound Hisense and TCL 100-inch class TVs without any sag or wobble, even at full extension. The +65°/-65° swivel range ensures the screen can pivot to cover a wide seating area, though the +10°/-10° tilt range is more modest than some competitors.
One notable limitation is that the included safety lanyards are reported to be too short for extra-large 100-inch TVs, requiring the user to purchase extensions. Additionally, the mount sits very tight to the wall when retracted, so a recessed power outlet is recommended for a clean low-profile look. Overall, it’s the most well-rounded choice for the majority of buyers.
Why it’s great
- Six-arm thickened steel construction prevents sagging at full extension
- 28-inch reach is generous for corner seating configurations
- Ten-year product support offers long-term peace of mind
Good to know
- Safety lanyards may be too short for 100-inch TVs
- Tilt range limited to 10 degrees compared to 15-degree alternatives

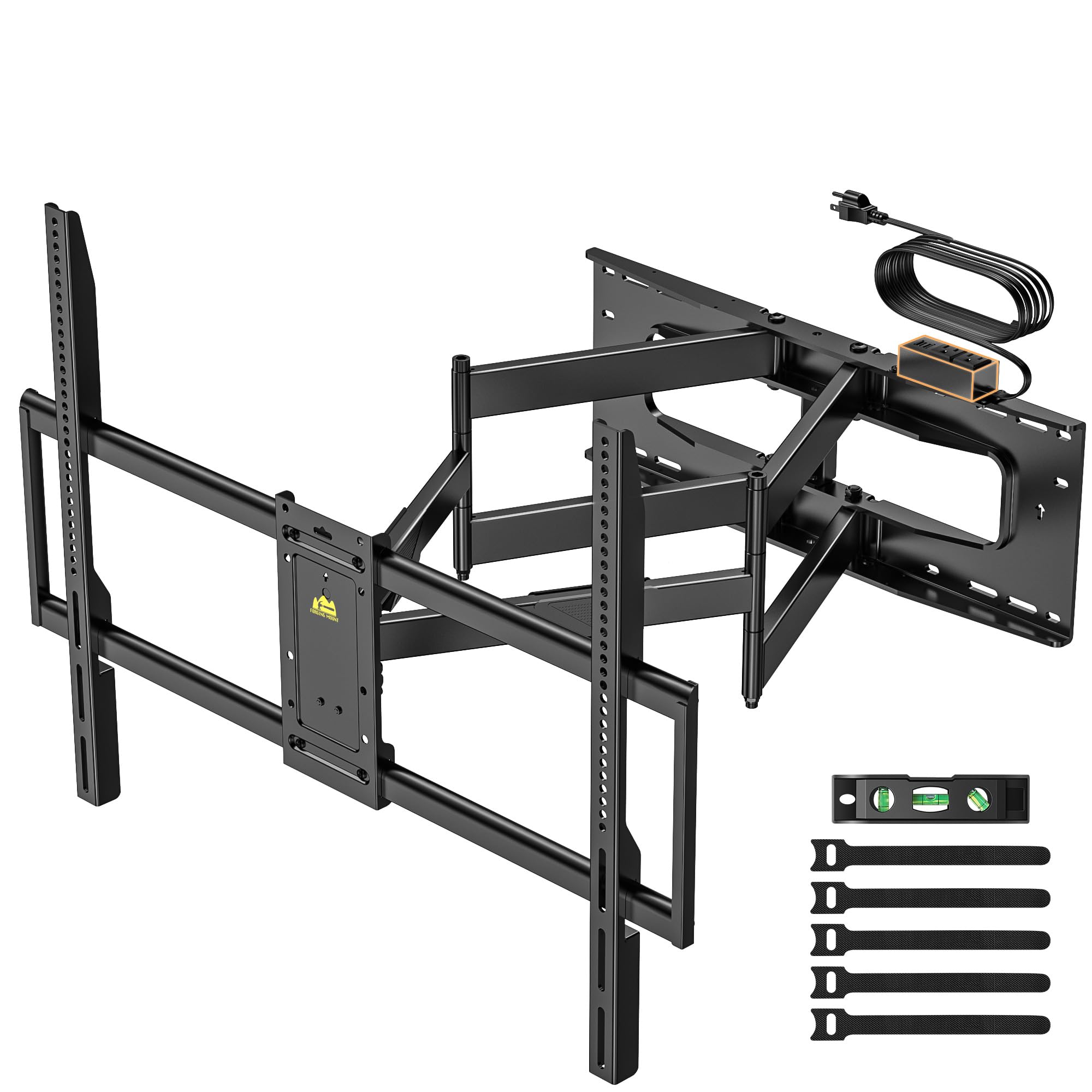

2. FORGING MOUNT Heavy Duty with Power Strip
This FORGING MOUNT model is unique in this lineup because it integrates a power strip directly into the mount’s wall plate, featuring two AC outlets and two USB ports with a 6.68-foot power cord. This completely eliminates the need for a separate power strip behind your massive 100-inch TV, making cable management significantly cleaner. The mount itself is built from high-strength steel with dual articulating arms that are 35% thicker than standard mounts.
The articulation specs are impressive for its price tier: 180-degree smooth swivel, +5°/-15° tool-free tilt, and 30.3 inches of extension. It retracts to just 2.8 inches from the wall for a sleek low-profile appearance. The mount has been 3x load tested to hold 660 pounds simultaneously, meaning the 220-pound rating has a massive safety margin. Real users confirm successful installations with Sony and Samsung 100-inch TVs.
Some buyers reported that the plastic caps covering the ends of the articulating arms arrived broken in a few units, though the structural integrity of the mount was unaffected. The installation instructions could also be clearer, though the included drilling template helps. For anyone seeking a mount that solves the outlet accessibility problem behind a massive TV, this is the smartest pick.
Why it’s great
- Integrated power strip with 2 USB ports simplifies cable management
- 35% thicker dual arms ensure zero wobble at full 30-inch extension
- 3x load test rating provides a massive safety buffer
Good to know
- Plastic end caps may arrive damaged in some units
- Instruction manual could be more detailed
3. monTEK Heavy-Duty 200-lb Full Motion Mount
The entry-level monTEK mount punches well above its price bracket with a 4x load-tested dual-arm design that supports up to 200 pounds. It covers VESA patterns from 200x100mm up to 900x600mm and fits wood studs at 12, 16, 18, and 24-inch spacing, making it one of the most versatile options for walls with non-standard stud layouts. The extension reaches 25.1 inches from the wall while retracting to a slim 2.75 inches.
Buyers consistently praise the ±60° swivel range and the +5°/-15° tool-free tilt, which eliminates glare without requiring any tools for adjustment. The included Velcro cable straps and pre-labeled hardware bags make installation approachable even for first-time large-TV mounters. Several verified purchasers successfully mounted 98-inch and 100-inch TCL and Samsung models without any structural concerns.
There is one critical failure reported where a mount tilted forward under a 116-pound load, bending a steel plate. The manufacturer recommends using a high-quality socket wrench during installation to ensure bolts are fully torqued. The horizontal swivel locking mechanism can also be difficult to secure. For buyers on a tighter budget, this mount offers excellent features, but careful installation is essential.
Why it’s great
- 4x load test certification provides strong structural confidence
- Fits 12, 16, 18, and 24-inch stud spacing universally
- Pre-labeled hardware and bubble level simplify assembly
Good to know
- One report of steel plate bending under 116‑lb load
- Horizontal swivel lock can be difficult to tighten
4. FORGING MOUNT XXL 275-lb 42.9″ Extension
If your room layout demands pulling a 100-inch TV three and a half feet from the wall, this FORGING MOUNT XXL is the only real option. With a 42.9-inch extension reach and a 275-pound weight capacity, it is the most extreme full-motion mount in this roundup. The six-section steel arm construction ensures that the TV remains stable even at maximum extension, and the mount is 3x load tested for safety.
The articulation is equally impressive: 180-degree swivel range, +5°/-12° tilt angle, and ±3° post-installation leveling. It also supports mounting across up to four studs at 16-inch spacing, distributing the massive load from a 100-inch TV across a wide footprint. The retraction depth is just 2.8 inches, so it can sit nearly flush when not in use. Real-world users have mounted 98-inch Sony TVs weighing 150 pounds with no sag.
The main drawback is the overall weight of the mount itself at 26.4 pounds; installation absolutely requires two people. Some buyers also noted that the price can fluctuate unexpectedly, though the brand has been responsive to complaints. For corner installations or very deep media rooms where you need to bridge a large gap between the wall and the TV, this mount is unmatched.
Why it’s great
- 42.9-inch extension is the longest available for 100-inch TVs
- 275-pound capacity handles the heaviest displays safely
- Can be mounted across four studs for extra security
Good to know
- Heavy mount requires two-person installation
- Price can fluctuate significantly day to day
5. HOME VISION Full Motion TV Mount
The HOME VISION mount distinguishes itself with an exceptionally broad stud-spacing compatibility range, supporting 12, 16, 18, 20, 22, and 24-inch wood stud layouts. This makes it the go-to option for older homes or uniquely framed walls where standard 16-inch stud spacing isn’t available. It handles TVs from 65 to 120 inches with a 220-pound capacity and a 30.2-inch extension that retracts to just 2.75 inches.
The full-motion range includes a 165-degree swivel, +10°/-10° tilt, and ±3° leveling adjustment — enough flexibility to cover most seating configurations. The installation process is straightforward thanks to the detailed drilling template and all necessary hardware included in the box. The 10-year after-sale service adds confidence for a long-term investment. Verified buyers have successfully mounted 100-inch Hisense TVs with excellent results.
Some customers reported that the included concrete anchors must be requested separately if mounting to brick or masonry, so factor that into your planning. Overall, this is a solid mid-range option that excels where stud spacing is non-standard.
Why it’s great
- Supports 12, 16, 18, 20, 22, and 24-inch stud spacing
- 30.2-inch extension offers great flexibility for corner setups
- 10-year manufacturer warranty provides long-term coverage
Good to know
- Concrete anchors not included by default
- Tilt range limited to 10 degrees
6. VIVO MOUNT-VW120M Ultra Heavy Duty
VIVO’s MOUNT-VW120M is a heavy-duty workhorse that supports up to 264 pounds and fits screens from 60 to 120 inches. With a low-profile 3-inch retraction distance and a 27.7-inch extension, it strikes a good balance between a flush look and articulation versatility. The mount arrives mostly preassembled, requiring only the VESA bracket attachment before wall mounting, which cuts installation time significantly.
The articulation features include +5°/-15° tilt, 120-degree swivel, and ±5° screen leveling, giving it one of the widest leveling adjustment ranges in this group. Integrated cable management channels keep wires protected during arm movement. Verified buyers have mounted 100-inch TCL TVs and very heavy 85-inch OLED displays without any signs of droop or instability even months after installation.
The mount itself is quite heavy at 38.3 pounds, making a two-person installation mandatory rather than recommended. Some users noted that the arm joints are stiff initially and may require lubricant to move smoothly at first. Additionally, it requires at least two studs, and the imbalance of a very heavy TV can cause the mount to tilt slightly if pushed sideways during adjustment.
Why it’s great
- 264-pound capacity handles even the heaviest 100-inch sets
- Preassembled design saves significant installation time
- ±5° leveling range is the widest in this lineup
Good to know
- Mount weighs 38 pounds; two people are essential
- Arm joints may feel stiff before breaking in
7. monTEK XXL Heavy Duty 265-lb Mount
The monTEK XXL mount is engineered for extreme heavy-duty use with a 265-pound capacity and 4x load testing certification. Its preassembled structure and unique quick-lock release mechanism allow you to snap the TV on or off in seconds — a massive convenience when you need to access rear connections or upgrade your display. The reinforced dual-arm design uses industrial-grade steel that eliminates any sagging or shaking even with a 98-inch TV fully extended.
Full-motion capabilities include ±60° swivel, +5°/-15° tool-free tilt, and a 27.7-inch extension distance that retracts to just 2.95 inches for a clean low-profile look. The mount is compatible with VESA patterns up to 900x600mm and fits wood studs at 12, 16, 18, and 24-inch spacing. Verified buyers have mounted 120-pound 98-inch TVs and report that the mount held an additional 200 pounds of body weight during installation without any sign of failure.
The mount’s weight of 34.6 pounds demands two people during installation, and some users found that they needed separate M6 bolts because the VESA hardware didn’t perfectly match their specific TV pattern. The included cable management system is adequate but not as refined as some premium competitors. For buyers who want maximum strength and the convenience of quick TV removal, this is a top-tier choice backed by lifetime customer support.
Why it’s great
- 265-pound capacity with 4x load test for extreme safety
- Quick-lock release makes TV removal effortless
- Preassembled structure reduces setup time dramatically
Good to know
- May require separate M6 bolts for some VESA patterns
- Heavy mount requires two installers
8. Perlegear PGXLF03B Full Motion Mount
The Perlegear PGXLF03B is built for buyers who want the mount to disappear when the TV is not in use. With a retraction depth of just 2.48 inches, it achieves the lowest profile in this comparison while still extending 31.69 inches from the wall when needed. It supports TVs up to 225 pounds with VESA patterns up to 900x600mm and 4x load testing combined with 6,000 cycle tests for long-term reliability.
The mount’s wall plate is 25% larger than standard designs, providing a wider distribution of load forces across the studs. The pre-assembled design is marketed to save 49% of installation time, and users consistently report that the clear diagrams make the process straightforward even for DIY beginners. The swivel range hits ±65° and the tilt offers +5°/-15°, which is the industry-standard sweet spot for glare reduction.
Some buyers noted that the hardware is complete and high-quality, but the mount’s design requires a very precise stud-finding job because the 25% larger wall plate doesn’t leave much room for lateral error. Additionally, the horizontal adjustment for centering the TV is functional but not as smooth as some competitor models. For anyone prioritizing a near-flush appearance while keeping full-motion capability, this Perlegear mount is the top contender.
Why it’s great
- 2.48-inch retraction is the slimmest profile available
- 31.69-inch extension offers excellent pull-out reach
- 6,000 cycle test ensures long-term mechanical reliability
Good to know
- Larger wall plate leaves less room for stud misalignment
- Horizontal centering adjustment could be smoother
9. Mount-It! MI-14010 XXL Heavy Duty
The Mount-It! MI-14010 is the most confidence-inspiring mount in this lineup thanks to its lifetime warranty and US-based customer support team. It supports up to 264 pounds across VESA patterns up to 900x600mm, with a 27.7-inch extension that retracts to 3 inches. The dual-arm heavy-duty construction uses high-strength alloy steel designed to prevent any sagging or drooping, even with a 100-inch TV at full extension.
The full-motion range includes +5°/-15° tilt for glare reduction, ±60° swivel for wide seating coverage, and ±5° screen leveling for post-installation fine-tuning. The quick-release system allows for easy TV removal during maintenance. Fits standard 16, 18, and 24-inch stud spacing but is not compatible with metal studs or drywall-only installation. Verified users have mounted 98-inch and 100-inch TVs and report zero sag and smooth articulation months later.
The mount is heavy and definitely requires two people for installation, though the included bubble level and clear graphical guide make the process straightforward. Some users noted that the mount sits at about 3 inches from the wall, which isn’t quite as flush as the Perlegear. For buyers who prioritize a lifetime warranty and US-based support above all else, the Mount-It! represents the safest long-term investment.
Why it’s great
- Lifetime warranty with US-based customer support
- ±5° leveling range ensures perfect horizontal alignment
- Quick-release system simplifies TV removal and maintenance
Good to know
- 3-inch retraction is not the slimmest profile available
- Not compatible with metal studs
FAQ
Will a mount rated for 100 inches work with my 98-inch TV?
Can I mount a 100-inch TV on drywall alone?
What is the minimum number of studs I need for a 100-inch TV mount?
How do I know if my VESA pattern is compatible with a mount?
Final Thoughts: The Verdict
For most users, the best 100-inch tv mount winner is the USX STAR 100-Inch Mount because it combines a 220-pound capacity, a 28-inch extension, and six-arm construction at a price that undercuts premium models while delivering similar structural confidence. If you want the slimmest possible profile when your TV is not in use, grab the Perlegear PGXLF03B with its 2.48-inch retraction. And for extreme extension needs exceeding 30 inches, nothing beats the FORGING MOUNT XXL 42.9-inch model.
