That 100-amp fuse sitting between your battery bank and your inverter is the single most important component keeping your system from turning into a pile of melted copper and plastic. Choose the wrong one, and you are either leaving your gear unprotected from a real over-current event, or you are introducing a voltage drop that starves your entire setup. This is not a component to guess at or cheap out on — the difference between a precision-clearing fuse and one that arcs or delays under load can mean the difference between a working system and a fire hazard.
I’m Min — the co-founder and writer behind Gadgets Feed. I have spent hundreds of hours analyzing technical specifications, cross-referencing real-world burning tests, and digging through electrical engineering data sheets to separate the fuses that actually perform at their rated capacity from those that simply print “100A” on the label.
Whether you are wiring up a solar array, a marine electrical system, an RV auxiliary battery, or a high-current car audio build, this guide breaks down the top contenders for the best 100000 amp fuse so you can spec your circuit protection with absolute confidence.
How To Choose The Best 100000 Amp Fuse
Selecting a 100-amp fuse is less about the current rating itself and more about the voltage, form factor, and interrupt capacity that match your specific installation. Here are the three decisions you must get right before you buy.
Voltage Rating: The Most Overlooked Spec
A 100-amp fuse rated for 32V DC will fail catastrophically if you install it in a 48V solar system. The voltage rating determines how well the fuse can extinguish the arc when it blows. For 12V or 24V automotive and marine systems, 32V fuses are standard. For 48V battery banks, you need a fuse rated for 58V DC or higher — otherwise the internal arc can sustain itself and cause a fire.
Form Factor: ANL, MEGA, or MRBF
ANL fuses are the most common for mid-current applications up to 400 amps and feature a flat, rectangular body that bolts into a separate holder. MEGA fuses are smaller, bolt-down fuses often used in battery terminals and distribution blocks — they save space but have lower interrupt ratings. MRBF (Marine Rated Battery Fuse) fuses mount directly to battery posts and are IP66 waterproof, making them ideal for engine compartments and marine bilges. Choose the form factor that fits your physical layout and environmental exposure.
Interrupt Capacity (AIC)
Interrupt capacity tells you the maximum fault current the fuse can safely clear without rupturing. A 100-amp fuse with a 6,000-amp AIC can handle a dead short from a large battery bank. If your battery bank can deliver 10,000+ amps into a short circuit, a low-AIC fuse may explode. Always match the AIC to the available short-circuit current of your source.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Blue Sea Systems 5125 | ANL | Marine & high-AIC systems | 6,000A AIC, 32V DC, silver-plated blades | Amazon |
| RED WOLF Circuit Breaker | Breaker | Resettable protection & kill switch | IP67 waterproof, manual reset, 48V DC | Amazon |
| Victron Energy MEGA-Fuse | MEGA | Victron Lynx distributors & tight spaces | 5-pack, 32V DC, copper construction | Amazon |
| WindyNation ANL Set | ANL Kit | Solar & inverter builds | 2x 100A fuses + holder, accepts 2/0 AWG | Amazon |
| Renogy ANL Set | ANL Kit | Entry-level solar & RV setups | Ignition protected, RoHS compliant, brass copper | Amazon |
| BOJACK MRBF Terminal Fuse | MRBF | Marine battery posts & wet environments | IP66 waterproof, 58V DC, ceramic body | Amazon |
| Fastronix MEGA/AMG Fuse | MEGA | Alternator & battery terminal protection | Time delay, 32V DC, copper construction | Amazon |
In‑Depth Reviews
1. Blue Sea Systems 5125 ANL Fuse – 100 Amp
The Blue Sea Systems 5125 sets the standard for ANL fuses at 100 amps. Its silver-plated connector blades resist corrosion far better than bare copper or tin-plated alternatives, which matters in marine or high-humidity environments where resistance creep can cause nuisance heating. The 6,000-amp interrupt capacity at 32V DC meets ABYC requirements for main DC circuit protection on large battery banks, so you can trust it to clear a dead short from multiple paralleled batteries without rupturing.
Ignition protection per SAE J1171 makes it safe for gasoline-powered boat engine compartments — a certification many budget fuses skip. The visible blown condition indicator lets you quickly spot a failed fuse without pulling it. At this price point, you are paying for the engineering pedigree and the assurance that the fuse blows at its rated 100 amps, not 130 or 150.
Some users note it is expensive compared to generic ANL fuses, but several customer reviews confirm that cheap alternatives can rupture or fail to clear at high fault currents. One buyer explicitly replaced a generic ANL with this Blue Sea unit after the cheap one burned through under load. For any system where fire safety matters, this is the benchmark.
Why it’s great
- Silver-plated blades prevent corrosion and voltage drop over time
- 6,000A interrupt capacity clears high-fault shorts safely
- Ignition protected per SAE J1171 for marine gasoline engine bays
Good to know
- Rated for 32V DC only — not suitable for 48V systems
- Fuse only — you need a separate ANL holder
2. RED WOLF Waterproof 100Amp Circuit Breaker
If you want resettable over-current protection without carrying spare fuses, the RED WOLF 100-amp circuit breaker is a compelling alternative. The IP67 waterproof rating means it can handle rain, bilge spray, and engine compartment moisture without corroding internal contacts — an advantage over open-style ANL holders that must stay dry. The manual reset switch also doubles as a convenient kill switch for solar systems or vehicle auxiliary batteries.
This breaker handles up to 48V DC, making it compatible with 12V, 24V, and 48V systems. Multiple customer reviews highlight its ability to handle the inrush current of a 1,100-watt inverter without nuisance tripping. The screw terminals use pure copper, and the included waterproof cover prevents rust on the metal parts. You never need to buy replacement fuses.
One caveat: the stud terminals are relatively small, and some users report difficulty fitting 2 AWG ring terminals securely. If your wiring demands 2 AWG or larger, verify the fit before committing. Also note that this is a thermal breaker, so it may trip slightly slower than a fast-acting ANL fuse on a hard short — but for typical accessory circuits, it is more than adequate.
Why it’s great
- IP67 waterproof for marine and outdoor installations
- Manual reset eliminates fuse replacement cost
- 48V DC rating covers all common low-voltage systems
Good to know
- Terminals may not accept 2 AWG or larger lugs easily
- Thermal trip curve is slower than a fast-acting fuse
3. Victron Energy MEGA-Fuse 100A/32V (Pack of 5)
Victron Energy’s reputation in the solar and marine power space is built on reliable, well-documented components, and their MEGA-fuses are no exception. This 5-pack gives you spare fuses without buying single units at inflated prices. The MEGA form factor is compact — just 2.63 inches long and 0.38 inches thick — making it ideal for tight distribution blocks like the Victron Lynx Distributor or other MEGA-compatible holders.
Rated to 32V DC, these fuses are designed for 12V and 24V systems. The copper construction provides consistent low resistance, and the time-delay characteristic prevents nuisance blowing from short-duration inrush spikes common when energizing inverters or motors. A customer review puts it plainly: “you only get one chance to burn down the house” — meaning the small premium over generic fuses is cheap insurance.
Keep in mind that the MEGA form factor requires a dedicated MEGA fuse holder — you cannot physically fit these into an ANL holder. Also, at 32V max, they are not suitable for 48V battery banks. But for Victron-centric systems, this is the fuse that was designed to go with the hardware.
Why it’s great
- 5-pack provides excellent value for multi-fuse installations
- Time-delay characteristic handles inverter inrush without nuisance blows
- Trusted Victron quality with solid engineering documentation
Good to know
- 32V DC max — incompatible with 48V solar systems
- Requires a MEGA-compatible fuse holder (not ANL)
4. WindyNation ANL Fuse Holder + Fuse (2pcs 100A)
The WindyNation ANL kit bundles a sturdy fuse holder with two 100-amp ANL fuses, giving you everything you need for a single install plus a spare. The holder accepts up to 2/0 AWG cable, which is essential for high-current runs between batteries and inverters. The 8 mm diameter mounting bolts match standard 5/16-inch ring terminals, so you do not need oddball hardware.
Customer feedback consistently praises the build quality: one user reports fitting 1/0 AWG with room to spare for the ferrule, and another notes that the holder is “way better than expected” for the price. The clear plastic cover allows visual inspection of the fuse element. The included second fuse is a practical bonus — if you blow one during a fault, you have a backup ready.
A few users note that the plastic cover snaps are not the most secure, and the cover can pop off if bumped. A zip tie around the cover solves the issue. Also, some found the included hardware adequate but not premium. For solar, RV, and inverter installations where you want a complete kit at a fair price, this is a solid choice.
Why it’s great
- Complete kit: holder plus two 100A fuses
- Holder accepts up to 2/0 AWG cable for high-current runs
- Cost-effective compared to buying holder and fuses separately
Good to know
- Plastic cover snaps are not the most secure
- Cover is not waterproof — keep away from direct moisture

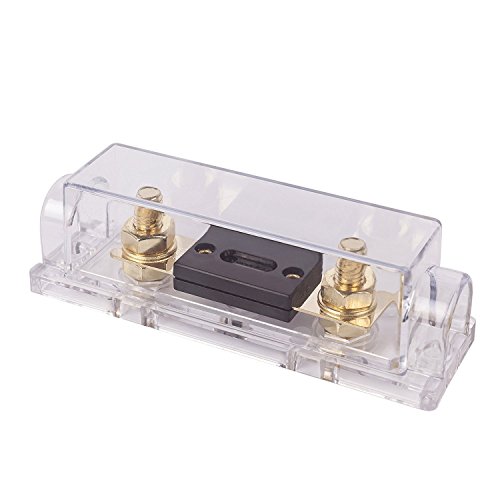

5. Renogy Set w Holder + 100A ANL Fuse
Renogy is a household name in the solar industry, and their 100-amp ANL fuse set brings their brand reliability to circuit protection. The kit includes a clear non-conductive cover and the fuse itself, designed specifically to work with Renogy’s ANL fuse block. The materials — high-quality alloy and brass copper — are chosen to minimize resistive losses at full rated current.
Ignition protection makes this set safe for installation in RVs, boats, and other enclosed spaces where flammable vapors may be present. RoHS compliance confirms the absence of environmentally hazardous substances. Customer reviews describe it working well in solar setups, lithium battery conversions, and as a replacement for circuit breakers that were dropping voltage under load.
One observation from a buyer: the included ANL fuse is physically larger than many standard ANL fuses, so finding a replacement at a local auto parts store may be tricky. The holder itself is not weatherproof, so mount it in a dry location. For the price, this is a reliable entry-level set that pairs naturally with Renogy solar charge controllers and inverters.
Why it’s great
- Ignition protected for safe use in RVs, boats, and enclosed spaces
- Brass and copper construction minimizes resistive losses
- Designed to integrate with Renogy solar system components
Good to know
- Fuse is physically larger than standard ANL — replacements may be hard to find locally
- Holder is not weatherproof — avoid direct water exposure
6. BOJACK MRBF Terminal Fuse Block 100 AMP
When your installation lives in a wet environment — a boat bilge, an engine compartment, or exposed to rain — the BOJACK MRBF terminal fuse block is the correct choice. Rated at 58V DC max, it handles 12V, 24V, and 48V systems with headroom to spare. The IP66 waterproof rating and ceramic body ensure that moisture and vibration do not compromise performance over time.
The compact design mounts directly to battery terminals using the M10 stud, saving space in crowded battery boxes. The PA66-RG301 thermoplastic housing resists heat and chemicals. Customer reviews confirm it protects batteries from shorts — one user accidentally dropped a negative wire onto the positive cap, and the fuse blew cleanly without damaging the battery bank. It also works well on 12.6V systems feeding a pure sine inverter.
Be aware that MRBF fuses and holders are specific to this form factor — you cannot swap in a standard ANL or MEGA fuse. The included components are minimal; you get the fuse block and fuse, no extra hardware. For marine, automotive, and RV installations where space is tight and water is present, this is the most practical solution.
Why it’s great
- 58V DC rating works with 12V, 24V, and 48V systems
- IP66 waterproof for wet marine and engine compartments
- Compact direct-mount design saves space on battery terminals
Good to know
- MRBF form factor is not compatible with standard ANL or MEGA holders
- Minimal included hardware — may need additional mounting studs
7. Fastronix 100 Amp MEGA/AMG Bolt Down Fuse
If you need a straight-up MEGA-format fuse for a 12V or 24V alternator, battery terminal, or distribution block at the lowest possible price, the Fastronix 100-amp bolt-down fuse delivers. It is manufactured by Littelfuse, a respected name in circuit protection, so the quality is not in question despite the budget-friendly price. The time-delay characteristic prevents nuisance blowing during momentary high-current events like alternator field flash or motor startup.
Rated to 32V DC and made with copper internals, this fuse offers decent conductivity for its class. It is designed to fit standard MEGA fuse holders, specifically the Fastronix 500-040 holder. Customer reviews are short but positive: “works as advertised,” “durable,” and “looks like a well-made fuse.”
There are no frills here — no included holder, no spare fuse, no waterproofing. It is simply a quality MEGA fuse at a price that makes sense for building up a spare parts kit or multiple smaller installations. For high-amp builds where you want to save money without rolling the dice on a no-name brand, this is the budget-friendly option.
Why it’s great
- Manufactured by Littelfuse — known reliable circuit protection components
- Time-delay handles momentary inrush without nuisance blowing
- Budget-friendly price for spare parts or multi-unit installations
Good to know
- Fuse only — no holder or hardware included
- 32V DC max — not for 48V battery systems
FAQ
Can I use a 100-amp ANL fuse in a 48V solar system?
What is the difference between ANL, MEGA, and MRBF form factors?
Why do some 100-amp fuses cost more than others?
Should I oversize a fuse above 100 amps for safety?
Final Thoughts: The Verdict
For most users, the best 100000 amp fuse winner is the Blue Sea Systems 5125 because its 6,000-amp interrupt capacity and silver-plated blades set the standard for safety and corrosion resistance in marine and high-demand DC systems. If you want resettable protection without carrying spare fuses, grab the RED WOLF Circuit Breaker. And for Victron-centric builds where form-factor compatibility matters most, nothing beats the Victron Energy MEGA-Fuse 5-pack.
