You want the low-end authority of a large ported enclosure, but you simply don’t have the cubic feet to spare. A 12 inch passive radiator is the mechanical workaround that trades internal volume for external cone area, letting a single active driver move more air without the chuffing and length restrictions of a traditional port. The catch is that tuning, mass, and suspension compliance must be matched precisely to your active subwoofer or the system will sound loose, muddy, or bottom out too early.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing the mechanical specifications, enclosure modeling data, and real-world user feedback that separates a properly integrated passive radiator from a misapplied one that ruins a build.
This guide breaks down the nuanced trade-offs in compliance, added mass limits, and enclosure fitment so you can confidently choose the 12 inch passive radiator that will extend your subwoofer system’s low-end output without introducing mechanical noise or installation headaches.
How To Choose The Best 12 Inch Passive Radiator
A passive radiator is not a speaker—it has no motor (voice coil or magnet). It relies entirely on the air pressure inside a sealed enclosure, created by an active subwoofer, to move its cone and generate bass. Choosing the wrong one means your system will either sound anemic or destroy itself from mechanical over-excursion. Here are the three critical parameters to evaluate.
Compliance and Suspension Stiffness
A radiator with a stiff suspension (low compliance) requires more internal pressure to move, which raises the system’s tuning frequency and reduces deep-bass extension. A more compliant radiator (high compliance) lets you tune lower but demands careful mass tuning to avoid unloading at high power. Look for polyether foam surrounds or long-throw rubber surrounds—these indicate higher compliance designed for deeper tuning.
Allowable Added Mass and Tuning Range
Most passive radiators allow you to bolt or glue additional mass (metal washers, quarters, or proprietary weights) onto the cone to lower the resonant frequency. The usable tuning range is limited by the suspension’s linear travel. If you add too much mass, the suspension bottoms out before the active driver reaches its Xmax, causing distortion and potential damage. A radiator with a built-in spider (like the Earthquake Pump-12) offers more controlled travel than a purely surround-based design.
Cutout Diameter and Envelope
The actual cutout diameter and mounting depth of the passive radiator must physically fit your enclosure. A 12-inch passive radiator typically requires an 11-inch cutout, but always check the frame outside diameter. Some units, like the Kicker 47KBRW12, are designed specifically for shallow enclosures and have a thin profile. You also need to account for any baffle thickness and ensure the radiator’s cone can fully extend without contacting internal bracing or the rear wall of the box.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| KICKER 48TRTP122 | Pre-Loaded Module | Compact SUV/Truck Install | Down-firing, forced-air cooled woofer | Amazon |
| Cerwin-Vega VPAS12 | Powered Enclosure | Plug-and-Play Under Seat | 600W built-in amp, cast aluminum heatsink | Amazon |
| Harmony Audio Kicker 47TRTP122 Bundle | System Bundle | Complete All-in-One Setup | Kicker 47TRTP122 + 800W Class D amp + 8AWG kit | Amazon |
| EARTHQUAKE PUMP-12 | Horn-Loaded Module | Maximum SPL from Single Driver | Dual 12″ horn-loaded, +6dB gain, anti-rocking suspension | Amazon |
| Rockville W12K6D4 V2 | Active Subwoofer | DIY Custom Enclosure Build | 2400W peak, 5.75″ mounting depth, fiber cone | Amazon |
| KICKER 47KBRW12 | Standalone Radiator | Shallow Enclosure Tuning | Tuned to 34Hz in 12″ application | Amazon |
| Goldwood Sound GW-212/8 | Active Woofer | Vintage Speaker Replacement | 240W max, 88dB SPL, 20oz magnet | Amazon |
In-Depth Reviews
1. KICKER 48TRTP122 12″ Thin Down-Firing Subwoofer with Passive Radiator
The KICKER 48TRTP122 is a complete thin-profile enclosure solution that integrates a 12-inch CompRT active subwoofer with a high-output ReFLEX passive radiator. The down-firing orientation hides the drivers entirely, making it visually unobtrusive in cargo areas while the forced-air cooling system keeps the voice coil 20% cooler for sustained high-power sessions. This is a premium pre-loaded module, not a standalone radiator, so you skip the design work entirely—KICKER has already matched the active driver’s parameters to the radiator for a tuned system response around 34Hz.
User feedback confirms this unit hits hard and clean in SUV and truck applications. Owners report installing it in 2023 Mazda 3 hatchbacks, Escalades, and Tacomas with 400W to 600W RMS amplifiers, enjoying low bass that integrates smoothly with factory sound systems. The enclosure is internally braced, eliminating panel flex and rattles that plague cheaper prefab boxes. One reviewer paired it with a Kicker Key 500.1 monoblock and achieved balanced response with zero EQ adjustment.
The drawback is that if you exceed the 600W RMS sweet spot, the radiator’s mechanical limits can be reached, and one user reported failure after two months with a 500W Rockville amp—likely a gain-matching issue rather than a systemic flaw. The thin design also sacrifices ultimate cone excursion compared to a full-depth 12-inch driver. This is a space-optimized solution, not an SPL competition monster.
Why it’s great
- Forced-air cooling increases reliability during extended listening
- Down-firing design hides drivers and protects them from cargo
- Factory-tuned passive radiator eliminates guesswork for the end user
Good to know
- Thin-profile design limits maximum cone excursion compared to full-depth units
- Requires careful gain matching to avoid over-driving the passive radiator
2. Cerwin-Vega VPAS12 12″ Compact Powered Subwoofer with Passive Radiator
The Cerwin-Vega VPAS12 bundles a 600W Class D amplifier, a 12-inch active subwoofer, and a passive radiator into a single compact enclosure designed for under-seat or tight-trunk installations. The amplifier is housed in a cast aluminum heatsink that dissipates heat efficiently, and the passive radiator extends the bass response lower than a similarly-sized sealed box could manage. The 150Hz frequency response ceiling means this is optimized for sub-bass duties, not mid-bass, and the RCA-level inputs make it compatible with both factory and aftermarket head units.
Real-world installations confirm the VPAS12 fits under the passenger seat of 2018 Sprinter vans and 2022 Toyota Tacomas, delivering bass that shakes mirrors at quarter volume. Owners upgrading from factory audio systems report a dramatic improvement in low-end depth without losing cargo space. The plug-and-play nature means no separate amplifier to mount, and the remote control lets you adjust bass level from the driver’s seat without touching a head unit.
The passive radiator in this design cannot be user-tuned—its mass and compliance are fixed by Cerwin-Vega. This limits flexibility if you want to tailor the box to a specific vehicle’s acoustic environment. Additionally, the under-seat form factor means the cone excursion is physically constrained by the shallow mounting depth, so it won’t produce the gut-punch SPL of a full-size ported box. It’s a convenience-first design for daily drivers who want respectable bass without the installation headache.
Why it’s great
- Fully integrated amplifier eliminates external amp installation work
- Cast aluminum heatsink handles sustained output without thermal shutdown
- Compact enough for under-seat mounting in trucks and vans
Good to know
- Passive radiator is not user-tunable—fixed mass limits custom tuning
- Shallow enclosure sacrifices ultimate excursion for fitment convenience
3. Harmony Audio Kicker 47TRTP122 Car Audio Down Firing 12″ Thin Sub Box Passive Radiator Bundle
This bundle pairs the Kicker 47TRTP122 thin down-firing enclosure (the same hardware from the standalone 48TRTP122) with a Harmony Audio HA-A400.1 Class D monoblock amplifier (800W peak) and an 8-gauge amp install kit. It’s a complete system for someone who doesn’t want to source components individually. The Kicker passive radiator in this enclosure is tuned to optimize the CompRT active driver’s output, and the down-firing configuration protects both drivers from cargo impact.
Early adopters report installation in Ford F-150s and other trucks, noting that the amplifier fits easily in tight spaces and features RCA signal-sensing turn-on, eliminating the need to run a remote wire. The Kicker sub delivers clean, punchy bass at moderate listening levels, and the passive radiator extends the low-end response well below what a sealed thin-box could achieve alone. The provided wiring kit is functional but users confirm the 8-gauge wire is thinner than ideal—upgrading to 4-gauge is recommended for long runs or higher wattage.
Some users upgrade the Harmony amp to the Kicker amplifier for better depth and control, which suggests the HA-A400.1 is the weak link in the bundle. It provides adequate power (400W RMS at 2 ohms) but lacks the refinement and headroom of Kicker’s own monoblocks. The bundle is a solid entry-level system that gets you operational with minimal effort, and you can always swap the amplifier later without touching the well-designed enclosure.
Why it’s great
- Single purchase includes sub box, amp, and wiring for immediate installation
- RCA signal detection means no separate remote turn-on wire is needed
- Down-firing Kicker enclosure is well-engineered and tuned around the passive radiator
Good to know
- Included 8-gauge wiring kit is marginal—upgrade to 4-gauge for reliability
- Harmony Audio amplifier lacks the refinement of the standalone Kicker amp

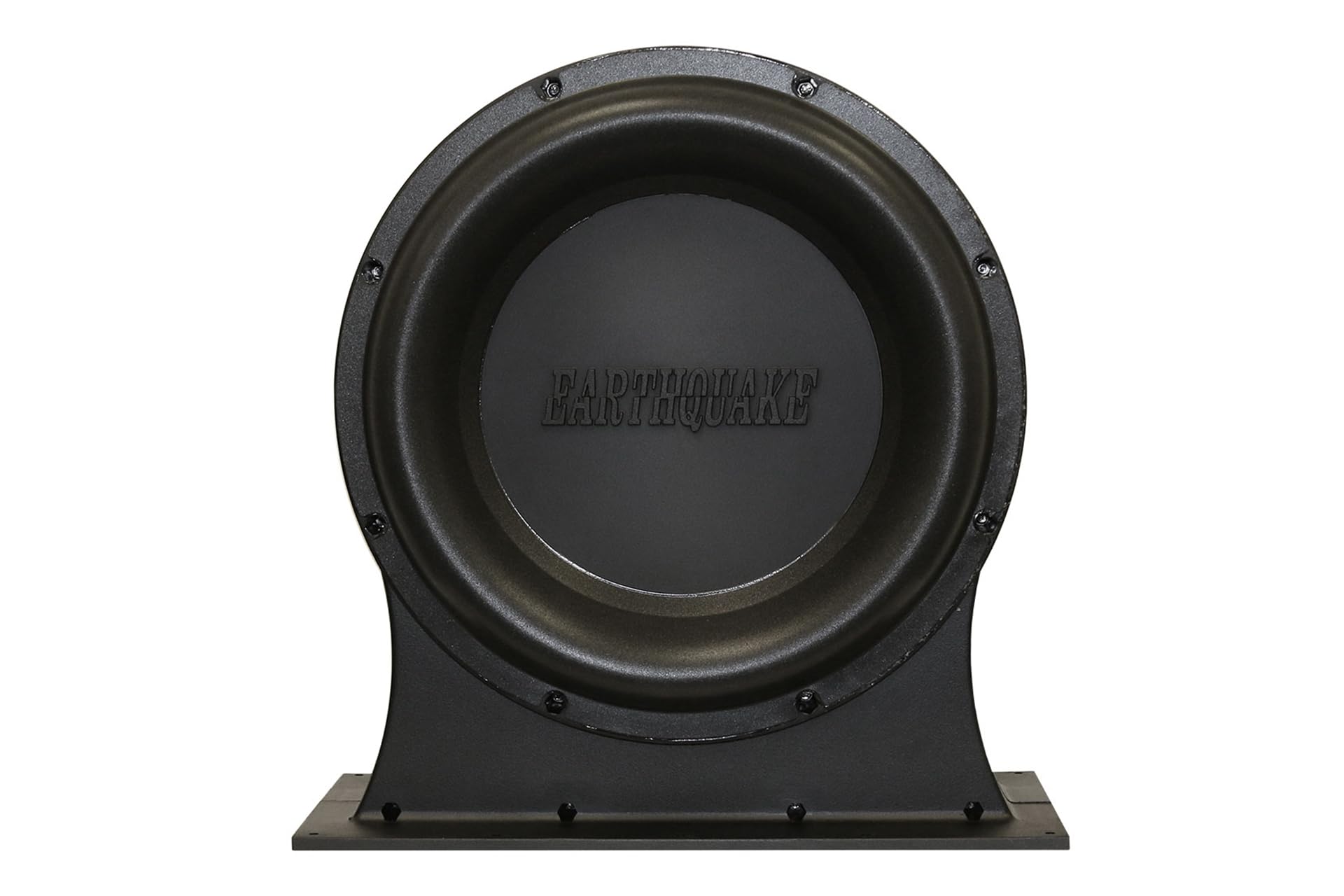

4. EARTHQUAKE Sound PUMP-12 Dual 12-Inch Horn Loaded Passive Bass Radiator Module
The Earthquake Pump-12 is a patent-protected passive module that uses a horn-loaded neck between the active driver and the dual 12-inch passive radiators. This mechanical transformer increases acoustic impedance, effectively amplifying the pressure differential at the passive cones. Earthquake claims a +6dB gain over a standard PR setup, and the unit is designed to be mounted directly onto a sealed enclosure, converting it to a bass-reflex system without needing extra internal volume. The dual 12-inch cones provide 226 square inches of total piston area, moving enormous amounts of air.
User reports on car audio forums describe this module as an “SPL cheat code.” One builder mounted it externally on a 13-inch subwoofer enclosure and reported the system produced bass so intense it blurred vision at 35Hz in a 3.5-cubic-foot box tuned to 35Hz. The anti-rocking dual suspension (using a spider instead of just a surround) keeps the cones aligned at high excursion, preventing the distortion that plagues cheap PRs. The cutout itself is relatively small for the output produced, requiring a 5.5-by-12-inch rectangular cutout.
The build quality of the plastic housing feels less premium than the price suggests—some owners had to sand down sharp edges or replace screws. The module is large (14 inches per side) and may not fit all vehicle placements. This is a specialty item for maximum SPL from a single active driver, not a subtle bass enhancement tool. If you are building a ground-pounder system and have the space, the Pump-12 offers efficiency gain that few other passive radiators can match.
Why it’s great
- Horn-loaded design provides measurable +6dB output improvement over standard PRs
- Anti-rocking dual suspension (spider + surround) keeps cones stable at high excursion
- Requires minimal enclosure space—mounts externally to an existing sealed box
Good to know
- Plastic housing feels cheap and may require sanding or sealing upon arrival
- Large overall footprint limits placement options in smaller vehicles
5. Rockville W12K6D4 V2 12″ Car Audio Subwoofer
While the Rockville W12K6D4 is an active subwoofer (not a passive radiator), it belongs in this guide because it is the ideal pairing for any of the standalone PRs listed here. The dual 4-ohm voice coils allow flexible wiring (2 ohms or 8 ohms final load), and the fiber-reinforced non-pressed paper cone is stiff enough to drive a passive radiator without cone flex. The 600W RMS power handling on a cast aluminum basket means this sub can handle sustained low-frequency demands without distortion.
Owners have used this sub in sealed and ported enclosures, with many crossing over at 80Hz to great effect. The 5.75-inch mounting depth fits in standard boxes, and the vented pole piece keeps the voice coil cool during long sessions. Users running two of these in parallel on 1000W-rated amps report them surviving years of daily abuse in dirty trucks and downward-facing boxes. The sound signature is described as loud and deep, not surgical—perfect for hip-hop and EDM.
If you are pairing this active driver with a passive radiator like the Kicker 47KBRW12 or a custom PR build, note that the Rockville’s Qts and Vas are not published in detail. You will need to measure the Thiele-Small parameters yourself or use a modeling tool like WinISD to design the enclosure. The lack of supplied TS data means the beginner builder is at risk of mis-matching the PR to the active driver, resulting in poor tuning.
Why it’s great
- Cast aluminum basket and fiber-reinforced cone handle high power without flex
- Dual 4-ohm voice coils offer flexible impedance matching for most Class D amps
- Short 5.75″ mounting depth fits shallow enclosures
Good to know
- No published Thiele-Small parameters—requires manual measurement for PR tuning
- Mid-range sound character, not an audiophile-grade driver
6. KICKER 47KBRW12 Car Audio Tuned Passive 12″ Radiator
The Kicker 47KBRW12 is a standalone passive radiator designed to be paired with an active subwoofer in a sealed or thin enclosure. It is part of Kicker’s Bass ReFLEX line, tuned to 34Hz out of the box in a 12-inch application. The radiator uses a foam surround and stamped steel frame, and Kicker supplies adhesive-backed screw covers to keep the mounting tidy. The key advantage here is the shallow profile—this PR can be installed in enclosures with minimal internal depth, making it ideal for under-seat or space-limited builds.
Users report excellent results pairing this PR with a single 10-inch active subwoofer in a 0.6-cubic-foot enclosure, achieving deep, full bass that a sealed box could not produce. The PR reinforces frequencies from 90Hz down to 34Hz before rolling off at 24dB per octave. The ability to bolt additional mass to the cone allows users to lower tuning to the 20-30Hz range, though careful adjustment is needed to avoid bottoming out. The construction is durable enough for marine applications since the sealed enclosure keeps water and debris away from the moving parts.
The main limitation is that this PR cannot be tuned upward—its stock tuning is already relatively high at 34Hz for a 12-inch unit. Adding mass lowers the tuning, but if you want a higher tuning, you need a stiffer suspension which this unit does not offer. Some users also note that at high power levels near the mechanical limits, the cone can wobble if the active driver’s excursion exceeds the PR’s Xmax. Matching a high-excursion 12-inch active driver to this PR is essential.
Why it’s great
- Out-of-box tuning at 34Hz provides solid low-bass extension immediately
- Thin profile fits in shallow enclosures where standard PRs cannot
- Can be mass-loaded with added bolts/washers to reach sub-30Hz tuning
Good to know
- Cone excursion limits must be carefully matched to the active driver to avoid bottoming
- Cannot increase tuning frequency without replacing the entire suspension
7. Goldwood Sound GW-212/8 OEM 12″ Woofer
The Goldwood GW-212/8 is an OEM replacement 12-inch woofer, not a purpose-built passive radiator. It appears in this guide because budget-minded DIY builders often repurpose woofers with the voice coil removed or shorted as makeshift passive radiators. The poly-laminated cone with a foam surround provides reasonable compliance, and the 20-ounce magnet can be removed entirely to reduce moving mass. The stamped steel frame is durable and the 1.5-inch aluminum voice coil handles thermal stress if you leave the coil intact but shorted.
Users have successfully used this woofer to replace rotted drivers in vintage Fisher, Pioneer, and Jensen speakers, often noting that after enclosure modification and crossover rebuilding the system sounds as good as the originals. The 88dB SPL sensitivity is average but acceptable when the woofer is driven by a dedicated amplifier. If you are planning to convert this into a PR, you will need to remove the magnet assembly and possibly glue additional mass to the cone to achieve a usable tuning frequency.
This is not a plug-and-play solution for passive radiator applications. The lack of a spider (if you remove the voice coil), the short excursion, and the unknown compliance value make it a gamble. It works brilliantly as a replacement driver for vintage speakers, but as a dedicated passive radiator, it is outclassed by units designed specifically for that role. Stick with this if you are repairing cabinets on a tight budget; for a clean PR build, invest in a proper unit.
Why it’s great
- Excellent price point for replacing vintage 12-inch woofers with foam rot
- Poly-laminated cone and foam surround provide adequate compliance for daily listening
- Handles 240W peak in normal active operation
Good to know
- Not designed as a passive radiator—requires heavy modification and guesswork to use as a PR
- Short excursion (no specific Xmax rating) limits usable output in high-power passive builds
FAQ
Can I use a regular 12-inch woofer as a passive radiator?
How do I tune a 12-inch passive radiator lower?
Does a passive radiator need its own sealed enclosure?
What happens if I pair a 12-inch passive radiator with a bigger or smaller active driver?
Final Thoughts: The Verdict
For most users, the best 12 inch passive radiator solution is the KICKER 48TRTP122 because its factory-tuned forced-air cooled system removes all guesswork from the build, delivering clean low-frequency extension in a space-saving down-firing package. If you want the absolute highest SPL from a single active driver and have room for a large external module, the EARTHQUAKE PUMP-12 is a specialist tool for SPL enthusiasts. And for the budget-conscious builder who wants a dedicated standalone radiator, the KICKER 47KBRW12 offers the most predictable tuning path and the shallowest profile on the market.
