Our readers keep the lights on and my morning glass full of iced black tea. As an Amazon Associate, I earn from qualifying purchases.7 Best 12 Volt Linear Actuator | 1320lb Lift That Actually Moves

Check Price on Amazon

The ECO-WORTHY 3000N actuator delivers 660 lbs of force in a 12-inch stroke package, making it a serious candidate for solar tracker automation and heavy RV bed lifts. Users consistently report that this unit operates roughly 20 dB quieter than the standard Eco-Worthy tracker actuator, dropping from an audible 70 dB to a much calmer 50 dB. The IP65 sealing is the real differentiator here — it is dust-tight and protected against water jets, which matters for outdoor deployments exposed to rain and dust.

Travel speed sits at 5 mm/s, which is standard for this force class. Real-world testing confirms it lifts 255 lbs without hesitation on a homemade cart, and several owners have used it as a direct replacement on Eco-Worthy solar trackers. The aluminum alloy housing resists corrosion, and the built-in limit switch prevents the motor from idling at full extension. Brackets bolt on without modification, simplifying installation.

One note from the field: a user had to replace their original tracker actuator after four months, so while this unit is a clear upgrade in noise and sealing, longevity over years is still unproven in that specific role. For most automation and lifting tasks, the combination of force, weather protection, and quiet operation earns it the top spot in this lineup.

Check Price on Amazon

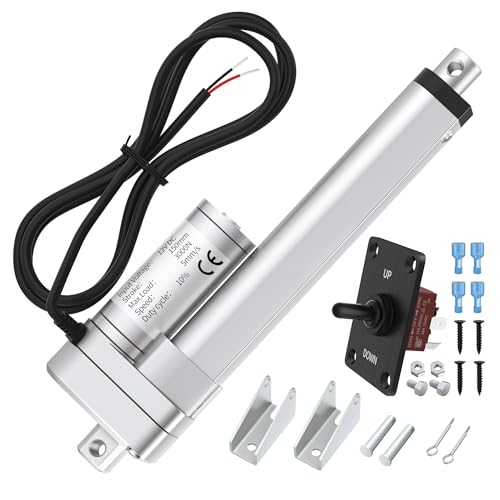

This RVMARINEPAT model packs 3000N of force into a compact 6-inch stroke, making it ideal for applications where space is tight but lifting power is non-negotiable. The package includes a three-position momentary reverse polarity toggle switch with a mounting panel and waterproof cap, so you get a complete control solution out of the box. The travel speed is 5 mm/s, and the current draw is 4 amps, which is manageable with a standard 12V power supply.

Users have successfully deployed it to lift tractors, operate RV bed mechanisms, and raise oversize load signs on pickups at highway speeds. One owner reported two years of trouble-free operation on a daily-driven sign that cycles multiple times per trip. The aluminum alloy construction and high-strength plastic worm gear keep noise at or below 50 dB. The self-locking feature holds position reliably when the switch is released, which is critical for safety in vertical lifting scenarios.

A few buyers experienced failures within the first few cycles, suggesting batch inconsistency in the internal components. The plastic worm gear, while quiet, raises durability questions for continuous high-load use. For light to medium-duty projects where compact size and included controls simplify the build, this actuator delivers strong value.

Check Price on Amazon

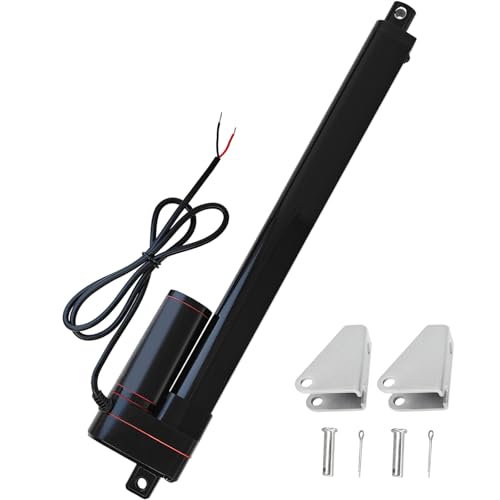

The JQDML actuator breaks the speed ceiling of the category with a no-load travel speed of 34 mm/s, nearly seven times faster than the typical 5 mm/s heavy-duty units. This speed comes at a force trade-off — the maximum load is 88 lbs (400N), which limits it to lighter applications such as sunroofs, electric sofas, or marine tiller pilots. The IP65 rating ensures it can handle outdoor exposure, and the four-corner fixation base provides stability during rapid movement.

A real standout use case comes from a sailor who built a pypilot tiller autopilot for a 38-foot sailboat, reporting that this actuator is fast enough to keep up with course corrections where slower units would lag. Other users have integrated it into sliding cargo trays and reported that it remains quiet despite the higher speed. The high-strength plastic worm gear keeps noise below 50 dB, and the built-in limit switch automatically halts motion at full extension and retraction.

The main constraint is load capacity. Exceeding 50 percent of the maximum rating caused a failure in one instance, though the seller offered a full refund and advised staying within a conservative margin. If your project prioritizes rapid movement over brute strength, this is the clear winner. For heavier lifting, look at the 3000N class units.

Check Price on Amazon

This 12-inch stroke variant from RVMARINEPAT shares the same 3000N motor as its compact sibling but extends the range of motion for applications requiring longer travel. The retracted length is 420 mm, and the fully extended length reaches 720 mm, giving you 300 mm of usable stroke. Travel speed remains at 5 mm/s with a current draw of 4 amps, and the unit includes mounting brackets and a polarity reversing switch.

Users have used it to lift tractors, operate RV bed lifts, and raise oversize load signs on pickup trucks. One owner reported flawless performance over two years of frequent highway-speed cycling. The low-noise motor design keeps sound at or below 50 dB, and the built-in limit switch provides automatic shutoff at the end of stroke. The self-locking function holds position securely at any point along the travel range.

Noise concerns are minimal, but the same plastic gear design that keeps things quiet also raises the same durability flags as the 6-inch version. Buyers have reported units failing within a few cycles, and the anecdotal evidence suggests inconsistent quality control. For general automation tasks requiring a 12-inch stroke with decent force, this is a solid mid-range option.

Check Price on Amazon

The VEVOR 6000N actuator is the brute of this group, capable of 1320 lbs of force at 5 mm/s. The all-metal transmission mechanism is a key differentiator from the plastic-gear competitors, offering higher durability potential for continuous heavy industrial use. The 12-inch stroke retracts to 510 mm and extends to 810 mm. The IP44 protection rating handles dust and light splashing but is not as water-resistant as IP65 options, so this unit is best suited for covered or indoor environments.

Users have successfully deployed it as a gate opener for a 17-foot gate, outperforming a system that costs over ten times as much. The 10 percent duty cycle is restrictive — you get roughly six seconds of operation followed by 54 seconds of rest. Exceeding this, especially with linkage binding, has caused failures. Multiple users reported that running this actuator at 24V instead of 12V significantly increases failure risk due to internal stress.

The all-metal gears are a double-edged sword. They are stronger than plastic but transmit more noise, though this unit stays below 50 dB. The biggest risk is defective limit switches, with one buyer reporting two out of four units seizing within a month. For projects that genuinely need 1320 lbs of force and can live with the 10 percent duty cycle, the VEVOR is unmatched at its price tier.

Check Price on Amazon

The Justech 1500N actuator delivers 330 lbs of push force and 264 lbs of pull force in a 12-inch stroke package, with the added benefit of a full IP65 rating at a price that undercuts most competitors. The non-load speed is 10 mm/s, dropping to 7 mm/s under load, which is slightly faster than the typical 5 mm/s heavy-duty options. The plastic gears keep noise below 50 dB, and multiple users have confirmed it is noticeably quieter than the actuators that come standard with Eco-Worthy solar trackers.

Real-world applications include replacing solar tracker actuators, automating a snowblower chute tip through wet heavy snow, and powering Halloween props from a 12V battery with an RF remote. The built-in limit switches work reliably, though one user noted they are not adjustable out of the box and required internal modification to shorten the stroke. The aluminum construction and corrosion resistance make it suitable for outdoor mounting.

The main downside is the missing parts issue flagged by a buyer whose package arrived open without cotter pins. The actuator itself remained functional, but packaging quality is inconsistent. For budget-conscious projects that need IP65 protection and quieter operation, this is an excellent entry point, but consider ordering an extra set of mounting hardware just in case.

Check Price on Amazon

This VEVOR actuator offers the longest stroke in the lineup at 18 inches, with 330 lbs of force at a travel speed of 5 mm/s. The retracted length is 575 mm, and the full extension reaches 1025 mm, giving you a generous 450 mm of motion range. The all-metal transmission mechanism adds durability at the cost of a slightly higher noise floor, though it stays under 60 dB. The IP54 rating provides splash protection suitable for covered outdoor use.

Users have deployed it to lift 200-pound doors reliably for months, adjust RV bed height for mattress swaps, and automate snowblower deflector chutes. Multiple reviewers note that the speed is slow — approximately 1.2 minutes for full travel — but consistent with the advertised spec. The slow speed is a trade-off for the long stroke and robust build. Installation is straightforward with the included mounting brackets, and the 5-amp current draw requires a power supply rated at 5A minimum.

The main limitation is the speed. If you need quick retraction or extension across 18 inches, this is not the unit. It is also not weather-tight enough for continuous rain exposure. For applications like height-adjustable work tables, RV bed lifts, or heavy door automation where travel time is not critical, the 18-inch stroke at this price point is a compelling value.
