A failing starter solenoid turns a reliable engine into a dead doorstop. That split-second click instead of a crank is the unmistakable sound of a 12V solenoid that can no longer bridge the gap between your battery’s power and your starter motor’s need for raw amperage. Whether you are resurrecting a vintage Ford 8N tractor, wiring a dump trailer hydraulic pump, or chasing an intermittent no-start in a riding mower, the right solenoid is the difference between a five-minute fix and a season of frustration.
I’m Min — the co-founder and writer behind Gadgets Feed. After hours of cross-referencing voltage ratings, duty-cycle classifications, terminal configurations, and real owner feedback across seven of the most popular 12V starter solenoids on the market, I’ve distilled what actually matters for a reliable electrical connection under the hood or on the farm.
You need a part that delivers consistent current flow without heat buildup or premature contact welding, and this guide breaks down the specs that separate a permanent fix from a temporary shortcut — the definitive best 12v starter solenoid choices for every application.
How To Choose The Best 12V Starter Solenoid
Selecting a 12V starter solenoid is not a one-size-fits-all decision. The wrong duty cycle, terminal layout, or amperage rating can leave you stranded or create a fire risk. Focus on three specifications first: duty cycle classification, continuous current rating, and contact metallurgy. Intermittent-duty solenoids are designed for short bursts (typically under 30 seconds of cranking) and then a cool-down period — they are standard for starter motor applications. Continuous-duty solenoids are built to remain energized for extended periods, making them the correct choice for battery isolators, winch contactors, and hydraulic pump circuits where power is held for minutes or hours.
Duty Cycle Classification
Every solenoid is stamped with a duty rating that governs how long it can safely carry current. An intermittent-duty unit used in a continuous application will overheat, causing the coil to short or the contacts to weld shut. Conversely, a continuous-duty solenoid used as a starter relay can feel sluggish because the coil is designed to hold without a heavy cooling cycle. Always match the solenoid’s advertised duty cycle to the real-world behavior of the circuit it will serve.
Terminal Configuration and Mounting Pattern
A 3-terminal Ford-style solenoid uses one small trigger terminal, one large battery input stud, one large starter output stud, and relies on the mounting base for ground. A 4-terminal SPST solenoid uses two small control terminals for the coil and two large power studs — this is the standard for aftermarket isolators and many lawn tractor relays. Measure the hole spacing on your existing bracket before ordering. The DB Electrical SFD6025 uses a specific surface-mount pattern for the Ford 2N/8N/9N tractor generation, while the Fastronix 201-105 accepts ¼-inch bolts and can be oriented in any direction for custom wiring.
Contact Material and Surge Capacity
The junction where current arcs is the solenoid’s weakest link. Plain copper contacts erode quickly under repeated high-amperage switching. Copper-silver or copper-cadmium alloy contacts resist pitting and maintain lower resistance over thousands of cycles. The MaySpare 80-amp unit uses copper contacts with silver pins for a balance of cost and conductivity. The Adorish dump-trailer solenoid uses copper-cadmium contacts to handle the repetitive, high-inrush demands of hydraulic motor engagement. For a direct comparison, look at the surge rating: the MaySpare can pass 500 amps for 5 milliseconds, while the Fastronix is rated for 200 continuous amps — a figure that reflects its Ford-style design for full engine cranking duty.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Cole Hersee 24059-08-BP | Premium | Continuous-duty battery & hydraulic circuits | 12V Continuous Duty SPST | Amazon |
| QuickCar 50-430 | Performance | High-amp Ford-style starter replacement | 1.4 kW, heavy-duty 12V | Amazon |
| Fastronix 201-105 | Mid-Range | Ford-style starter with any-orientation mount | 200A continuous, 12V | Amazon |
| Adorish SAZ4201GJ | Premium | Dump trailer & intermittent-duty hydraulics | 100A, copper-cadmium contacts | Amazon |
| DB Electrical SFD6025 | Mid-Range | Ford 2N/8N/9N tractor starter relay | 12V remote solenoid, 3-terminal | Amazon |
| MaySpare US-4t500A | Budget | Battery isolator & general SPST switching | 80A continuous, 500A surge | Amazon |
| partszen GY22476 | Budget | John Deere lawn tractor intermittent-duty | 12V intermittent, 4-terminal | Amazon |
In‑Depth Reviews
1. Cole Hersee 24059-08-BP 12V Insulated SPST Continuous Duty Solenoid
The Cole Hersee 24059-08-BP is the benchmark for continuous-duty SPST solenoids in the 12V market. Machined construction and USA manufacturing set it apart from commodity imports — it delivers a solid ker-chunk engagement audible even over a running engine. The SPST configuration uses two large 5/16-inch battery studs and two small #10-32 control terminals, making it a direct fit for battery isolator, winch contactor, and lift-gate circuits that require sustained current holding.
Owner reports confirm this solenoid handles #4 welding cable without terminal overheating, even when charging six golf-cart batteries from an alternator circuit. The machined exterior and automatic lift-type construction indicate Cole Hersee designed this unit for at least 15 years of service in commercial fleet applications. No nuts or washers are included in the box — expect to supply your own 5/16-24 fine-thread and #10-24 fine-thread hardware.
For any project where the solenoid will remain energized for longer than a cranking event — alternator isolators, motorhome battery combines, or hydraulic pump engagement — this is the most reliable SPST solenoid available. The premium price reflects genuine industrial-grade engineering, not marketing hype.
Why it’s great
- True continuous-duty design for sustained holding current
- Machined commercial-grade construction made in the USA
- Proven longevity in high-amp alternator and battery-isolator circuits
Good to know
- Nuts and washers not included — requires separate purchase
- Heavier and larger than intermittent-duty starter solenoids
2. QuickCar Racing Products 50-430 Heavy Duty Starter Solenoid
The QuickCar 50-430 is a heavy-duty Ford-style starter solenoid built for high-cranking-demand engines. With a 1.4 kW wattage rating and a cast-metal housing, it stands out from the thin-stamped steel bodies found on budget Ford-style relays. The design mimics the classic 3-terminal Ford layout — battery input, starter output, and a trigger terminal — with a robust internal contact bridge rated for engines that need sustained cold-cranking amps.
Customer feedback from a 1983 Ford Bronco rebuild confirms this solenoid resolved persistent hot-start issues that cheaper units could not. The heavy-duty construction resists the internal voltage drop that causes sluggish cranking when the starter motor draws its maximum current. At 11.2 ounces, the QuickCar feels substantially denser than a standard parts-store solenoid, and users consistently report faster, more consistent cranking speeds after installation.
For enthusiasts rewiring classic trucks, hot rods, or off-road vehicles where starter reliability is non-negotiable, the 50-430 justifies its premium tier with tangible cranking performance. It is a direct bolt-on for any Ford-style mounting pattern and can also be used as a master kill switch or winch contactor in low-duty applications.
Why it’s great
- 1.4 kW rating handles high-compression starter loads
- Heavy-duty cast construction resists heat and vibration
- Direct Ford-style fitment with proven hot-start fix results
Good to know
- Designed as intermittent-duty — not for continuous battery isolator use
- Higher price point than commodity Ford-style solenoids
3. Fastronix 201-105 Heavy Duty 200A Starter Solenoid
The Fastronix 201-105 delivers a genuine 200 amp continuous rating in a Ford-style package, making it one of the highest-capacity solenoids at its price tier. The 5/16-inch copper main studs and #10-32 trigger stud accept standard cable lugs without adapters, and the ability to mount in any orientation — including vertically or upside-down — simplifies installation in tight engine bays or custom wiring harnesses.
Real-world experience from a 1953 Ford tractor and a 1966 Ford 3000 diesel confirms this solenoid matches OEM dimensions while offering a higher ampacity reserve than the original equipment. A wiring diagram is included in the package, which is a welcome addition for first-time installers dealing with a 3-terminal Ford-style circuit. The unit ships with no terminal covers or copper lugs — Fastronix markets those separately as accessories.
For anyone replacing a starter solenoid on a vintage Ford tractor, a marine engine, or a custom 12V project that demands 200-amp capability without stepping up to a premium-tier brand, the Fastronix 201-105 hits the sweet spot of capacity and cost. Just remember that the base must be grounded for the coil circuit to complete — some users miss this and report an initial no-crank condition.
Why it’s great
- 200A continuous rating for high-demand starter or winch circuits
- Mountable in any orientation for flexible installation
- Includes wiring diagram for easy hookup
Good to know
- Mounting base must be properly grounded to complete the trigger circuit
- Terminal covers and lugs sold separately

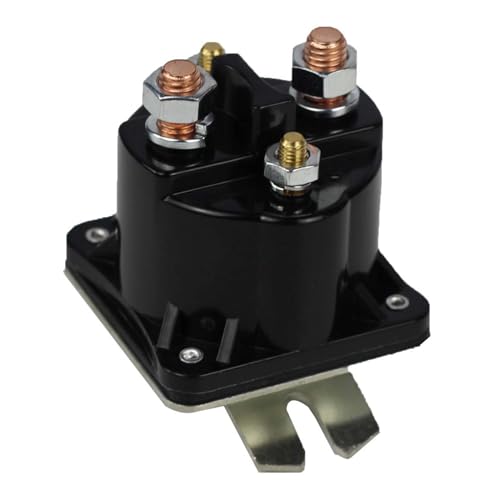

4. Adorish Dump Trailer Solenoid 12V 4 Terminal 100 AMP (SAZ4201GJ)
The Adorish SAZ4201GJ is purpose-built for the high-inrush demands of dump trailer hydraulic pump motors. It uses copper-cadmium contact material, which is significantly more resistant to arc pitting than plain copper when switching heavy inductive loads repeatedly. The 4-terminal SPST configuration with 100 amp continuous current rating matches the exact OEM specifications of Monarch, Bu-Cher, and other pump motor solenoids.
The package includes four washers and four hex nuts, which avoids the common frustration of finding the correct fine-thread hardware for the studs. The premium plastic case offers electrical insulation without adding weight, and the DIN-rail compatible mounting pattern simplifies installation on equipment trailers. Owners of Nifty Lift boom lifts and dump trailers report direct bolt-on replacement with no wiring modifications needed.
For anyone repairing or upgrading a 12V trailer hydraulic system, this solenoid is the correct part for the job. The copper-cadmium contacts are engineered for the repetitive on-off cycling that hydraulic motor engagement demands — a standard relay with plain copper contacts would erode quickly under the same duty cycle.
Why it’s great
- Copper-cadmium contacts resist arcing under hydraulic motor loads
- Includes mounting hardware — no additional fasteners needed
- Exact OEM replacement for SAZ4201GJ and Monarch pump solenoids
Good to know
- Intermittent duty only — not for continuous battery isolator use
- Premium plastic case, not potted metal

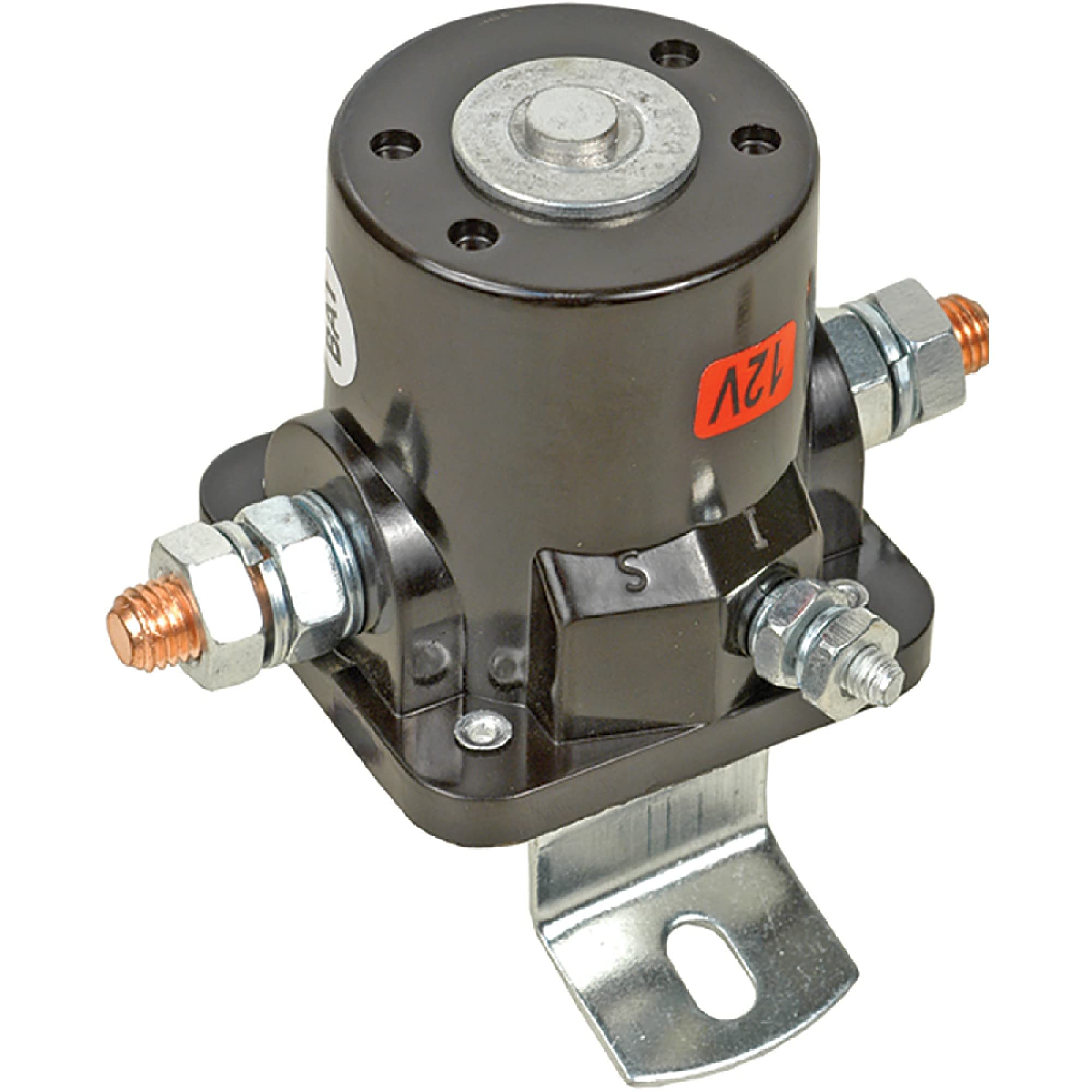

5. DB Electrical 240-14008 Solenoid Relay for Ford 2N 8N 9N
The DB Electrical SFD6025 is an aftermarket remote solenoid designed to replace the 8N-11450, SW218, and SW355 parts on Ford 2N, 8N, and 9N tractors — among the most common vintage tractor applications in North America. It is a 3-terminal design where the relay body surface-mounts to the tractor chassis or starter bracket, using the mounting bolt as the ground path for the trigger circuit.
Customers report it fits the motor mounts perfectly on Ford 8N and Jubilee/NAA tractors, though some note that the trigger terminal sits on the back side when mounted on the left-hand starter bracket, making it a tight reach for heavy fingers. The copper contacts and normally-open configuration match OEM specs, and the 12-volt rating is correct for 6-volt conversions that supply 12 volts to the starter circuit.
For vintage Ford tractor owners who need a drop-in replacement without modifying mounting tabs or wiring harness lengths, the DB Electrical SFD6025 is the most targeted aftermarket option. The one-year warranty from DB Electrical provides basic purchase protection, and the surface-mount design means no separate bracket fabrication is necessary.
Why it’s great
- Direct fit for Ford 2N/8N/9N and Jubilee tractors
- Copper contacts with OEM-spec normally-open configuration
- Surface-mount pattern matches factory bracket without modification
Good to know
- Trigger terminal location is tight for large hands on LH starter mounts
- Some users needed minor bracket tweaking for NAA model fitment
6. MaySpare 80-Amp 12V Continuous Duty Solenoid (US-4t500A)
The MaySpare US-4t500A is a 4-pin SPST continuous-duty solenoid rated for 80 amps continuous and 500 amps surge, making it a versatile choice for battery isolator circuits, secondary battery switching, or low-power starter relay applications. The white housing uses copper contacts with silver pins to improve conductivity, and the kit includes four large 100-amp terminals and four smaller trigger terminals with insulated red caps.
At this budget tier, the documented surge rating of 500 amps for 5 milliseconds is the standout spec — it gives the solenoid headroom for the inrush current of a cold starter motor or an inductive pump without immediate contact welding. The 18 Ohm coil resistance indicates a relatively efficient hold current, which matters for circuits where the solenoid stays energized for hours. Some users report that units in this tier can fail under sustained high-amp loads, but the MaySpare’s 100,000-cycle mechanical life rating is competitive for the segment.
For a first-time battery isolator install, a simple on/off switching circuit, or any 12V project where the budget is tight and the load stays under 80 amps continuous, the MaySpare delivers the essential specifications without frills. It is not the right choice for high-compression engine starters drawing 200-300 crank amps, but it handles basic auxiliary battery duty without issue.
Why it’s great
- 500A surge capacity provides headroom for motor inrush current
- Copper contacts with silver pins improve conductivity over plain copper
- Includes terminal hardware and insulated caps for clean installation
Good to know
- 80A continuous rating limits use to lower-current circuits
- Inconsistent long-term reliability reported under heavy cycling

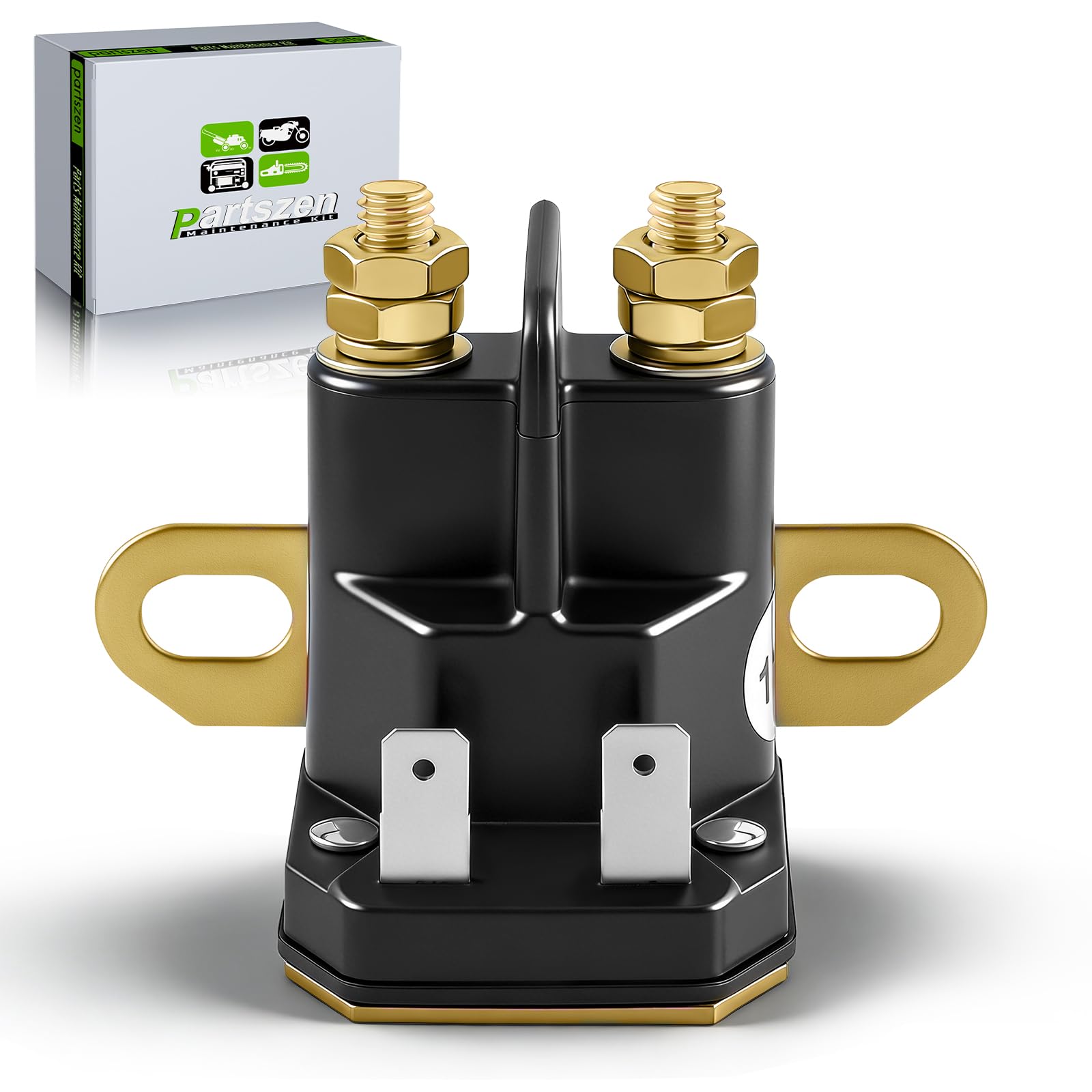

7. partszen GY22476 AUC15346 Starter Solenoid for John Deere Tractors
The partszen GY22476 is a 4-terminal intermittent-duty solenoid specifically cross-referenced for dozens of John Deere riding mower and garden tractor models including the D100, D105, D110, Z225, Z235, and the L100-L130 series. It replaces OEM part numbers GY22476 and AUC15346, with a 12-volt intermittent rating that matches the short cranking cycles of small single-cylinder and twin-cylinder lawn-tractor engines.
The wiring uses the standard 4-terminal layout with two large studs for battery and starter, and two small studs for the ignition trigger circuit. Customers confirm the mounting holes align perfectly with the Deere bracket, and the 10mm nuts can be tightened with a standard socket wrench. Owners report direct replacement with no confusion about terminal orientation — the solenoid works immediately after installing the included metal unit onto the factory bracket.
For any John Deere owner experiencing a clicking solenoid or a no-start condition on a mower or compact tractor, the partszen GY22476 is the budget-correct solution. It is not designed for continuous-duty applications or high-amp winch circuits — the intermittent rating means it should only be energized during the cranking event, then allowed to cool.
Why it’s great
- Exact cross-reference for GY22476 and AUC15346 Deere parts
- 4-terminal design matches lawn tractor ignition wiring perfectly
- Intermittent-duty rating correct for short mower cranking cycles
Good to know
- Intermittent-duty only — do not use for continuous circuits
- Budget construction may not match the longevity of OEM Deere parts
FAQ
Can I use a continuous-duty solenoid as a starter relay?
What does the surge amp rating mean on a 12V solenoid?
How do I choose between a 3-terminal and 4-terminal solenoid?
Final Thoughts: The Verdict
For most users, the best 12v starter solenoid winner is the Cole Hersee 24059-08-BP because it delivers true continuous-duty reliability with machined USA construction that outlasts commodity alternatives. If you want a Ford-style starter relay with the highest continuous amperage in a compact package, grab the Fastronix 201-105. And for a vintage Ford tractor restoration, nothing beats the targeted fit of the DB Electrical SFD6025.
