Diagnosing a weak AC system in your car, truck, or van often stalls at a single stupid problem: your manifold gauge hose won’t lock onto the service port. The high-side fitting feels loose, the low-side coupler hisses when you push it on, and you waste a quarter of your refrigerant can just battling a bad seal. The right quick-coupler kit turns that frustration into a three-second click-and-charge workflow.
I’m Min — the co-founder and writer behind Gadgets Feed. I research and compare the spec sheets, machining tolerances, and O-ring materials that separate a tool that lasts one season from one that seals clean for years.
Whether you need adapters for a tractor, a 2018 GM truck, or a full pro-grade evacuation rig, these picks represent the strongest brass, bronze, and aluminum options available today in the 134a adapter category.
How To Choose The Best 134A Adapter
Picking the wrong coupler means refrigerant loss, misdiagnosed pressure readings, and a whole afternoon wasted hunting for a leak that’s actually coming from the adapter itself. Focus on three factors: ball-bearing count, valve-body material, and built-in versus split-port design.
Ball Count and Snap-Lock Reliability
A 5-ball coupler works fine on clean, undamaged service ports, but a 6-ball design distributes clamping force more evenly. On older vehicles where the port’s external threads are worn or the Schrader valve sits slightly off-center, six balls mean the coupler won’t pop off mid-charge. Both VIVOHOME and Wisscool use a 6-ball snap-lock, which is the spec to look for if your daily driver has high mileage.
Valve-Body Material
Brass and bronze are the reference standards. They resist the chemical attack of PAG oil and won’t gall against steel service ports. Some budget-friendly kits use aluminum that is coated to look like brass — those coatings chip, and the raw aluminum corrodes quickly in a humid garage. Solid brass bodies (like the Ketofa and Robinair adapters) are worth the slight weight penalty for the corrosion resistance alone.
Built-In vs Split-Port Male Flare
Split-port adapters have a separate thread adapter that screws into the coupler. That extra junction is a potential leak point. Adapters with a built-in 1/4” male flare — machined as a single piece with the coupler body — eliminate that joint entirely. The Wisscool and HTOMT kits use this design, which is why they seal so consistently straight out of the box.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Lichamp AC Adapters Kit | Premium Multi-Piece Kit | All-in-one recharge kit with can taps | Brass valve bodies + 1.1 lb total kit weight | Amazon |
| Wisscool Quick Coupler Adapter | Premium Coupler Pair | Professional evacuation and recharge | 6-ball snap lock + bronze valve bodies | Amazon |
| Robinair Low Side Tank Adapter | Single-Use Tank Coupler | Connecting 1/2” ACME tank to low-side port | Solid brass construction + USA-made | Amazon |
| VIVOHOME Quick Coupler Kit | Mid-Range Kit | Daily home mechanic use on R134a systems | 6-ball snap lock + nickel-plated bronze | Amazon |
| HTOMT R134a Adapter Kit | Mid-Range Kit | First-time buyer needing easy identification | 1/4” built-in male flare + clear color coding | Amazon |
| Joywayus 8pc Adapter Set | Budget Multi-Adapter Kit | Having spare hoses and adapters for R12/R134a | 8-piece kit + brass hose connectors | Amazon |
| Ketofa 134a Quick Coupler | Budget Coupler Pair | Budget-friendly repair on clean ports | 6-ball operated + brass metal construction | Amazon |
In‑Depth Reviews
1. Lichamp AC R134A Adapters Kit
Lichamp’s kit is the most complete all-in-one solution in this lineup. You get a pair of quick couplers with brass bodies, a tank adapter that threads onto the 1/2” ACME port of your refrigerant tank, and both a puncture-style and a self-sealing can tap valve. The self-sealing tap alone is worth the premium — it lets you close the valve between cans so you don’t waste refrigerant when switching tanks.
The couplers use precise fine-thread machining and thick rubber O-rings at every interface. Several users replaced their leaking Harbor Freight hose ends with these and reported zero leakage after two complete charging cycles. The aluminum and steel components are heavy-duty for the price, and the included dual-head valve core remover is a thoughtful bonus for anyone doing deeper AC service.
The only real trade-off is the weight — at 1.1 pounds, it’s the heaviest kit here, but that’s because the materials are dense and the build quality is high. For a home mechanic who wants to stock one box and handle everything from a basic can recharge to a full vacuum-and-evacuation job, this is the pick.
Why it’s great
- Includes self-sealing can tap that preserves leftover refrigerant
- Brass coupler bodies resist corrosion from PAG oil
- Comes with a dual-head valve core remover for deeper AC service
Good to know
- Heavier than simpler coupler-only kits
- Some users noted the case could be sturdier for pro shop use
2. Wisscool R134a Quick Coupler Adapter
The Wisscool couplers are engineered with a single-piece die-cast bronze valve body that integrates the 1/4” male flare. This is a clear advantage over split-port designs because there is no threaded joint to loosen or leak over time. The 6-ball snap-lock engages firmly on both high-side and low-side ports, and the ergonomic knurled grip ring makes one-handed operation easy.
The thick rubber O-rings sit in machined grooves that hold them in place during repeated connect-disconnect cycles. One user with a 1998 Dakota initially had trouble locking the low-side coupler, but a quick lubricant application with PAG oil resolved the issue — this is common with newer, tighter-tolerance couplers. The knobs on top control the Schrader valve pin engagement, which solves a frequent problem with fixed-pin couplers that are too long or too short for certain ports.
For anyone who works on multiple vehicles or needs a coupler pair that will seal reliably on both modern and older AC systems, the Wisscool set is the best mix of durability and precise fit.
Why it’s great
- Integrated 1/4” male flare eliminates a potential leak point
- Bronze body resists chemical corrosion better than brass
- Adjustable top knobs let you control Schrader pin engagement
Good to know
- Tighter tolerances may require a drop of PAG oil on first use
- No can tap or tank adapter included
3. Robinair 16301 Low Side Tank Adapter
Robinair is the most recognized name in AC service tools, and this low-side tank adapter shows why. Machined from a single piece of solid brass, it connects your 1/2” ACME threaded refrigerant tank to a low-side R134a service port. The deeply knurled base gives you a secure grip even when your hands are greasy, and the brass construction ensures it won’t corrode or gall, even after years of contact with PAG oil.
This is a single-purpose tool — it does one thing and does it perfectly. It works with any standard refrigerant tank that uses a 1/2” ACME thread, which covers virtually all do-it-yourself cans and 30-pound recovery tanks. Users consistently report a perfect seal right out of the box, with no leaks at the connection point.
If you already own a manifold gauge set and just need a reliable way to connect a tank to the low-side port, this adapter is a compact, USA-made upgrade that outlasts cheap aluminum alloy alternatives by a wide margin.
Why it’s great
- Solid brass machining won’t corrode or strip
- Deeply knurled grip for easy hand tightening
- USA-made with decades of reliability behind the brand
Good to know
- Only works with low-side R134a ports
- No high-side adapter included; you need a separate one
4. VIVOHOME AC R134a Quick Coupler Kit
VIVOHOME’s coupler kit uses nickel-plated bronze bodies, which provide the same chemical resistance as bare bronze but add a layer of abrasion protection that helps the couplers slide on and off ports smoothly. The 6-ball snap-lock is consistent and reliable, and the knurled grip ring lets you operate the lock even with gloved hands.
The O-rings inside the couplers have a 2 mm cross-section, which is thicker than the standard 1.5 mm seals found on many budget-friendly options. This extra material compresses more effectively around worn or slightly out-of-round service ports, which is exactly the kind of margin that prevents a frustrating leak. Users with 2010-era domestic cars and older European models report a perfect seal on the first try.
For the home mechanic who wants a step up from the cheapest brass couplers but doesn’t need the full-kit extras of the Lichamp set, the VIVOHOME pair delivers robust sealing performance at a mid-range price point.
Why it’s great
- 6-ball snap lock grips worn ports more securely
- Nickel-plated bronze resists both corrosion and scratching
- Thicker O-rings (2mm cross-section) for better compression seal
Good to know
- No can tap or tank adapter included
- Not ideal for R12 systems without a separate adapter
5. HTOMT R134a Adapter Kit
HTOMT’s kit uses aluminum and bronze construction — the bronze handles the valve body and sealing surfaces, while the aluminum outer body keeps the overall weight down to 8.8 ounces. The built-in 1/4” male flare is machined as part of the bronze valve section, which removes the leak risk of a separate threaded adapter.
The color coding is bold and clear — blue for the low-side coupler and red for the high-side — which eliminates the guesswork when you’re working under a hood in poor light. The knurled grip ring and snap-lock mechanism operate smoothly right from the first use, and the rubber O-rings seal completely at both the port and the hose connection.
A user with 32 years in residential HVAC noted that these couplers fit perfectly onto R404a gauges with no leaks and no modifications. If you work across multiple refrigerant types and need a coupler set that adapts easily, the HTOMT kit is a well-built, lightweight solution.
Why it’s great
- Lightweight aluminum-bronze hybrid design
- Built-in male flare eliminates one potential leak joint
- Clear color coding prevents high/low mix-up
Good to know
- Aluminum outer body can dent if dropped on concrete
- No R12 compatibility out of the box
6. Joywayus 8pcs Adapter Set
This kit is a grab-bag of hose and adapter sizes — 1/4”x3/16”, 1/4”x1/8”, 3/8”x1/4”, and 1/2”x1/4” hoses, plus 1/4”x1/4”, 1/4”x3/16”, and 1/4”x1/8” adapters. It covers both R134a and R12 systems, making it a useful spare-parts set for a garage that sees multiple vehicles. All the connectors are brass, which is a solid material choice for the price point.
The value proposition is simple: for the cost of a single coupler pair from a premium brand, you get eight pieces that can adapt almost any hose to almost any port. Users report that the seals hold well, and the fittings are machined well enough for occasional use. A few enthusiasts noted that the aluminum fittings in the set (some are brass-colored aluminum) have rougher machining than solid brass parts, but for the price, the overall package is generous.
If you’re building out a home AC tool collection on a tight budget and want adapters for both old R12 systems and modern R134a ports, this kit gives you the most options per dollar.
Why it’s great
- Eight pieces cover R12 and R134a hose sizes
- Brass connectors provide reliable sealing
- Excellent value for a comprehensive adapter stash
Good to know
- Some fittings are brass-coated aluminum, not solid brass
- Not a quick-coupler set; these are screw-on adapters and hose sections

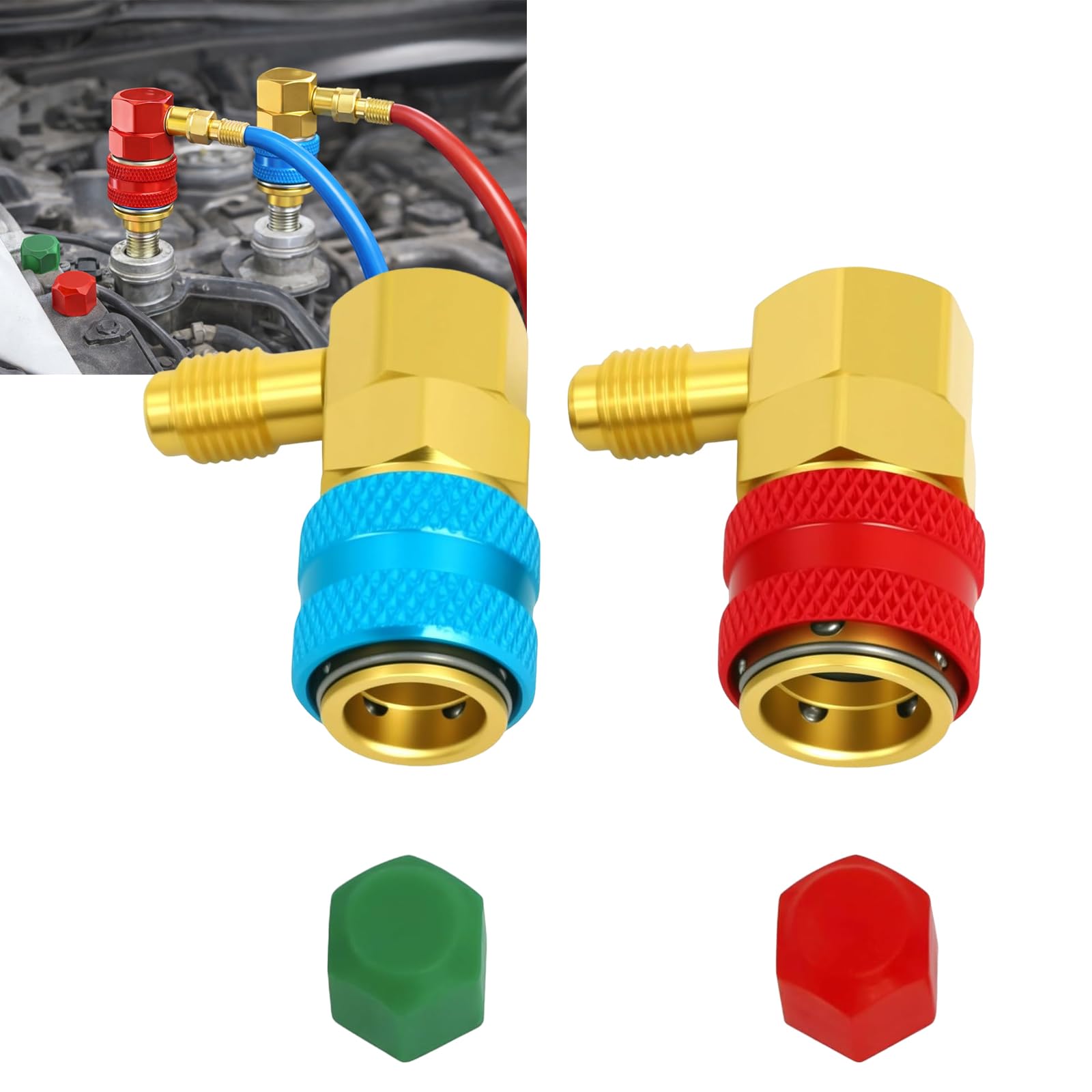

7. Ketofa 134a Quick Coupler
The Ketofa coupler set uses solid brass bodies with a 6-ball snap-lock mechanism — the same ball count as the premium kits, which is surprising at this price tier. The 1/4” SAE male fittings are clearly color-coded (blue for low, red for high) and connect to standard manifold gauge hoses without adapters.
Customer feedback is consistently positive: users report secure connections on ports that other couplers refused to hold, including a 2018 GM truck and an older tractor. The brass construction means no corrosion issues even when left attached to a gauge set in a humid garage. The only note is that on ports with very tight clearances, you may need to manually press down on the terminal to help the six balls seat fully — a common quirk with 6-ball couplers on deeply recessed ports.
For under fifteen dollars, you get a functional pair of quick couplers that seal well and use the same brass material as kits costing twice as much. This is the go-to choice for a first-time AC repair or a tool bag backup pair.
Why it’s great
- Solid brass construction at a budget-friendly price
- 6-ball snap lock grips securely even on older ports
- Color-coded knobs prevent high/low connection errors
Good to know
- May require a manual push to seat fully on deep-set ports
- No extra O-rings or spare parts included
FAQ
Can I use R134a quick couplers on an R12 system?
Why won’t my coupler lock onto the high-side service port?
How do I fix a coupler that leaks at the male flare connection?
Final Thoughts: The Verdict
For most users, the 134a adapter winner is the Wisscool Quick Coupler Adapter because its integrated bronze body and six-ball snap lock provide the most reliable seal on modern and older ports alike. If you want a full all-in-one kit with can taps and tank adapters, grab the Lichamp AC Adapters Kit. And for the best value pair that still uses solid brass and a six-ball lock, nothing beats the Ketofa 134a Quick Coupler.
