Reaching a spark plug buried deep inside a modern engine bay is frustrating enough without the socket slipping off the plug or dropping it into the abyss. A standard 6-point deep socket simply won’t fit the 12-point head of many BMW, MINI, and late-model engine spark plugs, and the tight clearances demand a thin-wall design with a retainer. The right 14mm 12-point spark plug socket turns a two-hour headache into a twenty-minute job, providing the precise fit, magnetic or rubber retention, and swivel flexibility needed to extract and install plugs without losing them in the engine compartment.
I’m Min — the co-founder and writer behind Gadgets Feed. This guide is the result of many hours spent cross-referencing technical specifications, studying real owner reviews across multiple vehicle platforms, and analyzing the critical design differences—wall thickness, retention method, swivel articulation, and material hardness—that separate a frustration-free tool from one that leaves you fishing for a dropped plug.
After evaluating seven top contenders based on real-world fitment reports for BMW N55/N63 engines, MINI R-series, Subaru FB platforms, and Honda K-series, these selections represent the most reliable 14mm 12-point spark plug socket options available today.
How To Choose The Best 14mm 12-Point Spark Plug Socket
Selecting the right socket for your 14mm 12-point spark plugs comes down to four critical factors: retention mechanism, wall thickness, swivel capability, and drive compatibility. Getting each wrong can mean a dropped plug, a stripped hex, or a socket that simply won’t fit down the well.
Retention Mechanism: Magnetic vs. Rubber O-Ring vs. Silicone Sleeve
Magnetic cores provide the most reliable grip for extracting plugs from deep, angled wells—especially on horizontally opposed engines like Subaru’s FB platform where gravity works against you. Rubber O-rings can grip too tightly, causing the socket to separate from the extension when pulling the plug out, which is a common complaint with some BMW-specific designs. Newer silicone sleeves offer a balance of grip and release but wear faster than a steel magnet.
Wall Thickness and Swivel Head
A thin-wall socket—typically 1mm wall thickness or less—is non-negotiable for modern engines with narrow spark plug tubes, such as the BMW N55 and MINI N18. A standard-thickness socket will wedge or bind before reaching the plug. A built-in 360° swivel joint adds essential flexibility for accessing plugs tucked behind manifolds and frame rails, saving you from needing multiple universal joints that reduce torque transfer.
Material and Drive Size
Chrome vanadium steel (Cr-V) is the baseline for durability and corrosion resistance in this category. Heat-treated Cr-V with a manganese phosphate or polished chrome finish resists rust and wear from repeated use. Stick to a 3/8-inch square drive, which is the standard for spark plug sockets—1/4-inch drives lack torque capacity, and 1/2-inch drives are too bulky for tight engine bays.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DURATECH Swivel Magnetic | Swivel Magnetic | Tight engine bays & universal fit | 12-inch length, 360° swivel, magnetic core | Amazon |
| KORR Tools KSI004 | Swivel Magnetic | BMW N55 & Toyota inline-4 | 360° swivel, heavy-duty magnetic core | Amazon |
| OEMTOOLS 22814 | Swivel Fixed | BMW & Toyota deep-well plugs | Built-in universal joint, plug retainer | Amazon |
| CTA Tools 2376 | Fixed Thin-Wall | BMW 335/535 3.0L & MINI N18 | 2.5-inch length, thin-wall, rubber O-ring retainer | Amazon |
| QISF 2-Piece Set | Swivel Magnetic Set | Dual-size coverage (14mm & 16mm) | 95mm length, magnetic core, polished CR-V | Amazon |
| AEROFORCE 8-Piece Set | Socket Set | Multi-vehicle DIY tool kit | Includes 14mm 12-point, 18mm 12-point, extensions, U-joint | Amazon |
| AEROFORCE 12-Piece Set | Complete Kit | Full DIY kit with ratchet & gapper | Includes 14mm 12-point, ratchet, extensions, spark plug gapper | Amazon |
In‑Depth Reviews
1. DURATECH 14mm Swivel Magnetic Spark Plug Socket
The DURATECH socket earns the top spot because it nails every critical spec for a 14mm 12-point tool. The 12-inch overall length eliminates the need for a separate extension on deep wells, and the 360° swivel joint articulates smoothly to reach plugs at awkward angles without reducing torque transfer. The manganese phosphate coating on the Cr-V steel resists corrosion better than polished chrome, and the laser-etched size marking won’t wear off after a few uses.
Real-world feedback confirms the magnetic core holds plugs firmly during removal from Honda Accord 2018 and Challenger 16-plug jobs, where a dropped plug would mean hours of retrieval work. The 1mm thin-wall design slides into narrow spark plug tubes without binding, a common failure point for cheaper sockets. Users report the knurled grip on the drive end provides a solid purchase when working with oily hands.
The only trade-off is that the swivel joint adds a slight amount of play at the drive end, which can be noticeable when torquing to exact specifications. For most DIY plug changes where you’re working by feel rather than a torque wrench, this is negligible. The DURATECH delivers premium-level performance at a mid-range price point, making it the most versatile choice for BMW, Honda, Subaru, and Dodge owners alike.
Why it’s great
- 12-inch overall length reaches deep wells without extra extensions
- 360° swivel head provides maximum flexibility in tight engine bays
- Strong magnetic core holds plugs securely during angled removal
- Manganese phosphate coating resists rust better than chrome finishes
Good to know
- Swivel joint introduces slight play at the drive end
- Some users report the joint is stiff when new and needs lubrication
2. KORR Tools KSI004 14mm Thin Wall Magnetic Swivel Socket
The KORR KSI004 stands out for its build quality right out of the box—the swivel joint comes pre-greased, eliminating the break-in period common with other swivel sockets. The heavy-duty magnetic core is one of the strongest in this category, reliably holding plugs even when the socket is inverted in deep ignition coil holes. Chrome vanadium steel construction with a polished finish gives it a solid, weighty feel that signals long-term durability.
Owner reports confirm it’s a perfect fit for BMW N55 engines (F15 X5, F80 M3) and Toyota inline-4 DOHC engines found in Corolla and RAV4, where the narrow ignition coil tubes require a truly thin-wall design. The 360° swivel provides the freedom needed for those awkwardly positioned rear bank plugs on transverse engines. The ball spring mechanism feels precisely machined without excessive slop.
The KORR is a single-piece socket without an integrated extension, so you will need a separate short extension for engines where the plug sits deeper than the socket’s 14mm length. This isn’t a flaw but a design choice that gives you flexibility in extension length. For anyone who wants a premium-feeling tool that works immediately without lubrication or break-in, the KORR delivers.
Why it’s great
- Pre-greased swivel joint works smoothly from the first use
- Exceptional magnetic strength holds plugs securely in any orientation
- Thin-wall design fits narrow ignition coil tubes perfectly
- Solid Cr-V steel construction with polished chrome finish
Good to know
- Short socket length (14mm) requires a separate extension for deep wells
- Polished finish can be slippery when gripping with oily hands

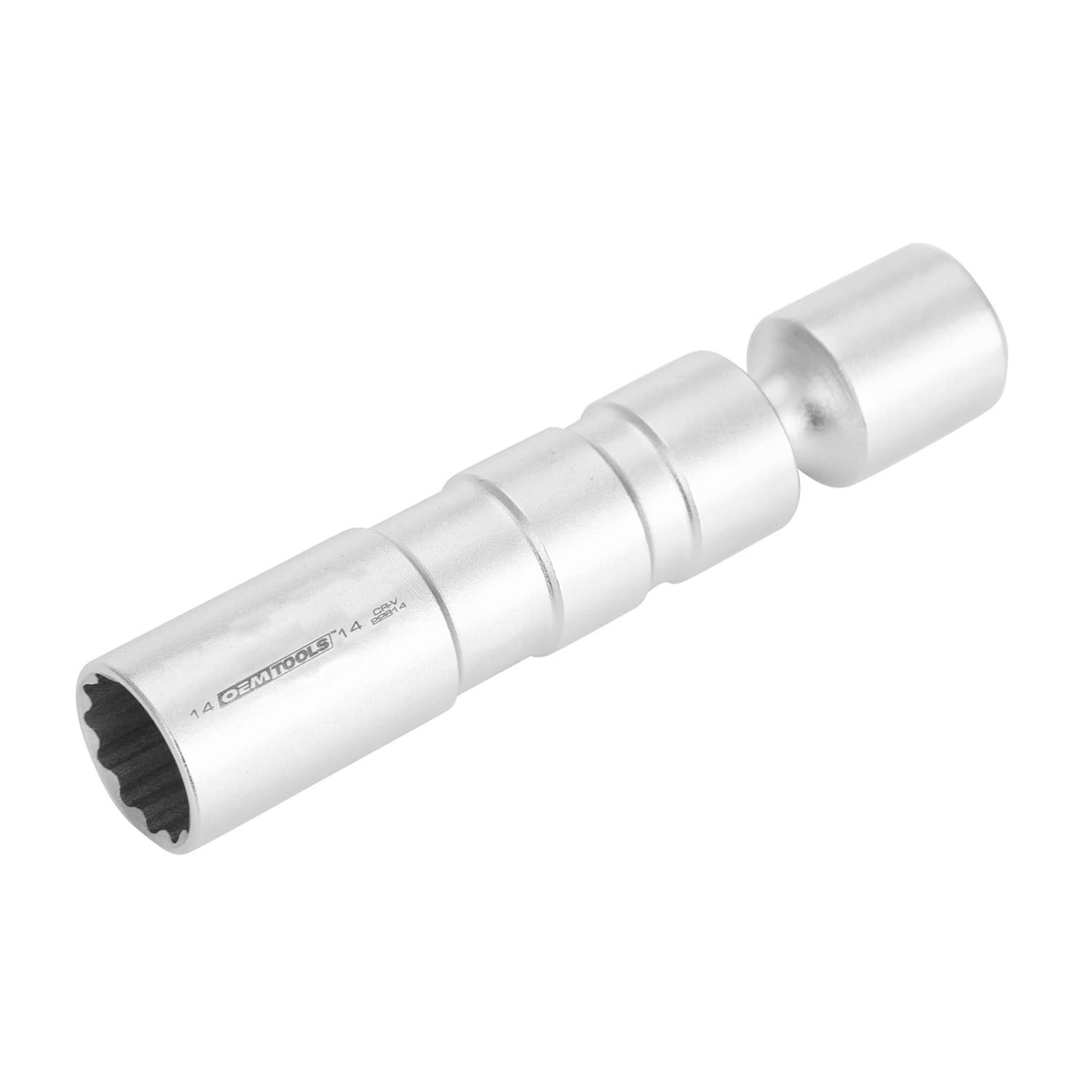

3. OEMTOOLS 22814 BMW Spark Plug Socket
OEMTOOLS 22814 is the most BMW-focused design in this lineup. The integrated plug retainer and built-in universal joint come as a single assembly, eliminating the need to attach a separate swivel adapter that could introduce wobble or separation. The thin-wall chrome moly steel construction provides extra strength compared to standard Cr-V, which matters when you’re torquing plugs to their recommended 17-23 lb-ft spec.
Real-world feedback from owners of 2012 BMW X5 e70 (N63 engine) and F80 M3 confirms the socket is the perfect length—no extension needed—and the retainer grips the spark plug firmly without the magnetic core risk of attracting metallic debris. Subaru FB engine owners also report excellent results, as the socket’s thin walls slide into the boxer engine’s deep, angled plug wells without binding.
The integrated design means you can’t swap the U-joint for a different style if yours wears out. The socket is essentially a single-purpose tool optimized for BMW and Toyota applications, so if you own a wider range of vehicles, a universal magnetic swivel socket may offer more flexibility. But for its targeted use case, the OEMTOOLS is a brilliantly engineered tool that does exactly what it promises.
Why it’s great
- Integrated universal joint and socket won’t separate during plug extraction
- Chrome moly steel is stronger and more durable than standard Cr-V
- Plug retainer grips securely without magnetic debris attraction
- Perfect length for BMW N63 and N55 engines—no extension needed
Good to know
- Single-purpose design not as versatile for non-BMW applications
- Built-in U-joint cannot be replaced if it wears out
4. QISF 14mm & 16mm Magnetic Swivel Socket Set
The QISF set provides exceptional value by pairing a 14mm 12-point socket with a 16mm 12-point socket in one package, covering both your BMW/MINI spark plug needs and larger applications like motorcycle or certain domestic spark plugs. Both sockets feature a 360° swivel joint and a magnetic core, with 95mm overall length that shortens the need for multiple extensions on most passenger car engines.
The polished chrome vanadium steel finish gives these sockets a professional appearance, and the thin-wall design fits where standard sockets won’t. Users report successful plug changes on 2016 BMW X3 F25 and various motorcycles, with the magnet holding plugs securely during extraction. The 16mm socket is particularly useful for those who also work on larger displacement engines.
Some users note that the swivel joint arrives very tight and requires lubrication and working in before it articulates freely. Additionally, the magnetic strength, while adequate, isn’t as strong as the dedicated single sockets from DURATECH or KORR. For the DIY mechanic who needs both 14mm and 16mm coverage without buying two separate tools, the QISF set is a smart buy.
Why it’s great
- Two sockets (14mm and 16mm) cover multiple vehicle types in one purchase
- Magnetic cores hold plugs securely during removal
- Thin-wall design fits tight spark plug wells
- Polished Cr-V finish resists corrosion
Good to know
- Swivel joints are stiff when new and need lubrication
- Magnetic strength is moderate compared to premium single sockets
5. CTA Tools 2376 14mm x 12 Point Spark Plug Socket
The CTA Tools 2376 is a straightforward, no-swivel fixed socket that serves as a precise OEM replacement for BMW and MINI applications. With a 2.5-inch overall length and a 3/8-inch square drive, it matches the BMW factory tool #121220 for 335 and 535 3.0-liter engines. The thin-wall design is essential for these engines where the plug well opening is extremely tight.
Owner feedback from 2018 BMW 540i and 2009 BMW 335i owners confirms the socket fits perfectly and helps achieve the recommended 17 lb-ft torque spec. The rubber O-ring inside grips the spark plug, but multiple users note it holds so tightly that it can pull the socket off the extension when removing the plug. The common workaround is to lubricate the O-ring with silicone or dish soap and tape the socket to the extension.
The CTA Tools socket lacks a magnetic core and a swivel joint, meaning it’s best suited for engines with straight, easily accessible plug wells. For deep or angled wells, you’ll need an extension and a universal joint. This is the most budget-friendly option but requires the most preparation and accessory tools to use reliably.
Why it’s great
- Precision fit for BMW 335/535 3.0L and MINI N18 engines
- Thin-wall design fits extremely tight plug wells
- Rubber O-ring retains plug during removal
- Budget-friendly entry price point
Good to know
- O-ring grips plugs very tightly, often pulling socket off extension
- No swivel joint—requires separate U-joint for angled applications
- No magnetic core relies solely on friction retention
6. AEROFORCE 8-Piece Spark Plug Socket Set
The AEROFORCE 8-piece set is designed for the DIYer who wants a complete spark plug socket solution in one box. It includes the critical 14mm 12-point socket and an 18mm 12-point socket, plus three 6-point sockets (5/8″, 3/4″, 13/16″) covering SAE applications. Two extension bars (3″ and 6″) and a universal joint give you the reach needed for deep or angled plug wells.
The 14mm 12-point socket uses a built-in rubber ring to retain the spark plug, similar to the CTA Tools design. However, user reports indicate the rubber hold is less aggressive, making it easier to release the plug when needed. The chrome vanadium steel construction with a polished chrome finish holds up well to regular use, and the included socket rail keeps everything organized.
The main limitation is that the 12-point sockets lack magnetic retention, relying entirely on the rubber ring. For deep wells on boxer engines like Subaru’s FB platform, this can be less reliable than a magnetic core. Also, the set does not include a ratchet handle, so you’ll need to supply your own 3/8-inch drive ratchet. For the price, this set offers excellent coverage for multiple vehicle types.
Why it’s great
- 8-piece set covers both metric (14mm, 18mm) and SAE spark plug sizes
- Includes 3″ and 6″ extensions plus universal joint for reach and angle
- Polished chrome Cr-V steel resists corrosion
- Socket holder rail keeps set organized
Good to know
- No magnetic core—uses rubber ring retention only
- Does not include a ratchet handle

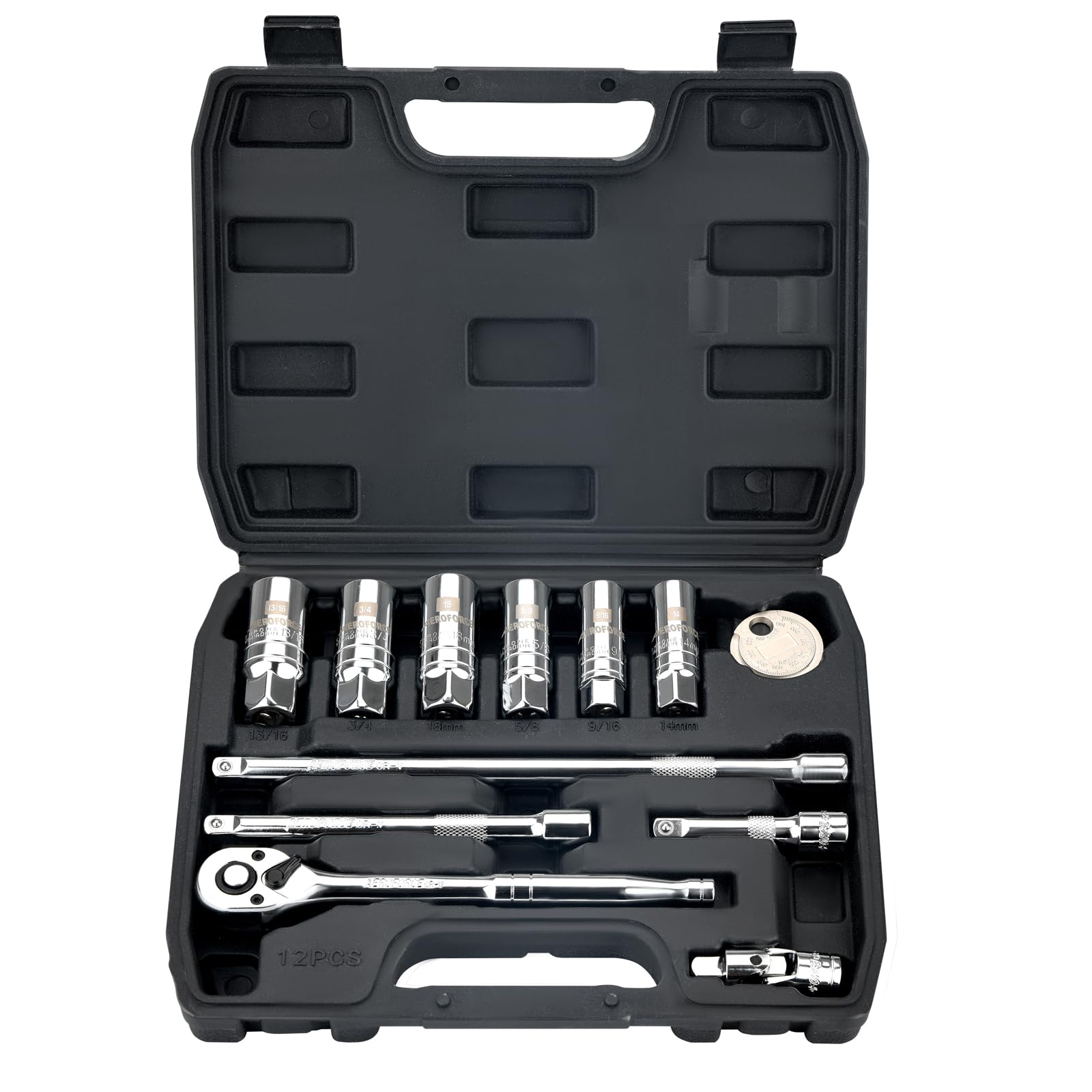

7. AEROFORCE 12-Piece Spark Plug Socket Set with Ratchet
The AEROFORCE 12-piece set is the most comprehensive option reviewed here, adding a ratchet handle, three extension bars (3″, 6″, 10″), and a spark plug gap tool to the socket lineup. This set is built for someone who needs everything to complete a full tune-up right out of the box. The 14mm 12-point socket uses a silicone retention ring that provides a better grip-release balance than rubber O-rings.
Chrome vanadium steel construction with a polished chrome finish ensures durability, and the 10-inch extension bar provides the reach for deeply recessed plugs on overhead cam engines. The spark plug gap tool is a welcome addition for checking and adjusting electrode gaps before installation. A durable storage case keeps all 12 pieces secure.
User feedback mirrors the 8-piece set: the rubber/silicone retention ring works adequately but isn’t as reliable as a magnetic core for extracting plugs from deep, angled wells. Some users reported the swivel extension broke during use, though the sockets themselves held up fine. This set is best for the DIY mechanic who wants a single purchase to cover most spark plug jobs and doesn’t mind carrying a few extra pieces.
Why it’s great
- Complete kit includes ratchet, 3 extensions, and spark plug gapper
- 10-inch extension reaches deep wells without additional tools
- Silicone retention ring offers better grip-release than rubber
- Storage case keeps everything organized
Good to know
- No magnetic core—relies on silicone ring retention
- Some users reported swivel extension breakage under torque
FAQ
Can I use a 6-point socket on a 12-point spark plug?
Why does my 14mm 12-point socket keep separating from the extension?
Is a magnetic socket better than a rubber O-ring socket for spark plugs?
Final Thoughts: The Verdict
For most users, the 14mm 12-point spark plug socket winner is the DURATECH Swivel Magnetic Socket because it combines the strongest magnetic retention, a 12-inch reach, and a smooth 360° swivel joint in one mid-range package. If you want a tool with premium build quality and a pre-greased joint that requires no break-in, grab the KORR Tools KSI004. And for BMW and Toyota owners who want a dedicated single-assembly tool with an integrated universal joint and plug retainer, nothing beats the OEMTOOLS 22814.
