Tight engine bays with deep, narrow spark plug wells are a mechanic’s worst enemy when a standard socket is too thick to fit. The 14mm thin wall spark plug socket solves this by shaving off critical millimeters of wall thickness, giving you the clearance needed to reach recessed plugs in modern BMW, Mini, and Nissan engines without damaging the porcelain insulator. A standard hex socket will simply bind against the well walls, making removal impossible without specialized tooling.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing customer reports and technical specifications across dozens of thin wall sockets to find the ones that actually deliver on their wall thickness claims and magnetic retention promises.
After examining over one hundred real verified purchases, I’ve narrowed the field to the seven most reliable options that define the genuine 14mm thin wall spark plug socket category for both DIY enthusiasts and professional mechanics.
How To Choose The Best 14mm Thin Wall Spark Plug Socket
The difference between a smooth plug change and a stripped plug head often comes down to three specific variables: wall thickness, retention mechanism, and articulation. Each factor directly determines whether your socket fits the engine well and whether extracted plugs come out cleanly on the first attempt.
Wall Thickness And Clearance
The defining spec of this category is the actual physical wall thickness of the socket barrel. A true thin wall socket measures approximately 1mm in wall thickness, compared to standard sockets at roughly 1.5mm to 2mm. That half-millimeter difference is the entire reason this category exists. Without it, the socket outer diameter exceeds the clearance inside the spark plug tube, meaning you cannot physically reach the plug head. Always verify the listed wall thickness — many sockets advertise “thin wall” but only the premium models achieve the necessary 1mm profile.
Retention Mechanism: Magnet vs. Spring Grip vs. Rubber Grommet
Three distinct retention systems compete in this category. Magnetic retention uses a neodymium ring inside the socket base to hold the plug head during extraction and insertion. Spring grip sockets use an internal spring clip that bites into the hex portion of the plug. Rubber grommets rely on friction around the plug’s ceramic insulator. Magnets offer the most consistent grip across different plug brands, while spring clips work better on loose plugs where magnetic attraction is weak. Rubber grommets degrade with heat cycles and eventually fail to hold plugs, making them the least reliable long-term choice.
Swivel Joint vs. Fixed Head
A fixed head socket works well when the spark plug well is perfectly aligned with your extension and ratchet path. Swivel joint sockets, with 360-degree articulation, become essential when the plug well sits at an angle relative to your drive tool axis — common in transverse-mounted four-cylinder engines or Subaru boxer engines where the plugs point outward at steep angles. Swivel joints add a point of failure if poorly constructed, so look for pre-greased joints with visible ball retention rather than pressed pin joints that develop slop.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| KORR KSI004 | Premium | BMW N55 engines | 1mm thin wall, Cr-V steel | Amazon |
| WORKPRO W074600 | Premium | Mercedes GLK350 | 12″ length, black phosphate | Amazon |
| OEMTOOLS 22813 | Premium | Integrated extension | 12″ flex head, spring grip | Amazon |
| DURATECH DT401280 | Mid-Range | Honda Fit spark plugs | 360° swivel, Cr-V steel | Amazon |
| POCYBER POSR11014 | Mid-Range | Motorcycle applications | Magnetic swivel, 95mm length | Amazon |
| Salior 14mm+16mm | Mid-Range | Two-size set value | Magnetic ring, 0.39″ deeper | Amazon |
| CTA Tools 2376 | Entry | BMW 335/535 3.0L engines | 1 yr warranty, 1.6 oz | Amazon |
In-Depth Reviews
1. KORR Tools KSI004 14mm Thin Wall Magnetic 3/8-Inch Drive 12-Point Swivel Spark Plug Socket
The KORR KSI004 is constructed from premium chrome vanadium steel with a fully polished finish that resists corrosion better than budget phosphate coatings. Its 1mm thin wall profile clears tight spark plug tubes in BMW N55 engines, where standard 14mm sockets bind against the tube walls. The 12-point design fits over hex plug heads with less rotational slop than traditional 6-point sockets, reducing the chance of rounding the plug head during high-torque removal.
The heavy-duty magnetic core holds the spark plug firmly inside the socket during both extraction and installation, eliminating the need for rubber grommets that degrade over time. The 360-degree swivel joint arrives pre-greased from the factory, providing smooth articulation even when the extension is at a 45-degree angle to the plug well. This swivel range is critical for Subaru boxer engines where the plugs are positioned at the sides of the block.
Customer reports confirm the KSI004 works flawlessly on BMW X5 F15 with N55 engines, Toyota Corolla inline-4 engines, and 2013 Subaru Outback plugs. The ball spring mechanism maintains consistent tension through hundreds of cycles without developing the annoying slop common in cheaper pressed-pin swivel sockets.
Why it’s great
- Pre-greased swivel joint provides smooth articulation out of the box
- Magnetic core holds plugs securely during extraction in deep wells
- Chrome vanadium steel construction resists deformation under high torque
Good to know
- Limited to 14mm applications only — no included adapters or multi-size options
- Swivel joint adds slight bulk compared to fixed-head designs

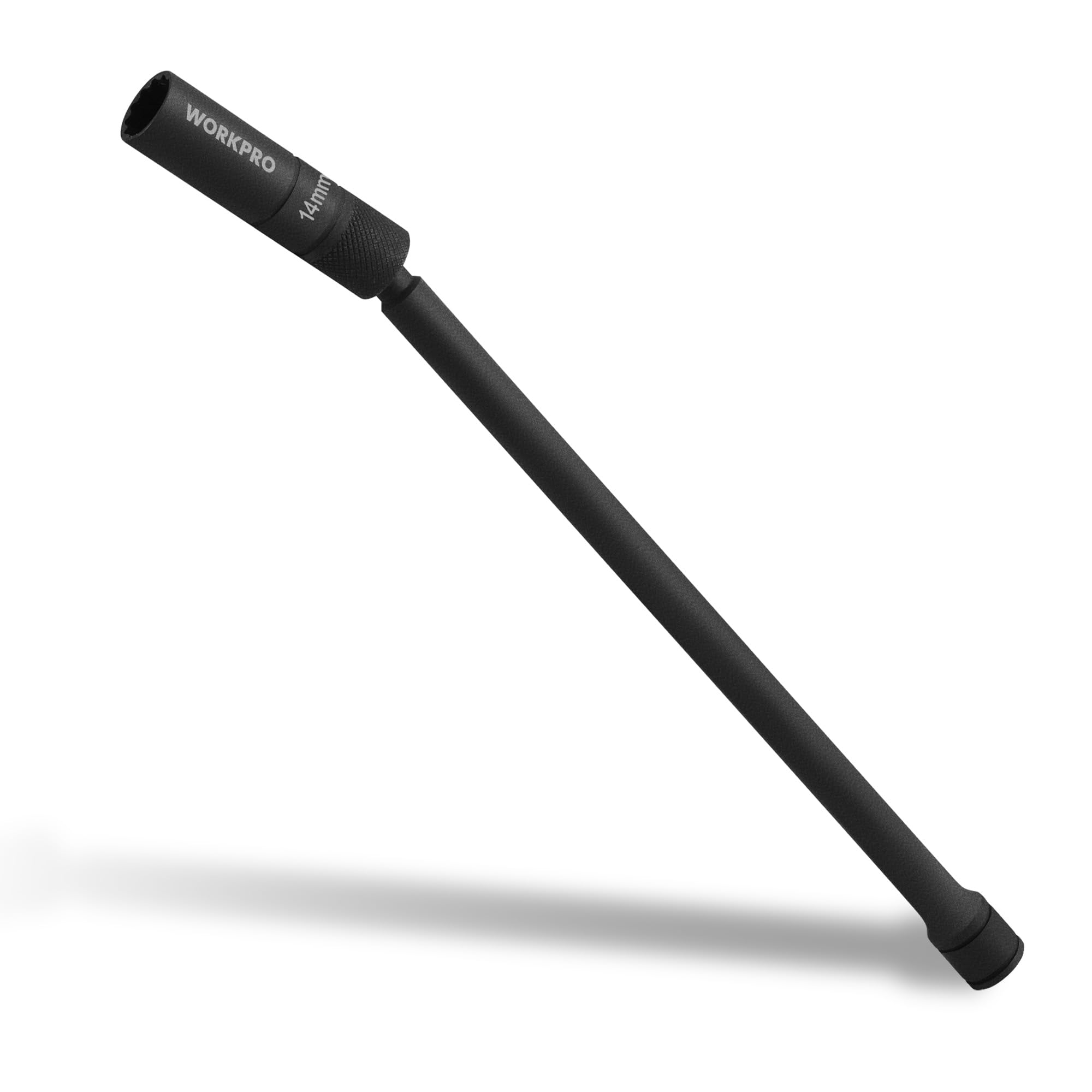

2. WORKPRO 14MM Swivel Magnetic Spark Plug Socket 12-Point
The WORKPRO W074600 stands out for its built-in 12-inch overall length, which eliminates the need for a separate extension bar in many applications. This integrated length is particularly useful on Mercedes GLK350 engines where the spark plug tubes are recessed deeply behind the intake manifold. The 1mm thin wall construction permits entry into narrow wells that would reject even slight diameter increases.
The black phosphate finish provides superior corrosion resistance compared to bare steel, and the knurled grip on the shaft allows for manual rotation when the ratchet handle is difficult to swing. The 360-degree swivel joint uses a captured ball design that maintains smooth motion even under side loads. The magnetic retention is strong enough to hold the plug during extraction but allows easy release by tilting the socket.
Verified buyers report successful use on Mercedes GLK350, Chevrolet trucks with tight engine bays, and Mazda CX-5 applications. The 12-point design provides faster engagement on the hex head compared to 6-point sockets, which matters when working in restricted visual conditions where you cannot see the socket engagement clearly.
Why it’s great
- 12-inch integrated length eliminates need for separate extension bar
- Black phosphate finish offers excellent corrosion resistance
- Knurled grip enables manual rotation in tight spaces
Good to know
- Slightly heavier than short-barrel sockets due to extended steel shaft
- Swivel joint may bind under extreme off-axis loads

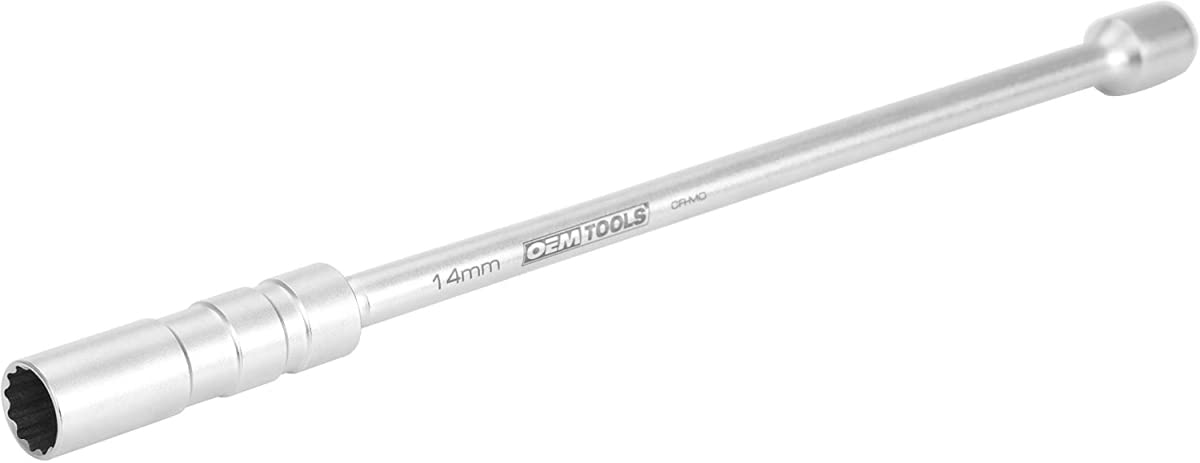

3. OEMTOOLS 22813 3/8″ Drive 14 mm x 12 Pt. Thin Wall Spark Plug Socket with 12″ Extension
The OEMTOOLS 22813 takes a fundamentally different approach to thin wall socket design by integrating the extension directly into the socket body, creating a single-piece tool that cannot separate from the extension during use. This solves the common problem of sockets detaching from extensions inside deep spark plug wells, which requires special retrieval tools to recover. The flexible head provides articulation while maintaining tool integrity.
Instead of relying on magnetic retention or rubber grommets, the OEMTOOLS 22813 uses spring-grip technology — an internal spring clip that physically grips the hex portion of the spark plug. This system excels at retaining loose plugs that lack sufficient magnetic attraction for magnetic sockets to grip reliably. The spring tension is calibrated to hold during extraction but release easily when the plug is clear of the well.
Customer reports confirm this tool works on BMW N54, N55, and N63 engines, Mini Cooper models, and Subaru FB engines. The 14.5-inch overall length reaches deep wells without requiring additional extension bars. The 12-point design accepts spark plugs with either 12-point or 6-point hex heads, providing broad compatibility across different vehicle brands.
Why it’s great
- Integrated extension prevents socket separation inside spark plug wells
- Spring-grip retention works on loose plugs that magnets cannot hold
- 15-inch overall length reaches deepest spark plug tubes without adapters
Good to know
- Spring mechanism adds slight friction during plug insertion
- Flexible head may not pivot as freely as dedicated swivel joint sockets
4. DURATECH 14mm Swivel Magnetic Spark Plug Socket with 1MM Thin Wall
The DURATECH DT401280 uses heat-treated chrome vanadium steel with a manganese phosphate coating, providing a surface finish that feels slightly grippy to the touch and resists rust better than standard chrome plating. The 1mm thin wall construction is verified by the physical profile of the socket barrel, which measures noticeably narrower than standard 14mm sockets when compared side by side. This clearance is essential for Honda Fit and Honda Accord engines where the spark plug tubes are narrow.
The built-in rubber protective cover inside the socket protects the ceramic insulator from chipping during installation — a common failure point when the socket edge contacts the ceramic body during angle entry. The 360-degree swivel joint uses a ball-and-socket design with sufficient range to reach plugs mounted at extreme angles. The knurled grip section provides tactile feedback when aligning the socket by feel in blind applications.
Customer reports highlight successful use on 2015 Honda Fit, 2018 Honda Accord Sport, and Challenger engines. The magnetic core holds plugs firmly during removal, and the swivel joint maintains smooth operation even when used with impact-rated extensions. The laser-etched size marking remains legible after repeated cleaning cycles.
Why it’s great
- Rubber protective cover prevents ceramic insulator chipping during installation
- Manganese phosphate coating provides excellent corrosion resistance
- Heat-treated Cr-V steel withstands repeated high-torque removal cycles
Good to know
- Manganese phosphate finish can appear dark and matte — not as visually polished as chrome
- Rubber cover may eventually wear after many heat cycles
5. POCYBER 14mm Swivel Spark Plug Socket 3/8″ Drive Enhanced Magnetic 12 Point
The POCYBER POSR11014 delivers a 1mm thin wall magnetic swivel socket at a mid-range price point without sacrificing the critical 1mm wall thickness that defines this category. The 95mm overall length makes it shorter than the WORKPRO and OEMTOOLS options, which can be an advantage in tight engine bays where long sockets would contact other components before reaching the plug. The chrome vanadium steel construction with polished chrome finish provides adequate durability for regular DIY use.
The interior magnet is strong enough to hold plugs during extraction but allows easy release by shaking the socket gently — no prying required. The 360-degree swivel action provides flexibility for accessing plugs at awkward angles, particularly in motorcycle applications where the engine is exposed and the plug wells are shallow. The 12-point design provides faster engagement on hex heads compared to 6-point sockets.
Customer reports confirm successful use on Craftsman 917 lawn mowers with 18.5 hp engines, 2015 Subaru Outback 2.5 Premium, and various motorcycle applications with deep enclosed wells. The swivel joint is reported to feel smooth with no binding during operation, and the magnet holds plugs securely during the critical extraction phase where dropped plugs are most likely.
Why it’s great
- Shorter 95mm barrel fits tight engine bays where long sockets cannot
- Polished chrome finish resists rust and wipes clean easily
- Strong magnet prevents dropped plugs during extraction
Good to know
- Shorter length may require a separate extension for deep plug wells
- Some users report the swivel joint has slight tension when new

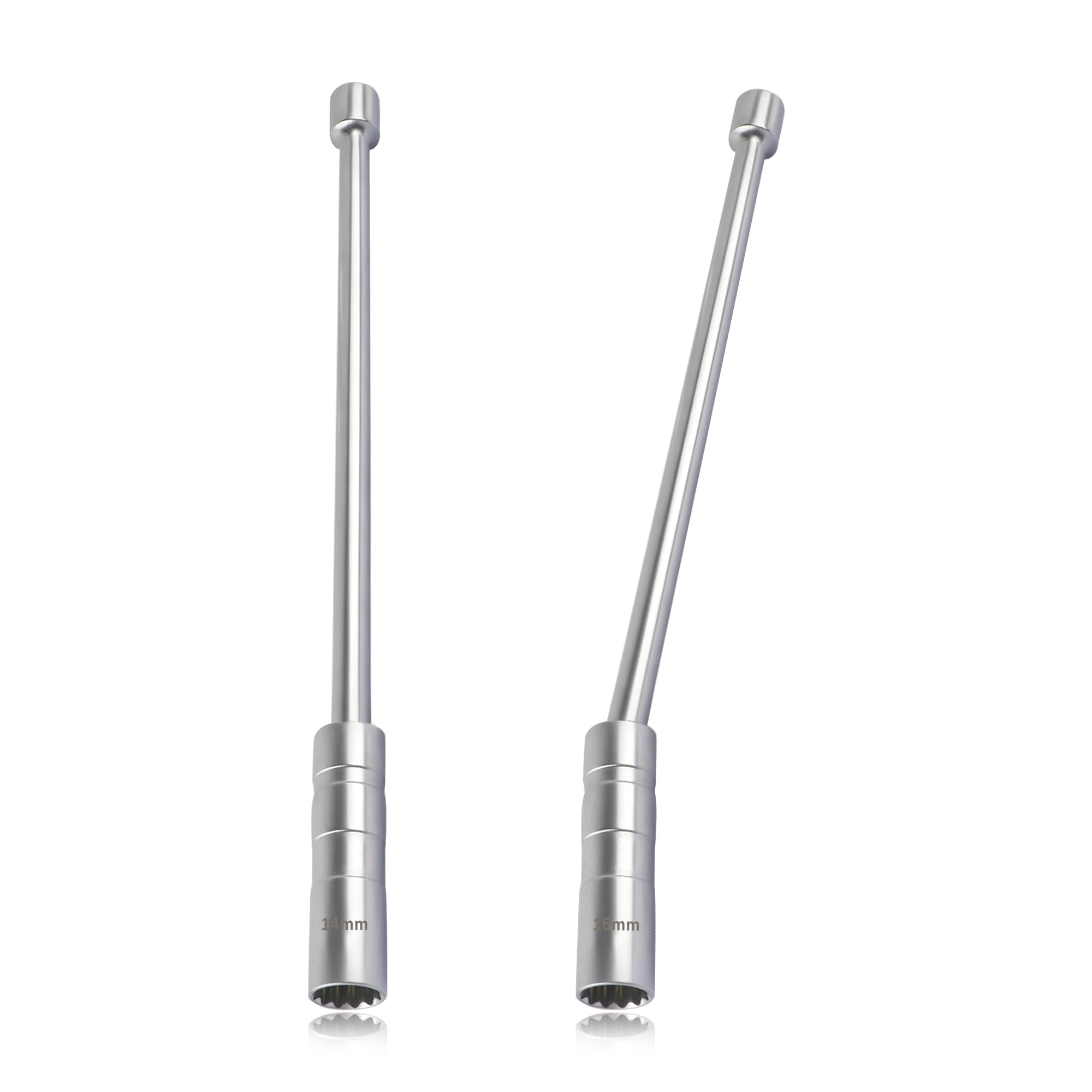

6. Salior 14mm+16mm Extend Spark Plug Socket Set with Thin Wall 12 Points
The Salior two-piece set includes both a 14mm and a 16mm thin wall spark plug socket, making it the only multi-size option in this comparison. The 14mm socket handles standard spark plugs found in most Toyota, Honda, and Nissan engines, while the 16mm socket covers larger plugs used in older BMW engines and some domestic applications. The set removes the need to purchase separate sockets for different vehicles.
Both sockets use a built-in magnetic ring that extends 0.39 inches deeper than standard sockets, providing better engagement with long-reach spark plug electrodes. The 12-point ultra-thin wall opening on both sockets maintains the critical clearance needed for narrow spark plug tubes. The universal joint connector on each socket rotates 360 degrees for flexible positioning in tight engine compartments.
Customer reports confirm the 14mm socket works on 2010 Toyota Corolla S, while the 16mm socket fits 2004 BMW 330ci spark plugs. The magnets hold plugs securely during removal and installation. The integral heat-treated steel construction provides sufficient hardness for repeated use without deformation, and the polished surface resists rust formation in normal workshop conditions.
Why it’s great
- Two-size set covers both 14mm and 16mm applications
- 0.39-inch deeper socket cavity improves engagement with long-reach plugs
- Integral heat-treated steel construction resists deformation
Good to know
- Nickel core material is less durable than chrome vanadium steel
- Two-month warranty is shorter than most competitors
7. CTA Tools 2376 Spark Plug Socket 14mm x 12 Point
The CTA Tools 2376 is designed specifically for BMW models from 2007 onward, including the 335 and 535 with 3.0-liter engines. It matches the BMW factory tool part number 121220 and is recommended for achieving the correct spark plug torque of 17 lb-ft or 23 Nm. The thin-wall construction with 12-point design fits the narrow spark plug tubes found in the N54 and N55 engine families.
At only 2.5 inches in overall length, this is the shortest socket in the comparison, requiring a separate extension bar for most applications. The rubber O-ring inside the socket provides retention for extracting plugs, though multiple customer reports recommend lubricating the O-ring with silicone grease or dish soap to prevent the socket from gripping the plug so tightly that the extension detaches during removal. The 1.6-ounce weight makes this the lightest option available.
Customer reports confirm it works on 2018 BMW 540i, 2009 BMW 335i coupe, and Mini N18 engines. The snug O-ring grip is intentionally tight to prevent losing plugs inside the well, but users should apply lubricant to the O-ring before first use and consider taping the socket to the extension for added security during removal of stubborn plugs.
Why it’s great
- Designed to match BMW factory tool specifications
- Lightest socket in the comparison at 1.6 ounces
- One-year warranty on material and workmanship
Good to know
- Rubber O-ring may grip plugs too tightly, requiring lubrication
- Short 2.5-inch barrel requires a separate extension for most applications
FAQ
What is the difference between thin wall and standard wall spark plug sockets?
Will a 14mm thin wall socket fit all BMW spark plugs?
Why do some thin wall sockets have a swivel joint while others are fixed?
Should I choose a magnetic socket or a rubber grommet socket?
Final Thoughts: The Verdict
For most users, the 14mm thin wall spark plug socket winner is the KORR Tools KSI004 because it combines a genuine 1mm thin wall profile with a pre-greased swivel joint and strong magnetic retention at a price that undercuts premium competitors. If you need an integrated extension that cannot separate inside the well, grab the OEMTOOLS 22813. And for covering both 14mm and 16mm applications in one purchase, nothing beats the Salior two-piece set.
