That spinning circle on your video doorbell every time someone approaches isn’t a Wi-Fi issue—it’s a voltage starvation problem. Your smart doorbell demands steady 16V AC power to maintain its Wi-Fi connection, live view stream, and motion recording, yet most homes still run on anemic 10V or 16V 10VA transformers from the analog chime era. Upgrading to a proper 30VA-rated unit is the single fix that eliminates intermittent connectivity, low-battery warnings, and mechanical chime noise.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours analyzing smart home power specifications, cross-referencing voltage drop curves with real customer multimeter readings, and matching transformer VA ratings to the actual draw of Ring, Nest, Eufy, and Wyze doorbells to ensure no buyer wastes time chasing the wrong adapter.
Whether your existing unit hums audibly, runs hot, or simply can’t keep your camera online, this guide identifies the specific model that matches your wiring setup and device requirements. You’ll find the definitive best 16v doorbell transformer for hardwired installations, plug-in retrofits, and multi-device homes after reading these seven reviews.
How To Choose The Best 16V Doorbell Transformer
Selecting a doorbell transformer isn’t about picking any 16V adapter from the shelf. The wrong unit leads to buzzing chimes, underpowered cameras that disconnect at night, or a transformer that runs hot enough to degrade its own insulation over months. Three specifications determine whether your installation works reliably for years or becomes a recurring headache.
VA Rating — The Real Power Figure
Voltage is only half the equation. A 16V 10VA transformer delivers roughly 0.625 amps, which is enough for a basic mechanical chime but insufficient for a video doorbell that draws 500mA to 1000mA steady-state with peaks during IR LED activation. The industry standard for modern smart doorbells is 16V at 30VA, which provides roughly 1.875 amps — adequate headroom for the doorbell itself plus a mechanical chime coil without sagging voltage below the device’s brownout threshold.
Form Factor: Hardwired vs. Plug-In
Hardwired transformers mount directly to a junction box inside your home’s wall or attic, requiring you to connect line-voltage wires (typically black, white, and green) and are permanent fixtures. Plug-in transformers, by contrast, connect to a standard 120V wall outlet and run low-voltage wire to the doorbell location. Choose hardwired for a clean, invisible install and plug-in if you lack access to a junction box near the doorbell location or prefer a simpler DIY swap.
Certification and Heat Dissipation
A transformer that is not UL listed carries a higher risk of insulation breakdown, short circuits, or fire when left energized continuously. Look for explicit UL listing on the product page or packaging. Additionally, a transformer that runs warm to the touch (around 100–120°F under load) is normal, but units that become hot enough to cause discomfort when held are undersized for the load they’re driving and should be replaced with a higher VA model.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HQRP 16V 30VA | Hardwired | Premium reliability | UL listed, 30VA, overload protection | Amazon |
| Newhouse Hardware 3TRAN | Multi-Volt | 8V/16V/24V flexibility | Tri-Volt output, UL certified | Amazon |
| Feekoon 16.5V Plug-In | Plug-In | Simple retrofits | PTC fuse, green LED indicator | Amazon |
| Maxdot 16V 30VA | Hardwired | UL safety, cool operation | UL listed, 1.5A, wall mount | Amazon |
| GIVEUBED 16V 30VA | Hardwired | Value pick | 30VA, wall mount, 791 ratings | Amazon |
| Cwowhihui 16V 30VA | Hardwired | Budget-conscious install | FCC/UL listed, surface mount | Amazon |
| Lusperi 18V 500mA | Long Cord | Extended reach installation | 19.7 ft cord, 500mA output | Amazon |
In‑Depth Reviews

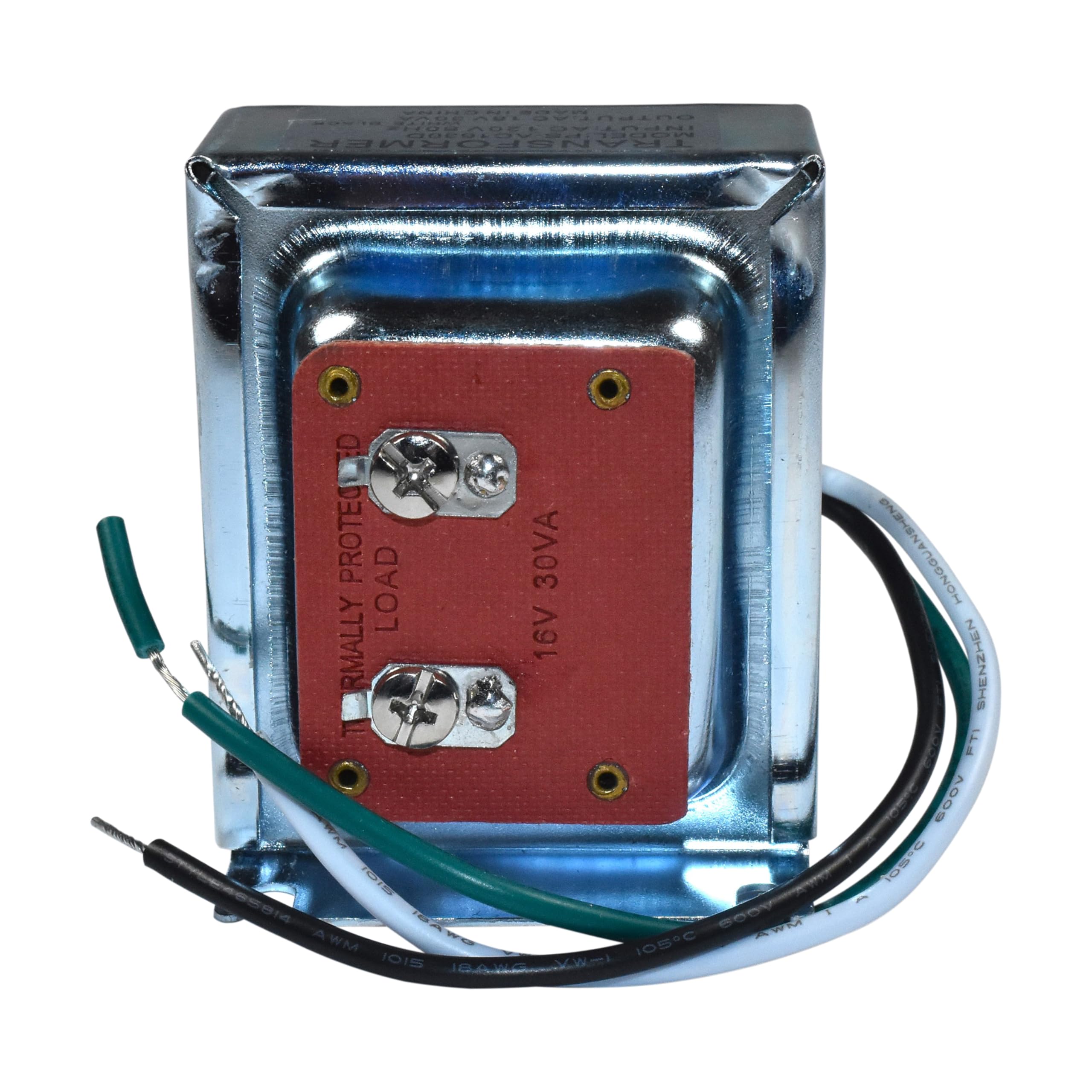

1. HQRP 16V 30VA Doorbell Transformer
The HQRP 16V 30VA transformer delivers the goldilocks power tier for virtually every major smart doorbell on the market today. Rated at 30VA with a 1 amp current capacity, it provides enough headroom to run a Ring Video Doorbell Pro or Nest Hello alongside your existing mechanical chime without voltage sag. The unit is UL listed and built from heat-resistant materials with overload and short-circuit protection, which matters when a transformer sits energized inside a junction box for years.
Installation follows standard hardwired procedure: secure the threaded connector to a ½-inch knockout on your electrical box, connect black to line, white to neutral, and green to ground, then wire the 16V low-voltage side to your doorbell wires. Real-world multimeter readings from users confirm a steady 16V output under load, which eliminates the low-voltage warnings that plague underpowered 10V or 16V 10VA units. The HQRP also runs cooler than most—users report it stays warm but never hot to the touch, even during continuous camera streaming.
One caveat worth noting: a small number of users report a faint buzzing sound from the transformer when installed near metal junction boxes. Tapping the housing or adjusting mounting screws typically resolves this. For buyers who prioritize rock-solid voltage delivery, UL-certified safety, and compatibility with Ring, Nest, Eufy, and Ubiquiti doorbells, the HQRP represents the most reliable 16V doorbell transformer available at any price tier.
Why it’s great
- Steady 16V output under full load prevents doorbell dropouts and low-battery warnings
- UL listed with built-in overload protection for safe long-term operation
- Runs cool enough to touch even during continuous video streaming
Good to know
- May produce a faint hum in certain metal junction box installations
- Requires basic electrical knowledge to wire into a junction box
2. Newhouse Hardware 3TRAN Tri-Volt Transformer
The Newhouse Hardware 3TRAN is the only transformer on this list that offers three output voltages from a single unit: 8V at 10VA, 16V at 10VA, or 24V at 20VA. This makes it uniquely suited for troubleshooting where the exact voltage requirement of your doorbell or chime is unknown, or for homes that need to switch between a standard mechanical chime and a smart doorbell without replacing the transformer. The 24V/20VA setting is particularly useful for Ring Pro and Nest Hello installations that benefit from higher voltage for faster chime response.
Customers report that the 24V setting produces a noticeably louder and quicker chime with the Ring Doorbell Pro, while the 16V setting works well with Eufy E340 and second-gen Nest doorbells when paired with a mechanical chime. The transformer is UL certified and features a compact footprint of 2.56 x 2.25 inches, fitting easily into most junction boxes. A 2-year warranty backs the unit, which is double what most competitors offer at this price level.
The primary trade-off is that the 16V setting provides only 10VA, which is below the 30VA recommendation for power-hungry video doorbells. Users who select the 16V position may experience insufficient power for continuous recording or IR LED activation. The Tri-Volt is best approached as a diagnostic tool or a solution for homes where chime volume or voltage flexibility matters more than raw current capacity, but for most smart doorbell installations, the 24V/20VA position delivers the best real-world performance.
Why it’s great
- Three voltage settings allow experimentation to match specific doorbell and chime requirements
- 24V/20VA setting provides louder, faster chime response with Ring Pro
- 2-year warranty is industry-leading for a doorbell transformer
Good to know
- 16V position only offers 10VA, insufficient for power-hungry video doorbells
- Some users report a noticeable hum when set to 24V in metal boxes
3. Feekoon 16.5V Doorbell Transformer Plug In
The Feekoon 16.5V 30VA plug-in transformer is the best option for homeowners who want to avoid opening junction boxes or working with line-voltage wiring. It plugs directly into a standard 120V grounded outlet and delivers 16.5V at 30VA through screw terminals on the low-voltage side. The no-load voltage naturally rises to around 18V, which is normal and does not affect performance—users confirm that under load the voltage settles exactly where smart doorbells expect it.
This unit includes an auto-resetting PTC fuse that protects against overcurrent conditions without needing manual fuse replacement, plus a green LED power indicator that confirms the transformer is energized. The plug-in form factor also allows you to position the transformer near an outlet rather than inside a wall, which improves heat dissipation and makes future swaps trivial. Users report consistent performance with Ring, Nest, Eufy, and Arlo doorbells over 10+ months of continuous operation.
The main limitation is aesthetic: the transformer housing sits exposed on your wall and measures 2.5 x 2.1 x 3.8 inches, which may clash with modern interior finishes. Additionally, the included wires are short, so you may need to extend them or use wire nuts to reach your doorbell location. For renters or anyone uncomfortable with hardwired electrical work, the Feekoon plug-in delivers the full 30VA power required by modern video doorbells without any permanent modifications to your home.
Why it’s great
- No electrical box wiring required—plugs into any 120V grounded outlet
- PTC fuse automatically resets after an overcurrent event
- Green LED indicator confirms power status at a glance
Good to know
- Housing remains visible on the wall and may not suit all decor preferences
- Short low-voltage wires may require extension for distant doorbell locations
4. Maxdot 16V 30VA Doorbell Transformer
The Maxdot 16V 30VA hardwired transformer earns the best overall recommendation because it combines UL listing, a compact 2.6 x 2.4 x 3.9-inch footprint, and a 30VA output that matches the power requirements of Ring Pro, Nest Hello, and Eufy doorbells without compromise. The unit runs notably cooler than many competitors—users upgrading from older Nutone models report that the Maxdot remains merely warm to the touch while the previous transformer was uncomfortably hot after hours of continuous camera streaming.
Installation is straightforward: the transformer mounts to a standard junction box via threaded connector or screws, and the included wiring diagram covers the three most common low-voltage configurations. The UL listing provides peace of mind for an always-energized device, and the build quality feels substantial at 700 grams. A clear majority of user reviews confirm that this transformer solved intermittent connectivity issues with Ring Doorbell Pro, eliminating the spinning circle and delayed notifications that plagued their previous underpowered setups.
The only real point of concern is longevity—a small number of users report failure after roughly two years of continuous operation, with the transformer ceasing to output DC voltage despite receiving AC input. Maxdot’s customer service appears responsive in these cases, offering replacements. For the vast majority of installations, the Maxdot 16V 30VA provides the best balance of certified safety, thermal performance, and power delivery for a wired smart doorbell setup.
Why it’s great
- Runs cool even under continuous 30VA load, extending component lifespan
- UL listed for safe 24/7 operation inside junction boxes
- Compatible with Ring, Nest, Eufy, and Honeywell thermostat systems
Good to know
- Some units have failed after extended continuous use, though customer service replaces them
- Requires proper grounding and a dedicated junction box for installation
5. GIVEUBED 16V 30VA Doorbell Transformer
The GIVEUBED 16V 30VA transformer is the most reviewed unit on this list with nearly 800 customer ratings, making it the most popular hardwired choice among smart doorbell owners. It delivers the standard 120V-to-16V at 30VA conversion that ring, Nest, Wyze, and Eufy doorbells require, and users consistently report that a simple 5-minute swap from an old 10V or 16V 10VA transformer resolves their intermittent connectivity issues immediately.
Installation is identical to other hardwired units: mount to the junction box knockout, wire the line side to black/white/green, and connect the low-voltage side to your doorbell wires. The compact 1.1 x 1.9 x 2.6-inch dimensions allow it to fit even in crowded boxes. Users upgrading from a 10V transformer to power an Arlo doorbell or Wyze Doorbell Pro confirm that the extra VA eliminates the low-voltage warnings and keeps the camera online during continuous recording.
The main risk is quality consistency—a very small percentage of units fail after a week or month of use, with the company offering refunds in those cases. For the vast majority of installations, the transformer provides reliable service for a year or more without issues. If you want the most popular, best-reviewed, and wallet-friendly 30VA option for a standard smart doorbell upgrade, the GIVEUBED is the safe bet that thousands of other buyers have already validated.
Why it’s great
- Nearly 800 customer reviews confirm consistent compatibility with major smart doorbell brands
- Compact 1.1-inch depth fits snugly in tight junction boxes
- 5-minute installation solves underpowered doorbell warnings immediately
Good to know
- Rare but documented early failures—test the unit immediately upon installation
- Not UL listed, so safety certification is unverified
6. Cwowhihui 16V 30VA Doorbell Transformer
The Cwowhihui 16V 30VA transformer represents the lowest entry point into the 30VA tier without sacrificing dual compliance certifications. It carries both FCC and UL listings, which is unusual at this price range and indicates the unit has passed basic safety and electromagnetic interference testing. The transformer accepts 120V at 50/60Hz input and outputs 16V at 30VA through a standard surface-mount junction box setup.
User feedback confirms straightforward installation and immediate resolution of underpowered Ring doorbell issues. The threaded mount and included screws make for a quick swap if you already have access to the junction box and basic wiring tools. The 30VA output provides ample current to power a video doorbell plus an existing mechanical chime without triggering brownouts or the spinning circle on your camera feed.
The primary trade-off is the relative newness of the product—it has far fewer reviews than the GIVEUBED or Maxdot options, so long-term reliability data is sparse. Some buyers may prefer the certainty of a unit with thousands of verified install hours. For a budget-conscious install that still demands proper safety certification and 30VA of headroom, the Cwowhihui offers the lowest cost to entry for a fully compliant transformer.
Why it’s great
- Both FCC and UL listed despite being the most affordable 30VA option
- Compatible with Ring, Nest, Wyze, Eufy, and Honeywell thermostat systems
- Simple threaded mount installation with included hardware
Good to know
- Limited long-term reliability data due to recent market entry
- Surface mount requires access to a junction box with a ½-inch knockout
7. Lusperi Extra Long 19.7ft Cord 18V 500mA
The Lusperi 18V 500mA transformer stands apart from every other product on this list because it offers a 19.7-foot cord, solving the single biggest installation headache for doorbells located far from the nearest outlet or junction box. Instead of splicing wire extensions or relocating your transformer, the Lusperi simply reaches from a distant outlet directly to the doorbell location. The output is 18V at 500mA, which is slightly above the 16V recommendation but still within the safe input range for most smart doorbells, including Ring, Nest, Eufy, Wyze, and Arlo.
The build quality features a fire-proof injection-molded shell and pure copper wire core, with ring terminals at the ends for secure connection to the doorbell screws. Installation is genuinely plug-and-play: strip the outer jacket, connect the two ring terminals to the doorbell’s backplate, and plug the transformer into a wall outlet. Users confirm it works reliably with Eufy E340, Ring Video Doorbell 2, and Nest Hello, providing steady power that eliminates the need for periodic battery recharging.
The notable limitation is the 500mA current rating, which translates to approximately 9VA—well below the 30VA recommended for power-hungry video doorbells. This means the Lusperi is best suited for doorbells that primarily trickle-charge an internal battery rather than running continuous recording or IR illumination. It also lacks UL certification, so it should be plugged into a GFCI-protected outlet for safety. For installations where distance from power is the primary obstacle, the 19.7-foot cord is a compelling convenience.
Why it’s great
- 19.7-foot cord eliminates the need for wire extensions or junction box relocation
- Pure copper wire core and fire-proof shell provide durable construction
- Ring terminal connectors make for fast, secure DIY installation
Good to know
- 500mA/9VA output is insufficient for continuous recording or IR-heavy doorbells
- Not UL listed—pair with a GFCI outlet for safety
FAQ
Can I use a 24V transformer on a device rated for 16V?
Why does my doorbell transformer hum or buzz?
How do I test if my existing doorbell transformer is failing?
Final Thoughts: The Verdict
For most users, the best 16v doorbell transformer winner is the Maxdot 16V 30VA because it delivers UL-certified 30VA power in a compact package that runs cool even during continuous camera streaming. If you need plug-in convenience without opening a junction box, grab the Feekoon 16.5V with its PTC fuse and green power indicator. And for installations where distance from an outlet is the primary obstacle, nothing beats the Lusperi with its 19.7-foot cord.
