Electromagnetic interference — the buzzing ghost that hunts every signal run next to a stepper motor or a VFD drive. Chasing that noise with unshielded wire is a losing battle, which is why a properly constructed 18/2 shielded cable with a foil and braid layer is the only reliable foundation for CNC spindles, security sensors, and line-level audio circuits. The difference between a clean signal and a corrupted one often comes down to that thin aluminum wrap and the tinned copper braid that surrounds your two conductors.
I’m Min — the co-founder and writer behind Gadgets Feed. Every recommendation in this guide comes from cross-referencing hundreds of verified buyer experiences against the actual construction specs — strand count, shield type, jacket rating, and conductor material — that determine whether a cable performs or frustrates.
Whether you are wiring a new CNC build, extending an irrigation controller, or running a communication line between HVAC units, selecting the right best 18/2 shielded wire saves you hours of troubleshooting down the road by eliminating noise before you ever hear it.
How To Choose The Best 18/2 Shielded Wire
Not all 18/2 wire is built the same. The differences that matter — shield coverage, conductor purity, jacket rating, and strand count — directly affect whether your installation works reliably or introduces noise that is nearly impossible to isolate later.
Shield Type and Coverage
An aluminum foil wrap alone blocks high-frequency EMI, but a tinned copper braid layered on top adds robust protection against lower-frequency magnetic interference. The best 18/2 shielded wire for CNC and motor applications uses both layers — foil plus braid — to achieve what is typically called 85-100% shield coverage. A drain wire running inside the shield makes grounding convenient, though grounding the braid directly to a chassis or earth point works just as well.
Conductor Material and Strand Count
Oxygen-free tinned copper (OFC) resists corrosion and maintains consistent conductivity over years of flexing and temperature swings. Copper-clad aluminum (CCA) is lighter and cheaper but carries higher resistance and is more brittle under repeated bending. For stranded wire, a higher strand count — 26 or 34 strands versus 18 — translates to noticeably better flexibility when routing through tight machine cable chains or conduit. Solid conductors belong in underground irrigation runs where flexibility is irrelevant.
Jacket Rating: Plenum, Riser, or General Purpose
The jacket material determines where the wire can legally and safely be installed. Plenum-rated (CMP) jackets are low-smoke and flame-retardant for air-handling spaces above drop ceilings. Riser-rated (CL3R) jackets pass vertical flame tests for runs between floors in residential or commercial walls. Standard PVC jackets without a rating are fine for exposed equipment wiring, automotive, and outdoor direct-burial scenarios where codes permit, but they must never be fished through plenum zones.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Voltive 18/2 Shielded | Premium | Fixed runs & audio | OFC, foil shield + drain, 500ft | Amazon |
| MOOKEERF 18/2 Plenum | Premium | Plenum-rated runs | Stranded copper, CMP jacket, 100ft | Amazon |
| WJRZA 18/2 Shielded | Mid-Range | CNC & comm lines | OFC, double shield, 34-strand, 50ft | Amazon |
| CONEPY Marine 18/2 | Mid-Range | Boat & auto wiring | Tinned copper, 600V, IP68, 50ft | Amazon |
| Zhong Hua Jiang 18/2 | Budget-Friendly | CNC spindle wiring | OFC, double shielded, 30ft | Amazon |
| WJRZA Solid Sprinkler | Budget-Friendly | Irrigation valves | Solid copper, direct-bury, 100ft | Amazon |
| NAOEVO 18/2 CCA | Budget-Friendly | Long 12V runs | CCA, 500ft spool | Amazon |
In‑Depth Reviews

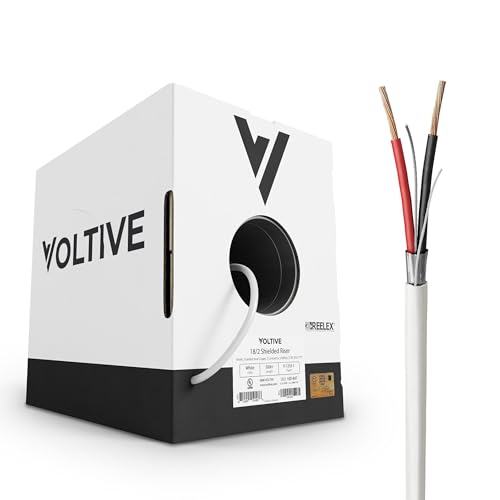

1. Voltive 18/2 Shielded Low Voltage Wire, CL3R, 500ft
Voltive built this 18/2 around oxygen-free bare copper conductors — a genuine differentiator when every foot of resistance matters for long audio or security runs. The overall foil shield is backed by a tinned copper drain wire, so terminating the shield at one end is as simple as connecting that single stranded wire to your ground point rather than wrestling with loose foil.
The CL3R riser rating makes this cable code-compliant for in-wall installations between floors in residential and commercial buildings. Voltive’s payout box design deserves a mention: the reinforced handles and large dispensing hole prevent the tangling and kinking that typically plague 500ft spools, saving real time during long pulls. A cotton ripcord runs under the jacket, allowing you to strip long sections quickly without nicking the inner conductors.
Church sound technicians and integrators have reported using this exact cable for XLR microphone runs under stages, noting that the flexible stranded core solders cleanly onto male and female connectors. The only compromise is the white jacket — less ideal for outdoor or automotive use where UV exposure and grime make a black jacket preferable. For fixed indoor installations, however, this is the most thoughtfully engineered 18/2 shielded wire on the market.
Why it’s great
- Oxygen-free bare copper conductors deliver low resistance and long-term reliability
- CL3R riser rating permits code-compliant in-wall and between-floor installation
- Tangle-free box with payout hole and ripcord saves installation time
Good to know
- White jacket shows dirt quickly and is less suited for outdoor exposure
- 500ft is a large commitment for small one-off projects

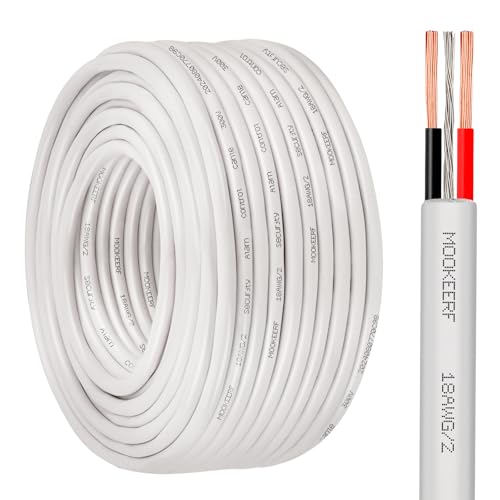

2. MOOKEERF 18 AWG 2 Conductor Stranded Shielded Plenum Cable, 100FT
Plenum-rated cable is required by fire code for any installation that passes through air-handling spaces — above suspended ceilings or under raised floors — and the MOOKEERF 18/2 carries the CMP/CL3P/FPLP stamp that inspectors look for. The stranded pure copper conductors flex more readily than solid cores, which matters when you are threading this cable through drop ceiling grids and around ductwork.
Each conductor uses 18 strands of bare copper, so the wire holds its shape after bending without springing back like a stiffer solid core would. The overall foil shield covers the full bundle, and early buyers report that this cable eliminates communication errors on mini-split HVAC systems that rely on RS485 S1/S2 signaling between indoor and outdoor units. The 100-foot length is enough for most single-floor alarm or access control runs without leaving excess coil.
A review noting the jacket being hard to strip with standard wire strippers is worth paying attention to — the PVC plenum compound is deliberately less slippery for flame-retardance, so expect to peel it back with a utility knife or a specialized stripper. There is no UL marking printed on the jacket, which a minority of buyers flagged as a concern. For non-plenum spaces where fire code is less strict, the standard PVC alternatives may be more installer-friendly.
Why it’s great
- Bona fide CMP/CL3P plenum rating for code-compliant air-handling space installations
- Stranded pure copper is flexible and easy to route through tight ceiling paths
- 100-foot length is practical for single-floor alarm and access control projects
Good to know
- Plenum jacket compound is stiff and harder to strip than standard PVC
- No UL certification printed on the jacket, which some inspectors may question

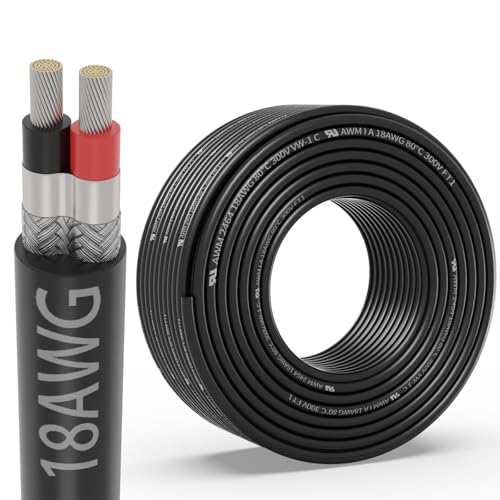

3. WJRZA 18 Gauge 2 Conductor Shielded Wire, 50FT
What sets the WJRZA 18/2 apart at its price point is the 34-strand construction per conductor. Higher strand density makes this one of the more flexible 18/2 shielded cables you can buy, which is critical when it has to make tight 90-degree bends inside a CNC cable chain or behind a compact 3D printer electronics enclosure. Tinned oxygen-free copper provides corrosion resistance that bare copper lacks in humid shops.
The double shielding — aluminum foil plus tinned copper braid — achieves roughly 85% coverage, and multiple buyers specifically credit this cable with eliminating engine whine in automotive audio installations and communication errors on mini-split HVAC systems. The rated specifications include a 300V limit and an 80°C temperature ceiling, which comfortably covers the typical 12-48V range of most CNC, alarm, and speaker applications.
The 50-foot length hits a sweet spot between having enough for a medium-sized machine build and not paying for 100 feet you may never unspool. The PVC jacket is flame-retardant per VW-1 and FT1 standards. A minority of buyers mentioned that the sheath is slightly stiffer than expected, though the 34-strand inner conductors compensate by keeping the overall bend radius workable.
Why it’s great
- 34-strand tinned copper per conductor delivers excellent flexibility for tight cable runs
- Double foil-and-braid shielding effectively blocks motor noise and EMI
- 50-foot length is practical for single CNC or automotive projects
Good to know
- Outer PVC jacket is moderately stiff despite the flexible inner strands
- No drain wire — shield must be grounded by twisting the braid to a terminal
4. CONEPY 18 Gauge Marine Wire, 18/2 Duplex, 50FT
The CONEPY 18/2 is not shielded, but it earns its place for environments where corrosion resistance and waterproofing matter more than EMI rejection. Each conductor is built from 26 strands of 0.2mm tinned copper, a construction that meets UL 1426 and SAE J1127 marine standards. The IP68 waterproof rating means this cable can survive continuous submersion — relevant for bilge pumps, navigation light runs on pontoons, or exposed automotive underbody wiring.
The jacket is a thickened PVC rated for 600V and an operating temperature range from -40°F to 221°F. Buyers who installed this on Boston Whalers and other saltwater boats report zero corrosion issues after full seasons of exposure. The cable also works well for short low-voltage runs to Arduino and ESP32 boards where the higher flexibility of 26-strand wire makes breadboarding and terminal connections easier than with solid core.
Because this wire lacks any shielding layer, it should not be your first choice for signal-carrying runs near motors, VFDs, or switching power supplies. For DC power distribution in wet or corrosive environments, however, the tinning and IP68 PVC jacket make this the most durable option among the cables reviewed here.
Why it’s great
- Tinned copper strands resist saltwater corrosion much better than bare copper
- IP68 waterproof rating allows direct exposure to bilge water and rain
- 600V rating and wide -40°F to 221°F temperature tolerance
Good to know
- No shielding layer — unsuitable for signal wiring near EMI sources
- White jacket shows every smear of grease and dirt on a boat
5. 18AWG 18/2 2 Core Shielded Wire (30FT) — Zhong Hua Jiang
Zhong Hua Jiang delivers genuine double shielding — aluminum foil plus tinned copper braid — at the lowest entry cost in this roundup, making it the go-to option for the first CNC build or a quick 3D printer spindle retrofit. The 30-foot length is intentionally short, which suits small-format machines like a 3018 or 4040 CNC router where longer cables would just create excess coil that catches on moving parts.
The conductors are advertised as 99% oxygen-free copper, a claim supported by the product’s UL and RoHS2.0 compliance certifications. The 300V rated voltage and 80°C temperature limit are adequate for the VFD spindles and stepper motor wiring that most hobbyist CNC operators need. One reviewer specifically noted the cable is flexible enough to snake through the drag chain of a small machine, though another mentioned the sheath stiffness increases when ambient temperature drops.
The absence of a separate drain wire means you will need to twist the tinned copper braid into a pigtail and land it on a ground screw or terminal block. This is standard practice for budget shielded cables, but it adds a small step compared to cables that include a dedicated drain. For the price and the dual-shield construction, however, this cable punches well above its weight for lightweight projects.
Why it’s great
- Full aluminum foil plus tinned copper braid shielding at a budget-friendly price
- 30ft length is perfect for small CNC routers and 3D printer spindles
- 99% oxygen-free copper and UL/RoHS compliance add quality assurance
Good to know
- No drain wire — shield must be manually pigtailed for grounding
- PVC jacket stiffens noticeably in cooler workshop conditions
6. 18/2 Solid Sprinkler System Wire, 100ft — WJRZA
When your 18/2 wire needs to live underground for years and simply switch a 24VAC solenoid on and off, solid core is the right call, and the WJRZA sprinkler cable nails that job. The two solid copper conductors are thick enough to handle the inrush current of irrigation valves over a 100-foot run without significant voltage drop. The PVC jacket is UV-resistant and rated for direct burial, so you can trench it without needing conduit.
The jacket measures 5.3mm outer diameter — noticeably tougher than lightweight stranded cables — and buyers report it surviving accidental shovel nicks and seasonal ground heave better than thinner-jacketed alternatives. The solid core also holds its shape well in underground conduit, meaning it slides around 90-degree sweeps without bunching up the way stranded wire sometimes does.
Solid core wires do not tolerate repeated flexing, so using this cable in a CNC drag chain or on a moving robot arm would cause the copper to work-harden and snap. For anything that moves, you need stranded. But for permanent underground irrigation, golf course control, or any application where the wire is installed once and never touched again, this solid-core cable delivers exceptional longevity.
Why it’s great
- Solid copper conductors minimize voltage drop over long underground runs
- Thick, UV-resistant PVC jacket handles direct burial without conduit
- 100-foot length is generous for most residential irrigation layouts
Good to know
- Solid core snaps under repeated flexing — not for moving applications
- No shielding layer, so not suitable for signal wiring near interference sources

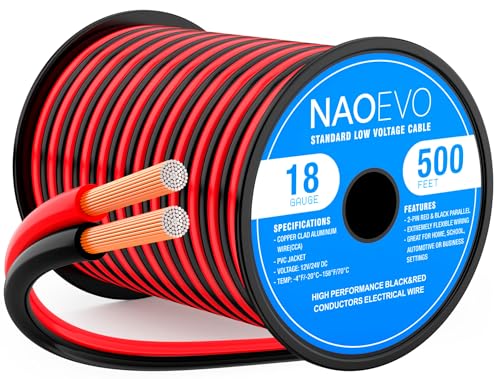

7. NAOEVO 18 Gauge Wire 500FT, 2 Conductor Red Black CCA
The NAOEVO 18/2 leans on copper-clad aluminum (CCA) conductors to keep the per-foot cost extremely low on a 500-foot spool. CCA is lighter than pure copper and offers acceptable conductivity for low-current 12V/24V DC applications such as LED strip extensions, car accessory wiring, or landscape lighting. The red and black jacket colors make polarity identification straightforward.
The PVC insulation is rated for -20°C to 70°C, and buyers report that the cable remains flexible even in cooler conditions — a typical advantage of CCA over equivalently stranded copper, since aluminum is naturally softer. The 500-foot quantity on a single spool is a strong fit for anyone running multiple LED zones around a house or wiring a fleet of low-voltage devices where signal integrity is not a concern.
CCA carries roughly 40% higher resistance per foot than pure copper, so for any run approaching 50 feet or handling more than 2-3 amps continuous, the voltage drop will be noticeable. This wire also lacks any shielding, so it must not be used for data, audio signal, or any path running parallel to AC mains or motor cables. It is a bulk supply wire for simple power distribution, and it serves that role well.
Why it’s great
- 500-foot spool provides enormous quantity for large-scale low-voltage projects
- CCA construction keeps cost low and wire flexible in cold environments
- Red and black jacket simplifies polarity tracking during installation
Good to know
- CCA has higher resistance than pure copper — voltage drop is significant on long runs
- No shielding — unsuitable for any signal or audio application
FAQ
Do I need a shielded 18/2 wire for a CNC spindle?
Can I use solid 18/2 sprinkler wire for my alarm system?
What is the practical difference between CCA and OFC in 18 gauge wire?
Final Thoughts: The Verdict
For most users, the best 18/2 shielded wire winner is the Voltive 18/2 Shielded because its oxygen-free copper, built-in drain wire, and CL3R rating make it the most versatile and code-ready choice for fixed indoor installations. If you need a plenum-rated cable for air-handling spaces, grab the MOOKEERF 18/2 Plenum Cable. And for a budget-friendly double-shielded option that handles CNC motor noise without breaking your budget, nothing beats the Zhong Hua Jiang 18/2 Shielded 30FT.
