That grinding wobble at highway speed isn’t just annoying — it’s a safety risk that erodes your confidence every time you merge onto an interstate with a loaded trailer behind you. A loose-fitting or undersized 2-5/16 ball hitch can introduce sway, accelerate coupler wear, and turn a routine haul into white-knuckle driving.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve analyzed hundreds of hours of technical specs, customer failure reports, and load-test data to separate the forged-steel performers from the stamped-metal risks in the 2-5/16 ball hitch category.
Whether you’re towing a heavy equipment trailer or a fifth-wheel camper, finding the right combination of shank diameter, material hardness, and corrosion resistance matters. This guide breaks down the 2-5/16 ball hitch options that deliver real-world reliability without guessing.
How To Choose The Best 2-5/16 Ball Hitch
A 2-5/16 ball hitch isn’t just a steel sphere — it’s the mechanical interface between your tow vehicle and a load that can exceed 10,000 pounds. Three factors determine whether it performs safely or becomes a roadside hazard.
Heat-Treated Forging vs. Stamped Steel
Hot-forged steel with heat treatment delivers a grain structure that resists deformation under load. Stamped or cast balls can crack at stress points, especially when paired with a high tongue weight trailer. Look for spec sheets that explicitly mention hot-forging and heat treatment — raw steel options like CURT’s 40085 demonstrate this manufacturing advantage.
Shank Dimensions and Thread Quality
The shank — the part that passes through your ball mount — must match your mount’s hole diameter exactly. A 1-inch diameter shank is common for lighter Class III mounts, while 1-1/4-inch shanks handle higher capacities. Fine threads (rather than coarse) provide more clamping surface area, and the accompanying nut should be a lock-washer grade to maintain torque at 450 lb-ft over time.
Finish Durability in Real Conditions
Chrome-plated balls resist rust visually but can peel in layers, creating sharp edges that damage couplers. Powder-coated finishes offer better adhesion than standard paint but wear through at contact points. Raw steel balls — if kept greased — outlast both, though they require maintenance. Zinc-plated components on the shank and nut resist galvanic corrosion when bolted to aluminum or steel mounts.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CURT 40085 | Standalone Ball | Maximum load capacity | 30,000 lbs GTW, hot-forged raw steel | Amazon |
| Orion Motor Tech | Single Ball Mount | Drop/rise adjustability | 8,000 lbs GTW, 4″ drop / 2.75″ rise | Amazon |
| REYSUN Forged Tri-Ball | Tri-Ball Mount | Versatility with secure latch | 10,000 lbs GTW, self-locking mechanism | Amazon |
| XPE Triple Ball | Tri-Ball Mount | Quick-swap ball/hook convenience | 7,500 lbs GTW (ball), 10,000 lbs (hook) | Amazon |
| Camco Eaz-Lift 48224 | Standalone Ball | Chrome durability for occasional use | 7,500 lbs GTW, 1″ shank, chrome-plated | Amazon |
| METOWARE Tri-Ball | Tri-Ball Mount | Entry-level multi-size convenience | 10,000 lbs GTW, hollow shank | Amazon |
| TYT Tri-Ball Mount | Tri-Ball Mount | Budget-friendly multi-ball option | 10,000 lbs GTW, includes tow hook | Amazon |
In-Depth Reviews
1. CURT 40085 Raw Steel Trailer Hitch Ball
The CURT 40085 sets the benchmark for raw steel ball hitches in this category. Its hot-forged, heat-treated construction delivers a 30,000-pound gross trailer weight rating — more than triple what most recreational haulers need, which provides an enormous safety margin for heavy equipment or fifth-wheel towing.
The 1-1/4-inch diameter shank with fine threads and a zinc-plated hex nut ensures a torque-tight installation at the specified 450 lb-ft. Unlike chrome-plated alternatives, the raw steel surface won’t peel, though it requires periodic greasing to prevent surface rust when stored outdoors. Multiple users note the precise machining and perfect coupler fit with no detectable slop.
One critical advantage: CURT tests every ball to U.S. VESC safety specifications, and the raw steel construction means you can visually inspect for wear without a coating hiding hairline cracks. For anyone towing at or near legal weight limits, this is the most trustworthy ball in the list.
Why it’s great
- Unmatched 30,000 lb GTW rating provides massive safety overhead
- Heat-treated forged steel resists deformation under sustained load
- Fine-thread shank and lock washer maintain torque integrity
Good to know
- Raw steel will develop surface rust if left ungreased in wet conditions
- Requires 450 lb-ft torque wrench for correct installation
- Standalone ball only — you’ll need a separate ball mount

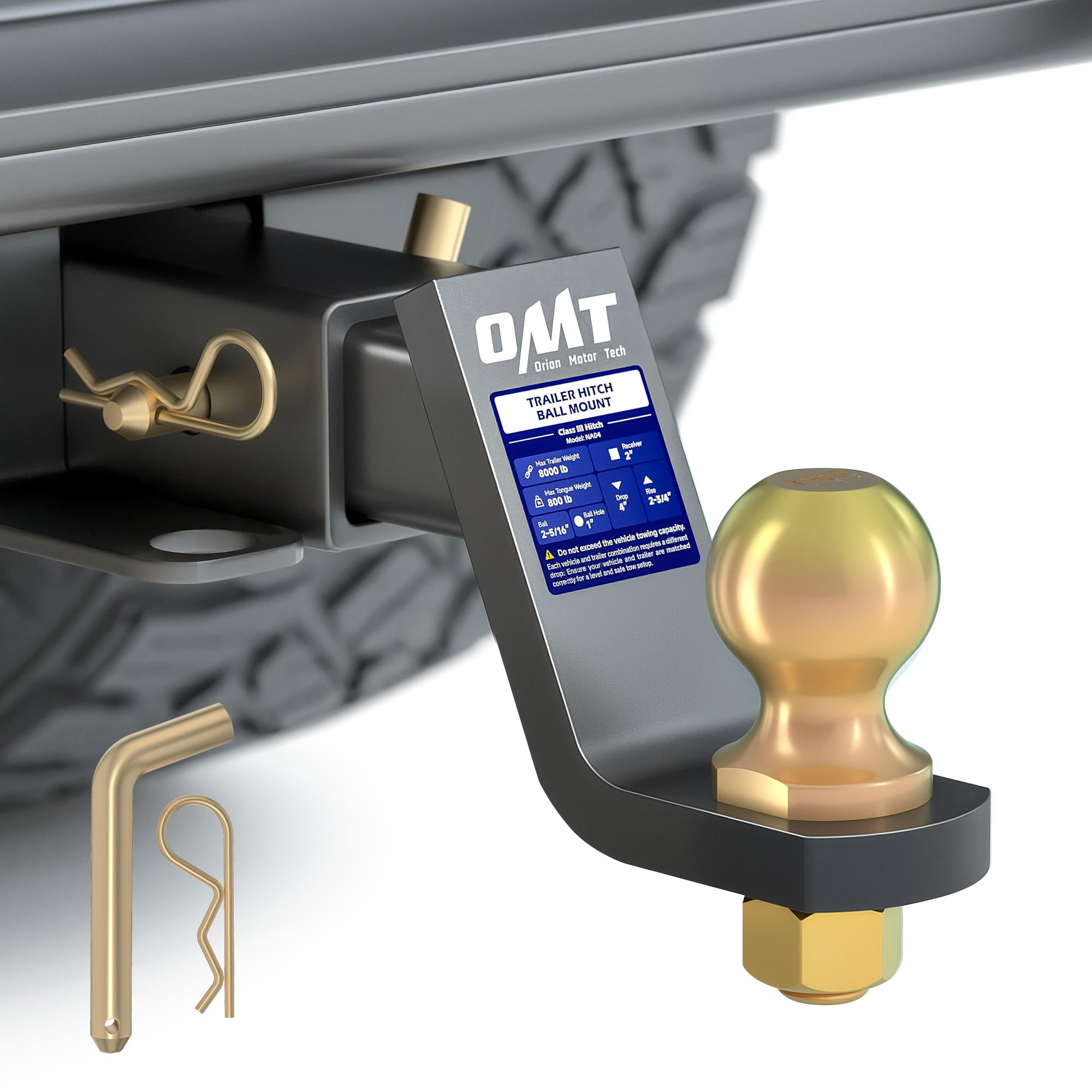

2. Orion Motor Tech Trailer Hitch Ball Mount
Orion Motor Tech combines a complete ball-mount assembly with the 2-5/16 ball, eliminating the need to source separate components. The 40Cr alloy steel ball gets a zinc-plated finish for corrosion resistance, while the mount arm wears a powder-coated black finish. The reversible design offers a 4-inch drop or 2-3/4-inch rise to level most boat and utility trailers.
SAE J684 tested, this Class III hitch handles up to 8,000 pounds GTW with zero reported sway when properly torqued. Customer feedback consistently praises the pre-assembled convenience — the ball arrives torqued to spec and the included pin and clip allow tool-free installation into any standard 2-inch receiver. The ball’s iridescent gold finish is actually a durable brushed coating, not a painted layer that chips.
The 4.9-kilogram weight reflects the thick steel wall construction and clean welds at the mount-to-shank joint. For mid-capacity towing where you need height adjustability without buying separate drop brackets, this is the most complete package.
Why it’s great
- Complete mount assembly with pre-installed ball saves setup time
- Reversible drop/rise design adapts to different trailer coupler heights
- Zinc-plated ball resists corrosion better than raw steel
Good to know
- 8,000 lb capacity may be insufficient for heavy equipment trailers
- The iridescent gold finish is not a high-gloss chrome
- At 10.8 pounds, it adds noticeable tongue weight
3. REYSUN Patented Forged Tri-Ball Hitch with Hook
REYSUN’s patented tri-ball design offers 1-7/8-inch, 2-inch, and 2-5/16-inch balls plus a forged tow hook — all on a single mount that fits any 2-inch receiver. The self-locking latch mechanism secures the selected ball or hook without tools, and the 5/8-inch hitch pin provides redundant security. The 12-pound weight signals thick, forged-alloy construction.
The 2-5/16 ball carries a 10,000-pound GTW rating, matching the hook’s capacity. Users report zero rattle in the 2-inch receiver shank — a common complaint with multi-ball mounts — thanks to precise machining. The powder-coated matte black finish resists UV fading and road-salt corrosion better than gloss-painted alternatives.
One unique feature: the four-sided pin hole pattern allows you to orient the mount for the best coupler angle regardless of which ball size you select. The included pin is functional, though upgrading to a locking pin adds security for unattended towing at campsites or job sites.
Why it’s great
- Three ball sizes plus a tow hook in one tool-free-switch mount
- Forged alloy construction with 10,000 lb GTW on all positions
- Self-locking latch mechanism eliminates loose components
Good to know
- At 12 pounds, it’s heavy for a multi-ball mount
- Included hitch pin is basic — consider a locking pin for security
- The latch requires deliberate force to engage fully
4. XPE Triple Ball Hitch with Hook
The XPE triple-ball mount brings electroplated black balls paired with a powder-coated mount arm, creating a cohesive aesthetic that stands out from raw steel alternatives. The 2-5/16 ball is rated for 7,500 pounds GTW, while the integrated tow hook handles up to 10,000 pounds — useful for winching or recovery scenarios beyond standard towing.
Heavy-duty welded construction with electroplating resists rust and dust better than single-coat finishes, and the 11-inch overall length provides enough clearance for most tailgate-down situations. Customers consistently mention the tight receiver fit — no shimming required — and the ease of swapping between the three ball positions without tools.
The 1-year warranty and 30-day return policy add confidence for first-time tri-ball buyers. Ideal for RV owners who occasionally tow different trailer types and want a single mount that covers utility trailers, boat trailers, and campers without juggling multiple hitch balls in the truck bed.
Why it’s great
- Electroplated black balls maintain appearance longer than painted finishes
- Tow hook rated to 10,000 lbs adds recovery functionality
- Consistent tight fit in 2-inch receivers with no shims needed
Good to know
- Ball GTW of 7,500 lbs is lower than standalone heavy-duty options
- The mount is heavier than single-ball alternatives, affecting tongue weight
- Hook latch may require periodic lubrication for smooth operation
5. Camco Eaz-Lift 48224 Chrome Hitch Ball
Camco’s Eaz-Lift 48224 is a straightforward chrome-plated ball for recreational towing up to 7,500 pounds. The 1-inch diameter shank at 2-1/8 inches long fits most standard ball mounts, and the fine-threaded shank ensures the nut engages fully. Included are a plated washer and nut that match the ball’s corrosion resistance.
Chrome plating over carbon steel gives this ball a mirror finish that resists rust better than raw steel in intermittent use — ideal for a boat or utility trailer that sees seasonal towing. The 3.41-pound weight is lighter than forged alternatives, which makes handling easier during installation but also means the steel may not be hot-forged. Several buyers note the ball is “well made” for the price point with no coupler slop.
Be aware that chrome plating can delaminate over years of use if the surface gets nicked. For light-to-moderate duty where appearance matters — like a camper shown at rallies — this ball delivers a polished look without the premium cost of a chrome-moly grade.
Why it’s great
- Chrome finish resists surface rust in occasional-use scenarios
- Lightweight design is easy to handle during install and removal
- Fine-thread shank provides secure nut engagement
Good to know
- 7,500 lb GTW is moderate — insufficient for heavy trailers
- Chrome can peel if the surface is damaged by a coupler
- Not heat-treated to the same standard as forged raw steel balls

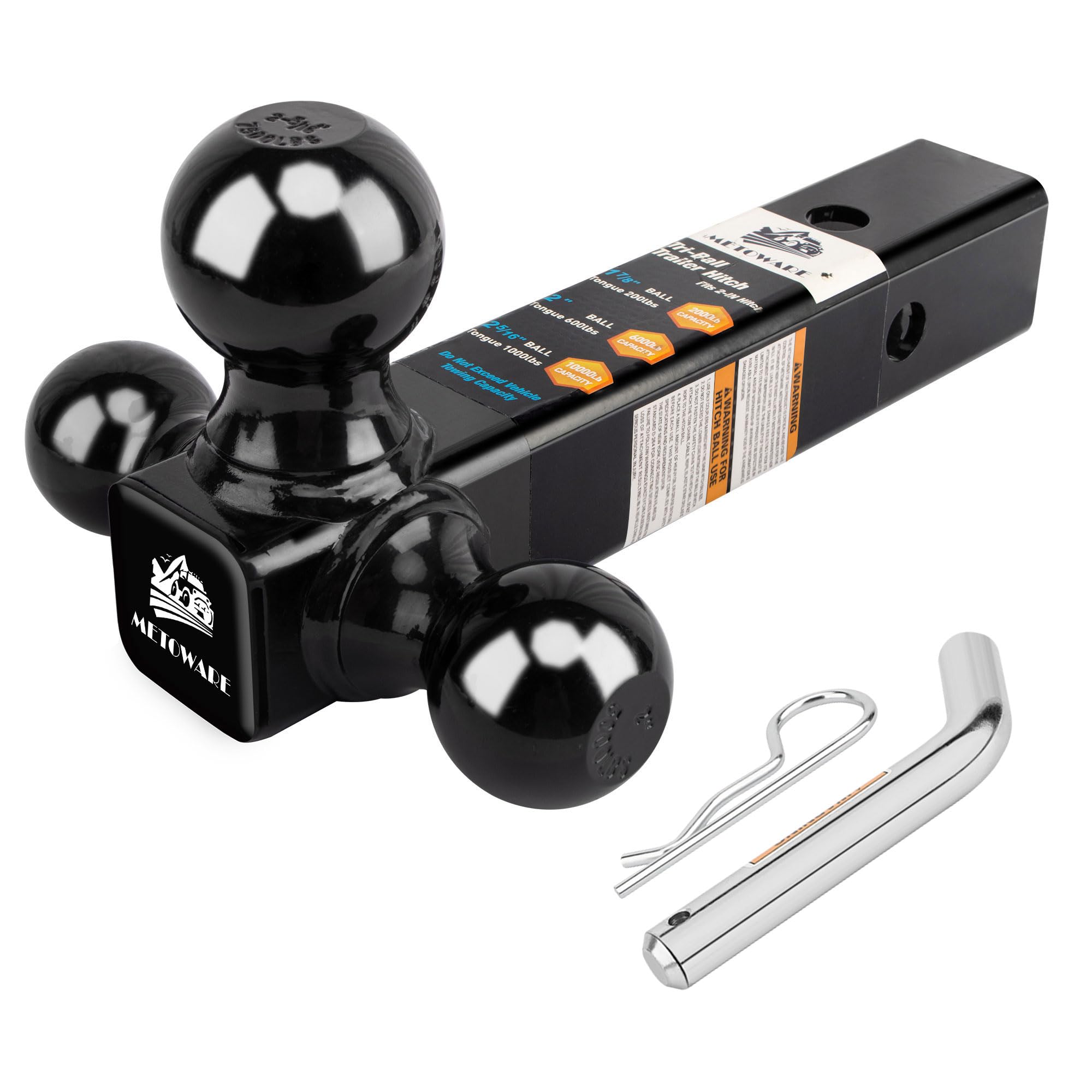

6. METOWARE Tri-Ball Mount
METOWARE’s tri-ball mount covers the three standard ball sizes (1-7/8, 2, and 2-5/16 inches) with a hollow shank design that reduces overall weight compared to solid-steel alternatives. The 2-5/16 ball is rated for 10,000 pounds GTW, matching the top end of this category, while the 1-7/8 and 2-inch balls handle 2,000 and 6,000 pounds respectively.
The black powder-coated finish on the mount arm and chrome-plated balls provides dual-layer corrosion protection. Users report a clean fit into standard 2-inch receivers with no rattling, and the included hitch pin and clip secure the mount in seconds. The rounded shank design eases insertion into tight receivers.
Customer feedback consistently uses descriptors like “well built” and “affordable,” placing this mount as a solid entry-level option. The hollow shank reduces weight to 7 pounds, making it easier to swap between vehicles but potentially less durable under repetitive heavy loading. Best suited for occasional multi-trailer owners who prioritize convenience over extreme-duty brawn.
Why it’s great
- Three ball sizes cover coupler types from utility to boat to camper
- Hollow shank design keeps weight manageable for frequent swaps
- Dual powder-coat and chrome finish resists corrosion
Good to know
- Hollow shank may fatigue faster than solid steel under heavy use
- Chrome on balls may wear at contact points over time
- Lower 2,000 lb rating on 1-7/8 ball limits small-trailer use

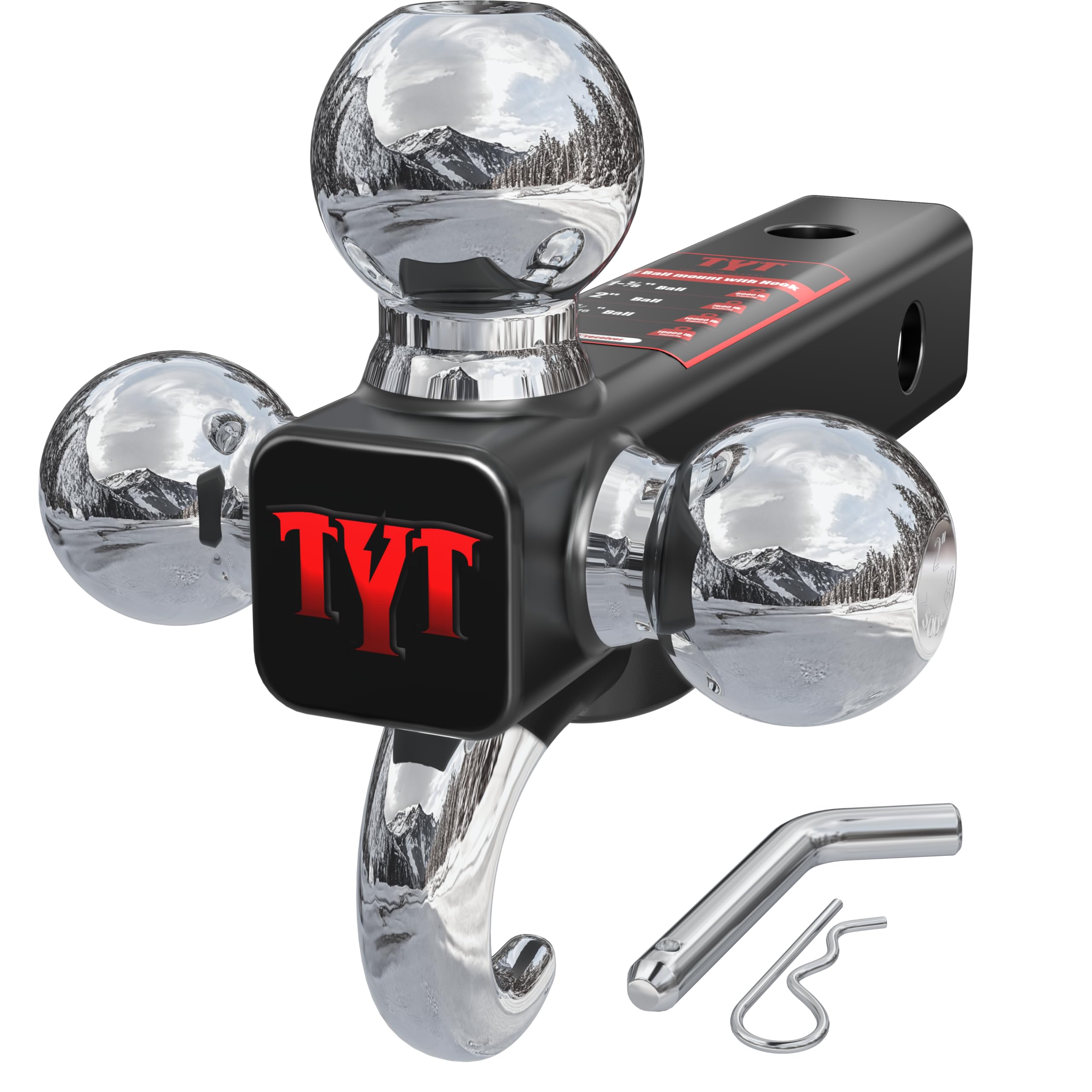

7. TYT Trailer Hitch Tri Ball Mount
TYT’s tri-ball mount offers the same three-size configuration as premium multi-ball mounts at a more accessible price point, with a 10,000-pound GTW rating on the 2-5/16 ball and an integrated tow hook. However, customer reports raise significant concerns about quality control that buyers must weigh carefully.
Multiple verified purchasers report the mount’s shank measures only 1-7/8 inches square instead of the standard 2 inches, requiring shims on all four sides to prevent slop in the receiver. Additional reports describe the anti-rotate pin folding under load, allowing the ball to spin during towing — a serious safety issue at highway speeds. One user documented a ball snapping entirely while towing a 2,700-pound trailer, well under the advertised 7,500-pound limit for that ball size.
The included tow hook arrived crooked on at least one unit, and missing components (pin, clip, anti-rattle hardware) have been reported. At its price point, this mount may work for very light, low-speed towing, but the documented failure patterns make it a risky choice for anyone depending on their hitch for routine highway towing.
Why it’s great
- Lowest cost entry point for three-ball-plus-hook configuration
- 10,000 lb GTW on 2-5/16 ball matches mid-range competitors
- Powder coating provides basic weather resistance
Good to know
- Multiple reports of undersized shank requiring shimming
- Ball snapping incidents documented under moderate loads
- Quality control issues with missing components and crooked hook
FAQ
Can I use a 2-5/16 ball hitch on a 2-inch coupler?
How often should I grease a raw steel 2-5/16 hitch ball?
Does a 30,000-pound ball hitch fit in a standard 2-inch receiver?
Final Thoughts: The Verdict
For most users, the 2-5/16 ball hitch winner is the CURT 40085 because its 30,000-pound rating and hot-forged steel construction provide an unmatched safety margin and durability for any load you can legally tow. If you want drop/rise adjustability in a complete mount, grab the Orion Motor Tech. And for a multi-ball setup that covers three coupler sizes without tools, nothing beats the REYSUN Forged Tri-Ball.
