A 2-5/8″ trailer hitch ball is the single point of contact between your vehicle and thousands of pounds of trailer, boat, or camper. Choosing the wrong one introduces dangerous slop, accelerates coupler wear, and can turn a routine tow into a white-knuckle ordeal. The difference between a secure connection and a loose fit often comes down to the ball’s shank length, heat-treatment process, and thread pitch—details the average buyer overlooks until it’s too late.
I’m Min — the co-founder and writer behind Gadgets Feed. My focus here is cutting through the marketing noise to analyze the real-world towing specs, shank dimensions, material hardness, and torque requirements that separate a safe investment from a heavy paperweight.
After sifting through hundreds of verified reviews and cross-referencing SAE J684 and VESC V-5 safety standards, I’ve narrowed the field to the strongest contenders in the 2-5/8″ trailer hitch ball category—each one selected for measurable strength and genuine long-term durability.
How To Choose The Best 2-5/8″ Trailer Hitch Ball
Selecting a hitch ball isn’t about grabbing the shiniest option on the shelf. Three interlocking factors determine whether your connection is safe or dangerous: the shank dimensions must match your mount’s hole, the ball’s GTW rating must exceed your loaded trailer weight, and the material must resist corrosion without sacrificing hardness. Beginners underestimate the shank length requirement—a shank that’s too short leaves threads exposed and the nut unable to seat fully, drastically reducing clamping force.
Shank Diameter and Length: The Non-Negotiable Fit
The 2-5/8″ shank length is a common standard for 1-1/4″ diameter shanks, but not all mounts accommodate that length. Measure your hitch ball mount’s thickness plus the thickness of any washers to ensure at least one full thread protrudes past the nut after torquing. A 2-5/8″ shank provides roughly 1.5 inches of thread engagement on a standard mount, which is sufficient for the 450+ lb-ft required by high-capacity balls like the CURT 40085. If your mount is thicker than 1.5 inches, look for a ball with a 2-5/8″ or longer shank—never stack washers to compensate.
Material and Finish: Chrome, Raw Steel, or Stainless
Chrome-plated balls resist surface rust but can peel under heavy or abrasive coupler contact, creating sharp edges that damage the coupler itself. Raw steel balls, like the CURT 40085, are heat-treated for superior hardness and won’t peel, but they require a thin coat of grease or oil to prevent surface rust during storage. Stainless steel balls, like the CURT 40055, offer the best corrosion resistance and maintain a smooth surface for years, though they cost a premium. For frequent towing in wet or coastal environments, stainless steel is the clear long-term value.
GTW Rating and Torque Specifications
Gross Trailer Weight (GTW) is the total weight of your trailer and its load. Your hitch ball’s GTW rating must exceed this figure. A 15,000-lb ball towing a 10,000-lb trailer is safe; a 7,500-lb ball towing an 8,000-lb trailer is a failure waiting to happen. Equally critical is the torque applied to the retaining nut. High-capacity balls with fine threads require 450 to 500 lb-ft of torque—beyond what a standard 1/2-inch breaker bar can generate. A torque multiplier or a 3/4-inch drive setup is necessary to achieve proper clamping force and prevent the ball from loosening under dynamic loads.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CURT 45332 | Prem. Mount+Ball | Heavy towing, factory-torqued convenience | 15,000 lbs GTW, 4″ drop, includes mount | Amazon |
| CURT 40055 | Stainless Steel | Rust resistance, coastal/wet environments | 15,000 lbs GTW, 1-1/4″ x 2-5/8″ shank | Amazon |
| REYSUN 864011L | Tri-Ball+Tow Hook | Multi-size versatility with built-in lock | 10,000 lbs, three ball sizes + tow hook | Amazon |
| CURT 40085 | Raw Steel | Maximum strength, 30,000-lb capacity | 30,000 lbs GTW, heat-treated raw steel | Amazon |
| TOPTOW 64172HP | Tri-Ball Mount | Multiple coupler sizes without swapping | 10,000 lbs max, 3-ball, powder-coated | Amazon |
| Orion Motor Tech | Reversible Mount | Drop/rise adjustability, 8,000-lb towing | 8,000 lbs GTW, 2″ drop, zinc-plated 40Cr ball | Amazon |
| AC-DK PP1PL30044 | Budget Mount+Ball | Entry-level towing, all-in-one value | 7,500 lbs GTW, chrome ball, includes pin | Amazon |
In‑Depth Reviews
1. CURT 45332 Trailer Hitch Ball Mount with 2-5/16-Inch Ball
The CURT 45332 is a loaded ball mount that ships with a polished chrome 2-5/16″ ball factory-torqued to the correct spec. This eliminates guesswork—no wrestling with a torque wrench on a mount that may not require it, and no risk of a loose ball out of the box. The 4-inch drop is ideal for trucks and SUVs towing low-slung utility or car trailers, and the forged steel construction carries a 15,000-lb GTW rating that comfortably covers most consumer heavy-duty operations.
The carbide powder coat on the mount arm is noticeably thicker and more chip-resistant than the standard black enamel found on budget options. Owners report the finish holds up well against gravel spray and road salt across multiple seasons. The ball itself uses a 1-1/4″ x 2-5/8″ shank with fine threads, which provides excellent clamping when torqued to 450 lb-ft—though you’ll need a 1-1/4″ socket and a breaker bar with a torque multiplier to hit that number.
The one catch: the hitch pin and clip shown in product images are not included. You must purchase them separately, which adds a few dollars and a trip to the hardware store. The mount itself is pre-assembled and ready to slide into a 2-inch receiver, so installation is still straightforward once you supply the pin. For anyone regularly towing 8,000+ pounds who wants a ready-to-run solution with verified torque, this is the clear winner.
Why it’s great
- Factory-torqued ball saves installation time and risk
- Carbide powder coat resists chips and corrosion
- 15,000-lb GTW covers heavy car and equipment trailers
Good to know
- Hitch pin and clip not included despite product images
- Heavy at 17 lbs—not ideal for frequent swapping

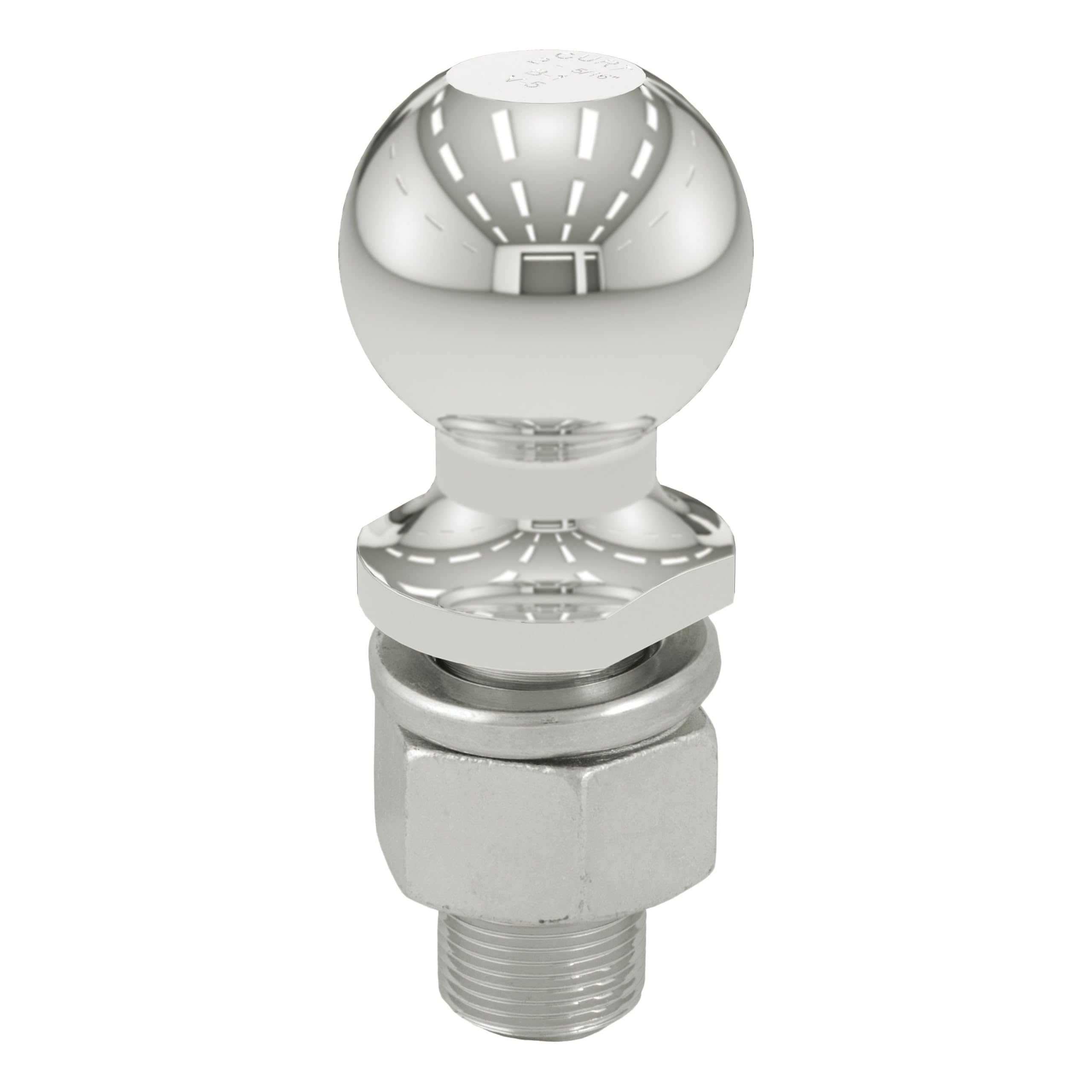

2. CURT 40055 2-5/16″ Stainless Steel Trailer Ball
The CURT 40055 is a standalone stainless steel ball designed for buyers who already own a compatible ball mount and want the best corrosion resistance on the market. Stainless steel doesn’t peel like chrome or rust like raw steel when left exposed to rain and road salt. The 2-5/16″ ball diameter fits standard heavy-duty couplers, and the 1-1/4″ x 2-5/8″ shank matches most 2-inch receiver mounts with a 1-1/4″ ball hole.
The ball is heat-treated for surface hardness while maintaining a polished finish that allows the coupler to glide smoothly during turns and loading. The included zinc-plated hex nut and helical lock washer are intentionally made from steel rather than stainless to prevent galling between the nut and the ball’s threads—a smart engineering detail that avoids a seized connection. The fine threads provide enhanced holding strength, requiring 450 lb-ft of torque for proper installation.
Owners note that the stainless ball maintains its appearance far longer than chrome alternatives, and the 15,000-lb rating provides ample headroom for 14,000-lb trailers. The only real compromise is that the ball alone costs more than some complete mount-and-ball combos, so it’s best suited for those who already trust their mount and want to upgrade the contact surface permanently.
Why it’s great
- Stainless steel won’t peel or rust like chrome/raw steel
- Heat-treated for long-term surface hardness
- Steel nut prevents thread galling
Good to know
- Premium price for a ball-only purchase
- Requires a 1-1/4″ socket and torque multiplier for install
3. REYSUN 864011L Tri-Ball Mount with Tow Hook
The REYSUN 864011L stands out with a unique integrated design that combines three ball sizes (1-7/8″, 2″, and 2-5/16″) with a forged all-terrain tow hook that includes a safety latch. This setup covers every common coupler size from small utility trailers to heavy campers, plus the tow hook provides an additional recovery point for off-road or farm use. The 2-5/16″ ball is rated at 10,000 lbs GTW, which is sufficient for most fifth-wheel and gooseneck adapters.
The mount includes a 5/8-inch hitch lock, eliminating the need to buy a separate locking pin. Owners appreciate the convenience of having all three ball sizes on a single unit—no more swapping hitch heads or carrying multiple balls in the truck bed. The matte black powder coat looks clean, though some users note that the paint on the ball surfaces can wear off from coupler contact over time, which is cosmetic rather than structural.
At 13.2 pounds, it’s lighter than the CURT 45332 but still feels solidly built. The tow hook’s self-lock latch is spring-loaded and engages positively, though it’s worth verifying the latch alignment on your specific receiver. For anyone who regularly tows trailers with different coupler sizes or needs a recovery hook on the same unit, this is a space-saving and practical solution.
Why it’s great
- Three ball sizes plus tow hook on one mount
- Includes 5/8″ hitch lock—no separate purchase needed
- 10,000-lb GTW covers most heavy consumer trailers
Good to know
- Black paint on ball surfaces may wear with use
- Heavier than single-ball mounts; not for light-duty swaps
4. CURT 40085 Raw Steel Trailer Hitch Ball, 30,000 lbs
The CURT 40085 is a raw steel ball rated for a massive 30,000 lbs GTW—more than double the capacity of most consumer trailer balls. This is a purpose-built ball for heavy equipment trailers, large livestock trailers, or commercial hauling where margin matters. The hot-forged and heat-treated steel construction delivers exceptional hardness and wear resistance, preventing the ball from deforming under extreme loads or repeated use.
Raw steel means no chrome or paint to peel, but it also means the ball requires maintenance. Owners report that surface rust develops quickly if left exposed to moisture, but a thin coat of grease or oil prevents this easily. The ball’s machined finish is smooth and consistent, providing a clean contact surface for the coupler. The 1-1/4″ x 2-5/8″ shank with fine threads accepts the included zinc-plated nut and helical lock washer, requiring 450 lb-ft of torque.
The trade-off is that this is a ball-only purchase—you’ll need a compatible mount with a 1-1/4″ hole and sufficient drop/rise for your trailer. The raw steel surface also means the coupler may experience slightly more friction than a chrome or stainless ball, though proper greasing eliminates this concern. For heavy haulers who need absolute strength and don’t mind a little maintenance, the 40085 is unmatched at its price point.
Why it’s great
- 30,000-lb rating provides huge safety margin
- Heat-treated raw steel won’t peel like chrome
- Hot-forged for superior grain structure and strength
Good to know
- Raw steel rusts without regular greasing or oiling
- Ball-only—requires separate mount and torque tools
5. TOPTOW 64172HP Tri-Ball Hitch Mount
The TOPTOW 64172HP is a three-ball mount that includes 1-7/8″, 2″, and 2-5/16″ balls, the largest rated at 10,000 lbs GTW. The balls are robotically welded to the shank, ensuring consistent alignment without weak points. The 2-5/16″ ball covers most heavy-duty couplers, while the smaller two handle utility and boat trailers. The hollow shank reduces overall weight to just under 11 pounds, making it easier to handle than solid-steel units.
The entire assembly is finished in heavy-duty black powder coat that provides decent corrosion resistance for occasional use. At 7.5 inches of usable length and a 2-inch shank, it fits standard receivers without wobble. The included 5/8-inch hitch pin kit gets you on the road immediately. Owners note that the ball-switching convenience is a real time-saver when dealing with multiple trailers, and the 10,000-lb rating on the 2-5/16″ ball provides solid headroom for campers and car trailers.
The main limitation is that this mount offers no drop or rise adjustment—it sits at a fixed height determined by the shank. If your trailer coupler sits significantly higher or lower than your receiver, you’ll need a separate adjustable mount. The three balls also add width, making it slightly bulkier than a single-ball mount. For those with multiple trailers at similar hitch heights, this is an excellent space-saving value.
Why it’s great
- Three ball sizes cover all common couplers
- Robotically welded for consistent alignment
- Included hitch pin gets you running immediately
Good to know
- No drop or rise adjustment—fixed hitch height
- Bulkier than single-ball mounts for storage
6. Orion Motor Tech Trailer Hitch Ball Mount
The Orion Motor Tech hitch mount is a Class III reversible unit rated for 8,000 lbs GTW with a 2-5/16″ zinc-plated 40Cr steel ball. The reversible design allows it to function as either a 2-inch drop or a 3/4-inch rise, accommodating different trailer tongue heights. This is particularly useful for owners who tow both low-riding utility trailers and taller campers without swapping mounts.
The 40Cr alloy steel ball is zinc-plated for corrosion resistance, while the hitch arm features a black powder coat. The ball is pre-assembled and arrives with a pin and clip, requiring no tools for installation. Owners praise the quick delivery and solid welds, noting that the mount feels robust for its 10-pound weight class. The SAE J684 testing provides reassurance that the unit meets safety standards for its rating.
The primary trade-off is the 8,000-lb GTW ceiling, which limits use for larger equipment or livestock trailers. The zinc-plated ball may show wear faster than stainless or heat-treated raw steel under heavy use. For average boat, utility, or small camper towing at or below 8,000 pounds, the Orion offers a strong balance of adjustability, quality, and cost.
Why it’s great
- Reversible for 2″ drop or 3/4″ rise
- Pre-assembled with pin and clip—no tools needed
- Zinc-plated ball resists corrosion
Good to know
- 8,000-lb GTW limits heavy trailer use
- Zinc plating may wear with frequent high-load towing

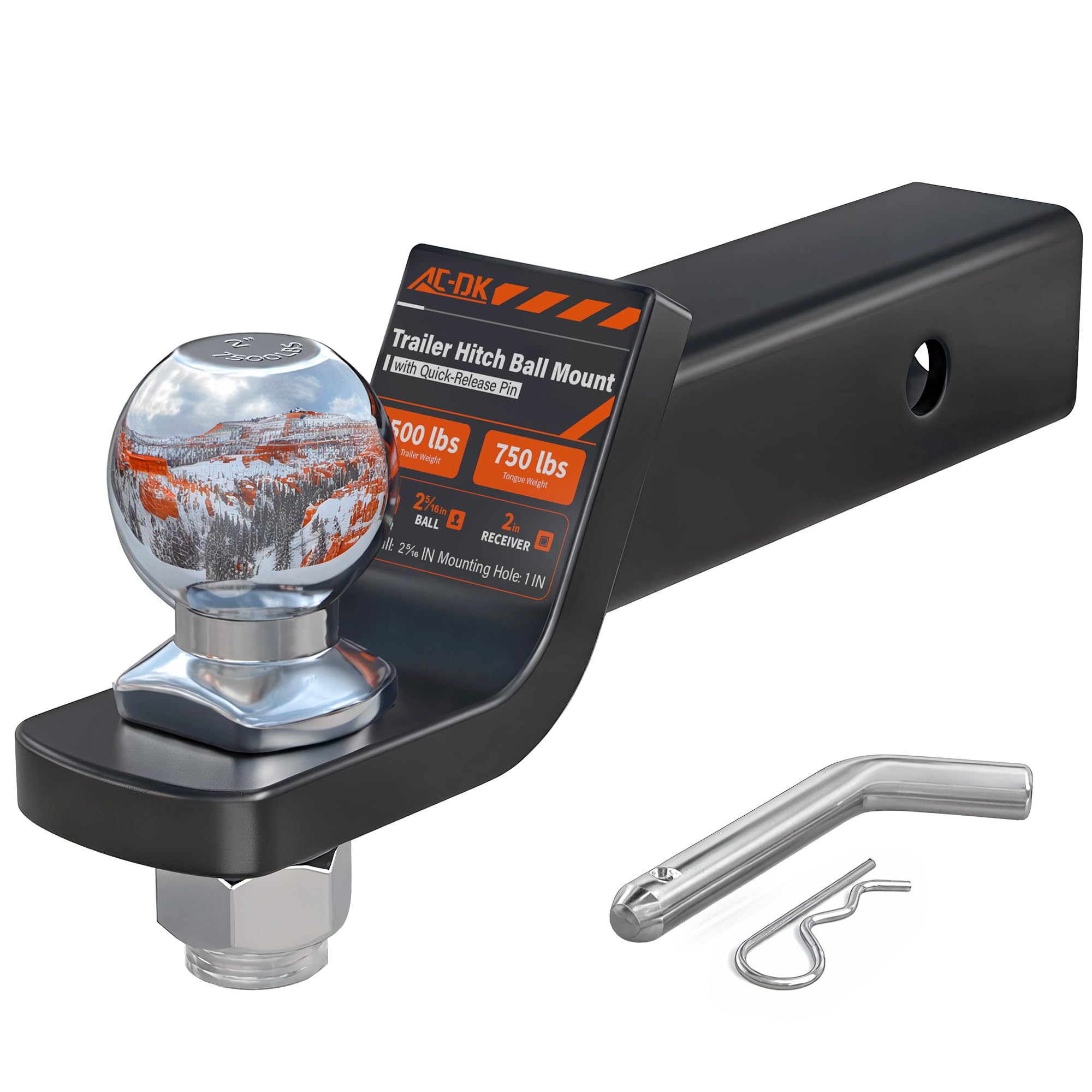

7. AC-DK Trailer Hitch Mount with 2-5/16-Inch Ball
The AC-DK hitch mount is a complete towing kit that includes a chrome-plated 2-5/16″ ball, a 5/8″ hitch pin, and a safety clip—everything needed to connect to a 2-inch receiver. The all-steel construction is rated at 7,500 lbs GTW and 750 lbs tongue weight, covering small to medium boat trailers, utility trailers, and campers. The 2-inch drop is fixed, positioning the ball at a standard height for average truck and SUV receivers.
The ball features a chrome-plated finish for basic rust resistance, while the mount body uses black powder coating. Owners consistently report that the build quality exceeds expectations for the price, with sturdy welds and a precise fit in the receiver. The included pin and clip eliminate separate purchases, making this a true grab-and-go solution for casual towers who need a reliable setup without overspending.
The limitations reflect its entry-level positioning: the 7,500-lb GTW rating restricts use to lighter loads, and chrome-plated balls can peel over time if the coupler creates abrasion. The fixed 2-inch drop means it won’t work for every trailer height. For light-duty towing around the farm or weekend boat trips, the AC-DK delivers surprising quality at a minimal investment.
Why it’s great
- Complete kit with ball, mount, pin, and clip
- Solid all-steel construction for the price
- Chrome finish resists rust in occasional use
Good to know
- 7,500-lb GTW limit—not for heavy trailers
- Chrome may peel with heavy or abrasive use
FAQ
Can I use a 2-5/16″ ball rated for 30,000 lbs on a mount rated for 10,000 lbs?
Why does my 2-5/8″ shank ball not fit through my hitch mount?
How often should I grease a raw steel trailer hitch ball?
Final Thoughts: The Verdict
For most users, the 2-5/8″ trailer hitch ball winner is the CURT 45332 because it combines a factory-torqued 15,000-lb ball, a durable carbide powder-coated mount, and the convenience of a pre-assembled unit that eliminates installation guesswork. If you need corrosion resistance that lasts years in coastal conditions, grab the CURT 40055 stainless steel ball. And for heavy commercial hauling where 30,000-lb capacity and heat-treated raw steel matter most, nothing beats the CURT 40085 raw steel ball.
