A cramped kitchen shouldn’t mean you have to live with lingering grease, smoke, and odors. Finding a high-performance ventilation unit that fits a standard 20-inch cabinet opening is a specific challenge, as many models sacrifice airflow or build quality to hit that compact size. The right choice clears the air without rattling the cabinets or breaking your budget.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing customer feedback, technical specifications, and real-world performance data for dozens of under-cabinet ventilation units to isolate the models that genuinely deliver on their CFM promises and hold up over years of daily use.
Whether you are replacing an old unit or building a new kitchen, this guide provides the detailed comparisons and spec analysis you need to confidently select the best 20 inch range hood for your cooking style and space.
How To Choose The Best 20 Inch Range Hood
Selecting the right under-cabinet or insert hood for a 20-inch space requires balancing airflow power, noise levels, filter type, and installation method. The most expensive unit isn’t always the best fit for your kitchen. Here are the critical factors to evaluate.
CFM: The True Measure of Suction Power
Cubic Feet per Minute (CFM) is the standard metric for airflow. For most residential cooking, a unit rated between 400 and 600 CFM is sufficient for handling smoke from high-heat searing and stir-frying. Higher CFM values, like 650, provide a larger safety margin for heavy use but can require make-up air systems in tightly sealed homes. Always check that the advertised CFM is measured at the highest speed setting.
Filter Type: Baffle vs. Mesh
Baffle filters use angled metal vanes to separate grease from air through centrifugal force, making them highly efficient and easy to clean. Mesh filters rely on multiple layers of aluminum mesh to trap grease, which can clog more quickly and may require more frequent cleaning or replacement. Baffle filters are generally preferred for heavy cooking, while mesh filters are lighter and often quieter at lower speeds.
Ducted vs. Ductless (Recirculating) Operation
Ducted hoods vent air outside through rigid or flexible ductwork, removing moisture, heat, and odors completely. Ductless hoods recirculate air through charcoal filters and release it back into the kitchen; they remove grease and some odors but do not reduce heat or humidity. Many 20-inch models are convertible, allowing you to choose the method that matches your kitchen’s existing infrastructure. If you use ductless, expect to replace charcoal filters every few months.
Noise Level Measured in Sones and Decibels
Noise is a primary frustration in compact kitchens where the hood is close to ear level. A unit rated at 60 dB or less on high speed is considered acceptably quiet for most users, while anything above 6.5 sones (approximately 65 dB) may require raised voices. Look for models with multiple speed settings so you can use a lower, quieter speed for light cooking and the higher speed only when needed.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ZLINE 20.5″ Insert | Premium | Maximum Build Quality | 400 CFM, 4-Speed | Amazon |
| Miseno MH80120AS | Premium | Variable Speed Control | 390 CFM, Halogen Lights | Amazon |
| CIARRA CAB52913E-N | Mid-Range | Quiet 650 CFM in Black | 650 CFM, 6.5 Sones | Amazon |
| CIARRA CAS52913E-N | Mid-Range | Quiet 650 CFM in Silver | 650 CFM, 6.5 Sones | Amazon |
| JOEAONZ B09B1MCPMS | Mid-Range | Ultra-Quiet Baffle Filter | 600 CFM, ≤60dB | Amazon |
| JOEAONZ B0DJXCFGC6 | Mid-Range | Compact Mesh Filter Design | 600 CFM, 5-Layer Mesh | Amazon |
| Zomagas B0DM1YGQYP | Budget-Friendly | Value with Mesh Filter | 600 CFM, Push Button | Amazon |
| Summit HC20BB | Budget-Friendly | Heavy-Gauge Steel Build | 200 CFM, 2-Speed | Amazon |
| Summit HC20SS | Budget-Friendly | Heavy-Gauge Stainless Build | 200 CFM, 2-Speed | Amazon |
In‑Depth Reviews
1. ZLINE 20.5″ Ducted Wall Mount Range Hood Insert
The ZLINE insert delivers 400 CFM through a dishwasher-safe stainless steel baffle filter, which captures grease far more effectively than mesh alternatives. The four-speed fan control, combined with a 3-minute auto-timer and delayed shutoff, gives you precise management over ventilation without standing at the hood. At 20.5 inches wide and 14.2 inches deep, it fits standard 20-inch cabinets with a slight overhang that accommodates most cooktop configurations.
Construction uses brushed 430 stainless steel with a heavier gauge than many entry-level models, and ZLINE backs it with a 3-year parts warranty plus a lifetime motor warranty. The LED lighting is bright but users note it casts a slightly blue tint; you may want warmer under-cabinet supplemental lighting if you prefer neutral tones. The fixed top duct connection requires 6-inch round ductwork, which demands a larger-than-average cutout through upper cabinets.
Owners consistently praise the build quality and the effective grease removal from the baffle filter. The noise level on the highest 400 CFM setting is present but controlled, and the lower speeds are quiet enough for everyday simmering. If you want a long-term investment with strong warranty coverage and high-quality filtration, this is a top contender.
Why it’s great
- Dishwasher-safe baffle filter for easy maintenance
- Lifetime motor warranty provides peace of mind
- Four fan speeds and auto-timer for convenience
Good to know
- Ducted only — no ductless conversion option
- LED light has a cool blue cast
- Requires 6-inch duct, which needs a large cabinet cutout

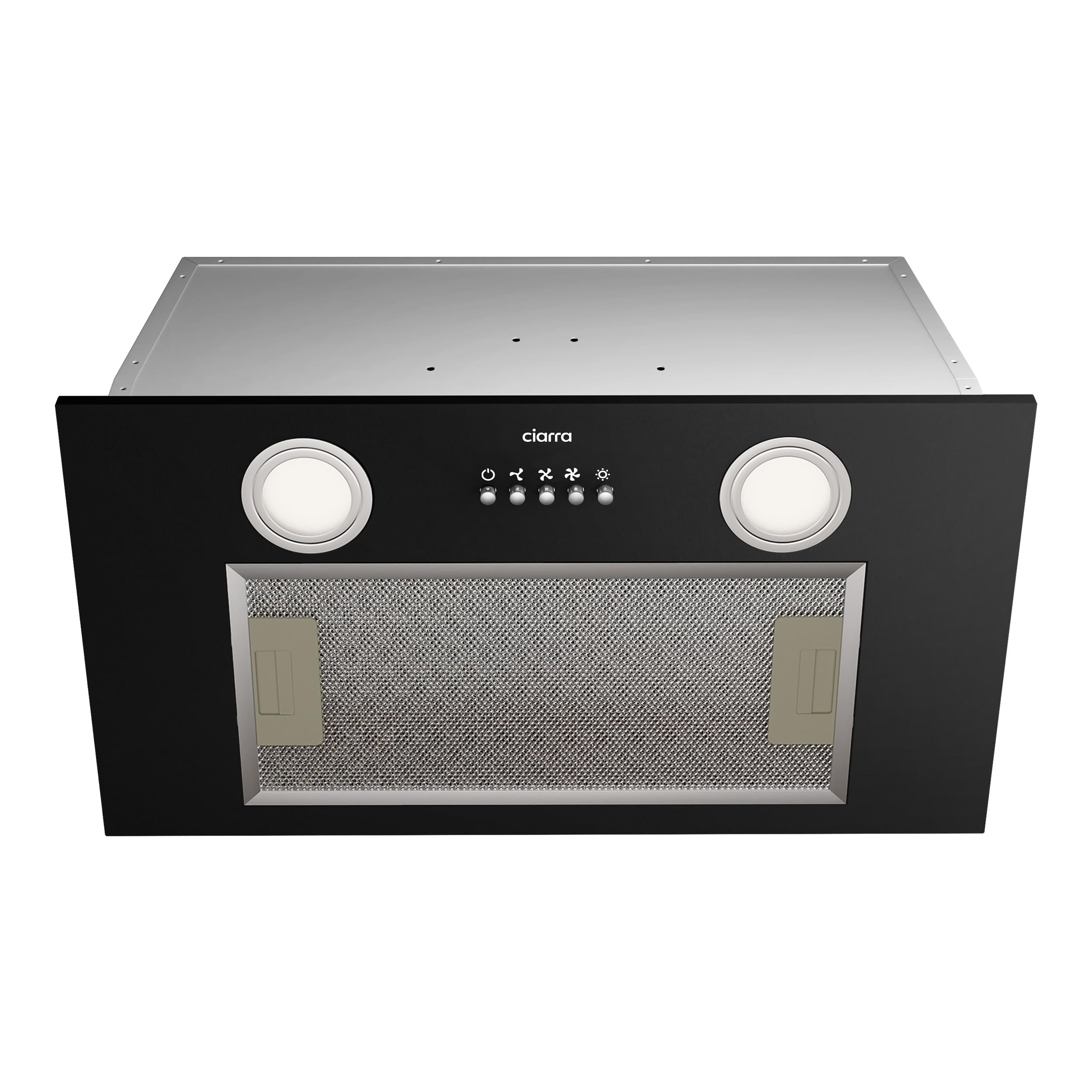

2. CIARRA CAB52913E-N 20 Inch Range Hood
CIARRA’s black matte sandblasted finish sets this 20-inch insert apart visually, resisting fingerprints and scratches better than standard brushed stainless steel. It pushes 650 CFM of airflow while keeping noise to a maximum of 6.5 sones, which is quieter than many 600 CFM competitors. The 5-layer mesh filter traps grease effectively, and the push-button controls are straightforward and durable.
One critical distinction: this unit is ducted-only, so it requires an external vent path. It is not convertible to ductless. The matte black finish is scratch-resistant and easy to wipe clean, but the underlying metal gauge feels lighter than some pricier models — it trades some heft for a lower installed weight of 12.4 pounds. The dual LED lights are bright, though users describe them as very white, almost clinical.
Installation is manageable for a DIYer, but the 9.49-inch height may require reconfiguring the cabinet interior if replacing a taller old hood. Buyers consistently report satisfaction with the quiet performance and strong suction on high heat. For anyone who wants a modern black finish and high CFM without spending premium money, this is a solid pick.
Why it’s great
- 650 CFM suction at a very quiet 6.5 sones
- Fingerprint-resistant matte black finish
- Bright dual LED lighting
Good to know
- Ducted-only — no ductless conversion
- Metal gauge feels lighter than premium models
- LED lights have a cool white tone
3. Miseno MH80120AS 20 Inch Range Hood Insert
The Miseno insert uses a sliding control knob to provide infinitely variable fan speed between 150 and 390 CFM, giving you precise airflow adjustment that three-speed switches cannot match. Dual halogen lamps deliver bright, warm point-source illumination that many cooks prefer over LED for accurate color rendering of food. The 5-layer mesh filter is removable and dishwasher-safe, and the 35-pound weight indicates substantial build quality.
On the highest setting, the noise level climbs significantly, but the lower speeds are genuinely quiet. The sliding control is a nice tactile feature, though the plastic components feel less premium than the stainless steel body. Installation is straightforward for a pro or experienced DIYer, and Miseno provides an installation video. The 9.69-inch height fits into most standard cabinet spaces without major modifications.
Owners highlight the strong suction and the beautiful light output from the halogen bulbs. The primary downsides are the noticeable fan noise at maximum CFM and the plastic control components. If you want variable speed control and warm light, and you are willing to accept some noise at top speed, this is an excellent mid-premium choice.
Why it’s great
- Infinitely variable speed from 150 to 390 CFM
- Warm halogen lighting with dim/bright settings
- Heavy 35-pound build suggests durability
Good to know
- Loud on the highest speed setting
- Plastic sliding control feels cheap
- Ducted-only operation
4. JOEAONZ 20 Inch Range Hood Insert B09B1MCPMS
This JOEAONZ insert delivers 600 CFM while keeping noise at or below 60 dB, thanks to its advanced thermoplastic motor housing that dampens vibration better than traditional steel enclosures. The deep-groove baffle filter captures 95% of grease droplets and is fully dishwasher-safe. The brushed stainless steel body uses laser-welded seams for a clean, seamless appearance that integrates well with cabinetry.
Convertible between ducted and ductless operation using separately sold charcoal filters, this model adapts to kitchens without existing external venting. The three-speed push-button panel controls fan speed, and the dual LED lights are energy-efficient and replaceable without tools. Some users report that the control buttons can be difficult to reach if the hood is mounted high, and there are isolated reports of motor failures after a few months.
Overall, the value-to-performance ratio is strong. The quiet operation at 600 CFM is a standout feature, and the baffle filter design makes maintenance simple. The sleeve-bearing motor may have a shorter lifespan than ball-bearing alternatives, but the seller has shown willingness to replace defective units. It is a strong mid-range choice for anyone prioritizing low noise with high airflow.
Why it’s great
- Very quiet ≤60 dB at 600 CFM
- Dishwasher-safe baffle filter captures 95% grease
- Convertible between ducted and ductless
Good to know
- Control buttons hard to reach if mounted high
- Isolated reports of motor failure within months
- Sleeve bearing motor may not last as long as ball bearing

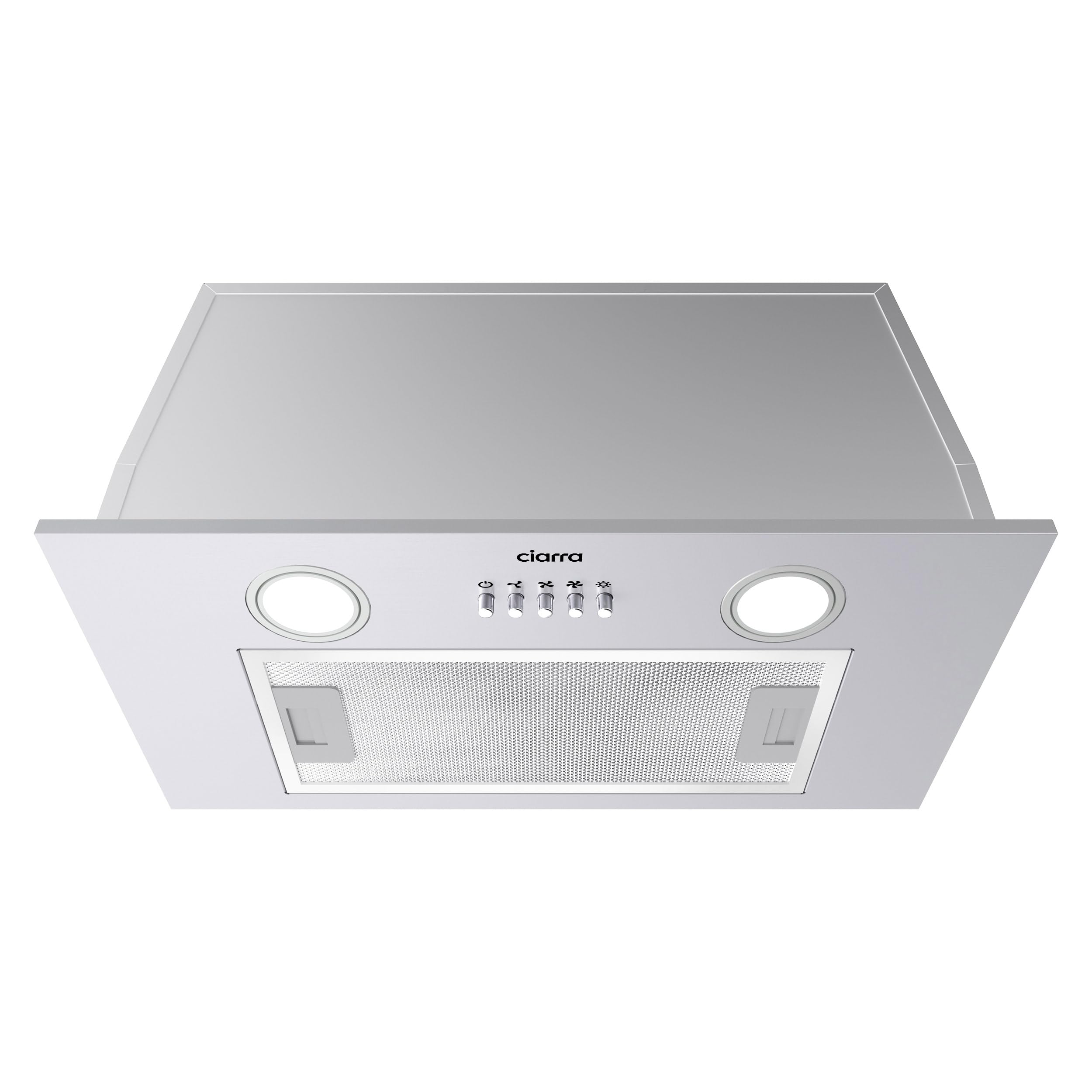

5. CIARRA CAS52913E-N 20 Inch Range Hood
The stainless steel variant of CIARRA’s 20-inch insert shares the same 650 CFM airflow and 6.5 sones noise rating as its black counterpart, but with a classic brushed silver finish that matches most existing kitchen appliances. The 5-layer mesh filter and push-button controls are identical, as is the ducted-only requirement. This is the same high-performance motor and fan assembly in a different cosmetic package.
The stainless steel construction is functional but feels thin to the touch, a trade-off that keeps the weight at 12.4 pounds for easier installation. The dual LED lights provide bright cooktop illumination, though the color temperature leans cool white. This unit is not convertible to ductless, so confirm you have a duct path before purchasing. The 9.49-inch height is shorter than many inserts, which helps with clearance in tight cabinets.
User feedback mirrors the black model: quiet, powerful, and good value. The thin metal is the most common criticism, but for the price, the performance is hard to beat. If you need a silver finish to match your decor and want the same 650 CFM performance as the black version, this is your pick.
Why it’s great
- 650 CFM suction at a very quiet 6.5 sones
- Classic stainless steel finish matches most kitchens
- Compact 9.49-inch height for tight cabinet spaces
Good to know
- Ducted-only — no ductless conversion
- Thin metal gauge may feel less durable
- LED lights have a cool white tone
6. JOEAONZ 20 Inch Range Hood B0DJXCFGC6
This JOEAONZ model uses a 5-layer aluminum mesh filter instead of a baffle, which makes it lighter and slightly quieter on lower speeds. It still delivers 600 CFM at a maximum of 60 dB, and the mesh filter is dishwasher-safe. The stainless steel body features a minimalist design with laser-welded seams for a cleaner look. Dual replaceable LED lights provide balanced illumination over the cooktop.
Convertible between ducted and ductless using a separately sold charcoal kit, this unit offers flexibility for kitchens without external ducting. The push-button controls are simple and responsive. Some users note that the fan is not truly quiet — it is audible even on the low setting, though at 60 dB it is comparable to other 600 CFM units. The mesh filter may require more frequent cleaning than a baffle filter if you cook with a lot of oil.
Installation feedback is positive, with buyers appreciating the compact design and easy fit into standard 20-inch cabinets. The mesh filter is easy to pop out and wash. For anyone who prefers a mesh filter for its lighter weight and easy handling, this is a strong mid-range option with convertible capability.
Why it’s great
- 600 CFM with convertible ducted/ductless operation
- Lightweight 5-layer mesh filter, dishwasher-safe
- Compact design with clean laser-welded seams
Good to know
- Fan is audible even on low speed
- Mesh filter may clog faster than baffle with heavy grease use
- Charcoal filters for ductless mode sold separately
7. Zomagas 20 Inch Range Hood Insert B0DM1YGQYP
The Zomagas insert provides 600 CFM of suction through a 5-layer aluminum mesh filter, with a brushed stainless steel finish that blends into most kitchens. The push-button control panel offers three speeds, and the dual LED lights are replaceable with standard bulbs, letting you customize the color temperature. It is convertible to ductless using separately sold charcoal filters.
Installation can be tricky without two people, and the included instructions are minimal — some users found them entirely missing. The filter panel may rattle at certain speeds, but adhesive rubber pads can silence it. The dimmer-than-expected LED lights are a common complaint, though they are adequate for basic cooking visibility. The 6-inch duct connection lip is short, which may require an adapter for secure attachment.
For the price, the build quality is decent and the suction is genuine. The noise level is lower than many older Broan models it replaces. If you are on a tight budget and need 600 CFM with convertible capability, the Zomagas offers the core performance without the premium fit and finish of pricier units.
Why it’s great
- Genuine 600 CFM suction at a low price
- Convertible to ductless with charcoal filters
- Replaceable LED bulbs let you choose color temperature
Good to know
- Minimal or missing installation instructions
- LED lights are dimmer than expected
- Filter panel can rattle at higher speeds
8. Summit HC20BB 20 Inch Range Hood
Summit’s HC20BB is a no-frills under-cabinet hood built with powder-coated steel that is 53% heavier gauge than typical industry standards, giving it surprising durability for its price tier. The 2-speed rocker switch controls a fan rated at 200 CFM — sufficient for light to moderate cooking but noticeably weaker than the 600 CFM options above. It includes a combination aluminum mesh and charcoal filter for immediate ductless operation.
This is a convertible hood that can connect to 3.25×10-inch rectangular or 7-inch round ductwork. At only 5.5 inches tall, it is one of the slimmest options available, fitting into the tightest under-cabinet spaces. The incandescent light bulb is replaceable but dim compared to modern LED units. Some units arrive with cosmetic scratches from packaging, and the plastic protective film may be partially stripped.
For small apartments or kitchens where cooking is infrequent and low in grease output, the Summit provides adequate ventilation with a rugged build. The 200 CFM will not handle heavy stir-frying or searing without smoke escaping, but for basic simmering and boiling, it gets the job done quietly and reliably. TAA compliant and made in North America.
Why it’s great
- Heavy-gauge steel construction for durability
- Ultra-slim 5.5-inch height fits tight cabinets
- Convertible with included charcoal filter
Good to know
- Only 200 CFM — not enough for heavy cooking
- Incandescent bulb is dim; no LED included
- Some units arrive with scratches from packaging
9. Summit HC20SS 20 Inch Range Hood
The Summit HC20SS is the stainless steel sibling of the HC20BB, sharing the same heavy-gauge steel body (53% thicker than industry standard) and 200 CFM 2-speed fan. The stainless steel exterior gives it a more premium appearance that matches stainless appliances better than the powder-coated black version. It uses the same combination aluminum mesh/charcoal filter and supports both ducted and ductless installations.
The 5.5-inch height is identical, making it ideal for shallow cabinets. The single incandescent light provides basic illumination but is not as bright as dual-LED competitors. The 2-speed rocker switch is simple and reliable, and the 100-watt power draw on high is modest. Some units arrive with cosmetic imperfections from packaging, as noted across multiple reviews. The 11-pound weight is light, making installation a one-person job.
Like the black version, this hood is suited for light cooking environments where high CFM is unnecessary. The stainless steel finish resists corrosion and wipes clean easily. For a small rental or a guest house kitchen where budget and size constraints are paramount, the HC20SS delivers honest performance without any bells or whistles.
Why it’s great
- Heavy-gauge stainless steel for long-lasting looks
- Ultra-slim profile at only 5.5 inches tall
- Lightweight and easy to install solo
Good to know
- 200 CFM insufficient for heavy frying or searing
- Single incandescent light is dim
- Some units arrive with packaging scratches
FAQ
Can a 20-inch range hood cover a 24-inch cooktop?
How much clearance do I need between the hood and the stove?
What size duct do I need for a 600 CFM hood?
How often should I replace charcoal filters in ductless mode?
Final Thoughts: The Verdict
For most users, the 20 inch range hood winner is the CIARRA CAB52913E-N because it delivers 650 CFM at a quiet 6.5 sones with a fingerprint-resistant black finish that suits modern kitchens. If you want a dishwasher-safe baffle filter and convertible ducted/ductless operation, grab the JOEAONZ B09B1MCPMS. And for a premium build with a lifetime motor warranty, nothing beats the ZLINE 20.5″ Insert.
