If you are shopping for a 20-ton press, the real question is not how much force it makes — every press here is rated at 20 tons. The question is whether the frame, the jack, and the parts in the box actually hold up when you load it. That is exactly what separates a press that presses wheel bearings for years from one that buckles a plate on the first job.
I’m Min — the founder and writer behind Gadgets Feed. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Below you get seven real presses compared on frame type, pump style, and working height — plus the honest downsides nobody puts in the listing. From the budget-friendly bench build to the premium shop-floor rigs, here is the breakdown that makes picking the best 20 ton press for your garage a straightforward call.
Our Picks at a Glance
How To Choose The Best 20 Ton Press
A 20-ton press is a heavy steel H-frame with a hydraulic ram that pushes a bearing, bushing, or U-joint in or out of a housing. Every press on this list is rated the same way — 20 tons of force. So the decision is not about power. It is about how that force gets delivered and whether the frame stays square while you use it.
Bottle jack or air/hydraulic ram
You can start pressing parts for the least money with a bottle jack you pump by hand. It works, and it is how a lot of home mechanics get started. The step up is a fixed air/hydraulic ram (a ram that stays put and can run on compressed air), which stays centered on the work instead of wandering. You can often run it off shop air through a quick connector, so you are not cranking a handle on every pass. If you press bearings often, that difference shows up in your shoulders, not just your time.
Bed height settings and working space
The worktable is the shelf the part sits on, and the number of height positions decides how many jobs the press can reach. More settings give you finer control over working distance. Just as important is the open width between the uprights — the throat — because a press that cannot fit your transmission shaft is a press that sits in the corner.
Frame steel and welds
Look at how the frame is put together. A fully welded frame holds its shape under load. A bolted frame can work well, but it needs the bolts kept snug and the holes to line up well. A separate cross bar you tighten across the uprights is usually adjustable — which is handy for wide parts but is one more thing to check before every push.
Quick Comparison
| Model | Best For | Pump Type | Capacity | Item Weight | Amazon |
|---|---|---|---|---|---|
| 20 Ton Shop Press, Hydraulic, Black Widow★ Best Overall | Home mechanics and small repair work | Manual hand pump | 20 ton | 121 pounds | Amazon |
| 20T Hydraulic Press, Heavy Duty H-FrameBudget Champion | Budget-friendly entry into pressing | Hydraulic (spring-return bottle jack) | 20 ton | 108 pounds | Amazon |
| Big RED ATY20011R Torin Steel H-Frame Press | Straightening, bending and stamping | 20 ton bottle jack | 20 tons (40,000 lb) | 158.7 pounds | Amazon |
| OEMTOOLS 25087 Air Hydraulic 20 Ton Press | Shops that want faster set-up | Air or hand, double speed pump | 20 ton | 247.4 pounds | Amazon |
| VEVOR Hydraulic Shop Press, 20 T Pneumatic | Mixed garage and driveway jobs | Pneumatic assist with quick connector | 20 tons | 190.4 pounds | Amazon |
| SUNEX TOOLS 5720AH Air/Hydraulic Shop Press | Workshops that press metal all day | Air motor | 20 tons | 13.61 g (listing figure) | Amazon |
| AFF 20 Ton Hydraulic Shop Press | Heavy-duty professional shops | Dual air motor pump | 20 ton | 281 pounds | Amazon |
In‑Depth Reviews

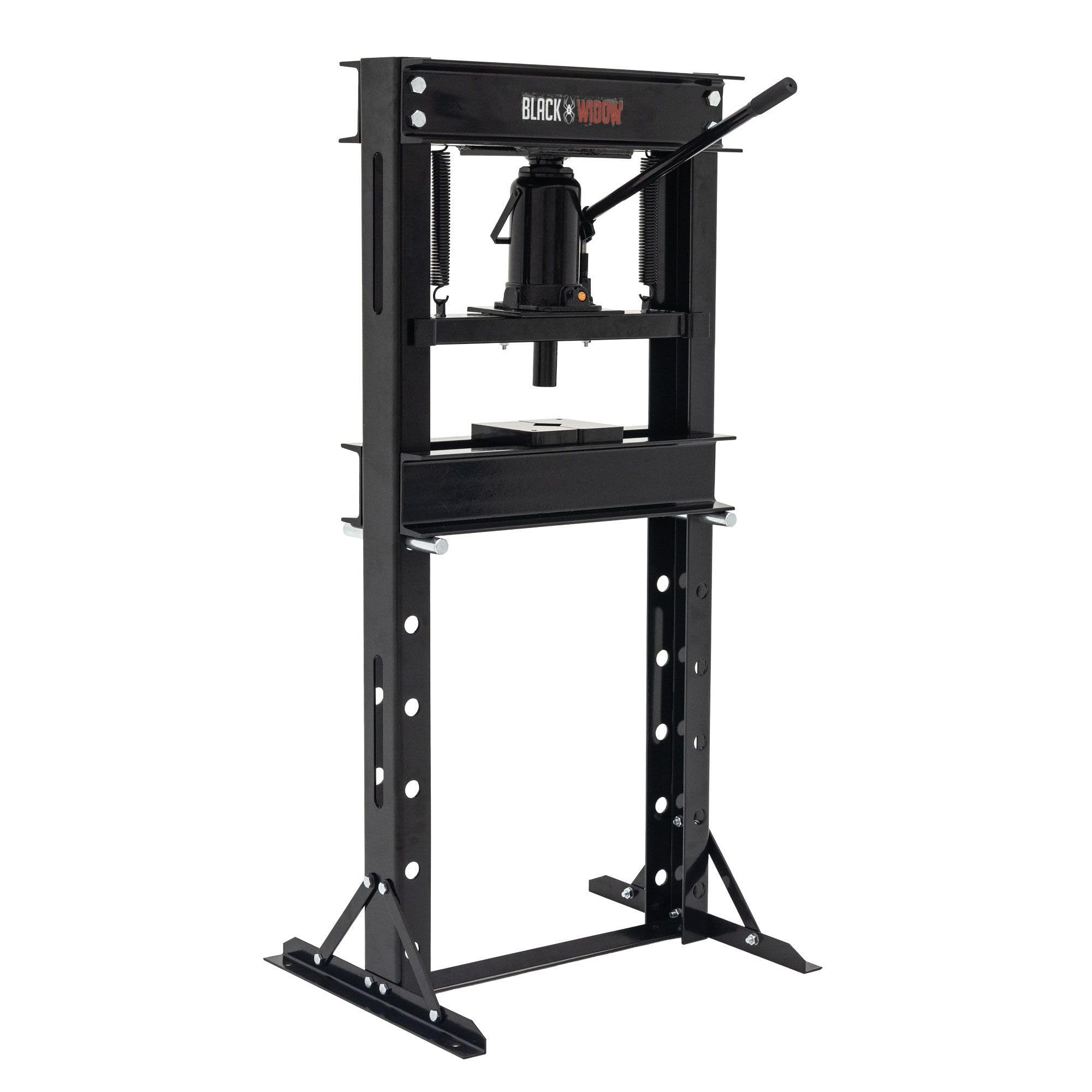

1. 20 Ton Shop Press, Hydraulic, Black Widow
Our pick — over 4★ from 90+ verified ratings; the strongest balance of quality and price.
The do-it-all press for the home mechanic who wants a sliding ram, not a squirming bottle jack.
The standout here is the horizontal-slide ram, which travels side to side so you can line it up over the exact spot on a bearing or bushing instead of shimming the whole part into place. It extends 2.75 to 10 inches from the base and gives you a hard 20 ton of pressing force. That sliding head is why this earns the top spot for one-off garage jobs — you set the work, slide the ram over it, and push.
Frame height is adjustable through six settings spaced in 4.75-inch increments, so you can drop the bed down for a tall strut or raise it for a short press-fit job. It comes with two heel blocks, and the whole thing can be run off the included manual hand pump — no compressor required to get started. A lot of owners run this on farm-shop and home-garage work, and wheel bearings are the job that keeps coming up.
It is not a lightweight bench accessory, though. At 158.7 pounds with a powder-coated steel frame, moving it is a two-person task, and the middle opening runs small enough that wide parts need some creative spacing to sit flat. The included table plates are the one piece owners routinely swap out — most who press a lot upgrade them rather than fight them. Treat the plates as a starter set and the press itself as the keeper.
What Earns It The Top Spot
- Horizontal-slide ram travels 2.75 to 10 inches, so you line up the push instead of fighting the part
- Six bed-height settings in 4.75-inch increments cover tall struts and short press-fits alike
- Ships with two heel blocks and its own manual hand pump — no air compressor needed
Where It Gives Ground
- The included table plates are thin — most regular users buy sturdier ones
- The middle opening is narrow, so wide parts need spacing creativity
- At 158.7 pounds, plan on help to position it
Made For: the home mechanic or small repair shop pressing bearings and bushings a few times a month who values a sliding ram.
Think Twice If: you press wide suspension parts regularly — the narrow middle opening will send you shopping for spacing blocks.

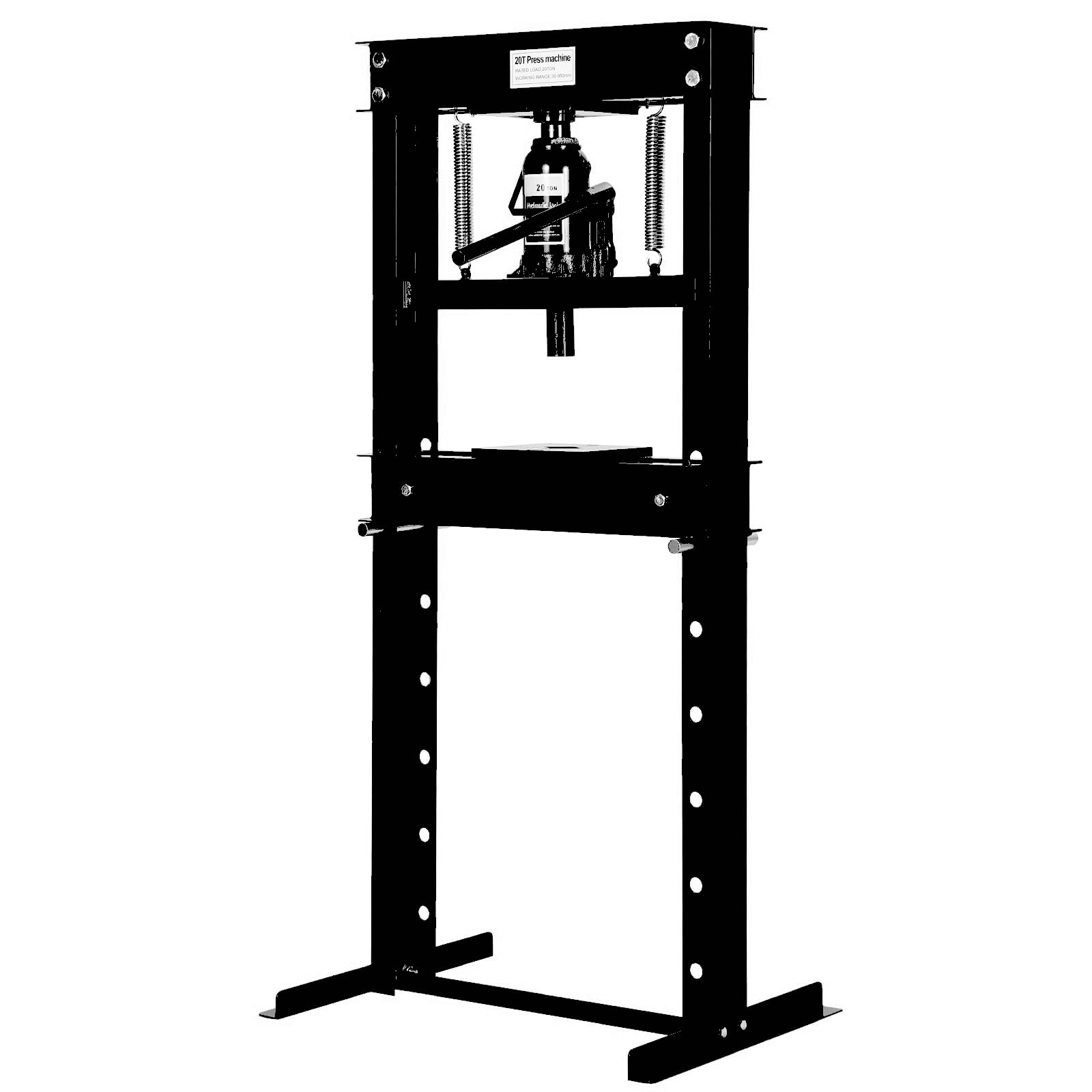

2. 20T Hydraulic Press, Heavy Duty H-Frame Garage Floor Hydraulic Shop Press
A genuinely light 108-pound H-frame with an eight-position table and a built-in safety valve.
If you have ever tried to move a press across a garage floor alone, the weight is the headline: this frame comes in at 108 pounds, which is 50.7 pounds lighter than the Big RED Torin lower down this list. That is the difference between needing a buddy to reposition it and simply dragging it where you want it. It also stands 54.5 inches tall and takes up 20 x 21 x 54.5 inches of floor space.
The worktable locks into eight positions, which is more adjustment than most presses in this class offer and gives you real control over working distance. Its bottle jack carries the same 20 ton rating as everything else here, and adding a safety relief valve that automatically engages once pressure exceeds 20 tons means the press protects itself if you over-push. The included two pressure plates broaden the load-bearing surface under the work.
The honest catch is steel gauge. Owners who love it describe it as well-built for the money and capable of handling small jobs like a rear-end rebuild, while others find the metal thinner than they expected. A few have noticed the bottle jack held only by spring tension, and there are no assembly instructions in the box. Bubble levels and a slow, careful first job get you through — this is a press to respect, not abuse.
Proof It Does Real Work: buyers report pressing suspension bushings on a Model Y that a dealership was quoting a job in the thousands for. Buyers praise it for pressing suspension bushings that a dealership quoted thousands to replace.
The Frame Question: a bolted frame with thin metal is fine for pressing bushings and rear-end parts, but lean on it hard and you will feel the wobble. Owners mention that the press plates also have side-to-side movement, so guide shims help.
Right Call If: you want a compact, budget-friendly press that stores small and handles occasional bushing and bearing jobs at home.
Wrong Call If: you run a professional shop and push the press all day — thinner steel and a spring-tension jack want a lighter duty cycle than that.
3. Big RED ATY20011R Torin Steel H-Frame Hydraulic Garage/Shop Floor Press with Stamping Plates, 20 Ton (40,000 lb) Capacity, Red
The one press on this list that ships with proper V-block stamping plates, all in a 158.7-pound floor frame.
Where the other presses ask you to buy or build table plates, this Big RED includes arbor press stamping plates with V-blocks and a 180-degree guide design. That setup is aimed squarely at straightening, bending, stamping, and pressing — not just bearing swaps. The bottle jack carries a 20 ton (40,000 lb) capacity and runs through a working range from 0 to 28 inches, which is a tall lift for a press in this class.
Precision springs handle the return, bouncing the ram back slowly and safely instead of snapping up under load, and the piston-ram is treated and polished to resist skiving (surface scarring from repeated contact). The whole thing wears a powder-coated, lead-free paint that shrugs off oil, grease, and dirt, and it carries a limited 1 year manufacturer warranty. The 25.2 x 21.26 x 59-inch frame is the kind of footprint you plan around, not shuffle around.
The catch on this one is packaging and parts count. It is the heaviest frame here at 158.7 pounds versus the 108-pound H-frame above, and it arrives in a box that customers note frequently shows up damaged. Hardware goes missing in transit — fasteners, springs, and even the jack have all failed to turn up for some owners.
The Stamp-Plate Advantage
- Includes V-block stamping plates with a 180-degree guide — no separate plate purchase for bending work
- Bottle jack reaches 28 inches of lift, taller than most presses in this bracket
- Treat-and-polish ram resists skiving, and the powder coat wipes clean of oil and grease
Sizing It Honestly
- Heaviest frame in this guide at 158.7 pounds — heavier than some buyers expect
- Box damage and missing hardware are a recurring theme
- Instructions are an exploded diagram, so assembly is on you
Buy It For: the built-in stamping plates and the tall 28-inch lift, which suit bending and straightening work at home.
Skip It For: a low-effort unboxing — verify every nut, bolt, spring and plate the moment the crate arrives.
4. OEMTOOLS 25087 Air Hydraulic 20 Ton Press with Double Speed Pump, Wheel Bearing Press
A fixed-ram air/hydraulic press whose double speed pump cuts the cranking on every job.
This press earns a place in a busy shop, not just a home garage, because of its ram design. Instead of a bottle jack that can wander off-center, it uses a fixed ram that stays centered over the work. You can drive it either with the hand pump lever or a pneumatic pump (an air-powered pump) fed from shop air. That dual option means you can press a full set of wheel bearings without ever touching a handle.
What makes it fast is the double speed pump — reviewers point out it moves quick below roughly 2000 lbs and slows automatically once past that point for controlled force, so you are not cranking the whole way. There is also a liquid-filled dual-scale pressure gauge with high-visibility markings so you can read exactly how much pressure you are applying, plus a moveable press head and moveable press blocks for flexibility on awkward parts. The steel frame is powder coated, and the maximum air pressure needed is 120 psi.
Two things to know up front. At 247.4 pounds this is not a one-person setup — shoppers say it needs a hoist or a couple of helpers just to get it standing. And OEM Tools does not sell spare or repair parts for it, so if something breaks beyond warranty you are on your own. Heavier than the 190.4-pound VEVOR, this one earns its place on pump quality rather than portability.
What Sets The Pump Apart: the two-stage design makes short work of travel and then slows for the final push, and the gauge lets you watch the load build. That control is the whole point of paying up here.
Reach For This If: you have shop air and want the fixed-ram accuracy plus the faster double speed pump for bearing work.
Look Elsewhere If: you cannot lift 247 pounds or you need access to factory spare parts — OEM Tools does not stock them.
5. VEVOR Hydraulic Shop Press, 20 T H-Frame Pneumatic Shop Press with Press Plate
The full-height press with nine table settings and a triangular brace fighting the wobble.
Owners push this press through bushings, ball joints, and U-joints without complaint. The numbers back that up: a 20 ton load capacity in a frame that stands 69.69 inches tall, one of the tallest here, which puts the working table at a comfortable height for standing work instead of kneeling.
The worktable uses a quick-adjust pin system with nine height settings ranging from 2.6 to 40.5 inches. That range is the real story, since it covers everything from a low press-fit to a tall part without reaching for blocks. The cylinder stroke is 5.5 inches, and the manual is specific that you should not push past it or you risk the cylinder seals. There is a pneumatic assist pump with a quick connector for an air compressor, a 20T pressure gauge, and a triangular brace welded into the base to cut the wobble that plagues plain H-frames.
Here is the honest picture: build quality is the most-discussed theme, and it splits two ways. Some owners find the thickened steel and large-diameter column sturdy and stable. Others report the frame flexing and the included plates bending permanently under load — one buyer pressed a bearing onto an axle and watched the plates buckle. This is a press that rewards working within its rating and stopping when a part fights back. Bearing removal is its strong suit; bearing installation near the limit is where it gets shaky.
What Wins People Over: functionality is the aspect owners praise most. It assembles easily, and the 69.69-inch frame puts the worktable at standing height.
The Honest Trade-Off: the included press plates and the thinner frame sections are the weak link — buyers report plates bending permanently, and durability comes up as the recurring complaint. Upgrading to thicker plates fixes most of it.
Fits Best: the DIY mechanic who wants a tall, adjustable, air-assisted press for bushings, ball joints, and bearing removal.
Otherwise Consider: if your work pushes constantly near the 20 ton limit, spend up to a heavier frame — the stock plates and light C-channels will not thank you.
6. SUNEX TOOLS 5720AH Fully-Welded Air/Hydraulic Shop Press, 20 Tons
The fully welded frame that trades a handle for an air motor, aimed at real shops.
This frame is welded into one piece rather than bolted together, which is the feature that separates it from the budget builds above. A welded frame holds its geometry under load instead of shifting at the joints. It is rated at 20 tons and includes a 3-piece punch kit, bed plates, and a bearing shield, so it lands ready to work rather than needing add-ons.
The other half of the story is the air motor. There is no pumping handle at all — you drive the ram with air, which is the difference between a press you can operate all day and one that tires you out. Straightening, bending, and pressing gears, bearings and bushings are what the listing names, and the included punch kit and bearing shield push it toward fabrication and gear work rather than just automotive.
Two real caves. First, height — owners mention it sits too short for a tall operator to stand fully upright at it, and some end up mounting it on blocks. Second, there is one report of a bed that arrived warped and had to go back, so inspect the weld alignment before you commit. This is a serious press, and checking the frame on arrival is simply good practice.
The Air Motor Argument: with no handle to pump, the ram moves on air alone — that is the feature worth paying for here, and the pressure gauge on the jack makes it easy to watch the load.
A Match For: a working shop that needs an air-driven, fully welded 20 ton press and presses material regularly.
Not Ideal For: tall operators standing at the work, since the frame height runs short — plan on blocks or a raised spot.
7. AFF 20 Ton Hydraulic Shop Press – Shatterproof PC Shield – Super Duty
The super-duty frame that puts a shatter-resistant shield between you and the work.
Safety is the reason this press exists in a shop rather than a home garage. A shatter-resistant polycarbonate shield blocks shrapnel and debris, and an overload protection system stops the press from over-pressurizing — two features no other press on this list matches. Add a fully welded frame in heavier gauge steel, and the 281-pound build is the beefiest here.
The pump side is equally serious. A dual air motor pump is built for faster pressing than a single-stage setup, and a glycerin-filled gauge shows the pressing force accurately instead of bouncing with vibration. The bed adjusts through a 7-position height configuration, and a lateral head adjuster lets the press head slide side to side for precise positioning over the work. You also get a 10-piece pin and bearing press adapter set plus a 2-piece press plate set.
Know the geometry before you buy. This press has a rep for being smaller than other 20 ton presses, and the throat — the open width between the uprights — has been reported too narrow for high-horsepower tractor transmission shafts. One owner also found the gauge missing from the crate, so confirm the shield hardware and the gauge are present before assembly. At 281 pounds it is a permanent installation, not something you move job to job.
Why Pay The Premium: the shatterproof shield and overload protection are the safest combination in this guide, and the dual air pump plus glycerin gauge (a fluid-filled gauge that steadies the needle) make high-force pressing more controlled.
Suited To: a professional shop that wants safety hardware — shield and overload protection — built in from the start.
Think Hard If: you press wide components, because the throat has been reported too narrow for large tractor transmission shafts.
Understanding the Specs
Load Capacity (In Tons)
This is the maximum pushing force the press is rated for, and every press on this list is built to a 20 ton rating — the Big RED lists it as 20 ton (40,000 lb). That number is a ceiling, not a target. The moment you approach it, the weak link shows up, which is almost always the frame or the included plates rather than the jack. Pressing a stubborn part near the limit is where budget steel gets tested hardest.
Pump Type (Manual vs Air/Hydraulic)
A manual press uses a bottle jack you crank by hand — simple, reliable, and no compressor needed. An air/hydraulic press runs off shop air through a quick connector, so a fixed ram stays centered on the work while an air motor drives it. Fixed-ram air designs keep the push aligned; bottle jacks can wander, which is why some buyers prefer the air route for repeated bearing work.
Bed Height Settings
The worktable is the shelf your part rests on, and the number of positions decides how closely you can match it to each job. More settings mean finer control over working distance. Between the presses here you will find eight positions, a 7-position configuration, or a nine-setting pin system ranging from 2.6 to 40.5 inches. That spread is what lets a press reach a short press-fit and a tall strut without shimming.
Frame Construction and Welds
A fully welded frame holds its shape under load, which is why the Sunex and AFF presses lead with that spec. A bolted frame can be just as capable if the hardware stays snug and the holes line up well. Triangle braces, thicker steel, and polished rams are the extras that keep a press stiff when you are pushing hard — worth checking as carefully as the ton rating itself.
FAQ
Is a 20 ton press strong enough for wheel bearings and ball joints?
Should I get a manual bottle jack press or an air/hydraulic press?
How much space do I need for a 20 ton press?
What is the difference between a bottle jack press and a fixed-ram press?
Do I need a gauge on my 20 ton press?
Can a 20 ton press also be used for bending and stamping?
How much does a 20 ton press weigh and can I move it alone?
Why do some 20 ton presses arrive with missing or bent parts?
Does a 20 ton press need a safety shield?
What else should I budget for beyond the press itself?
Final Thoughts: The Verdict
For most home mechanics and small repair outfits, the 20 ton press to reach for is the Black Widow 20 Ton Shop Press — its horizontal-slide ram and six bed-height settings make bearing and bushing work far less fiddly than a wandering bottle jack. If your priority is a compact, budget-friendly frame for occasional jobs, the 20T H-Frame Press stores small and presses suspension parts at home. And if you run a professional shop where safety and forcing speed matter, the AFF Super Duty Press is the one with a shatterproof shield and overload protection. Match the press to how often you push it near 20 tons, and it will earn its floor space for years.
