The 200 mm fan class is a rare breed in the desktop cooling world — oversized, slow-spinning, and built to move enormous volumes of air at near-silent noise floors. Unlike their 120 mm and 140 mm counterparts that scream for attention above 1500 RPM, a true 200 mm fan pushes 90 to 370 CFM while barely whispering past ambient. The catch? Case compatibility, thickness clearance, and the surprising divide between DC computer fans and 120V industrial muffin fans that look identical but behave completely differently.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours dissecting CFM ratings, noise curves, bearing types, and mounting hole patterns to separate the genuine quiet performers from the overpriced plastic rings that rattle at 900 RPM.
Whether you’re cooling a Thermaltake Core X71 build, retrofitting a server cabinet, or ventilating a workshop shed, this guide narrows the field to only the best options that actually deliver on their specs. Welcome to my definitive best 200 mm fan guide.
How To Choose The Best 200 Mm Fan
Selecting a 200 mm fan is not just about the diameter — the thickness, voltage type, and mounting hole pattern are non-negotiable compatibility filters. A 60 mm thick industrial fan will not fit inside a standard desktop case designed for 30 mm computer fans, and an AC-powered muffin fan requires a wall outlet, not a motherboard header.
Voltage and Connector Type — DC Computer Fan vs AC Industrial Fan
The single biggest split in the 200 mm category is DC vs AC. DC fans (3-pin or 4-pin PWM) run on 12V from your power supply or motherboard, are speed-controllable, and generally operate below 30 dBA. AC fans run on 110V-120V wall power, deliver 2400+ RPM and 370 CFM, but produce 50+ dBA — they are for workshop ventilation or server racks, not quiet gaming rigs. Buying an AC fan expecting whisper-quiet PC cooling is the most common mistake in this category.
Thickness and Mounting Hole Pattern
Standard desktop 200 mm fans are 30 mm thick. Premium models like the Noctua NF-A20 FLX occupy that same 30 mm profile. Industrial AC fans are 60 mm thick and require 166 mm x 166 mm hole spacing. Some computer cases have proprietary or non-standard mounting holes — always confirm the hole pattern (154 mm, 170 mm, or 110×180 mm) before purchasing.
Bearing Type and Lifespan
Hydraulic bearings (Thermaltake CT200) are quiet and cheap but have a shorter lifespan. UFB bearings (Phanteks) offer a better hub-to-tip ratio and lower vibration. Dual ball bearings (GDSTIME, Wathai) last up to 67,000 hours and can be mounted horizontally or vertically without wear, but are noisier. Noctua’s SSO2 bearing is the gold standard for silence and longevity at 150,000+ hours MTTF.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Noctua NF-A20 FLX | Premium | Silent PC cooling | 18.1 dBA, 800 RPM, 30 mm thick | Amazon |
| Thermaltake CT200 ARGB PWM | Mid-Range | RGB builds, quiet CFM | 131.6 CFM, 900 RPM, 27.2 dBA | Amazon |
| Phanteks PH-F200SP | Mid-Range | High static pressure builds | 110.1 CFM, 25 dBA, UFB bearing | Amazon |
| Cooler Master MasterFan MF200R | Premium | ARGB and silent air | 90.3 CFM, 950 RPM, 28 dBA | Amazon |
| AsiaHorse AMICI-5GT | Mid-Range | Infinity mirror RGB | 61.5 CFM, 30 dBA, 1800 RPM | Amazon |
| GDSTIME AXIAL 20060 | Budget | Workshop exhaust, 120V | 370 CFM, 2400 RPM, 54 dBA | Amazon |
| Wathai AC Axial 2060 | Budget | High-volume AC ventilation | 370 CFM, 2400 RPM, 42 dBA | Amazon |
In‑Depth Reviews
1. Noctua NF-A20 FLX
The Noctua NF-A20 FLX is the undisputed noise-floor champion of the 200 mm category. At a max of 800 RPM and 18.1 dBA, it is literally quieter than a library — most users report hearing absolutely nothing over ambient. The A-series Flow Acceleration Channels and Advanced Acoustic Optimisation frame are not marketing fluff; they produce a focused, turbulence-free air stream that delivers 88 CFM without the characteristic whoosh of standard fans.
The 30 mm thickness and three sets of mounting holes (154 x 154 mm, 170 x 170 mm, and 110 x 180 mm) make it the most versatile fit for computer cases. The FLX version includes Low-Noise and Ultra-Low-Noise adapters, letting you drop to 550 RPM for near-silent operation. The included anti-vibration mounts — soft silicone cones — decouple the fan from the chassis completely, eliminating resonance that plagues rigidly screwed fans.
With a 150,000+ hour MTTF and fibre-glass reinforced PBT construction, this fan is built to outlast your build. The brown color scheme remains polarizing, but for pure acoustic performance, nothing else in this list breaks the 20 dBA barrier while moving meaningful air. It is the reference standard for silent computing.
Why it’s great
- Only 18.1 dBA — near-silent at any speed
- Three mounting patterns fit nearly every case
- 150,000 h MTTF with SSO2 bearings
Good to know
- Brown/beige color scheme not for everyone
- No RGB lighting option
- 3-pin only, not PWM
2. Thermaltake CT200 ARGB PWM
The Thermaltake CT200 ARGB PWM delivers an impressive 131.6 CFM — the highest airflow of any desktop-class 200 mm fan on this list — while maintaining a reasonable 27.2 dBA noise floor. The 9-blade design optimizes the balance between static pressure (1.92 mm-H20) and volume, making it an excellent choice for front intake on cases with mesh panels or dust filters that would choke a lower-pressure fan.
The hydraulic bearing keeps the 500 to 900 RPM range smooth and quiet, with no grinding or ticking even after extended use. Daisy-chainable 4-pin PWM connectors simplify cable management, and the 9 addressable LEDs per fan sync via a standard 3-pin 5V ARGB header without requiring proprietary controllers. The CT200 is part of Thermaltake’s CT fan family, meaning it visually matches other CT fans in your build.
Reviewers consistently note it is quieter than the older Cooler Master MegaFlow 200 mm fans it replaces, with brighter RGB and higher CFM. The 27.2 dBA rating is audible but not intrusive — about the level of a quiet conversation. For users who want both lighting and real airflow without the premium price, this is the sweet spot.
Why it’s great
- 131.6 CFM — highest in its class
- Quiet hydraulic bearing at 900 RPM max
- Daisy-chain PWM and ARGB cables
Good to know
- Short included cables may need extensions
- RGB requires compatible 5V motherboard header
3. Phanteks PH-F200SP
The Phanteks PH-F200SP is engineered specifically for static pressure scenarios — radiators, dense filters, and restrictive intake grilles. The nine MVB (Maximum Vibration Balanced) blades are precisely angled to generate a downdraft vortex that reduces turbulence across the blade surface, allowing more air to pass through restrictive openings. At 110.1 CFM and 25 dBA, it is quieter than the Thermaltake CT200 while still pushing substantial volume.
The UFB (Updraft Floating Balance) bearing is Phanteks’ proprietary solution that combines elements of fluid dynamic and magnetic levitation designs. It produces lower vibration than standard rifle bearings and carries a 5-year warranty. Eight pre-installed rubber pads are larger than typical fan pads, effectively decoupling vibration from the case frame. The fan frame itself has been reinforced to resist flex at high RPM.
At 1100 RPM max, the PH-F200SP is slightly faster than some competitors, but the noise profile remains tame — one detailed head-to-head comparison ranked it 2nd out of six 200 mm fans for noise and 2nd for overall quality. The tradeoff is a thicker frame (standard 30 mm) that may cause clearance issues in cases with oversized CPU coolers or radiator sandwiches.
Why it’s great
- Excellent static pressure for filtered intakes
- 5-year warranty with UFB bearing
- Only 25 dBA at max RPM
Good to know
- No RGB or ARGB variant available
- Thicker frame may cause clearance problems
4. Cooler Master MasterFan MF200R
The Cooler Master MasterFan MF200R uses a hybrid blade design that combines elements of both jet engine and helicopter blade aerodynamics — a blend that prioritizes static pressure without sacrificing overall airflow. At 90.3 CFM and 950 RPM, its output is lower than the Thermaltake or Phanteks options, but the noise level stays at a controlled 28 dBA, making it a strong contender for balanced builds that need ARGB lighting and decent airflow.
The addressable RGB implementation is fully compatible with Asus Aura, ASRock RGB, and MSI Mystic Light, giving you full 16.8-million-color customization without proprietary software. The Silent Cooling technology combines noise reduction circuitry with sound-absorbing rubber pads on the mounting corners. A Smart Fan Sensor provides jam protection if a cable gets snagged — a rare safety feature that prevents motor burnout.
Note that the MF200R is only 25 mm thick, which is thinner than the standard 30 mm profile. This can be an advantage in tight cases, but also means the fan has less blade surface area for moving air. Several reviewers found the mounting holes did not perfectly align with their cases, requiring slight modification. For MasterCase H500 owners, this fan is a natural upgrade that matches the pre-installed units.
Why it’s great
- Full RGB sync with major motherboard software
- Thinner 25 mm profile for tight fits
- Jam protection sensor for safety
Good to know
- 90.3 CFM is lower than some competitors
- Mounting holes may not align with all cases
5. AsiaHorse AMICI-5GT
The AsiaHorse AMICI-5GT trades raw CFM for aesthetics. With 61.5 CFM and 1800 RPM (a significantly higher speed than other desktop 200 mm fans), it relies on fast rotation to compensate for a smaller blade profile or lower static pressure design. The 30 dBA noise level is reasonable for the speed, though at 1800 RPM the fan is audibly present — not silent, but not intrusive.
The standout feature is the infinity mirror ARGB design. Each fan houses 24 individually addressable LEDs behind a mirrored center, creating an infinite-depth visual effect. The 16.8 million colors sync with Asus Aura, Gigabyte RGB Fusion, and MSI Mystic Light via a standard 5V 3-pin header. The HDB (fluid dynamic) bearing is oil-lubricated to reduce metal-to-metal friction, with a rated lifespan of 50,000 hours.
This is primarily a visual upgrade for cases with glass side panels where the infinity mirror effect creates a centerpiece. The metal frame adds weight (700 grams) and rigidity. Note that the daisy-chain is cable-based, not wireless, and AsiaHorse recommends chaining no more than 3 fans per header. The white version has a quality-control issue where the black plastic center hub is visible — stick with the black model.
Why it’s great
- Stunning infinity mirror RGB effect
- 24 LED beads per fan for rich colors
- HDB bearing with 50,000-hour lifespan
Good to know
- 61.5 CFM — lowest airflow in this list
- White version has visible black center hub

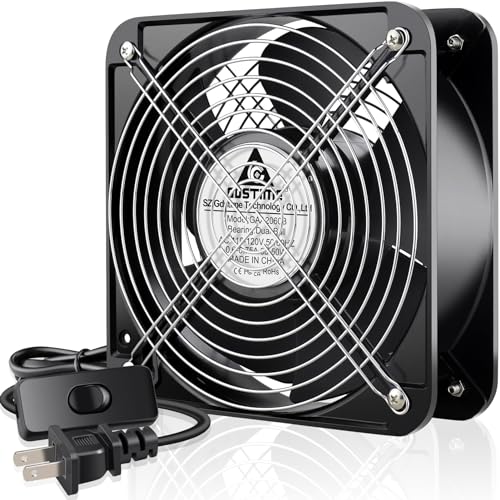

6. GDSTIME AXIAL Fan 20060
The GDSTIME AXIAL 20060 is a different beast entirely — an AC-powered industrial fan that runs on standard 110-120V wall current. With 370 CFM at 2400 RPM, it moves more than double the air of any desktop-class fan on this list, making it suitable for exhausting small rooms, cooling generator cabinets, or ventilating workshop enclosures. The die-cast aluminum frame and PBT plastic impeller are built for continuous 24/7 operation.
The dual ball bearing design is rated at 67,000 hours and allows the fan to be mounted horizontally or vertically without bearing wear. The included metal fan guards provide adequate protection from accidental contact. The 5-foot power cord includes an ON/OFF switch. Noise is a significant 54 dBA — comparable to a vacuum cleaner — so this is not suitable for bedroom or quiet office use.
Some users report inconsistent CFM performance, with a small number claiming it pushes less air than expected. However, the majority find it moves 370 CFM reliably for applications like RV fridge cooling, laser cutter exhaust, and air hockey table replacement. A separate speed controller is recommended for those who need variable airflow.
Why it’s great
- 370 CFM — highest airflow in this guide
- Dual ball bearings last 67,000 hours
- Die-cast aluminum frame for durability
Good to know
- 54 dBA is loud — not for quiet spaces
- AC 120V requires wall outlet, not PC PSU
7. Wathai AC Axial 2060
The Wathai AC Axial 2060 shares the same 200 x 200 x 60 mm form factor and dual ball bearing construction as the GDSTIME, but its noise rating of 39-51 dBA suggests a more varied acoustic profile — some units run noticeably quieter than the GDSTIME. It also claims 370 CFM at 2400 RPM, with the same 67,000-hour lifespan and the ability to be mounted in any orientation.
The build uses a metal frame with PBT plastic blades. The package includes two metal fan grills, mounting screws, and a 59-inch AC power cord with an inline switch. The 15-inch internal fan cable requires the user to connect the power cord via spring wire connectors — a minor assembly step that some users find inconvenient but is standard for the industrial AC fan class.
Practical applications include workshop ventilation, bathroom exhaust (one user reported clearing a 6×9 foot bathroom in 4 minutes), and replacement fans for MIG welders where the original fan failed. The noise is less objectionable than the GDSTIME for some users, though still too loud for quiet environments. A speed controller is recommended to dial back the RPM when full output is unnecessary.
Why it’s great
- Potential for lower noise than comparable AC fans
- Dual ball bearings for any-orientation mounting
- Includes wire connectors and power switch
Good to know
- Power cord requires manual wiring
- Takes 24 seconds to reach full speed
FAQ
Can I use a 200 mm fan in a case designed for 120 mm or 140 mm fans?
What is the difference between a DC computer fan and an AC industrial fan at 200 mm?
Does fan thickness matter for 200 mm fans?
Final Thoughts: The Verdict
For most users, the best 200 mm fan winner is the Noctua NF-A20 FLX because it delivers the quietest operation available at 18.1 dBA while still moving 88 CFM — a balance no other fan matches. If you want ARGB lighting and the highest airflow in the desktop class, grab the Thermaltake CT200 ARGB PWM. And for industrial workshop or server ventilation where noise is no concern, nothing beats the GDSTIME AXIAL 20060 for sheer CFM and 24/7 durability.
