The factory plastic Y-pipe on a 6.7L Cummins is a known weak link. When it cracks—and it will—coolant sprays onto the engine bay, risking overheating and a tow bill. Replacing that brittle plastic with a machined aluminum or reinforced composite Y-pass tube is the single most effective preventive measure you can take for your cooling system.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve combed through hundreds of verified owner reports, fitment notes, and technical specs to separate the parts that truly solve the cracking problem from those that introduce new issues like undersized ports or poor clamp fit.
Whether you drive a 2500 or 3500, this guide evaluates the top aftermarket options to help you find the best 2016 ram ecodiesel coolant y-pass tube for a permanent, leak-free fix.
How To Choose The Best 2016 Ram EcoDiesel Coolant Y-Pass Tube
Choosing the right replacement means looking beyond simple fitment. You need a part that addresses the root cause of failure—thin plastic that embrittles under heat cycles—while maintaining proper flow to both radiator cores and the EGR cooler.
Material Matters: Billet Aluminum vs. Composite
Billet aluminum is the gold standard. A one-piece machined Y-pipe with 0.125-inch nominal wall thickness resists cracking indefinitely and dissipates heat faster than plastic. Some budget options use thin-gauge aluminum or two-piece welded construction, which can develop pinhole leaks at the weld seam. A weldless CNC-machined part eliminates that failure point entirely.
Port Diameter and Hose Fitment
Not all Y-pipes have identical inlet and outlet diameters. A mismatch of even 0.25 inches can prevent the hose from sealing or cause a restriction that reduces coolant flow to the exhaust cooler. Always verify that the input (engine-side) port matches the factory 1.5-inch hose and that both output ports match your dual-radiator hose IDs. Some aftermarket parts ship with the correct clamps; others require you to supply a third one.
Finish and Corrosion Resistance
A raw aluminum part will oxidize over time, especially if your coolant chemistry is aggressive. Black anodized or powder-coated finishes seal the metal against corrosion and won’t flake off inside the cooling system. Red or colored anodizing is cosmetic but still provides the same protective oxide layer.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BELIFLY AT082 | Billet Aluminum | Full prevention upgrade | 0.125 in. wall, black anodized | Amazon |
| KPALAG CNC Y-Pipe | CNC Aluminum | Easy install, 3 clamps included | Weldless, red anodized | Amazon |
| Dorman 902-3102HP | Aluminum Crossover | OE-style crossover replacement | 14.4 oz, aluminum redesign | Amazon |
| AngyMeck 52014722AB | Aluminum Y-Line | Budget-friendly aluminum swap | 1.23 kg, full hose assembly | Amazon |
| GPP Billet Y-Pipe | Billet Aluminum | Direct replacement, lowest cost | 0.059 in. nominal wall | Amazon |
| SME Diesel Weldless | Composite | Non-metallic alternative | 0.125 in. wall, plastic | Amazon |
| BD Diesel 1600036 | Bypass Kit | Transmission cooler bypass | Aluminum shunts, 4 oz | Amazon |
In‑Depth Reviews

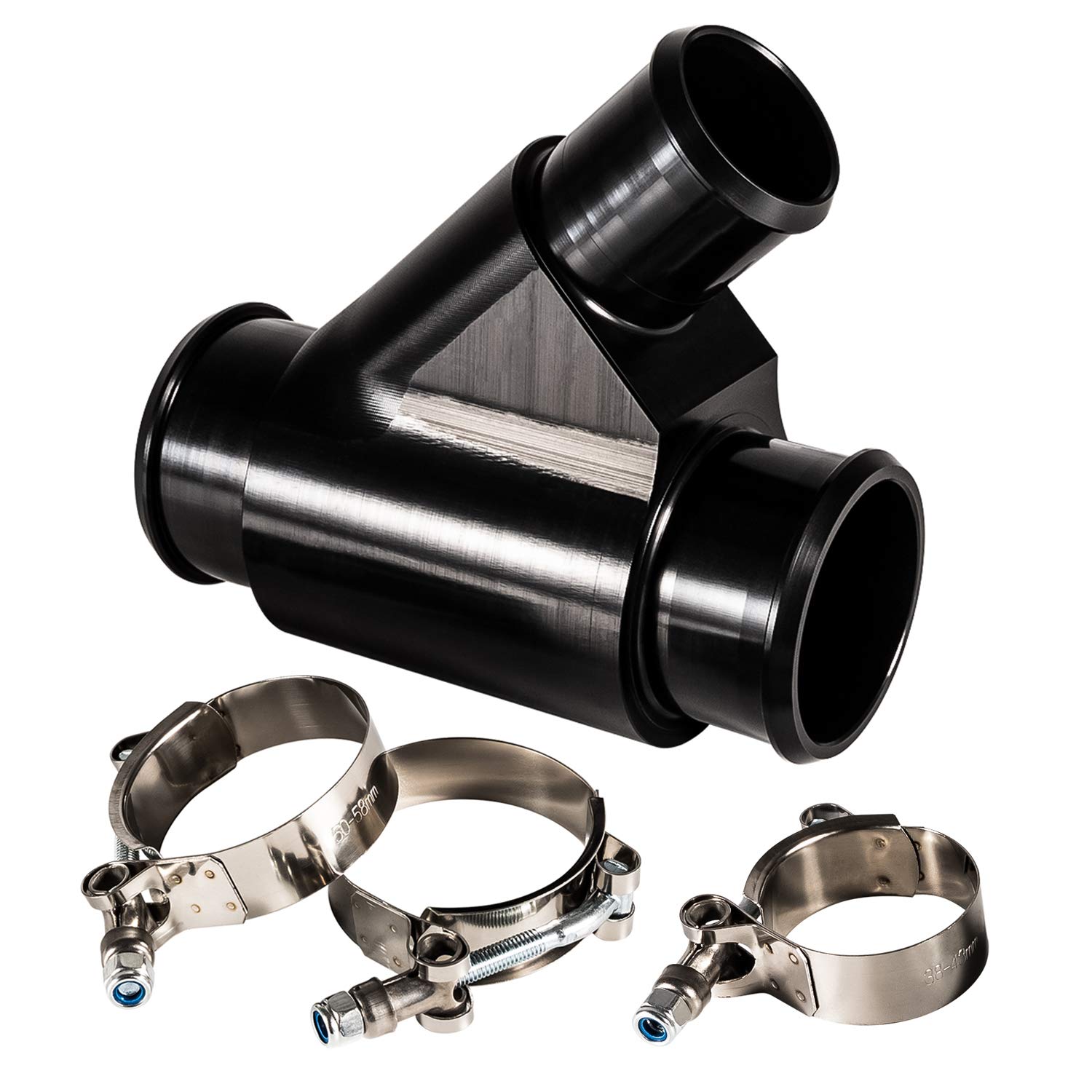

1. BELIFLY Weldless Dual Radiator Coolant Y-Pipe (AT082)
The BELIFLY AT082 is the definitive upgrade for any 2013-2020 Ram 2500 or 3500 with a dual-radiator 6.7L Cummins. Machined from standard billet aluminum with a black anodized finish, this one-piece weldless design eliminates the two-piece welded Y-pipe failure point that can create pinhole leaks over time. With a nominal wall thickness of approximately 0.125 inches, it offers substantially more structural mass than budget billet options that hover around 0.059 inches.
Owners report perfect fitment without any hose trimming, usually installing in under 45 minutes. The part includes three T-bolt clamps, though some users note the larger clamp can be tight on the bigger radiator hose — having a worm-style clamp on hand is a smart precaution. The anodized coating resists corrosion from ethylene glycol and extended-life coolants, ensuring the part stays clean under the hood for years.
This Y-pipe directly replaces the factory plastic assembly that is prone to embrittlement and sudden cracking. At roughly double the wall thickness of entry-level metal parts, it provides the best combination of durability, corrosion resistance, and hassle-free fit for a permanent fix.
Why it’s great
- 0.125-inch billet aluminum wall is exceptionally robust
- Weldless one-piece construction prevents seam leaks
- Black anodized finish resists corrosion
- Perfect fit reported for 2013-2020 dual-radiator trucks
Good to know
- Included T-bolt clamps may need replacement for larger hoses
- Check inside barbs for any rough machining before install

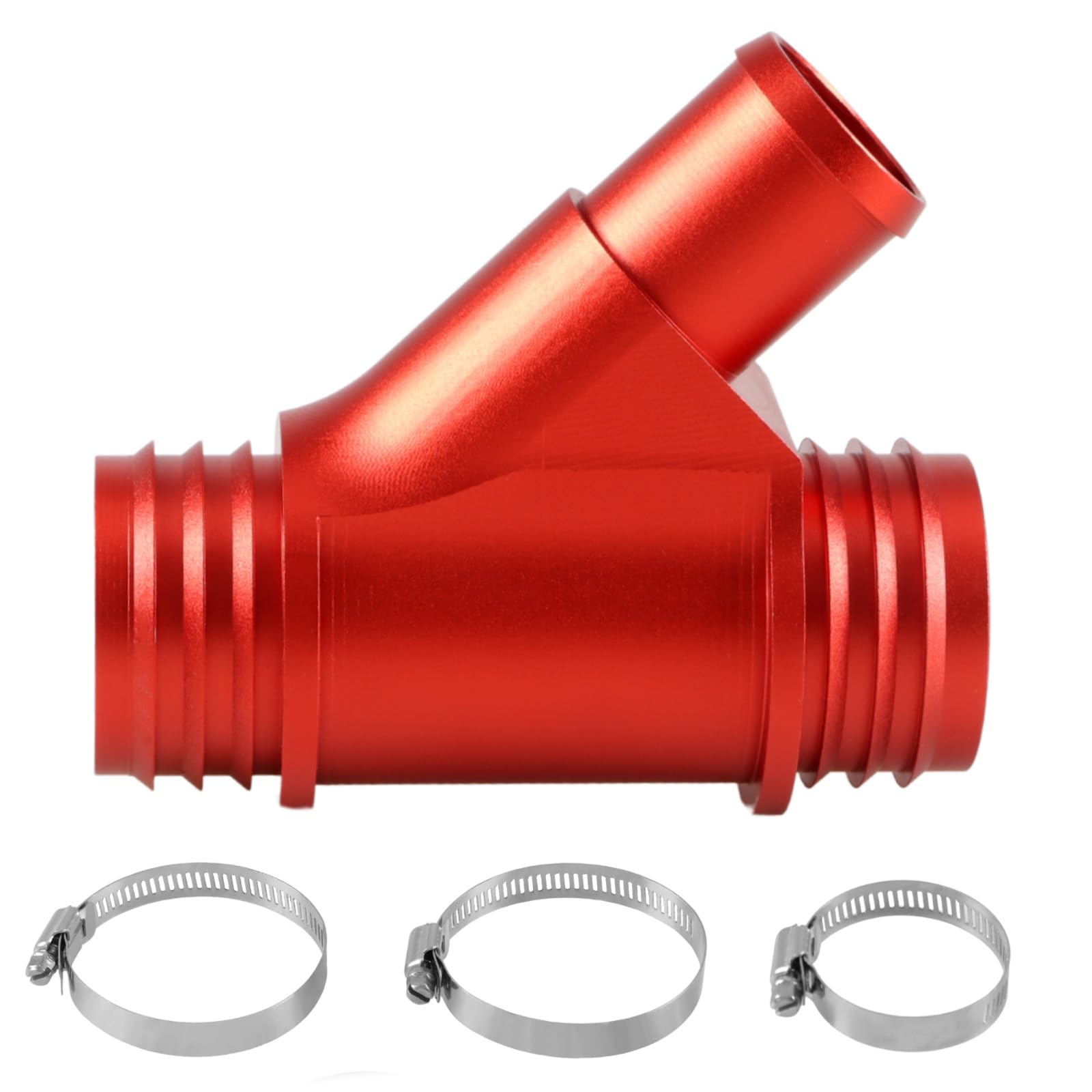

2. KPALAG CNC Coolant Y-Pipe
The KPALAG CNC Y-pipe uses CNC integrated machining to create a weldless aluminum connector specifically for 2013-2015 Dodge Ram 6.7L Cummins dual-radiator trucks. Its red anodized finish is purely cosmetic, but the underlying machining quality ensures consistent port diameters and smooth sealing surfaces. The part weighs 0.45 kg, indicating a solid billet density without unnecessary bulk.
Customer feedback consistently highlights the 30-minute installation window and the fact that three hose clamps are included in the box — a small convenience that eliminates a separate trip to the auto parts store. The anodizing process also improves heat resistance, helping the connector withstand the underhood temperatures near the EGR cooler without surface degradation.
Where this part distinguishes itself in the mid-range is the weldless construction at a price point well below premium offerings. It won’t have the 0.125-inch wall thickness of the top-tier BELIFLY, but it still represents a massive upgrade over OEM plastic and most welded two-piece aluminum parts in this category.
Why it’s great
- CNC weldless design removes seam failure risk
- Three hose clamps included for a complete install
- Anodized for corrosion resistance
- Quick 30-minute installation reported
Good to know
- Fitment limited to 2013-2015 dual-radiator models
- Wall thickness is not specified but is thinner than premium tier
3. Dorman 902-3102HP Engine Coolant Crossover Pipe
The Dorman 902-3102HP takes a slightly different approach: rather than replacing only the Y-pipe junction, this part is a complete engine coolant crossover pipe that replaces the entire plastic crossover assembly on the front of the engine. Weighing 14.4 ounces and constructed from aluminum, it is designed to match the fit of the original equipment part (OEM numbers 5184454AE, 5184653AD, 5184653AE, and 5184653AF) while eliminating the plastic cracking problem at its source.
Installation requires a bit more disassembly than a simple Y-pipe swap — the crossover sits centrally and connects to multiple coolant passages. Owners who have done the job report that using an upgraded gasket alongside the aluminum pipe yields a perfect seal. The part has undergone try-on and material testing from Dorman, which adds a level of quality assurance that generic unbranded parts lack.
For owners who want a comprehensive solution rather than a band-aid, the Dorman crossover addresses not just the Y-junction but every plastic coolant port in that section of the engine. It is the most thorough fix available in this category, albeit with a longer installation time.
Why it’s great
- Replaces entire plastic crossover assembly, not just Y-pipe
- Aluminum construction with OE-matched fitment
- Brand quality assurance from Dorman testing
- Compatible with multiple OEM part numbers
Good to know
- Requires more disassembly than a simple Y-pipe swap
- Upgraded gasket recommended for best seal
4. AngyMeck Aluminum Y-Line 52014722AB
The AngyMeck 52014722AB is a full radiator inlet hose assembly that includes an aluminum Y-connector rather than just a standalone Y-pipe. Designed for 2013-2014 Ram 2500 and 3500 trucks with the 6.7L Cummins, this part replaces the entire upper radiator hose with a metal Y-junction and new rubber hoses. The 1.23 kg weight reflects the complete assembly, making it heavier than standalone Y-pipe options.
Owners report that the metal Y-connector is a clear improvement over the factory plastic, but some note the replacement hoses may require trimming to achieve the correct length and that the hose material feels less substantial than the OEM rubber. The clamps included allow for future hose replacement without buying a whole new assembly — a practical design consideration.
If your existing hoses are already hardened or cracked, this all-in-one kit saves you from sourcing separate hoses and clamps. The ISO/TS16949 certification of the manufacturing process provides a baseline quality assurance that generic no-name assemblies lack.
Why it’s great
- Complete hose assembly with aluminum Y-connector
- Includes both hoses and clamps for full replacement
- ISO/TS16949 certified manufacturing
- One-year warranty coverage
Good to know
- Hoses may need trimming for proper fit
- Some users report hose material feels less durable than OEM
5. GPP Billet Dual Radiator Coolant Y-Pipe
The GPP Billet Y-pipe is the most affordable metal replacement option in this category, yet it delivers the core benefit: replacing the failure-prone plastic Y-pipe with a billet aluminum part. With a nominal wall thickness of 0.059 inches, it is thinner than the premium options but still substantially stronger than the OEM plastic it replaces. The black finish and aluminum construction fit 2013-2017 Dodge Ram 6.7L Cummins diesel pickups.
Customer reviews consistently mention a perfect fit and easy installation, typically under 30 minutes. The main caveat is that the unit ships with only two hose clamps, so you will need to supply a third clamp for the third hose connection. Several owners also recommend replacing the supplied clamps with worm-style clamps, which provide more consistent tension across the full hose circumference.
If you are on a tight budget but refuse to install another plastic Y-pipe, the GPP part gets the job done. Just budget a few extra dollars for quality clamps and factor in the thinner wall when deciding whether this is a permanent or interim solution.
Why it’s great
- Billet aluminum at the lowest entry price
- Perfect fit for 2013-2017 6.7L Cummins
- Quick under-30-minute installation
- Much better than factory plastic
Good to know
- Only two clamps included; third must be purchased separately
- 0.059-inch wall is thinner than premium alternatives
- Supplied clamps may bottom out before fully tightening
6. SME Diesel 1-Piece Weldless Coolant Y-Pipe
The SME Diesel Y-pipe takes a contrarian approach: it uses a thick-wall (0.125-inch) cast weldless plastic construction rather than aluminum. While plastic is the material that failed in the first place, SME’s design uses a one-piece cast process with no welded seams and a wall thickness double that of the flimsy OEM part. It is made in the USA and fits 2013-2019 Dodge Ram 6.7L Cummins diesels.
The major fitment concern reported by owners is that the input-side port on some 2013 models measures roughly 0.25 inches smaller than the factory hose, requiring a 1.25-to-1.5-inch hose adapter to seal properly. This is a critical compatibility check before purchasing — measure your hose ID first. When it does fit, the thick plastic construction resists cracking much longer than the original.
This option appeals to owners who prefer a non-metallic solution for reasons of cost or thermal expansion compatibility. Just be aware that fitment variability between model years means you may need an adapter or a different part altogether.
Why it’s great
- 0.125-inch wall is thick and robust for plastic
- Weldless one-piece cast construction
- Made in the USA
- Covers wide 2013-2019 model range
Good to know
- Input port may be undersized for 2013 models
- Still plastic — not as permanent as aluminum
- Only two clamps included; third needed
7. BD Diesel Performance Bypass Tube Eliminator Kit 1600036
The BD Diesel 1600036 is not a coolant Y-pipe in the traditional sense. It is a transmission cooler bypass tube eliminator kit designed for Ford trucks with the 4R100 transmission, using aluminum shunts and sealing washers to bypass a known failure-prone tube. Weighing only 4 ounces, this kit eliminates the bypass tube that can stick closed and cause transmission overheating.
Owner reports confirm that the kit works perfectly on 2000-2003 Ford F-Series trucks, with installation requiring removal of the pressure bypass spring and ball valve from the rear cooler line bolt for full flow. The kit includes all necessary seals and spacers. It is not compatible with any Ram EcoDiesel coolant system and is included here strictly as a reference for a different vehicle application.
If you are looking for a coolant Y-pass tube for your 2016 Ram EcoDiesel, this BD kit is not the right part. It serves a completely different purpose on a different transmission and vehicle platform.
Why it’s great
- Solves known 4R100 transmission bypass tube issue
- Includes all seals and spacers
- Lightweight aluminum construction
Good to know
- Designed for Ford 4R100, NOT Ram EcoDiesel
- Not a coolant Y-pipe replacement
- Overpriced for what it is, per some owners
FAQ
How do I know if my 2016 Ram EcoDiesel needs a new coolant Y-pass tube?
Can I install a coolant Y-pass tube myself or do I need a mechanic?
Will a billet aluminum Y-pipe fit both upper and lower radiator connections?
Do aftermarket Y-pipes require different hose clamps than the factory ones?
What is the difference between a Y-pass tube and a coolant crossover pipe?
Final Thoughts: The Verdict
For most Ram 6.7L Cummins owners, the best 2016 ram ecodiesel coolant y-pass tube is the BELIFLY AT082 because its 0.125-inch billet aluminum wall and weldless construction provide the most durable, leak-free solution on the market. If you want a CNC-machined part with all clamps included at a lower price point, grab the KPALAG CNC Y-Pipe. And for a comprehensive fix that replaces the entire plastic crossover assembly, nothing beats the Dorman 902-3102HP.
