Pulling the correct gauge for a 240-volt circuit is about more than just voltage—it is about matching the ampacity to the load while ensuring the jacket and conductor count fit the specific dry, wet, or underground environment you are wiring. A wrong choice here means tripped breakers at best and a fire hazard at worst, so the selection boils down to three questions: the current draw in amps, the physical run length, and whether the cable will be buried, stapled inside a wall, or left exposed.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours cross-referencing AWG ratings, temperature tables, and National Electrical Code requirements to separate the wiring that just barely passes code from the cable that actually delivers reliable current without voltage drop over the long haul.
Whether you are wiring a new oven, a detached garage sub-panel, or an EV charger circuit, this guide focuses on the only number that truly matters: conductor gauge and jacket type. My goal is to help you find the best 240v electrical wire for your specific amperage and installation scenario, with solid copper conductors and the correct UL listing for safety.
How To Choose The Best 240V Electrical Wire
Selecting the correct 240V cable is a simple process once you lock in your load amperage and installation environment. The wire must be rated for the circuit breaker size, the insulation type must match the location, and the number of conductors must fit your appliance or sub-panel wiring method.
Match Gauge to Circuit Amperage
A 20-amp 240V circuit requires 12 AWG copper wire, a 30-amp circuit needs 10 AWG, and a 50-amp circuit like an electric range or RV pedestal demands 6 AWG for the hot conductors. Dropping down a gauge size to save money on long runs leads to dangerous overheating — always follow the NEC ampacity chart for your specific temperature rating.
Choose the Right Jacket Type
NM-B cable (yellow or orange jacket) is for dry indoor locations only, such as inside wall cavities, attics, and ceiling joists. UF-B cable (gray jacket) is rated for direct burial underground and can handle damp or wet locations. Never substitute NM-B for underground runs; the moisture will degrade the paper filler and insulation over time.
Count the Conductors Correctly
A standard 240V-only load such as a water heater or well pump needs only two hot conductors plus a ground (2-wire with ground). A multi-wire branch circuit or 240V/120V appliance like an oven or dryer requires three conductors (two hots plus a neutral) plus a ground — known as 10/3 or 6/3 cable. Using a 2-wire cable when a neutral is needed violates code and leaves you without 120V functionality.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| VN Infinite quality 10/3 NM-B | Premium NM-B | 30A indoor branch circuits | 10 AWG, 3 conductors + ground, 50ft | Amazon |
| Energeaster 12/2 NM-B 50ft | Premium NM-B | 20A short to mid runs | 12 AWG, 2 conductors + ground, 50ft | Amazon |
| Southwire 6/2-8/2 Range Cord | Premium Range Cord | 50A electric range installation | 6 AWG hot, 8 AWG neutral/ground, 4ft | Amazon |
| Energeaster 12/2 NM-B 25ft | Mid-Range NM-B | 20A short DIY runs | 12 AWG, 2 conductors + ground, 25ft | Amazon |
| Arizona Electrical 12/2 NM-B 50ft | Mid-Range NM-B | Budget 20A residential runs | 12 AWG, 2 conductors + ground, 50ft | Amazon |
| Supplying Demand 3-Prong Range Cord | Mid-Range Range Cord | 50A range with 3-prong outlet | 6 AWG/8 AWG, 3-wire, 10ft length | Amazon |
| Southwire 10/2 UF-B 100ft | Premium UF-B | 30A direct burial underground | 10 AWG, 2 conductors + ground, 100ft | Amazon |
In‑Depth Reviews

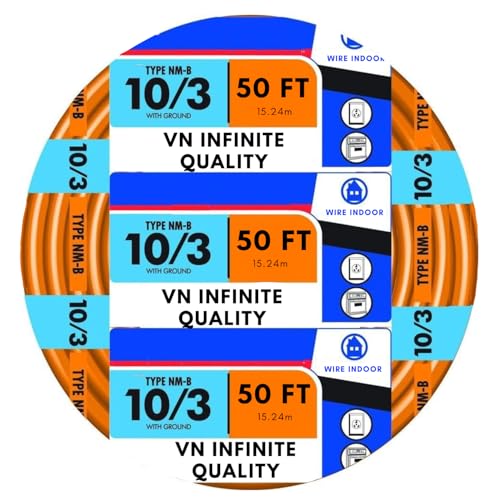

1. VN Infinite quality 10/3 NM-B Cable (50ft)
This 10/3 NM-B cable is the go-to choice for 30-amp 240V circuits requiring a neutral, such as a dryer, a small sub-panel feeder, or a generator transfer switch connection. The solid copper conductors are UL listed and rated for 600 volts, with a temperature rating of 90°C in dry locations. The orange jacket makes gauge identification instant, and the sheath has good flexibility for stapling through joists without splitting.
Buyers have used it for generator transfer switch installations and report that the wire handles the full 30-amp load without any warmth or voltage drop across the 50-foot length. The PVC insulation strips cleanly with standard 10 AWG strippers, and the ground wire is the same full gauge as the conductors — no undersized ground here. Compared to big-box store Romex, the price per foot comes out noticeably lower.
For anyone wiring a new 240V appliance that needs both hots and a neutral in dry indoor spaces, this cable delivers professional-grade material at a consumer-friendly price point. The only minor drawback is that the 50ft spool may arrive without a retail box, but the cable itself is clean and undamaged.
Why it’s great
- Full 10 AWG solid copper on all three conductors plus ground
- Beats local hardware store pricing for identical UL-listed quality
- Flexible jacket pulls easily through tight joist spaces
Good to know
- Intended for dry indoor locations only — not rated for damp or burial use
- Some buyers prefer a retail box for labeling purposes
2. Energeaster 12/2 NM-B 50ft Coil
The 50-foot Energeaster 12/2 NM-B cable is a strong contender for anyone running a 20-amp 240V circuit, such as a baseboard heater, mini-split, or workshop dust collector. The yellow jacket is printed clearly with gauge and voltage ratings along its entire length, making inspection easy. Solid copper conductors with a fire-retardant paper separator between the insulated wires and the bare ground keep the assembly flat and neat.
Multiple buyers note that the outer jacket feels slightly thicker and more cut-resistant than the house-brand offerings at major home improvement retailers. The cable pulls smoothly through drilled holes and lays flat without curling, which reduces installation fatigue on longer runs. The UL listing provides confidence for passing inspection, and the 90°C dry-location rating matches standard NEC derating requirements.
Some users report that the copper is slightly less annealed than premium brands, resulting in a stiffer feel when making tight bends into boxes. This is a minor trade-off for the significant savings over retail pricing. For DIY homeowners adding a few 240V circuits, this cable delivers solid performance without the premium upcharge.
Why it’s great
- Thicker, more durable jacket than many big-box options
- Clear, repeated gauge markings along the full cable length
- UL listed and NEC compliant for 20-amp branch circuits
Good to know
- Stiffer than premium-brand annealed copper for tight bends
- Indoor dry location only — do not use for underground runs
3. Southwire 9044SW8808 Range Power Cord (4ft, 50A)
This Southwire range cord is the definitive choice for connecting a 50-amp electric range, oven, or RV pedestal to a NEMA 14-50R wall outlet. The flat 4-prong plug design allows the range to sit flush against the wall, eliminating the gap caused by bulky right-angle plugs. It uses two 6 AWG copper conductors for the hots and two 8 AWG conductors for the neutral and ground — a configuration that meets all electrical codes for 50-amp 125/250V service.
The vinyl jacket is flexible enough to route behind the appliance without kinking, and the flanged spade terminals are pre-tinned for corrosion resistance and easy connection to the range terminal block. The UL listing is clearly marked on the cord, and the 4-foot length is ideal for standard range installations where the outlet is directly behind the appliance.
Be aware that this cord uses a NEMA 14-50 plug but is specifically listed as a range cord, not an EV charging cord. Using it for continuous high-load EV charging may cause overheating because the internal wire insulation lacks the higher temperature rating required for EVSE ratings. For its intended range application, this cord is built to last.
Why it’s great
- Flat plug saves space behind the range for a flush fit
- Heavy-duty 6 AWG hot conductors handle full 50A load
- Pre-tinned flanged terminals for secure, quick installation
Good to know
- Rated for range use — not recommended for continuous EV charging
- 4ft length may be short if outlet is not directly behind the appliance
4. Energeaster Solid Indoor 12/2 NM-B 25ft Coil
When you only need a short 25-foot run for a dedicated 20-amp 240V circuit, this Energeaster coil saves money without sacrificing quality. The 12/2 configuration works perfectly for a single appliance like a well pump, air compressor, or electric water heater that does not require a neutral. The solid copper conductors and yellow PVC jacket match the same construction used in its 50-foot sibling.
Buyers consistently mention that the outer jacket feels rugged and the wire pulls easily through conduit or staple-hung runs. The flat profile reduces bulk when running multiple cables parallel to each other, and the clear gauge printing eliminates any guesswork during rough-in inspection. The fire-retardant paper wrap around the ground conductor adds an extra layer of safety.
Some users note the same stiffness found in the longer version, which makes bending into a tight outlet box a bit more challenging compared to highly annealed premium wire. For short, straight runs where flexibility is less critical, this is a budget-friendly option that performs exactly as a standard NM-B cable should.
Why it’s great
- Perfect length for short DIY circuits without excess waste
- Tough outer jacket resists tearing during pulls
- UL listed for indoor 20-amp residential use
Good to know
- Stiffer copper makes tight box bends harder to maneuver
- Not rated for wet, damp, or direct burial applications
5. Arizona Electrical Solutions 12/2 NM-B 50ft
For cost-conscious buyers who need a full 50-foot roll of 12/2 NM-B, this offering from Arizona Electrical Solutions delivers the same AWG gauge and voltage rating as premium brands at a noticeably lower per-foot cost. It meets ASTM B-3 and B-8 standards for soft annealed copper and is RoHS compliant, so there are no environmental compliance concerns with local inspectors.
The cable cuts cleanly with standard wire cutters and strips well with a utility knife. The yellow jacket is slightly thinner than some name-brand cables, but it still holds up during moderate pulling through stud bays. The 90°C temperature rating and 600-volt capacity match the NEC requirements for 20-amp residential branch circuits running on 240V.
One trade-off is that the cable arrives simply coiled and taped without a retail box or spool, which some buyers find a bit rough. The conductors are solid and well-formed, but the lack of packaging means the wire can kink if you unroll it carelessly. For a straightforward run in a garage or basement where aesthetics do not matter, this is a solid budget-minded choice.
Why it’s great
- Lowest cost per foot among comparable 12/2 NM-B options
- Meets ASTM, RoHS, and NEC compliance standards
- Cuts and strips easily for quick DIY installation
Good to know
- Arrives loose without a spool — risk of kinks if unrolled hastily
- Jacket feels thinner than premium brands
6. Supplying Demand 10ft Range Power Cord (50A, 3-Prong)
If your 240V range outlet is farther from the appliance than the standard 4-foot cord can reach, this 10-foot 50-amp cord from Supplying Demand solves the problem without requiring a junction box or extension in the wall. It uses a 6 AWG/8 AWG conductor configuration with three prongs for older 3-wire range outlets, and it includes a strain relief fitting to secure the cord at the appliance terminal block.
The vinyl insulation remains flexible even in cooler basements, and the male plug grips the outlet securely without feeling loose. Buyers report that the extra length saved them from having to relocate the outlet, which is a major labor and drywall savings. The cord is UL listed and rated for 250 volts, matching standard electric range requirements.
This is a 3-wire cord (two hots and neutral with ground bonded), so it is only compatible with older 3-prong receptacles. For homes with 4-prong outlets, you need a 4-wire version. The strain relief included in the package fits most standard range back panels, but double-check the diameter opening on your appliance before tightening the clamp.
Why it’s great
- 10-foot length eliminates the need to move the outlet
- Includes strain relief fitting for secure range connection
- UL listed with full 50-amp/250-volt rating
Good to know
- 3-wire design only — not compatible with 4-prong outlets
- Verify the strain relief fits your specific appliance panel

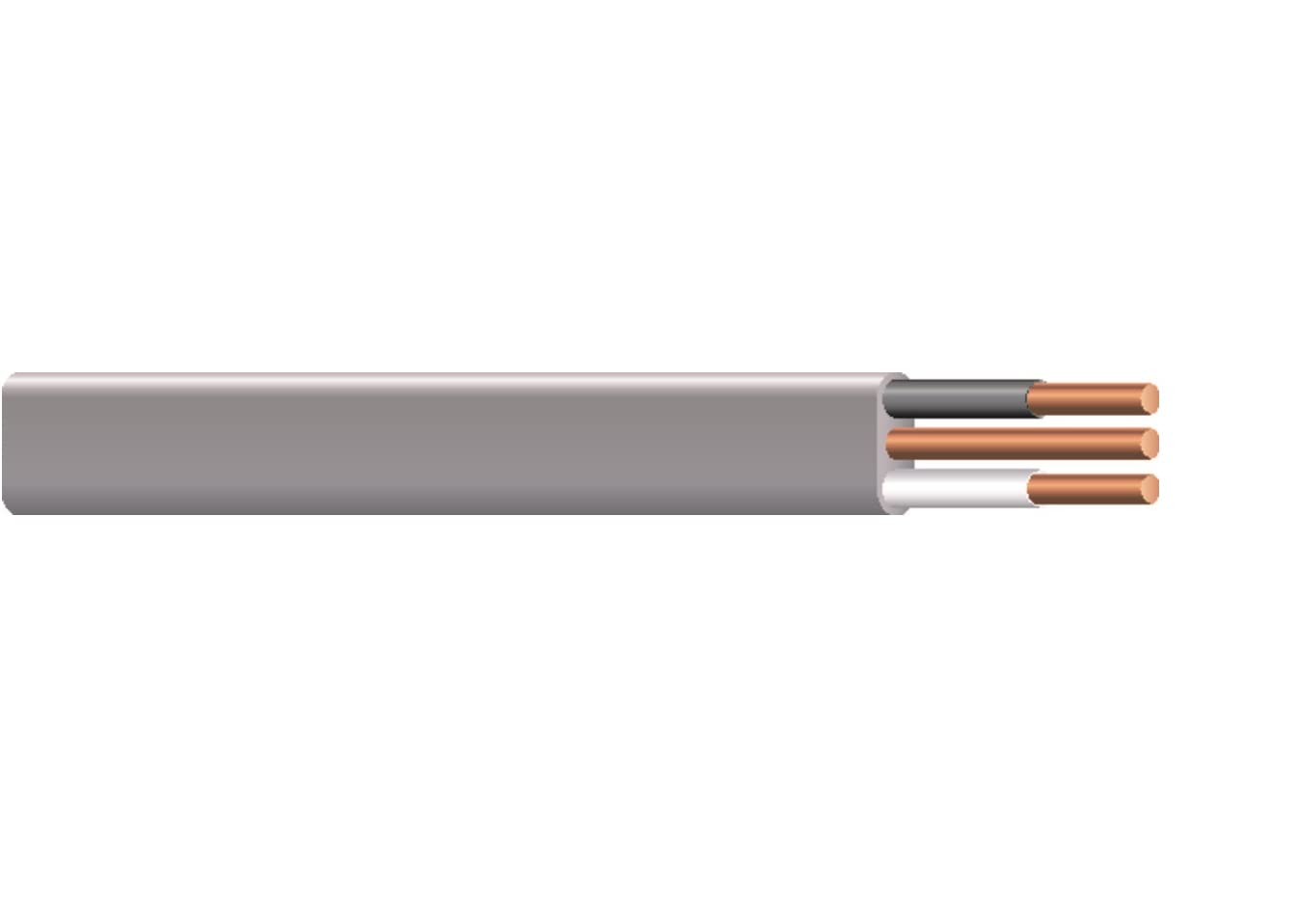

7. Southwire 13056728 100ft 10/2 UF-B Cable (Gray)
When the 240V circuit needs to leave the house and travel underground to a shed, well pump, or outdoor post lamp, this Southwire UF-B cable is the correct choice. The gray jacket is thicker and fully water-resistant, designed for direct earth burial without the need for conduit. It uses two 10 AWG solid copper conductors plus a ground, rated for 30 amps at 600 volts.
The cable is the same Southwire product sold at major home improvement stores, often at a lower price on Amazon. Buyers have used it successfully for solar inverter connections, transfer switch feeds, and backyard sub-panel runs. The insulation holds up well against rocks and backfill, and the cable is flexible enough to route through LB conduits and elbows at the house penetration point.
Installing UF-B requires a bit more care than NM-B because the solid jacket does not strip as easily — a sharp utility knife and careful scoring are needed. The 100-foot length provides plenty of excess for sweeping bends in the trench. For any outdoor 240V installation where a weatherproof, code-compliant direct burial cable is required, this Southwire product is the industry standard.
Why it’s great
- Rated for direct earth burial without conduit
- Southwire quality at a better price than many hardware stores
- Full 10 AWG solid copper for 30-amp outdoor circuits
Good to know
- Thick jacket requires a very sharp knife for clean stripping
- Heavy weight — moving the full 100ft coil is a two-hand job
FAQ
Can I use 12 AWG wire for a 30-amp 240V circuit?
What is the difference between 10/2 and 10/3 240V wire?
Is NM-B wire allowed in conduit for a 240V run?
Final Thoughts: The Verdict
For most users, the 240v electrical wire winner is the VN Infinite quality 10/3 NM-B because it combines the right 30-amp gauge with a neutral conductor, making it the most versatile for indoor appliance and sub-panel circuits. If you need a high-amp 50A cord for a range installation, grab the Southwire 9044SW8808. And for outdoor direct burial underground runs, nothing beats the Southwire 10/2 UF-B for durability and code compliance.
