A dead 24V power supply doesn’t just stop a project — it halts production in a workshop, kills a home automation hub, and leaves a row of LED strip lights dark. The difference between a supply that delivers stable power for years and one that introduces electrical noise or fails under load comes down to three things: genuine rated current, adequate safety certifications, and the correct form factor for your mounting environment. This guide separates the commodity bricks from the engineered solutions you can actually trust with expensive downstream gear.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours analyzing the internal construction, protection circuits, and real-world load testing data behind dozens of 24V supplies to identify which units genuinely hold their rated output without overheating or failing prematurely.
Whether you’re wiring a CNC controller, powering outdoor landscape lighting, or feeding a bank of security cameras, finding the right 24v dc power supply means matching output current, physical protection ratings, and connector style to your specific load — no compromises allowed.
How To Choose The Best 24V DC Power Supply
Selecting a 24V supply is more than matching voltage — the wrong current rating, form factor, or protection class can cause voltage sag, overheating, or complete system failure. Focus on three decision points before you buy.
Match Total Current Draw Including Headroom
Add up the maximum amperage of every device you plan to power simultaneously, then multiply by 1.25. A load drawing 8A should feed from a supply rated at 10A minimum. Running a supply at its absolute ceiling shortens internal capacitor life and accelerates thermal degradation.
Form Factor and Mounting Constraints
Plastic brick adapters with barrel connectors work for low-power indoor use like LED strips or small routers. DIN-rail mounted units are the standard for industrial control panels and enclosure wiring because they secure with a clip mechanism and allow screw-terminal connections. For outdoor or wet locations, sealed aluminum IP67 supplies are non-negotiable — they shed heat through the metal housing while blocking moisture ingress.
Certification and Protection Circuits
ETL, UL, or CE marks indicate the unit passed third-party safety and construction testing. Multiple independent certifications are a stronger signal of quality than any single mark. Protection circuits must include automatic overload, over-voltage, over-temperature, and short-circuit shutdown — any supply missing one of these four exposes your downstream equipment to risk during a fault event.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Mean Well NDR-240-24 | DIN Rail | Industrial control panels | 240W, 10A, 88.5% efficiency | Amazon |
| DROK 24V 20A Adjustable | Variable | Lab bench and motor testing | 0-24V adjustable, 20A max | Amazon |
| inShareplus 24V 400W | Waterproof | Outdoor lighting and wet zones | 400W, 16.6A, IP67 rated | Amazon |
| ALITOVE 24V 10A | Brick Adapter | High-current indoor devices | 240W, 10A, barrel connector | Amazon |
| AXLHNITI 24V 5A IP67 | Waterproof | Outdoor LED strips and floodlights | 120W, 5A, IP67 aluminum housing | Amazon |
| LCLCTC NDR120-24 | DIN Rail | Small enclosure and sensor power | 120W, 5A, dual output terminals | Amazon |
| BTF-LIGHTING 24V 5A | Brick Adapter | Low-cost indoor LED projects | 120W, 5A, ETL certified | Amazon |
In‑Depth Reviews

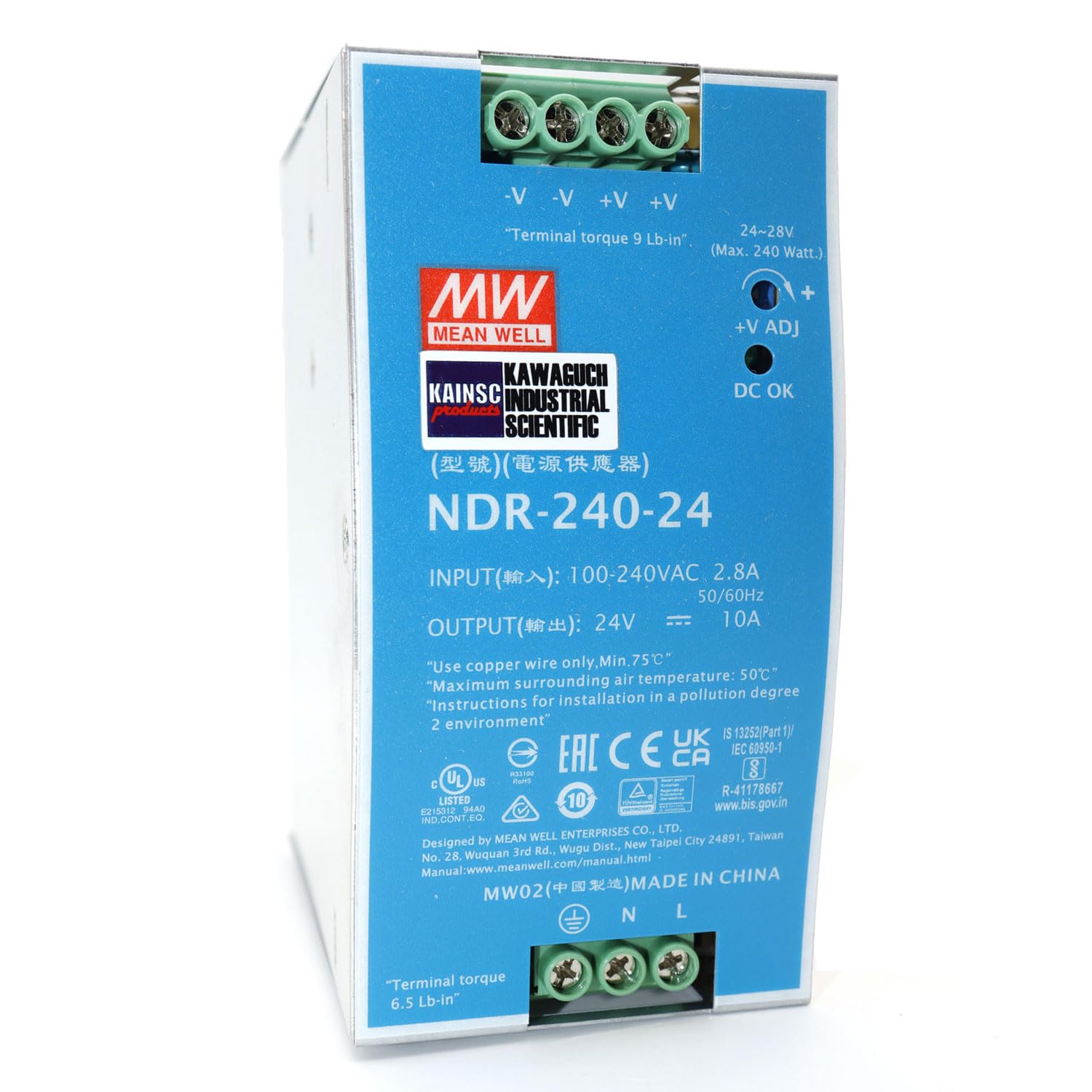

1. Mean Well NDR-240-24
Mean Well is the name you see inside professional automation panels, and the NDR-240-24 earns that reputation with genuine 240W continuous output at 88.5% efficiency. The fan is temperature-controlled and stays off during light loads, making it suitable for quiet office or lab environments — several users reported silent operation even after months of powering 3D printers and crypto miners. The 150mVp-p ripple spec is excellent for sensitive loads like PLCs or CNC controllers.
Built with screw-terminal connections and a standard DIN rail clip, this supply installs in seconds without soldering. The adjustable output potentiometer lets you fine-tune voltage between roughly 22V and 28V, which is useful when compensating for voltage drop over long cable runs. UL 508 approval means it was tested to industrial control equipment standards, not just consumer electronics benchmarks.
Users explicitly compared it against lighter, noisier alternatives and consistently cited the build quality and silent operation as differentiators. One reviewer replaced the OEM supply on a Creality K1C printer and noted lower cost with equal or better stability. The only real drawback is the price premium — but when powering critical infrastructure, the extra cost buys documented reliability and genuine current output.
Why it’s great
- 88.5% efficiency with 150mVp-p low ripple for sensitive electronics
- UL 508 industrial certification and genuine Mean Well build
- Temperature-controlled fan stays off at low loads for silent operation
Good to know
- Premium price compared to unbranded DIN rail units
- Requires DIN rail or screw mounting — not a standalone brick
2. DROK 24V 20A Adjustable Supply
No other unit on this list gives you a continuously adjustable output from 0V to 24V with a 20A ceiling. The DROK supplies includes a digital voltage display, a cooling fan that kicks in under heavy load, and a heatsink that keeps internal temperatures in check. This makes it a practical bench supply for testing DC motors, LEDs, or relays at different voltages without buying separate adapters.
The voltage adjustment potentiometer is recessed into the chassis, which prevents accidental bumps from changing your set point. Users confirmed the full range goes up to roughly 27.7V when unloaded, providing headroom for applications requiring slightly boosted voltage. The unit ships with the input voltage selector set to 220V — you must flip the switch to 110V if you are in North America or risk immediate damage.
One reviewer successfully used it with a Taig micro lathe, running a DC motor down to 5V and 570 RPM without stalling. Another uses it as a bench supply for testing DC motors up to 17.5A. The current indicator is not adjustable — it’s a fixed 20A output with no current limiting — so it cannot substitute for a true bench supply with CC mode. For straightforward variable-voltage work, the value is unmatched.
Why it’s great
- Output adjustable from 0V to 24V in 0.1V increments via digital display
- Built-in cooling fan and heatsink prevent thermal runaway at high current
- One of the few supplies that can power both 5V and 24V loads from one unit
Good to know
- No current limiting or CC mode — 20A flows regardless of load
- Lacks screw mounting eyelets; uses threaded holes only
3. inShareplus 24V 400W IP67 Supply
With 400W of output power and an IP67 rating, the inShareplus handles the highest continuous load of any unit here while surviving rain, sprinklers, and condensation. The aluminum alloy housing acts as a heat sink, and the manufacturer explicitly recommends using only 80% of the rated power — meaning a 320W safe operating limit — to avoid thermal issues in enclosed outdoor spaces.
The input range is 90-140V AC, which is narrower than wide-range supplies, so confirm your mains voltage is within that band before installation. Users have successfully wired this unit into gazebo louver systems, Philips Hue outdoor lighting clusters, and 29-light BEAMLUX arrays. The bare-wire output requires splicing — there is no standard barrel connector — so you will need waterproof wire nuts or solder-and-heat-shrink connections for a reliable outdoor seal.
One reviewer reported two units failing after roughly a year in the same installation, which underscores the importance of using a drip loop and ventilation even with IP67 protection. When mounted properly with enough airflow around the fins, reviews confirm stable power delivery even in hot and humid conditions like a pool equipment room. This is the choice for heavy outdoor string lighting or any exterior install drawing more than 5A.
Why it’s great
- Highest power rating on the list at 400W continuous
- IP67 aluminum housing withstands direct water exposure
- 80% load recommendation ensures long capacitor and component life
Good to know
- Narrow AC input range (90-140V) — not universal voltage
- Bare-wire output requires user splicing; no pre-attached connector
4. ALITOVE 24V 10A Adapter
The ALITOVE packs 10A and 240W into a standard laptop-style plastic brick with a 5.5mm x 2.5mm barrel plug that is also compatible with the common 5.5mm x 2.1mm size. This is one of the rare compact adapters that can power high-current indoor loads like 3D printers, massage chairs, and exercise bikes without requiring a separate metal-enclosed supply.
User feedback highlights whisper-quiet operation with zero audible hum, which is unusual for a brick at this power level — many 10A adapters produce a 60Hz buzz under load. The unit stayed cool to the touch while delivering full spec to an exercise bike replacement job. Protection circuits cover overload, over-voltage, over-current, over-temperature, and short-circuit, all built into the small enclosure.
A minority of customers reported electrical noise and overheating, which could indicate batch variability or a counterfeit unit. Given the price point, you should verify the unit runs cool within the first week of light load before trusting it with expensive equipment. For the majority of buyers, this adapter delivers genuine 10A in a form factor that fits behind furniture or inside a cabinet without fan noise.
Why it’s great
- Genuine 10A / 240W in a silent brick form factor
- 5.5mm x 2.5mm barrel plug compatible with 2.1mm devices
- Multiple protection circuits in a compact indoor housing
Good to know
- Some units reported overheating and electrical noise
- Indoor use only — no IP rating for moisture exposure
5. AXLHNITI 24V 5A IP67 Supply
This AXLHNITI unit brings IP67 waterproofing and a sealed aluminum metal housing to the 120W/5A tier, making it one of the most affordable ways to power outdoor LED strips or floodlights without compromising on moisture protection. The AC input range spans 100-265V, which covers global mains standards and makes it suitable for travel or international project boards.
The protection scheme uses hiccup mode — when a fault clears, the supply automatically attempts to restart rather than latching off permanently. This is beneficial for outdoor installations where a temporary short from moisture may clear on its own. The 3.3-foot input cable is fixed, so you will need an extension cord or junction box for distant AC outlets.
User reports include powering 12 outdoor 24V RGBW floodlights through a full summer without failure, and running a fish tank lighting system flawlessly for six months. However, there are accounts of units failing after roughly one year in continuous outdoor service. The value proposition remains strong for the price, but you may want to budget for a spare if deploying in mission-critical outdoor installations with no easy access for replacement.
Why it’s great
- IP67 sealed aluminum housing at an entry-level price point
- Wide input voltage range (100-265V AC) for international use
- Hiccup mode auto-recovery after a temporary fault clears
Good to know
- Some units fail after 12 months of continuous outdoor operation
- Non-dimmable and not compatible with phase-cut dimmers
6. LCLCTC NDR120-24 DIN Rail Supply
The LCLCTC NDR120-24 mirrors the industrial DIN rail form factor of the Mean Well at roughly half the price, delivering 120W and 5A with dual 24V output terminals — a feature that simplifies daisy-chaining multiple sensors or small loads inside a single control enclosure. The clip mechanism mounts to standard 35mm DIN rail without tools.
Users have integrated this supply into PLC enclosures for home automation, upgraded existing 220VAC to 24VDC systems to power additional sensors, and reported next-day delivery for emergency job-site repairs. The dual output terminals are a real advantage for panel wiring: you can split the load across two wire pairs and reduce voltage drop at the terminal block.
Build quality feels lighter than the Mean Well, but for applications drawing up to 5A in a climate-controlled indoor enclosure, the LCLCTC provides stable power without electrical noise. One user running a Creality K1C reported silent fan operation. The primary trade-off is the lack of a global brand warranty — long-term reliability is harder to predict without the same level of independent testing documentation that Mean Well publishes.
Why it’s great
- Dual 24V output terminals simplify enclosure wiring
- Standard 35mm DIN rail mounting for quick panel installation
- Affordable alternative for 5A industrial applications
Good to know
- Lighter build quality compared to premium DIN rail brands
- Limited long-term reliability data from customer feedback
7. BTF-LIGHTING 24V 5A ETL Supply
The BTF-LIGHTING brick is the most affordable ETL-certified 24V 5A supply on this list, bringing third-party safety verification to the budget tier. The standard 5.5mm x 2.1mm barrel jack works directly with most WS2815, SK6812, and WS2805 LED strip projects without adapters. The manufacturer also holds CE, FCC, UKCA, and RoHS certifications — more marks than many competing bricks at twice the price.
Protection circuits cover overload, over-voltage, thermal cutoff, and short-circuit. The 120W rating gives enough headroom for roughly 20 meters of dense 24V LED strip at full brightness. User reports confirm the unit stays cool under continuous load and delivers a clean 5A without flicker — critical for consistent LED color reproduction.
There is one documented failure after two months of 18-hour daily use powering COB LED strips. The unit still output 24V but could not drive the LEDs to full brightness, indicating degraded internal components. The seller replaced the unit quickly, but the failure suggests this supply lives near its thermal limit in heavy-use scenarios. For occasional indoor use or intermittent LED projects, the certification and price combination is hard to beat.
Why it’s great
- ETL certified with CE, FCC, UKCA, and RoHS marks
- Standard 5.5mm x 2.1mm barrel plug for direct LED strip connection
- Remains cool and flicker-free under normal indoor duty cycles
Good to know
- One early failure reported under 18-hour daily high-current use
- IP30 rating — strictly indoor use in dry environments only
FAQ
Can I use a 24V 10A power supply on a device that draws only 2A?
What does the IP67 rating mean for outdoor power supplies?
Can I dim LEDs by dimming the 24V power supply?
Why do some 24V supplies have two output terminals on a DIN rail unit?
Final Thoughts: The Verdict
For most users, the 24v dc power supply winner is the Mean Well NDR-240-24 because it brings industrial-grade efficiency, silent smart-fan operation, and UL 508 certification to a DIN rail package that serves both panel and standalone use. If you need adjustable voltage for motor testing or lab work, grab the DROK 24V 20A. And for outdoor installations that require IP67 waterproofing and high continuous current, nothing beats the inShareplus 400W for raw power delivery in wet environments.
