Upgrading to a 255 LPH fuel pump is one of the most common steps when adding boost, converting to E85, or freeing up a naturally aspirated engine. The jump from a worn-out factory pump—around 130 to 150 LPH—to a genuine 255 LPH unit delivers the headroom needed to support forced induction builds and higher-horsepower targets. But the 255 LPH market is flooded with counterfeits, poorly manufactured knock-offs, and cheap internals that can fail within months, leaving your daily driver or project car stranded.
I’m Min — the co-founder and writer behind Gadgets Feed. I have spent hundreds of hours analyzing 255 LPH fuel pump specs, flow curves, amp draw figures, and real-world owner feedback to separate pumps that actually deliver 255 LPH reliably from those that degrade or fail prematurely under continuous duty.
Bad fuel pumps cause lean misfires, hot-start issues, and voltage drops that tax your entire electrical system. That is why I put together this guide to the best 255 lph fuel pump options that balance flow integrity, ease of installation, and long-service reliability for both daily drivers and serious performance builds.
How To Choose The Best 255 LPH Fuel Pump
Selecting the right pump goes beyond just picking a 255 LPH number off the listing. Three factors define whether your engine gets the consistent fuel pressure it needs under load: flow at operating pressure, amp draw, and ethanol compatibility. Cheap pumps that claim 255 LPH often drop off dramatically above 50 PSI, forcing your injectors to work harder and creating lean spots at high RPM.
E85 compatibility and internal materials
Ethanol fuels corrode standard carbon-brushed commutators and plastic impellers. A true E85-compatible 255 LPH pump uses stainless steel internals, Viton or PTFE seals, and a turbine-style impeller that resists chemical breakdown. If you plan to run flex fuel, verify the manufacturer explicitly lists ethanol compatibility; many universal pumps degrade quickly with E85 despite carrying a 255 LPH rating.
Installation kit versus pump-only
Pump-only units save money upfront but often require sourcing a compatible wiring harness, fuel-rated hose, clamps, and strainer separately. Full-kit options include these parts along with a rubber isolator sleeve that dampens noise and vibration transmitted into the cabin. For cars with plastic sending units, a pump that ships with the correct wiring pigtail and fuel sock eliminates the need to cut your factory harness.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Walbro GSS342 | Mid-Range | Universal upgrade, LS swaps | 255 LPH @ 45 PSI, stainless steel body | Amazon |
| QFS 255LPH w/ Kit | Mid-Range | E85 builds, complete drop-in kit | 261 LPH @ 45 PSI, 10.9A draw | Amazon |
| DeatschWerks 9-201-1000 | Mid-Range | E85 turbo builds, quiet operation | 255 LPH, turbine-style impeller | Amazon |
| AEM 50-1000 | Premium | High-boost forced induction | 340 LPH @ 40 PSI, offset inlet | Amazon |
| Walbro GSS342-400-791 | Premium | Subaru WRX, LS swaps | 255 LPH, includes install kit | Amazon |
| BBK 1607 | Premium | Ford Mustang direct fit | 255 LPH, direct replacement | Amazon |
| Holley 12-305 | Premium | Classic Mustang EFI conversion | 255 LPH, 58 PSI internal reg | Amazon |
In‑Depth Reviews
1. Walbro GSS342 Fuel Pump
The Walbro GSS342 is the baseline 255 LPH pump that the entire aftermarket compares itself against. It uses a stainless steel body and chunky metal internal gears—real ones, not plastic—which is what separates genuine Walbro pumps from the endless supply of counterfeits that flood discount listings. The pump delivers a reliable 255 LPH at 45 PSI with a modest amp draw that won’t strain a factory wiring harness, provided you run it with 12-gauge wire and a relay as recommended.
Owners report it fits into a wide range of factory sending units, from Acura and Honda chassis to LS-swapped trucks, with minor modifications to the hangar or fuel line. A common complaint is a slight high-pitch whine at highway speeds, especially in higher ambient temperatures, though this is typical of gear-rotor pumps. The main risk is purchasing a counterfeit unit; buyers should verify the box branding and look for the chunky metal internals visible through the inlet.
If you need a universal 255 LPH pump that has decades of documented fitment data across hundreds of platforms, the GSS342 is the proven starting point. Pair it with a quality install kit and fresh wiring to maximize its service life.
Why it’s great
- Proven genuine Walbro design with metal internal gears versus cheap plastic rotors
- Wide aftermarket fitment across Acura, Honda, LS swaps, and turbo applications
- Stainless steel body resists corrosion from ethanol-blended fuels
Good to know
- Counterfeit copies are widespread; verify source and inspect internal construction
- Produces an audible whine at highway speed, more noticeable in warm weather
- Pump-only — requires separate purchase of wiring harness, hose, and strainer

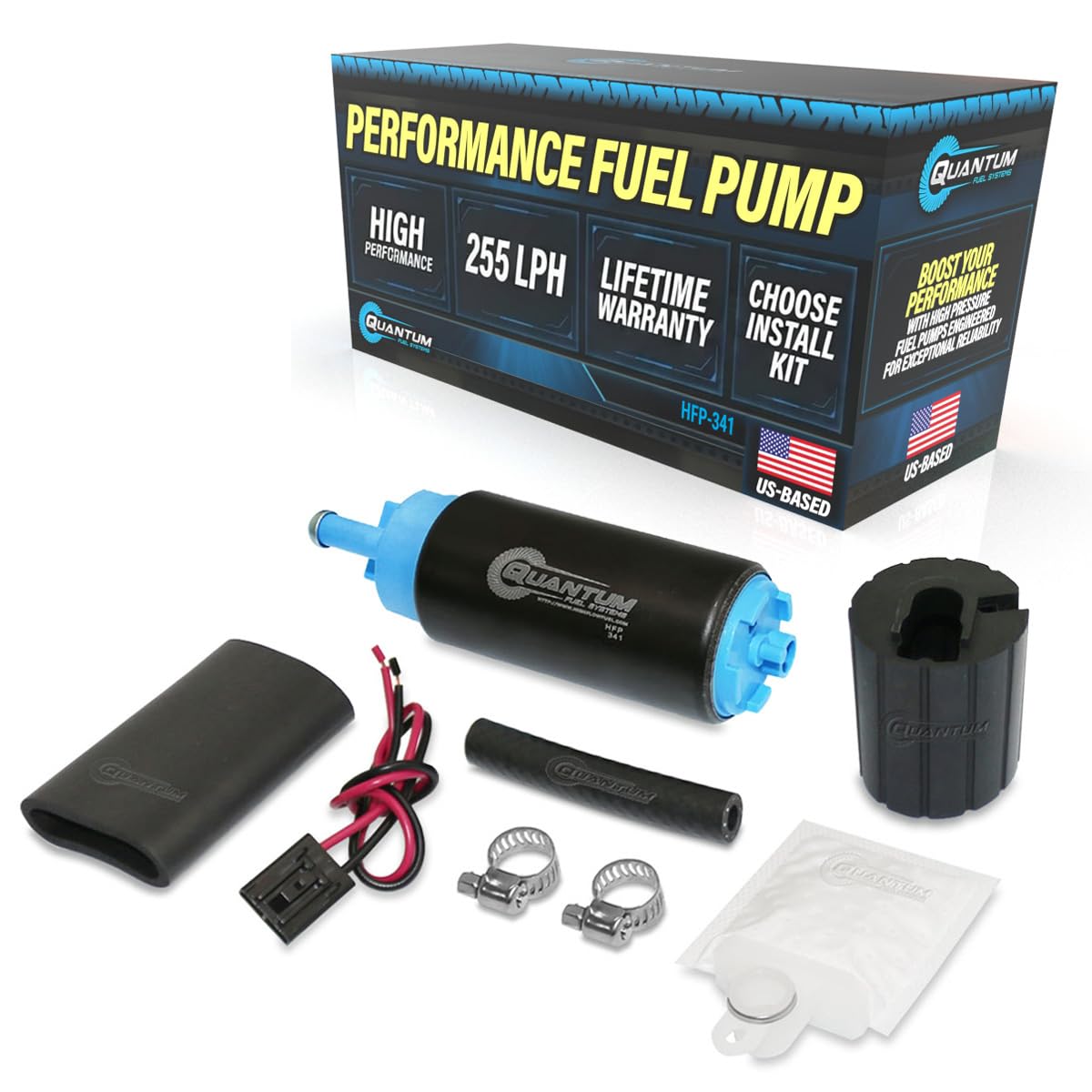

2. QFS 255LPH Performance Fuel Pump w/Installation Kit
The QFS 255LPH pump delivers a verified 261 LPH at 45 PSI and 228 LPH at 60 PSI, meaning it holds its flow curve better than many pumps that drop off sharply above 50 PSI. The amp draw of 10.9 amps at 45 PSI is low enough that a standard 30-amp relay and 12-gauge wiring give ample headroom. This kit is a strong choice for E85 builds because the turbine-style impeller and included ethanol-resistant components handle flex fuel without degrading internal seals.
The complete installation kit includes the pump, fuel strainer, rubber fuel hose, hose clamps, rubber isolator, foam sleeve, and wiring harness, saving a trip to the parts store. Owners have noted the pump is about 20% smaller than some OEM units, which can require minor fabrication to fit certain sending units, but the reduced package size also makes it easier to install in tight fuel modules. The lifetime warranty from the US-based seller adds confidence that the pump will be replaced quickly if a defect appears.
For builders who want a 255 LPH-rated pump with a proper installation kit and documented E85 compatibility, the QFS offers the best parts-per-dollar ratio in this list.
Why it’s great
- Complete install kit includes fuel strainer, hose, clamps, wiring harness, and rubber isolator
- Low amp draw of 10.9A at 45 PSI minimizes electrical system strain
- E85-compatible turbine impeller resists ethanol corrosion
Good to know
- Smaller physical size may need modifications to some factory sending unit brackets
- Initial defective units reported, though seller overnighted replacements promptly
3. DeatschWerks (9-201-1000) 255 LPH In-Tank Fuel Pump with Installation Kit
DeatschWerks manufactures its 255 LPH pump in the USA and explicitly certifies it for E85 use, which is a differentiator from pumps that only claim gasoline compatibility. The turbine-style impeller produces noticeably less whine than gear-rotor pumps like the standard Walbro GSS342, making it a strong choice for daily drivers where cabin noise matters. The kit includes a fuel strainer, rubber fuel hose, and wiring pigtail, though the filter retainer star may not fit tightly on all plastic sending unit studs.
Fitment reports show it works well in E46 BMW chassis, Toyota Camry 5SFE turbo builds, and SR20DET swaps, with owners consistently noting the pump is physically smaller than the OEM unit, allowing it to drop into the factory hanger without major cutting. A single report of a feed neck snapping after months of use was attributed to potential handling damage during installation rather than a manufacturing defect.
If quiet, reliable E85 operation and US-based manufacturing are your priorities, the DeatschWerks kit justifies its mid-range pricing with superior ethanol tolerance and lower noise levels.
Why it’s great
- Certified E85 compatible with stainless steel internals and Viton seals
- Turbine impeller runs quieter than traditional gear-rotor designs
- Made in the USA, backed by documented flow testing
Good to know
- Filter retainer star may not grip all plastic sending studs securely
- Smaller physical size can require slight modifications to factory bracket alignment
4. AEM 50-1000 High Flow In-Tank Fuel Pump
The AEM 50-1000 is not a true 255 LPH pump; it is a 340 LPH pump that often gets compared alongside 255 LPH units because its price point overlaps with premium 255 LPH options. At 40 PSI it flows 340 LPH, giving huge headroom for boosted applications or future upgrades without needing a second pump. The offset inlet design eases installation in tight fuel modules, and the 39 mm diameter fits most factory sending units with minor bracket work.
Multiple owners report running this pump for 3 to 10 years in LS-swapped trucks, K-swapped Honda builds, and even turbocharged SAAB 9-3 Aero platforms. The pump is louder than a stock replacement but still acceptable for a performance build. One critical detail: the pump is designed for gasoline, and AEM states pump life may be diminished with E85, so ethanol users should consider the QFS or DeatschWerks instead. The kit includes a pre-filter, hose, clamps, and flying lead; you may need to source the correct wiring tabs separately.
For builders who want more than 255 LPH for high-boost applications and are willing to accept gasoline-only compatibility, the AEM 50-1000 delivers exceptional flow per dollar.
Why it’s great
- Flows 340 LPH at 40 PSI, well beyond standard 255 LPH for high-boost headroom
- Offset inlet design simplifies fitment in tight factory fuel modules
- Proven longevity of 3-10 years in documented owner builds
Good to know
- Not recommended for E85; pump life may degrade with ethanol fuels
- Requires sourcing correct wiring tabs for AEM’s 6 mm spade connectors
- Universal fit means modifications to the sending unit bracket are expected
5. Walbro GSS342-400-791 With Install Kit
The Walbro GSS342-400-791 bundles the genuine GSS342 pump with the 400-791 installation kit, designed specifically for the 2002-2005 Subaru WRX but widely used in LS swaps and other platforms thanks to the included wiring pigtail, hose, and clamps. The pump is the same TI Automotive (formerly Walbro) unit with stainless steel body and metal internal gears, capable of holding 67 PSI at idle and 94 PSI at full throttle in boosted applications.
Owners confirm the kit fits the WRX wagon with minor trimming of the fuel line to 1.5 inches and using a hose clamp or safety wire for the bottom bracket. The supplied sock filter has internal reinforcement, making it sturdier than standard strainers but introducing a potential debris risk if the filter fails. One verified complaint of a counterfeit pump was reported, so buyers should inspect the box and look for TI Automotive branding rather than generic Walbro logos.
If you own a 2002-2005 WRX or want a genuine Walbro with a ready-to-install kit, the GSS342-400-791 eliminates guesswork and sourcing time.
Why it’s great
- Genuine Walbro/TI Automotive pump with metal internal gears
- Vehicle-specific kit for 2002-2005 Subaru WRX includes wiring pigtail and hose
- Holds 67+ PSI idle and 94 PSI full throttle in boosted applications
Good to know
- Counterfeit units reported; verify TI Automotive branding on pump body
- Pump is 1/8 inch longer than OEM WRX unit, requiring fuel line trimming

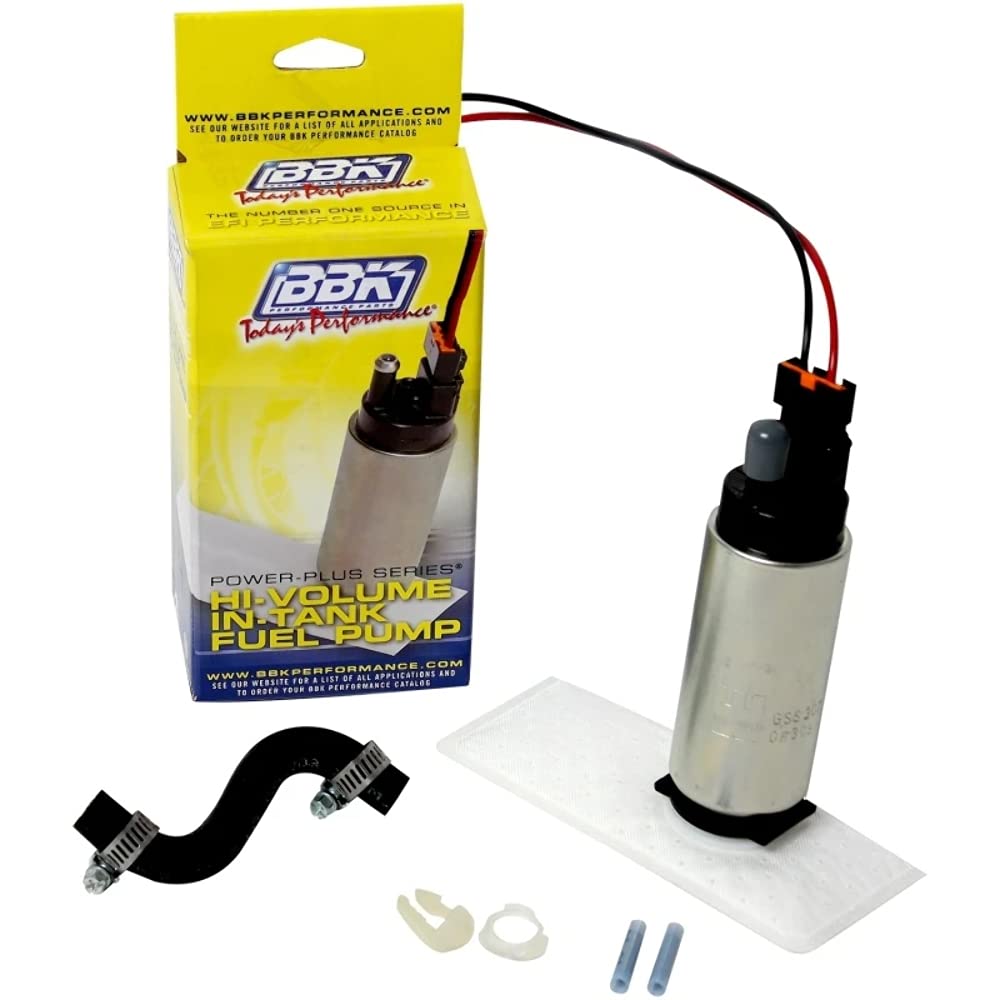

6. BBK 1607 255 LPH Direct Fit Replacement High Flow In-Tank Fuel Pump Kit for Ford Mustang
The BBK 1607 is a direct-fit 255 LPH replacement for Ford Mustangs, designed to drop into the factory fuel hanger without modifications. The pump body is Walbro-stamped and made in the USA, which eliminates the counterfeit concerns associated with generic Walbro pumps sold without a clear supply chain. The kit includes the pump, strainer, e-clips, and gaskets needed for installation, though some buyers have reported receiving incomplete kits with missing strainers and clamps.
One important fitment detail: the pump is slightly taller than the factory unit, requiring a 90-degree hose to connect the outlet properly. Owners of 5.0 Mustangs report the pump restored hard-start and top-end power issues caused by deteriorated 31-year-old factory pumps. The pump runs slightly louder in an empty tank but quiets down once fuel covers the body. A single report of a broken unit out of the box suggests quality control varies, so inspect the pump upon arrival.
For Fox-body or SN95 Mustang owners seeking a direct-fit 255 LPH upgrade without fabricating brackets or wiring, the BBK 1607 is the simplest path.
Why it’s great
- Direct fit for Ford Mustang with no bracket or wiring modifications needed
- Walbro-stamped and made in USA, reducing counterfeit risk
- Restores fuel pressure and eliminates hard-start issues in older 5.0 engines
Good to know
- Slightly taller than OEM; requires a 90-degree hose for outlet clearance
- Incomplete kits reported with missing strainer and clamps
- Some units arrived with packaging that appeared opened or damaged
7. Holley 12-305 255 LPH OE Style EFI Fuel Tank Modules
The Holley 12-305 is a complete in-tank fuel module rated at 255 LPH, supporting up to 550 horsepower, with an internally regulated pressure of 58 PSI. The key differentiator is the HydraMat fuel reservoir system, which uses patent-pending wicking material to draw fuel from the bottom of the tank even during hard cornering or low-fuel conditions, eliminating fuel starvation. This makes it the ideal choice for classic Mustangs and other vintage Fords converting from carburetion to EFI.
Owners praise the elimination of an external pump and return line, simplifying the fuel system routing under the car. The module fits the OE tank without modifications, though the included instructions show the tank upside down, which can be confusing during in-car installation. A few owners noted the mounting tabs were 0.090 inches too wide for a Maverick tank, requiring minor grinding. Despite these quirks, the pump runs much quieter than external inline pumps and solves hot-start vapor lock issues common with older fuel systems.
If you are converting a classic 1960s Ford to EFI and want a 255 LPH pump with internal regulation and anti-starvation tech, the Holley 12-305 is the purpose-built solution.
Why it’s great
- Internally regulated to 58 PSI, eliminating the need for a return line and external regulator
- HydraMat reservoir prevents fuel starvation during cornering and low-fuel conditions
- Quieter operation compared to external inline pumps, no vapor lock on hot days
Good to know
- Instructions are misleading (tank shown upside down), difficult for in-car install
- Tabs may need slight grinding for Maverick and some non-Mustang applications
FAQ
Will a 255 LPH pump work with my stock fuel lines and wiring?
Can I use a 255 LPH pump with E85 without issues?
Final Thoughts: The Verdict
For most users, the 255 lph fuel pump winner is the Walbro GSS342 because its proven aftermarket fitment, stainless steel body, and decades of documented installations make it the safe universal bet. If you want a complete kit with E85 compatibility that saves installation time, grab the QFS 255LPH with Installation Kit. And for converting a classic Ford to EFI with internal regulation and anti-starvation protection, nothing beats the Holley 12-305.
