Large-format tile on a floor or wall introduces a brutal physics problem: thinset cures unevenly, tiles drift, and the edge of one slab stands proud of its neighbor. The visual result — lippage — catches every raking light and betrays the work of even a careful weekend setter. A dedicated leveling system built around a 3/16-inch joint handles the 5mm spacing that rectified porcelain, ceramic, and stone tiles demand to deliver a monolithic, restaurant-grade surface.
I’m Min — the co-founder and writer behind Gadgets Feed. The research for this guide involved cross-referencing hundreds of installer testimonials, measuring clip thickness against caliper-verified specs, and mapping breakage rates across wedge-based and spin-cap platforms to isolate which systems actually survive a full-floor install without fragmenting mid-job.
These kits strip out the guesswork. Whether you are tackling a master bath floor or a kitchen backsplash, the 3/16 tile leveling system is the tool that turns inconsistent substrate into a level tableau you can walk on within hours.
How To Choose The Best 3/16 Tile Leveling System
A leveling system is only as good as its weakest mechanical link. You need to evaluate clip geometry, wedge friction, cap torque, and the total part count that matches your square footage. Understanding these four points prevents mid-job breakage and wasted thinset.
Clip Post Strength and Breakage Rate
Every 3/16 clip has a thin post that must withstand the downward force of a wedge or cap. Budget clips made from recycled polypropylene can snap when struck perpendicularly. Premium clips use a denser virgin PP blend that flexes slightly before snapping cleanly. A breakage rate above 5% during normal installation is unacceptable because a dead clip leaves a tile unleveled and forces you to dig cured mortar out of the joint.
Wedge vs. Spin-Cap Mechanism
Wedge systems (the green/red plastic tabs) apply force by friction and require a separate pliers-like tool to drive them home. Spin-cap systems (the round threaded posts) tighten with a quarter turn of a cap and distribute pressure evenly across the tile surface. Spin caps are faster but cost more per clip and the cap itself can rotate the tile slightly if you do not use protective shields on soft glazed porcelain. Wedges are slower but more forgiving for beginners.
System Part Count and Reusability
A box that includes both clips and wedges or clips and caps saves a second purchase. Reusable wedges and caps reduce per-project waste. If you are covering more than 300 square feet, a kit with 500+ clips and 200+ reusable wedges or caps keeps the workflow moving without needing to order refills mid-job.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| RTC Spin Doctor Pro Kit | Premium | Large-format floor tile | 500 bases, 200 reusable caps | Amazon |
| United 4 Work 1000-Clip Kit | Premium | Whole-home tiling projects | 1000 clips + 500 reusable wedges | Amazon |
| Emaistore 600-Piece Spacers | Mid-Range | Wide compatibility with wedges | 600 clips, wedge-compatible | Amazon |
| United 4 Work 500-Clip Set | Mid-Range | DIY whole-room projects | 500 clips, PP plastic blend | Amazon |
| Spin Doctor Bases 250pc | Mid-Range | One-handed spin-cap leveling | 250 bases, 3/16″ spacing | Amazon |
| RUBI Tile Leveling Wedges 250pc | Budget | Buying just wedges for an existing clip system | 250 wedges, 5mm (3/16″) | Amazon |
| Eventile Gray Clips 250/Bag | Budget | Small bathroom or backsplash | 250 clips, 2.04 lbs weight | Amazon |
In‑Depth Reviews
1. RTC Spin Doctor Tile Leveling Pro Kit 3/16″
The Spin Doctor Pro Kit delivers a comprehensive solution for 3/16-inch joints with 500 bases, 200 reusable spin caps, and 100 clear view shields. The threaded post design lets you level tiles with a quarter-turn of the cap instead of driving a wedge with a tool, which massively speeds up installation on large-format floor tile up to 3/4-inch thick. Users report that the caps pop off cleanly with a sideways kick after the thinset cures, making removal as fast as placement.
One critical advantage of this kit is the clear view shields that protect soft-glazed tile surfaces from the rotational friction of the cap. Without them, the spinning cap can torque a tile slightly out of alignment. The 100 shields match the 200 caps, so you rotate them between placements. The carrying case keeps everything organized on a dusty jobsite. For a full-day floor install, the time saved over wedge systems is substantial.
Multi-tile formats from 12×24 to 24×48 benefit from the uniform pressure distribution. The system is fully reusable — caps survive multiple jobs, and the bases snap without leaving protrusions above the finished surface. The only compromise is the per-unit cost, which is higher than simple wedge clips, but the speed and reduction in installer fatigue justify it for production-focused work.
Why it’s great
- Reusable spin caps eliminate the need to buy wedges for every project
- Clear view shields prevent cap scuffing on polished or glazed tile
- Carrying case keeps 800+ pieces organized on site
Good to know
- Spin caps can rotate a tile if the shield is not used consistently
- 3/16″ replacement bases are harder to find at big-box stores

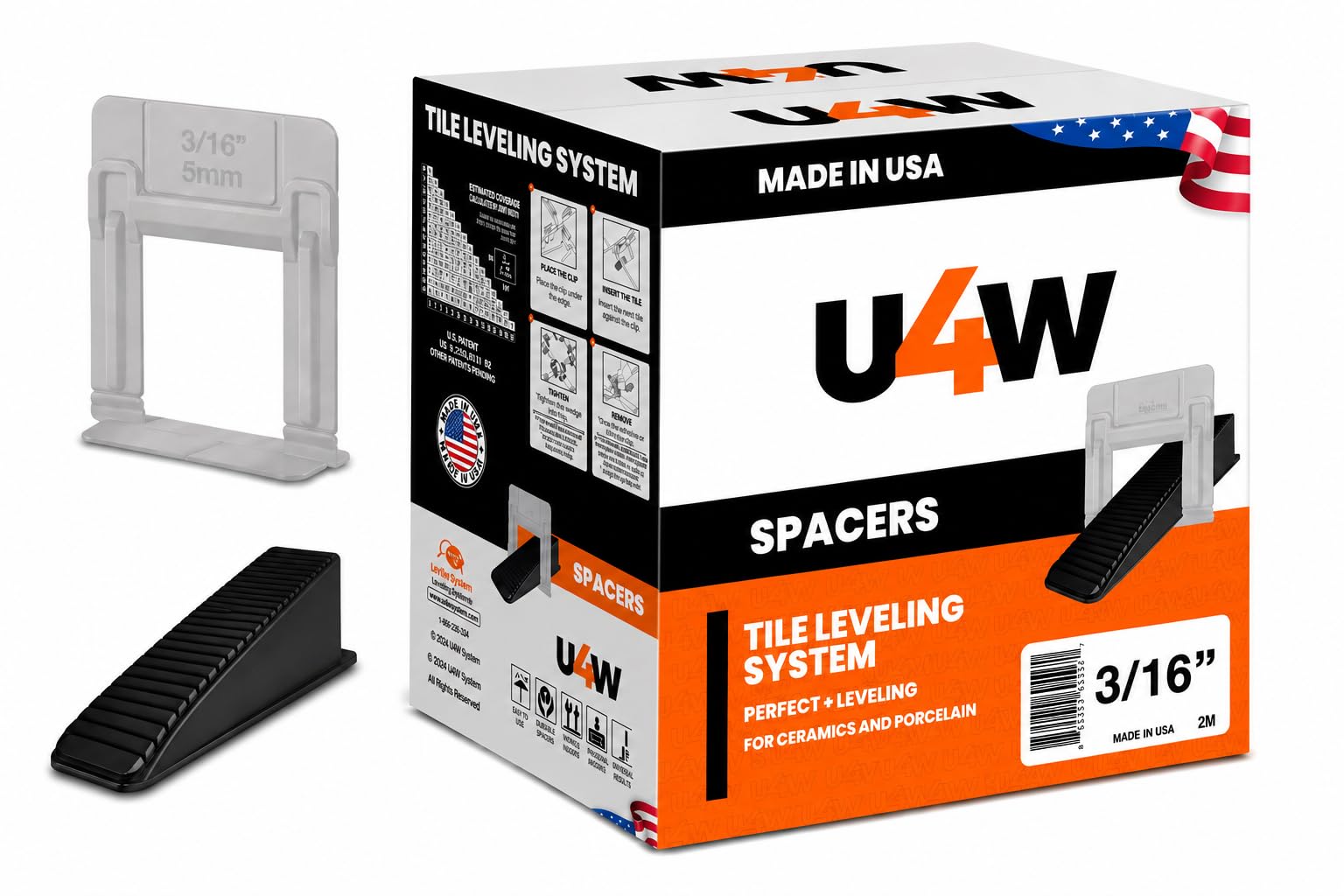

2. Tile Leveling System 3/16″ – 1000 Clips & 500 Wedges
This massive 1000-clip kit from United 4 Work Enterprise bundles 500 reusable wedges alongside the clips, making it a one-box solution for whole-home tiling projects. The clips are molded from a high-density polypropylene blend that reviewers consistently say snaps cleanly when struck perpendicular to the tile edge. The wedges are textured for grip and can be reused across multiple rooms without losing clamping force.
At 18 pounds in the box, this kit is designed for serious square footage. The clips have a wide base that distributes downward pressure evenly, reducing the risk of cracking a tile edge during the wedge drive. Users working on 18×18 porcelain floor tiles report minimal lippage even on slightly uneven concrete subfloors. The wedges fit standard wedge pliers, so you don’t need a proprietary tool.
One long-term storage caveat: the clips can degrade if left in a hot garage for years, losing their brittle snap property. Order only what you need for the current project. For immediate use, this kit delivers the lowest per-clip cost in the 3/16 category while maintaining pro-grade performance. The clear color is an aesthetic bonus on white thinset — you see the clip easily when wiping joints.
Why it’s great
- Comes with 500 reusable wedges — the highest part count in this list
- Clips snap cleanly when hit perpendicularly 24 hours after setting
- Made in the USA with quality-controlled polypropylene resin
Good to know
- Clips may lose their snap property after years of hot storage
- Plastic wedge tool included is flimsy; upgrade to a metal wedge plier
3. Tile Leveling System 3/16 Inch – 600 Tile Spacers
The Emaistore 600-piece spacer set is built around compatibility first. The clip geometry is modeled after the industry-standard LevTech profile, meaning these spacers accept wedges from RUBI, Raymondi, and generic brands without modification. For a professional who already owns a wedge plier and a bucket of red or orange wedges, this is the ideal refill pack for the 3/16 size.
Each clip is molded from a durable PP compound that reviewers report surviving the wedge drive without cracking. The 5mm (3/16-inch) base thickness is verified by user caliper measurements. A 620-square-foot tile project run with these spacers produced perfectly level floor tiles with zero posts breaking during installation. The spacer arms are long enough to provide stability on tiles up to 24 inches on a side.
Removal is straightforward — a sharp strike with a mallet parallel to the joint snaps the post cleanly below the surface. Only 2 to 3 clips per hundred left a small nub that required a utility knife to clear. For the price point, this kit offers the strongest wedge-compatibility guarantee in the mid-range tier. If you already own wedge tools, buy this and skip the combo kits.
Why it’s great
- Compatible with LevTech, RUBI, Raymondi, and most standard wedge systems
- Very low breakage rate during wedge insertion
- 600 pieces cover a large bathroom or kitchen floor in one purchase
Good to know
- Wedges are not included — you need to supply your own
- Some users felt the plastic was slightly flexible compared to name-brand clips

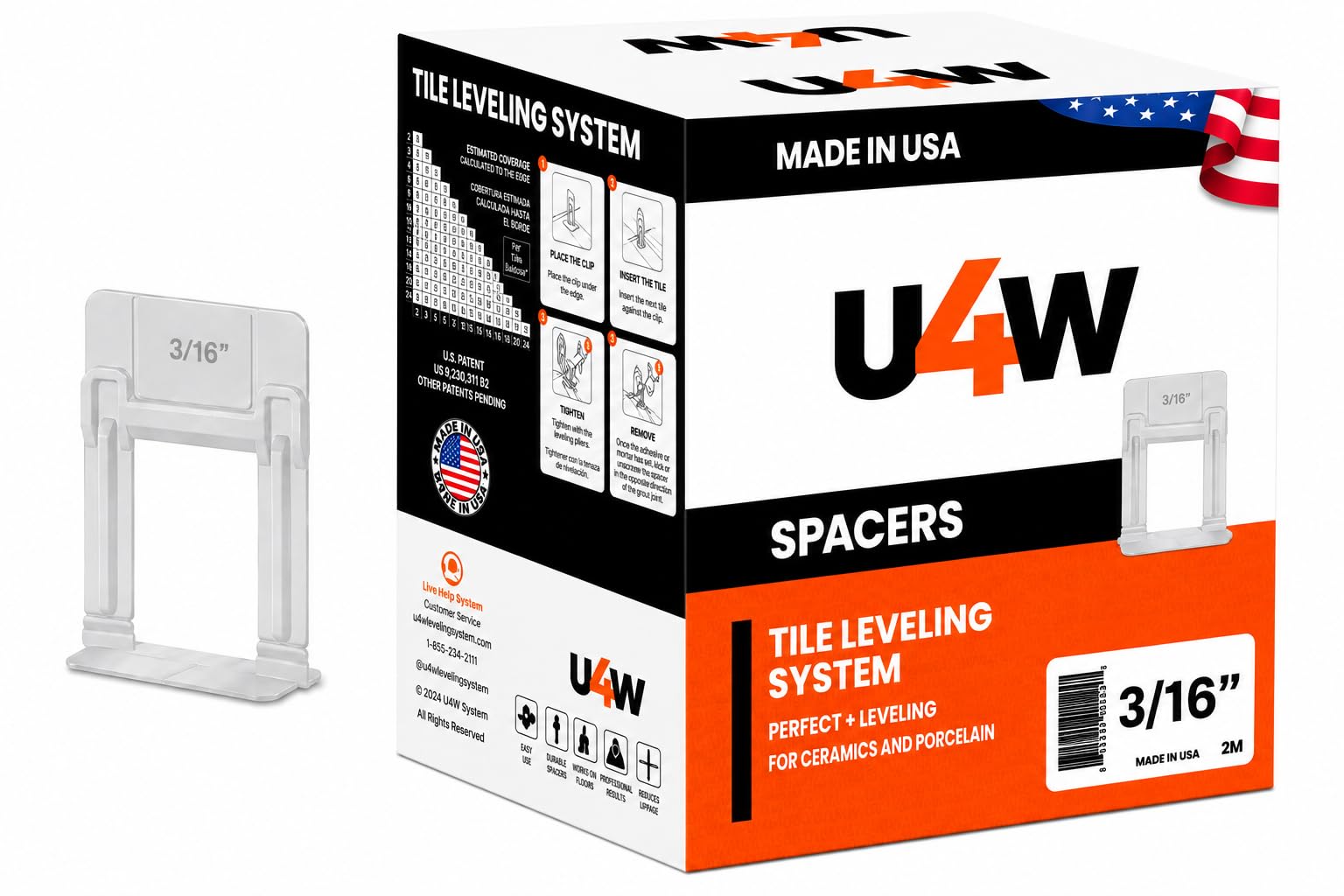

4. United 4 Work 3/16″ Tile Leveling System Clips – 500 PCS
This 500-clip set is the green-tinted sibling of the larger 1000-piece kit from the same manufacturer. It uses the same virgin PP blend and wide-base design, but in a smaller package suitable for a single bathroom or a kitchen backsplash. The green color contrasts well against gray thinset, helping you spot every clip placement before the mortar skins over.
Reviewers confirm that the clips hold tiles level without issue and that the snap-off removal works as expected when the mortar has cured for 16 to 24 hours. The included wedge tool is a basic plastic piece that some users found inadequate — the wedges themselves require a firmer squeeze than a metal tool can deliver. Plan to use your own wedge pliers for best results.
The main complaint is that the clips do not break off quite as easily as premium brands. A few users needed a Dremel to clear stubborn posts that refused to snap. This is consistent with a slightly thicker post designed to prevent premature breakage during tightening. If you prioritize post strength over effortless removal, this trade-off works in your favor.
Why it’s great
- High-quality virgin PP plastic resists breaking during wedge insertion
- 500 pieces cover a standard master bathroom floor project
- Made and distributed from a USA-based facility
Good to know
- The included plastic wedge tool is weak and slows down installation
- Clips sometimes leave a post that requires a Dremel to remove
5. Spin Doctor Tile Leveling System 3/16″ Bases 250pc
The standalone 250-count base pack from Spin Doctor is the refill option for users who already own the caps from the Pro Kit. Each base accepts the same free-spinning threaded cap that levels the tile with one hand. The 3/16-inch spacing works with tiles up to 3/4-inch thick, covering standard 12×24 and 18×18 porcelain planks as well as thinner ceramic wall tiles.
One advantage of buying just the bases is cost control on large jobs — buy caps once, then buy bases in bulk. The bases are molded with a stepped rib that provides audible feedback when the cap is fully tightened. Users report that the system cuts leveling time by roughly half compared to traditional wedge systems once you develop the muscle memory for the spin action.
The 3/16 size is sometimes harder to find than 1/8 in stores, so ordering the Spin Doctor bases online fills a real gap. Clear View Shields are sold separately, so budget for those if you are tiling with polished or glazed porcelain to prevent cap scuffing. For a dedicated DIYer upgrading from wedge frustration, this base pack is a low-risk entry into the spin-cap workflow.
Why it’s great
- One-handed spin mechanism is significantly faster than wedge prying
- Bases are rugged enough for tile up to 3/4-inch thick
- Refill format lets you reuse caps you already own
Good to know
- Spin caps rotate the tile slightly if used without clear view shields
- 250 bases go fast on a large floor project — buy multiple bags
6. RUBI Tile Leveling Wedges 3/16″ (5MM) 250-Pack
RUBI is a heavyweight in the tiling tool industry, and their 5mm wedge pack delivers the brand consistency that professionals trust. Each wedge measures 31mm in length for easy hand placement and removal, and the bright red color makes them instantly visible against thinset and tile edges. The injection molding is clean — no burrs or flashing that would prevent a smooth fit into a clip.
These wedges are designed exclusively for clamping into a wedge-type clip system. They are not compatible with spin-cap bases without modification. The wedge taper is aggressive enough to drive substantial downward pressure on the clip post, and the textured grip surface prevents the wedge pliers from slipping off during tightening. For an installer who already has a bag of generic clips, buying RUBI wedges is an upgrade in consistency and nylon blend quality.
The 250-count is a small quantity — enough for one or two medium-sized rooms. For a large house project, you will need multiple bags. The price per wedge is slightly higher than generic bulk packs, but the zero-defect rate and the ability to reuse them on the next job offset the upfront cost. If you have ever stripped a wedge head mid-tightening, RUBI is the brand that eliminates that frustration.
Why it’s great
- High-visibility red color is easy to spot on the floor and after removal
- Precision-molded nylon blend resists stripping or splitting under pressure
- Compatible with most wedge-based clip systems on the market
Good to know
- Only the wedges are included — you need to supply the clips separately
- 250 pieces is a small quantity for projects over 200 square feet
7. Eventile Tile Leveling System Clips 3/16″ 4mm 250/Bag
Eventile’s gray clips are the entry-level option for the 3/16 spacing niche. At 250 pieces in a simple bag, this kit is ideal for a small backsplash, a closet floor, or a first-time user who is not ready to invest in a 500-part system. The clips are sized for standard 4mm (nominally 3/16) grout joints and work with most generic wedge tools.
User feedback is mixed on dimensional accuracy. One caliper measurement reported the clips are slightly narrower than a true 3/16, which could affect fit with some wedge brands. The polypropylene material is on the softer side; reviewers note a breakage rate of roughly 5% when tapping the wedge in perpendicularly. That means for a 250-count bag, you may lose 10 to 15 clips to snapping before the thinset cures, which is higher than the premium tiers.
The wedges themselves are functional but require careful alignment — the wedge slot is tight, and forcing a thick wedge can cause the clip to pop out of the grout line. For a budget-conscious beginner working on a small area, the Eventile system gets the job done. If you are tiling a whole house, the breakage rate and fit inconsistency will frustrate you. Keep a few extra spacers on hand to replace broken pieces mid-row.
Why it’s great
- Functional for small projects and first-time tile setters
- Standard 4mm/3/16 size fits common grout joint requirements
- Very low upfront investment for testing a leveling system
Good to know
- Clip thickness measures slightly under 3/16 by about 1/32 inch
- Roughly 1 in 20 clips may snap during wedge tightening
FAQ
Can I reuse tile leveling wedges from one job to another?
Should I use a 3/16 inch leveling system for wall tiles?
How long should I wait before removing the leveling clips?
Can I use a 1/8 inch wedge tool with 3/16 inch clips?
Final Thoughts: The Verdict
For most users, the 3/16 tile leveling system winner is the RTC Spin Doctor Tile Leveling Pro Kit because it combines spin-cap speed with reusable components and enough bases (500) to handle a full house of large-format tile. If you want raw part count and value, grab the United 4 Work 1000-Clip Kit with 500 wedges. And for a beginner on a small bathroom project, nothing beats the Eventile 250-Clip Bag for its low entry cost.
