The moment a 3/4-inch wedge anchor spins freely in its hole, every bolt of frustration runs through the job site. The holding power of a concrete anchor for heavy structural work—car lifts, deck ledger boards, machinery bases—lives and dies by a tight, expanding grip at the base of the hole, not by the nut being cranked down harder. That single metric—the wedge’s expansion range against a 0.75-inch drilled hole—determines whether your 12,000-pound load stays put or starts a slow, dangerous creep.
I’m Min — the co-founder and writer behind Gadgets Feed. My analysis for this guide involved comparing thread pitch consistency, zinc versus galvanized corrosion ratings, and reading through hundreds of verified install reports to find which 3/4 anchors avoid the most common failure: the dreaded spin-out on a slightly oversized hole.
After reviewing seven 10-packs of heavy-duty anchors, the best 3/4 concrete anchors emerge from a clear split between budget zinc packs, mid-range Red Head ICC-ES rated bolts, and the premium galvanized CONFAST for wet environments.
How To Choose The Best 3/4 Concrete Anchors
Selecting a 3/4-inch wedge anchor is not about grabbing the cheapest zinc pack. The three variables that matter most are the anchor’s material grade and coating, the expansion sleeve’s tolerance window, and the overall threaded length relative to the embedment depth required by your concrete thickness.
Material Coating vs. Environment
Zinc-plated carbon steel anchors are fine for dry indoor slabs where a car lift, workbench, or bollard sits in conditioned air. For outdoor applications—deck ledger boards exposed to rain, retaining walls, or dock hardware—a hot-dipped galvanized finish resists corrosion far longer. Standard zinc plating on a 3/4 wedge anchor typically fails after one to two years of outdoor moisture cycles, while galvanized anchors hold for a decade plus. The CONFAST galvanized option in this guide bridges that gap for high-moisture environments.
Hole Size Tolerance and Wedge Expansion
A 3/4-inch wedge anchor requires a 3/4-inch hole—not 5/8, not 7/8. The wedge mechanism at the anchor’s tip must expand between 0.03 and 0.08 inches beyond the diameter to lock against the concrete sides. Anchors with tighter manufacturing tolerances on the wedge clip will grip consistently even when the hammer drill bit wanders 1/64-inch oversize. Budget anchors with loose wedge clips tend to spin in holes that are even slightly over-drilled, forcing the user to apply epoxy as a workaround.
Embedment Depth and Thread Length
The minimum embedment for a 3/4-inch wedge anchor in 4,000 PSI concrete is typically 3-1/4 inches, with a maximum fixture thickness of about 2 inches for a 5-1/2-inch long anchor. Longer anchors (7-inch, 8-inch, 10-inch) accommodate thicker steel base plates or deeper embedment into high-strength concrete. If you are bolting a 2-inch thick base plate, a 5-1/2 inch anchor leaves only 1 inch of thread above the nut. A 7-inch anchor provides more thread for leveling shims and full torque application without bottoming out the nut.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Red Head TruBolt 3/4 x 5-1/2 | Mid-Range | Structural and code-compliant holds | ICC-ES ESR-2251 certified | Amazon |
| Hillman 371958 | Premium | Car lift and heavy machinery installs | Grade 2 steel, 7 lb per box | Amazon |
| Mighty Fasteners 3/4 x 8 | Premium | Thick base plate and deep embedment | 8-inch length, zinc-plated steel | Amazon |
| Party Animals 3/4 x 7 | Mid-Range | Deck posts and structural brackets | 7-inch length, carbon steel | Amazon |
| Horiznext 3/4 x 6-1/4 | Mid-Range | Everyday framing and sill plates | 6-1/4 inch length, Grade 2 | Amazon |
| HROMIGRY 3/4 x 7 | Budget | Indoor mounting with careful install | Zinc-plated carbon steel | Amazon |
| CONFAST 3/4 x 10 | Premium | Wet environments and deep concrete | Galvanized, 10-inch length | Amazon |
In‑Depth Reviews
1. Red Head TruBolt 3/4 x 5-1/2 Inch Wedge Anchors
The Red Head TruBolt line holds the ICC-ES ESR-2251 certification for uncracked concrete, which means these anchors meet building code requirements for structural applications—not just consumer-grade hardware. The 3/4-inch diameter version with a 5-1/2 inch length provides a minimum embedment of 3-1/4 inches, and the wedge clip is machined with tighter tolerances than budget alternatives, reducing the spin-out risk in slightly oversized holes. The nut and washer assembly includes a heavy hex nut that accepts standard torque wrenches without stripping.
Verified buyer reports confirm these anchors held a two-post lift installation with zero pull-out before reaching full torque. Another contractor replaced cheaper wedge anchors that had been spinning in aged concrete, and the Red Head clips bit immediately. The zinc finish is adequate for dry indoor slabs but not recommended for continuous outdoor exposure.
At around per anchor, this pack sits at the sweet spot of the price pool—lower than Hillman or CONFAST but higher than budget zinc packs. For any project requiring code compliance or structural engineering sign-off, the ICC-ES stamp alone justifies the premium over generic wedge anchors.
Why it’s great
- ICC-ES certified for structural concrete applications
- Consistent wedge expansion reduces spin-out failures
- Heavy hex nut handles full torque without stripping
Good to know
- Zinc finish not suited for outdoor or wet environments
- 5-1/2 inch length limits max fixture thickness to 2 inches

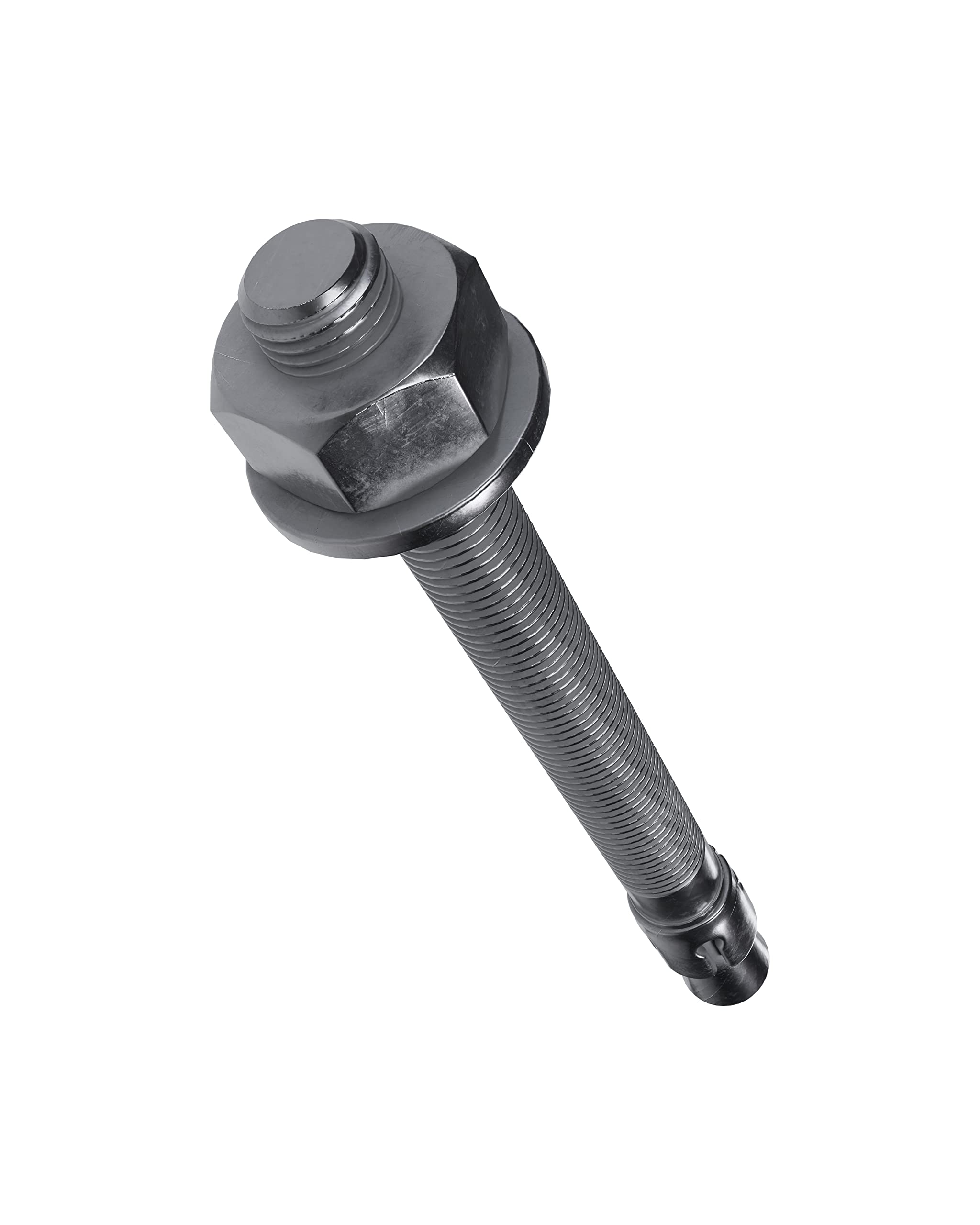

2. Hillman 371958 Wedge Anchor 3/4 x 5-1/2
The Hillman 371958 is a Grade 2 carbon steel wedge anchor with a zinc-plated finish, packaged at a weight of 7 pounds per 10-pack—noticeably heavier than most competitors, indicating thicker shank material and a larger clip assembly. This weight-to-mass ratio translates to higher shear strength in dense concrete, making it the preferred choice among automotive lift installers. Multiple verified reviews specifically mention using these anchors for two-post and four-post car lifts, with zero reported pull-out even in aged concrete slabs.
Installation requires a 3/4-inch ANSI imperial bit and a hammer drill with at least 8 amps of power. The anchor’s pre-assembled nut and washer sit flush against the base plate, and the wedge expands consistently at the 3-1/4 inch embedment depth. Users who installed protective bollards and truck lifts reported minimal movement after torqueing to the recommended 75-80 ft-lbs.
The main trade-off is length: at 5-1/2 inches, this anchor is best suited for fixture thicknesses up to 2 inches. For thicker base plates, the Mighty Fasteners 8-inch or CONFAST 10-inch options are better fits. But for standard structural bolting, the Hillman delivers repeatable, high-torque grip that justifies its higher per-anchor cost.
Why it’s great
- Heavier shank construction for higher shear capacity
- Strong wedge grip trusted by car lift installers
- Zero spin-out reports from verified buyers
Good to know
- Limited to 5-1/2 inch length for thin fixtures only
- Zinc coating not suitable for wet environments
3. Mighty Fasteners 3/4 x 8 Inch Wedge Anchors
The Mighty Fasteners 3/4 x 8 inch wedge anchor provides the extra threaded length needed for mounting base plates thicker than 2 inches. With the anchor’s 8-inch overall length, you can achieve up to 4 inches of embedment while still leaving sufficient thread above the nut for leveling washers and full torque application. The zinc-plated carbon steel shank is consistent in diameter, and the wedge clip expands reliably when driven into a clean 3/4-inch hole.
One experienced buyer noted that the correct install technique involves drilling the hole 3/4 inch deeper than the anchor length, then using an SDS+ hammer drill bit for clean walls. He emphasized not hammering the nut—striking the anchor tip directly preserves thread integrity. These anchors held concrete steps handrails and heavy brackets without issue.
The per-anchor cost sits above the mid-range pool, but the 8-inch length means fewer trips back to the hardware store for longer bolts. For thick steel plates, machinery bases, or retaining walls, this length avoids the common mistake of bottoming out the nut before reaching spec torque.
Why it’s great
- 8-inch length fits thick fixtures and deep embedment
- Consistent shank diameter reduces wobble in 3/4-inch holes
- Buyers confirm strong grip with no slip after torque
Good to know
- Zinc plating limits use to dry indoor environments
- Requires deeper drilling—hole must be longer than anchor
4. Party Animals 3/4 x 7 Inch Wedge Anchors
The Party Animals 3/4 x 7 inch wedge anchor fills a specific gap in the market: a zinc-plated carbon steel anchor at a length that works for both standard base plates (2-3 inches thick) and deeper embedment, without jumping to the premium price of 8- or 10-inch options. The triangular clip shape at the wedge end provides a slightly different expansion geometry compared to round clips, which some users report bites harder in softer concrete.
Verified buyers used these to secure deck post brackets to concrete slabs and reported no movement after tightening. The 7-inch length offers a good balance—enough thread for leveling adjustments on uneven concrete surfaces, without requiring the deeper drilling needed for an 8-inch anchor. The zinc finish is standard, not galvanized, so these are best kept indoors.
At just under per anchor, this pack undercuts the Red Head and Hillman options while offering a longer threaded section than the 5-1/2 inch alternatives. For general construction, shelving, and machinery mounting where code compliance is not a factor, these anchors deliver reliable grip at a lower price point.
Why it’s great
- 7-inch length for both standard and deep embedment
- Triangular wedge clip for enhanced bite in softer concrete
- Well-reviewed for deck post and structural bracket installs
Good to know
- No ICC-ES certification for code-required jobs
- Zinc finish not recommended for outdoor use
5. Horiznext 3/4 x 6-1/4 Inch Wedge Anchors
The Horiznext 3/4 concrete anchors measure 6-1/4 inches in overall length—shorter than the 7-inch options but still providing enough thread for typical sill plate and wall-to-slab connections. The Grade 2 carbon steel construction is standard for this diameter, and the zinc finish provides baseline corrosion protection for indoor use. Verified buyers noted that the wedge grabbed tightly after tapping the anchor into a snug-fitting 3/4-inch hole with a hammer.
One reviewer used these anchors to hold a 7-foot 6×6 post to a cement base and reported that the mounting plate would break before the bolts loosened. Another installed a winch on a concrete slab and pulled a 3,600-pound car without any anchor movement. The wedge expands consistently when the nut is torqued to about 60-70 ft-lbs, but users should ensure the hole depth is at least 4 inches to accommodate full embedment.
At roughly per anchor, this is the most affordable mid-range option in the pool. The shorter length makes these ideal for attaching wood sill plates, wall framing, and equipment bases to existing concrete slabs where deep drilling is not possible. Keep them dry—zinc plating will corrode with prolonged moisture exposure.
Why it’s great
- Great holding power for post and sill plate connections
- Snug wedge fit with no reported spin-out
- Low per-anchor cost for mid-range performance
Good to know
- 6-1/4 inch length limits use with thick base plates
- Zinc finish will rust in outdoor environments
6. HROMIGRY 3/4 x 7 Inch Concrete Anchors
The HROMIGRY 3/4 x 7 inch wedge anchor represents the entry-level tier for this diameter. Zinc-plated carbon steel construction with a flat head style and pre-assembled nut and washer. The primary use case is indoor mounting where holding strength requirements are moderate—anchoring workbenches, shelving brackets, and light machinery. One verified buyer successfully used them for a two-post car lift installation in 12-inch thick concrete, though the project required a replacement shipment after the initial box arrived damaged.
A more critical review noted that wedge anchors at this price point can be tricky to install correctly: the user recommended drilling a slightly larger hole and using anchoring epoxy to ensure security. This suggests the wedge clip tolerance may be looser than mid-range options, meaning precision drilling is non-negotiable. Another buyer simply rated them “decent” and cautioned against overtightening.
For the budget-conscious DIYer or contractor working on non-structural indoor projects, these anchors work if you follow the install instructions exactly. For critical load-bearing applications or anything requiring engineering sign-off, stepping up to the Red Head or Hillman options is the safer call.
Why it’s great
- Most affordable 3/4 x 7 anchor in the guide
- Worked for a two-post lift in thick concrete
- Flat head design for flush mounting
Good to know
- Wedge clip tolerance may require epoxy for best hold
- Zinc finish offers minimal corrosion resistance
7. CONFAST 3/4 x 10 Inch Galvanized Wedge Anchor
The CONFAST 3/4 x 10 inch galvanized wedge anchor is the dedicated solution for moisture-rich environments—deck ledger boards against block walls, outdoor retaining walls, and coastal concrete installations. The hot-dipped galvanized coating provides significantly better corrosion resistance than the zinc plating found on all other anchors in this roundup. The 10-inch overall length allows for deep embedment into thick concrete sections, with the manufacturer specifying a maximum shear strength of 9,378 lbs.
A verified buyer used these full 12-inch anchors to go through a concrete block wall and into the garage slab for a deck ledger board, explicitly noting discomfort with anchoring solely to block. Another reviewer praised the cost-effectiveness compared to buying individual anchors at big-box retailers. The wedge expansion design is consistent, and the galvanized finish does not chip off during installation like some painted coatings.
The cost per anchor is the highest in this guide, but for any project exposed to rain, snow, or salt air, the galvanized finish saves the cost of replacing rusted-out zinc anchors two years later. One box of 10 anchors covers a full deck ledger or heavy structural tie-down without needing a second order.
Why it’s great
- Galvanized coating for outdoor and wet environments
- 10-inch length for deep embedment through thick walls
- High shear rating of 9,378 lbs
Good to know
- Highest per-unit cost in the guide
- Overkill for indoor dry slab applications
FAQ
Can I use a 3/4 concrete anchor in brick or block?
What torque should I use for a 3/4 wedge anchor?
How deep should I drill the hole for a 3/4 anchor?
Final Thoughts: The Verdict
For most users, the best 3/4 concrete anchors winner is the Red Head TruBolt 3/4 x 5-1/2 because it combines ICC-ES code certification with consistent wedge grip and a per-unit cost that undercuts premium brands. If you need a longer 8-inch anchor for thick base plates, grab the Mighty Fasteners 3/4 x 8. And for wet environments exposed to rain or salt air, nothing beats the CONFAST 3/4 x 10 galvanized anchor for long-term corrosion resistance.
