A 3/4-inch fuel hose is the unsung workhorse for farm tanks, diesel transfer pumps, and heavy equipment, but picking the wrong rubber can mean leaks, swelling, or a line that cracks after one winter. The difference between a hose that lasts years and one that fails mid-job comes down to the wall thickness, reinforcement layer, and the specific SAE rating it carries.
I’m Min — the co-founder and writer behind Gadgets Feed. I spend my days analyzing the real-world specs and user data on automotive and industrial gear so you don’t have to guess whether a hose can handle biodiesel or a 300 PSI surge.
Whether you are gravity-feeding a bulk tank or building a permanent pump line, the right choice matters. This guide breaks down the seven top-rated options to help you find the best 3/4 fuel hose for your specific setup and budget.
How To Choose The Best 3/4 Fuel Hose
Not all 3/4-inch hoses are built the same. A hose that works fine for a low-pressure gravity tank can rupture on a 12-volt transfer pump. Focus on these three aspects to avoid downtime and leaks.
SAE Rating and Material Composition
The SAE 30R7 standard covers most low-pressure fuel applications, offering NBR (nitrile butadiene rubber) construction that resists gasoline and diesel. SAE 30R9 adds a higher temperature tolerance and is better for fuel-injected systems. For biodiesel blends, look for hoses explicitly labeled as compatible to prevent premature swelling.
Working Pressure and Burst Pressure
Working pressure tells you the safe continuous PSI, while burst pressure is the point of failure. Gravity-fed systems need very little pressure, but electric transfer pumps can push 40–60 PSI. A hose rated at 300 PSI working pressure gives a wide margin for pump applications and thermal expansion.
Wall Thickness and Bend Radius
A thicker wall (3mm to 4mm) provides better puncture and abrasion resistance, which matters when dragging a hose across concrete or gravel. The bend radius determines how tightly you can route the hose without kinking — a smaller radius allows for tighter installations in confined engine bays.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Byredio 3/4 Push On Hose | Premium | High-temp oil & fuel lines | 302°F temp range, 4mm wall | Amazon |
| Boltigen 3/4 NPT Fuel Transfer | Premium | Direct pump connection | 3/4 NPT male ends, stainless braid | Amazon |
| Apache 98108450 | Mid-Range | Farm gravity tanks | Static wire, 60 PSI working | Amazon |
| Fill-Rite FRH07520 | Mid-Range | Replacement for 12V pumps | 20-ft length, 50 PSI working | Amazon |
| EVIL ENERGY Push Lock | Mid-Range | Race car & custom builds | 200 PSI working, braided polyester | Amazon |
| Storystore 10-Foot Fuel Line | Budget Entry | Basic 10-ft replacement rolls | 300 PSI working, 0.31in wall | Amazon |
| Jeemiter 5-Foot Kit | Budget Entry | Short runs with clamps | 300 PSI working, 10 clamps | Amazon |
In‑Depth Reviews
1. Byredio 3/4 Push on Hose Fuel Line Transmission Cooler NBR 150 PSI (10 Feet)
The Byredio hose stands out because it meets the SAE 30R9 standard, giving it a working temperature range up to 302°F — 45°F higher than standard 30R7 hoses. The 4mm wall thickness and 3.3-inch bend radius make it unusually easy to route through tight engine compartments without kinking.
With a working pressure of 150 PSI and a burst pressure of 600 PSI, it handles transmission cooler lines, power steering returns, and fuel injection systems with confidence. The braided polyester reinforcement prevents swelling when exposed to biodiesel blends, which many lower-tier hoses cannot manage.
User reports confirm it works as a direct replacement for rusted steel fuel lines and CCV vent hoses. The flexibility is a major advantage over rigid metal lines, making it a top-tier choice for both repair and custom builds where high-temperature resistance is essential.
Why it’s great
- 302°F max temp for hot oil and fuel lines
- 4mm thick wall resists abrasion and punctures
Good to know
- Some users noted the 1/4 inch ID variant runs smaller than expected
2. Boltigen 3/4inch NPT Fuel Transfer Hose (10 Feet)
The Boltigen fuel transfer hose is unique in this lineup because it comes with pre-installed 3/4-inch male NPT fittings on both ends. This eliminates the guesswork of sourcing separate connectors and ensures a leak-free seal for pumps and tank valves right out of the box.
Its three-layer construction — nitrile rubber inner core, stainless steel braid reinforcement, and PVC/nitrile blended outer — provides excellent kink resistance and durability under continuous fuel exposure. With a working pressure of 232 PSI and burst pressure of 696 PSI, it easily out-specs standard gravity-flow rubber hoses.
Users report it works perfectly as a replacement hose for Scepter Duramax Flo ‘N Go caddies and hand diesel pumps. The threaded fittings make installation straightforward, and the flexible body coils easily for storage without taking a set.
Why it’s great
- Pre-installed 3/4 NPT ends for simple pump hookup
- Three-layer build with stainless braid resists crushing
Good to know
- Slightly heavier than all-rubber lines at 2.3 kg

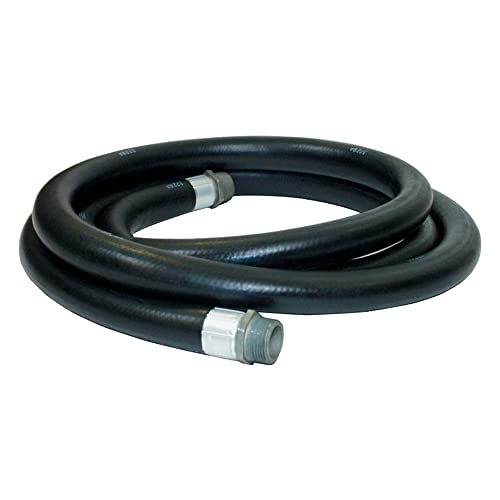

3. Apache 98108450 3/4″ x 10′ Farm Fuel Transfer Hose
The Apache 98108450 is a purpose-built hose for gravity-fed farm tanks and hand-pump systems. Its key differentiator is the embedded static wire, which is critical for dissipating static electricity during high-flow fuel transfers — a safety feature not found on most budget fuel lines.
With a working pressure of 60 PSI and a 0.75-inch nominal wall thickness, this hose is intended for low-pressure applications only. It is not suitable for electric fuel pumps exceeding 10 PSI, but for bulk tank discharge and gravity flow systems, it performs reliably year after year.
Users appreciate that it stores in a coil better than stiffer hoses and works well with standard end crimps. While the fittings are not heavy-duty, the hose body itself holds up well to fuel exposure and outdoor storage when properly drained.
Why it’s great
- Built-in static wire for safe fuel transfer
- Coils easily for tidy storage
Good to know
- Only rated for 60 PSI — not for high-pressure pumps

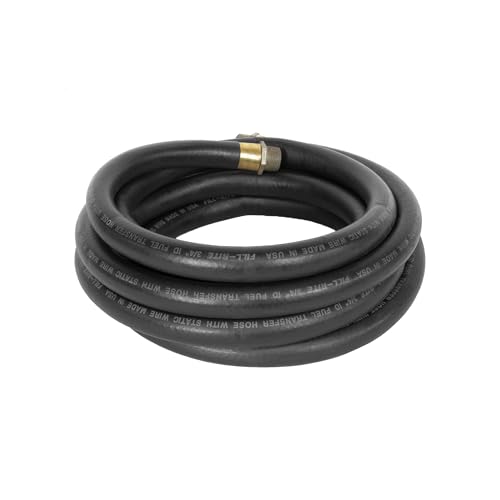

4. Fill-Rite 3/4 In. x 20 Ft. Fuel Transfer Hose
The Fill-Rite FRH07520 is the longest hose in this roundup at 20 feet, making it the ideal choice for reaching multiple vehicles from a stationary tank. It is built from a neoprene and nitrile blend that resists gasoline, diesel, and oil while remaining flexible in colder weather.
At a 50 PSI working pressure, it is specifically designed for 12-volt transfer pumps and gravity systems, not high-pressure injection systems. The hose is slightly lighter than commercial-grade GoodYear equivalents, which some users note as a trade-off between weight and absolute toughness.
Customer feedback consistently highlights the excellent thread machining on the fittings — they screw on smoothly to pump outlets without cross-threading. A handful of users report replacing it every 2-3 years under heavy daily use, which is reasonable given the value-oriented price point for a 20-foot assembly.
Why it’s great
- Full 20-foot length for wide fueling reach
- Well-machined fittings that thread easily
Good to know
- Not a heavy-duty commercial hose — best for homeowner use
5. EVIL ENERGY 3/4 Fuel Hose Line Push Lock NBR SAE 30R7 (5FT)
EVIL ENERGY’s 5-foot hose is a push-lock design engineered for aftermarket fuel systems and race cars. It meets and exceeds SAE 30R7 standards with a 200 PSI working pressure and 800 PSI burst pressure, offering a solid safety margin for modified engines running high-flow fuel pumps.
The wall thickness is 3mm with a minimum bend radius of 5.9 inches. While the bend radius is wider than some alternatives, the braided polyester reinforcement gives it excellent resistance to oil and wear, which is critical in engine bays where the hose rubs against chassis components.
Users specifically call out its use as a direct replacement for PACCAR low-pressure lines on X-15 engines, noting no leaks and perfect fitment. The packaging is premium, and the hose pairs well with EVIL ENERGY AN fittings for a clean, race-grade setup.
Why it’s great
- Works with push-lock fittings for tool-free assembly
- 800 PSI burst rating for high-demand systems
Good to know
- 5.9-inch bend radius is less flexible than thinner-wall hoses

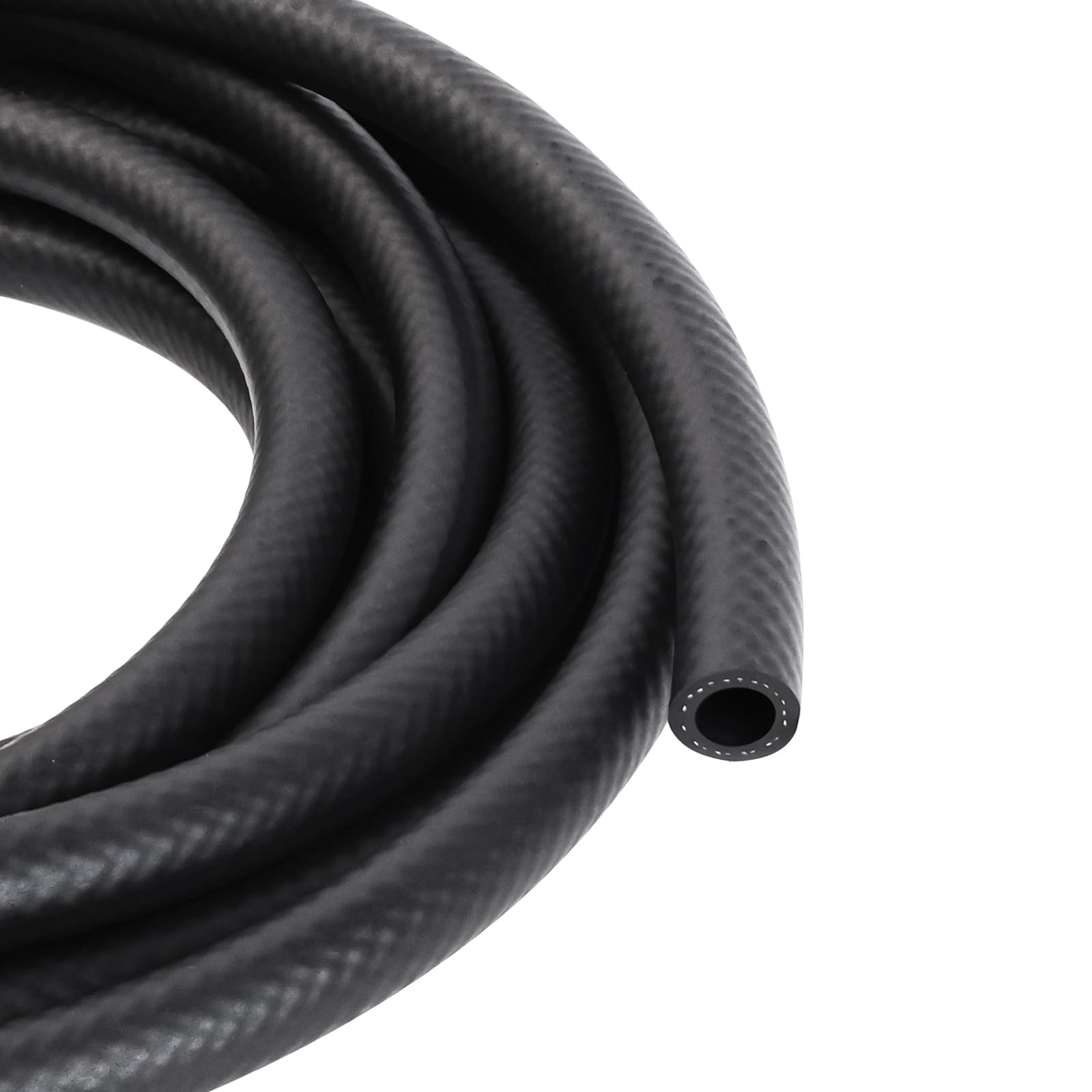

6. Storystore 3/4 Inch ID NBR Rubber Hose (10 Feet)
The Storystore 10-foot hose delivers a high working pressure of 300 PSI with a burst pressure of 1160 PSI — specs that rival much more expensive options. The NBR material is rated from -40°F to 257°F, making it suitable for cold-climate outdoor use where cheaper PVC hoses crack.
Its 0.31-inch wall thickness gives it substantial puncture resistance while still remaining flexible enough to slide over metal tubes with a bit of heat and lubricant. Users consistently praise it as a cheap OEM alternative that matches part-store rubber hose quality at a fraction of the price.
This is a bulk hose — no fittings included — so you will need to source your own clamps or barbed connectors. It is ideal for cutting custom lengths for multiple small-engine applications or as a general-purpose replacement roll for the workshop.
Why it’s great
- 1160 PSI burst pressure for high safety margin
- Flexible enough to install without kinking
Good to know
- No fittings or clamps are included

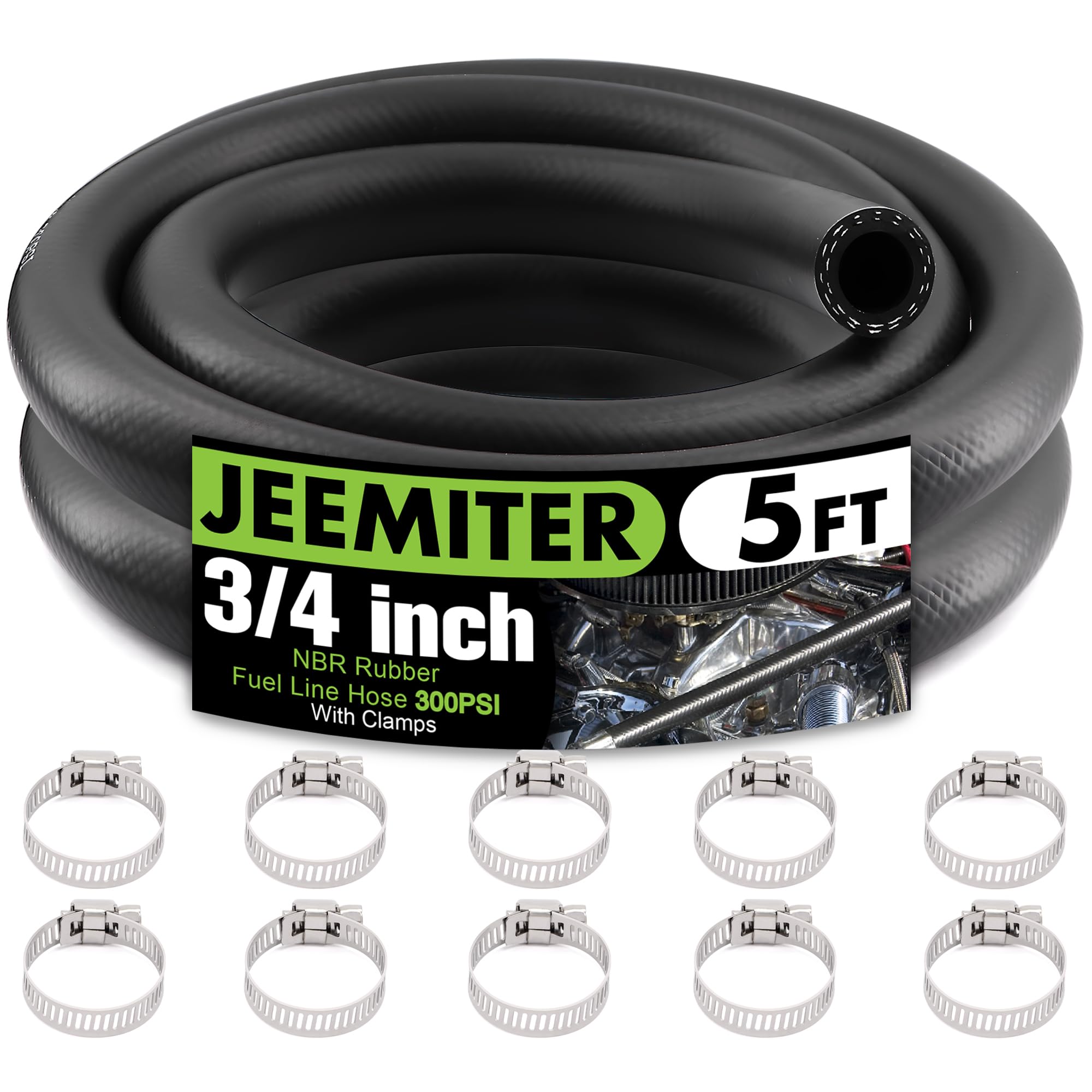

7. Jeemiter 3/4″ ID x 5FT Fuel Line Hose SAE 30R7 Kit
The Jeemiter kit bundles 5 feet of SAE 30R7 fuel hose with 10 worm-drive clamps, giving you everything needed for a short-run repair. The hose is made from NBR and handles a working pressure of 300 PSI with a burst pressure of 1160 PSI, which is impressive for a kit in this tier.
With an outside diameter of 1.1 inches and a wall thickness of 0.175 inches, it is a slightly thinner wall than some competitors, but it remains tough enough for lawnmower fuel lines, tractor hydraulic returns, and marine applications. The 5-foot length is perfect when you only need a small replacement section.
The included clamps received mixed feedback — some users found them acceptable for light duty, while others noted the 5.5mm nut size is uncommon and recommended upgrading to higher-quality stainless clamps. The hose itself, however, earns consistent praise for its heavy-duty feel and proper size accuracy.
Why it’s great
- All-in-one kit with hose and 10 clamps
- 1160 PSI burst rating in a budget package
Good to know
- Included clamps are better suited for light-duty use
FAQ
Can I use a 3/4 fuel hose for diesel and gasoline interchangeably?
Do I really need a static wire on a 3/4 fuel hose?
What is the difference between push-lock and barbed fitting hoses?
How long does a 3/4 rubber fuel hose typically last?
Final Thoughts: The Verdict
For most users, the best 3/4 fuel hose winner is the Byredio 3/4 Push on Hose because it combines SAE 30R9 high-temperature capability with a thick 4mm wall and excellent flexibility for the price. If you need a pre-terminated hose for a transfer pump, grab the Boltigen 3/4 NPT Fuel Transfer Hose. And for budget-conscious short repairs or small engines, the Jeemiter 5-Foot Kit gives you a solid hose with clamps included to get the job done.
