The SharkBite Max ball valve represents the pinnacle of convenience in the 3/4-inch PEX category, combining a quarter-turn shutoff with a push-to-connect body that installs on PEX, copper, CPVC, PE-RT, and HDPE without soldering or glue. Its forged DZR brass construction and reinforced stainless steel collar provide a 250 PSI maximum operating pressure at 200°F, exceeding standard residential requirements. The valve eliminates the need for a separate PEX tube liner when used on copper or CPVC, simplifying installation in mixed-material systems.

Customer accounts confirm the valve held pressure without leaks after weeks of use in high-PSI domestic water lines, with multiple users noting the firm rotational feel and the secure grip on both copper and PEX pipe. The push-fit depth marks are clearly indicated, though users caution that an extra push is required to ensure the pipe is fully seated. For rural buyers, the convenience of avoiding a long drive to a supply house adds practical value.

While the per-unit cost sits at a premium compared to a traditional threaded brass valve plus two crimp adapters, the time saved and the elimination of two additional joints—potential leak points—justify the investment for critical shutoffs behind walls or under sinks. The valve carries ASME, ASTM, and NSF certifications, making it suitable for commercial and residential code-compliant installations alike.

Check Price on Amazon

SharkBite’s Max 90-degree elbow is engineered for routing 3/4-inch PEX around obstacles, offering a compact body with a 400 PSI pressure rating that surpasses standard residential needs by a wide margin. The push-fit design eliminates the need for two separate couplings and an additional elbow, reducing the total number of connections in a turn by half. The reinforced stainless steel collar reduces insertion force by 50% compared to earlier SharkBite generations, making installation in cramped crawl spaces less fatiguing.

Users consistently describe the fit as precise, with no leaks even when installed on copper lines in high-temperature boiler room environments. The 4-pack configuration is well-suited for projects with multiple 90° turns, such as manifold-to-fixture runs in a residential re-pipe.

No PEX tube liner is required for copper or CPVC connections, maintaining full internal diameter for maximum flow. However, the unibody push-fit design cannot be disassembled for reuse as easily as a threaded union, so careful pipe measurement before installation is essential. Despite the higher unit cost, the speed of installation and the 400 PSI safety margin make this elbow a top-tier choice for long-term reliability in inaccessible areas.

Check Price on Amazon

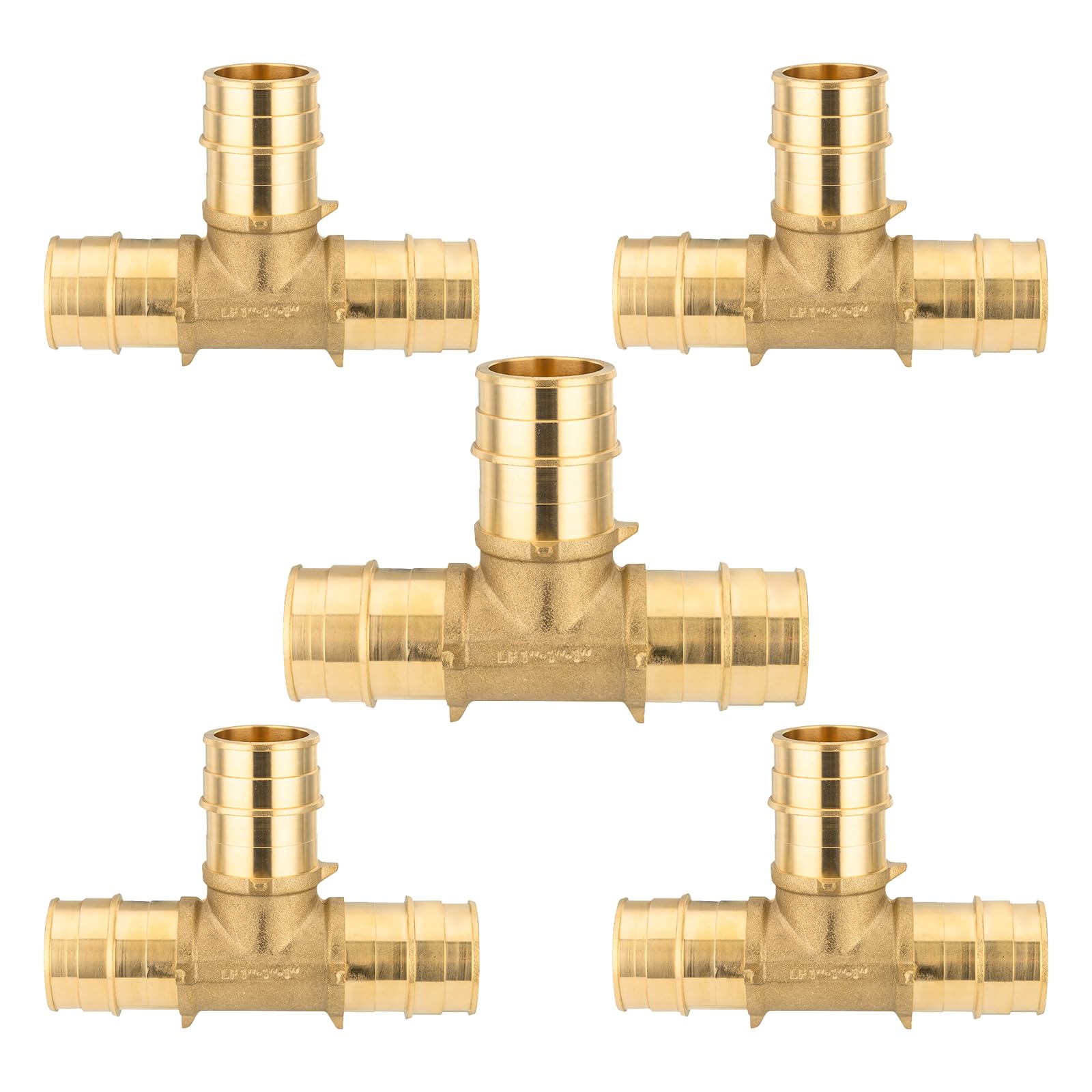

The HeSun expansion tee is purpose-built for PEX-A systems requiring a 3/4-inch branch line, using the ASTM F1960 cold-expansion method that creates a permanent, stronger-than-the-pipe connection ideal for buried or concealed applications. Manufactured from lead-free brass with a corrosion-resistant finish, the fitting carries ANSI/NSF-61 and ASSE 1061 certifications, ensuring compliance with potable water standards. The 3/4×3/4×3/4 configuration is standard for splitting a supply line to serve two adjacent fixtures.

Feedback confirms the tees are compatible with all major PEX-A brands and hold pressure without leaks during initial testing and long-term use, with one user applying them to a compressed air system without issue. The brass construction feels substantial compared to plastic alternatives, and the price per unit is roughly half of what local box stores charge for equivalent name-brand fittings. Assembly requires a PEX-A expander tool, which adds upfront tooling cost but results in a connection that does not exert radial stress on the pipe like crimp rings.

These tees are not compatible with crimp ring or stainless steel clamp systems—they are exclusively for F1960 expansion installations. A small number of users reported surface imperfections on the brass finish, but none linked these to functional leaks or pressure failures. For anyone already invested in a PEX-A expander tool, this 5-pack offers a cost-effective way to branch supply lines without compromising on material quality.

Check Price on Amazon

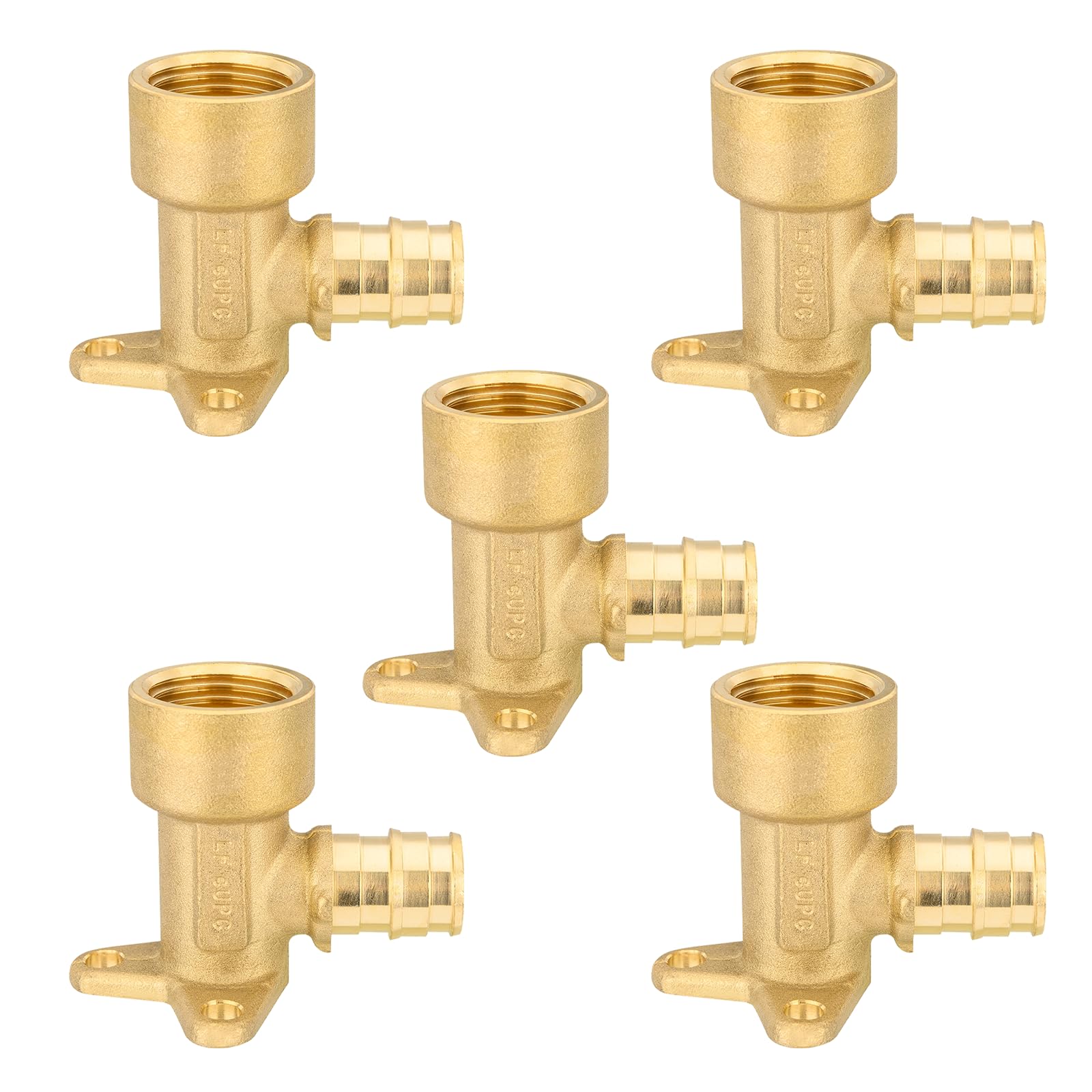

The HeSun drop ear elbow is a specialized fitting designed for terminating a 3/4-inch PEX-A run at a shower valve, faucet, or toilet supply, providing a rigid female NPT thread that screws directly to the fixture while a mounting ear secures to a stud. Like the HeSun tee, it uses the ASTM F1960 expansion method and is manufactured from lead-free brass with full NSF/ANSI-61 certification, ensuring the connection behind a finished wall meets code requirements for potable water. The drop ear design prevents the fitting from spinning during fixture installation—a common frustration with standard elbows.

Users installing these elbows for boiler-to-radiator runs with oxygen-barrier PEX reported zero leaks and a snug fit that held up under system pressure. The 5-pack provides enough quantity for a typical master bathroom with two sinks and a shower valve, with spares for a utility sink. The integrated mounting ears are pre-drilled for standard wood or metal studs, though the screw size is not specified in the package, so having #8 or #10 pan-head screws on hand is advisable.

As with the HeSun tee, these drop ear elbows are exclusively compatible with PEX-A and the expansion system—they will not work with crimp rings or clamp rings. The brass threads on the female NPT side are cleanly cut according to user reports, with no binding when connecting chrome or brass fixture nipples. While the per-fitting price beats local supply houses, the initial cost of an expander tool remains a barrier for those not already equipped for PEX-A.

Check Price on Amazon

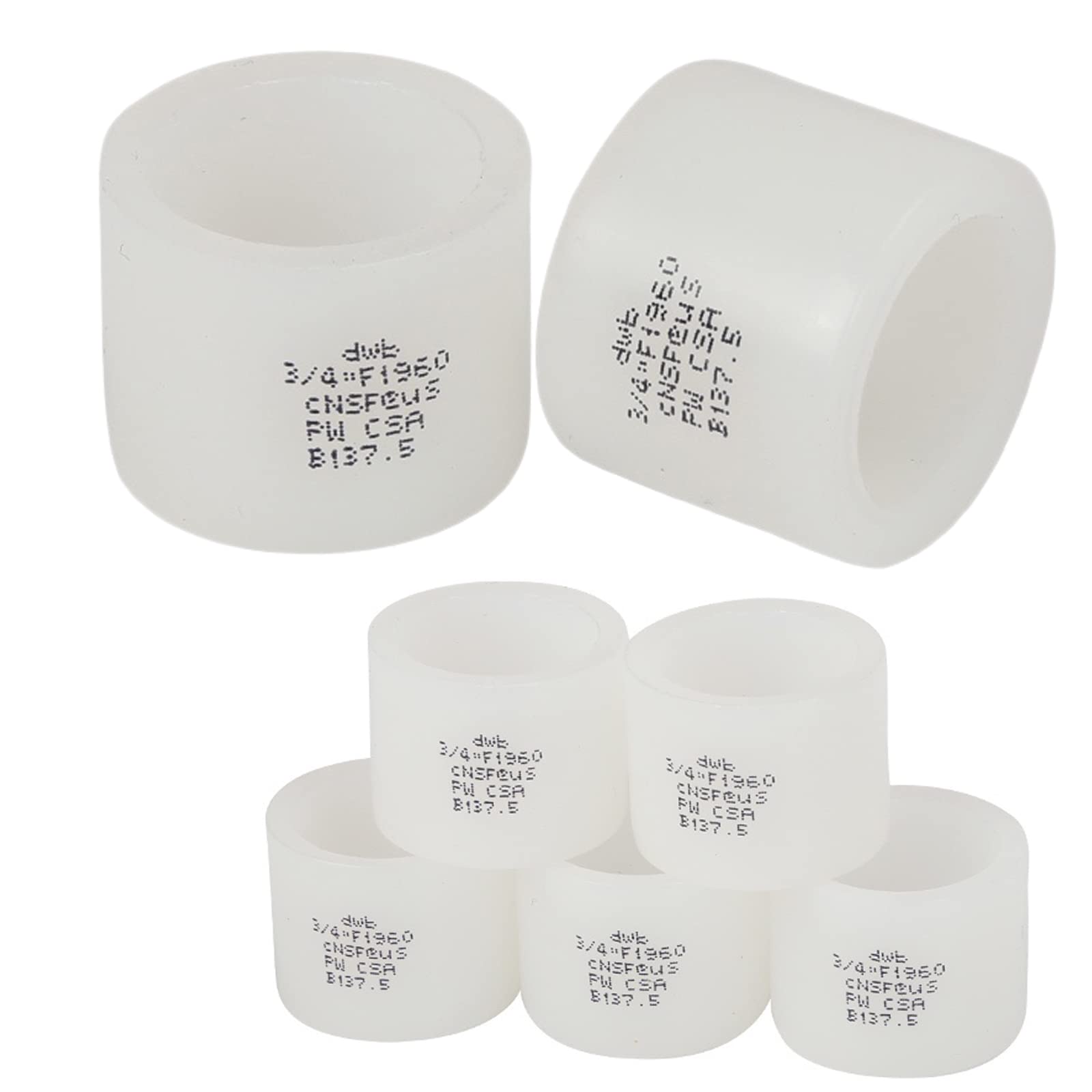

GUOFIS offers a 100-pack of 3/4-inch F1960 expansion rings specifically for PEX-A systems, providing the consumable rings needed for large-scale projects like whole-house re-pipes, radiant floor loops, or multi-unit renovations. Each ring features a leading edge chamfer and a defined stop edge that ensures consistent placement on the pipe before expansion—a detail that reduces installer error. The rings are certified to ANSI/NSF-61 and ASSE 1061, allowing their use in concealed or underground potable water applications without access panels.

Users who applied these rings with a power expander for a bathroom remodel confirmed they held pressure during hydrostatic testing with no leaks across 30+ connections. The per-ring cost works out to a fraction of what box stores charge for small blister packs, making bulk purchasing economical for serious DIYers or professionals. The rings are compatible with all PEX-A tubing brands, including Uponor, Uponor ProPEX, and other F1960-compliant pipes, with a maximum rated temperature of 200°F and operating pressure of 160 PSI.

Because these are expansion rings (sleeves), they must be paired with F1960-rated brass or poly fittings—they do not work with standard crimp rings or clamp rings. The 100-pack is a single-size SKU (3/4 inch), so users with mixed-diameter systems will need separate packs for 1/2-inch or 1-inch runs. At this price point, the value proposition is clear: lower cost per connection without sacrificing certification or material quality.

Check Price on Amazon

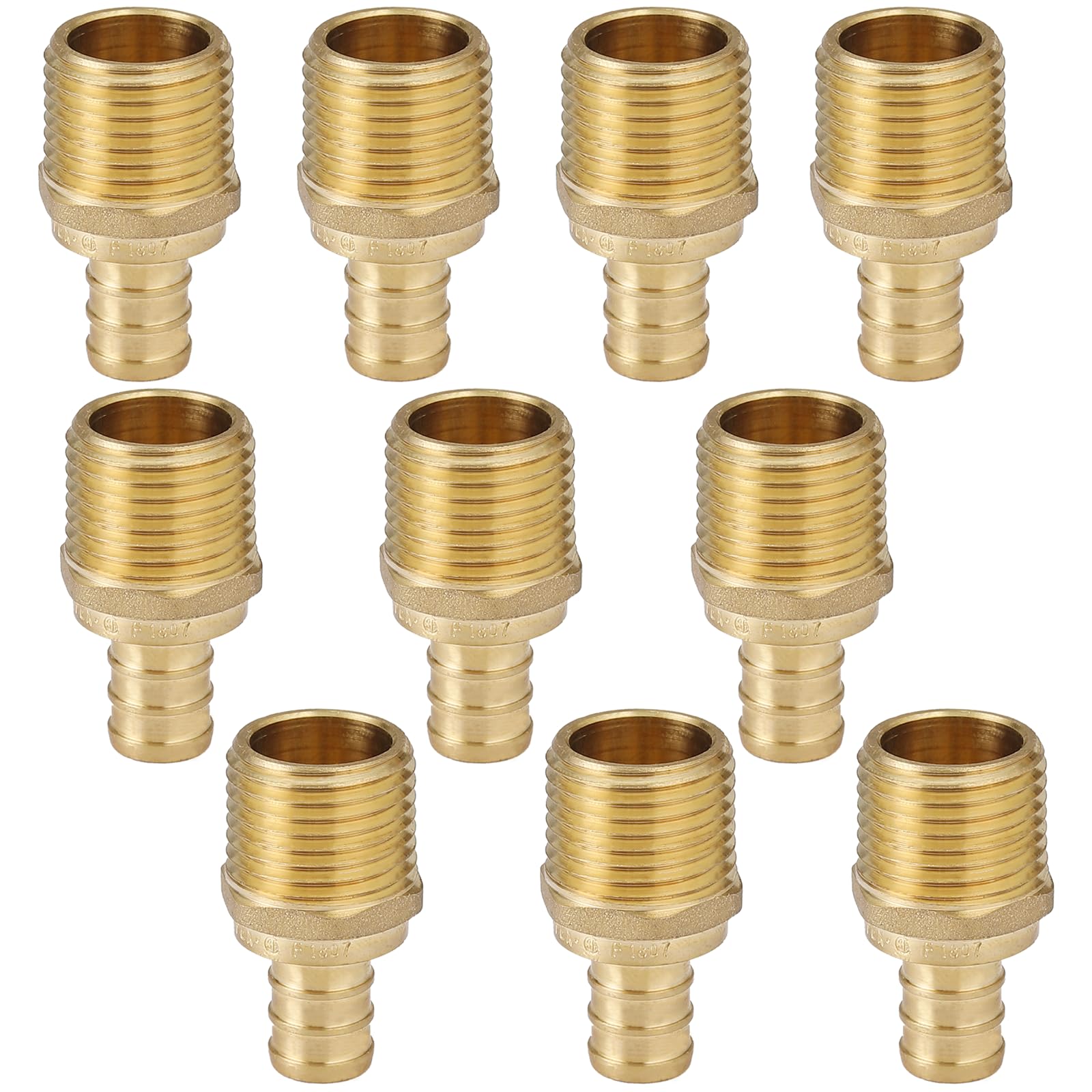

HeSun’s 10-pack of 3/4-inch PEX x 3/4-inch male NPT adapters provides the most economical entry point for transitioning from PEX tubing to threaded brass components such as shutoff valves, pressure gauges, or water heater nipples. These fittings comply with ASTM F1807 and NSF/ANSI 61 standards, making them eligible for potable water use despite their budget-friendly positioning in the lineup. The lead-free brass construction resists corrosion across a temperature range of 32°F to 200°F, adequate for standard hot and cold supply lines.

Users consistently report that these adapters match the fit and finish of higher-priced name brands, sealing perfectly on both the PEX crimp side and the NPT thread side. One reviewer specifically highlighted getting five adapters for the price of one or two name-brand units, a value ratio that makes this 10-pack a practical choice for projects requiring multiple transition points. The adapter is compatible with stainless steel clamp rings, copper crimp rings, and standard PEX crimp tools, but not with expansion systems.

At a per-unit cost that undercuts box-store brass adapters significantly, the HeSun male adapter sacrifices nothing in terms of basic fit and function. The only caution is that the NPT threads, while functionally competent per user reports, may not have the same polished finish as premium German or American-made fittings—though this has no impact on sealing performance when used with thread tape or pipe dope. For budget-conscious rough-ins where code compliance is still required, this 10-pack delivers.

Check Price on Amazon

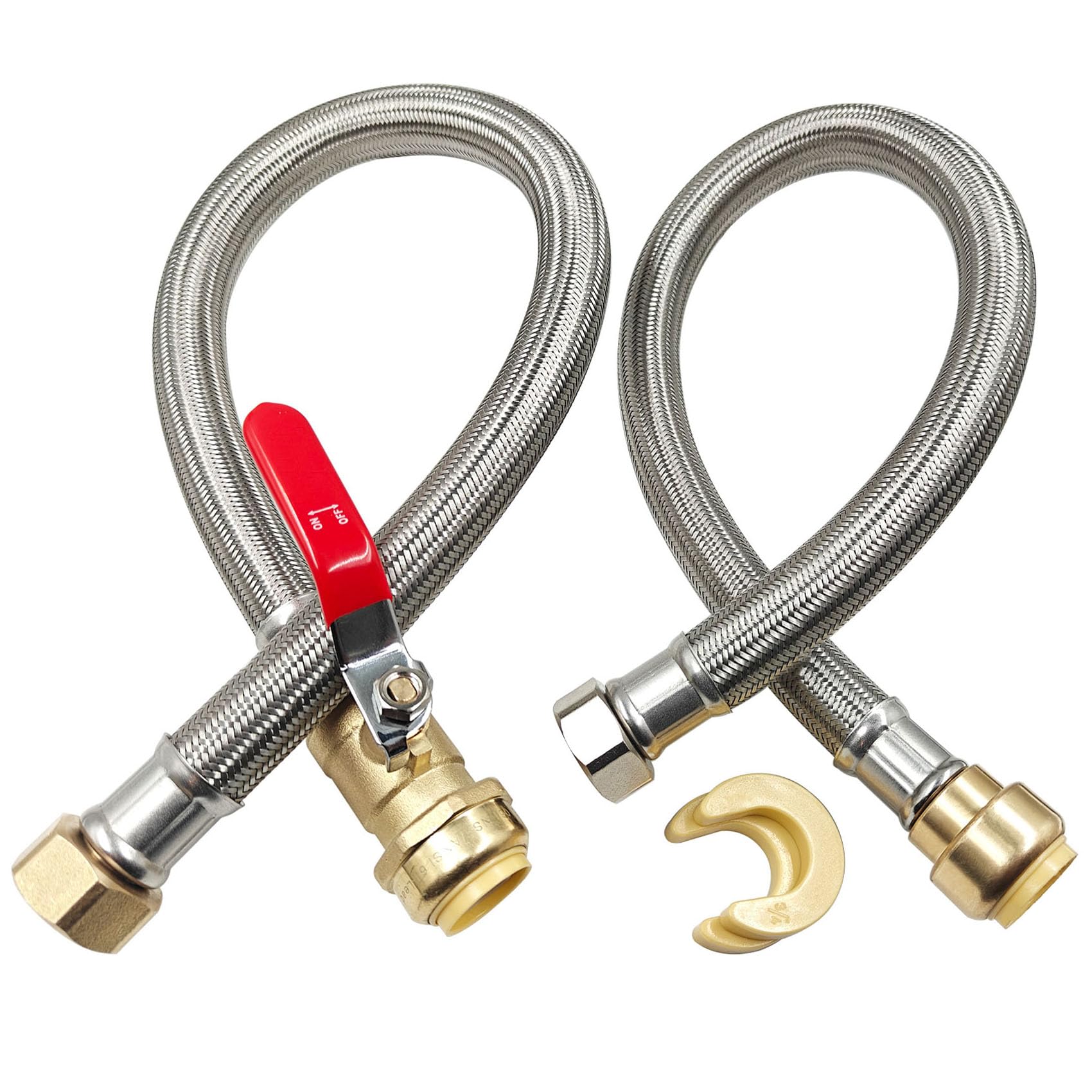

The SMZTools water heater connector bundles a 24-inch stainless steel braided hose with an integrated push-to-connect ball valve on one end and a 3/4-inch FIP threaded connection on the other, creating a single-component solution for connecting a water heater to existing PEX, copper, or CPVC supply lines. The push-fit end eliminates the need for a soldered or crimped adapter at the hose connection, while the integrated ball valve provides a dedicated shutoff without adding an extra joint to the system. The connector is rated for 200°F and 200 PSI, comfortably covering standard water heater operating ranges.

Users describe the installation as straightforward, with the SharkBite-style coupling gripping PEX and copper pipes securely and the flexible braided hose adapting to tight spaces around the water heater flue. The 2-pack is sufficient for both the hot and cold supply lines of a standard residential water heater, and the integrated valve allows for easy isolation during maintenance. The stainless steel braiding provides burst protection beyond the rating of standard rubber hoses, adding a layer of safety in high-temperature environments.

The premium pricing reflects the convenience of a combined push-fit valve and hose assembly, which costs more than separate brass adapters, a braided hose, and a threaded ball valve. The fixed 24-inch length may not suit all heater-to-wall distances, requiring careful measurement before purchase. For those replacing an old water heater or installing a new one, the speed of connection and the reduced number of leak-prone joints make this kit a compelling investment.
