A 3-inch gate valve sits between you and a plumbing disaster — a busted line, a pool pump repair, or an RV waste tank cleanout. When that valve refuses to seal or, worse, leaks the moment you turn the handle, the mess is immediate and the fix is expensive. The right valve, built from the right alloy and machined to the right thread tolerance, eliminates that dread entirely.
I’m Min — the co-founder and writer behind Gadgets Feed. This guide is the result of cross-referencing hundreds of verified customer experiences with technical datasheets for six top-selling 3-inch gate valves to find which ones actually seal shut on the first turn.
Whether you need a brass body for a pressurized line or an ABS slide for a gravity drain, the list below covers the best options. You’ll find the best 3 gate valve for your specific application right here.
How To Choose The Best 3 Gate Valve
A 3-inch gate valve is not a one-size-fits-all component. The wrong connection type, pressure rating, or body material will fail within weeks. Here are the three factors that separate a reliable valve from a frustration-inducing replacement.
Body Material and Construction
Brass gate valves resist dezincification and handle higher pressures (up to 200 WOG or more), making them ideal for indoor water shutoffs and pressurized systems. ABS plastic valves are lighter, corrosion-proof, and perfectly suited for gravity-fed RV waste lines — but they cannot withstand the mechanical strain of a threaded, high-pressure installation.
Connection Type Compatibility
Threaded connections (NPT, FIP) require a compatible male thread and reliable sealing with Teflon tape. Sweat (solder) connections need a torch and flux but create a permanent, leak-free joint. Slip connections use solvent cement and are typical for ABS drain systems. Matching the valve connection to your existing pipe is non-negotiable.
Pressure and Temperature Ratings
For mains water, look for a minimum of 200 WOG (Water, Oil, Gas) non-shock rating. For pool or sprinkler systems, the same rating suffices. RV waste valves operate at atmospheric pressure, so ratings matter less — seal quality and handle feel become the deciding factors.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DuraChoice 3″ Brass Gate Valve | Premium Brass | Main water shutoff, pool filtration | 200 WOG, 3″ FNPT | Amazon |
| Midline Valve 429U225 | Premium Brass | Heavy-duty water shutoff, pool equipment | Cast brass, 200 WOG, 3″ FIP | Amazon |
| SYWUWV 3″ NPT Brass Gate Valve | Premium Brass | Industrial, HVAC, oil/gas lines | 1.6 MPa (232 psi), 3″ NPT | Amazon |
| Midline Valve 427D225 | Premium Sweat | Permanent copper pipe installation | Lead-free brass, 200 PSI, 3″ sweat | Amazon |
| Valterra 7301 ABS Gate Valve | Mid-Range ABS | RV waste, pond pumps, gravity drain | 3″ slip, ABS body | Amazon |
| Hurrventer 3″ Waste Gate Valve | Budget ABS | RV sewer cleanout, visual inspection | Transparent gate, 3″ solvent/ NPT | Amazon |
In‑Depth Reviews
1. DuraChoice 3″ Brass Gate Valve
The DuraChoice VGB01-300 is a full-port 3-inch brass gate valve with female NPT threads on both ends, rated for 200 WOG non-shock service. Weighing nearly 10 pounds, it communicates solid heft and proper wall thickness — exactly what you want for mains water shutoff or pool pump isolation. Multiple verified buyers report zero leakage after months of use and praise its smooth stem operation straight out of the box.
Constructed from cast brass with a polished exterior, this valve resists corrosion better than cheaper zinc-alloy alternatives. The threaded connections comply with standard NPT tolerances, though one reviewer noted the threads were slightly tighter than expected, requiring generous Teflon tape for a perfect seal. Once seated, the valve closes completely with no bypass seepage — a direct contrast to the common complaint about big-box store valves that fail to shut off entirely.
For anyone needing a reliable main shutoff or high-pressure isolation valve, this model delivers commercial-grade performance at a price well below local hardware store alternatives. The 9.63-pound weight is a meaningful indicator of the bronze alloy density and casting quality inside.
Why it’s great
- Massive cast brass body with true 200 WOG rating ensures leak-free shutoff on mains water lines
- Verified buyers confirm months of drip-free operation on pool filtration systems
- Tightly machined threads seal well with standard Teflon tape application
Good to know
- Threads can be slightly under-tolerance on some units, requiring extra Teflon tape
- At nearly 10 pounds, the valve is heavy; ensure pipe support is adequate
2. Midline Valve 429U225 Gate Valve
The Midline Valve 429U225 features a heavy-duty cast brass body with dezincification-resistant alloy, female iron pipe (FIP) threads on both ends, and a cast iron wheel handle on a non-rising stem. It conforms to NSF/ANSI-61/372 standards, meaning it is certified safe for potable water applications up to 180°F at 200 WOG. The non-rising stem design makes it ideal for tight vertical spaces where handle clearance is limited.
Buyers using these valves on pool equipment exposed to direct sun report that the cast brass construction holds up well under UV and heat, maintaining smooth operation without seizing. The wheel handle provides excellent mechanical advantage, allowing full closure without a wrench. However, one verified review reported the valve failed to shut off completely from the first day, requiring replacement — a reminder that even premium castings can have internal gate alignment issues, so inspect the valve before installation.
For potable water lines and pool applications where code compliance (NSF-61) is required, the 429U225 is a strong choice. The cast iron wheel handle and brass body offer a tactile quality that plastic-handled valves cannot match.
Why it’s great
- NSF/ANSI-61/372 certified for potable water safety
- Dezincification-resistant brass alloy handles outdoor UV and moisture exposure well
- Non-rising stem and wheel handle fit in confined installation spaces
Good to know
- Quality control can vary — a small number of units may not seal fully from day one
- Listed weight of 0.5 pounds is likely a listing error; actual brass valve is substantially heavier
3. SYWUWV 3″ NPT Brass Gate Valve
The SYWUWV 3-inch brass gate valve pushes the pressure ceiling higher than most competitors with a 1.6 MPa (232 PSI) rating and a temperature range from -4°F to 302°F. It features standard NPT female threads on both ends and a full-bore internal design that creates minimal flow restriction when open. The manufacturer specifies compatibility with water, oil, and non-corrosive flammable gas, making this the most versatile option in the list for industrial and HVAC use.
The brass body is polished internally to reduce scaling and clogging over time. Multiple buyers confirm the valve is solidly built and connects easily to standard threaded pipes. However, one critical review documents that the valve would not shut off completely, continuing to drip despite full handle torque. This pattern across a small subset of units suggests the gate-to-seat alignment tolerances are not perfect across the entire production run.
If your application demands the highest pressure rating in a 3-inch brass gate valve and you can verify the seal before final installation, this SYWUWV model offers the widest service envelope. For critical main-line shutoffs, test the valve under pressure before cementing or permanently tightening connections.
Why it’s great
- Highest pressure rating in the roundup at 232 PSI (1.6 MPa)
- Full-bore design with polished inner walls resists scale buildup
- Compatible with water, oil, and non-corrosive gas applications
Good to know
- Some units fail to shut off completely despite proper installation
- NPT threads are standard, but a pipe sealant compound is recommended for reliable sealing

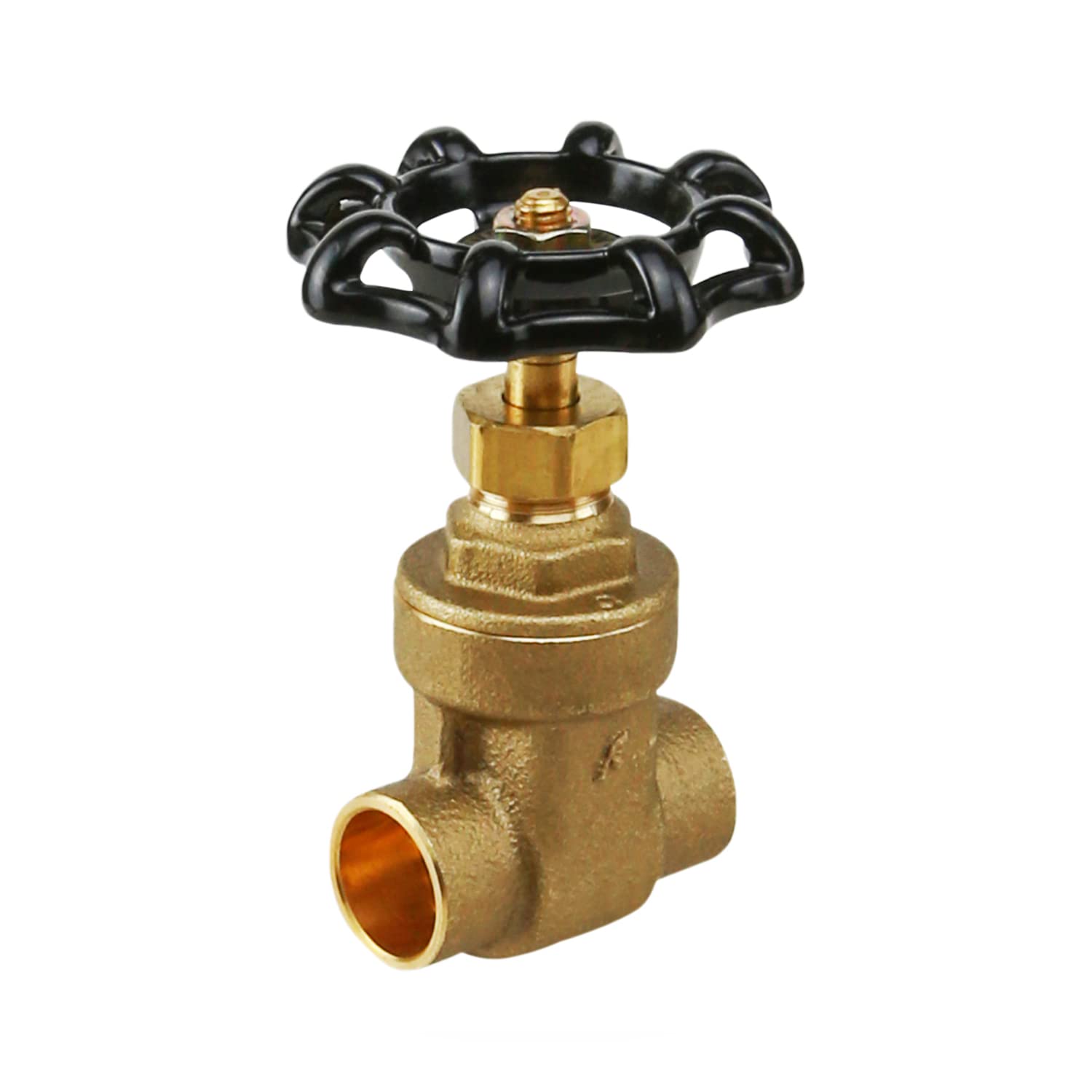

4. Midline Valve 427D225 Gate Valve
The Midline Valve 427D225 is a lead-free cast brass gate valve with sweat (solder) connections, designed for permanent installation on copper water lines. It complies with NSF/ANSI-61/372 and ANSI B16.18 standards, ensuring it is safe for potable water. The valve features a cast iron wheel handle on a non-rising stem and is rated for 200 PSI WOG non-shock at temperatures up to 180°F.
Verfied purchasers report that the valve works perfectly as a direct replacement for aging gate valves in residential copper plumbing. One reviewer specifically sought out this sweat-connection valve when local stores only carried threaded models, confirming its niche utility. However, a critical review notes that the internal bore is significantly smaller than a standard 3-inch pipe — roughly half an inch inside diameter — which creates a major flow restriction. This is a fundamental design issue for applications requiring full flow.
For homeowners replacing a leaky sweat-connection gate valve on a 3-inch copper line, this Midline Valve fits the bill. But if your system demands unrestricted flow, investigate the actual internal diameter before purchasing, or consider a full-port ball valve as an alternative.
Why it’s great
- Lead-free cast brass certified for potable water (NSF-61)
- Sweat connections eliminate thread-sealing concerns for permanent copper pipe installation
- Cast iron wheel handle provides reliable mechanical advantage
Good to know
- Internal bore diameter is smaller than standard 3-inch pipe, restricting flow significantly
- Installation requires soldering skills; not a DIY-friendly swap for threaded systems
5. Valterra 7301 ABS Gate Valve
The Valterra 7301 is an ABS gate valve with a 3-inch slip connection, designed for low-pressure gravity-fed drainage systems — primarily RV waste tanks and pond pump outlets. Its lightweight ABS body resists corrosion and chemical attack from sewage and pond water. The push/pull slide mechanism is simple to operate and provides unrestricted flow when fully open, as the gate retracts completely from the bore path.
Verfied buyers praise its straightforward installation with ABS solvent cement and report zero leaks when used below waterline on koi pond pump systems. The valve stays open on its own without needing a mechanical latch, and the ABS material does not degrade with constant moisture exposure. However, this valve is not pressure-rated for mains water — it is purely a drain-line or gravity-flow component. One reviewer initially tried to use it as a waste dump valve and noted it lacks clamping jaws; it is designed for permanent solvent-welded installation.
For any 3-inch ABS drain system where you need a reliable shutoff for cleaning or maintenance, the Valterra 7301 is the industry standard. The engineering is proven across thousands of RV and marine installations.
Why it’s great
- Simple solvent-weld installation with standard ABS cement — no threads to seal
- Gate retracts fully for unrestricted flow, ideal for gravity drain applications
- Proven track record in RV, marine, and pond pump systems
Good to know
- ABS body is not pressure-rated — for gravity and low-pressure use only
- Slip connections require careful pipe measurement before gluing; no room for error after solvent cures
6. Hurrventer 3″ Waste Gate Valve
The Hurrventer 3-inch waste valve stands out for its transparent gate window, which allows you to visually inspect the flow — a huge advantage when backflushing an RV black tank or checking for partial clogs. The valve body uses a metal construction with a clear coating, paired with a plastic gate mechanism. It comes with two clear caps, making it ready to install as a sewer termination valve on an RV waste outlet.
Customer feedback is overwhelmingly positive for RV use: the valve creates a tight seal, stays in position without creeping, and eliminates the dreaded surprise of water leaking when removing the sewer cap. The inlet uses a solvent connection for permanent mounting to the RV pipe, and the outlet has NPT threads for a standard sewer hose fitting. At a price that undercuts most competitors, this valve delivers exceptional value for the specific RV waste application.
One consideration: the plastic gate mechanism may not have the same long-term durability as a full-brass assembly under heavy use. But for seasonal campers and occasional cleanouts, the combination of visual monitoring, tight sealing, and low cost makes the Hurrventer an easy choice.
Why it’s great
- Transparent gate provides real-time visual confirmation of waste flow and tank flush progress
- Tight seal prevents water escape when removing the RV sewer cap
- Includes two clear caps for immediate installation as a termination valve
Good to know
- Plastic gate mechanism may wear faster than all-metal alternatives with frequent use
- Intended for gravity RV waste systems; not rated for pressurized water lines
FAQ
What does 200 WOG mean on a 3-inch gate valve?
Can I use a brass gate valve on my RV waste system?
Why does my new 3-inch gate valve still drip when fully closed?
Final Thoughts: The Verdict
For most users, the best 3 gate valve winner is the DuraChoice 3″ Brass Gate Valve because it delivers a proven leak-free seal on pressurized water lines at a fair price with heavy-duty cast brass construction. If you need an NSF-certified valve for potable water with a non-rising stem, grab the Midline Valve 429U225. And for RV waste systems where visual inspection matters most, nothing beats the Hurrventer 3″ Waste Gate Valve for its transparent gate and tight closure.
