If you’ve ever watched a 3-phase connector loosen under load, you know the sound of arcing contacts means a machine down and a safety risk real. The twist-lock mechanism was invented to solve exactly that — keeping 480V or 208V locked in under industrial vibration. But not every plug on the shelf delivers the same terminal grip, cord strain relief, or contact alloy consistency. A connector that slips or heats up during a production run costs more than its sticker price in downtime.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours cross-referencing NEMA configurations, torque ratings, and customer failure reports to separate connectors built for a decade of daily abuse from those that trigger a mid-shift swap.
Whether you are wiring a CNC machine, a generator distribution panel, or a 60-amp oven line, finding the right 3 phase connector means matching the amperage, pole count, and twist-lock style to the actual load environment.
How To Choose The Best 3 Phase Connector
A 3-phase connector is not a one-size-fits-all component. The wrong NEMA configuration or ampere rating creates an immediate code violation or equipment damage. Focus on these four criteria to narrow the field from dozens of SKUs to the exact part for your circuit.
NEMA Configuration and Voltage Rating
The NEMA code tells you everything: L16-30 means 30A, 480V, 3-pole, 4-wire. L21-30 means 30A, 120/208V, 4-pole, 5-wire. Match the voltage stamped on your equipment nameplate exactly. A 480V plug forced into a 208V receptacle will not lock or carry power — but a 208V plug inserted into a 480V receptacle can cause catastrophic failure. The letter-and-number sequence is the safety language, not a suggestion.
Amperage and Wire Gauge Compatibility
A 30-amp connector requires minimum 10 AWG copper for short runs, while 50-amp connectors need 6 AWG or 8 AWG depending on temperature rating. Check the cord clamp range printed on the connector body. Some products accept 10/4 to 8/4 cable, giving you flexibility for different jacket thicknesses. If your cord is undersized for the terminal opening, the strain relief will not seal, and vibration will eventually break the conductors.
Housing Material and Environmental Resistance
Nylon resists impact, sunlight, chemicals, and rough handling better than basic thermoplastics — critical for construction sites, factories, or outdoor generator connections. A connector housing rated for UL 498 industrial use is tested for drop, crush, and continuous insertion cycles. If the product is made from polycarbonate thermoplastic, it may still be durable, but nylon generally handles extreme cold and UV exposure longer.
Terminal Contact Design
One-piece copper-alloy contacts reduce internal resistance and heat generation compared to multi-piece or stamped assemblies. Heat buildup softens plastic housings over time and causes the twist-lock to loosen. Check whether the connector uses double-wipe contacts for consistent retention after repeated plug-unplug cycles. Products with steel lugs and set-screws may pass torque during installation but can strip after a year of use — prefer brass or copper-alloy terminal screws.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Leviton L16-30 Plug 2731 | Plug — 480V | 480V machine cord replacement | 30A, 480V, 3P/4W, one-piece contacts | Amazon |
| ENERLITES L5-30R Connector | Connector — 125V | Generator / RV twist-lock | 30A, 125V, 2P/3W, polycarbonate shell | Amazon |
| Hubbell L21-30 Plug HBL2811 | Plug — 208V | 120/208V 3-phase panels | 30A, 120/208V, 4P/5W, nylon housing | Amazon |
| Leviton L16-30 Connector 2733 | Connector — 480V | 480V female receptacle end | 30A, 480V, 3P/4W, lifetime warranty | Amazon |
| IronBox L16-30 Plug Set | Plug+Connector Set | Complete cable assembly build | 30A, 480V, 4P/4W, pack of plug+connector | Amazon |
| Legrand 5760 Receptacle | Flush Receptacle | 60A oven / heavy-duty outlet | 60A, 250V, 3P/4W, stainless steel | Amazon |
| Hubbell CS8165C Plug | Plug — 480V High Amp | 50A industrial machine feeds | 50A, 480V, 3P/4W, extra heavy duty | Amazon |
In‑Depth Reviews
1. Leviton 30 Amp 480V L16-30P Plug 2731
The Leviton 2731 is the plug that electricians reach for when replacing a broken cord cap on a 480V machine. Its one-piece copper-alloy contacts reduce friction and heat buildup — a common failure point in multi-piece designs that loosen after thermal cycling. The nylon housing resists impact, sunlight, and chemicals, which matters on factory floors where oil mist and UV from open bay doors degrade cheaper thermoplastics.
The cord clamp accepts a wide range of cord diameters, so whether you are terminating SOOW or SJTOW cable, the strain relief tightens down firmly. Users report it is hard to plug and unplug at first, but that tight fit is exactly what prevents the twist-lock from rotating open under machine vibration. The limited lifetime warranty backs the product without a time limit.
Compared to electrical supply house prices, this 2731 costs roughly half — verified by multiple buyers who compared local quotes. It is rated for 30A, 480V, 3-pole, 4-wire grounding, making it the correct L16-30P for any 480V 3-phase circuit that uses a twist-lock receptacle.
Why it’s great
- One-piece contact design runs cooler under continuous load
- Wide cord clamp range fits 10/4 to 8/4 cables
- Limited lifetime warranty — replace if it ever fails
Good to know
- Initial insertion requires firm force due to tight locking action
- Color is black body with white face — may not match existing all-black installs

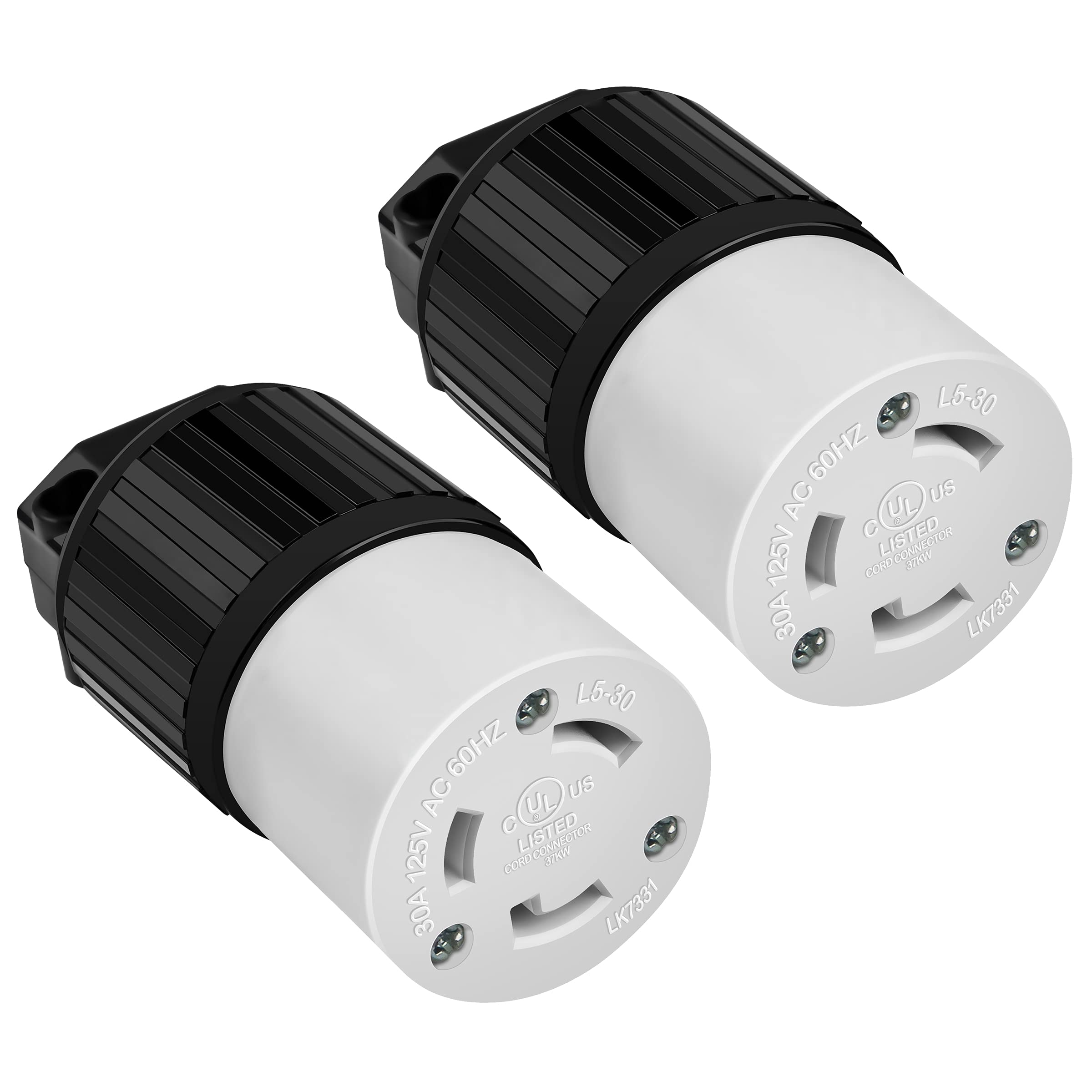

2. ENERLITES NEMA L5-30R Locking Connector 2-Pack
This ENERLITES 2-pack gives you a pair of L5-30R female connectors at a price that beats buying singles from the big-box electrical aisle. The polycarbonate thermoplastic housing is UL listed and withstands the hard impacts of generator hookups and RV cable assemblies. The twist-lock design secures the cord to a 30-amp 125-volt source — common for portable generators and campervan power inlets.
One buyer built a custom 30A campervan cord using three of these, pairing L5-30R to 5-15 plugs, and noted that weather sealing the screw terminals with sealant was necessary for outdoor use — the connector is not water-rated out of the box. The terminals accept 12 AWG easily, and users report running 2000W loads (fridge, AC, microwave) without overheating or voltage drop.
Build quality is adequate for DIY and light commercial use. The insert force is moderate, and the locking ring engages with a positive stop. If you need a bulk solution for multiple generator cords or RV adapters, this 2-pack saves trips to the supply house.
Why it’s great
- Two connectors for the price of one single unit from major brands
- UL listed and fits standard 12 AWG generator cables
- Positive twist-lock engagement reduces vibration disconnect
Good to know
- Not weatherproof — screw terminals should be sealed for outdoor use
- Thermoplastic housing is less chemically resistant than nylon

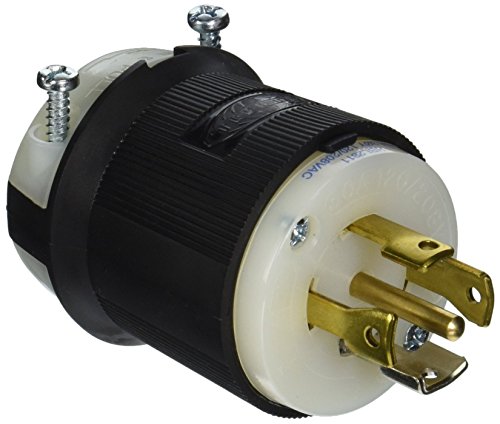

3. Hubbell Wiring Device HBL2811 L21-30P Plug
The Hubbell HBL2811 is the standard-spec plug for 120/208V 3-phase distribution panels in commercial buildings. Its 4-pole, 5-wire configuration (L21-30P) provides separate conductors for each phase plus neutral and ground — required for loads that need 120V line-to-neutral as well as 208V three-phase. The nylon housing and screw terminals are industrial-grade, with double-wipe contacts that maintain grip after hundreds of insertion cycles.
Users confirm the part number matches existing Hubbell equipment on job sites, and the plug installs cleanly with standard screw-terminal wiring. The twist-lock feels solid — not loose or sloppy like some economy connectors. One buyer noted shipping was faster than DigiKey, which matters when a panel swap cannot wait for standard lead times.
At this mid-range price point, the HBL2811 delivers the same OEM-spec fit as Hubbell warehouse stock without the markup from electrical distributors. It is also made in the United States, which is a requirement for some federal and institutional purchasing contracts.
Why it’s great
- NEMA L21-30P — exact spec for 208Y/120V panels
- Nylon housing with double-wipe contacts for long retention
- Made in USA — compatible with existing Hubbell installations
Good to know
- Only 4-pole 5-wire — not interchangeable with L16 series 3-pole connectors
- Black-and-white color scheme may not match all-current black-only installs

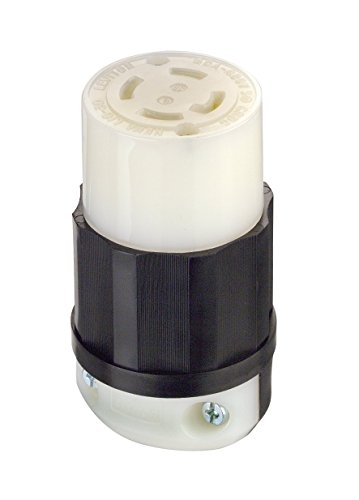

4. Leviton 30 Amp 480V L16-30R Connector 2733
The Leviton 2733 is the female counterpart to the 2731 plug — together they form a 480V 30A locking pair. This connector uses the same one-piece contact system that reduces arc heating, and the nylon body carries the same limited lifetime warranty. If you are building a 480V extension cord or replacing a worn receptacle end, matching brand and series ensures the twist-lock profile aligns correctly.
Multiple buyers report the price is cheaper than their electrical supplier — one said they can afford to keep several on hand as spares. The cord clamp handles a broad range of cable jackets, and the strain relief holds securely once tightened. Like the plug version, insertion is stiff at first, which is a feature of the tight locking mechanism rather than a defect.
For electricians maintaining a fleet of 480V tools, having the 2733 in stock avoids downtime when a connector cracks or loses tension. The product ships with the same dimensions as the plug (30D x 8W x 6H inches packed), so factor that into storage if ordering multiple units.
Why it’s great
- One-piece contacts reduce heat and arcing over time
- Limited lifetime warranty covers replacement
- Same brand as 2731 plug for guaranteed locking compatibility
Good to know
- Initial plug insertion may require more force than worn-out connectors
- Color is black with white face — not fully black

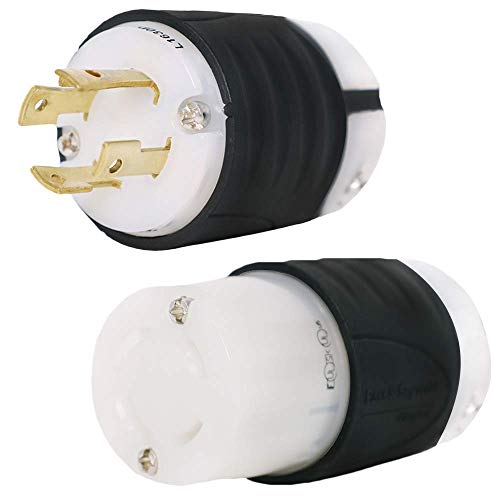

5. IronBox Electric L16-30 Plug and Connector Set
IronBox packages both the L16-30P plug and the L16-30R connector together, so you do not have to order two SKUs and hope they match. The set uses Dupont nylon housing with industrial-grade internals rated for 30A 480V 3-phase. The terminals accept 10/4 or 8/4 AWG cables, and the set is UL listed — meeting the safety requirement for professional environments.
Some users note the twist-lock does not feel as positively locked as Hubbell or Leviton — one reviewer described it as requiring better lock engagement for safety. The product is best for light industrial or backup applications where the cord is not subject to continuous machine vibration. The pack options extend from single sets up to 100 units for large facility maintenance.
If you need one complete cord end assembly in a single box, this set eliminates the guesswork. The price for the pair is competitive with buying a single name-brand connector alone. Just be aware the locking detent may feel softer than premium units, so test the engagement before putting it on a high-vibration tool.
Why it’s great
- Contains both plug and connector in one package
- UL listed Dupont nylon construction
- Available in bulk pack quantities for maintenance teams
Good to know
- Twist-lock mechanism may not hold as tightly as premium brands
- Some orders reported missing items — verify pack count on delivery
6. Legrand Pass & Seymour 5760 60A 3-Phase Receptacle
The Legrand 5760 is a flush-mount straight-blade receptacle rated for 60A at 250V, 3-pole, 4-wire configuration. It is NEMA 15-60R, designed for heavy-duty appliances such as commercial ovens and large machine tools that need more than 30A but do not use twist-lock. The dead-front design is molded from arc-resistant plastic, and the double-wipe contacts use high-performance copper alloy for lasting terminal retention.
One buyer found the blade orientation did not fit their particular socket, so verify the NEMA 15-60R configuration against your existing plug before ordering. The receptacle is UL listed and designed for use with Pass & Seymour stainless steel wall plates such as SS724 or SS702. Installation is straightforward for standard 60A branch circuits using appropriate wire gauge.
For applications where a flush-mount 60A 3-phase outlet is needed — such as a dedicated oven feed or a secondary distribution point — this Legrand unit is a solid choice. It is more expensive than 30A connectors, but the build quality and UL listing justify the cost for permanently installed high-current circuits.
Why it’s great
- Rated for 60A continuous — handles high-draw kitchen and industrial loads
- Arc-resistant dead-front design improves safety
- Copper-alloy double-wipe contacts for consistent grip
Good to know
- Blade orientation must match existing plug — verify NEMA 15-60R compatibility
- Higher price point than typical 30A components

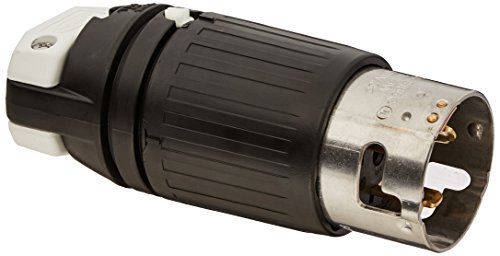

7. Hubbell CS8165C 50A 480V Locking Plug
The Hubbell CS8165C is an extra-heavy-duty locking plug rated for 50A at 480V, 3-pole, 4-wire. This connector is built for large industrial equipment — think compressors, pumps, and large-format CNC machines that draw 50A on three-phase mains. The composite nylon housing is UL 498 listed, and the cord-mounted design accepts 6 AWG or 8 AWG wire depending on temperature rating.
An experienced user noted that early 2023 units had soft copper lugs with steel set-screws, and one stripped after 1.5 years causing intermittent power loss. The replacement unit they received had upgraded steel lugs, which are expected to last longer. Inspect the terminal lug material when you receive the plug — steel lugs are a welcome improvement. Others confirm the plug fits 6 AWG wire perfectly and delivers solid connection quality.
For 50A 480V circuits, this is the correct industrial-spec plug from a brand trusted in heavy facilities. The price is the highest on this list, but for a 50A-rated device that carries a full production load, paying for Hubbell reliability beats replacing a melted connector mid-shift.
Why it’s great
- Extra-heavy-duty rating for 50A continuous industrial loads
- Composite nylon housing resists chemicals and impacts
- UL 498 listed for commercial and industrial safety code compliance
Good to know
- Early units had soft copper lugs — verify you receive steel lug version
- Highest price on this list — for applications that truly need 50A rating
FAQ
Can I use a 30A 3-phase connector on a 50A circuit?
What is the difference between L16-30 and L21-30 connectors?
Is a twist-lock connector required for 3-phase equipment?
Final Thoughts: The Verdict
For most users, the best 3 phase connector winner is the Leviton 30 Amp 480V L16-30P Plug 2731 because it combines one-piece contact reliability, wide cord clamp range, and a lifetime warranty at a price that beats electrical supply houses. If you need a complete plug-and-connector pair in one box, grab the IronBox Electric L16-30 Set. And for 50-amp industrial machine feeds, nothing beats the Hubbell CS8165C 50A Plug for extra-heavy-duty build quality.
