You hear a faint click under the hood, but the horn stays silent or the fan refuses to spin. That click is a 30 amp relay trying — and failing — to pass enough current through undersized contacts and lightweight wiring. A quality automotive relay should switch a 30A load silently and reliably for thousands of cycles, yet many DIY replacements burn out before the first season ends.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours comparing relay coil resistance, wire gauge specifications, seal quality, and actual customer failure rates across dozens of 12V switching products to separate the workhorses from the fire hazards.
This guide evaluates pre-wired harness kits and bare relays to help you find the most dependable 30 amp relay for your automotive, marine, or off-road project.
How To Choose The Best 30 Amp Relay
Not all 30A relays are built alike. A relay rated for 30 amps on the plastic housing can still fail if the internal contact material, wire gauge, or environmental sealing doesn’t match your application. The three factors below will save you from buying a relay that clicks but can’t deliver.
Wire Gauge and Contact Material
The wire feeding power through pin 30 and out pin 87 is the most critical path in a 30A circuit. For continuous 30-amp loads, you need at minimum 12 AWG copper wires — 14 AWG copper is marginal and 16 AWG will overheat under sustained high current. Look for tinned copper contacts and wire strands to resist corrosion in moist environments. Silver-alloy contact faces on the internal switching element reduce arcing and extend mechanical life far beyond plain copper.
Sealing and Environmental Rating
An engine-bay relay faces heat, vibration, road salt, and pressure-wash spray. An IP65 rating means the relay and socket are protected against dust ingress and low-pressure water jets from any direction. For marine or off-road use, silicone gaskets between the relay base and harness socket are non-negotiable — a relay that lets moisture creep into the coil cavity will corrode the internal armature within months.
Coil Protection — Diode or Resistor
Every time a relay coil de-energizes, it generates a reverse voltage spike that can damage sensitive electronics — ECUs, audio head units, and CAN-bus modules. Relays with a built-in flyback diode (sometimes marked as a supression diode) shunt this spike safely. If your relay switches a load connected to a modern vehicle’s computer-controlled system, a diode-protected coil is safer than a bare coil that dumps that spike back into the wiring harness.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DaierTek 8 Pack | Premium | Electronics protection | Built-in flyback diode | Amazon |
| iRhapsody 4-Pin Waterproof | Premium | Wet environments | 12 AWG tinned copper wire | Amazon |
| Ronybuy 5-Pin Waterproof | Mid-Range | IP65 outdoor use | 12/16 AWG tinned copper | Amazon |
| Weasch Fuse Relay Kit | Mid-Range | Integrated circuit protection | Built-in 30A blade fuse | Amazon |
| APIELE 4-Pin Fused SPST | Mid-Range | Simple on/off circuits | 14 AWG wire + 30A fuse | Amazon |
| EPAuto 5-Pack SPDT | Budget | Low-current accessory control | 16 AWG main contact wire | Amazon |
| iRhapsody 5-Pin SPDT (B07NZY) | Mid-Range | Bulk harness builds | Copper contacts, 80 ohm coil | Amazon |
In‑Depth Reviews
1. DaierTek 8 Pack 12V Relay with Built-in Diode & 12 AWG Harness Socket
The DaierTek 8-pack earns the top spot for combining component protection with heavy-duty wiring at a competitive price. Each relay features a built-in flyback diode across the coil — a critical detail when switching loads near sensitive ECUs, audio amplifiers, or CAN-bus modules. The diode absorbs the inductive kickback that occurs when the coil de-energizes, preventing voltage spikes from traveling back into the control circuit.
The harness sockets use 12 AWG tinned copper wires on the high-current legs (red, blue, yellow for pins 30, 87, 87a) and 16 AWG for the coil leads. The IP65-rated seal ring between the relay base and socket keeps moisture out of the contact cavity, which is especially useful in marine bilge pump or off-road lighting circuits. Some users noted the physical size is slightly larger than a standard Bosch-style relay, so confirm clearance before mounting.
Over eight relays per pack, the per-unit cost is attractive for multi-circuit projects like total vehicle rewire or accessory fuse panels. The diode protection alone makes this kit safer for modern vehicles than any bare relay without suppression components.
Why it’s great
- Built-in flyback diode protects vehicle electronics from voltage spikes
- 12 AWG tinned copper on power leads handles sustained 30A loads safely
- IP65 silicone seal ring provides genuine moisture protection
Good to know
- Bulky housing may not fit tight factory relay boxes
- Diode adds polarity sensitivity — incorrect wiring can damage the relay
2. iRhapsody 4-pin 40/30AMP 12V DC Waterproof Relay with Heavy Duty Wires, Pack of 5
The iRhapsody 4-pin relays use 12 AWG tinned copper wire on both the power input (pin 30) and the normally open output (pin 87) — genuinely thick cable that stays cool under a full 30A draw. The SPST configuration is ideal for simple on/off applications like cooling fans, fuel pumps, or LED light bars where you only need a single switched output without a normally-closed circuit.
Each relay is potted with a silicone gasket that seals the base-to-socket interface, achieving IP65-level protection against spray and dust. The brass socket receivers inside the harness resist corrosion better than standard steel terminals. The housing measures roughly 1.4 x 1.4 inches, which is noticeably larger than a compact Bosch-style unit — check your mounting location before buying.
The 80-ohm coil draws only 1.8W at 12V, keeping the trigger circuit cool. The minimum operating voltage is 6V DC, so these relays can still switch cleanly on a partially discharged battery. For sustained 30A circuits in exposed locations, this kit is among the most mechanically robust options available.
Why it’s great
- Full 12 AWG tinned copper wire handles continuous 30A without voltage drop
- Potent silicone gasket seals the base against pressure-wash spray
- Brass socket receivers resist corrosion better than steel terminals
Good to know
- Large 1.4-inch housing may not fit compact OEM relay boxes
- SPST only — no normally-closed pin for dual-mode circuits
3. Ronybuy 5-Pin Waterproof Relay Kit 40/30 AMP 12V, Pack of 5
The Ronybuy 5-pin kit delivers genuine IP65-rated water protection without the premium price tag. The harness uses 12 AWG tinned copper wire on the high-current pins (30, 87, and 87a) with 16 AWG for the coil trigger — a smart compromise that keeps the main power path robust while saving weight on the control circuit. The SPDT configuration offers both normally-open and normally-closed outputs, giving you flexible switching options for dual-mode loads like radiator fan relays with a high-speed override.
Customer reviews confirm the seals hold up well under engine-bay conditions, and the heavy-duty wires exceed the gauge of many budget packs. The five-relay count covers most accessory installs — one pair for headlight relays, one for a horn circuit, and spares for future projects. A few buyers reported that the wire inside the harness is aluminum rather than copper, so verify before trusting with mission-critical safety systems like fuel pumps.
For the price, you get SPDT flexibility, a genuine IP65 seal, and wiring heavy enough for 30A continuous duty. Just double-check the wire composition if you plan to install the relay in a high-corrosion marine environment.
Why it’s great
- IP65 seal protects against engine-bay moisture and road spray
- SPDT configuration gives N/O and N/C output flexibility
- 12 AWG main wires reduce resistance at full 30A draw
Good to know
- Some units appear to use aluminum wire instead of copper
- Wiring diagram printed on the relay may list 87A incorrectly

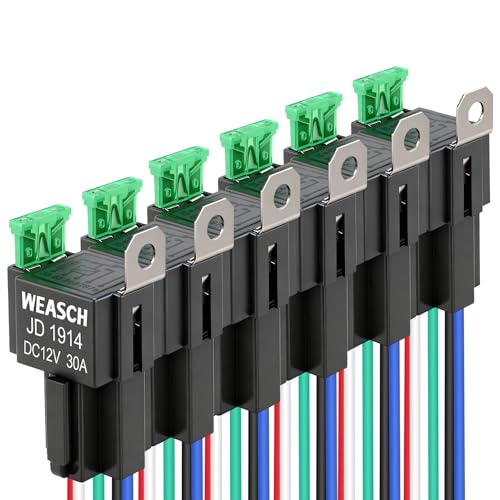

4. Weasch 6 Pack Fuse Relay Switch Kit, 12V 30A, 5 Pin SPDT
The Weasch kit integrates a 30A blade fuse holder directly into the relay harness — a design that protects the wire feeding pin 30 from short circuits before they reach the relay contacts. The fuse is positioned on the power input leg, which is standard best practice, but it means the relay itself is not protected from an internal failure. The 14 AWG hot wire is thicker than the 16 AWG found on bare-bones budget packs, yet still below the 12 AWG used in premium alternatives.
The six-pack includes six 30A fuses and a metal mounting bracket for each relay, making installation cleaner than separate fuse holders and relay bases. The SPDT layout supports both N/O and N/C operation, and the included bracket makes firewall mounting straightforward. The trigger voltage range (6-8V minimum operate, 15.6V max) accommodates charging system voltage spikes without false triggering.
If the relay ever fails, replacing it removes the fuse protection for that circuit — you would need to re-fuse the power feed separately to maintain protection with a new relay. This is a solid mid-range choice for fog lights or auxiliary cooling fans where the inline fuse adds a layer of safety the bare relay lacks.
Why it’s great
- Integrated 30A blade fuse protects the power input wire from shorts
- SPDT with mounting bracket simplifies firewall installation
- Six relays with fuses included — good value per circuit
Good to know
- 14 AWG wire is adequate but not as heavy as 12 AWG for sustained loads
- Replacing the relay leaves the circuit unfused unless you wire a separate fuse
5. APIELE 4 Pin 12V 40A Relay with 30A Fuse, SPST, 14 AWG Harness Socket, 6 Pack
The APIELE 4-pin SPST relay combines a built-in 30A blade fuse with 14 AWG power wiring, offering fused protection at a budget-friendly price point. The normally-open contact design is perfect for simple on/off loads like auxiliary driving lights, electric fans, or fuel pumps that only need a single switched positive feed. The silver-alloy contacts provide better arc suppression than plain copper, which extends the mechanical life under repeated switching.
Each relay comes with a metal mounting bracket and a 4-wire socket. The fuse is positioned on the load side of the circuit, which protects the controlled device but leaves the wire feeding pin 30 unprotected against a short before the relay. The 14 AWG wire is thinner than the premium 12 AWG alternatives, so for continuous 30A draws, the wire and connector may run warmer than ideal. The SPST form factor means you only get one switched output — no normally-closed pin for dual-state circuits.
Customer feedback highlights the relay’s ability to solve voltage-drop problems on older tractors and restoration projects. If you need a fused SPST relay for a moderate-current project and want six units to stock your toolbox, this kit delivers reliable performance at a low per-unit cost.
Why it’s great
- Built-in 30A blade fuse on the load circuit adds device protection
- Silver-alloy contacts reduce arcing and extend relay life
- Six-pack with mounting brackets covers multiple projects
Good to know
- 14 AWG wire is marginal for sustained 30A continuous duty
- SPST (1NO) only — no N/C terminal for dual-mode circuits
6. EPAuto 30/40 AMP Relay Harness Spdt 12V, 5-PIN Bosch Style, 5 Pack
The EPAuto 5-pack mirrors the classic Bosch 5-pin SPDT layout at a price that makes it easy to stock up. The impact-molded socket is UL flame-retardant rated, and the included 9-inch wires are color-coded per the Bosch standard (white for common, black for NC, yellow for NO). The silver-alloy contacts inside the relay body provide decent arc suppression for intermittent loads like horn circuits, power trunk latches, or lawn tractor accessories.
The main limitation is the 16 AWG wire used on the high-current pins — while fine for loads under 15A continuous, it will heat up noticeably if you try to draw a full 30A through it for extended periods. The wire can be replaced by unpinning the connector, but that is an extra step most buyers won’t want to take. The mounting bracket is thin and bends easily, so securing the harness to a rigid surface is recommended.
For non-critical projects where cost and availability matter more than raw ampacity, this pack gets the job done. Users report consistent relay performance after years of service in hobbyist robotics and low-current automotive circuits, with only occasional failures in heavy-duty use.
Why it’s great
- Low trigger voltage energizes reliably even with weak control signals
- UL flame-retardant socket adds fire safety in engine compartments
- Classic Bosch pinout is widely compatible with existing harnesses
Good to know
- 16 AWG wire is undersized for sustained 30A loads
- Thin mounting bracket offers limited mechanical retention
7. iRhapsody Relay 12V 5-pin 40/30AMP Automotive Relay Kit, SPDT 5-Prong
The iRhapsody 5-pin bare relay is the no-frills workhorse that harness builders and LS-swap enthusiasts buy by the hundreds. The 80-ohm coil draws just 1.8W, keeping the trigger circuit cool even in dense wiring looms, and the must-operate voltage range of 6-8V ensures reliable closure on a weak battery. The copper contacts switch cleanly, and the removable mounting tab gives you the option to slot the relay into a standard fuse box or bolt it to a panel.
No harness or wires come in the pack — you get seven bare SPDT relays (60/40A rated) that you wire yourself. This is ideal for custom wiring projects where you want to choose your own socket and wire gauge. The 40A normally-open and 30A normally-closed ratings mirror standard Bosch specifications, so these drop in to almost any existing relay socket with the correct pinout.
With a track record of negligible failure rates across thousands of units used in LS swap harnesses, the iRhapsody 5-pin proves that a simple, well-made relay is often the most reliable. For bulk orders on large-scale projects where you need consistent performance across multiple circuits, this is the most cost-effective bare relay option.
Why it’s great
- 80-ohm coil runs cool and triggers reliably with minimal control current
- Removable mounting tab works in both socket and panel-mount applications
- Proven track record with near-zero failure rate in high-volume harness builds
Good to know
- Bare relays only — no sockets, wires, or fuses included
- No built-in flyback diode for inductive load protection
FAQ
What is the difference between a 30A relay and a 40A relay?
Can I use a 5-pin SPDT relay in place of a 4-pin SPST relay?
How important is a flyback diode in a 30A relay circuit?
Why does my relay click but not switch the load?
Final Thoughts: The Verdict
For most users, the 30 amp relay winner is the DaierTek 8 Pack because its built-in flyback diode protects sensitive vehicle electronics while the 12 AWG tinned copper wires safely handle sustained 30A loads. If you need the most rugged waterproof option for exposed mounting, grab the iRhapsody 4-Pin Waterproof with its full 12 AWG wiring and IP65 seal. And for simple fused SPST circuits on a budget, nothing beats the per-unit value of the APIELE 4-Pin Fused Relay Kit.
