A 3030 brake chamber that fails at 60,000 miles isn’t a bargain—it’s a liability. The difference between a chamber that delivers consistent clamp force over hundreds of thousands of miles and one that seizes or loses its seal comes down to steel gauge, diaphragm compound, and the quality of the corrosion-resistant coating. This category demands ruthless component-level scrutiny because a chamber’s real job isn’t just to stop—it’s to keep stopping under extreme temperature swings, road salt, and continuous vibration.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours cross-referencing OEM part numbers, comparing steel housing thicknesses, and analyzing customer field reports from heavy-duty truck fleets to separate the durable chambers from the ones that belong in a core pile.
This guide cuts through the parts-bin confusion to help you identify the best 3030 brake chamber for your specific application, whether you’re servicing a single trailer or stocking a fleet service truck.
How To Choose The Best 3030 Brake Chamber
Not all 30/30 chambers are interchangeable. The size stamp (3030) tells you the service and spring brake diaphragm areas, but stroke length, port orientation, housing construction, and OEM cross-reference numbers determine whether a chamber bolts on and functions correctly. Here are the critical factors.
Stroke Length: Standard vs. Long
A standard 2.5″ stroke (sometimes called 2.25″ in piggyback designs) works for most trailers and drive axles with properly adjusted brakes. A 3″ long stroke provides extra push-rod travel, which compensates for worn brake linings and reduces the frequency of manual brake adjustments. The trade-off: long-stroke chambers require compatible slack adjusters and brake foundation geometry. Installing a 3″ chamber on a system designed for 2.5″ can bottom out the internal spring.
Construction: Piggyback vs. Sealed Tandem
Piggyback chambers, like Product 1, have a separate spring brake canister bolted onto the service chamber. This design allows you to replace the service diaphragm without discarding the entire assembly. Sealed tandem chambers (Products 3, 4, 6, 7) integrate both sections into one crimped housing—more compact, lighter, but non-serviceable. Fleets that rebuild prefer piggybacks; owner-operators often choose sealed for fewer leak paths.
Port Type and Hardware Included
Check for round cast bosses with 3/8″ NPT threads (the most common standard) versus square bosses. Chambers with square bosses (Products 5, 6, 7) typically use a different port geometry and may require adapters for certain air lines. Verify that the chamber ships with clevis, cotter pin, and push rod—many budget-minded chambers arrive missing hardware, which delays installation.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| National Drivetrain WA3030PBKIT | Piggyback | Rebuildable fleet service | 2.25″ stroke, 15 lbs | Amazon |
| National Drivetrain WA3030TL | Long Stroke | Tandem axles needing 3″ travel | 3″ stroke, 21 lbs | Amazon |
| National Drivetrain WA3030T | Sealed Tandem | Drop-in replacement with hardware | 2.5″ stroke, 20 lbs | Amazon |
| Torque TR3030C (2-Pack) | Standard Value Pack | Dual-side replacement | 2.5″ stroke, 20 lbs each | Amazon |
| Torque TR3030CLS (2-Pack) | Long Stroke Premium | Heavy haul requiring extra travel | 3″ long stroke, 21.8 lbs each | Amazon |
| Mytee Products MPN3030-TSLSXx4-PK | Fleet 4-Pack | Whole trailer axle set | 3″ long stroke, 83.3 lbs set | Amazon |
| Mytee Products MPN3030-TSXx4-PK | Standard Fleet 4-Pack | Multi-trailer fleet stock | Standard stroke, 80 lbs set | Amazon |
In‑Depth Reviews

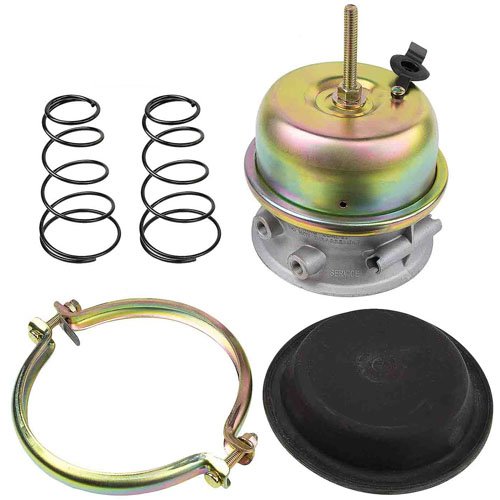

1. National Drivetrain 30/30 Piggyback Kit (WA3030PBKIT)
This piggyback kit separates the spring brake canister from the service chamber, making it the only option on this list that allows diaphragm replacement without replacing the entire unit. The 2.25″ standard stroke is ideal for trailers with in-spec brake adjustment. Customers report a direct fit on Kenworth T680 tractors and semi-trailers, with no air-port alignment issues, thanks to the 3/8″ round inlet type.
The 15-pound assembly is noticeably lighter than sealed tandem designs, which reduces unsprung weight on the axle. The corrosion-resistant components held up during reported salt-exposure use. One technician noted that if you know how to rebuild a worn chamber, this kit saves money versus buying a sealed replacement each time.
Cross-referenced against Bendix 3030STD-KIT, TRP 3030PBK, and Haldex GP3030K, this chamber covers the widest OEM compatibility in its price tier. The piggyback design makes it the strongest choice for fleets that stock rebuild components rather than whole chambers.
Why it’s great
- Rebuildable piggyback design reduces long-term replacement cost.
- Universal fit confirmed on Kenworth, Freightliner, and trailer applications.
- Includes both spring and service chambers in one kit.
Good to know
- 2.25″ stroke may not suit worn brakes needing longer travel.
2. National Drivetrain 30/30 Long Stroke Tandem (WA3030TL)
The 3″ long stroke chamber from National Drivetrain is engineered for tandem axle configurations where standard 2.5″ chambers run out of travel before the brakes fully engage. The 15″ push rod with stroke indicator simplifies installation alignment. Reinforced 11-gauge steel non-pressure housing and epoxy-coated power spring are the key differentiators here—most mid-range chambers use thinner 14-gauge steel.
Fleet mechanics consistently report that every required bolt and clevis is present in the box, a frustration point with other chambers that arrive incomplete. The E-coated steel housing resists corrosion without the carcinogen concerns of traditional zinc plating, a detail that matters for long-term field exposure on salt-treated roads.
The 21-pound weight reflects the heavier steel specification. Cross-referenced against Bendix NT3030ELS80 and Freightliner ABP N42A 23030C3D, this chamber ships with a 1-year/100,000-mile warranty, which is standard for this price tier but still provides procurement peace of mind.
Why it’s great
- 3″ long stroke extends brake adjustment intervals significantly.
- Includes clevis, hardware, and stroke indicator—no parts chasing.
Good to know
- Heavier than standard chambers at 21 lbs.
3. National Drivetrain 30/30 Sealed Tandem (WA3030T)
The sealed tandem design of the WA3030T integrates the service and spring brake sections into a single crimped housing, eliminating two potential leak paths found in piggyback designs. The 2.5″ standard stroke with a 13.5″ push rod (5/8″-18 thread) covers the majority of over-the-road trailer and drive-axle applications. Round cast air port bosses with 3/8″ NPT threads provide a leak-free seal with standard air fittings.
The 8620 steel construction and 10.312″ chamber height meet OEM specifications for Bendix BW-NT3030STD78, Haldex 3030SB, and Freightliner ABPN42A43030C3D. Customers report easy installation with included clevis and hardware. The black E-coated housing resists corrosion comparably to zinc plating without the hazardous byproducts during manufacturing.
At a weight of 20 pounds, this chamber feels solid without being excessively heavy. The wide-style clamp bands simplify diaphragm replacement when the sealed unit eventually needs service, though most users in the field report they install these and forget them for the life of the brake reline interval.
Why it’s great
- Sealed tandem eliminates external leak points between chambers.
- Wide OEM cross-reference reduces parts confusion.
Good to know
- Non-rebuildable—entire unit must be replaced if diaphragm fails.
4. Torque 2-Pack 30/30 Sealed 2.5″ Stroke (TR3030C)
The Torque TR3030C 2-pack delivers matched chambers for both sides of an axle, ensuring uniform brake force distribution. Each sealed tandem chamber uses a standard 2.5″ stroke with 2×3/8″ NPT port threads and a push rod length of 11-3/4″.
Customers running these on hopper trailers and tractors report exact fitment with no air leaks. The fully threaded port bosses accept standard fittings without adapter bushings. At 20 pounds per chamber, the pair adds 40 pounds of unsprung weight—acceptable for most heavy-duty applications.
The 1-year unlimited-mile warranty covers manufacturing defects, and the included hardware kit means no last-minute parts runs. The only recurring feedback is that packaging could be sturdier; the chambers arrive in a single box with loose hardware, though no damage has been reported from this method.
Why it’s great
- Matched 2-pack eliminates brake pull from uneven chambers.
- Broad OEM cross-reference covers Bendix, Haldex, Meritor, Mack.
Good to know
- Packaging allows hardware to shift during transit.
5. Torque 2-Pack 30/30 Square Boss 3″ Long Stroke (TR3030CLS)
This Torque 2-pack moves to a 3″ long stroke with square boss air ports, targeting heavy-haul applications where brake lining wear outpaces standard adjustment cycles. The dual O-ring center seal with plastic bearings provides positive sealing that resists air loss better than single-seal designs. Each chamber weighs 21.8 pounds and includes a 13″ push rod measured from the face of the service housing.
The superior power spring technology uses an advanced powder coating process that resists both corrosion and fatigue cracking. The 9-gauge steel service housing is thicker than the industry-standard 11-gauge, providing extra structural rigidity under repeated high-pressure cycles. The self-piloting dust shield keeps contaminants out of the diaphragm area during installation and operation.
Cross-referenced against Bendix NT3030ELS80, Haldex GC3030L, and Watson and Chalin 12963, this kit covers the major long-stroke OEM numbers. The 1-year unlimited-mile warranty applies, and customers who bought the standard version came back for this long-stroke set specifically for its improved brake modulation on steep grades.
Why it’s great
- Dual O-ring center seal prevents internal air migration.
- 9-gauge service housing outlasts standard 11-gauge chambers.
Good to know
- Square bosses may require adapter fittings for round-port air lines.

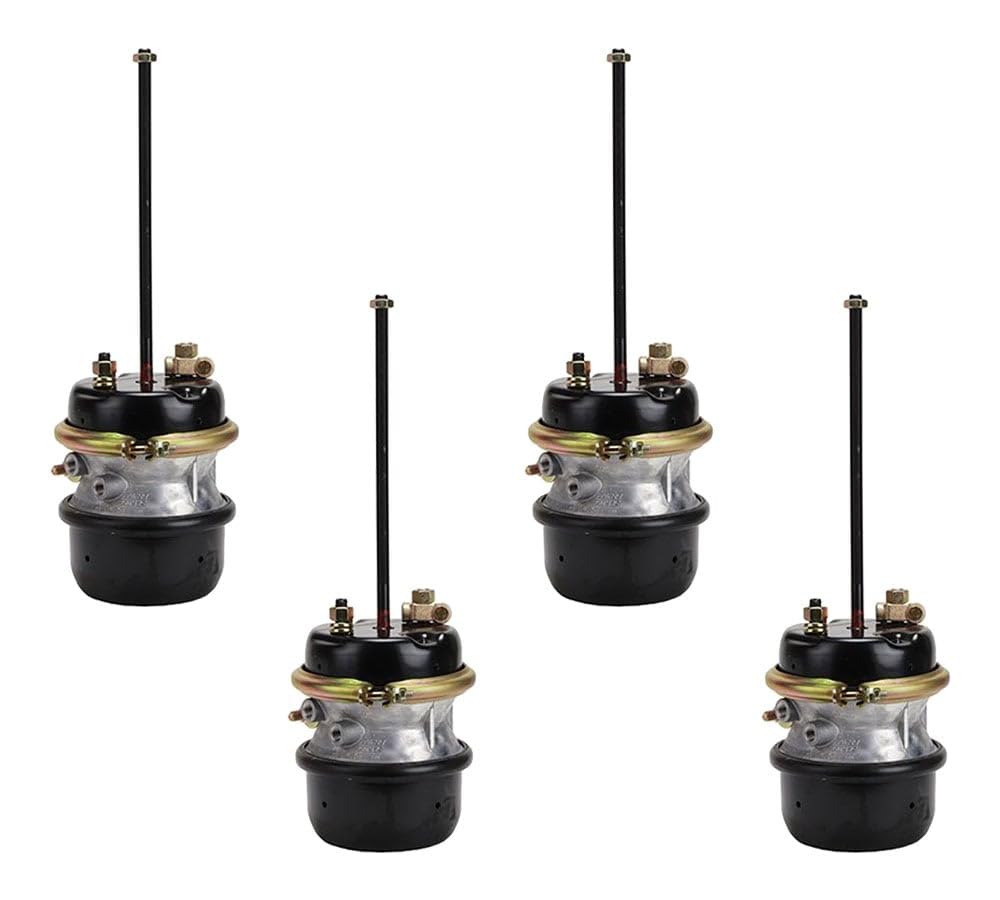

6. Mytee Products 4-Pk 30/30 Square Boss Long Stroke
The Mytee Products 4-pack is designed for fleets that want to replace all chambers on a trailer axle set simultaneously. Each unit is a Type 30 Spring Brake LS TDM with 3″ long stroke and square bosses. The 18-month or 100,000-mile warranty exceeds the industry-standard 1-year coverage, signaling confidence in the manufacturing quality. At 83.3 pounds for the set, this is a heavy-duty kit meant for professional installation.
Customers confirm these match the 3030-TSLSX OEM specification and work reliably once installed. The feedback on packaging is consistent: the cardboard box is insufficient for the weight of four steel chambers, with multiple reports of boxes breaking open in transit. The chambers themselves arrive undamaged, but the loose hardware inside the torn box creates a mess.
This pack replaces Bendix, Haldex, and Automann long-stroke part numbers. For a fleet that goes through chambers on a predictable schedule, buying a 4-pack reduces per-unit cost and ensures all four corners of a trailer have identical stroke characteristics.
Why it’s great
- 4-pack pricing reduces per-chamber cost for fleet stock.
- Extended 18-month warranty exceeds typical coverage.
Good to know
- Packaging consistently fails during shipping—plan to receive loose parts.
7. Mytee Products 4-Pk 30/30 Square Boss Standard Stroke
This Mytee Products 4-pack provides standard stroke sealed tandem chambers for fleets that don’t need the extra 3″ travel. The Type 30 Spring Brake TDM design replaces an extensive list of OEM numbers including Bendix NT3030STD78, Haldex GC3030, and Freightliner 3030TS. The 80-pound set weight is slightly lower than the long-stroke variant due to the shorter spring housing.
The same 18-month/100,000-mile warranty applies. Customers note that the chambers function exactly as described, with the same caveat about fragile packaging that plagues the long-stroke 4-pack. For shops that order in bulk and stock shelves, the packaging issue is less relevant, but for direct-to-truck deliveries, it’s worth noting.
Cross-referencing against over 30 OEM part numbers, this kit covers one of the broadest compatibility footprints in the standard-stroke category. The square bosses require the same adapter consideration as the Torque long-stroke set. For a fleet manager stocking a standardized chamber for multiple trailer brands, this 4-pack simplifies inventory.
Why it’s great
- 30+ OEM cross-references cover most standard applications.
- 4-pack bulk pricing reduces cost per axle set.
Good to know
- Box design struggles with the weight of four chambers.
FAQ
Can I replace a 2.5″ stroke 30/30 chamber with a 3″ long stroke version?
What does the “3030” number mean on a brake chamber?
What is the difference between a piggyback and a sealed tandem 30/30 chamber?
How do I know if my 30/30 brake chamber needs replacement?
Final Thoughts: The Verdict
For most users, the best 3030 brake chamber winner is the National Drivetrain Piggyback Kit because its rebuildable design reduces long-term ownership costs while covering the broadest OEM compatibility. If you need extra travel for worn brake systems, grab the Torque 2-Pack Long Stroke for its dual O-ring seal and 9-gauge housing. And for stocking a fleet trailer in one order, nothing beats the Mytee Products 4-Pack Long Stroke with its extended 18-month warranty.
