A commercial door opening is a constant battle against losing conditioned air and inviting in dust, fumes, and flying insects. An air curtain creates an invisible barrier of high-velocity air that separates indoor and outdoor environments, allowing doors to stay open for traffic while keeping the elements out. The electric heat component adds thermal comfort, warming the air stream to combat cold drafts during winter months, making it a year-round solution for retail stores, restaurants, warehouses, and entryways.
I’m Min — the co-founder and writer behind Gadgets Feed. After spending countless hours cross-referencing CFM ratings, heating wattages, motor types, and installation requirements across dozens of models, I’ve narrowed down the specific performance metrics that separate an effective air barrier from a noisy, underpowered fan. This guide focuses on the wiring complexity, air velocity, and heating capacity that actually matter for a 36-inch door opening.
Commercial spaces need a reliable solution to maintain interior temperature and block contaminants, and this breakdown of the top contenders will help you identify the right 36-inch air curtain with electric heat for your specific foot traffic and climate demands.
How To Choose The Best 36-Inch Air Curtain With Electric Heat
Selecting an air curtain for a 36-inch opening involves more than just matching the width. You must balance air volume, heating capacity, mounting configuration, and control method to match your specific environment. Here are the key factors to evaluate before making a purchase.
CFM and Air Velocity: The Core Performance Metric
The cubic feet per minute (CFM) rating determines how much air the curtain moves, but velocity—measured in feet per minute (FPM)—is what actually creates the barrier. For a 36-inch door, a minimum of 1,000 CFM at high speed is recommended for effective insect and dust rejection. Units with lower CFM may struggle to reach the floor in taller doorways, allowing pests and drafts to slip underneath the air stream.
Electric Heat Wattage and Voltage Requirements
Electric heat in air curtains typically ranges from 3,000 to 15,000 watts. Higher wattage provides greater temperature rise, which is critical for cold climates where the door opens frequently. 240-volt circuits are standard for units above 3,000 watts, while 120-volt models are limited to lower heat output. Confirm your available circuit capacity—many high-wattage units require a dedicated 30-amp or 50-amp breaker and professional installation.
Activation Methods: Magnetic Switches vs. Motion Sensors
Automatic activation ensures the air curtain runs only when the door is open, saving energy. Magnetic door switches are the most reliable, triggering the unit immediately when the door opens and shutting it off when closed. Motion sensors detect approaching traffic and activate the curtain before the door opens, which can pre-pressurize the doorway to block particles more effectively. Some premium units combine both for comprehensive coverage.
Noise Level and Mounting Considerations
Air curtains generate significant noise due to high-speed fans. Decibel (dB) ratings between 55 and 65 dB are common for 36-inch units. For customer-facing entrances, quieter models near 55 dB are preferable to avoid disrupting conversations. Mounting height also affects performance—units mounted too high may not project the air stream to the floor, reducing effectiveness. Most manufacturers specify a maximum mounting height, typically 8 to 10 feet.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Qmark SSHO4004 | Premium | Programmable zone heating | 4000W / 240V / 400 sq ft | Amazon |
| Fahrenheat FZL4004F | Premium | Entryways and vestibules | 4000W / 240V / 400 sq ft | Amazon |
| Global Industrial Unheated | Mid-Range | Insect barrier without heat | 815 CFM / 120V / 2-speed | Amazon |
| Awoco 36″ Early Turn On | Mid-Range | Motion-activated particle barrier | 1177 CFM / 120V / 58dB | Amazon |
| Broan-NuTone 194 | Mid-Range | Wall-mounted room heating | 3000W / 240V / 300 sq ft | Amazon |
| DEWALT Forced Air Electric | Premium | Construction site heating | 34121 BTU / 240V / 850 sq ft | Amazon |
| Mr. Heater Big Maxx MHU80NG | Premium | Large shop or garage heating | 80000 BTU / Natural Gas / 2667 sq ft | Amazon |
| DR. INFRARED HEATER DR-PS11524 | Premium | Portable high-BTU construction heat | 15000W / 240V / 80A circuit | Amazon |
| Ninja Fireside360 OF101ST | Budget | Outdoor patio heating and ambiance | 80000 BTU / Propane / 10 ft range | Amazon |
In‑Depth Reviews
1. Qmark SSHO4004 Smart Series Digital Programmable LED Touchscreen Wall Heater
The Qmark SSHO4004 is a fan-forced wall heater designed for rooms up to 400 square feet, featuring a digital programmable LED touchscreen that allows weekday/weekend scheduling to reduce energy waste. Its 4,000-watt output at 240 volts ensures rapid heat delivery for entryways and vestibules, though it requires a dedicated 20-amp double-throw breaker and #10-2 wiring for safe installation.
The touchscreen interface offers precise temperature control within 15 degrees of the set point, and the unit’s compact 15.75-by-4-inch form factor fits between standard wall studs. Users report that the programmable hold mode and on-demand operation help lower electric bills by enabling zone heating, making this a strong candidate for commercial spaces that need consistent, automated warmth.
Some units arrived with cosmetic damage due to inadequate packaging, and a small number of customers experienced immediate smoke or failure upon first use. Despite these quality-control concerns, the programmable features and efficient fan-forced design make it a premium choice for environments where automated scheduling and consistent temperature are priorities.
Why it’s great
- Programmable LED touchscreen with weekday/weekend scheduling
- 4000W output heats large rooms quickly on a 240V circuit
- Vacation hold mode saves energy when space is unoccupied
Good to know
- Requires professional wiring with a 20A double-throw breaker
- Inconsistent packaging leads to occasional cosmetic damage
- Some units reported failure during initial installation
2. Fahrenheat FZL4004F High Capacity Fan Forced Wall Heater
The Fahrenheat FZL4004F delivers 4,000 watts of fan-forced heat through a heavy-duty 18-gauge steel grille with downflow louvers that direct warm air toward the floor. Its integrated double-pole thermostat provides a positive ON/OFF position and an adjustable range from 40 to 90 degrees Fahrenheit, making it suitable for entryways, vestibules, lobbies, and basements up to 400 square feet.
A standout feature is the fan delay, which keeps the fan off until the heating element reaches proper temperature, eliminating cold drafts on startup, and continues running after shutdown to disperse residual heat. The three-piece design simplifies installation, though the unit requires a 240-volt, 30-amp circuit—owners of uninsulated garages praise its ability to raise temperatures from 40°F to 60°F within 30 minutes.
Build quality is robust, but the sheet metal grille can buzz against drywall if no foam gasket is used, and some customers report the fan becomes noticeably loud over time due to motor vibration. Packaging complaints are common, with several units arriving with bent grilles or motor marks from shipping damage.
Why it’s great
- Fan delay prevents cold drafts and extends element life
- 4000W output heats uninsulated spaces rapidly
- Double-pole thermostat with positive OFF saves energy
Good to know
- Requires a dedicated 240V, 30A circuit
- Fan noise increases over time on some units
- Packaging offers minimal protection during shipping
3. Global Industrial Unheated Air Curtain With Remote Control, 36″W
The Global Industrial unheated air curtain is a 36-inch-wide, 2-speed fan unit that moves up to 815 CFM of air, designed to maintain indoor air quality by preventing dust, odors, fumes, and flying insects from entering through open doorways. Its 1/3 HP motor runs on a standard 120-volt circuit, making installation straightforward compared to high-voltage heated models.
Oscillating louvers let you direct the airflow angle, and the included remote control provides convenient speed and louver adjustments from across the room. Customers using it over dog doors and front entrances report excellent fly control, with one user noting it can blow flies “into the next county.” The slim 8.5-inch depth allows mounting in tight spaces above standard doors.
Noise is a notable trade-off—several users describe the unit as too loud for quiet environments like bedrooms, with one reviewer unable to return it due to the seller’s non-returnable policy. The 815 CFM output may be insufficient for taller commercial doorways where a stronger air stream is needed to reach the floor.
Why it’s great
- Plugs into standard 120V outlet with no special wiring
- Oscillating louvers and remote control for flexible airflow
- Effective at blocking flying insects through open doors
Good to know
- Fan noise is too loud for quiet residential or bedroom use
- 815 CFM may not create a full floor-to-ceiling barrier in tall doors
- Some sellers classify this as non-returnable

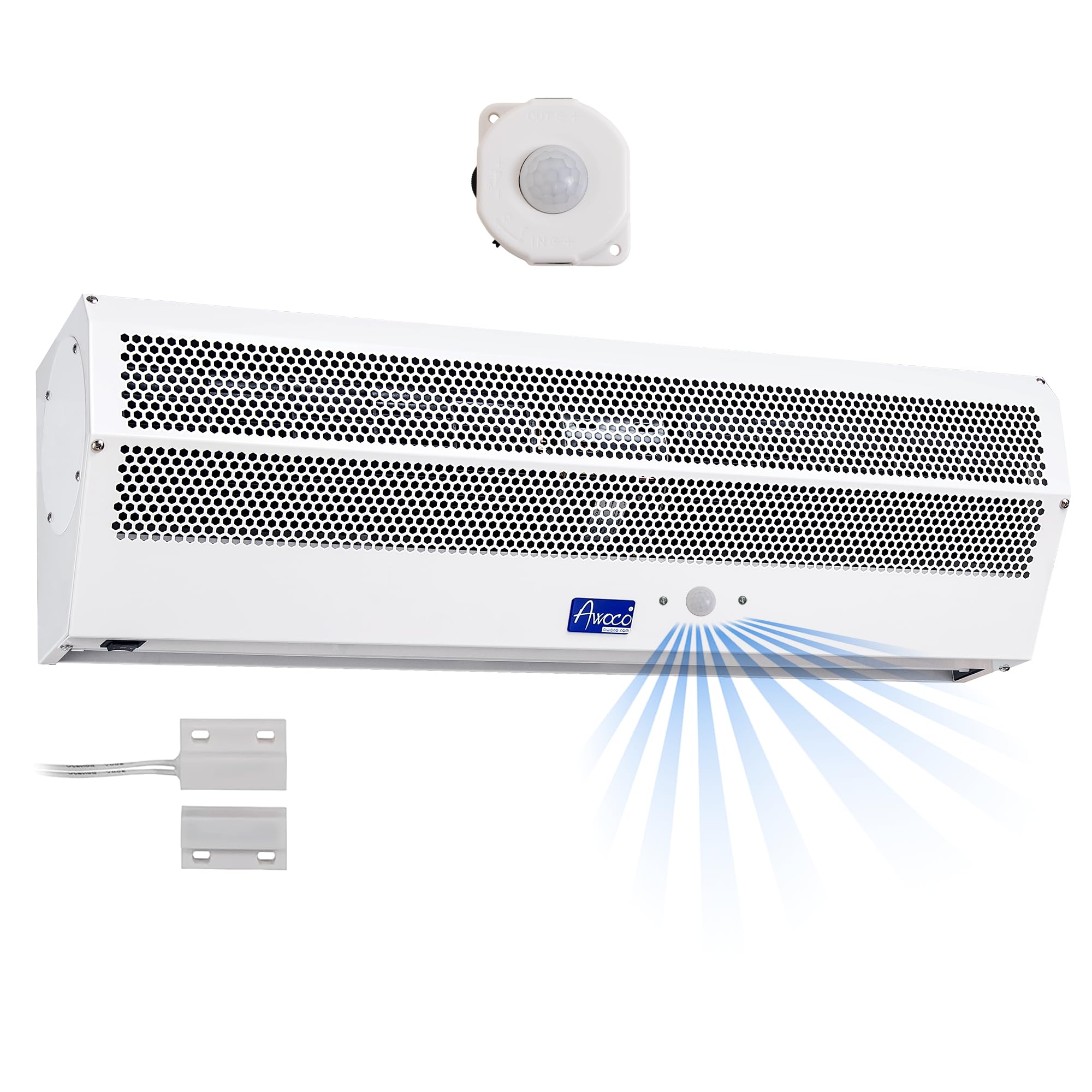

4. Awoco 36″ Early Turn On Super Power Indoor Air Curtain
The Awoco 36″ air curtain uses a patented dual-activation system: motion sensors detect approaching traffic from 7 to 9 feet away and turn the fan on early, pressurizing the doorway before the door opens, while a magnetic door switch keeps it running as long as the door remains open. This early turn-on feature aims to blow out dust, smoke, and small particles at the moment of door opening.
At 1,177 CFM on high speed, it generates significant air velocity with a noise level around 58 dB—moderate for a commercial fan. The unheated design operates on a 120V, 300-watt circuit, and the powder-coated metal case resists corrosion in commercial kitchens or high-humidity entryways. Installation requires mounting both motion sensors and the magnetic switch, with wiring needed for the sensor circuit board.
Real-world performance is mixed: some users report excellent fly and dust rejection, while others find the 1,177 CFM insufficient to create a full barrier, particularly for larger flying insects. The 45-second motion timer is non-adjustable, which can be annoying in low-traffic periods. Mounting screws are not included, adding a minor hassle during setup.
Why it’s great
- Dual motion sensor and magnetic switch activation for comprehensive coverage
- Early turn-on feature pre-pressurizes doorway to block particles
- Powder-coated metal case suitable for kitchen and commercial environments
Good to know
- 1177 CFM may not fully block large flying insects
- Motion timer is fixed at 45 seconds and cannot be adjusted
- Requires additional wiring assembly and no mounting screws included
5. Broan-NuTone 194 High Capacity Wall Heater
The Broan-NuTone 194 is a high-capacity wall heater factory-wired for 3,000 watts at 240 VAC but convertible to 1,500 watts for lower-power applications. It covers up to 300 square feet, making it a practical choice for small vestibules, bathrooms, or commercial anterooms where supplemental heat is needed without the full infrastructure of a dedicated air curtain.
The heavy-duty 18-gauge steel grille features downflow louvers that angle heat toward the floor, and the adjustable front-mounted disc thermostat allows simple temperature control between 40 and 90 degrees Fahrenheit. The nickel-chromium heating element provides 100% efficient heat transfer, and the manual reset thermal overload protector adds safety against accidental blockage. Installation supports both recessed and surface mounting.
Several users report fan blade noise on startup and a tinging sound during cooldown, attributed to thermal expansion of metal components. The fan can become louder over time as motor bushings wear, though some owners have successfully extended life by lubricating bearings. It runs on a 240V, 12.5-amp circuit, which is more accessible than higher-amperage options.
Why it’s great
- Convertible wattage (3000W to 1500W) for flexible installation
- Heavy-duty steel grille with downflow louvers for floor-level heating
- Adjustable front-mounted thermostat with security cover
Good to know
- Fan blade may tap housing on startup, causing noise
- Motor bushings wear over time, increasing fan volume
- Requires 240V circuit; not plug-and-play for standard outlets
6. DEWALT Forced Air Electric Construction Heater (10/7 kw)
The DEWALT forced air electric heater delivers up to 34,121 BTU through a two-stage fan system that heats spaces up to 850 square feet. Its dual-coil support and recessed controls protect the thermostat and switches from job-site damage, making it a rugged choice for new construction homes, garages, and workshops where temporary heat is required before permanent HVAC is installed.
Operating on a 240-volt, 50-amp circuit, this unit requires a NEMA 14-50 cord and dedicated breaker—not a casual plug-in. Users report it can raise a 1,000-square-foot garage from 40°F to 70°F in about 30 minutes, and the forced air design distributes heat evenly without the fumes associated with propane construction heaters. The pedestal form factor makes it easy to move between work areas.
Power consumption is high: running on the maximum setting draws 50 amps continuously, which can strain residential electrical panels. Some users note that initial heat-up is slower than propane alternatives, but the clean, odor-free operation justifies the trade-off for indoor use where ventilation is limited.
Why it’s great
- 34,121 BTU output heats large spaces rapidly
- No fumes or combustion byproducts—safe for indoor construction
- Two-stage operation for flexible power management
Good to know
- Requires a dedicated 50-amp, 240V circuit with NEMA 14-50 outlet
- Very high power draw may exceed typical residential panel capacity
- Slower initial heat-up compared to propane alternatives
7. Mr. Heater F260560 Big Maxx MHU80NG Natural Gas Unit Heater
The Mr. Heater Big Maxx MHU80NG is a natural gas unit heater rated at 80,000 BTU per hour, designed to heat up to 2,667 square feet when properly installed. It comes with a conversion kit for propane, giving flexibility for shops and garages that lack natural gas connections. The spark ignition system uses a self-diagnostic control module for reliable startup in cold conditions.
Ceiling-mount design keeps the heater out of the way, and the forced air fan distributes heat evenly across the space. Users report heating a 37-by-27-foot building with 18-foot ceilings in about 15 minutes, maintaining 60°F even when outdoor temperatures drop below freezing. The unit operates quietly, though tall ceilings may require additional wall fans for optimal air circulation.
Packaging is a recurring issue—several units arrive with cosmetic dents or damage despite robust construction. The included angle brackets for ceiling mounting require two people for safe installation, and professional gas line hookup is recommended. The natural gas model cannot run on propane without converting the included kit, so verify fuel type before mounting.
Why it’s great
- 80,000 BTU heats very large spaces efficiently
- Includes natural gas to propane conversion kit
- Quiet forced air operation with self-diagnostic ignition
Good to know
- Poor packaging leads to cosmetic damage in transit
- Requires professional gas line and electrical installation
- Ceiling mounting is heavy—needs two people for installation
8. DR. INFRARED HEATER DR-PS11524 Salamander Construction Heater
The DR. INFRARED HEATER DR-PS11524 is a salamander-style portable forced air electric heater rated at 15,000 watts, capable of heating large construction sites, warehouses, or 3,200-square-foot houses. It operates on a 240-volt, single-phase circuit requiring an 80-amp breaker and 6/4 gauge wire—demanding infrastructure that limits use to buildings with heavy electrical capacity.
The heavy-duty steel frame includes safety guards on both intake and output ends, and the adjustable thermostat ranges from 37°F to 104°F. A built-in cart with wheels provides portability, allowing it to be moved between work areas on job sites. Users report it kept a 3,200-square-foot insulated house around 60°F during Idaho February, even on the half-power setting.
Reliability is the major concern: multiple units have developed internal sparking or failed within weeks. Customer support requires extensive documentation and is reportedly unhelpful, with one user reporting six units all experiencing issues. The fan runs continuously regardless of thermostat setting, and the unit’s 70-pound weight makes manual positioning difficult without the cart.
Why it’s great
- 15,000W output heats very large spaces in extreme cold
- Adjustable thermostat with wide temperature range
- Cart and wheels enable job-site portability
Good to know
- Requires massive 80-amp circuit with 6/4 gauge wire
- Significant reliability issues—sparking and early failure reported
- Customer support is difficult to reach and unhelpful
9. Ninja Fireside360 OF101ST Outdoor Heater & Fire Pit
The Ninja Fireside360 combines an outdoor heater and fire pit in one unit, offering three distinct modes: flame only for ambiance, heat only for warmth without fire, or both flame and heat for maximum comfort. It produces 80,000 BTU from a standard 20-pound propane tank, and the push-to-start ignition eliminates the need for matches or lighters.
The pedestal design supports portability to patios, decks, camping sites, and beaches, and the weather-resistant construction allows outdoor storage year-round. Users report the heat mode keeps a 10-by-10-foot area comfortable at 50°F, while the flame-only mode creates a smokeless fire pit experience without ashes or smoky clothing. The ceramic rocks included add a realistic fire bed aesthetic.
This is not an air curtain or a door-mounted heater—it is a freestanding outdoor appliance for ambient heating. The 80,000 BTU output is substantial but radiates in an open pattern rather than creating a directional air barrier. Some units arrived with cosmetic dents, and the starter button must be held for over 10 seconds to ignite, which can be inconvenient in windy conditions.
Why it’s great
- Three operational modes: flame, heat, or both
- Smokeless fire pit design—no ash or cleanup
- Portable with weather-resistant outdoor construction
Good to know
- Not a door-mounted air curtain; it’s a freestanding outdoor heater
- Starter button requires a long 10+ second hold to ignite
- No directional airflow—cannot function as an insect barrier
FAQ
Can a 36-inch air curtain be mounted higher than 8 feet above the door?
Do I need a licensed electrician to install a 240V air curtain with electric heat?
Will an unheated air curtain still block cold drafts in winter?
Final Thoughts: The Verdict
For most users, the 36-inch air curtain with electric heat winner is the Fahrenheat FZL4004F because it combines 4,000 watts of reliable fan-forced heat with a fan delay feature that eliminates cold drafts on startup and extends element life. If you need programmable scheduling and a digital touchscreen interface, grab the Qmark SSHO4004. And for blocking flying insects with motion-activated pre-pressurization, nothing beats the Awoco 36″ Early Turn On.
