The 3rd Gen 4Runner is a legend on the trail, but its factory twin-tube front shocks fade fast when you start pushing through whoops, rock gardens, or sustained washboards. Upgrading to an external reservoir front shock is the single most effective way to control heat buildup, maintain consistent damping, and keep the front tires planted when the terrain gets ugly. The reservoir separates the oil from the nitrogen gas, preventing cavitation and delivering fade-free performance on long, brutal runs.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours cross-referencing dyno plots, reservoir volumes, piston diameters, and real-world owner feedback to build this guide for owners who want actual off-road capability, not just a taller parking-lot stance.
After sorting through spring rates, shaft diameters, and fitment constraints for coil-sprung and torsion-bar 4Runners, here is the definitive list of the best 3rd gen 4runner external reservoir front shocks for every build budget and driving style.
How To Choose The Best 3rd Gen 4Runner External Reservoir Front Shocks
Upgrading the front suspension on a 3rd Gen 4Runner isn’t as simple as picking a shock that looks tough. You need to match the shock’s damping characteristics, reservoir volume, and spring rate to your vehicle’s specific front-end configuration — coil spring versus torsion bar, lifted versus stock height, and your typical terrain speed.
Reservoir Volume and Oil Capacity
More oil volume means more heat can be absorbed before the shock begins to fade. On a 3rd Gen 4Runner, a reservoir that holds at least 100ml of oil will handle sustained washboard roads and desert-style whoops without the damping going soft. Smaller reservoirs on budget-oriented shocks may still fade faster than a large-bore remote reservoir from a premium brand.
Piston Diameter and Shaft Size
The 46mm piston diameter is the standard for most mid-range shocks, but a 2.0-inch body (roughly 50.8mm) offers slightly more damping force and oil volume. A thicker shaft — 14mm or larger — resists bending and reduces flex under hard cornering. For a 3rd Gen 4Runner that sees serious off-road use, a 2.0-inch body with a 14mm or larger shaft is the sweet spot.
Fitment: Torsion Bar vs. Coil Spring Front
1996-1998 4Runners came with torsion bar front suspension, while 1999-2002 models switched to coil springs. A shock that bolts directly to a coil-sprung 4Runner may require a conversion spacer or different mounting hardware for a torsion-bar truck. Always verify the application range before purchasing — buying a shock designed for a fifth-gen 4Runner will not work on your third-gen.
Adjustability: Rebound vs. Compression
External reservoir shocks often include a single adjustment knob for both compression and rebound, while more advanced units offer separate high-speed and low-speed compression adjusters. For trail-running and moderate rock crawling, a single-adjuster reservoir shock is sufficient. For high-speed desert running, separate compression circuits give you finer control over the damping curve.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Eibach Pro-Truck Coilover Stage 2R | Premium | Maximum fade resistance | 46mm piston, external reservoir rear | Amazon |
| Rough Country 3″ Kit (96-02 4WD) | Lift Kit | Complete 3″ lift with N3 struts | 3″ lift height, N3 struts | Amazon |
| Rancho RS9000XL Quick Lift | Adjustable | 9-position damping adjustability | 18mm nitro-carburized piston rod | Amazon |
| Freedom OffRoad Adjustable Coilover | Mid-Range | Budget coilover with 1-4″ range | Nitrogen-charged, 4″ adjustment | Amazon |
| Bilstein B8 5100 Pair (96-02) | Mid-Range | Adjustable ride height 0-2.75″ | 46mm monotube, zinc-plated | Amazon |
| Rough Country 3″ Kit (10-24 4Runner) | Lift Kit | 5th Gen compatibility with UCAs | Forged aluminum upper control arms | Amazon |
| TrendsAuto 5100 Series Front | Mid-Range | Ride height adjustable for 5th Gen | 0-2.75″ ride height adjustment | Amazon |
| Detroit Axle Complete Strut Kit | Budget | Full 8-piece suspension refresh | Pre-assembled front struts | Amazon |
| FOX 985-24-101 Performance | Premium | 2.0 reservoir for lifted trucks | 2.0″ aluminum body, remote reservoir | Amazon |
In‑Depth Reviews

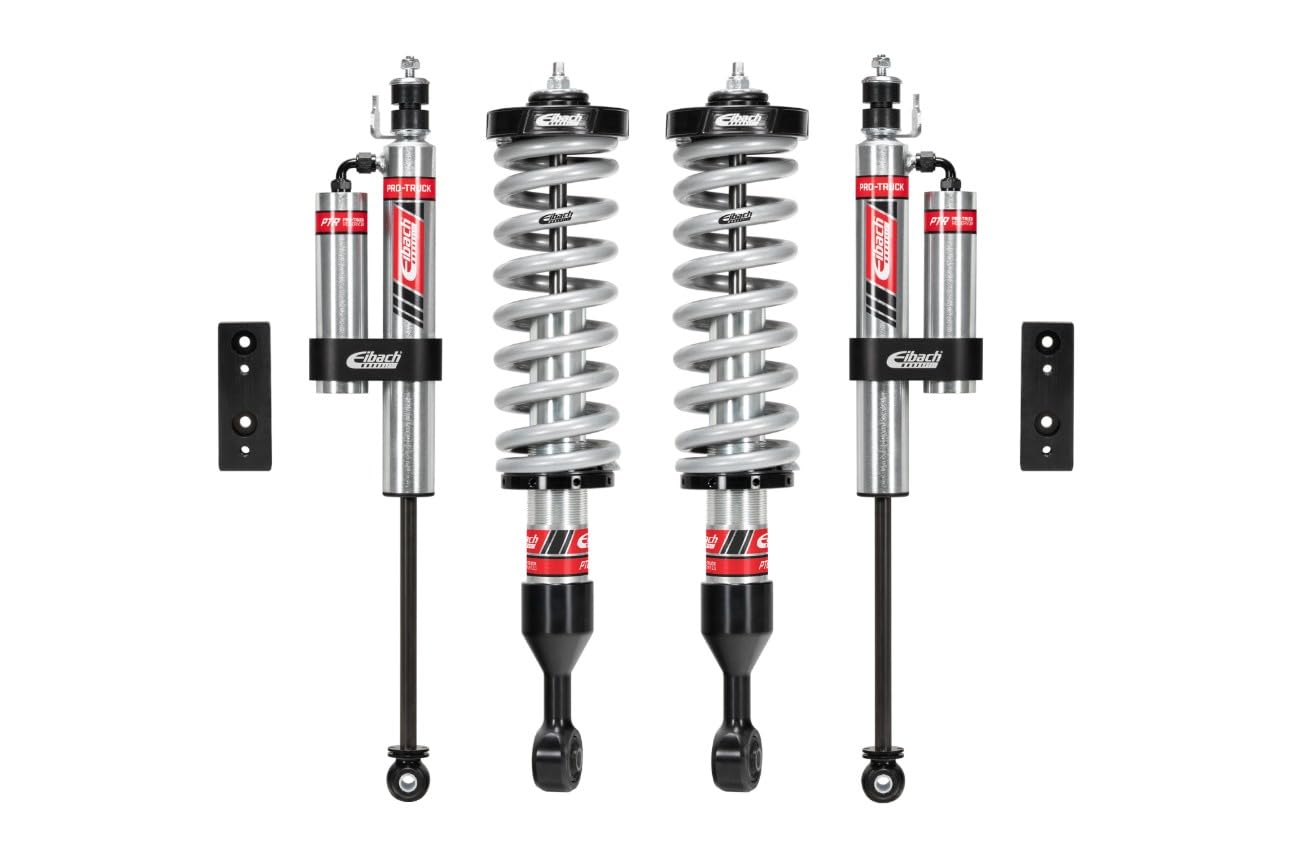

1. Eibach Pro-Truck Coilover Stage 2R
The Eibach Stage 2R represents the ceiling of performance for a 3rd Gen 4Runner suspension upgrade. The front coilovers use a 46mm monotube design with nitrogen-charged variable force valving, while the rear shocks feature actual external reservoirs for maximum oil volume and heat dissipation. Every unit is individually dyno-tested, so the damping curve is matched side to side out of the box.
Riders coming from Bilstein 5100s report a dramatically improved balance on washboard roads and high-speed fire trails. The reservoir shocks in the rear maintain consistent rebound control even after 20 minutes of continuous whoops, and the front coilovers offer height adjustment without sacrificing bump travel. Eibach uses 6061-T6 billet aluminum mounts and heavy-duty bushing systems that cycle-test to 100,000-plus cycles.
This is a full stage system — not just a shock swap. The kit includes both front coilovers and rear reservoir shocks, so the entire vehicle’s damping profile is cohesive. For a 3rd Gen 4Runner owner building a serious overland or pre-runner setup, the Stage 2R is the benchmark that budget options are measured against.
Why it’s great
- Individual dyno testing ensures matched damping side-to-side
- External reservoir rear shocks prevent fade on long sections
- Billet aluminum mounts and heavy-duty bushings exceed OEM durability
Good to know
- Universal fitment may require adapter hardware for early torsion-bar 3rd Gens
- Premium price reflects the full Stage 2R system, not just front shocks
2. Rough Country 3″ Lift Kit w/N3 Struts (96-02 4WD)
Rough Country’s 3-inch lift kit for the 1996-2002 4Runner is one of the most complete bolt-on solutions available for the 3rd Gen chassis. It includes coil springs, N3 lifted struts for the front, N3 shock absorbers for the rear, and all necessary mounting hardware. The N3 struts are nitrogen-charged monotube units designed to handle the increased suspension travel that comes with a 3-inch lift.
Owners report that the N3 struts provide a firm, controlled ride on paved roads while still soaking up trail chatter effectively. The strut extensions do not preload the coil spring, which means ride quality doesn’t suffer the way it does with spacer-style lifts. The kit is designed for 4WD 4Runners and has been verified to clear 33-inch tires with minimal trimming.
Rough Country backs the entire kit with a limited lifetime replacement warranty, which is rare at this price point for a full suspension system. The front struts alone represent a major upgrade over stock 200k-mile original equipment, and the kit can be installed in a single weekend with basic hand tools.
Why it’s great
- Complete bolt-on kit eliminates guesswork for a 3″ lift
- N3 struts are nitrogen-charged with recoil cut-off construction
- Limited lifetime warranty from a major US suspension brand
Good to know
- N3 struts are not reservoir-style shocks — no external oil canister
- Likely requires an aftermarket alignment kit to correct camber
3. Rancho RS9000XL Quick Lift Kit
Rancho’s RS9000XL Quick Lift kit brings nine-position external adjustability to the 3rd Gen 4Runner. A simple knob on the strut body lets you dial in damping from soft (setting 1) to extra firm (setting 9), making it possible to tune the front suspension for loaded overland trips, empty daily commutes, or aggressive trail days. The strut assembly comes with an application-specific coil spring and upper mounting plate, which simplifies installation.
The 18mm nitro-carburized piston rod is oversized compared to most aftermarket shocks — it resists scuffs and corrosion significantly better than standard chromed shafts. Double-welded loops at stress areas and a 1.25-inch sintered iron piston enhance structural integrity. The assembly provides 2.0 inches of front lift with the RS999913/RS999914 pair, or 2.75 inches with the RS999305 struts.
Reviews consistently note that the adjustability allows owners to find a sweet spot between body roll control and ride comfort that is hard to achieve with a fixed-valve shock. The Rancho kit is compatible with 2015-2023 4Runner SR5 and TRD Off-Road trims that do not have X-REAS or Kinetic Dynamic Suspension.
Why it’s great
- Nine-position knob gives real-time damping control for varying terrain and loads
- 18mm nitro-carburized rod resists corrosion and shaft pitting
- Quick lift assembly includes coil spring and mount for direct bolt-in
Good to know
- Fits 5th Gen 4Runner — verify 3rd Gen compatibility via coil spring spacer kit
- 9-setting knob may be difficult to turn if mud or debris accumulates around the body

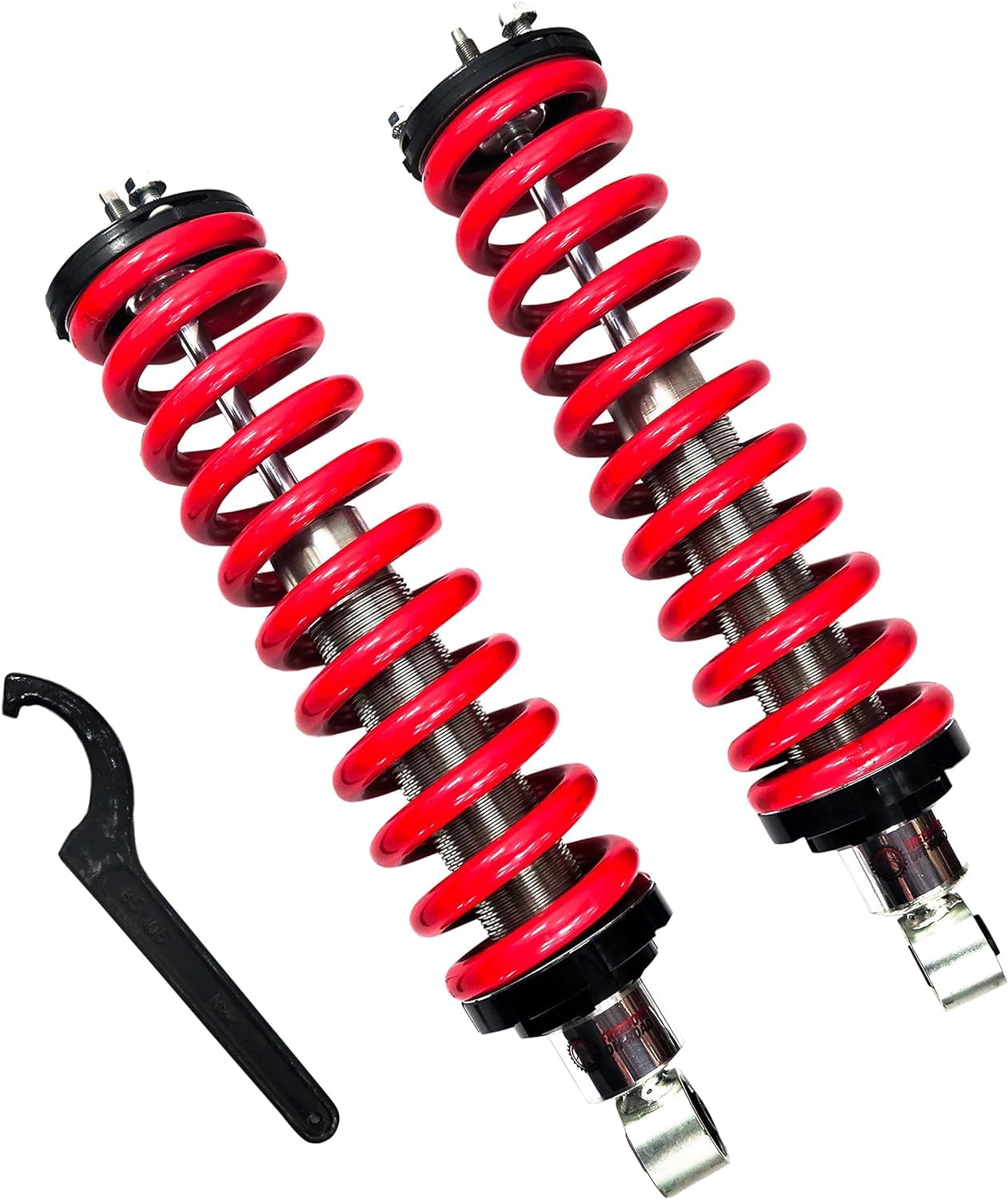

4. Freedom OffRoad Adjustable Lift Coilovers (96-02 4Runner)
Freedom OffRoad coilovers offer a rare combination: height adjustability from 1 to 4 inches, nitrogen-charged construction, and a complete bolt-in assembly that includes the coil spring and threaded collar. For 3rd Gen 4Runner owners who want a true coilover setup without paying premium-brand prices, these deliver genuine adjustability and improved damping control over the factory strut or torsion-bar configuration.
The threaded body design uses a lock-ring collar that allows fine-tuning of the ride height without needing a spring compressor. The included adjuster tool makes it easy to preload the spring for the desired lift. Owners running these on Tacoma and 4Runner platforms report they pair well with aftermarket upper control arms and allow clearance for up to 33-inch tires on the 3-inch setting.
Budget-conscious buyers will appreciate that a pair of Freedom OffRoad coilovers plus a set of rear shocks can be assembled for well under the cost of entry-level reservoir setups. While these do not have an external reservoir, the nitrogen charge and monotube design still offer better fade resistance than twin-tube gas shocks.
Why it’s great
- Threaded body allows 1-4″ height adjustment without spring compressor
- Nitrogen-charged monotube design improves fade resistance over twin-tube
- Complete pair costs significantly less than premium coilovers
Good to know
- No external reservoir — oil volume is limited to the main shock body
- Adjuster wrench is short; some users prefer a custom tool for easier access
5. Bilstein B8 5100 Front & Rear Pair (96-02 4Runner)
Bilstein’s B8 5100 series is the gold standard for mid-range monotube shocks on the 3rd Gen 4Runner. The front shocks in this pair feature a snap-ring groove body design that allows ride height adjustment from 0 to 2.75 inches by changing the spring seat position. The 46mm monotube construction and digressive valving are tuned specifically for the weight and suspension geometry of the 4Runner.
Owners who pair these with Old Man Emu coils report excellent stability on gravel roads, reduced body roll on pavement, and consistent damping over rolling whoops. The front shocks have an extended length of 18.27 inches and a compressed length of 13.66 inches, providing plenty of travel for a mild to moderate lift. The zinc plating resists corrosion far better than painted shocks.
Bilstein backs the 5100 series with a limited lifetime warranty. Note that shock boots are included, but the front shock mounts are not — you’ll need to purchase those separately or reuse your originals.
Why it’s great
- Digressive valving provides comfortable on-road ride and firm off-road control
- Snap-ring groove design allows 0-2.75″ lift without spacers
- Limited lifetime warranty from a proven OEM-tier manufacturer
Good to know
- No external reservoir — nitrogen gas charge is inside the main body only
- Front shock mounts and lower control arm bushings are not included

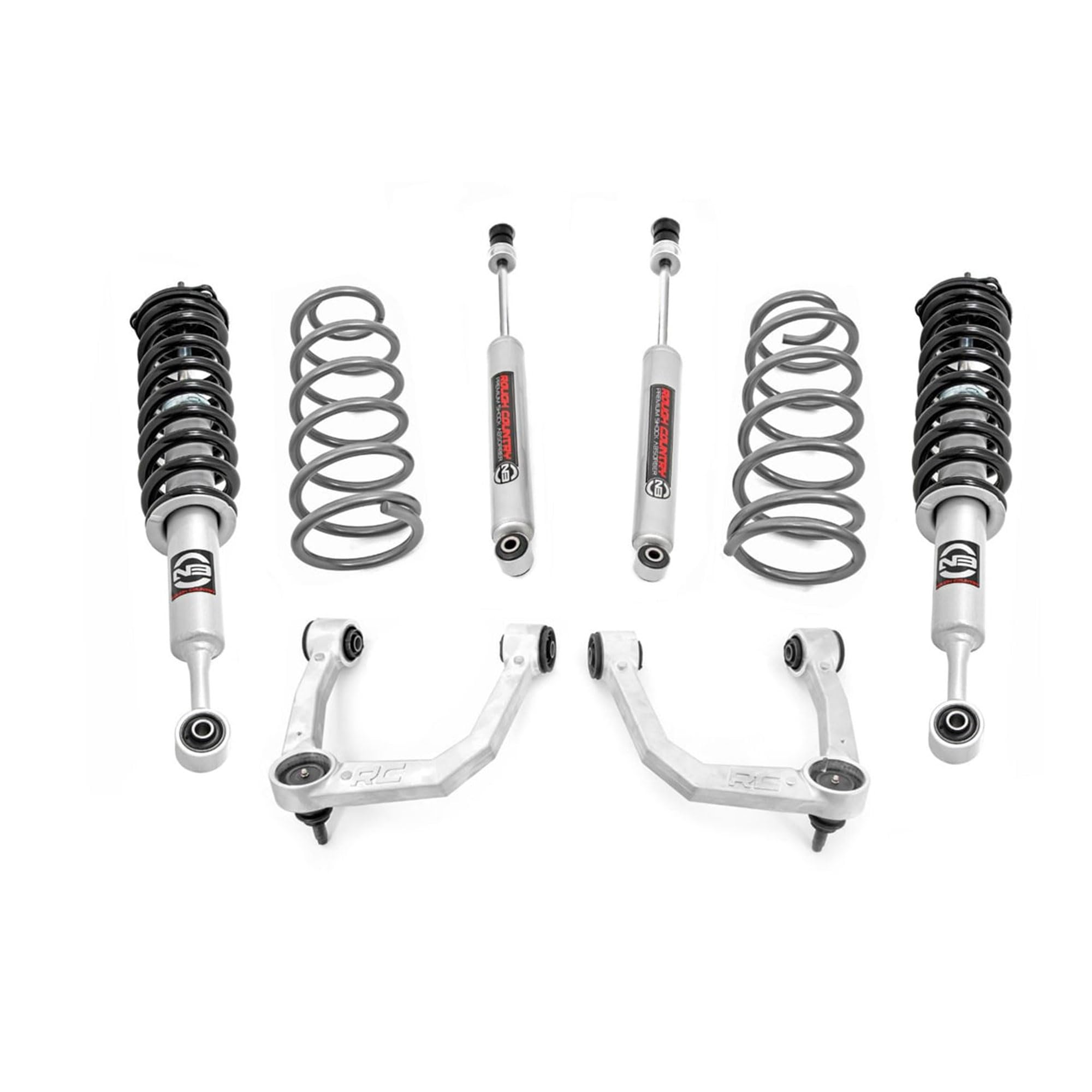

6. Rough Country 3″ Lift Kit w/N3 Struts (2010-2024 4Runner)
Rough Country’s 3-inch lift kit for the 2010-2024 4Runner combines N3 nitrogen-charged struts with forged aluminum upper control arms that feature pre-installed POM ball joints. The forged UCAs improve caster adjustments and bump steer correction, which is critical for maintaining straight-line stability after a 3-inch lift. The N3 struts are loaded with application-specific coil springs and mounting hardware.
Owners of 5th Gen 4Runners appreciate that the kit clears 33-inch tires with no rubbing after mud-flap trimming. The N3 struts offer a compliant highway ride while still providing adequate damping for moderate off-road trails. The forged control arms add meaningful articulation over stock stamped-steel arms, and the pre-installed POM ball joints eliminate the guesswork of pressing in replacement joints.
While this kit is designed for 5th Gen 4Runners, the strut design principles translate directly to understanding what makes a good reservoir-style shock: nitrogen charge, monotube construction, and proper valving for the vehicle’s weight.
Why it’s great
- Forged aluminum UCAs with POM ball joints improve geometry and durability
- N3 nitrogen-charged struts maintain damping consistency better than budget twin-tubes
- Complete kit includes struts, springs, UCAs, rear shocks, and hardware
Good to know
- Designed for 2010-2024 4Runners — does not fit 3rd Gen torsion-bar or coil-spring front ends
- Rear shocks do not come with boots; you will need to purchase separately
7. TrendsAuto 5100 Series Front Shocks Pair
The TrendsAuto 5100 Series shocks bring ride-height adjustability to the 2010-2024 4Runner at a price point that undercuts most premium monotube alternatives. Multiple snap-ring grooves in the shock body allow the spring seat to be repositioned for 0 to 2.75 inches of front lift. The monotube design and digressive valving are specifically tuned for the weight and suspension geometry of the 4Runner.
Reviews from 5th Gen 4Runner owners confirm that installing these shocks at the third snap-ring position from the bottom delivers equivalent lift to a 2-inch spacer kit, but with significantly better damping control. The zinc-plated exterior resists corrosion better than painted budget shocks, and the limited lifetime warranty provides peace of mind for daily drivers.
It is important to note that these are designed for 2010-2024 4Runners — they do not directly fit 3rd Gen vehicles without significant modification. However, the 5100 technology principles (monotube gas charge, snap-ring adjustability, digressive valving) are the same ones that make aftermarket shocks effective for the 3rd Gen platform.
Why it’s great
- Snap-ring height adjustment provides 0-2.75″ lift without coil spacers
- Monotube digressive valving improves body roll control over twin-tube shocks
- Zinc plating offers durable corrosion resistance
Good to know
- Fits 2010-2024 4Runner — not compatible with 3rd Gen without adapter hardware
- Rear shocks sold separately; this is a front-only pair
8. Detroit Axle Complete Strut & Shock Kit
Detroit Axle’s 8-piece suspension kit is a complete refresh solution that includes front strut assemblies with coil springs, rear shock absorbers, and four sway bar end links. The front strut assemblies come fully pre-assembled, eliminating the need for spring compressors and saving hours of labor. This kit is the most cost-effective way to restore factory-level ride quality to a high-mileage 4Runner.
While this kit does not use external reservoir shocks, the aluminum construction and impact-tested manufacturing process ensure reliable performance for daily driving and light off-road use. Owners report that the ride height settles and smooths out after a short break-in period, transforming a tired, bouncy suspension into one that feels controlled and stable on pavement and gravel roads.
The Detroit Axle kit covers a wide compatibility range including 2003-2022 4Runners and 2007-2014 FJ Cruisers, but does not fit vehicles with X-REAS suspension or Kinetic Dynamic Suspension. The 10-year warranty provides excellent long-term value for budget-focused buyers.
Why it’s great
- Pre-assembled front struts save significant installation time and effort
- 8-piece kit replaces struts, shocks, and sway bar links in one purchase
- 10-year warranty provides excellent coverage for the entry-level price
Good to know
- Not compatible with X-REAS, KDSS, or TRD Pro trims
- Budget aftermarket twin-tube design — no external reservoir or gas charge for fade resistance
9. FOX 2.0 Performance Series Reservoir Front Shocks
The FOX 2.0 Performance Series shocks are the real deal for external reservoir technology on a full-size truck or SUV. The 2.0-inch aluminum body houses a 46mm piston, and the remote reservoir keeps the oil cool and separated from the nitrogen charge for consistent damping on extended off-road drives. These shocks are designed for vehicles with 5.5 to 7 inches of front lift.
FOX’s race-proven valving and high-quality seals ensure immediate response to trail inputs. The reservoir hose and clamps are included, along with all necessary washers and bushings. The painted exterior finish holds up well to mud and debris, and the aluminum body sheds heat faster than painted steel or zinc-plated shocks.
It is critical to verify fitment before purchasing — the FOX 985-24-101 is built for lifted F-250/350 Super Duty trucks, not directly for a 3rd Gen 4Runner. The technology and reservoir design principles, however, are directly applicable to 4Runner builds, and many custom fabrication shops use FOX shocks as the basis for 4Runner long-travel kits.
Why it’s great
- True remote reservoir design eliminates cavitation and damping fade
- 2.0″ aluminum body provides excellent heat dissipation
- Race-proven FOX valving and seal technology
Good to know
- Designed for lifted Super Duty trucks — requires custom fabrication for 4Runner installation
- One-year warranty is shorter than Bilstein or Rancho options
FAQ
Will external reservoir shocks from a 5th Gen 4Runner fit my 3rd Gen 4Runner?
Do I need a coilover conversion to use reservoir shocks on a torsion-bar 3rd Gen 4Runner?
What is the typical lifespan of an external reservoir shock on a 3rd Gen 4Runner?
Final Thoughts: The Verdict
For most users, the best 3rd gen 4runner external reservoir front shocks winner is the Eibach Pro-Truck Coilover Stage 2R because it delivers true external reservoir rear shocks and individually dyno-tested front coilovers that provide fade-free damping and matched performance. If you want maximum adjustability and a complete bolt-on lift kit, grab the Rough Country 3″ Lift Kit w/N3 Struts. And for a budget-oriented entry into coilovers, nothing beats the Freedom OffRoad Adjustable Lift Coilovers.
