When your system demands a massive current draw — whether it’s a high-output inverter, a bank of marine batteries, or a competition-grade car audio amplifier — the weakest link in your power chain is often the cable itself. Standard automotive wiring simply cannot handle the sustained amperage without voltage drop and dangerous heat buildup. You need a conductor that combines extreme ampacity with real-world flexibility for tight routing.
I’m Min — the co-founder and writer behind Gadgets Feed. I have spent hundreds of hours analyzing construction specs, stranding counts, jacket materials, and real customer stress-tests across the heavy-gauge welding and battery cable market to separate the genuine high-performance conductors from the copper-clad aluminum impostors.
This guide digs deep into conductor strand counts, jacket temperature ratings, and lug compatibility to help you find the best 4/0 4/0 4/0 wire for your high-amperage application without getting burned by undersized fakes.
How To Choose The Best 4/0 Wire
Selecting the right 4/0 AWG cable is not just about matching the thickness label. The construction quality — from the purity of the copper to the number of strands within the jacket — directly dictates ampacity, flexibility, and longevity in your specific environment.
Copper Purity: OFC vs. CCA
The single biggest differentiator is the conductor material. Pure oxygen-free copper (OFC) delivers maximum conductivity and resists corrosion far better than copper-clad aluminum (CCA). At the 440-amp capacity of 4/0 gauge, using CCA can lead to significant voltage drop and overheating under sustained load, especially in solar or inverter installations.
Strand Count & Flexibility
Not all 4/0 cables bend the same. A higher strand count (e.g., 1950/30 or 3415 strands) yields a much more pliable cable that can snake around tight corners in an RV bay or behind a car audio system. Lower strand counts with thicker individual wires are stiffer and better suited for fixed conduit runs.
Jacket Material: EPDM vs. PVC
The insulation jacket is your cable’s first defense. EPDM rubber jackets offer superior flexibility even in extreme cold (-50°C), resist cuts and abrasion better than standard PVC, and handle the heat generated by high-amperage welding cable applications. PVC jackets are smoother and can be more resistant to gasoline and battery acid in engine bays.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| WNI 4/0 Cable + Lugs Kit | Premium Kit | All-in-one battery installation | 10 ft red/black + 5 lugs + shrink tubing | Amazon |
| iGreely 4/0 Gauge 5ft+5ft | Value Kit | Car audio and solar projects | 3415 strands of 0.2 mm OFC | Amazon |
| NOVINO Marine 4/0 | Marine Grade | Boat and harsh outdoor environments | Tinned copper, UL 1426 rated | Amazon |
| TEMCo 4/0 10ft+10ft | Mid-Range Bulk | Large-scale inverter installs | 1950/30 strand OFC, 440A | Amazon |
| Kimbluth 4/0 15ft+15ft | Long-Run PVC | Generator and long solar runs | OFC with 90 mil PVC jacket | Amazon |
| TEMCo 4/0 30ft Black | Long Run EPDM | Single-color long-distance runs | 30 ft continuous, 1950/30 strand | Amazon |
| Spartan Power 2/0 Set | Compact Set | Shorter battery-to-inverter links | 2/0 AWG with 3/8″ ring terminals | Amazon |
In‑Depth Reviews
1. WNI 4/0 AWG 10ft+10ft Cable with Lugs Kit
The WNI kit (sold under the WindyNation brand) is the complete turnkey solution for any 4/0 gauge installation. You get ten feet each of red and black ultra-flexible EPDM-jacketed pure copper cable, five 5/16″ and five 3/8″ tinned copper lugs, and three feet of heat shrink tubing — everything needed to build a professional-grade power run without hunting for extra parts. The 1950/30 strand count gives it excellent pliability for routing through tight battery box openings or along chassis rails.
The cable is SAE J1127 approved and uses annealed copper strands per ASTM standards, ensuring it handles the full 440-amp load of 4/0 gauge without excessive heat. The EPDM jacket withstands solvents and high temperatures, making it equally at home in a welding shop or an engine bay. Users consistently praise the thick, flexible construction that allows easy cutting, stripping, and crimping into the included lugs.
For anyone tackling a high-amperage solar bank or a powerful car audio build who wants a single-purchase solution with verified quality, this kit provides unmatched convenience and peace of mind. The included lug variety (5/16″ and 3/8″) covers the most common battery and inverter terminal sizes, saving a trip to the hardware store.
Why it’s great
- Complete kit with lugs and shrink tubing for immediate installation
- Ultra-flexible EPDM jacket rated for extreme temperatures (-50°C to +105°C)
- USA-made pure copper cable with SAE J1127 approval
Good to know
- Premium pricing for the kit format
- Heat shrink tubing is black only, not color-matched to the cable
2. iGreely 4/0 Gauge 5ft+5ft with Lugs
The iGreely cable stands out with its 3,415 individual strands of 0.2mm oxygen-free copper — the highest strand count in this roundup. This translates to exceptional flexibility that rivals welding cable from specialty brands, making it ideal for installations that require tight bends, such as custom car audio builds where the 4/0 wire must snake past metal brackets and trim panels. The EPDM jacket is solvent resistant and maintains flexibility in cold conditions.
At five feet per color, the kit includes five 5/16″ and five 3/8″ tinned copper lugs — a generous accessory count that covers most terminal sizes found on inverters, batteries, and distribution blocks. The tinned coating on the lugs offers corrosion protection critical for marine and outdoor solar applications where moisture exposure is a concern.
Customer feedback from RV builders and car audio enthusiasts consistently notes that the wire exceeds expectations, with one user successfully powering a 3000W amplifier at 1 ohm with zero voltage drop. The included heat shrink tubing in red and black finishes each connection cleanly. This is the budget-friendly choice that does not compromise on strand count or copper purity.
Why it’s great
- Exceptional flexibility from 3,415 fine-stranded conductors
- Complete accessory kit with lugs and color-matched heat shrink
- Pure OFC copper construction for maximum ampacity
Good to know
- Short 5-ft length may require coupling for longer runs
- EPDM jacket has a matte finish that shows dirt in engine bays

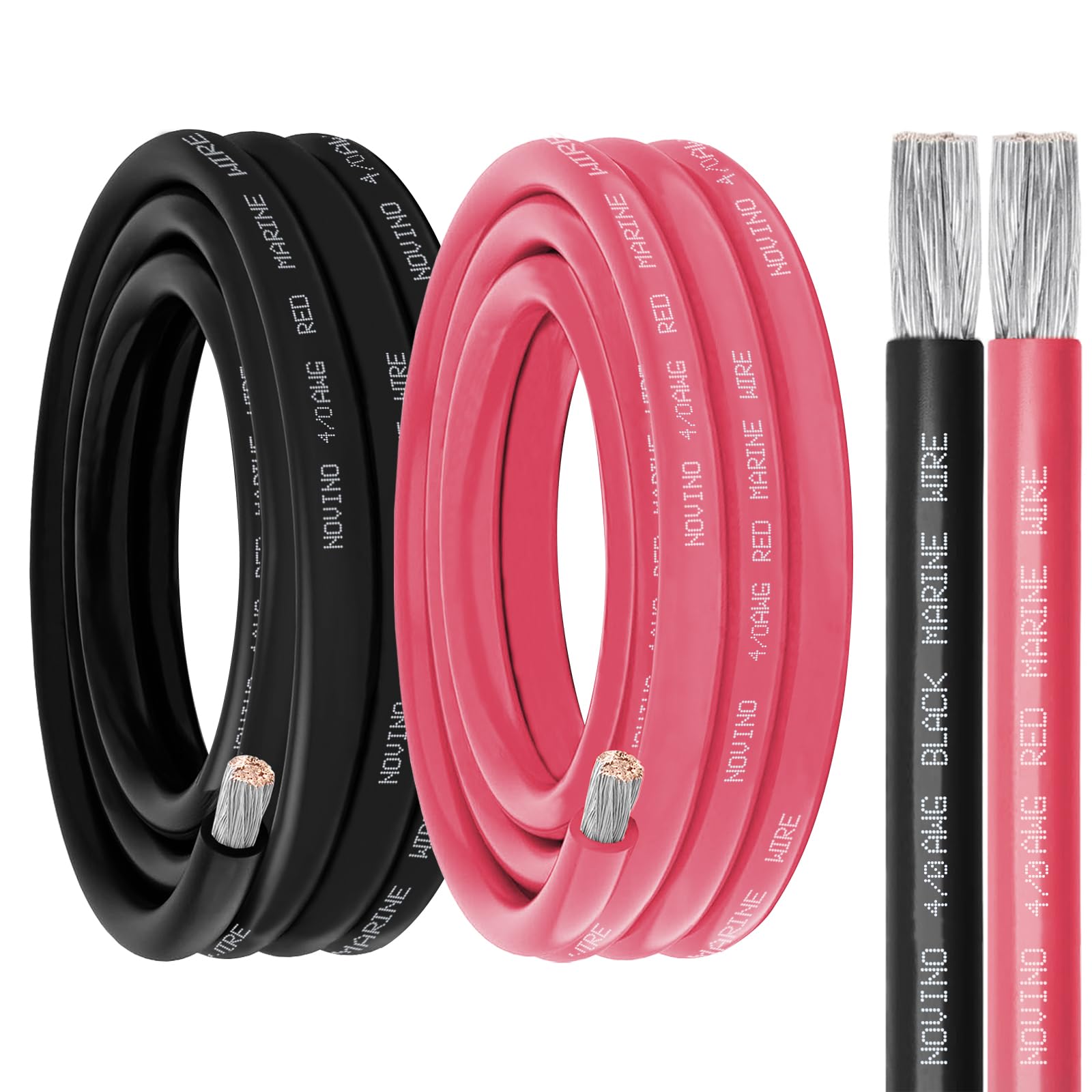

3. NOVINO 4/0 Gauge Marine Wire 10ft+10ft
Marine environments demand more from a 4/0 cable, and the NOVINO wire is purpose-built to meet those demands. Every strand is individually tinned copper, not just the lugs, providing a significant advantage in saltwater corrosion resistance. It carries UL 1426 and SAE ratings, confirming its suitability for the constant vibration, moisture, and temperature swings found in boats and pontoons.
The thicker insulation jacket is rated to 105°C dry and 75°C wet, which means it can handle the heat of a cramped engine compartment while submerged or exposed to bilge water. At 0.2 inches wire diameter, the cable is slightly less flexible than fine-stranded welding cable, but this trade-off provides extra mechanical toughness against abrasion when running through grommets or along hull stringers.
Boat owners who have used this wire for trolling motor battery relocations and inverter connections report that the tinning provides visible long-term corrosion resistance compared to standard copper. The red and black sheaths make polarity identification straightforward below deck. If your installation involves salt spray, freshwater submersion, or constant outdoor exposure, this is the most durable option available.
Why it’s great
- Full tinned copper construction for maximum corrosion resistance
- UL 1426 and SAE certified for marine safety standards
- Thick jacket handles high heat and abrasion in engine bays
Good to know
- Lower strand count makes it stiffer than pure welding cable
- No lugs or terminals included in the package
4. TEMCo 4/0 Gauge 10ft+10ft OFC
TEMCo has established itself as a trusted name in the heavy-gauge wire segment, and their 10ft+10ft 4/0 kit is a benchmark for quality. The cable uses 1950 strands of 30-gauge annealed oxygen-free copper built in the USA, delivering the full 440-amp capacity expected of 4/0 gauge. The nominal outside diameter of 0.686 inches ensures compatibility with standard 4/0 lugs and terminals.
The Easy-Flex EPDM jacket is the standout feature here: it remains pliable down to -58°F, making winter installations possible without heating the cable. This flexibility, combined with resistance to cuts, tears, oil, and flame, makes it a favorite among diesel mechanics for semi-truck inverter connections and solar installers building out large battery banks.
Customer feedback repeatedly highlights TEMCo’s after-purchase support, including a one-year full refund policy that even covers return shipping — an outlier in this category. Users running up to 300 amps for six months report zero degradation. For a premium mid-range buy that balances cost with proven reliability, this is the gold standard.
Why it’s great
- Excellent cold-weather flexibility down to -58°F
- Made in USA with verified OFC construction
- Industry-leading 1-year full refund warranty
Good to know
- No lugs or terminals included
- Red and black sold as a set, not individually
5. Kimbluth 4/0 Gauge 15ft+15ft OFC
For installations requiring longer single runs — such as a generator connection or a solar array located far from the battery bank — the Kimbluth cable offers 15 feet of red and 15 feet of black 4/0 AWG wire. The conductor is 99% pure oxygen-free copper with multiple strands of 0.256mm wire, providing both high conductivity and manageable flexibility for a PVC-jacketed cable.
The 90-mil PVC jacket is thicker than many competitors, providing robust protection against battery acid, gasoline, and physical abrasion. This makes it an excellent choice for engine bay applications where the cable may rub against metal edges or come into contact with caustic fluids. The operating temperature range of -40°C to +105°C covers the vast majority of automotive and stationary power scenarios.
Users in the automotive best-seller ranks confirm the wire’s solid performance with Victron solar controllers and high-wattage amplifiers. The PVC jacket gives a slick, shiny surface that resists dirt buildup and slides easily through conduit. While it lacks the extreme cold-weather pliability of EPDM cables, its chemical resistance and length-to-value ratio make it a practical choice for permanent installations.
Why it’s great
- Longest standard length in the roundup at 30 total feet
- Thick PVC jacket resists battery acid and gasoline
- Pure OFC copper with high-density stranding
Good to know
- PVC jacket becomes stiffer in freezing temperatures vs. EPDM
- No lugs or installation accessories included

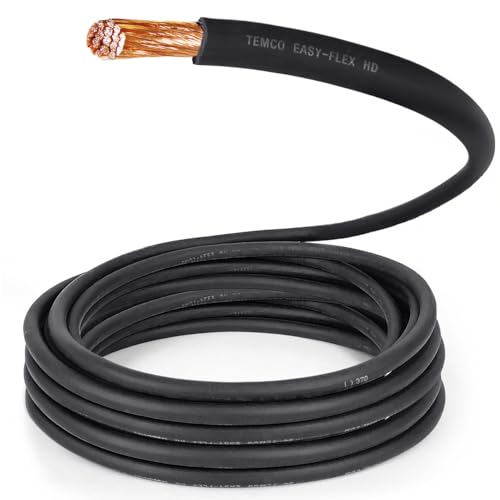

6. TEMCo 4/0 Gauge 30ft Black Only
When your project demands a single uninterrupted 30-foot run — for connecting a distant solar array charge controller to a battery bank, for example — this TEMCo black cable delivers the same Easy-Flex construction as the 10ft+10ft set but in a longer continuous spool. The 1950/30 strand OFC conductor and rugged EPDM jacket are unchanged, maintaining the full 440-amp rating and extreme temperature tolerance.
The primary advantage of the single-color, spooled format is that you can cut precisely to length without any waste from a pre-terminated set. This is essential for complex wiring paths where you need to route the cable through conduit, around obstacles, or between floors. The EPDM jacket’s resistance to water, oil, and flame makes it suitable for both indoor battery rooms and outdoor inverter sheds.
Professional installers and serious DIYers who have used TEMCo for years repeatedly verify the cable’s quality, noting that it bends to under a 3-inch diameter despite the heavy gauge. The same one-year full-refund policy applies, offering excellent protection for a significant cable investment. This is the right choice when your run length exceeds standard 10-foot kits.
Why it’s great
- Continuous 30-ft length for long-distance power runs
- Same premium EPDM Easy-Flex construction as the shorter kit
- 450-amp continuous capacity with zero voltage drop over length
Good to know
- Black only — no red for polarity marking
- No lugs, terminals, or accessories included
7. Spartan Power 2/0 Gauge 5ft Set
While this is a 2/0 AWG cable rather than 4/0, the Spartan Power set deserves consideration for applications where a slightly smaller gauge is acceptable and pre-terminated convenience is paramount. Each cable comes professionally cut, crimped with 3/8″ M10 tinned copper ring terminals, and finished with heat shrink — ready to bolt directly onto a battery or inverter without any stripping or crimping tools.
The copper used is 100% pure and made in the USA at the Spartan Power facility in Reno, Nevada. The tinned ring terminals offer corrosion protection for outdoor use, and the heat-shrink strain relief prevents the terminal from pulling loose under vibration. For a 2000W inverter requiring a short 5-foot battery link, this gauge is more than adequate and saves significant installation time.
Customers using these cables for race truck charging lugs and auxiliary battery connections praise the clean crimps and sufficient terminal thickness to avoid hot spots under load. If your 4/0 requirement can be downsized to 2/0 for a short, specific run, this ready-made solution eliminates the guesswork. It is the only pre-terminated option in this roundup.
Why it’s great
- Professionally crimped and heat-shrunk, ready to install out of the box
- Made in USA with pure copper and tinned terminals
- Thick terminal ends prevent thermal hot spots
Good to know
- 2/0 AWG, not 4/0 — lower ampacity capacity
- Fixed 5-ft length with specific terminal size
FAQ
Can I use 4/0 welding cable for a car audio power wire?
What is the difference between 4/0 AWG and 4 AWG wire?
How do I know if my 4/0 wire is pure copper or copper-clad aluminum?
What size ring terminal do I need for my 4/0 cable?
Final Thoughts: The Verdict
For most users, the best 4/0 4/0 4/0 wire winner is the WNI 4/0 Cable with Lugs Kit because it delivers a complete, ready-to-install package of ultra-flexible USA-made pure copper cable with all necessary lugs and shrink tubing, removing the guesswork from the installation. If you want maximum flexibility at a budget-conscious price, grab the iGreely 4/0 Kit with its exceptional 3,415-strand conductor. And for a saltwater marine environment or any application demanding extreme corrosion resistance, nothing beats the NOVINO Marine Grade 4/0 with its fully tinned construction and UL 1426 rating.
