A wood post that rots at the base is a structural and aesthetic failure you can prevent with one decision at the build stage. The right bracket lifts the lumber off damp concrete, stops ground-contact decay, and locks the post in place so railings, pergolas, and fence panels stay square for years rather than leaning within months.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours dissecting steel gauge thickness, powder-coat adhesion, anchor-bolt compatibility, and real-world installation feedback to separate brackets that actually deliver uplift resistance from those that bend under load.
Everything from the internal fit tolerance to the standoff height matters when you choose between dozens of nearly identical options, which is why I built this guide around the single most important question: what makes a bracket genuinely worth installing instead of a future headache? The answer is in the details of the 4 by 4 post brackets that earn their place on this list.
How To Choose The Best 4 By 4 Post Brackets
Selecting a post bracket comes down to matching the steel gauge, internal dimension, and anchor method to your specific project. The wrong tolerance leaves you with a wobbling post, and a thin wall bends under lateral wind load or gate weight.
Steel Thickness and Coating Integrity
The most common spec you will see is a steel thickness ranging from roughly 1.5mm to 2.1mm (roughly 16-gauge to 13-gauge). Thicker steel resists bending when the post is levered by heavy gates or high winds. The powder-coat finish matters equally — a brittle coating chips during screw installation, and exposed steel rusts quickly in wet environments. Look for brackets that advertise “heavy duty” alongside a specific millimeter measurement rather than vague language about strength. Corrosion resistance is especially critical for coastal installations where salt accelerates degradation.
Internal Dimensions and Post Fit
Standard 4×4 lumber is rarely a true 4 inches. Dry pressure-treated posts typically measure 3.5 inches square, while green or wet-treated stock can run close to 3.6 inches. Brackets advertised with an inner size of 3.6″x3.6″ fit most dimensional lumber without forcing, but the trade-off is a visible gap if your post is exactly 3.5″. A few brands target 3.5″x3.5″ for a snugger fit, which may require light sanding or trimming on wet posts. Measure your actual lumber before ordering, and don’t trust “standard” to mean one consistent size.
Standoff Height and Moisture Management
A flat-bottom bracket that sits directly on concrete traps moisture against the end grain of the post, accelerating rot within months. The better design incorporates a standoff — a 1-inch gap or a raised internal floor with drainage holes — that lifts the wood above standing water and allows airflow underneath. Code requirements in many regions mandate a minimum 1-inch clearance for structural posts exposed to weather. If your bracket lacks this feature, you are essentially building a moisture trap that will compromise the post long before the steel fails.
Anchor Type and Installation Method
Concrete installations demand wedge anchors or expansion bolts that seal into the slab, while wood decks require lag screws into the joist below. Some brackets are designed specifically for wet-concrete embedment, meaning you place them into fresh concrete and let it cure around integrated rebar rods — this creates the strongest bond but removes any flexibility for later adjustments. Universal brackets that offer multiple anchor patterns (slots for bolts on the bottom and screw holes on the sides) give you the most flexibility, though you should always verify that the included hardware is grade-8 or equivalent for shear strength.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Simpson Strong-Tie ABA44Z | Premium | Code-compliant structural support | 16-gauge steel / 1″ standoff | Amazon |
| AXWHYS Post Base (13GA) | Premium | Heavy load and high uplift resistance | 13-gauge steel / 4-pack | Amazon |
| Grehitk Post Base | Premium | Universal wood/concrete mounting | 3.5″ internal width / 4-pack | Amazon |
| LADECH Post Base Holder | Mid-Range | Wet-concrete embedment projects | 4 anchor rods / 4-pack | Amazon |
| AXWHYS Post Base (Standard) | Mid-Range | Gazebo and pergola support | 5.5″ height / 4-pack | Amazon |
| SPACEEUP Post Base | Budget-Friendly | Budget-conscious fence builds | 2.1mm steel / 2-pack | Amazon |
| FMhotu Post Base | Budget-Friendly | Light-duty porch and mailbox posts | 2mm steel / 2-pack | Amazon |
In‑Depth Reviews

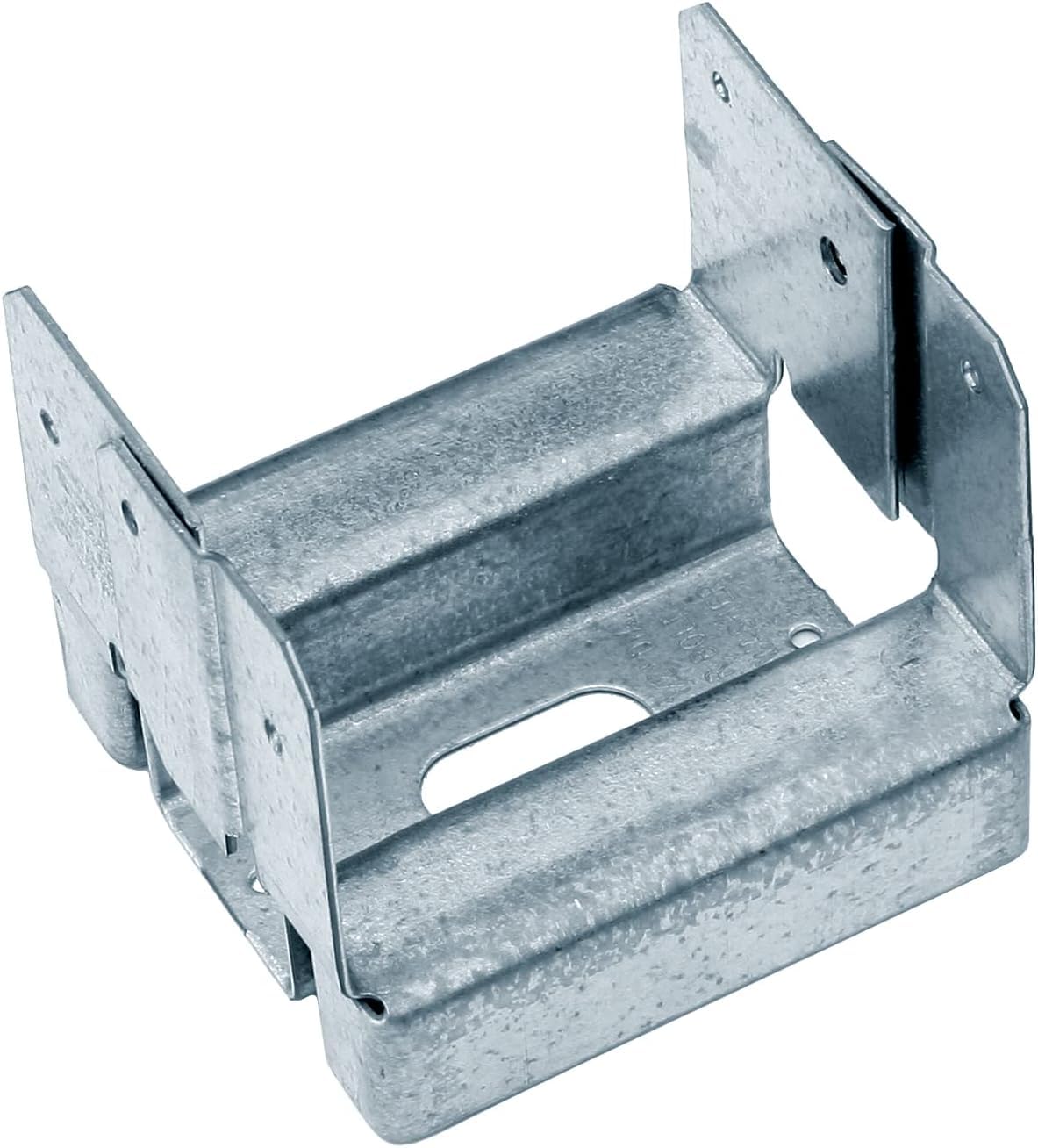

1. Simpson Strong-Tie ABA44Z ABA ZMAX Galvanized Adjustable Standoff Post Base
Simpson Strong-Tie is the benchmark in structural connectors, and the ABA44Z proves why with a 1-inch standoff that meets code requirements for basement and exterior installations. The 16-gauge ZMAX galvanized finish resists corrosion far better than standard powder-coat, especially in coastal or high-humidity environments where lesser brackets begin flaking within a year. The slotted base allows flexibility around the anchor bolt, so precise post placement is achievable even if the concrete bolt isn’t perfectly centered.
The adjustable design accommodates slight variations in post width without requiring shims, and the standoff prevents end-grain moisture absorption that leads to rot. At 3.5 pounds for a 3-pack, the steel is noticeably heavier and denser than the 20-gauge brackets commonly found at big-box retailers. This weight translates directly to uplift resistance — the ABA44Z delivers increased load ratings for earthquake and wind loading as specified by the International Residential Code.
One practical consideration is that the 16-gauge steel is thinner than the 13-gauge options from brands like AXWHYS, so if you are supporting a heavy gate or a large pergola, you may prefer the thicker wall. But for standard deck railing, porch support, and fence posts where code compliance is mandatory, this bracket offers the most reliable engineering pedigree and broadest inspector acceptance on the market.
Why it’s great
- Industry-standard ZMAX galvanization provides superior corrosion resistance vs powder coating
- 1-inch standoff meets code for rot prevention and passes inspection every time
- Slotted anchor-bolt hole adds valuable adjustment room during layout
Good to know
- 16-gauge steel is thinner than premium 13-gauge competitors
- Pack of 3 rather than 4 means you pay more per bracket for large projects
2. AXWHYS 4×4 Post Base 4 Pcs (13GA Thick Solid Steel)
When steel gauge is your primary selection criterion, this AXWHYS 4-pack hits the highest thickness we have tested at 13-gauge solid carbon steel with a black powder coat. The internal dimensions measure 3.6″x3.6″, which matches the actual size of most pressure-treated 4×4 posts without requiring any grinding or sanding. The powder coating is applied smoothly and resists chipping during screw installation — a failure point on many cheaper brackets where the coating flakes off during the first fastener turn.
The standout design element is the raised internal box at the bottom that creates a 1-inch standoff between the post end grain and the ground or concrete surface. This gap allows air to circulate underneath the post, preventing the moisture wicking that causes rot in floorless brackets. The standoff also includes drainage holes so any water that enters the bracket can escape rather than ponding against the wood. Each bracket comes with expansion anchors for concrete, socket-head wood screws for timber subfloors, and Phillips self-tapping screws for the post itself — the most complete hardware kit in this comparison.
Some users have noted that the 3.6-inch internal slot can feel slightly loose around posts that have been kiln-dried down to exactly 3.5 inches. In those cases, the side screws pull the bracket tight against the wood, so the gap is cosmetic rather than structural. The 5.4-inch height provides solid engagement for the post, reducing wobble on tall installations like pergola supports.
Why it’s great
- 13-gauge carbon steel is the thickest in this guide, ideal for high-load applications
- Raised internal floor with drainage eliminates ground-contact moisture
- Comprehensive hardware kit includes concrete and wood anchors with a wrench
Good to know
- Slightly loose fit for exactly 3.5″ posts until side screws are tightened
- Powder coating can ship with minor scuffs in multi-pack bundles
3. Grehitk 4×4 Post Base 4 Pcs (Inner Size 3.5″x3.5″)
Grehitk differentiates itself by specifying an inner dimension of 3.5″x3.5″ instead of the more common 3.6″x3.6″. This makes a meaningful difference if your lumber is kiln-dried dimensional 4×4 that measures exactly 3.5 inches — the post slides in with no perceptible play, and the side screws simply lock it rather than pulling it sideways into alignment. For builders who dislike shimming, this tighter spec eliminates the need entirely.
The steel construction feels dense at nearly 10 pounds for the 4-pack, and the black powder paint is applied heavily enough to survive the screw-installation process without exposing bare metal. Each bracket has eight holes on the body and four on the bottom flange, giving you ample fastening points for a rigid connection. The included hardware covers both concrete (3/8-inch expansion bolts) and wood (self-tapping screws), and the 3.5-inch clearance from the bottom of the post to the ground satisfies typical code requirements for exterior posts.
A few builders have noted that the snug 3.5-inch fit can be overly tight if your lumber is green pressure-treated that hasn’t fully dried. In that scenario, you may need to plane or sand the post lightly. The low-profile appearance is also worth mentioning — these brackets are less visually intrusive than taller standoff designs, which matters if the bracket sits at eye level on a low deck.
Why it’s great
- 3.5″ internal dimension fits dry dimensional posts without any play
- Heavy steel construction with thick powder coating resists chipping
- Multiple fastening points create a very rigid connection for shade sails and gates
Good to know
- May require sanding for green or wet pressure-treated lumber
- Short 3.5″ standoff may not meet all local code minimums
4. LADECH 4×4 Post Base Holder Ground Spike (4 Pack)
The LADECH post base takes a fundamentally different approach to anchoring: instead of bolting onto cured concrete, four 1/2-inch-diameter steel rods are embedded directly into wet concrete. Once the concrete cures, the bracket becomes an integrated part of the foundation, delivering shear and uplift resistance that exceeds any surface-mounted expansion bolt. This is the right choice for new construction where you can plan the pour around the bracket placement.
The internal dimensions target 3.5″x3.5″ posts, which means a snug fit without wobble. The steel construction is alloy steel with black powder coating, and the rods are welded to the bracket body — not threaded or bolted on — so there is no weak point at the joint. Each pack includes four complete units, along with screws for securing the post after curing. Users report that the posts fit “like a glove” with no lateral play, which is critical for tall fence sections or gate posts that take repeated opening and closing forces.
The trade-off is permanent placement: once the concrete sets, the bracket position cannot be adjusted. Misalignment during the pour means your post is fixed in the wrong spot. Additionally, the bottom of the bracket is open, so if concrete fills the interior during the pour, the post will not seat fully. You must seal or plug the bottom holes before pouring to maintain a clear cavity. This is not a beginner-friendly product, but for permanent installations where strength is paramount, it delivers unmatched holding power.
Why it’s great
- Welded 1/2″ rebar rods create the strongest bond to concrete foundation
- Snug 3.5″ fit eliminates all lateral wobble for gate and fence posts
- Posts can be removed later without disturbing concrete foundation
Good to know
- Requires embedding in wet concrete — not suitable for retrofitting existing slabs
- Bottom holes must be plugged to prevent concrete from filling the interior
5. AXWHYS 4×4 Post Base 4 Pcs (Inner Size 3.6″x3.6″)
This standard AXWHYS post base covers the mid-range sweet spot with a 4-pack of brackets made from solid carbon steel and a black premium powder-coat finish. The 5.5-inch height provides generous engagement for the post, which reduces sway on taller structures like gazebos and pergolas compared to shorter 2.5-inch bases. The internal dimensions are 3.6″x3.6″, matching the actual size of most dimensional lumber without forcing.
The unique design feature is the internal partition that lifts the post off the bottom surface, creating a small gap that prevents direct moisture contact with the end grain. A small square box in the center adds lateral stability and prevents the bracket from twisting during installation. The included hardware is generous: 16 expansion anchors for concrete, 16 socket-head wood screws, and 32 Phillips self-tapping screws, plus a wrench. This means you can mount to either concrete or wood without separate trips to the hardware store.
One common observation from users is that the powder coating on the interior corners can be thick, sometimes making the first post insertion a bit tight. A quick pass with sandpaper on the post corners resolves the issue. The steel feels substantial at 3.85 kilograms for the 4-pack, though it is slightly lighter than the 13-gauge variant from the same brand. For medium-duty deck railing and fence work, this represents the best balance between cost and structural integrity.
Why it’s great
- 5.5-inch bracket height provides superior post engagement and stability
- Internal partition prevents end-grain moisture contact
- Comprehensive hardware kit covers both concrete and wood mounting
Good to know
- Thick interior powder coating can create a tight first fit
- Steel gauge is slightly thinner than the 13GA variant in the same brand line
6. SPACEEUP 4×4 Post Base 2 Pcs (Inner Size 3.6″x3.6″)
SPACEEUP offers a 2-pack of post bases made from 2.1mm thick steel, which sits right between the typical 16-gauge and premium 13-gauge offerings. The matte black powder coating gives a clean, non-reflective finish that blends well with outdoor environments. At 5.4 inches tall, the bracket provides sufficient vertical engagement for standard deck and fence posts, though the 2-pack quantity means you will need multiple orders for larger projects.
The hardware package includes a wrench, 8 expansion bolts for concrete, and 16 self-tapping screws for wood, which is sufficient for a single installation but less generous than the 4-pack competitors. Users consistently praise the quality relative to big-box store pricing, noting that the steel feels “slightly lighter duty than Simpson Strong-Tie” but at a fraction of the per-unit cost. This makes the SPACEEUP brackets ideal for budget-conscious fence builds, mailbox posts, and small deck projects where the load demands are moderate.
The main compromise is in the fit tolerance: several users report a noticeable gap between the 4×4 post and the bracket walls, requiring the side screws to do the work of centering the post. The post holes are also all at the same height, which means screws from opposite sides cross into each other if driven too deep. For light-duty applications these are not structural concerns, but for any installation where the post carries significant vertical load, the tighter fit of the Grehitk or LADECH bases is preferable.
Why it’s great
- 2.1mm steel thickness beats most entry-level 16-gauge brackets
- Matte black finish resists glare and blends with dark hardware
- Includes necessary hardware for concrete and wood mounting
Good to know
- Loose fit around 3.5″ posts requires careful screw alignment
- 2-pack limits value for projects needing four or more brackets
7. FMhotu 4×4 Post Base 2 Pcs (Internal 3.6″x3.6″)
The FMhotu post base stands out visually with curved edges and a bright black powder-coated finish that has more surface texture than the flat matte options. At only 2.46 inches tall, this is the shortest bracket in the comparison, which gives it a low-profile look that some homeowners prefer for porch and handrail applications where the bracket is visible. The 2mm steel thickness is adequate for light-duty use, though it lacks the rigidity of taller, thicker alternatives.
Installation is straightforward with the pre-drilled holes — eight on the top sides and four on the bottom flange — and the included self-tapping screws and expansion pipes cover concrete and wood mounting. The 3.6″x3.6″ internal dimensions fit standard 4×4 posts, though as with other 3.6-inch brackets, dry 3.5-inch posts will have a slight gap until the side screws are driven. Users report that the brackets held up well through storms when used for gazebo mounting on an existing deck, which speaks to the steel strength being sufficient for residential wind loads.
The compact 2.46-inch height is the primary limitation. Because the bracket engages less than half the post width compared to 5.5-inch models, the post has more potential for lateral movement at the base. This makes the FMhotu best suited for lower-stress applications like mailbox posts, light railings, and bench supports rather than pergolas or gates. The curved aesthetic is genuinely more decorative than the industrial look of most competitors, so if visual appeal matters more than raw load capacity, this is a legitimate choice.
Why it’s great
- Curved decorative design looks more refined than standard rectangular brackets
- 2mm steel is adequate for mailbox, bench, and light railing applications
- Complete hardware kit includes expansion pipes and self-tapping screws
Good to know
- Only 2.46″ tall — limited engagement for high-load or tall posts
- Very compact profile may look undersized for heavy pergola supports
FAQ
What is the actual internal dimension I should look for when my lumber says 4×4?
Can I use concrete wedge anchors with any post bracket base?
Why do some brackets have eight side holes while others have only four?
Final Thoughts: The Verdict
For most users, the 4 by 4 post brackets winner is the Simpson Strong-Tie ABA44Z because it combines code-compliant standoff design, proven ZMAX galvanized corrosion resistance, and the widest inspector acceptance of any bracket in this category. If you want maximum steel thickness and a built-in drainage floor for heavy pergola loads, grab the AXWHYS 13-gauge 4-pack. And for permanent new-construction installations where absolute holding power is the priority, nothing beats the LADECH wet-concrete embedment base.
