Swapping out a worn 4 lug trailer wheel isn’t just about keeping your trailer rolling — it’s about making sure the load rating, bolt pattern, and center bore actually match your hub so you’re not side-eyeing your tires at every highway mile. A loose fit or mismatched capacity can turn a routine tow into a white-knuckle wobble.
I’m Rikta — the co-founder and writer behind Gadgets Feed. I’ve spent years digging into bias-ply construction, load range letter codes, and tread pitch data for the trailer wheel category so you don’t have to chase down fitment specs yourself. (And Homer 🐱 approved the final picks by napping on the shipping box pile — his seal of trust.)
Browsing pre-mounted assemblies saves you a trip to the tire shop, but only if you know which PSI, ply rating, and rim width match your trailer’s axle weight. This guide covers the top-rated 4 lug trailer wheels built for utility, boat, and camper use with Load Range C durability.
How To Choose The Best 4 Lug Trailer Wheels
Trailer wheels carry everything from jet skis to landscaping gear, so picking the wrong rim size or ply rating can lead to blowouts or bent rims. Focus on three numbers: bolt pattern (4 on 4 inches is standard here), overall diameter, and load capacity at max PSI. Most 4 lug assemblies fall between 8-inch and 12-inch rims, so match your trailer’s existing hub clearance.
Load Range and Ply Rating
Load Range C (6-ply) supports around 990 to 1050 pounds per tire depending on diameter — enough for typical utility and boat trailers under 2000 pounds gross weight. Load Range B (4-ply) shaves capacity to about 785 pounds and suits lighter campers. Always exceed your trailer’s gross axle weight rating.
Bolt Pattern and Center Bore
A 4 lug on 4 inch pattern (4 x 4 inches) is the most common configuration for small to mid-size trailers. Center bore should match your hub diameter — typically 2.83 inches — to ensure lug-centric seating rather than relying solely on lug nuts. Offset values around -2 to 0 keep the tire centered under the fender.
Bias Ply vs Radial Design
Bias-ply trailer tires use nylon cord layers crisscrossed for stiff sidewalls that resist sway under heavy loads. Radial designs offer a smoother ride but flex more at the sidewall. Most 4 lug wheels in this category are bias-ply, which is preferred for stable towing at moderate highway speeds up to 75 mph.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| WANDA 4.80-12 6-Ply C | Premium Assembly | Highway-rated boat trailers | 815 lbs at 80 PSI, 4 on 4″ PCD | Amazon |
| eCustomrim 4.80-12 Load B | Premium Assembly | Stable 12″ upgrade from 8″ | 785 lbs at 60 PSI, 12×4″ rim | Amazon |
| Garvee 5.30-12 4 Lug | Heavy-Duty | Heavy loads up to 1050 lbs | 1050 lbs at 80 PSI, 12″x4″ rim | Amazon |
| MERXENG 4.80-12 4 Lug | Mid-Range | Versatile utility and farm use | 990 lbs at 90 PSI, 4 on 4″ | Amazon |
| eCustomrim 4.80-8 Load C | Best Value | Compact pop-up trailers | 760 lbs at 60 PSI, 8″ rim | Amazon |
| WANDA 4.80-8 6-Ply C | Budget Pick | Motorcycle and small utility trailers | 70M load index, 4 on 4″ PCD | Amazon |
| GarveeTech 4.80-12 5 Lug | Alternate Pattern | 5 lug trailers needing 12″ tires | 990 lbs at 90 PSI, 5×4.5″ PCD | Amazon |
In‑Depth Reviews
1. WANDA Trailer Tire Wheel Assembly 4.80-12 6-Ply C
This WANDA set brings a 4.80-12 tire with 6-ply Load Range C construction, maxing out at 815 pounds per tire at 80 PSI. The 4 lug on 4 inch bolt pattern and zero offset match standard boat and utility trailer hubs, and the white spoke rim adds a clean aesthetic for older rigs that need a visual refresh.
Speed rating M (up to 81 mph) means highway travel is within spec, and DOT certification backs the assembly for safety compliance. The 4-inch rim width pairs well with the 4.80 section width, keeping the tire profile stable under load without excessive sidewall bulge.
Buyers consistently note that the pre-mounted, pre-inflated condition saves time compared to sourcing a tire and rim separately. The assembly weighs roughly 50 pounds per set of two, so handling them on a driveway swap is manageable for one person.
Why it’s great
- Highway rated up to 81 mph with M speed rating
- Pre-mounted and inflated for immediate installation
- White spoke rim resists corrosion from road salt and moisture
Good to know
- Rim offset is 0, so verify fender clearance on trailers with tight wheel wells
- Center bore is 2.83 inches — confirm your hub diameter
2. eCustomrim 2-Pack Trailer Tire Rim Assembly 4.80-12 Load B
Moving from 8-inch to 12-inch wheels is a common upgrade for Harbor Freight and compact trailers, and this eCustomrim set makes that transition straightforward with a 4 lug on 4 inch pattern. Load Range B (4-ply) supports 785 pounds per tire at 60 PSI, suiting lighter campers and small boat trailers that don’t need maximum capacity.
The reinforced square shoulder tread improves road contact, reducing sway at speeds around 55-60 mph according to verified buyer reports. A radial-style variable pitch tread pattern cuts down on highway noise compared to older bias-ply designs with aggressive lugs.
Rim coating resists rust and corrosion, and the domestic mounting process means the tire hasn’t sat folded in storage. A 2-year warranty with roadside assistance adds peace of mind for seasonal trailer users who only hit the road a few weekends each year.
Why it’s great
- Quieter ride thanks to variable pitch tread design
- Rust-resistant rim coating with 2-year warranty
- Mounted in the USA — no creases or flat spots
Good to know
- Load Range B limits max load to 785 lbs per tire
- Overall diameter is 20.5 inches — check fender clearance

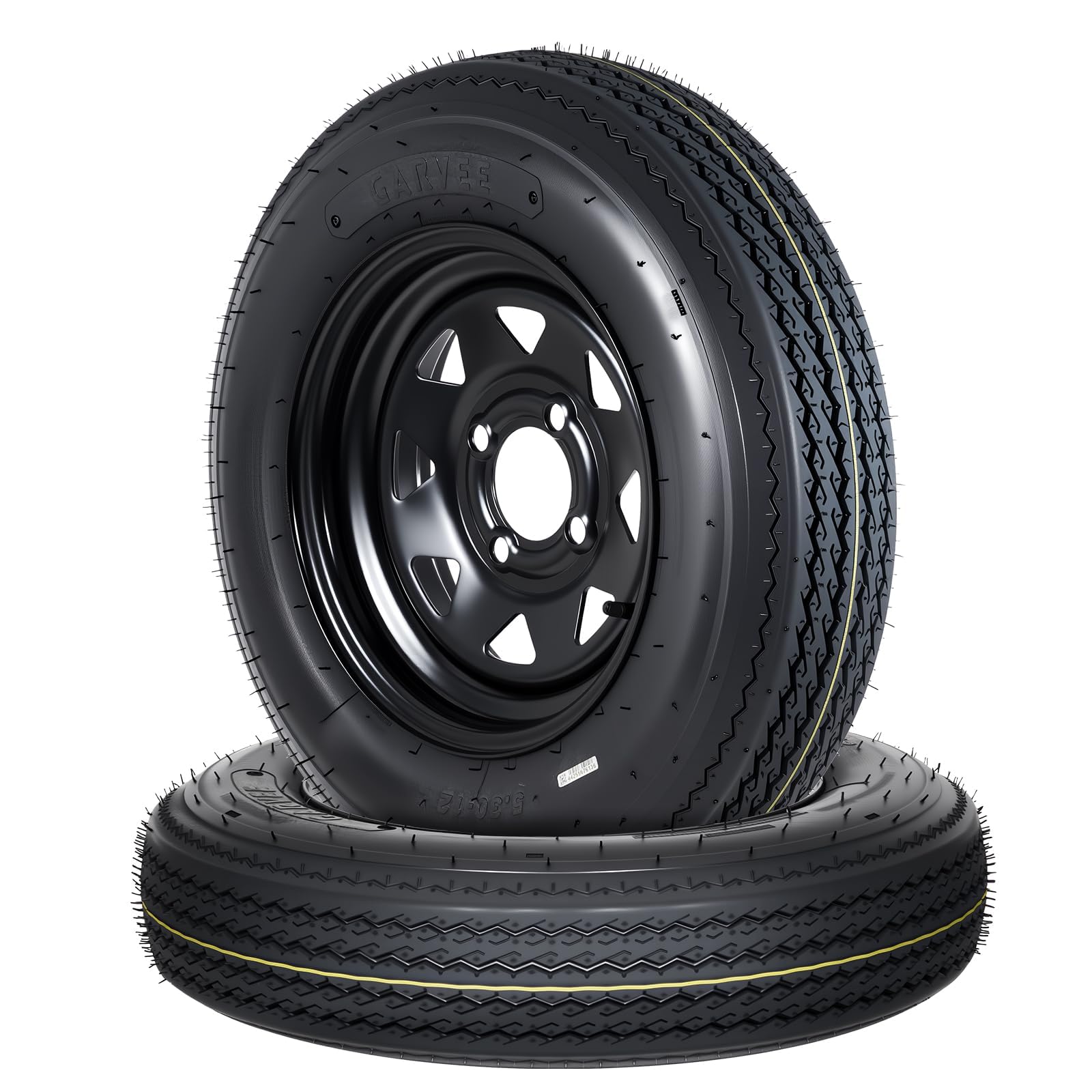

3. Garvee 2-Pack 5.30-12 Trailer Tires with 12″ Rims
The 5.30-12 size offers a wider footprint than standard 4.80-12 tires, and Garvee pairs that with a 6-ply Load Range C rating for 1050 pounds per tire at 80 PSI. That extra capacity makes this set a strong candidate for landscape trailers and utility trailers carrying heavy gear like zero-turn mowers.
Bias-ply construction with nylon crisscross layers provides the sidewall stiffness needed to resist sway on uneven terrain. The 12-inch by 4-inch black steel rim keeps the weight manageable at roughly 43 pounds for the pair, though the wider tire section may require additional clearance inside the fender.
Buyers report a straightforward bolt-on fit for 4 lug trailers, and the all-weather compound holds up in both humid coastal environments and dry inland heat. The 30-day manufacturer warranty is shorter than some competitors, but the tire quality earns consistent praise.
Why it’s great
- Highest load capacity at 1050 lbs per tire in this roundup
- Wider 5.30 section for improved stability
- Bias-ply sidewall resists sway on rough roads
Good to know
- Warranty is only 30 days — shorter than eCustomrim
- Check fender clearance for the wider 5.30 section width
4. MERXENG 4.80-12 Trailer Tires with 12” Rims
MERXENG delivers a 4.80-12 assembly hitting 990 pounds per tire at 90 PSI with a 6-ply Load Range C rating. That max PSI is higher than many competitors, which helps the tire maintain shape under heavy loads without sidewall squirm. The 4-inch rim width and 4 on 4 inch bolt pattern fit standard utility and boat trailer hubs.
Tread depth measures 5mm, providing decent longevity for moderate highway use. The 20.7-inch overall diameter matches typical 12-inch trailer tire specs, and the speed rating M allows sustained cruising at highway speeds. Buyers frequently note that these outperform entry-level Harbor Freight tires in both ride quality and durability.
The 1-year warranty offers better coverage than the 30-day Garvee plan, and the center bore at 2.95 inches gives a little extra clearance on hubs with slight variation. This set suits farm, cargo, and camper trailers needing reliable all-season performance.
Why it’s great
- 90 PSI max inflation supports heavy loads without squirm
- 1-year manufacturer warranty beats short-term plans
- Center bore 2.95 inches fits slightly oversized hubs
Good to know
- Tread depth is 5mm — may wear faster on rough asphalt
- Not DOT-approved for commercial use — verify local regulations

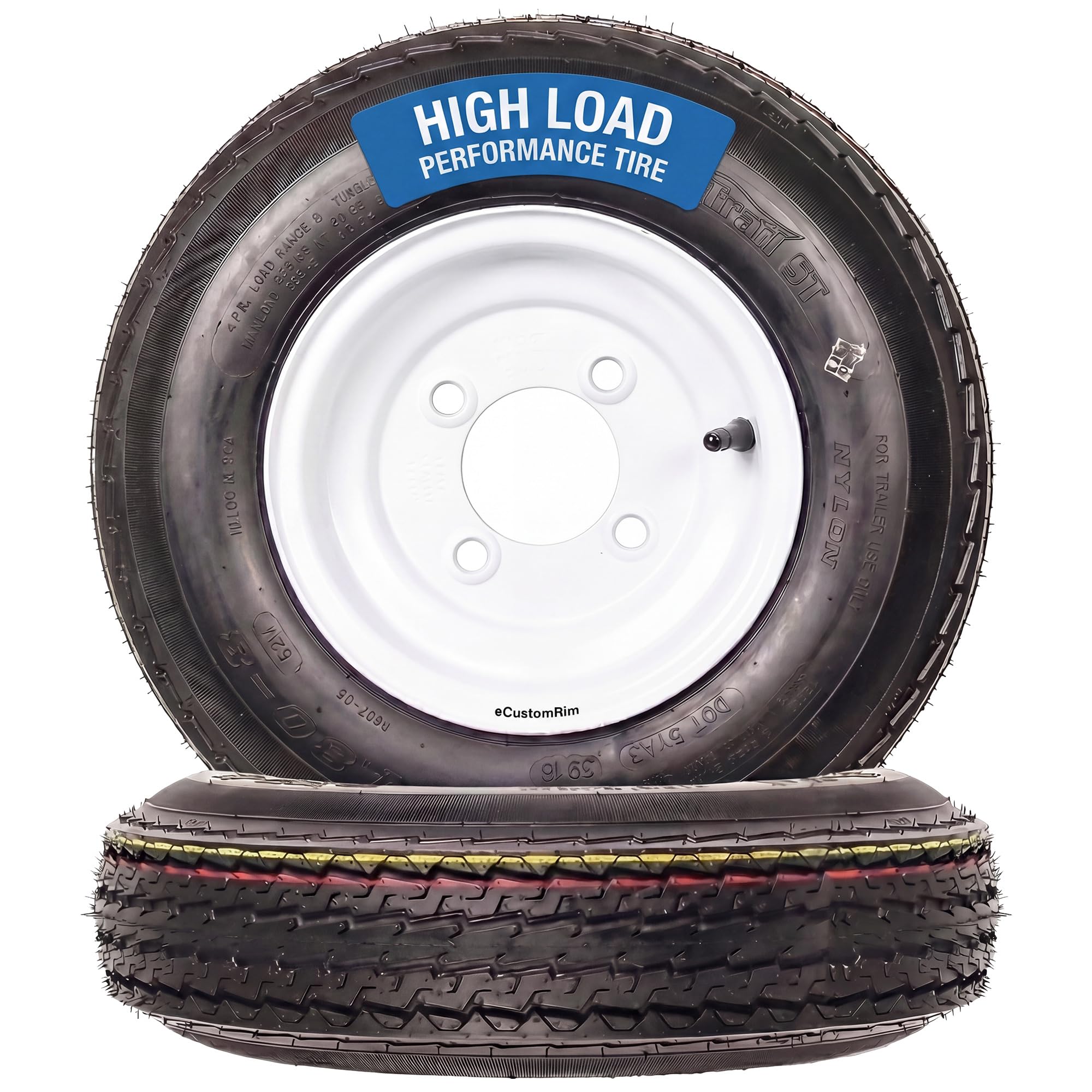

5. eCustomrim 2-Pack 4.80-8 Trailer Tires On Rims Load C
For pop-up campers, small utility trailers, and anything running an 8-inch rim, this eCustomrim 2-pack brings Load Range C (6-ply) capacity at 760 pounds per tire with a 60 PSI max. The 4.80-8 size keeps the overall diameter at 16.5 inches, making it a direct replacement for older 8-inch trailer wheels.
The reinforced square shoulder tread improves road contact and stability, which is especially noticeable on trailers that sit low to the ground. A variable pitch tread pattern reduces noise at lower speeds compared to aggressive off-road designs, and the alloy steel rim includes a corrosion-resistant coating for longevity.
A 2-year warranty with roadside assistance is rare at this tier, and the domestic mounting process ensures the tire doesn’t arrive with storage creases. Buyers report easy installation on pop-up trailers and small boat trailers, with the tires holding pressure consistently over several seasons.
Why it’s great
- 2-year warranty with roadside assistance — best in class
- Load Range C on an 8-inch rim keeps capacity solid
- Domestically mounted with no storage creases
Good to know
- 8-inch rim size limits top speed stability compared to 12-inch
- 60 PSI max is lower than some 12-inch Load C options

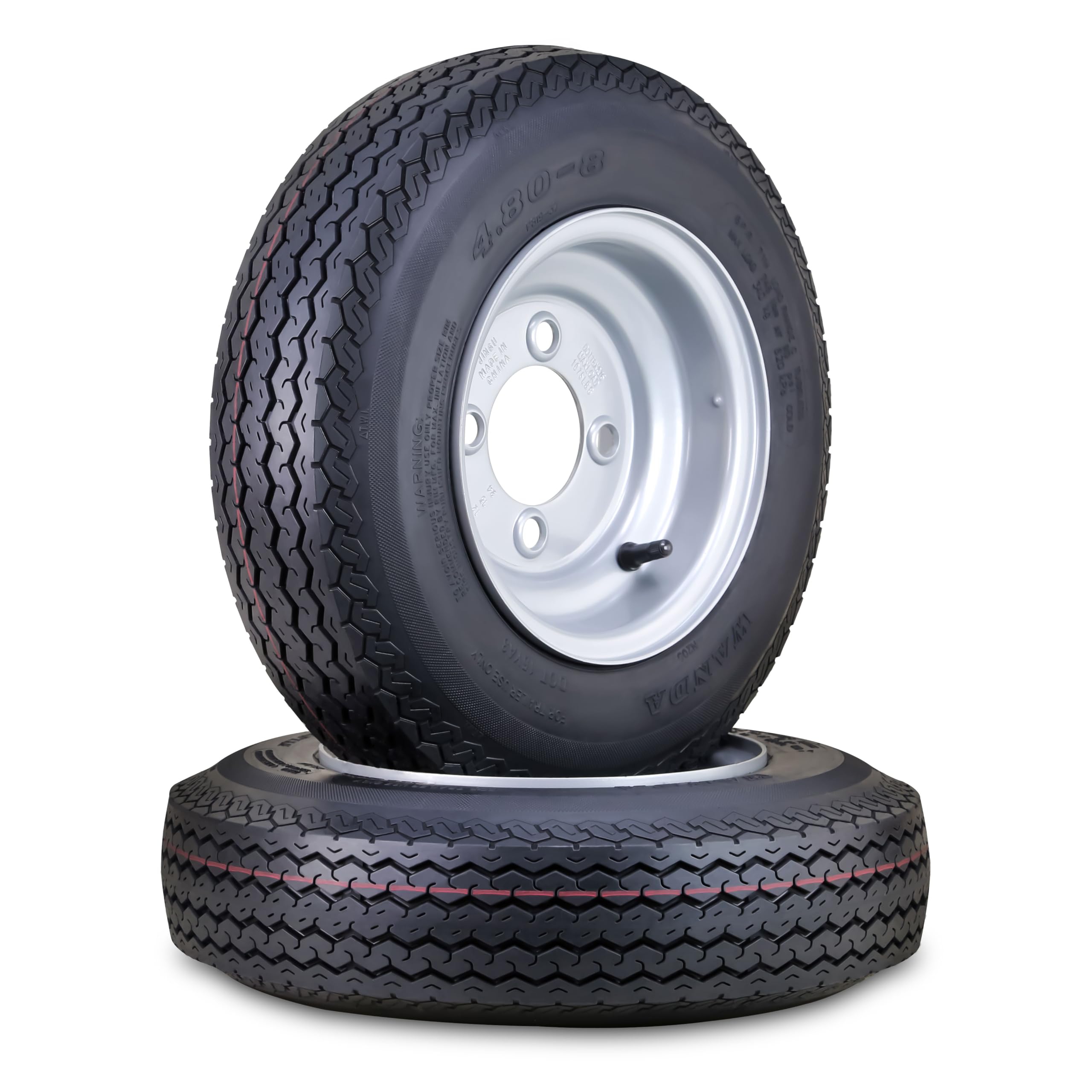

6. WANDA Trailer Tire Wheel Assembly 4.80-8 6-Ply C
WANDA’s 4.80-8 assembly offers a 6-ply Load Range C build on a silver painted rim with a 4 lug on 4 inch pattern. The speed rating M (up to 75 mph) is surprisingly high for an 8-inch wheel, making it viable for highway-legal small trailers that don’t carry extreme loads.
The center bore sits at 2.83 inches with a -2 offset, so double-check your hub’s protrusion if you’re replacing wheels with a different offset. The painted rim finish is less corrosion-resistant than eCustomrim’s coated steel, but for budget-conscious buyers using the trailer occasionally, it holds up fine.
Buyers consistently mention the value advantage over buying tires and rims separately — especially for jet ski and motorcycle trailers where load demands are moderate. The load index of 70 translates to roughly 760 pounds per tire, matching the eCustomrim 8-inch set at a comparable price point.
Why it’s great
- Speed rated up to 75 mph despite 8-inch rim size
- Pair of assemblies costs less than separate tire and rim
- 6-ply construction for Load Range C at entry-level pricing
Good to know
- Painted rim may chip or rust faster than coated alternatives
- -2 offset might require fender adjustment on some trailers
7. GarveeTech 4.80-12 Trailer Tire and Wheel Assembly (5 Lug)
If your trailer uses a 5 lug pattern rather than the standard 4 lug, this GarveeTech set is a solid match with a 5 x 4.5 inch bolt circle. The 4.80-12 tire carries a Load Range C 6-ply rating at 990 pounds per tire at 90 PSI, and the white spoke wheel gives it a classic utility trailer look.
Double steel belts and nylon cord layers reinforce the bias-ply construction, helping the tire stay stable under mixed loads like hay bales, firewood, or camping gear. The 12-inch diameter and 4-inch rim width keep the assembly compact enough for most 5 lug boat and farm trailers.
Buyers note the convenient pre-mounted, pre-inflated condition and the value compared to local tire shop prices. There’s no manufacturer warranty beyond basic coverage, but the build quality has earned consistent 5-star feedback for trailers used seasonally rather than daily.
Why it’s great
- Fits 5 lug trailers that don’t use the common 4 lug pattern
- Double steel belts add puncture resistance on rough roads
- Pre-mounted and inflated for immediate installation
Good to know
- Bolt pattern is 5×4.5 inches — verify your hub pattern
- No stated manufacturer warranty — check seller policy
FAQ
Can I use a 4.80-12 tire on a 4.80-8 trailer hub?
How do I verify my trailer wheel offset?
Final Thoughts: The Verdict
For most users, the 4 lug trailer wheels winner is the WANDA 4.80-12 6-Ply C because it balances highway speed rating, pre-mounted convenience, and Load Range C capacity for common boat and utility trailers. If you need the highest load capacity at 1050 pounds per tire, grab the Garvee 5.30-12 4 Lug set. And for light pop-up or motorcycle trailers where 8-inch wheels are required, nothing beats the eCustomrim 4.80-8 Load C 2-pack with its 2-year roadside warranty.
