A trailer’s lights flashing erratically or not at all usually traces back to a corroded or poorly wired 4-pin flat plug. The connector that links your vehicle’s electrical system to the trailer’s taillights, brake lights, and turn signals endures road spray, vibration, and temperature swings that break lesser plugs in a single season. Choosing the right 4 wire trailer plug means looking past the generic “4-pin” label and understanding wire gauge, copper purity, and the difference between a 4-wire and a 5-wire wishbone harness.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve analyzed over two dozen trailer wiring harnesses across price tiers, comparing copper strand counts, PVC jacket thickness, and connector grip ergonomics to isolate the plugs that actually maintain a reliable circuit after months of towing.
This guide evaluates seven contenders ranging from short splices to full 26-foot rewiring kits, focusing on the measurable specs that keep your lights working. After reading, you’ll know exactly which 4 wire trailer plug fits your trailer’s length, light type, and corrosion exposure.
How To Choose The Best 4 Wire Trailer Plug
The connector itself is just the tip of the iceberg — the wiring behind it determines whether your lights stay lit. Focus on three decision points: wire gauge and material, harness type (4-wire vs. 5-wire Y-harness), and total length with protective sleeving.
Wire Gauge and Conductor Material
Almost every 4 wire trailer plug on the market uses 18 AWG stranded wire. The critical difference is whether the strands are pure copper or copper-clad aluminum (CCA). Pure copper carries current with lower resistance and withstands repeated flexing without fracturing. CCA wire costs less but corrodes faster at exposed splice points and snaps under vibration. Always verify “pure copper” in the product description — and look for at least 16 strands per conductor for adequate flexibility in tight frame routing.
4-Wire vs. 5-Wire Y-Harness
A standard 4-wire harness uses four conductors inside one jacket: ground, left turn/brake, right turn/brake, and tail/marker lights. A 5-wire Y-harness adds a second brown wire so that the left and right taillights each get their own dedicated wire. This eliminates the need to run a jumper wire across the axle or splice at the rear crossmember. For trailers over 80 inches wide, the Y-harness saves significant installation time and reduces failure points.
Length and Protective Jacketing
Measure the distance from your vehicle’s 4-pin connector location to the furthest taillight, then add 2–3 feet for slack and routing bends. Short 18-inch pigtails work for replacing a worn plug on an existing harness. Full 22–26 foot kits let you rewire a trailer from the tongue back. Look for a thick PVC primary jacket over the bundle and, ideally, a black braided nylon mesh sleeve over the entire run — that mesh is the best protection against road debris abrasion and UV cracking.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Oyviny 22FT 5-Wire | Y-Harness Kit | Complete trailer rewiring | 18 AWG pure copper, 22 ft + 2.5 ft ground | Amazon |
| WALSIO 26FT 5-Wire | Extended Y-Harness | Long trailers over 80 inches | 18 AWG pure copper, 26 ft + 2.5 ft ground | Amazon |
| WALSIO 22FT 5-Wire | Y-Harness Kit | Boat and utility trailers | 18 AWG pure copper, braided nylon sleeve | Amazon |
| Gonice 25FT 5-Wire | Protected Y-Harness | Off-road and high-abuse use | 18 AWG copper, nylon protective sleeve | Amazon |
| CZC AUTO 30FT Extension | Extension Cable | Adding length to existing harness | 18 AWG pure copper, 30 ft male-to-female | Amazon |
| MECMO 48-Inch Extension | Short Extension | Hitch extension clearance | 18 AWG pure copper, 4 ft, PU sheath | Amazon |
| Oyviny 18-Inch 5-Wire | Replacement Pigtail | Worn plug replacement | 16 AWG pure copper, 18 inches, Y-split | Amazon |
In‑Depth Reviews
1. Oyviny 4 Pin 5 Wire Trailer Wiring Harness 22FT
This Oyviny kit delivers the ideal balance of length, conductor quality, and protective jacketing for a full trailer rewire. The 22-foot pure copper 18 AWG flat ribbon bundle terminates in a Y-harness with two separate brown wires, letting you run dedicated lines to left and right taillights without splicing across the rear frame. The entire harness is encased in a black braided nylon mesh sleeve that resists abrasion from leaf springs and gravel spray far better than bare PVC.
Installation is straightforward thanks to color-coded wires: white (ground), brown (tail/marker), yellow (left turn/brake), and green (right turn/brake). The 2.5-foot ground wire reaches a clean chassis contact point on most trailer tongues. Users consistently report that the connectors fit snugly into standard 4-pin receptacles without forcing, and the included dust cap keeps the plug terminals clean when disconnected.
At roughly 0.43 kilograms, the kit is light enough to route through frame channels easily. The only compromise is that the Y-split runs all the way to the plug end — some prefer a bundled section near the tongue — but a quick wrap of electrical tape solves that. For a complete rewire that balances durability with ease of installation, this is the set to beat.
Why it’s great
- Full-length nylon mesh sleeve protects against road debris and UV
- Y-harness eliminates need for axle-crossing jumper wire
- 22 feet provides ample length for most single-axle trailers
Good to know
- Y-split runs fully to plug end rather than bundled 3 feet back
- No splicing instructions included in the package
2. WALSIO 26FT 4 Pin 5 Wire Trailer Wiring Harness
When your trailer is longer than 80 inches or the tongue extends far past the hitch ball, standard 22-foot kits come up short. WALSIO’s 26-foot harness adds exactly the extra reach needed without jumping to a heavier-gauge cable that would be harder to route. The 18 AWG pure copper conductors are wrapped in thickened PVC and then encased in black braided nylon mesh tubing — the same triple-layer protection used in the Oyviny kit above.
The Y-harness design again separates the two brown wires for independent left/right taillight connection. Customers rewiring boat trailers report that the 2.5-foot ground wire, paired with a self-tapping screw, makes a solid connection to aluminum trailer frames. The color coding matches the industry standard, and the plug includes a weatherproof dust cover for storage between trips.
One minor note: the braided loom runs the full length including the Y-split, so the last few feet are two separate sleeved legs rather than a single bundle. This makes routing through tight frame channels slightly more involved, but heat-shrink or tape can consolidate the split. Overall, this is the best option for anyone who needs maximum reach without stepping up to a heavier or more expensive commercial-grade harness.
Why it’s great
- 26 feet covers extra-long trailers and extended tongue setups
- Thickened PVC plus braided nylon mesh for heavy abrasion resistance
- Y-harness keeps taillight wiring separate and simple
Good to know
- Fully split loom makes single-bundle routing messy
- No butt splice connectors included for taillight termination
3. WALSIO 22FT 4 Pin 5 Wire Trailer Wiring Harness
This WALSIO 22-foot kit mirrors the build quality of the extended version but in a length that matches most standard single-axle trailers. The 18 AWG pure copper wire is coated with thickened PVC and then oversleeved with black braided nylon — the same protective layering that prevents the insulation from cracking after a season of sun exposure. The Y-harness design again uses five wires, with dedicated brown wires for each side.
Customer feedback highlights the ease of installation: the color-coded wires are pre-stripped at the ends, and the Y-split starts at the plug so you don’t have to cut and splice to create your own split. The 2.5-foot ground wire is long enough to reach a tongue-mounted bolt or a dedicated ground stud. Boat trailer owners specifically note that the braided sleeve resists the corrosive effect of saltwater splashes better than bare PVC.
The main difference between this and the Oyviny 22-foot kit is the dust cover design — WALSIO uses a simple rubber cap versus Oyviny’s more robust hinged cover. Both work adequately, but the Oyviny cap stays attached and won’t get lost. For buyers who prefer the shorter length but still want the full nylon mesh protection, this WALSIO kit is a strong alternative.
Why it’s great
- Full nylon mesh sleeve protects against abrasion and UV cracking
- Y-harness with pre-split design simplifies taillight connection
- Pure copper 18 AWG provides low-resistance current flow
Good to know
- Dust cover is a loose rubber cap rather than a tethered design
- Slightly heavier total weight than kits without mesh sleeve
4. Gonice 25Ft 4 Pin Trailer Wiring Harness Kit with Nylon Sleeve
Gonice takes protective jacketing a step further by covering the entire 25-foot run — including the Y-harness branches — with a black nylon protective sleeve that visually resembles expandable braided sleeving used in automotive engine bays. This extra layer adds noticeable abrasion resistance when routing wires under a trailer that sees off-road use, gravel roads, or frequent submersion in boat ramp water. The 18 AWG pure copper conductors are identical in spec to the other mid-range kits.
The Y-harness design splits the two brown wires for left and right taillights, and the color-coded wiring matches the standard 4-pin flat configuration. Users praise the sleeve for making the harness easy to fish through tight frame channels without snagging. The 2.5-foot ground wire is included, though buyers note that no ring terminal is pre-attached — you’ll need to add your own for a bolted ground connection.
At 25 feet, this harness is 3 feet longer than the standard 22-foot kits, giving extra slack for trailers with extended tongues or for routing around spare tire mounts. The only trade-off is that the sleeve makes the bundle slightly stiffer than bare flat ribbon cable, so tight-radius bends require a bit more effort. For trailers that live on rough terrain, the extra sleeve durability is a meaningful upgrade.
Why it’s great
- Full nylon sleeve provides heavy-duty abrasion protection
- 25 feet offers extra reach for extended tongue trailers
- Y-harness design with color-coded wires simplifies splicing
Good to know
- No ring terminal on ground wire — separate purchase needed
- Sleeve makes the harness stiffer for tight-radius routing
5. CZC AUTO 4 Pin Trailer Light Wire Harness Extension 30ft
This is not a rewiring kit — it’s a male-to-female 30-foot extension cable meant to bridge the gap between your vehicle’s 4-pin outlet and an existing trailer harness that’s too short. The 18 AWG pure copper core is rated for 12V DC trailer lighting circuits, and the connectors feature stain nickel-plated copper terminals that resist corrosion better than untreated brass. The PVC outer jacket is UV-stabilized for sun exposure during long-term storage.
The plug-and-play design means no cutting or splicing: plug the male end into your vehicle, plug the trailer’s existing 4-pin connector into the female end. This is ideal for situations where the trailer’s original harness is permanently enclosed in the frame and you just need extra reach to the hitch receiver. Users report that the plugs mate snugly and the locking tabs hold securely despite vibration.
The main consideration is that this is a straight extension — it does not include a Y-harness or any ground wire. If your trailer’s existing wiring is already failing, you’re better off with a full rewiring kit. But as a gap-filler for a harness that’s 10 to 20 feet too short, the CZC AUTO extension delivers exactly what it promises with solid connector quality.
Why it’s great
- 30 feet solves short-harness problems without cutting factory wiring
- Nickel-plated terminals resist corrosion better than brass
- Plug-and-play with no splicing required
Good to know
- Not a rewiring harness — no ground wire or Y-split included
- Fully extended length may require zip-tie management to avoid dragging

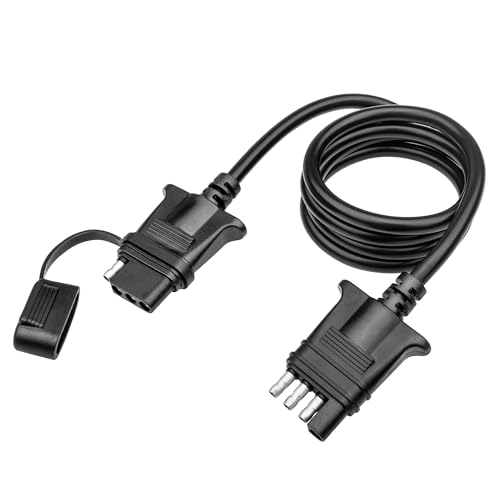

6. MECMO 4 Pin Flat Trailer Extension Cable 48 Inch
When you use a hitch extension to clear a spare tire carrier or rear-mounted bike rack, the trailer’s 4-pin plug often won’t reach the vehicle’s socket. This 48-inch extension bridges that gap with a male-to-female 4-pin flat connector and an 18 AWG pure copper wire bundle wrapped in a flexible PU (polyurethane) sheath instead of standard PVC. PU is notably more resistant to cuts and abrasion than PVC at the same thickness.
The connectors feature easy-grip handles on both ends, which is a practical detail when working behind a tight hitch receiver. A rubber dust cover protects the female socket when not in use. Users who cut the extension in half to create separate male and female pigtails report that the internal soldering and strain relief are well-executed, allowing the wire to handle repeated flexing at the splice point without breaking.
At 4 feet, this is purpose-built for hitch extensions, not full-trailer rewiring. The PU sheath adds about 10% more stiffness than a bare flat ribbon cable, but the trade-off is substantially better resistance to road debris impact. If you need exactly 4 extra inches of clearance at the plug — or want a high-quality donor cable for custom pigtail projects — this MECMO extension is the right tool.
Why it’s great
- PU sheath resists cuts and abrasion better than standard PVC
- Easy-grip handles on both ends simplify plugging in tight spaces
- Build quality allows cutting and splicing into custom pigtails
Good to know
- 4-foot length limits use to hitch extension clearance only
- PU sheath is slightly stiffer than flat ribbon cable

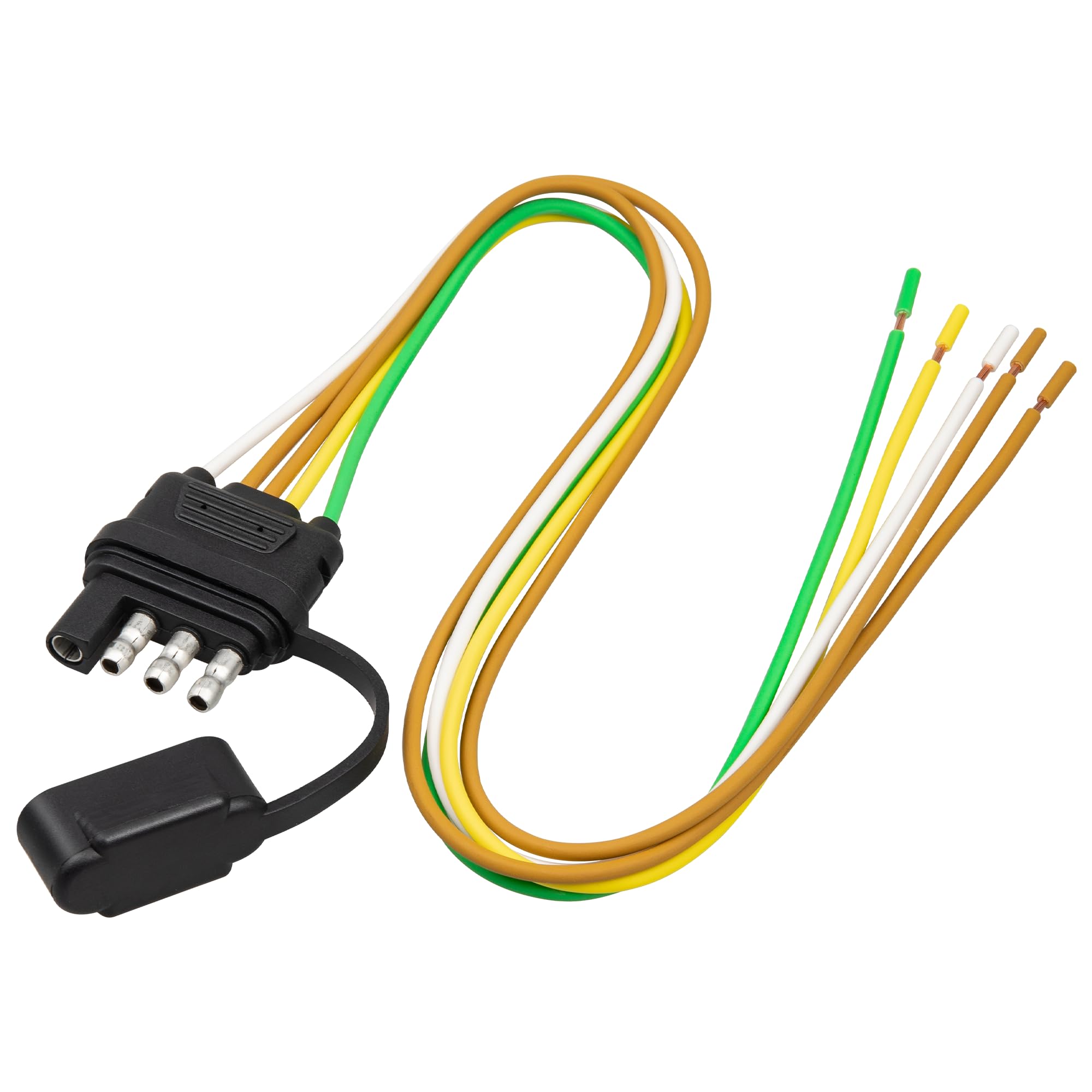

7. Oyviny 4 Pin 5 Wire Trailer Wiring Harness 18 Inches
This 18-inch pigtail is the simplest and most affordable entry in the list, designed specifically for replacing a corroded or broken 4-pin plug on an existing trailer harness. What sets it apart from other short pigtails is the conductor gauge: Oyviny uses 16 AWG pure copper wire instead of the more common 18 AWG. That thicker wire reduces voltage drop over the short run and provides better mechanical strength at the crimp points inside the plug.
The Y-split design with five wires (two browns for left/right taillights) applies even at this short length, so you can splice directly to each side without running a jumper. The plug body features anti-slip tabs on top and bottom for easier grip when connecting and disconnecting. A rubber dust cover seals the terminals when the trailer is parked. Pre-stripped pigtail ends save time during installation — just match the colors and splice.
The limitation is obvious: 18 inches is only useful if the existing harness is intact and you simply need to replace the plug end. For a full rewire, you’ll need one of the longer kits above. But for a quick, durable plug replacement — especially on trailers where the rest of the wiring is still good — the upgraded 16 AWG copper wire makes this pigtail a smarter choice than generic 18 AWG replacements.
Why it’s great
- 16 AWG pure copper wire offers lower resistance than standard 18 AWG pigtails
- Y-harness with five wires avoids axle-crossing jumper
- Anti-slip grip tabs and dust cover add daily-use convenience
Good to know
- 18-inch length only suitable for plug-end replacement, not full rewiring
- PVC jacket lacks nylon mesh sleeve for extra abrasion protection
FAQ
Can I use a 4 wire trailer plug for LED lights?
What does the Y-harness design do differently?
How do I know if my trailer needs a 4-wire or 5-wire harness?
What is the difference between pure copper and copper-clad aluminum wire?
Final Thoughts: The Verdict
For most users, the 4 wire trailer plug winner is the Oyviny 22FT 5-Wire Harness because it combines pure copper 18 AWG conductors, a full-length nylon mesh protective sleeve, and a Y-harness that simplifies taillight wiring — all at a mid-range price that doesn’t force compromises. If your trailer exceeds 80 inches in width, grab the WALSIO 26FT Extended Harness for the extra 4 feet of reach. And for a quick plug-end replacement where the existing harness is intact, the Oyviny 18-Inch 16 AWG Pigtail delivers heavier wire than any other short pigtail on this list.
