A 40 inch light bar changes how you navigate backroads, trails, and dark job sites. But the difference between a bar that just lights up the trees and one that actually illuminates the road comes down to its beam pattern, lumen output, and the quality of its LED chips. Mounting one to your truck, UTV, or roof rack is only half the story — the real question is whether it delivers usable light where you need it most.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours cross-referencing lumen claims, beam angle specs, and real-user durability reports across dozens of off-road light bars to determine which models actually hold up to mud, rain, and constant vibration.
Whether you’re gearing up for night trail rides or need a workhorse for your ranch vehicle, this guide breaks down the best 40 inch light bar options by their build quality, real-world brightness, and feature set so you can buy with confidence.
How To Choose The Best 40 Inch Light Bar
Picking the right 40 inch light bar comes down to balancing your beam needs, your vehicle’s electrical system, and the environmental conditions you’ll face. Here’s what separates a great purchase from a regretful one.
Beam Pattern: Spot, Flood, or Combo?
Spot beams produce a narrow, focused beam of light that reaches far down the road — ideal for high-speed driving or scanning for obstacles at a distance. Flood beams spread light wide, illuminating the sides of the trail, campsites, or work areas. A combo beam, found on most models in this guide, combines both by using reflector cups in the center for distance and side reflectors for width, giving you the best of both worlds for general off-road use.
Waterproofing: IP68 vs. IP67
An IP68 rating means the light bar can be submerged in over 1 meter of water for extended periods without damage, making it the gold standard for trucks that ford rivers or face monsoon rains. IP67 offers protection against temporary immersion but is more susceptible to condensation over time. If you live in a wet climate or frequently pressure-wash your vehicle, prioritize IP68-rated units with military-grade breathers that equalize internal pressure and prevent moisture ingress.
Real Brightness: Lumens Over Watts
Many budget bars advertise inflated “540W” or “400W” ratings, but the actual light output is measured in lumens. A quality 40 inch light bar in this category typically delivers between 18,000 and 47,500 lumens. Pay attention to the LED chip count and type — higher quality chips like the 10W or 5W variations produce more usable light per watt and last longer. Lower wattage bars with well-engineered reflectors (like the LIGHTFOX) can often outperform higher-wattage bars with poor optics.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Niking Auto 40″ Curved | Premium | Wide coverage & low profile | 36,000 Lumens / 360W | Amazon |
| LIGHTFOX Rigel Series 40″ | Premium | Distance & durability | 18,040 Lumens / 1Lux @ 1,697ft | Amazon |
| SWATOW 40″ LED Bar w/ Harness | Mid-Range | Complete kit with wiring harness | 47,500 Lumens / 475W | Amazon |
| OFFROADTOWN 40″ Single Row | Mid-Range | Sleek look & low current draw | 40,000 Lumens / 400W / IP68 | Amazon |
| AUXTINGS 40″ Triple Row | Mid-Range | Value with wiring harness included | 13,000 Lumens / 540W | Amazon |
| Lumimotor 40″ Slim Dual Row | Budget | Ultra-thin design & low price | 40,000 Lumens / IP68 | Amazon |
| Willpower 40″ Triple Row | Budget | Raw brightness for the money | 540W / IP67 | Amazon |
In‑Depth Reviews
1. Niking Auto 40″ Curved LED Light Bar
The Niking Auto 40″ Curved LED Light Bar stands out not just for its striking fish-tail design, but for packing dual-row LED chips into a housing that’s only one inch thick. This super-slim profile means it sits flush against your roof or bumper with minimal wind noise, thanks to integrated acoustic dampeners. The 360W output and 36,000 lumens provide a broad, even combo beam that excels on winding trails.
Its IP68 waterproof rating is backed by a black-coated military-grade breather that keeps condensation at bay — a critical feature for a curved bar often mounted on the roof where rain exposure is constant. The 6063 aluminum alloy heat sinks are noticeably robust, and the included plug-and-play wiring harness with a 60A relay handles the current without voltage drops. Owners report surviving direct deer impacts with only bracket damage, underscoring its structural integrity.
On the downside, the curved design may require slightly more precise bracket alignment than a straight bar, and some users noted the need for separate mounting brackets on specific truck models like the 2003 Ram 2500. A few isolated condensation reports after heavy rain suggest the breather is effective but not foolproof if the seal is compromised. Overall, it delivers premium looks and performance at a mid-range price point.
Why it’s great
- Ultra-slim 1-inch profile with dual-row chips in a single-row housing
- Sturdy build survived real-world impact damage without failing
- Acoustic dampeners reduce wind noise at highway speeds
Good to know
- Some vehicles may require separate brackets for a secure fit
- Occasional condensation reported after prolonged heavy rain

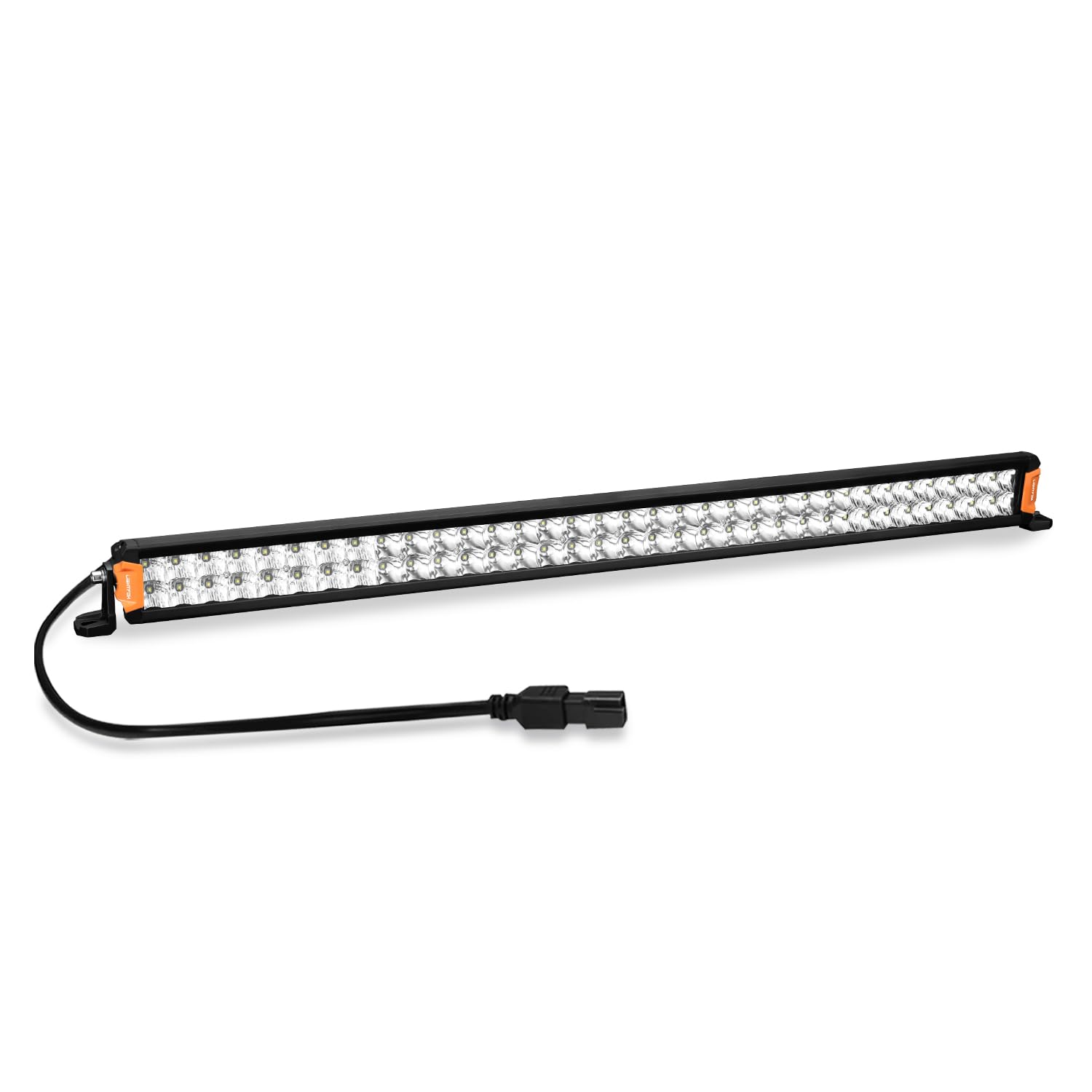

2. LIGHTFOX Rigel Series 40″ LED Light Bar
The LIGHTFOX Rigel Series 40″ takes a different approach: instead of chasing maximum wattage, it focuses on optical precision. Its curved and metalized reflectors produce a clean 13° spot beam that reaches 1Lux at 1,697 feet, combined with a 90° flood beam for wide peripheral coverage. This makes it the best choice for high-speed desert runs or hunting trails where spotting hazards early is critical.
Build quality is exceptional — the die-cast aluminum body receives an AkzoNobel powder coating to resist UV and corrosion, and a screwless design with UV resin seals the PC lens to achieve IP68 protection. An upgraded breather system actively prevents condensation, and built-in protection guards against reverse polarity and flashing. The 5,000K color temperature produces a warmer, more comfortable white light than the typical 6,000K, reducing eye strain on long night drives.
The trade-off is lumen count: 18,040 lumens is lower than many competitors, though the beam is far more usable. Some buyers specifically noted that no wiring harness is included, so you’ll need to supply your own DT-compatible harness. The replaceable color tabs (black, red, orange, yellow) are a fun customization touch. It’s a premium investment backed by a manufacturer’s warranty that reflects confidence in the product.
Why it’s great
- Exceptional long-range spot beam with 1,697-foot throw
- Premium powder coating and screwless IP68 design resist corrosion
- Warmer 5,000K light reduces driver fatigue
Good to know
- Wiring harness not included in the package
- Lumen output is lower than comparably priced bars
3. SWATOW INDUSTRIES 40″ LED Light Bar w/ Wiring Harness
The SWATOW 40″ LED Light Bar is the brightest unit in this lineup on paper, claiming 47,500 lumens from 95 pieces of 5W LED chips. It uses a spot-flood combo pattern with a 15° spot beam for distance and wide flood coverage on the sides. The bar includes a black stealth cover that helps it go unnoticed when not in use and aids in passing vehicle inspections.
The standout feature here is the all-in-one package: you get the light bar, adjustable brackets, a plug-and-play nylon wiring harness with switch, relay, and fuse, plus the black cover and mounting hardware. This significantly reduces installation time — you don’t need to source additional components. The modern heat sink design reduces wind noise while maximizing heat dissipation, and the IP67 waterproof rating handles heavy rain without issue.
The main drawback is the IP67 rating, which falls short of IP68 for submersion and long-term moisture resistance. Some users have reported the fuse blowing under heavy load, though this is likely a wiring issue rather than a light bar defect. At 43.8 inches long, it’s slightly longer than the standard 40 inches, so measure your mounting space carefully. It offers incredible value for those wanting maximum brightness in a single purchase.
Why it’s great
- Highest lumen output in this guide at 47,500 lumens
- Truly complete kit with harness, switch, relay, and cover included
- Stealth black cover protects the bar and blends in when off
Good to know
- IP67 rating is less resilient than IP68 for long-term moisture exposure
- Overall length is slightly over 40 inches; measure your mounts
4. OFFROADTOWN 40″ Single Row LED Light Bar
The OFFROADTOWN 40″ Single Row is a counter-intuitive pick: a single-row bar that competes with dual-row units by using 40 pieces of high-quality 10W LED chips to reach 40,000 lumens. Its slim 1.57-inch thickness allows it to fit in narrow spaces like between bumper grilles or under hood lines where dual-row bars cannot. The combo beam provides a 30° spot and 120° flood, giving excellent width for a single-row design.
One of the most praised aspects is the low current draw — verified by a user who measured just 1.1 amps per bar at 12V, meaning two bars draw only 2.1 amps total. This is a huge advantage for UTVs and vehicles with limited electrical capacity. The IP68 rating and 13 heat sinks keep it running cool, and the die-cast aluminum with rugged PC lens has held up in heavy rain without fogging for some owners, though condensation has been reported in isolated cases.
Some users noted the mounting bolt design requires access to a nut on the other side of the bracket, which can limit rotation positioning. A few experienced condensation after the first wash, which is disappointing for an IP68-rated unit. If you need a sleek, low-profile bar that won’t drain your battery and fits in tight spots, this is a strong option.
Why it’s great
- Extremely low current draw at just over 1 amp per bar
- Slim single-row design fits narrow mounting locations
- Excellent 120° flood coverage for wide peripheral light
Good to know
- Bracket design can restrict rotation adjustment
- Some units experience condensation after washing
5. AUXTINGS 40″ Triple Row LED Light Bar
The AUXTINGS 40″ Triple Row LED Light Bar is the budget-friendly champion for those who want decent brightness without spending heavily. Its triple row design uses reflector cups in the center for a spot beam and multi-angle reflectors on the sides for flood, creating a balanced combo pattern. The unit itself is rated at 540W and 13,000 lumens, and it includes a wiring harness kit with a switch, which is a welcome addition at this price point.
Build quality is credible for the category: a black painted aluminum housing, stainless steel adjustable mounting brackets, and shatterproof polycarbonate lenses with an IP67 waterproof rating. The operating voltage range of 10V-30V means it works on most 12V and 24V vehicles without extra converters. Installation is straightforward, and the adjustable brackets allow for roof, bumper, grille, or hood mounting.
The most common complaint is that the wiring harness requires some splicing — specifically for connecting additional pod lights — which creates a potential weak point for water ingress. The 13,000-lumen output is noticeably lower than competitors like the SWATOW or Niking Auto, so don’t expect it to light up a football field. But for occasional off-roading or work lighting, it provides reliable performance and a great entry point.
Why it’s great
- Wiring harness and switch included for a complete kit
- Wide 10V-30V operating voltage for universal compatibility
- Triple row design provides a balanced spot/flood beam
Good to know
- Lumen output is lower than many similarly sized bars
- Harness splicing can introduce water ingress risk if not sealed

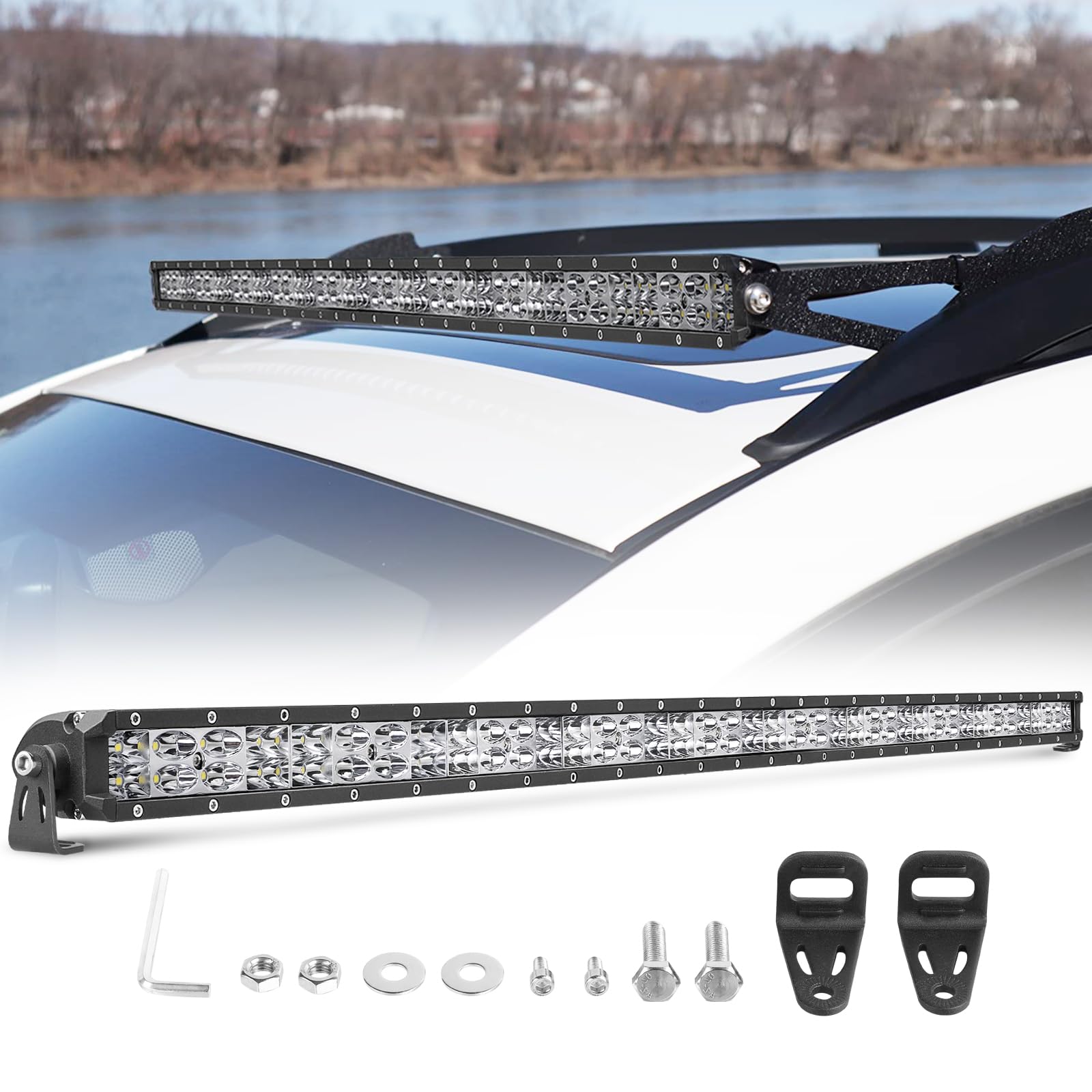

6. Lumimotor 40″ Slim Dual Row LED Light Bar
The Lumimotor 40″ Slim Dual Row LED Light Bar is a budget-friendly option that still delivers dual-row performance in an ultra-thin package. It houses 120 pieces of LED chips to produce an advertised 40,000 lumens, claiming the brightness equivalent of a traditional 540W bar. The slim design is only as thick as a single-row bar but packs double the light sources, which is a clever engineering feat.
The IP68 waterproof rating is a standout feature at this price point, making it suitable for stormy, rainy, or snowy conditions without worry. The housing is 100% aircraft-grade die-cast aluminum with efficient cooling fins to extend its lifespan beyond 50,000 hours. Universal mounting brackets fit a wide range of vehicles including trucks, SUVs, UTVs, boats, and tractors, and the 2-year warranty provides extra peace of mind.
The main trade-off is that the advertised lumen output may not be strictly verified — some users have noted it’s bright, but not quite as overwhelming as higher-priced bars. The included brackets are functional but feel less robust than the premium offerings. A few owners wished the wiring was a bit longer for certain mounting positions. It’s a solid entry-level choice that offers great features for its price.
Why it’s great
- Ultra-slim housing with dual-row LED chips for extra brightness
- IP68 waterproof rating at a budget-friendly price
- Aircraft-grade aluminum with efficient heat sink design
Good to know
- Lumen output may be exaggerated compared to premium bars
- Included brackets feel less substantial than mid-range options
7. Willpower 40″ Triple Row LED Light Bar
The Willpower 40″ Triple Row LED Light Bar is the most affordable option in this guide, yet it still delivers serious brightness. With a triple row design and multi-angle reflector cups, it provides long-distance spot illumination from the center and wide flood coverage from the sides. The rated 540W is typical for the budget bracket, and the actual light output is more than adequate for night trail riding or work site lighting.
Build quality includes a black painted aluminum housing, stainless steel adjustable mounting bracket, and shatterproof lenses. The IP67 rating offers reliable protection against rain and splashes, though it’s not intended for submersion. The operating voltage from 10V-30V makes it compatible with a wide range of vehicles from trucks and Jeeps to boats and heavy equipment. Assembly is straightforward with basic tools.
The primary concern is long-term moisture resistance. One owner reported their first unit lasted nine years before needing replacement, while another noted the glass edge requires sealing to prevent fogging. The mounting hardware is functional but the included nuts may be too small for some applications, such as go-kart frames. Considering the price, the value proposition is undeniable if you’re willing to add a bit of extra sealant.
Why it’s great
- Incredible brightness-to-price ratio
- Proven durability with some units lasting nearly a decade
- Triple row design provides strong combo beam output
Good to know
- IP67 rating may lead to condensation over time without sealing
- Mounting hardware feels entry-level; may require replacement
FAQ
Do I need a relay and fuse for my 40 inch light bar?
What is the difference between a single row and a double row light bar?
How do I stop my light bar from fogging up with condensation?
Final Thoughts: The Verdict
For most users, the best 40 inch light bar winner is the Niking Auto 40″ Curved because it combines a super-slim dual-row design, excellent 36,000-lumen output, and IP68 durability in a package that looks factory-installed. If you want maximum long-range visibility with premium build quality, grab the LIGHTFOX Rigel Series. And for the ultimate brightness-to-value ratio with a complete installation kit, nothing beats the SWATOW 40″ with Wiring Harness.
