A 4040 aluminum extrusion frame that racks under load or rattles loose after a week is not a design failure — it’s an extrusion selection failure. The difference between a rock-solid CNC gantry and a wobbly sim rig frame comes down to one thing: whether your profile’s T-slot geometry, alloy temper, and channel depth actually match your hardware. In this category, the extrusion is the foundation, and a bad foundation ruins every component bolted to it.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing the technical specifications, customer feedback, and real-world performance data for dozens of 4040 extrusion listings to separate profiles that hold precise tolerances from those that ship with inconsistent slot depths and soft alloy.
Whether you are framing a 3D printer gantry, building a workbench, or mounting solar panels, choosing the right set matters more than you think. This guide breaks down the best 4040 aluminum extrusion options by their measurable specs and real user outcomes so you buy exactly what your project needs.
How To Choose The Best 4040 Aluminum Extrusion
Every 4040 extrusion listing looks similar in photos, but the real differences hide in the channel dimensions, surface finish, and alloy consistency. Beginners often assume all black anodized profiles are the same, only to discover their T-nuts don’t lock or the profile bends under a 50-pound load. Here is what actually separates a quality framing component from a frustration source.
Alloy Temper and Surface Finish
Genuine 6063-T5 aluminum extrusion offers the right balance of strength and machinability for structural framing. The T5 temper indicates the material was artificially aged after extrusion, increasing yield strength. A proper anodized surface layer, typically 10–15 microns thick, resists corrosion and prevents galling when tightening steel fasteners. Profiles that skip the anodizing step or use ungraded alloy will show scratches and wear after a single assembly.
T-Slot Channel Depth and Nut Compatibility
Standard European 40-series extrusion uses a channel depth of roughly 8mm from the outer face to the internal slot wall. Some vendors machine channels as deep as 12mm to save material, which causes spring-ball T-nuts to float freely and never engage the channel walls. If your project uses standard M6 or M8 drop-in T-nuts, verify the channel depth matches your hardware before ordering. A 4mm mismatch can make a extrusion set unusable.
Length Tolerance and Cut Quality
Profiles cut to length with a tolerance of ±0.5mm or better ensure square assembly without gaps. Precision-sawn ends with minimal burrs reduce prep time and prevent scratches during sliding assembly. Budget-oriented listings sometimes ship with rough cut ends that require filing before you can insert T-nuts or corner brackets.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BELLA BAYS 4pcs 48 inch | Premium | Structural frames, long spans | 1220mm length, ±0.5mm tolerance | Amazon |
| VEVOR 4PCS 1000mm | Mid-Range | Large-format CNC and laser frames | 39.4 inch length, 6063-T5 alloy | Amazon |
| SeekLiny 4Pack 500mm | Mid-Range | 3D printer and sim rig builds | 500mm length, matte anodized finish | Amazon |
| IXGNIJ 4PCS 500mm | Mid-Range | General DIY and workbenches | 500mm length, 6063-T5 material | Amazon |
| SERABETTO 4Pack 500mm | Mid-Range | Solar panel mounting | 500mm length, 12mm deep channels | Amazon |
| SERABETTO 4Pack 400mm | Budget | Small fixtures and prototype jigs | 400mm length, 12mm deep channels | Amazon |
| IXGNIJ 4PCS 400mm | Budget | Entry-level DIY and small frames | 400mm length, black anodized | Amazon |
In‑Depth Reviews

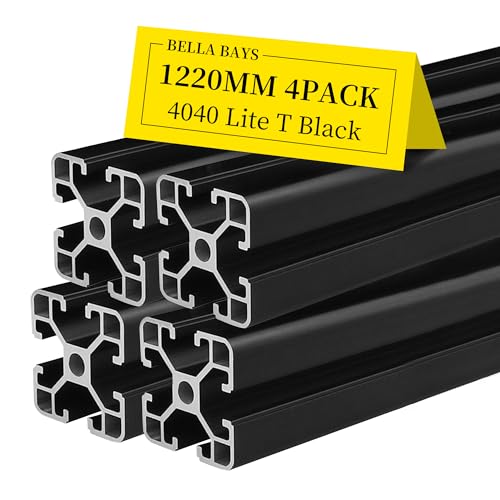

1. BELLA BAYS 4pcs 48 inch 1220mm 4040 T Slot Aluminum Extrusion Profile
The BELLA BAYS set delivers four pieces of 48-inch (1220mm) 4040 extrusion made from ASTM 6063 T5 aluminum, which is the same alloy grade used by premium industrial framing systems like 8020. The dual-channel design on each face provides additional clamping surface for brackets, and the precision cutting holds a ±0.5mm length tolerance that ensures square joints without shimming. Users report using these profiles for roof-mounted solar arrays on boats, withstanding hurricane-force winds, which speaks to the alloy’s real-world structural integrity.
The anodized finish is smooth and consistent across all four pieces, with professional packaging that protects the extrusions from scratches during shipping. The profiles meet European standard specs, meaning they accept all standard 40-series fasteners and accessories, including M8 T-nuts and pulley wheels. A reviewer who works in aerospace noted the quality is comparable to 8020 extrusion at a fraction of the typical lead time from specialty suppliers.
At 1220mm per piece, these are the longest profiles in this roundup, making them ideal for large-format builds like CNC machines, workbenches, and automation frames. The 13.17-pound total weight tells you this is dense, structural-grade material — not lightweight wall-saver extrusion. If your project requires spanning distances over 36 inches, this is the set that will not sag or twist under load.
Why it’s great
- Full 1220mm length reduces joints in large frames
- ASTM 6063 T5 alloy matches premium industrial extrusion quality
- Dual-channel design increases clamping force for brackets
Good to know
- Heavier than shorter sets at over 13 pounds total
- Length may be excessive for small desktop builds
2. VEVOR 4PCS 39.4 in (1000mm) T Slot 4040 Aluminum Extrusion Profile
VEVOR’s 1000mm 4040 extrusion set offers a strong price-to-length ratio for builders who need meter-long profiles without paying premium-tier prices. The 6063-T5 aluminum alloy is anodized for corrosion resistance, and the precision cutting leaves smooth, burr-free surfaces ready for immediate assembly. Reviewers consistently praise the straightness and consistent finish across all four pieces, with one CNC builder confirming all 10 pieces in his order arrived perfectly straight with clean, square cuts.
This profile uses the European standard T-slot geometry with side grooves designed to work with M6 and M8 T-slot nuts. However, the listing explicitly notes the profile is not suitable for roller-based linear motion systems because it does not have a V-slot edge — this is a T-slot extrusion only. If you are building a V-wheel gantry, you need a dedicated V-slot profile instead. The 9.7-pound total weight reflects the full meter length per piece.
The packaging is robust and the matte black anodized finish looks clean, though one reviewer noted the finish can wear off with normal use over time. This is typical for anodized aluminum and does not affect structural performance. For large-format CNC frames, laser engraving tables, or equipment stands that need 1000mm spans, this set delivers industrial functionality at a competitive price point.
Why it’s great
- Full 1000mm length per piece for large frames
- Precision-cut ends with minimal burrs
- Accepts standard M6 and M8 T-slot hardware
Good to know
- Not for V-slot roller systems
- Anodized finish may show wear with heavy use
3. SeekLiny 4Pack 4040 T Slot Aluminum Extrusion 500mm Black
SeekLiny specializes in aluminum extrusion hardware, and this 500mm set reflects that focus with a matte anodized surface that feels more refined than typical glossy black profiles. The texture reduces glare and provides a consistent grip surface for clamping brackets. Reviewers describe the extrusion as straight, burr-free, and ready for immediate use — threads cut cleanly when drilling, and the anodized layer does not flake or peel during machining.
The profiles are compatible with all European standard 40-series fittings, making integration with existing T-nuts and corner brackets straightforward. One customer used these to expand a sim racing rig, noting the quality held up well under the constant vibration of a direct-drive wheelbase. Another reviewer fabricated a sandblast cabinet stand and praised the strength-to-weight ratio of the 6063-T5 alloy.
The 500mm length hits a sweet spot for medium-sized builds like 3D printer enclosures, monitor stands, and flight simulator throttle mounts. The protective film applied during packaging prevents scratches, and each piece arrives with cleanly cut ends. If you need a reliable mid-length profile that looks good and fits hardware without filing or modification, SeekLiny delivers consistency.
Why it’s great
- Matte anodized finish resists flaking and looks clean
- Straight, burr-free cuts ready for assembly
- Versatile 500mm length suits many project sizes
Good to know
- Only 500mm length available in this set
- A niche brand with fewer hardware accessories in stock

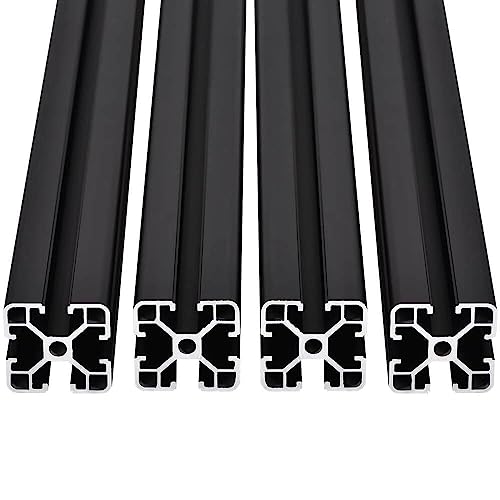

4. IXGNIJ 4PCS T Slot 4040 Aluminum Extrusion Profile 500mm Black
The IXGNIJ 500mm set uses the same 6063-T5 alloy and anodized finish as its 400mm sibling but extends the length to 500mm per piece, giving you more material for medium-scale projects. The T-slot channels are machined to European standard dimensions, and the anodized surface is consistently smooth across all four profiles. Users report successful integration with Trak Racer sim racing rigs, noting the finish and quality match the original equipment.
One experienced DIYer highlighted this extrusion as a cost-effective alternative to wood framing, with the key advantage being that no power tools are required for assembly — cuts can be made with a table saw fitted with a metal-cutting blade, and the profiles join cleanly with standard T-slot hardware. The customer also noted the material is durable enough for tables, cabinets, and adjustable shelving systems.
The 500mm length is well-suited for 3D printer gantries, small CNC machines, and workbench legs. The four-pack provides enough material for a small frame with some leftover for bracing. If you found the 400mm set slightly too short for your layout, this 500mm version gives that extra reach without jumping to a premium price tier.
Why it’s great
- European standard spec compatible with all 40-series hardware
- Anodized finish matches OEM sim rig profiles
- 500mm length useful for medium-frame builds
Good to know
- Same brand and spec as the 400mm version — just longer
- May not suit builds taller than 20 inches
5. SERABETTO 4040 T-Slot Extruded Aluminum Profile 500mm Black (4 Pack)
SERABETTO’s 500mm set offers the same anodized 6063-T5 aluminum construction as its 400mm counterpart, with a stated commercial and industrial grade rating. The extrusion is designed to conform to European standards, making it compatible with all 40-series fittings on the market. One practical application reported by a customer is mounting 550W solar panels — the extrusion held up under outdoor exposure, which validates the corrosion resistance of the anodized layer.
A critical detail with this profile is the 12mm channel depth, which is deeper than the standard 8mm found on most European extrusions. This dimensional difference causes standard 8mm spring-ball T-nuts to float freely within the channel instead of locking against the walls. If your project relies on spring-ball nuts for quick adjustment, this profile will not work for that application. However, standard drop-in T-nuts with a longer reach can still engage properly.
The packaging is protective, and the finish is described as high quality by multiple reviewers. The 5-pound total weight for the 500mm set indicates solid material density. For projects like solar panel racking, equipment stands, or any application using drop-in T-nuts, this extrusion performs well. Just verify your T-nut style before purchasing.
Why it’s great
- Proven for outdoor solar panel mounting applications
- High-quality anodized finish and clean cuts
- European standard compatibility with most fittings
Good to know
- 12mm channel depth incompatible with spring-ball T-nuts
- Protective tape removal can be tedious
6. SERABETTO 4040 T-Slot Extruded Aluminum Profile 400mm Black (4 Pack)
SERABETTO’s 400mm set brings the same 6063-T5 alloy, anodized finish, and European standard compatibility as its 500mm sibling at a lower entry price. The profiles are dimensionally consistent and well-packaged, with multiple reviewers confirming the extrusions arrived straight and ready for immediate service. The commercial and industrial grade rating means the material is specced for more than just light hobby use.
The same 12mm channel depth caveat applies here: spring-ball T-nuts will not lock into the channels because they are too deep for the nut’s spring to reach the walls. One sim racing builder found this made the profile unsuitable for their setup because T-nuts floated freely. If you plan to use standard drop-in T-nuts or hammer-head nuts, the depth is not an issue and the profiles work fine for general framing.
At 4 pounds total weight for the 400mm set, this is a lightweight option suitable for small fixtures, prototype jigs, and compact 3D printer frames. The shorter length makes shipping more manageable and reduces waste if you only need short segments. This set earns its spot for buyers who need affordable 4040 extrusion for non-critical framing and plan to use drop-in fasteners.
Why it’s great
- Low cost for a four-pack of 4040 profiles
- Anodized 6063-T5 alloy with clean finish
- European standard compatible with drop-in T-nuts
Good to know
- 12mm channel depth blocks spring-ball T-nut use
- Shorter 400mm length limits frame size options

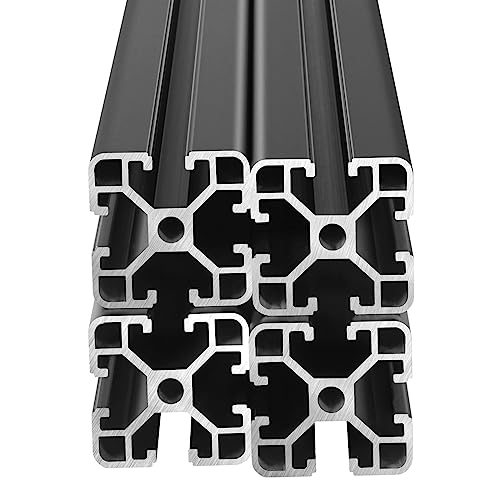

7. IXGNIJ 4PCS T Slot 4040 Aluminum Extrusion Profile 400mm Black
The IXGNIJ 400mm set is the entry-level option in this roundup, offering four pieces of 6063-T5 anodized aluminum extrusion at a budget-friendly price. Despite the lower cost, the profiles are made from genuine European standard material and feature smooth surface anodizing. New users learning to work with aluminum extrusion find this set forgiving to cut and assemble — one beginner noted it cuts easily with a table saw and metal-cutting blade, making it a practical learning material.
The T-slot dimensions match standard 40-series accessories, so corner brackets, T-nuts, and sliding fasteners all fit without modification. The 400mm length per piece works well for small 3D printer frames, light-duty workbench legs, and compact automation fixtures. A sim racing user verified the finish and quality match Trak Racer profiles, though they noted the T-slot channels are slightly deeper than OEM, making T-nuts less secure — but not a functional issue for their application.
For the price, you get four pieces of functional 4040 extrusion that will support small structural frames without bending. The primary trade-off is the shorter length, which limits you to compact builds. If you are prototyping a design or building a small fixture, this set provides enough material to complete the project without overspending on longer profiles you would cut anyway.
Why it’s great
- Very affordable entry point for 4040 extrusion
- Genuine 6063-T5 alloy with anodized finish
- Good for beginners learning to work with extrusion
Good to know
- 400mm length limits to compact builds only
- Channels slightly deeper than OEM — T-nuts less snug
FAQ
Can 4040 aluminum extrusion be cut with a standard table saw?
What is the difference between T-slot and V-slot extrusion?
Will spring-ball T-nuts work with all 4040 aluminum extrusion?
Final Thoughts: The Verdict
For most users, the best 4040 aluminum extrusion winner is the BELLA BAYS 4pcs 48 inch set because it delivers premium ASTM 6063 T5 alloy, full 1220mm spans, and precision ±0.5mm length tolerance at a price that undercuts specialty industrial suppliers. If you need meter-long profiles for a large CNC or laser frame, the VEVOR 1000mm set gives you comparable length at a competitive price point. And for compact 3D printer builds or sim rig accessories, the SeekLiny 500mm pack offers the best surface finish and hardware compatibility in a medium-length package.
