The HPI harness stands apart from the crowd because of the bundled free phone tech support — a genuine lifeline when the wiring diagram doesn’t match your specific pedal sensor or alternator plug. The 0.91-meter cable length is generous enough to route the PCM under the dash of most classic trucks, and the fiberglass loom provides real abrasion resistance that cheap electrical tape can’t match. Multiple verified buyers report a first-turn start on their 1970 C10 and Jeep projects, which speaks directly to the pinout accuracy for Green/Blue DBW PCMs.

That said, the harness uses GM-specific connectors and has occasionally shipped with a non-matching cam sensor plug. Some owners have used a Dremel to modify the MAF connector or swapped the cam sensor pins at the PCM plug. The included instructions show a slightly different fuse box layout than the actual harness, so you’ll want to verify the power distribution with a multimeter before buttoning everything up.

HPI offers injector adapters free of charge if you contact them — a nice buffer if your engine has EV6 injectors instead of the intended Multec/Delphi connectors. For the price point, the combination of phone support, loom quality, and verified first-start success makes this the most reliable path for a DBW 4L60E swap.

Check Price on Amazon

The WMPHE harness targets the 2003–2007 DBW LS3 crowd with a Green/Blue PCM connector and EV1 fuel injector plugs. It delivers all the expected dash connections — speedometer, tachometer, park neutral, malfunction indicator, TCC, and a DLC port — plus a sliding grommet that helps seal the firewall pass-through. The 2.9 kg weight reflects the use of copper core wire throughout, and the harness includes the necessary transmission sensor connectors for the 4L60E.

However, quality control on the WMPHE unit has been inconsistent. Multiple buyers report mispinned wires at the PCM plug — for instance, a purple MAF signal wire in the cylinder 8 coil position, or swapped green wires between cylinder 4 and 5 coils. The orange wire for the ignition circuit was observed missing its connector pin entirely in one unit. The supplied instructions lack any fuse or relay identification, which means you’ll need a multimeter and a factory pinout diagram to verify every circuit.

If you catch these issues before install, the harness can be corrected and will run a DBW LS swap reliably. But the consistent feedback of “check the pinout first” suggests the factory QC is the weakest link here. It’s a premium component that requires premium prep work.

Check Price on Amazon

The Goopool harness adds 36 inches of extra wire to the PCM leg specifically so you can mount the computer under the dash without stretching the harness — a thoughtful detail that the budget offerings skip. It supports DBC LS1 engines from 1997–2006 with a 4L60E and includes the high-value dash circuits: speedometer, tachometer, park neutral, malfunction indicator, TCC, and a DLC port. The high-quality grommet slides along the harness bundle for optimal positioning through the firewall.

Customer reports reveal a common theme of mispinning that requires correction. One verified buyer found 6 wires pinned wrong — TPS signal at the MAP sensor position and vice versa, plus mismatched wire colors that don’t follow standard GM color codes. Another report noted that ground wires arrived unprotected, with bare crimps lacking heat shrink or any protective coating. The injector adapters promised in the listing were also missing for some buyers.

That said, the responsive seller replaced a faulty harness immediately for one buyer, and multiple others reported that after verifying every wire with a continuity tester and correcting the pinout, the harness ran their swap without further issues. Plan on spending a couple of hours with a multimeter before installation, and this harness will serve well.

Check Price on Amazon

The iKer harness delivers a straightforward DBC solution for 1997–2006 Vortec 4.8L, 5.3L, and 6.0L engines mated to a 4L60E. It uses copper core wire for high electrical conductivity and claims a flat ribbon cable design with IDC connectors for the PCM. At 3.11 kg, it feels substantial, and the color-coded plugs are intended to make installation more intuitive. The package includes an English manual, though its depth is limited.

The major pain point reported by several buyers is the poor quality of the Red/Blue PCM connector housings. The plastic caps that lock the connectors together tend to fall off immediately, though they can be snapped back into place. More critically, one verified buyer discovered that the pinout is incorrect — power circuits were spliced directly from the fuse block with exposed hot wires, leading them to recommend the harness for test stand use only. The harness also lacks an oil pressure sensor connection, which may require a separate sender or adapter.

For the price, the iKer works if you’re prepared to re-pin the connectors and add your own protection for exposed circuits. Buyers who treated it as a foundation — verifying every wire before connecting sensors — reported good results and a running swap.

Check Price on Amazon

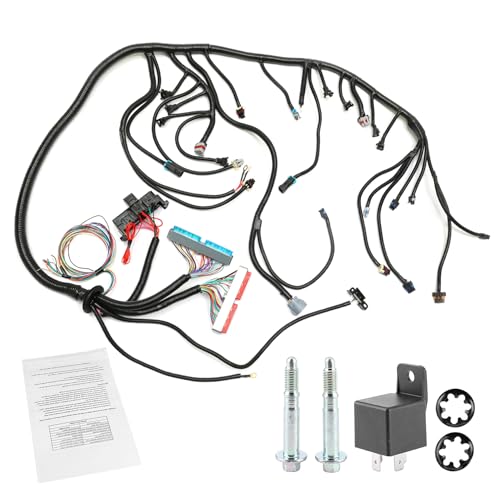

The Gledewen harness comes with an exceptional 120-month warranty, which signals confidence that the TXL polyethylene cross-linked wire and Delphi connectors will hold up under engine bay temperatures. It’s designed for 1997–2006 DBC LS1 and Vortec engines with a 4L60E or 4L80E (with adapter), and the package includes 6 fuse blocks, a 3-wire MAF sensor connector, and a 24x crank sensor connection. The harness uses universal color coding and reinforced ring terminals for a cleaner install.

Multiple buyers noted that the harness comes with EV1 (Multec-style) fuel injector connectors. If your engine has the larger EV6 injectors, you’ll need adapters — which are not included. One verified report found that the TPS and MAP sensor wires were swapped at the blue PCM plug, and the injector wiring required rerouting per the pinout diagram. Another buyer had an ignition circuit wire missing entirely, which delayed their project by two months.

When the harness works as intended, users report it runs their swap in a matter of hours. The detailed instruction packet — which closely matches Texas Speed’s pinout — is a genuine help for first-time swappers. The 10-year warranty is unique in this category and provides real peace of mind if you catch a defect early.

Check Price on Amazon

The HUGEBO harness is the entry-level DBC option that makes an LS swap affordable for builders on a tight budget. It covers 1997–2006 Chevy, GMC, Cadillac, and Hummer trucks with 4.8L, 5.3L, and 6.0L engines and a 4L60E. The IDC connectors are color-coded for simplified routing, and the package includes two mounting screws along with a printed manual. Verified buyers running a 1996 Chevy K1500 swap reported it seamlessly integrated into their original truck harness with minor modifications.

The trade-off for the low price is revealed in the details. The harness does not include an oil pressure sensor plug — you’ll need to use a mechanical gauge or buy a separate sensor pigtail. More critically, the injector jumpers are often the wrong length for stock Delphi injectors, requiring you to make custom jumpers. One buyer reported the TPS ground and MAP sensor signal were incorrectly pinned, the cam sensor wires were reversed, and the injector connectors were loose.

This harness works well if you’re comfortable with a multimeter, a set of pin tools, and a factory pinout diagram. It’s a foundation — not a finished product. Many first-time swappers got it running, but every single success story includes the phrase “after fixing the pinout.”

Check Price on Amazon

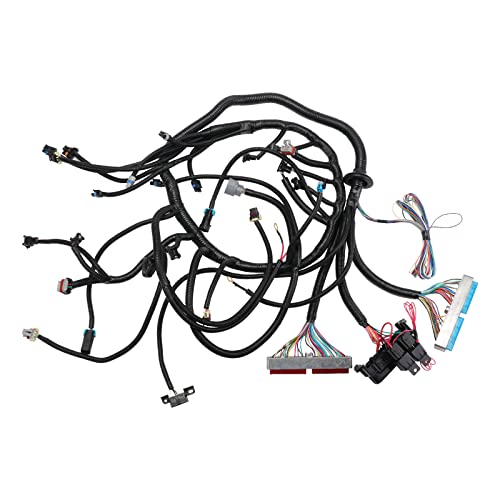

The DYRDINSHOW harness is the most stripped-down DBC option on this list, priced for builders who already own pinout tools and want the lowest possible bill of materials. It’s rated for 1997–2006 DBC LS1 4.8L, 5.3L, and 6.0L Vortec engines with a 4L60E, and uses copper core wires with a plastic insulation wrap that can handle high temperatures and chemical exposure. The manufacturer explicitly notes it is not compatible with the Hummer H2.

The harness ships without a manual in the package, despite the listing stating one is included. One buyer specifically noted this omission, which makes verifying the pinout much harder if you don’t already have a factory service manual for your specific engine. On the positive side, a customer reporting a “great” experience confirmed the harness worked immediately for their swap with no reported pinout corrections.

Given the mixed feedback, this harness is best suited for experienced swappers who know the pinout by heart and can identify each circuit visually. If you need documentation or phone support, skip this one. If you’re on your third LS swap and want a cheap skeleton to dress yourself, it might get you there.
