Carbon fiber sheet is a material that doesn’t forgive a bad cut or a weak resin bond, yet its appeal is simple: a stiffness-to-weight ratio that makes aluminum feel like concrete and steel seem obsolete. A 4×8-foot sheet of true carbon fiber laminate can shave pounds off a vehicle panel or a robotics frame, but shop for one and you’ll drown in vague thickness claims, “forged” marketing hype, and the constant threat of glass-fiber fillers sold at carbon prices.
I’m Min — the co-founder and writer behind Gadgets Feed. I spend my time cross-referencing material grade datasheets, customer cut logs, and resin quality reports to separate real carbon laminates from cosmetic impostors.
If you need a structural panel that won’t delaminate under load and doesn’t hide fiberglass layers beneath a shiny top coat, this analysis of the best 4×8 carbon fiber sheet options on the market will steer you toward the real deal.
How To Choose The Best 4×8 Carbon Fiber Sheet
Not every black panel with a visible weave is real carbon fiber. The most common deception in this category is a fiberglass core with a thin carbon outer ply — it looks convincing in a photo but snaps under load and adds weight. You need to verify three things before purchasing: material purity, weave type, and thickness-to-stiffness relationship.
Identify 100% Carbon vs. Composite Construction
A true carbon fiber sheet is made of continuous carbon tows (typically 3K filaments) embedded in epoxy resin, with no glass, Kevlar, or foam layers inside. Check the technical description for phrases like “100% real carbon fiber” or “no fillers/glass fiber layers.” If the seller lists a density of 1.6 to 1.7 g/cm³, that’s pure carbon laminate — aluminum density is 2.7 g/cm³, so this is your quick sanity check.
Match Weave Pattern to Your Application
Plain weave (1×1) delivers maximum stability and a tighter, more symmetrical look, ideal for cosmetic panels and flat reinforcements. Twill weave (2×2) is more drapable and forgiving around curves, preferred in aerospace and automotive parts that require some forming. Forged carbon — the random-chip aesthetic — offers no directional bias but lower overall tensile strength; avoid it for structural load paths.
Select the Correct Thickness for Your Load
A 1mm sheet is suitable for lightweight cosmetic covers or RC airplane skins. For structural brackets, drone arms, or boat reinforcement panels, 3mm to 4mm is the sweet spot. At 6mm, the sheet becomes extremely rigid and difficult to cut without waterjet or carbide tooling — reserve it for chassis plates or impact protection panels. Overshooting thickness adds unnecessary weight and machining cost.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ARRIS 400x500x6mm | Premium Laminate | Heavy-duty structural plates | 6mm plain glossy, 3K tow | Amazon |
| Tudomro 10ft x 12″ Fabric | Dry Fabric Roll | Custom wet-layup & repairs | 0.25mm twill, 220g/m² | Amazon |
| FANCYWING 400x400x6mm | Mid-Range Laminate | Flat rigid panels & RC builds | 6mm plain weave, glossy | Amazon |
| FANCYWING Forged 300x400mm | Forged Carbon | Cosmetic facelifts & RC boards | 4mm forged, T300 grade | Amazon |
| FANCYWING Forged 240x240mm | Entry Forged | Small DIY brackets & crafts | 4mm forged, compact size | Amazon |
| cncarbonfiber 400x500x4mm | Twill Matte Laminate | Waterjet projects & boat panels | 4mm twill matte, 1.6-1.7 g/cm³ | Amazon |
| VViViD XPO Vinyl Wrap | Vinyl Wrap Film | Cosmetic surface covering | 3.9 mils, air release tech | Amazon |
In‑Depth Reviews
1. ARRIS 400x500x6mm Carbon Fiber Sheet
The ARRIS carbon plate is the thickest rigid laminate in this lineup at 6mm, and it justifies every millimeter with void-free construction and a perfectly flat surface. Built from 3K tows with a plain glossy weave, this sheet delivers the stiffness you need for chassis components, heavy-duty drone arms, or load-bearing reinforcement panels without flex or delamination risk. The glossy finish is smooth and uniform, and multiple buyers confirm it machines cleanly on waterjets without splintering.
At 400x500mm, the panel is large enough for substantial projects yet compact enough to handle on a standard CNC bed or table saw. ARRIS offers thickness options from 0.5mm all the way to 6mm, which makes this listing especially flexible if you need to order multiple gauges for one build. The protective film stays on during machining, preventing the top ply from chipping during saw cuts.
Customer reviews consistently praise the absence of air pockets and the “Damascus steel” visual effect when shaping airfoils. A few buyers noted that carbide tooling is a must at this thickness, but those who followed that advice reported no issues. For structural rigidity at this size, the 6mm ARRIS sheet is the clear reference standard.
Why it’s great
- Thickest true carbon laminate at 6mm, void-free and flat
- Multiple thickness choices (0.5 to 6mm) from one seller
- Protective film stays on for clean machining
Good to know
- Carbide or waterjet tooling required — standard blades dull instantly
- Glossy finish shows fingerprints more than matte

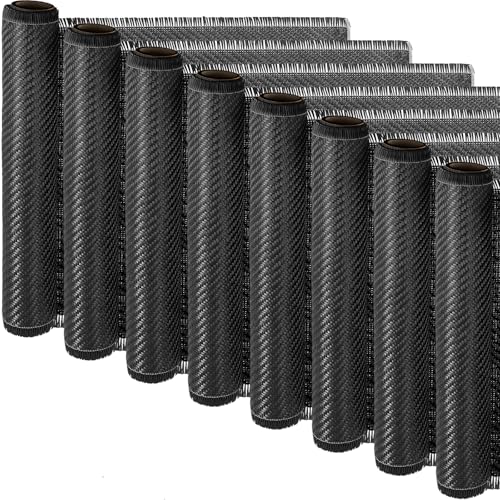

2. Tudomro 10ft x 12″ Carbon Fiber Fabric (8 Roll Pack)
The Tudomro fabric pack takes a completely different approach — instead of pre-cured laminate, you get eight rolls of dry 3K twill weave cloth at 220g/m², ready for wet layup with epoxy resin. This is the right choice when you need to wrap compound curves, reinforce a boat hull, or build a custom composite part from scratch. The 10-foot length per roll gives you 80 total feet of usable material across the pack, which is exceptional value for large-area projects.
Each roll measures 12 inches wide with a 0.25mm single-ply thickness, so you can build up layers to control final stiffness. The 2×2 twill weave drapes well over curved surfaces and resists fraying at the edges, a common failure point in budget carbon cloth. The fabric feels consistent with no loose tows or irregular weave density, and the black color maintains a high-end look after resin application.
Customer feedback highlights smooth epoxy saturation and no frayed ends straight out of the roll. One buyer used it for concrete wall reinforcement and reported strong bonding with standard epoxy systems. Dry fabric requires careful mixing and curing conditions, but for anyone comfortable with wet layup, this pack delivers premium-grade 3K cloth at a cost that beats buying individual pre-cured sheets.
Why it’s great
- Eight rolls provide 80 total feet of consistent 3K twill fabric
- Weave is tight and resists edge fraying during cutting
- Drapable over complex curves — works for boat and mold repair
Good to know
- Requires epoxy resin and curing — not a ready-to-use panel
- 0.25mm single-ply is thin; needs multiple layers for stiffness
3. FANCYWING 400x400x6mm Plain Weave Glossy Sheet
FANCYWING’s 6mm panel offers the same thickness as the ARRIS sheet but in a compact 400x400mm square, which makes it ideal for projects requiring a smaller high-rigidity plate. The plain weave glossy finish is uniform with no visible fiber distortion, and the epoxy surface reflects light consistently across the entire panel. Buyers have used it for RV fuel tank armor, custom boat gauge panels, and even competitive boomerang fabrication — all applications that demand zero flex.
The industrial-grade rating means this sheet has no glass fiber content, and at 6mm it resists bending under concentrated loads. One customer specifically praised its impact protection performance after mounting it under an RV to shield the fuel tank from road debris, calling it “great peace of mind.” The gloss finish also resists minor scratches better than matte, though it does show dust more readily.
The main limitation is the 400x400mm size — if your project requires a larger single panel, you will need to buy multiple sheets. For small chassis plates, RC landing gear reinforcements, or stiffening inserts, however, this panel size hits a sweet spot between usability and manageable machining. FANCYWING also offers a matte version if glossy reflections are a concern.
Why it’s great
- True 6mm thickness with no flex under concentrated loads
- Uniform glossy finish with consistent reflectivity
- Proven in impact protection applications like RV fuel tank armor
Good to know
- Panel is only 400x400mm — not suitable for oversized builds
- Glossy surface shows smudges and requires careful handling
4. FANCYWING Forged 300x400mm Sheet (T300)
Forged carbon fiber has a distinctive marbled aesthetic that stands apart from traditional woven patterns, and this FANCYWING sheet delivers that look in a 4mm panel with T300-grade tow. The random chip orientation creates a unique visual on every sheet, making it a favorite for cosmetic applications like RC car setup boards, boat facelifts, and interior trim panels where the weave appearance needs to pop.
At 300x400mm and 4mm thickness, this panel offers a good balance between rigidity and workability — it’s easier to cut with a standard saw blade than a 6mm sheet. The matte finish reduces glare and hides fingerprints, which is helpful for exposed panels. Multiple customers noted the surface is well-finished with no chipped corners despite the forged texture being inherently more brittle at the edges.
The trade-off with forged carbon is that its random fiber orientation provides lower tensile strength in any single direction compared to a continuous plain or twill weave. It is not the best choice for load-bearing brackets where directional stress is predictable. For pure aesthetic projects where weight savings matter but peak stiffness is not critical, this forged sheet from FANCYWING is a solid pick.
Why it’s great
- Unique marbled forged carbon finish with T300-grade tow
- 4mm thickness offers good rigidity without extreme machining difficulty
- Matte surface hides fingerprints and glare well
Good to know
- Forged carbon has lower directional tensile strength than woven panels
- Some units may arrive with minor edge chipping due to brittle nature
5. FANCYWING Forged 240x240mm Sheet (T300)
This smaller 240x240mm forged sheet is essentially the sibling to the 300x400mm version above, sharing the same T300-grade carbon construction and 4mm thickness. The compact footprint makes it an excellent choice for small-scale projects, such as aero disc covers, RC car chassis stiffeners, gearshift plates, or custom switch panels where a large sheet would waste material.
The matte forged finish maintains the same high-end aesthetics as the larger panel, and the industrial-grade T300 tow ensures consistent mechanical performance across the entire sheet. Customers have used it for drone components and custom brackets, reporting that it cuts cleanly with waterjet and machines well with carbide tooling. The protective film helps prevent surface scratches during handling.
The obvious limitation is size — a 240x240mm panel cannot cover larger surfaces without seams. If your project requires a single uninterrupted sheet beyond 10 inches square, the 300x400mm version or a continuous weave panel would be a better fit. For small precision components where weight and appearance matter, this is the most cost-effective way to get real forged carbon without excess scrap.
Why it’s great
- Most affordable way to get T300 forged carbon for small projects
- 4mm thickness provides real structural rigidity
- Works well with waterjet and carbide tooling
Good to know
- 240x240mm size limits use to small components only
- Forged carbon not suitable for high-directional-load applications

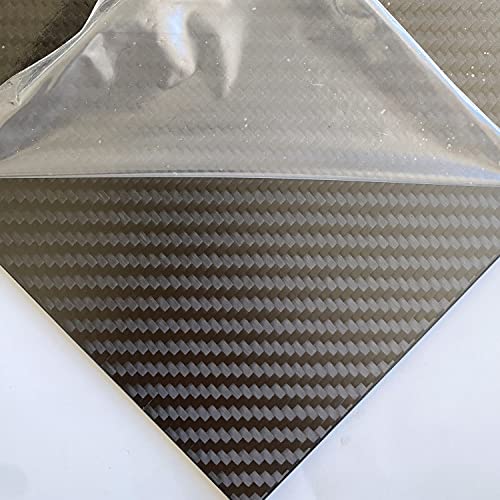

6. cncarbonfiber 400x500x4mm Twill Matte Sheet
This 400x500mm panel from cncarbonfiber uses a 2×2 twill weave with a matte finish, and at 4mm it strikes a practical balance between stiffness and machinability. The slightly larger surface area (400x500mm) compared to standard square panels gives you extra length for projects like boat console fill plates, motorcycle fender reinforcements, or camera rig baseplates where the extra 100mm in one dimension eliminates the need for a joint.
The material density of 1.6 to 1.7 g/cm³ confirms no glass fiber filler — it is pure carbon laminate. The matte twill weave reduces glare and gives a subtle, professional appearance that many builders prefer for visible structural parts. Multiple customer reviews cite successful waterjet cutting with clean edges and no delamination, and one buyer used it to stiffen pannier bags against wheel flop with excellent results.
The commercial-grade rating means the quality control may be slightly less strict than industrial-grade panels, but actual customer reports show uniform thickness and consistent weave quality. The protective film is thin but sufficient for machining. If you need a mid-size panel at 4mm with a matte twill finish, this is the most versatile option in this lineup.
Why it’s great
- Unique 400x500mm size reduces need for panel joints
- Pure carbon laminate confirmed by 1.6-1.7 g/cm³ density
- Matte twill weave looks professional and hides smudges
Good to know
- Commercial grade may have slightly looser QC than industrial panels
- Matte finish is less scratch-resistant than glossy
7. VViViD XPO Black Carbon Fiber Vinyl Wrap (75ft x 5ft)
The VViViD XPO is not a carbon fiber sheet in the structural sense — it is a 3.9-mil thick vinyl wrap with an embossed carbon fiber texture. This distinction matters because the product is designed exclusively for cosmetic surface covering, not load-bearing or reinforcement. It uses VViViD’s air release technology, which allows trapped air to escape through micro-channels during installation, reducing bubbles and lifting.
The 75ft by 5ft roll provides massive coverage, enough to wrap an entire car roof, hood, or motorcycle tank multiple times over. The adhesive is solvent-based and repositionable during dry application, giving you time to adjust before permanent bonding. With proper heat-gun activation, the vinyl can conform to compound curves, though the thick texture makes deep recesses tricky — multiple reviews warn against overstretching because the material can tear.
This product is not a substitute for real carbon fiber laminate for any structural purpose. Its value lies in large-area cosmetic transformation at a fraction of the cost of painting or real carbon panels. If you need the visual look of carbon fiber weave on a surface without changing the underlying structure, the VViViD XPO delivers consistent texture and reliable outdoor durability (rated 5-7 years).
Why it’s great
- Massive 75ft x 5ft roll covers large surfaces in one piece
- Air release technology reduces installation bubbles
- Heat-activated repositionable adhesive for diy installation
Good to know
- Vinyl wrap only — provides zero structural strength
- Thick texture requires heat gun and practice to avoid tearing
FAQ
Can I cut a 4×8 carbon fiber sheet with a standard saw blade?
How can I tell if a carbon fiber sheet contains glass fiber filler?
Is forged carbon fiber stronger than woven carbon fiber?
What thickness should I use for a drone arm or robot bracket?
Final Thoughts: The Verdict
For most users, the best 4×8 carbon fiber sheet winner is the ARRIS 400x500x6mm because it delivers true 6mm thickness with void-free 3K plain weave at a competitive price point, backed by consistent buyer praise for flatness and waterjet cut quality. If you need a flexible fabric for wet layup and curved reinforcements, grab the Tudomro 8-roll fabric pack. And for a ready-to-machine matte twill panel with extra length for medium-sized builds, nothing beats the cncarbonfiber 400x500x4mm sheet.
