A five-gang wall plate or box is the final frontier of residential electrical work — it’s where three or four switches or dimmers cluster together to control a room’s entire lighting scene. The challenge is finding a cover and enclosure that doesn’t bow, crack, or leave unsightly gaps when you screw it into an uneven wall. Too many budget options feel flimsy in the hand and look worse on the wall.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours comparing UL listings, material thickness scores, cubic-inch capacities, and real customer install photos to separate the genuine five-gang solutions from the ones that warp after a season.
Here you will find screwless decorator covers that snap flush, deep masonry boxes for concrete block, and versatile multi-mount enclosures that handle both new construction and retrofit work. This guide helps you find a durable, code-compliant 5 gang box that matches your specific installation environment.
How To Choose The Best 5 Gang Box
Choosing a five-gang solution isn’t just about counting the openings. You must match the box type to your wall material and the cover style to your aesthetic preference. A mismatch here leads to poor fit, code violations, or a cheap-looking finish.
Cover Type: Screwless vs. Screw-Mounted
Screwless covers use a two-piece design: a sub-plate that attaches to the box and a snap-on top plate that hides all fasteners. The result is a seamless, modern look with no visible screw heads. Screw-mounted plates are simpler and cheaper but expose four or more screws that collect dust and break the clean line of a multi-gang installation.
Box Material and Environment
For drywall renovations, a polycarbonate old-work box with adjustable flanges is the standard choice — it clamps to the drywall without needing a stud. For masonry or concrete block, a steel welded box with EKO knockouts is required. The cubic-inch capacity (71 cu in, 74 cu in, or 91.5 cu in) determines how many wires you can safely bundle; more switches and dimmers demand higher capacity.
UL Listing and Fire Rating
All permanent electrical enclosures should carry a UL listing or ETL certification. For PVC boxes, a UL94 V2 or V0 flammability rating ensures the material won’t melt or spread flame in a fault condition. Steel boxes naturally offer a two-hour fire-resistance rating, making them mandatory for commercial or attached-garage installations.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Lutron Claro CW-5-WH | Screwless Cover | Premium finish for decora switches | 12.2″ x 4.68″ Gloss White | Amazon |
| Southwire MSBMMT5G | Multi-Mount Box | New or old work with max capacity | 91.5 cu in capacity | Amazon |
| ENERLITES SI8835-W | Screwless Cover | Budget-friendly flush fit | Polycarbonate, UL94 V2 | Amazon |
| TG SP-D5-W | Screwless Cover | Child-safe glossy upgrade | Polished polycarbonate | Amazon |
| Airmont Products AP-ARB22A | Masonry Box | Heavy-duty steel in concrete walls | 74 cu in, welded steel | Amazon |
| GARVIN TB-535 | Masonry Box | Deep steel box for block walls | 3.5″ deep, alloy steel | Amazon |
| XGGYA SN68Z | Old Work Box | Retrofit into existing drywall | 71 cu in, PVC, ETL certified | Amazon |
In‑Depth Reviews
1. Lutron Claro 5-Gang Screwless Wall Plate CW-5-WH
The Lutron Claro CW-5-WH sets the standard for screwless five-gang covers in residential settings. Its two-piece construction — a mounting sub-plate that fastens to the box, then a flush gloss top plate that snaps on — hides every screw head, delivering a seamless look that no-name covers cannot match. At 12.2 inches wide, it accommodates five decora-style switches or dimmers without the plate bowing in the middle.
The gloss white finish resists yellowing and wipes clean with a damp cloth, maintaining its showroom appearance over years of use. Experienced electricians consistently recommend Lutron for its reliable fit over oversize or slightly irregular box openings; the sub-plate compensates for minor wall unevenness while the top plate snaps into place with a satisfying click. Compatibility extends across Lutron’s entire Caséta, Diva, Maestro, and Skylark lines, plus any standard decorator device.
At roughly double the price of generic covers, the Claro delivers a premium tactile feel and a perfectly flush fit that transforms a raw cluster of switches into a finished architectural detail. The 1-year warranty provides peace of mind, though the durable thermoplastic construction typically outlasts the wall itself.
Why it’s great
- Seamless gloss finish with no visible screws
- Snap-on design installs in seconds without tools
- Compatible with all major decora dimmers and switches
Good to know
- Premium price tier compared to basic screw-plate options
- Requires a sub-plate install — not a true single-piece cover
2. Southwire MSBMMT5G 5 Gang Multi Mount Device Box
The Southwire MSBMMT5G is the most versatile five-gang enclosure on the market, offering a whopping 91.5 cubic inches of interior capacity — enough to house complex multi-circuit wiring for smart-home systems or media centers. Its “multi-mount” design includes removable nail tabs for metal studs, top blocks for vertical placement, and knockdown brackets for retrofit work, so one box handles new construction and old work without compromise.
The high-impact polycarbonate shell is rigid enough to resist flex when you torque down five devices, and the ½-inch knockouts accept PVC conduit or blue tube for clean cable routing. Removable interior mounting blocks let you reclaim space when you need every cubic inch for wire bundles, while low-voltage dividers keep power and data lines safely separated inside the same box — a critical feature for modern structured-wiring panels.
UL-listed and RoHS-compliant, the MSBMMT5G ships with heavy-duty mounting screws and a gray finish that blends into unfinished walls. Experienced DIYers and pros alike praise its tap-proof device-screw holes, which resist stripping even after multiple removal cycles.
Why it’s great
- Largest capacity (91.5 cu in) of any 5-gang box reviewed
- Vertical and horizontal mounting with included knockouts
- Dividers for safe separation of low-voltage and line-voltage
Good to know
- Gray color may not match standard white device plates
- Some users report inconsistent 12-gauge hole sizing

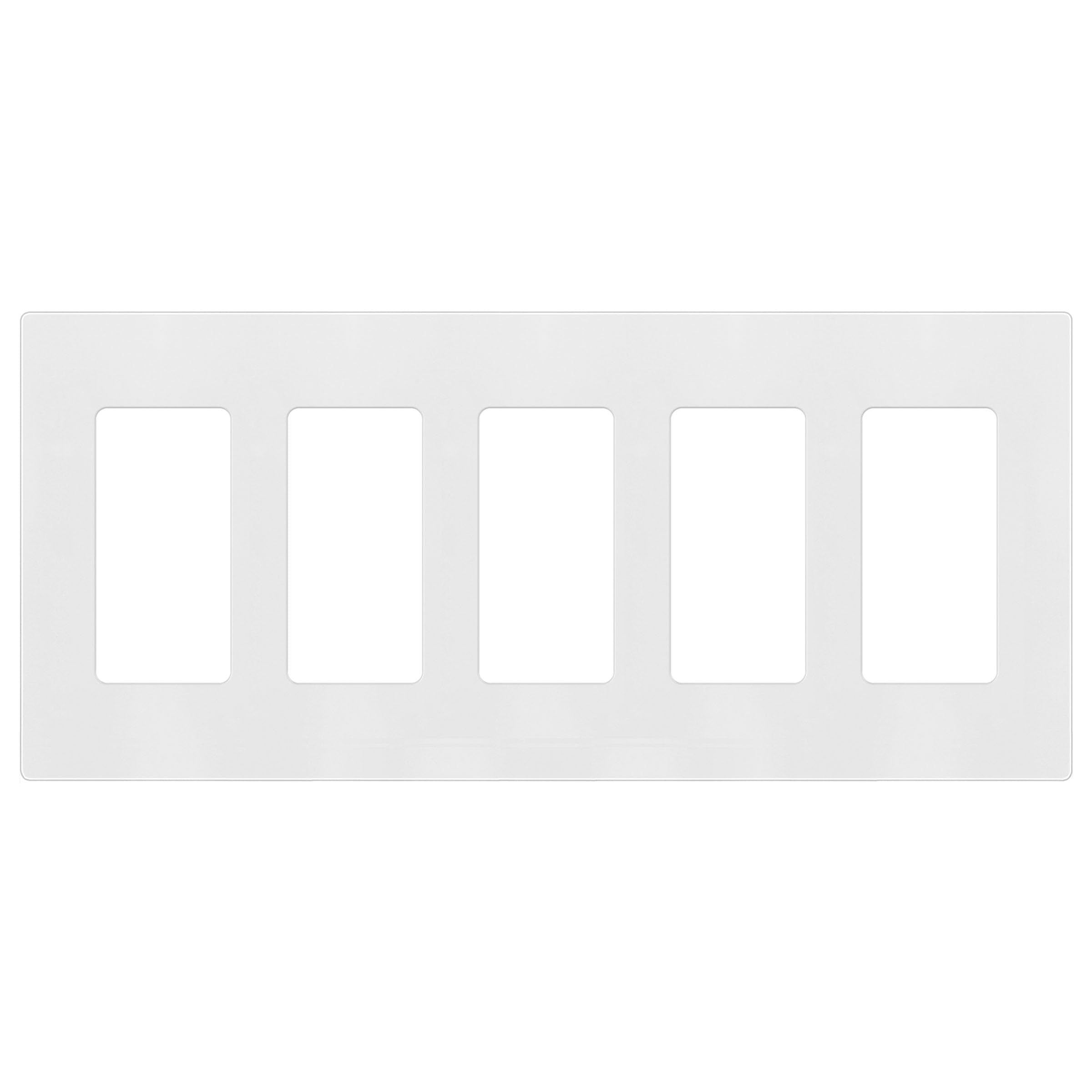

3. ENERLITES SI8835-W Screwless Decorator Wall Plate
The ENERLITES SI8835-W delivers the screwless aesthetic at a price that undercuts Lutron by more than half, making it the smart choice for covering a five-gang box across multiple rooms without blowing the budget. Its polycarbonate thermoplastic construction carries a UL94 V2 flammability rating and resists heat up to 100°C, so it won’t droop or discolor near a dimmer bank running at full load.
Owners consistently report a perfect, gap-free fit over standard five-gang boxes — the 4.68-inch height and 10.14-inch width match industry dimensions precisely. The gloss finish is smooth to the touch with no recessed lines or visible seams, and the snap-on top plate installs in under 30 seconds once the sub-plate is screwed in. Buyers upgrading from cheap screw-plate covers note the dramatic improvement in perceived room quality.
One minor compromise: the four-gang version of this series uses a two-piece design with visible edge notches, but the five-gang variant appears to use a one-piece top plate for a uniform look. Backed by a standard 1-year warranty and UL listing, ENERLITES offers the best performance-per-dollar ratio in this category.
Why it’s great
- Near-identical look to premium brands at half the cost
- Heat-resistant polycarbonate won’t warp near dimmers
- Quick snap-on installation with no visible hardware
Good to know
- Gloss finish shows fingerprints more than matte options
- Some sizes have visible edge seams on certain gang counts

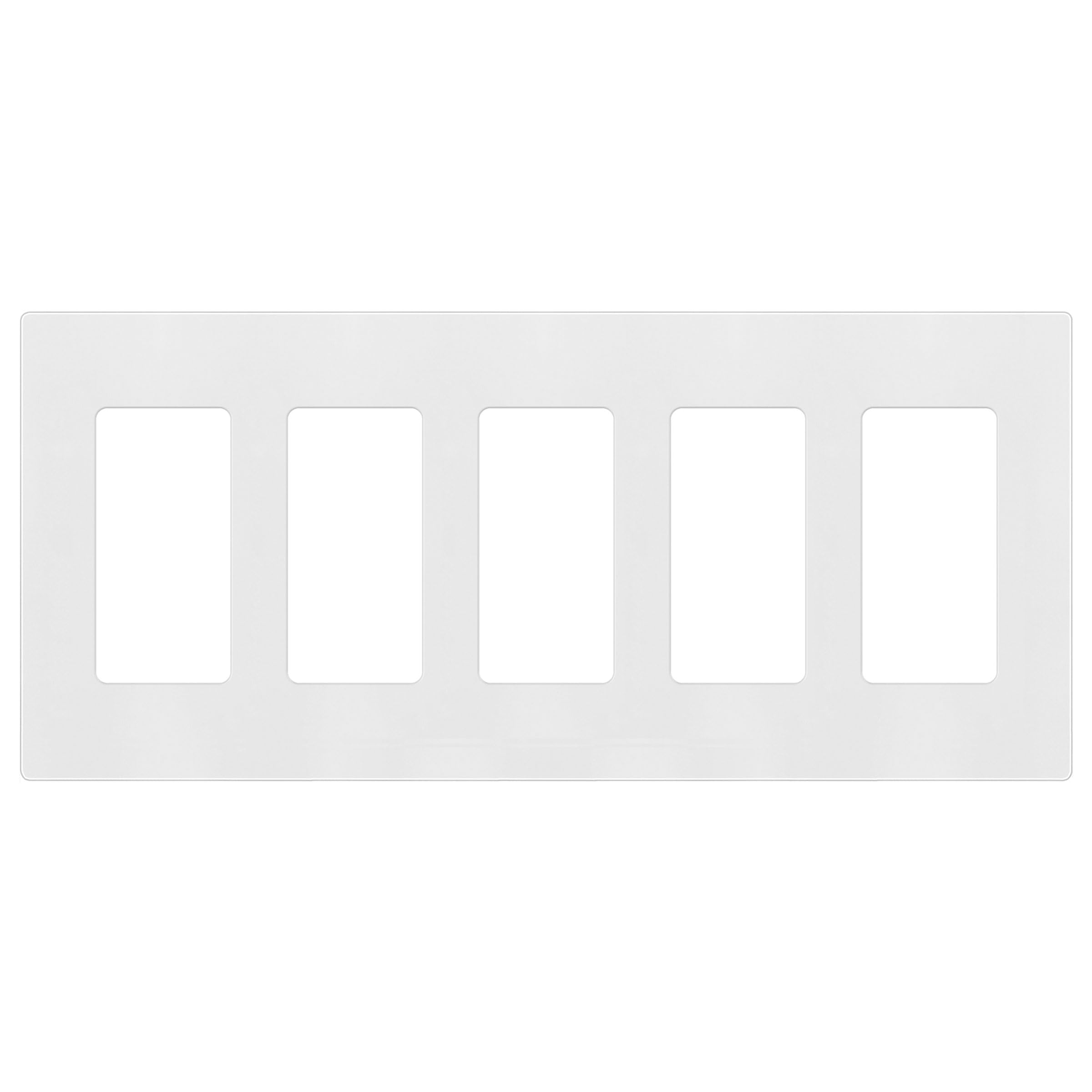

4. TG Screwless Decorator Wall Plate SP-D5-W
The TG SP-D5-W screwless cover stands out for its polished, high-gloss finish and child-safe design — the seamless front leaves no exposed screws or sharp edges that curious fingers could pry at. Molded from impact-resistant polycarbonate with a UL94 V2 heat rating exceeding 100°C, it resists cracking from accidental bumps and holds its color even near dimmer banks that run warm.
Installers praise the precision-fit dimensions (4.68 x 10.14 inches) that align flush with standard five-gang boxes, eliminating gaps that collect dust. The two-piece system — a mounting plate with pre-attached screws plus a snap-on cover — allows you to align all five devices before snapping the top plate into place, preventing crooked switches. Because the cover is one continuous piece of glossy plastic, the entire switch bank reads as a single design element rather than five individual openings.
At a mid-range price point, TG includes a 12-month service warranty that backs the product beyond the typical 30-day return window. The weight is minimal (0.1 kg), so shipping adds no cost, and the glossy surface wipes clean with a microfiber cloth. For a clean, polished upgrade over builder-grade plates, this is a strong contender.
Why it’s great
- High-polish finish with no visible lines or seams
- UL listed and heat resistant to over 100°C
- Child-safe screwless design prevents accidental contact
Good to know
- Gloss finish shows smudges more readily than satin
- Limited color offerings — currently only available in white

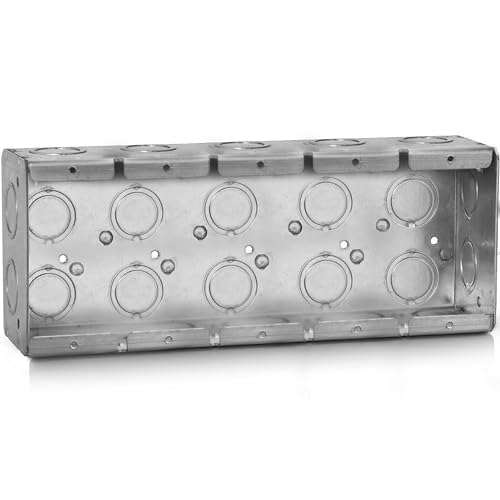

5. Airmont Products 5-Gang Masonry Electrical Box AP-ARB22A
The Airmont AP-ARB22A is a purpose-built masonry box fabricated from industrial-grade pre-galvanized steel with welded seams, delivering unmatched rigidity for concrete block, brick, or poured concrete walls. Its 74-cubic-inch capacity provides ample volume for five switches plus the associated wiring, while the forward-mounted grounding provision simplifies pigtail installation — a welcome convenience for electricians working in tight block cells.
The box includes multiple ½-inch and ¾-inch EKO knockouts on every side and the back, offering flexible conduit entry points for EMT, flex, or armored cable. Device ears inside the box prevent mortar from fouling the screw holes during installation, a detail that matters when you embed the box into fresh block work. The corrosion-resistant galvanized finish handles damp basement or garage environments without rusting.
Reviewers note the steel is thick enough to withstand over-torquing device screws without stripping, and the knockouts punch out cleanly with a standard screwdriver. This is not a DIY weekend project — it requires a masonry saw to create the cavity — but for permanent installations, the welded steel construction outlasts any plastic alternative.
Why it’s great
- Welded steel resists crushing in concrete block walls
- EKO knockouts accept 1/2″ and 3/4″ conduit on all sides
- Forward grounding provision for secure pigtail attachment
Good to know
- Designed for masonry — not compatible with drywall
- Does not include a ground screw or raised grounding dimple
6. GARVIN TB-535 Solid 3-1/2 Inch Deep Five Gang Masonry Box
The Garvin TB-535 is a solid alloy-steel five-gang masonry box with a 3.5-inch depth, purpose-built for block-wall installations that demand a deep enclosure for bulky wiring or large device loads. Its powder-coated silver finish resists corrosion in unconditioned spaces like garages and basements, while the built-in design allows it to be set directly into concrete block during construction — eliminating the need for cut-in retrofitting.
Experienced users highlight the roomy interior that fits five switches without jamming wires against the back wall. Removing a four-gang box to add a fifth switch is a common remodel scenario — the Garvin TB-535 accepts that upgrade cleanly with its 9.25-inch width. The solid steel construction feels substantial in the hand, and the knockouts on the back and sides offer plenty of conduit entry points.
One note: this box is designed for built-in installation in block or poured concrete, not for retrofit into existing drywall. It lacks the adjustable tabs needed for old-work applications. If you are building or exposing a block wall, the TB-535 is a reliable, code-friendly choice that has been on the market for years with consistent positive feedback.
Why it’s great
- Deep 3.5-inch interior for bulky wiring bundles
- Powder-coated finish resists garage and basement moisture
- Solid alloy steel — nearly indestructible in masonry
Good to know
- Built-in only — cannot be used for drywall retrofit
- No included hardware for mounting to existing surfaces
7. XGGYA 4 Gang Old Work Electrical Box (5-Gang Compatible Retrofit)
The XGGYA SN68Z is a PVC old-work box that offers a cost-effective way to retrofit a multi-gang switch bank into existing drywall without cutting into studs. At 71 cubic inches, it provides enough capacity for four to five devices (depending on wire fill), and the adjustable flanges clamp securely to the back of the drywall to hold the box flush — eliminating the wobble that plagues cheap blue plastic boxes.
ETL certified with a two-hour fire-resistance rating, this box meets code requirements for residential walls while weighing just 0.26 kg, making it easy to handle overhead. The removable knockouts accommodate 14/2, 12/2, and 10/2 cable without sharp burrs, and the living hinges on the cable entry points simplify wire feeding during a cramped attic run. Reviewers with plaster-and-lath walls specifically praise the adjustable mounting tabs, which grip uneven surfaces that standard boxes cannot hold.
The box is technically labeled as a 4-gang unit, but multiple customer reports confirm five decora devices fit comfortably thanks to the generous 5-inch width. For a quick and cheap way to add gang capacity to an existing wall without major demolition, this is the entry-level workhorse.
Why it’s great
- Adjustable tabs lock into drywall without stud access
- ETL certified with two-hour fire-resistance rating
- Lightweight PVC minimizes strain during overhead installs
Good to know
- Listed as 4-gang — verify fit before purchasing for 5-gang switch plates
- PVC flanges may flex if over-tightened against soft drywall
FAQ
Can I use a screwless five-gang cover on an old metal box?
How many wires can I put in a 74 cubic inch masonry box?
Should I buy a plastic or steel five-gang box for my basement?
Final Thoughts: The Verdict
For most users, the 5 gang box winner is the Southwire MSBMMT5G because its 91.5 cubic inch capacity and multi-mount versatility handle any new-construction or retrofit job without compromise. If you want a screwless cover that makes five switches look like a single design element, grab the Lutron Claro CW-5-WH. And for a heavy-duty steel installation in concrete block, nothing beats the Airmont Products AP-ARB22A with its welded seams and EKO knockouts.
