Swapping wheels between a 5×114.3mm SUV or sedan hub and a set of 5x100mm sports car rims is a common upgrade path for enthusiasts, but the thin adapter plate bridging those two patterns is the single most stressed part on your car. One grade-10.9 stud snapping at highway speed can turn a cosmetic project into a collision claim. The difference between a safe, vibration-free conversion and a dangerous headache comes down to the adapter’s forging process, stud metallurgy, and whether the hub bore is a true load-bearing centric fit or just a loose lug-centric approximation.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours dissecting automotive aftermarket spec sheets, comparing heat-treatment certifications, and cross-referencing real owner fitment reports to separate the precision-machined adapters from the cast aluminum gamble.
Whether you’re clearing bigger brakes on a Subaru or fitting Honda wheels onto a Toyota, dialing in the right 5×114.3 to 5×100 adapter starts with understanding stud grade, hub bore interference, and the torque procedures that keep everything clamped tight.
How To Choose The Best 5X114.3 To 5X100 Adapter
Selecting the right adapter set for a bolt pattern conversion involves more than matching the lug count. The thickness, hub bore diameter, lug stud grade, and whether the adapter is hub-centric or lug-centric all determine whether the wheel runs smooth or shakes at 70 mph.
Forged 6061-T6 vs Cast Aluminum
Every quality adapter uses forged 6061-T6 aircraft-grade aluminum. Forging aligns the grain structure of the metal, resulting in a part that is significantly stronger and more fatigue-resistant than a cast or billet-machined block. Cast adapters are prone to cracking under the shear load of a heavy vehicle, especially when combined with high offset wheels.
Stud Grade: 10.9 vs 12.9
The studs pre-installed in the adapter are the actual load path between your wheel and hub. Grade 10.9 studs are the minimum safe standard for most passenger cars. Grade 12.9 studs offer roughly 20% higher tensile strength and are preferred for heavier vehicles, aggressive offset setups, or when running track-day loads. Zinc-plated or geomet-coated studs resist corrosion better than raw steel.
Hub Bore Fitment
A hub-centric adapter has a center bore that matches the vehicle’s hub diameter exactly, transferring vertical load through the hub rather than through the lug studs alone. Lug-centric adapters rely entirely on the studs to center the wheel, which introduces a higher risk of vibration if the lug nuts are not tightened in a perfect star pattern. For daily drivers, hub-centric adapters are strongly recommended.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| KAX 5×114.3 to 5×100 | Premium | Honda / Kia fitment | 12.9 grade studs, 73.1mm bore | Amazon |
| Torchbeam 5×114.3 to 5×100 | Premium | Minivan / large sedan | Forged 6061-T6, 73.1mm bore | Amazon |
| KSP 25mm Wheel Spacers | Mid-Range | Toyota / Chevy compact | 10.9 grade studs, 64.1mm bore | Amazon |
| PHILTOP 5×114.3 to 5×100 | Premium | Honda / Toyota crossover | 12.9 grade studs, 73.1mm bore | Amazon |
| ECCPP 5×100 to 5×114.3 | Mid-Range | Subaru Legacy / Outback | 10.9 grade studs, 56.1mm bore | Amazon |
| BDFHYK 5×100 to 5×114.3 | Mid-Range | Chevy / Toyota sedan | 10.9 grade studs, 64.1mm bore | Amazon |
| Wheel Accessories Parts 2pc | Value | Ford Mustang / Ranger | 1/2″ studs, 70.5mm hub bore | Amazon |
In‑Depth Reviews

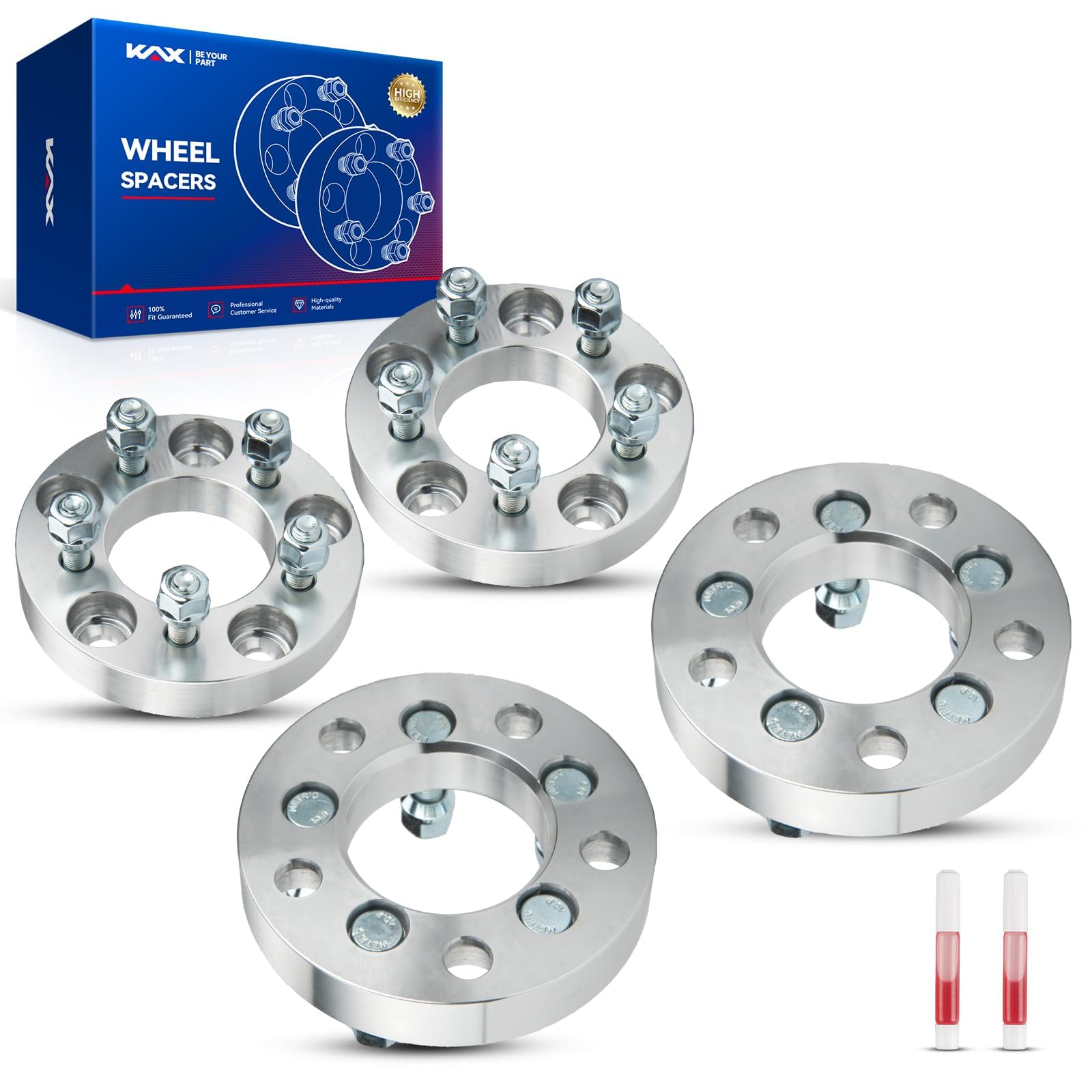

1. KAX 5×114.3 to 5×100 Wheel Adapters
The KAX adapter set is a premium option that uses 12.9-grade studs — the highest strength commonly available for this conversion — and a 73.1mm hub bore designed for Honda, Kia, Toyota, and Chrysler platforms. The 1-inch thickness keeps the wheel offset change manageable while providing enough clearance for most brake calipers. Customers report easy installation with the included thread locker and no vibration at highway speeds when the adapter is properly torqued to 70-80 ft-lbs.
The adapters are forged from 6061-T6 aluminum and CNC-machined, ensuring the mounting surfaces are flat and the stud holes are precisely positioned. The 12.9 split nuts included in the package offer better clamp load distribution than standard acorn nuts. For owners of Civic, Camry, CR-V, or Sorento models looking to swap wheels from a different OEM, this set provides the most robust stud-to-hub interface in this comparison.
The main consideration is the 73.1mm center bore — if your vehicle’s hub is smaller, the adapter will be lug-centric rather than hub-centric. A micrometer check before installation is essential. Overall, the KAX set delivers a confidence-inspiring level of hardware quality that justifies the premium positioning.
Why it’s great
- 12.9 grade studs are significantly stronger than standard 10.9
- 73.1mm bore matches late-model Honda hubs perfectly
- Clean forging finish with no burrs on stud threads
Good to know
- Not hub-centric if your vehicle hub bore is smaller than 73.1mm
- Included split nuts require a thin-wall socket for some wheels

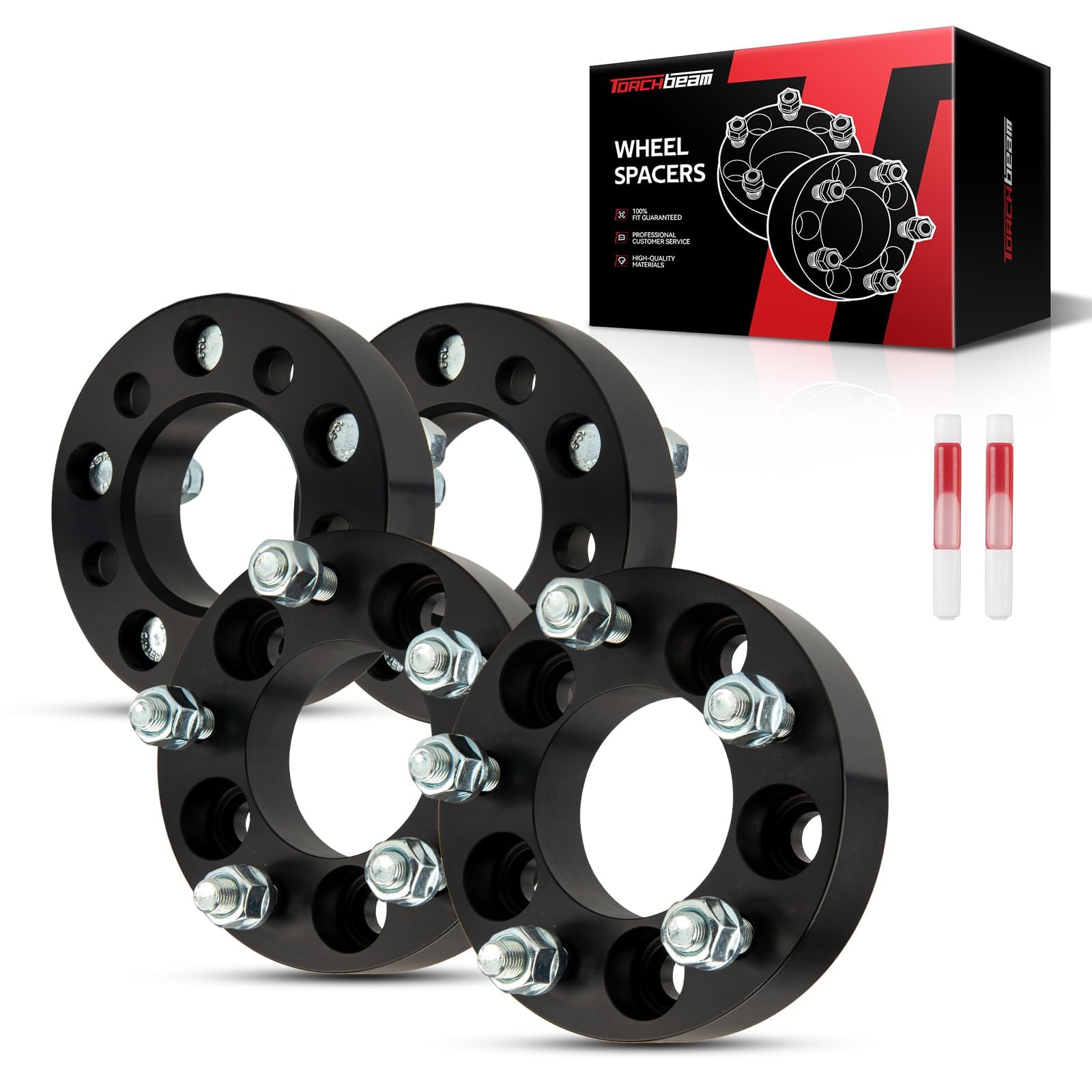

2. Torchbeam 5×114.3 to 5×100 Wheel Adapters
Torchbeam positions this adapter specifically for Chrysler, Dodge, and Plymouth minivan platforms like the Town & Country, Grand Caravan, and Voyager, where the 5×114.3mm to 5x100mm conversion is needed to fit aftermarket wheels. The 1-inch thickness (25mm) keeps the wheel close to the fender while allowing clearance for the larger front brake calipers common on those vans. The 73.1mm center bore is a direct match for many Chrysler hubs.
Build quality is solid — forged 6061-T6 aluminum with pre-installed M12x1.5 studs. The black anodized finish resists corrosion from road salt and brake dust. Multiple reviews confirm a vibration-free ride when installed with thread locking compound and torqued to 75 ft-lbs. For Volvo S60 and Chevy C10 owners, the 73.1mm bore also works well, though those applications require confirming hub bore compatibility.
The only drawback is that this set is not hub-centric by default — the 73.1mm bore is the wheel side, but the vehicle side relies on stud centering. For heavier vehicles like a Grand Caravan, ensuring the adapter sits flush against the rotor face is critical. For the price, it is a well-machined kit that prioritizes corrosion resistance and stud thread quality.
Why it’s great
- Strong 12.9 grade studs resist galling during installation
- Forged aluminum construction with anti-corrosion anodizing
- Direct fit for Chrysler/Dodge minivan hubs with 73.1mm bore
Good to know
- Vehicle side is lug-centric, not hub-centric
- Some users recommend adding Loctite for extra security
3. KSP 25mm Wheel Spacers 5×100 to 5×114.3
The KSP set is a direct 5×100 to 5×114.3 conversion designed for Toyota, Chevy, and Chrysler compact platforms with a 64.1mm hub bore. The 1-inch thickness (25.4mm) is standard, and the adapter includes 20 open-ended lug nuts and a tube of thread locker. Owners of Scion tC, Toyota Camry, and Chevy Cavalier models report that the adapters sit flush and produce no vibration when torqued to 75 ft-lbs.
The adapters are forged from 6061-T6 aluminum with black anodized coating. The studs are ISO/DIN 10.9 grade, which is adequate for most passenger cars under 4,000 lbs. The included thread locker helps prevent the adapter-to-hub nuts from loosening over time. For Volkswagen Beetle owners, the 64.1mm bore matches the factory hub, making this a plug-and-play option if you use the correct shallow lug bolts.
Some users have reported galling issues with the studs and nuts, suggesting that the zinc coating on the threads may be inconsistent. For a performance-oriented build or a heavy SUV, stepping up to a 12.9 stud set would be safer. Still, for a daily-driven compact car, the KSP adapters offer a reliable value-to-strength ratio.
Why it’s great
- Includes 20 open-end lug nuts and thread locker
- 64.1mm bore matches Toyota and Chevy compact hubs
- Forged 6061-T6 construction at a competitive price point
Good to know
- 10.9 studs may not be sufficient for heavy vehicles
- Inconsistent zinc coating can cause nut galling

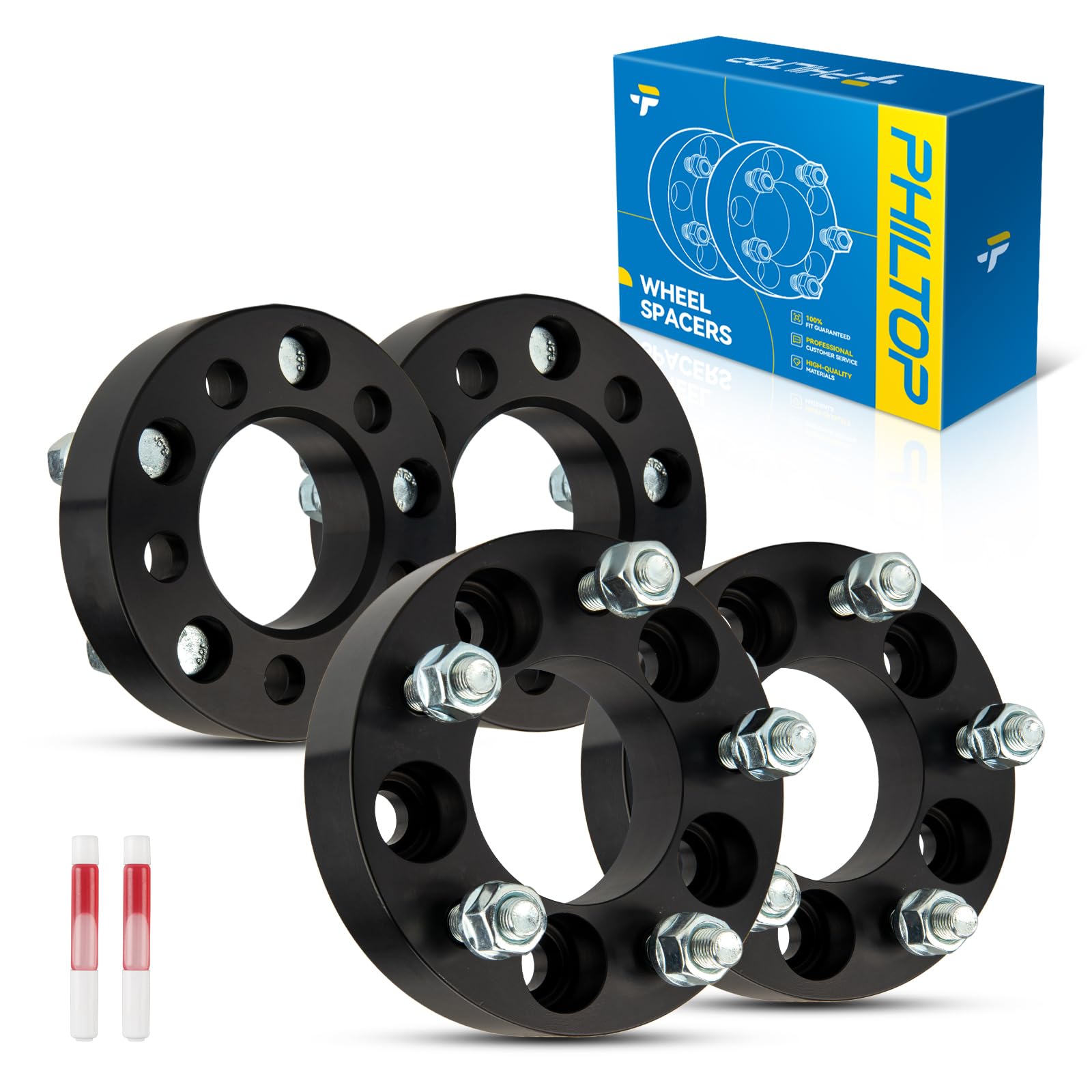

4. PHILTOP 5×114.3 to 5×100 Wheel Adapters
PHILTOP’s adapter set is engineered for late-model Honda, Toyota, and Hyundai crossovers, with a 73.1mm hub bore that matches the factory hubs on CR-V, RAV4, and Santa Fe. The 1-inch thickness (25mm) with M12x1.5 studs and 12.9 grade hardware makes this one of the safest options for heavier crossover vehicles. The forged 6061-T6 aluminum is CNC-machined and anodized black for corrosion resistance.
Owners of Subaru Impreza and Honda Civic have used these adapters to mount different OEM wheels with no vibration or rubbing issues after proper torquing. The 12.9 grade studs provide a higher safety margin than standard 10.9, particularly when running larger tires that increase leverage on the adapter. The instruction manual includes a clear torque sequence and re-torque reminder at 25-50 miles.
The main limitation is that the 73.1mm bore is the wheel-side dimension — the vehicle side may not be hub-centric if your hub diameter is smaller. The manufacturer recommends confirming compatibility using Amazon’s fitment filter before purchase. For users who need a robust, high-grade stud set for a crossover, the PHILTOP adapters deliver peace of mind.
Why it’s great
- 12.9 grade heat-treated studs for heavy-duty applications
- 73.1mm bore suits Honda and Toyota crossovers directly
- Professional instruction manual with re-torque specification
Good to know
- Not hub-centric on vehicles with smaller hub bores
- May require trimming factory studs if they exceed 1 inch
5. ECCPP 4PCS 5×100 to 5×114.3 Wheel Spacers Adapters
ECCPP’s adapter set targets Subaru owners who want to fit 5×114.3mm STI wheels onto a 5x100mm hub found on Legacy, Outback, and Crosstrek models. The 56.1mm inner diameter matches the Subaru hub bore, making this a hub-centric fit that transfers load through the center bore rather than just the studs. The 1-inch thickness (25mm) provides clearance for larger brake calipers and allows a mild offset change.
The adapters are forged from T-6 billet aluminum with heat-treated 10.9 grade studs. The M12x1.25 thread pitch is Subaru-specific, so owners of other brands will need to verify compatibility. Customers report improved handling stability and no rubbing issues when running 1-inch spacers with winter tire sets. The aggressive stance is a common positive note.
A few owners reported defective units where one lug stud spins freely when tightening, indicating a manufacturing tolerance issue. Checking all four studs before installation is crucial. For Subaru owners needing a hub-centric conversion with the correct 56.1mm bore, this set performs well, but batch quality control could be more consistent.
Why it’s great
- 56.1mm hub bore matches Subaru hubs for centric fitment
- Correct M12x1.25 thread pitch for Subaru wheel studs
- Improves cornering stability and gives aggressive stance
Good to know
- Some units have defective spinning studs
- Frequently returned item, so inspect packaging carefully
6. BDFHYK 5x100mm to 5×114.3mm Wheel Spacers
BDFHYK offers a 4-pack of lug-centric adapters for Chevy, Toyota, and Pontiac platforms with a 64.1mm center bore. The 1-inch thickness (25.4mm) and M12x1.5 thread pitch are standard for many front-wheel-drive sedans. The adapters include protective gloves and cleaning wire balls, a thoughtful touch for installation. Owners of Toyota Camry, Chevy Cavalier, and Scion tC report a clean, aggressive stance after installation.
The adapters are forged from aviation-grade 6061 aluminum with CNC integrated molding and anodized surface treatment. The 10.9 class bolts are pre-installed. The manufacturer holds IATF 16949:2016 certification, which indicates a quality management system for automotive production. For the price, this set offers decent material quality.
There is one serious safety report of studs shearing completely off the adapter, causing a collision. While this may be an isolated manufacturing defect, it highlights the risk of using adapters with 10.9 grade studs on heavy or high-torque vehicles. For a lightweight sedan used for daily commuting, the risk is lower. Inspecting every stud for cracks before installation is non-negotiable.
Why it’s great
- Forged 6061-T6 with anodized corrosion protection
- Includes gloves and cleaning wire balls for installation
- IATF 16949 certified manufacturing process
Good to know
- Reported stud shear failure on heavy vehicle application
- Lug-centric design transfers all load through studs

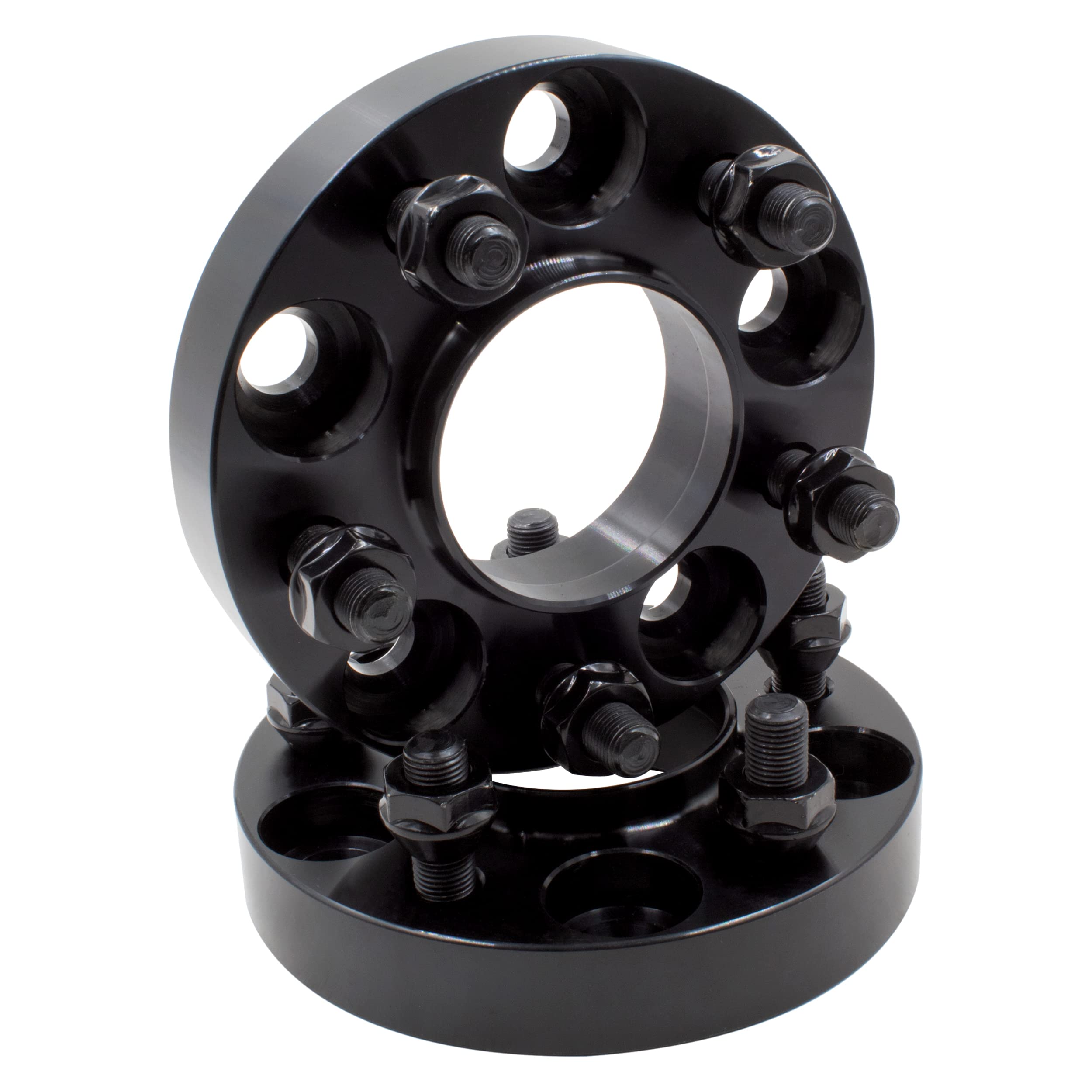

7. Wheel Accessories Parts 2 Pcs Hub Centric Wheel Spacers
This 2-piece set from Wheel Accessories Parts is designed specifically for Ford vehicles with a 5×4.5 (5×114.3mm) bolt pattern — Mustang, Explorer, Ranger, and Crown Victoria. The 1-inch thickness (25.4mm) with 70.5mm hub bore provides a hub-centric fit for these Ford models, reducing vibration compared to lug-centric alternatives. The 1/2-inch thread studs are SAE 10.9 grade, matching the standard Ford lug stud size.
The spacers are forged from 6061-T6 aluminum and anodized black. Ford owners report that the spacers install easily with no vibration, and they improve the stance without requiring fender modification. The hub-centric design means the adapter centers itself on the vehicle’s hub, making installation straightforward. The price point is attractive for those who only need a 2-piece set for the rear axle.
The limitation is that this is only a 2-piece set — you will need to order two sets if you want adapters on all four wheels. Additionally, the 1/2-inch studs are unique to Ford applications, so these won’t work on vehicles with metric M12x1.5 or M12x1.25 threads. For Mustang and Ranger owners, this is a solid, simple solution at a good value.
Why it’s great
- Hub-centric design with 70.5mm bore for Ford platforms
- Forged 6061-T6 aluminum, anodized for corrosion resistance
- SAE 1/2″ threads match factory Ford lug studs
Good to know
- Only 2 pieces in package, not a full 4-wheel set
- 1/2″ studs are not compatible with metric thread vehicles
FAQ
Will a 5×114.3 to 5×100 adapter fit my stock wheels?
Do I need to trim my factory wheel studs for a 1-inch adapter?
How often should I re-torque wheel adapter lug nuts?
Final Thoughts: The Verdict
For most users, the 5×114.3 to 5×100 adapter winner is the KAX set because it combines 12.9-grade studs, a precise 73.1mm bore, and clean forging quality that eliminates vibration at highway speeds. If you want a Subaru-specific hub-centric fit with the correct 56.1mm bore, grab the ECCPP set. And for a pure value play on a lightweight sedan, nothing beats the BDFHYK set.
