Running a 55-amp circuit for a Level 2 EV charger, a sub-panel, or a heavy-duty commercial machine demands a cable that bridges the gap between raw copper ampacity and physical protection from drywall screws and rodent teeth. Metal-clad 6/3 delivers exactly that — four 6 AWG copper conductors wrapped in a spiral aluminum armor that acts as both a bonding path and a rugged shield.
I’m Min — the co-founder and writer behind Gadgets Feed. Over many hours comparing ampacity ratings, strand counts, UL listings, and real-world installation feedback, I’ve sorted through the current crop of 6/3 metal-clad cables to find the ones that actually hold up in a crawl space or on a construction site.
This guide evaluates seven pre-cut armored assemblies based on conductor material, jacket flexibility, NEC compliance, and value for your specific run length. Use it to confidently choose the right 6/3 metal clad cable for your next job.
How To Choose The Best 6/3 Metal Clad Cable
6/3 MC cable isn’t a commodity spool — the differences between brands and lengths affect installation speed, code compliance, and long-term reliability. Focus on the conductor makeup, the armor construction, and the actual number of conductors inside the jacket before you measure your run.
Conductor Material and Stranding
Solid bare copper offers the highest conductivity for a given gauge, but it’s stiff and harder to bend around tight corners. Stranded copper (7-strand or 19-strand) is more pliable and easier to terminate in panels and junction boxes. Both options meet UL standards, but stranded wire reduces the risk of work-hardening cracks during repeated bending.
Jacket Sizing and Connector Fit
The overall diameter of 6/3 MC cable typically measures around 21.3 mm. A common installation headache is that 3/4-inch end clamps are often too large, while 1/2-inch connectors can be a tight fit for four 6 AWG wires. Measure the cable’s OD before buying connectors, and always use listed anti-short bushings to protect the conductors from the armor’s cut edge.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Wirenco 15Ft Cut | Mid-Range | Short EVSE runs | 19-strand stranded copper | Amazon |
| Kimbluth 25Ft | Mid-Range | HVAC disconnect | 7-strand stranded copper | Amazon |
| YDDECW 25Ft | Mid-Range | Generator hookup | Solid bare copper | Amazon |
| Wirenco 50Ft Cut | Premium | Mid-length EV runs | 19-strand stranded copper | Amazon |
| Kimbluth 75Ft | Premium | Long outdoor runs | 7-strand stranded copper | Amazon |
| YDDECW 75Ft | Premium | Sub-panel feeder | Solid bare copper | Amazon |
| YDDECW 100Ft | Premium | Longest continuous span | Solid bare copper | Amazon |
In‑Depth Reviews
1. Wirenco 6/3 MC Cable with Ground (15Ft Cut)
The Wirenco 15-foot cut uses 19-strand soft annealed copper conductors, making it noticeably easier to bend and terminate than solid-wire equivalents. Each of the four conductors (black, red, white, and a 10 AWG green ground) is THHN-rated for 75 amps at 600 volts, meeting UL 83, 1569, 1581, and 2256 standards.
Buyers consistently report using this cable for EV charger installations and sub-panel feeders, noting that the pre-cut length arrives well-packed and accurate. The 10 AWG ground wire is NEC-compliant for this gauge, and the aluminum armor provides a reliable bonding path without needing a separate green wire in the jacket.
The one catch is that the 3/4-inch clamps Amazon recommends are frequently too large — you’ll want 1/2-inch connectors and anti-short bushings. For short, critical runs where workability matters most, this is the best-balanced choice across quality, flexibility, and price.
Why it’s great
- 19-strand stranded copper bends easily without work-hardening
- UL-listed across four standards
- 10 AWG green ground included per NEC
Good to know
- Amazon’s suggested 3/4″ clamps don’t fit; requires 1/2″ connectors
- Short 15ft length limits runs to tight EVSE or panel distances

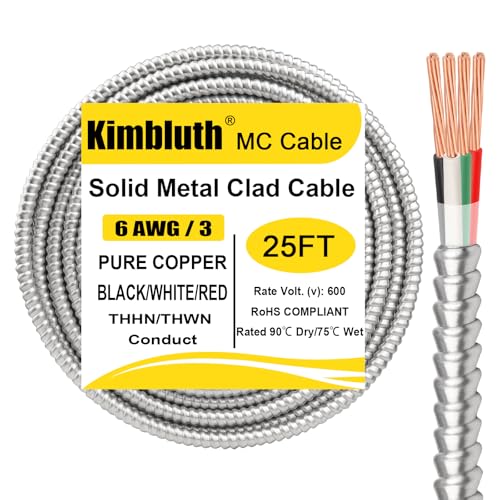

2. Kimbluth 25Ft 6/3 MC Cable with Ground
Kimbluth’s 25-foot offering uses 7-strand stranded copper conductors with a 7-strand 8 AWG ground wire, rated for 90°C and 600 volts. The aluminum alloy armor is corrosion-resistant and designed for indoor, outdoor, underground, and embedded installations — making it one of the most versatile lengths in this roundup.
Customers have used it successfully for HVAC disconnect runs and Level 2 EV charger circuits, noting that the armor bends without kinking and holds its shape well in tight spaces. The UL 83, UL 1569, and UL 2556 listings give the same code confidence as more expensive options.
Cutting the armor requires care — a sharp knife and gloves are essential — but the stranded conductors make stripping a bit easier than solid-core alternatives. For a 25-foot mid-range run, this is a strong, well-rounded choice.
Why it’s great
- Rated for 90°C for higher ambient temperature tolerance
- Corrosion-resistant aluminum armor handles weather exposure
- Versatile enough for outdoor, underground, and embedded use
Good to know
- Cutting the metal jacket is tricky without the right tool
- Pricier than generic options for same-length runs
3. YDDECW 25Ft 6/3 MC Cable with Ground
YDDECW’s 25-foot cable uses solid bare copper conductors (7 strands × 1.56 mm) with an 8 AWG solid copper ground, enclosed in an aluminum alloy jacket. The 21.3 mm diameter is consistent across the product line, and the UL 83/UL 1569/UL 2556 listings match the Kimbluth offering at the same length tier.
Electricians and DIYers alike praise the armor’s ability to hold its shape after bending, which is critical when snaking through tight crawl spaces or around structural corners. The pre-fed wire assembly eliminates the hassle of pulling individual THHN wires through separate conduit — a major time save.
The downside is that stripping the insulation requires significant force — a very sharp knife and gloves are non-negotiable. Also, the 1/2-inch nominal diameter means four 6 AWG solid wires won’t fit standard-sized connectors; plan ahead with larger fittings.
Why it’s great
- Solid copper offers maximum conductivity per gauge
- Armor holds shape without kinking
- Pre-assembled assembly saves conduit-pulling labor
Good to know
- Insulation is very tough to strip; requires a sharp blade and gloves
- Four solid 6 AWG wires may struggle to fit standard 1/2″ connectors
4. Wirenco 50Ft Cut 6/3 MC Cable with Ground
This is the 50-foot sibling of the 15-foot Wirenco cable, sharing the same 19-strand annealed copper construction and 75-amp THHN rating. The longer spool makes it ideal for EV charger installations that run 40 to 50 feet from the panel to the garage wall.
Verified buyers consistently report accurate lengths and fast shipping, with many using Polaris connectors for the high-current terminations due to the wire’s thickness. The 10 AWG green ground wire is included and NEC-compliant, and the aluminum armor provides the required equipment grounding path.
Again, 3/4-inch end clamps won’t fit properly — 1/2-inch connectors are the correct size. For anyone planning a 50-amp EV circuit, this cable delivers the flexibility of stranded conductors at the length most installations actually need.
Why it’s great
- 50-foot length matches typical EV charger run distances
- 19-strand stranded copper is easier to terminate in tight panels
- Fast 2-day delivery reported by multiple buyers
Good to know
- Same clamp sizing issue as the 15ft version
- Thick stranded wire still benefits from Polaris connectors
5. Kimbluth 75Ft 6/3 MC Cable with Ground
The 75-foot Kimbluth cable mirrors the 25-foot version’s specs — 7-strand stranded copper, 8 AWG stranded ground, 90°C rating, and the same UL listings — but scaled for longer outdoor runs. The 21.3 mm diameter aluminum armor is corrosion-resistant and flexible enough to route through multiple bends without kinking.
Buyers have used it for HVAC disconnects and generator back-feed installations, with multiple reviews noting the armor holds its shape when bent around corners. The longer length makes it suitable for feeding a sub-panel in an outbuilding or connecting a workshop.
At this price tier, you’re paying for the convenience of a pre-assembled, fully armored 75-foot assembly. The value holds up well when compared to buying separate rolls of THHN and a steel conduit run.
Why it’s great
- Long 75-foot span covers garage-to-workshop distances
- 90°C rating handles higher ambient temps in outdoor panels
- Aluminum alloy armor resists corrosion in weather-exposed runs
Good to know
- Armor cutting requires a specialized cutter or careful knife work
- Premium price reflects the convenience of a pre-fed assembly
6. YDDECW 75Ft 6/3 MC Cable with Ground
YDDECW’s 75-foot variant uses solid bare copper (7-strand × 1.56 mm) with an 8 AWG solid ground, housed in the same 21.3 mm aluminum alloy jacket. The UL listings and 600V rating are identical to the 25-foot version, making this a consistent choice for longer spans.
Users have deployed it for generator hookups in barns, RV plug connections to 50-amp breakers, and sub-panel feeders. The armor’s ability to hold its shape without a separate conduit is repeatedly cited as a major time-saver.
Stripping the insulation remains the primary difficulty — multiple reviews report needing an extremely sharp knife and gloves. For solid-copper fans who need a long, continuous run, this cable delivers reliable performance at a mid-premium price point.
Why it’s great
- Solid copper ensures maximum ampacity per gauge
- Armor holds shape well for long, unsupported spans
- Pre-fed design eliminates separate conduit pulling
Good to know
- Insulation is exceptionally tough to strip
- Four 6 AWG solid wires may need oversized connectors
7. YDDECW 100Ft 6/3 MC Cable with Ground
This is the longest single-piece MC cable in the roundup at 100 feet, using the same solid bare copper construction as the 25-foot and 75-foot YDDECW options. The 21.3 mm aluminum alloy jacket provides continuous protection for the full run, and the UL listings remain consistent.
Buyers report using it for RV park pedestals, long generator transfer switch runs, and feeding sub-panels in outbuildings. The ability to bend and hold the armor simplifies routing through crawl spaces without needing junction boxes mid-run.
The same stripping difficulty applies — you’ll need a sharp knife and patience. Also, the 1/2-inch nominal size still poses connector-fit issues with four solid 6 AWG wires. For the longest continuous run on a budget, this cable offers the best per-foot value.
Why it’s great
- 100-foot length eliminates splice junctions
- Solid copper conductors deliver consistent conductivity
- Armor holds shape across long, single-span installations
Good to know
- Stripping insulation is physically demanding
- Standard 1/2″ connectors may not fit all four wires
FAQ
What does the 6/3 designation actually mean for MC cable?
Can I bury 6/3 MC cable directly in the ground?
Final Thoughts: The Verdict
For most users, the 6/3 metal clad cable winner is the Wirenco 15Ft Cut because its 19-strand stranded copper strikes the best balance between flexibility, code compliance, and installation ease. If you need a long outdoor run for a generator or sub-panel, grab the Kimbluth 75Ft for its 90°C rating and corrosion-resistant armor. And for the tightest budget on the longest single span, nothing beats the YDDECW 100Ft for pure per-foot value.
