Matching the right 6-inch stove pipe to your wood stove, furnace, or fireplace insert is a safety decision disguised as a hardware run. A flimsy single-wall section can buckle under sustained heat, while an undersized cap invites downdrafts that fill your living space with smoke. The difference between a clean-burning, code-compliant installation and a frustrating, potentially hazardous setup often comes down to material gauge, joint design, and clearance specs — details that are invisible on the shelf but critical once the fire is lit.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve logged hundreds of hours cross-referencing UL listings, tensile strength ratings, and owner reviews to isolate the venting components that deliver real durability and draft consistency for this exact 6-inch category.
Whether you are retrofitting an older chimney or piecing together a new system, this guide breaks down the top-rated options to help you identify the best 6-inch stove pipe for your specific heat source, roof pitch, and budget constraints.
How To Choose The Best 6-Inch Stove Pipe
Selecting the correct stove pipe involves more than matching the diameter. You must account for the appliance fuel type (wood, coal, gas, or oil), the distance to combustible surfaces, and whether the pipe will run through an interior space or a cold exterior chase. Every system must comply with local building codes, and most modern components carry UL or ULC listings to prove their fire-safety rating. Ignoring clearance requirements — typically 18 inches for single-wall black pipe and 2 to 8 inches for insulated double-wall — is the fastest route to an unsafe install.
Wall Configuration: Single Wall vs. Double Wall vs. Flexible Liner
Single-wall black stove pipe is the most common choice for the visible connector from the stove to a chimney thimble or ceiling support box. It provides no insulation, requires high clearance, and radiates significant heat, which can be desirable for warming a room but dangerous close to walls. Double-wall or insulated pipe uses an inner stainless steel layer separated by a ceramic fiber blanket from an outer shell, reducing clearance to as little as 2 inches. Flexible liners, made of corrugated 304 or 316 stainless steel, retrofit into existing masonry chimneys and adapt to slight bends; they are ideal for connecting a new insert to an older flue that lacks a dedicated liner.
Material Grade and Thickness
Stainless steel dominates the premium tier, with 304 being the baseline for corrosion resistance and 316 offering superior performance against the acidic condensate produced by oil or high-efficiency wood burners. Galvanized steel is occasionally used for budget caps and supports, but it should never be used in direct flue-gas contact because the zinc coating can release toxic fumes at high temperatures. Wall thickness is measured in mils (0.024 inches ≈ 24 gauge) for single-wall and typically 0.05 inches for inner liners; heavier material resists denting during handling and better withstands the thermal cycling of repeated burns.
Connection Type and Joint Security
Crimped-end stove pipe sections overlap male-to-female and are secured with three sheet-metal screws per joint. Twist-lock systems, common on insulated double-wall pipe, use a rotation-and-latch mechanism that self-seals without exposed screws, cutting installation time and reducing flue-gas leakage. A locking band — a stainless steel wrap that clamps around the joint — is often included on premium sections to provide an extra mechanical seal. For chimney caps, check whether the clamp band fits your pipe diameter exactly; some caps ship with bands intended for 8-inch pipe that need cutting and re-drilling to fit a 6-inch section.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Selkirk 6″ SureTemp Round Top | Chimney Cap | Preventing Debris and Downdrafts | Stainless Steel; 2 lb | Amazon |
| AllFuel HST 6″ x 48″ Class-A | Insulated Pipe | Highest Temperature Safety | 304 SS; 2″ Clearance | Amazon |
| Selkirk 6″ Double Wall 48″ | Insulated Pipe | UL-Listed Heavy Use | SS; Up to 2100°F | Amazon |
| DuraVent 6DBK-TL Telescoping | Single Wall | Adjustable Vertical Connections | Alloy Steel; 44″-68″ | Amazon |
| DuraVent 6DP XRB Roof Bracket | Support Bracket | Stabilizing Tall Pipe Runs | Galvalume; 16 oz | Amazon |
| HeatFab 6″ Adjustable (38″-70″) | Single Wall | Thicker-Gauge Visible Runs | Alloy Steel; 12 lb | Amazon |
| Fireside Chimney Supply 6″ x 15′ Liner | Flexible Liner | Retrofitting Old Masonry | 316 SS; 10 Corrugations | Amazon |
In‑Depth Reviews
1. AllFuel HST 6″ x 48″ 304 Stainless Steel Class-A Double Wall Insulated Chimney Pipe
The AllFuel HST delivers a true premium build with 304 stainless steel on both the inner and outer walls — a specification that outclasses the galvanized or 430-series steel found on many mid-range competitors. The ceramic fiber insulation keeps the outer surface cool enough to maintain a 2-inch clearance to combustibles, which is the tightest in this class and a major advantage when threading through tight attic spaces.
Twist-lock connections click together with a satisfying positive stop, and the included stainless locking band adds a redundant mechanical seal that resists loosening from repeated thermal expansion cycles. Rated to UL103 HT, this pipe is certified for wood, coal, oil, and gas appliances, making it an incredibly versatile backbone for any permanent chimney system.
Users consistently mention that customer service goes above expectations — one case involved overnight shipping on a missing adapter — and the 304 laser-welded seams show zero rust evidence even after a full winter season. For anyone building a new chimney or upgrading an existing one, this pipe offers the highest ratio of safety margin to ease of assembly.
Why it’s great
- 304 stainless throughout resists corrosion far better than galvanized or 430 alternatives
- Twist-lock with locking band simplifies installation and guarantees a gas-tight joint
- 2-inch clearance rating makes routing through tight frames much easier
Good to know
- Only compatible with other AllFuel HST components — cannot mix with other Class-A brands
- Premium pricing reflects the material grade; budget builds may find less expensive options
2. Selkirk 6″ SureTemp 48″ Double Wall Stainless Steel Insulated Vent
Selkirk’s SureTemp double-wall pipe is a staple in the HVAC industry, and this 6-inch by 48-inch section is UL-listed to withstand flue-gas surges up to 2,100 degrees Fahrenheit — a headroom that provides genuine peace of mind during a chimney fire scenario. The stainless steel inner liner is paired with a tough outer casing, delivering the structural integrity needed for long vertical runs.
Installation is straightforward, with a locking band system that cinches down firmly on each joint. The nominal wall thickness sits around 0.05 inches, heavy enough to feel solid in hand without being excessively cumbersome to lift into place at height.
Customer feedback notes that the pipe fits together cleanly when undamaged, though several buyers received units with dents at the crimp ends — likely a packaging issue rather than a design flaw. Checking the condition on arrival and requesting a replacement if damage is visible is a smart precaution. For a broadly compatible, widely trusted brand that has been around for nearly a century, Selkirk delivers consistent quality at a mid-premium price point.
Why it’s great
- UL-listed to 2,100°F surge rating provides exceptional fire-safety headroom
- Locking band system creates a secure seal without loose fasteners
- Long 48-inch sections minimize the number of joints in a tall run
Good to know
- Multiple reports of dented pipe upon delivery — inspect packaging carefully
- Does not include a separate locking band for every joint; confirm contents before planning
3. DuraVent 6DBK-TL DuraBlack Single Wall Telescoping Black Finishing Stove Pipe
The DuraVent Telescoping pipe solves one of the most annoying problems in stove installation: measuring and cutting a section to the exact inch. Adjustable from 44 to 68 inches, this single-wall black pipe uses a die-formed sliding joint that eliminates the need for cutting or crimping — a real time-saver when your ceiling height is non-standard.
Built from 0.02-inch alloy steel, it feels substantial and resists the flimsy flex that plagues budget stove pipe. The lock-seamed design connects reliably to a tent stove or a standard wood stove collar, and the black finish matches most visible stove installations cleanly.
Some users report that the telescoping sections can be tight to line up initially, but once snapped together, the fit is leak-free. A few installers note that DuraVent fittings from different product lines occasionally need minor crimping for a perfect seal, so test-fit before committing to screws. For a single-wall connector that adapts on the fly, this is the most practical option in the mid-range.
Why it’s great
- Telescoping design eliminates measuring and cutting for non-standard heights
- Heavy-gauge alloy steel feels durable and holds its shape during handling
- Lock-seamed construction provides drip-free operation through thermal cycling
Good to know
- Not all DuraVent fittings from different series fit seamlessly together
- Single-wall requires 18-inch clearance to combustibles — measure carefully
4. HeatFab 6″ Adjustable Black Stovepipe 38″ to 70″
HeatFab’s adjustable pipe distinguishes itself with a noticeably heavier wall than the typical big-box-store single-wall section. At 12 pounds for the assembly, this is not a lightweight flimsy pipe — it feels robust and resists denting during the inevitable knocks of installation.
The 38-to-70-inch adjustment range gives even more flexibility than the DuraVent telescoping model, making it an excellent choice for installations with high cathedral ceilings or irregular stove-to-thimble distances. It is designed for solid fuels (wood and coal), producing venting that feels secure and stays smoke-tight.
Customer reviews consistently highlight that this pipe produces no funky burnt-paint smell during the initial break-in burn, a common annoyance with cheaper pipe that has residual manufacturing oils. The fit between sections is precise, requiring no extra crimping or wrestling. If you prioritize a thick, solid feel over bare-minimum weight, the HeatFab is a standout mid-range upgrade.
Why it’s great
- Thicker gauge than most single-wall pipe, giving a premium, solid feel
- No burnt-oil smell during first burn — cleaner manufacturing
- Wide 38-to-70-inch adjustment fits unusual ceiling heights
Good to know
- Only rated for wood and coal — not certified for oil or gas without checking local codes
- Heavier weight can be tiring to hold in place during solo installation
5. Selkirk 6″ SureTemp Chimney Round Top Stainless Steel Cap
A chimney system is only as good as its termination cap, and the Selkirk SureTemp Round Top covers the 6-inch flue with all-stainless construction that resists the rust that plagues aluminum caps. The external clamp design mounts directly over the pipe rim, avoiding the adhesion failures common with set-screw or silicone-based caps.
Owners report that installation takes minutes — the cap simply sits over the pipe top and the clamp tightens down. One practical catch: the included clamp band is sized for 8-inch pipe, so you will need to cut and re-drill it to fit a true 6-inch outer diameter. This is a minor fabrication step but worth knowing before you haul tools up to the roof.
The spark arrestor screen is effective at preventing ember escape, and the open design promotes consistent airflow that reduces creosote buildup by maintaining flue-gas velocity. For a simple, durable cap that will outlast any painted or galvanized alternative, the Selkirk gets the nod from both DIYers and chimney sweeps.
Why it’s great
- All-stainless construction eliminates rust and corrosion over the long term
- External clamp mounts securely without adhesives or set screws
- Smooth airflow design helps maintain draft and reduce creosote
Good to know
- Clamp band is sized for 8-inch pipe and must be cut and re-drilled for 6-inch
- Sharp edges on the stainless need filing for safe handling

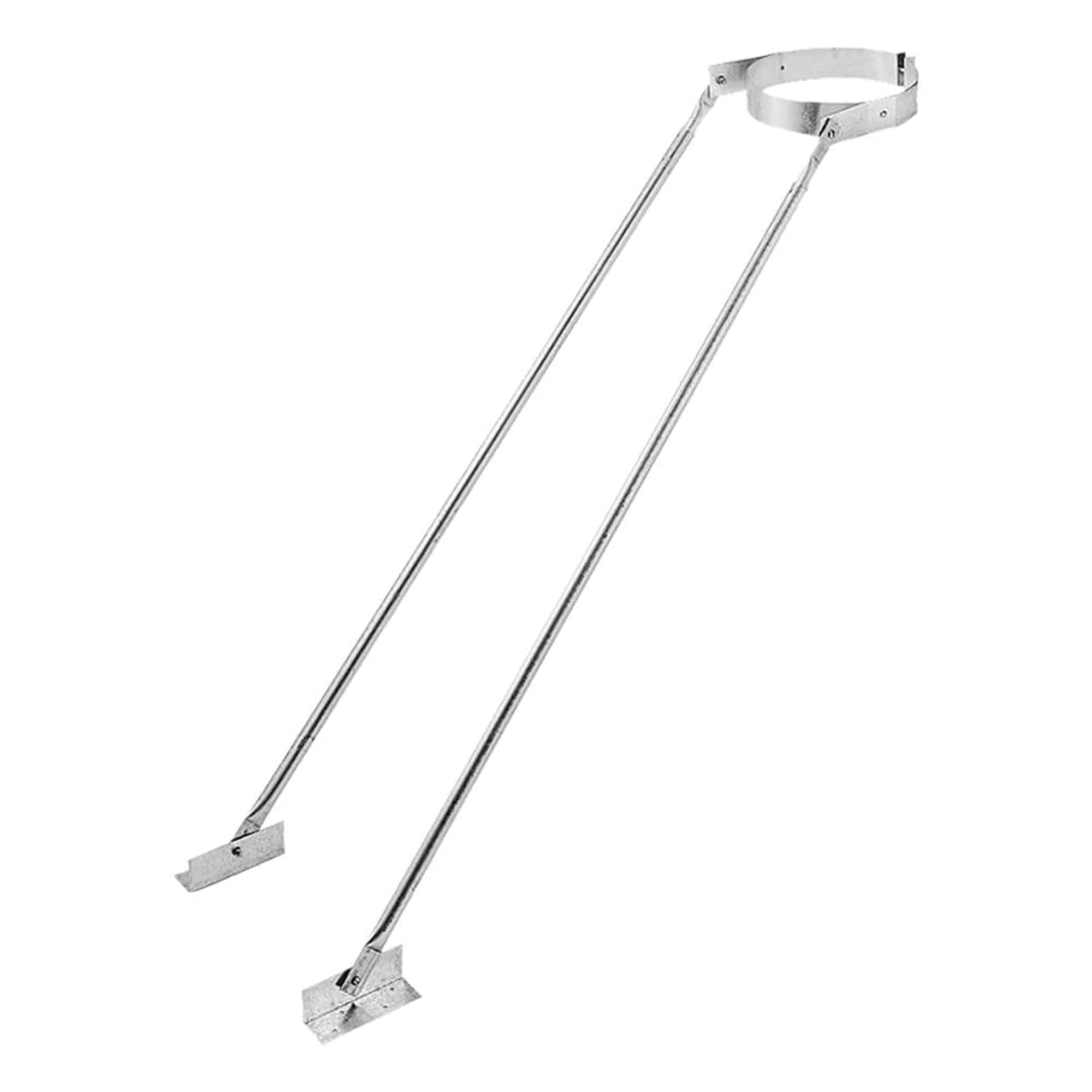

6. DuraVent 6DP XRB DuraPlus 6″ Extended Roof Bracket
When your triple-wall DuraPlus chimney rises more than 6 feet above the roofline, wind loading can cause significant movement that stresses the joints below. The DuraVent Extended Roof Bracket solves this with telescoping aluminum support arms and a galvanized steel strap that wraps around the chimney pipe to anchor it laterally.
The arms are rugged and adjustable, and the included mounting bracket allows you to secure the system to the roof deck before boxing in the chase. Some buyers note that the strap is sized for single-wall or double-wall pipe and needs slight modification to fit the larger outer diameter of triple-wall pipe, but a utility knife or tin snips makes quick work of that.
Assembly instructions are not included in the box, but the design is intuitive enough that most DIYers can figure it out with a quick YouTube reference. For anyone pushing a stove pipe through a steep roof pitch, this bracket provides essential structural support that prevents long-term joint fatigue.
Why it’s great
- Telescoping aluminum arms adjust to match any roof angle precisely
- Provides critical lateral support for chimney sections over 6 feet above the roofline
- Galvalume construction resists corrosion in exposed outdoor environments
Good to know
- Strap may need cutting and re-drilling to fit triple-wall pipe diameters
- No assembly instructions included — be prepared to figure out the geometry
7. Fireside Chimney Supply Basic FireSafe Flexible Chimney Liner Insert Kit (6″ x 15′)
For retrofitting an existing masonry chimney — whether for a wood stove insert, gas insert, or pellet appliance — a flexible liner is the code-approved solution. Fireside Chimney Supply’s kit provides a complete package: a 15-foot length of 316 stainless steel liner, a 13-by-13-inch top plate with rain cap, and an appliance connector for vertical hookups.
What sets this kit apart is the material quality. The 316 stainless (with 10 corrugations per inch and 7-ply seams) is thicker than the typical 304/0.005-inch budget liners, offering superior resistance to the acidic condensate produced by high-efficiency wood and oil burns. The corrugated flexibility allows the liner to snake through moderate offsets in an existing flue without kinking.
Installation requires some muscle — the 23-pound assembly is stiff out of the box and uncoiling it takes two people. The included chimney cap uses adhesive (not included) rather than mechanical fasteners, which a few users found less confidence-inspiring. But for a made-in-the-USA kit that undercuts local stove-shop pricing by a significant margin, the Fireside liner represents a compelling value for anyone breathing new life into an old chimney.
Why it’s great
- Superior 316 stainless steel with thicker walls than most budget 304 liners
- Complete kit includes top plate, rain cap, and appliance connector
- Made in the USA with mill-certified materials and competitive pricing
Good to know
- Liner is stiff and heavy — requires two people to uncoil and feed down the flue
- Chimney cap uses adhesive rather than screws; some buyers add extra fasteners
FAQ
Can I paint my 6-inch black stove pipe to match my room?
What is the minimum slope or pitch for a 6-inch stove pipe?
How many screws do I need per joint on single-wall stove pipe?
Can I use a 6-inch aluminum cap on a steel stove pipe?
Final Thoughts: The Verdict
For most users, the best 6-inch stove pipe winner is the AllFuel HST Class-A Double Wall because of its superior 304 stainless construction, tight 2-inch clearance rating, and secure twist-lock joints that deliver a safe, premium system. If you need a budget-friendly single-wall connector with adjustable length, grab the DuraVent Telescoping Pipe. And for retrofitting an old masonry chimney without breaking the bank, nothing beats the complete Fireside Chimney Supply 6-inch liner kit for its 316-grade stainless and all-in-one convenience.
