If your 7.3L Powerstroke’s check-engine light drops you into limp mode the moment you ask for passing power, you understand the frustration of a false boost-pressure reading. A faulty wastegate solenoid, a clogged MAP sensor, or an aftermarket turbo elbow can all send the wrong signal to the ECU, robbing you of the low-end torque and towing confidence your diesel was built for. Getting the boost signal right means restoring drivability without chasing electrical ghosts.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours cross-referencing factory part numbers, reading through user reports of P0237 and P0238 codes, and mapping out which vacuum harness lines and solenoid kits actually hold up under the heat and vibration of a 7.3L engine bay.
After digging through the real-world results and direct-fit claims, I’ve narrowed down the components that deliver consistent boost readings. This guide covers the top-rated vacuum harness assemblies, OEM-grade MAP sensors with spacer kits, and adjustable boost elbows — the complete toolkit for finding the best 7.3 boost fooler to match your driving style.
How To Choose The Best 7.3 Boost Fooler
A “boost fooler” for a 7.3L is any component that corrects or modifies the pressure signal the ECU sees to prevent derating or to safely increase boost. The right choice depends on whether you are fixing a failed sensor, replacing a brittle vacuum line, or adding an adjustable controller to a Cummins swap. Focus on three areas: direct fitment to your year and engine, the specific failure symptom you are seeing, and the material quality of the components under heat cycling.
Direct Replacement vs. Modification
Most 7.3 owners only need a drop-in vacuum harness and wastegate solenoid assembly. These restore factory boost control when the original nylon lines have cracked or the solenoid has carboned up. If your truck is producing a P0236 code, a MAP sensor replacement is the correct path. However, if you are running a Cummins or have a manual turbo actuator, an adjustable boost elbow offers a mechanical way to raise the wastegate opening threshold without tricking the ECU electronically.
Material and Connector Quality
The engine bay of a 7.3L gets hot enough to degrade cheap nylon and silicone. Look for vacuum line kits with stainless steel crimps and push-to-connect fittings that seal without Teflon tape. For MAP sensors, a ceramic or metal spacer block that relocates the sensor away from exhaust manifold heat can prevent soot buildup and false readings — especially critical on 6.7L and later Powerstroke engines where the sensor sits closer to the turbo.
Compatibility Beyond the 7.3L
Several components listed here also fit Dodge 5.9L Cummins engines (24V and 12V) with HY35W or HX35W turbos. The adjustable boost elbow, for instance, threads into a 1/8 NPT port and allows tuning from 22 to 35 psi. If you drive a 1998.5–2002 Dodge 2500/3500, this is a proven way to boost low-end towing power without a full tuner stack.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| RANSOTO Vacuum Harness & Solenoid | Mid-Range | Direct-fit 7.3L restoration | Stainless steel fittings, push-to-connect | Amazon |
| labwork Turbo Vacuum Harness | Entry-Level | Budget vacuum line refresh | OEM part #F81Z9E498DA | Amazon |
| WINBANK MAP Sensor | Mid-Range | 6.7L Powerstroke MAP replacement | 3-pin direct plug, replaces BC3Q9F479AD | Amazon |
| TRITDT Adjustable Boost Elbow | Mid-Range | Cummins HY/HX turbo tuning | 1/8 NPT, 22-35 psi range | Amazon |
| BOSCH MAP Sensor 0261230333 | Premium | OEM-reliable MAP for Ford gas & diesel | 250 kPa range, chemical-resistant coating | Amazon |
| Rendrox MAP Sensor w/ Spacer Kit | Premium | 6.7L heat-isolation fix | Ceramic/metal spacer, 3-minute install | Amazon |
| Motorcraft CX1961 MAP Sensor | Premium | True Ford OEM replacement | ±1% accuracy, gold-plated contacts | Amazon |
In‑Depth Reviews
1. RANSOTO Vacuum Harness & Solenoid
This RANSOTO kit is the closest thing to a drop-in factory replacement for the 1999-2003 Ford 7.3L Powerstroke wastegate system. It includes both the vacuum harness line (F81Z-9E498-DA) and the boost solenoid (F81Z-6C673-AA), so you replace the two most common failure points in one go. The stainless steel fittings resist corrosion far better than the original nylon, and the push-to-connect design lets you route the green and red hoses in the correct orientation without special tools.
Multiple verified reviewers on 2001 F-350 Duallys and Excursions report that the wastegate immediately started operating correctly after installation, restoring boost pressure to spec. A few users noted that the hose orientation came reversed out of the box — a quick twist fixes it, but you should confirm routing before clamping. At 6.6 ounces total weight, it adds negligible mass to the turbo pedestal area.
If you are dealing with intermittent limp mode or a wastegate that stays open, this kit addresses the root cause without any guesswork. The six-month warranty gives peace of mind, and the price puts it squarely in the value sweet spot for a repair that should last several years.
Why it’s great
- Replaces both vacuum line and solenoid in one kit
- Stainless steel construction for heat/chemical resistance
- Restores factory wastegate function immediately
Good to know
- Hose colors may be reversed from factory orientation
- Not compatible with 6.0L or later Powerstroke engines
2. labwork Turbo Vacuum Harness
The labwork harness is the entry-level option for 7.3L owners who only need the vacuum connection line and not a full solenoid swap. It is labeled for Ford F-250 through F-550 Super Duty and E-Series vans with the 7.3L turbo from 1999-2003. The high-strength polymer construction matches the original part profile exactly, and the 12.4 x 9.06 x 2.95-inch packaging indicates it ships with the pre-formed bends already set to fit the factory routing clips.
Customer feedback is mixed — while a few buyers confirm it fits and works, one report noted the part seemed stuck in transit. This is more of a logistics risk than a product flaw, but you may want to order ahead of time if you are on a tight repair schedule. The lack of a solenoid means you will need to reuse your existing unit or buy it separately, which can save money if your solenoid still cycles properly.
For a weekend mechanic who already has a working wastegate solenoid and just needs fresh, uncracked vacuum lines, this is a fast fix. The 6.6-ounce weight is identical to OEM, so you can expect the same underhood behavior without added vibration.
Why it’s great
- Direct match to Ford OEM part F81Z9E498DA
- Pre-formed bends for factory routing
- Economical price for a simple line replacement
Good to know
- Solenoid not included — must reuse or purchase separately
- Some delivery delays reported

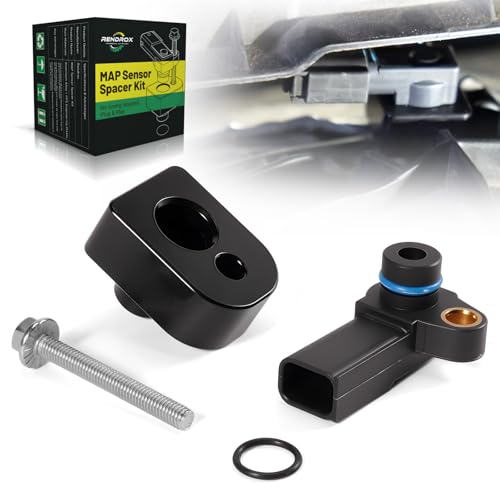

3. Rendrox MAP Sensor w/ Spacer Kit
For 2011-2019 6.7L Powerstroke owners, this Rendrox kit is a dual-purpose tool: it provides a direct-replacement MAP sensor (BC3Z-9F479-A/B) and a black spacer block that moves the sensor away from exhaust manifold heat. The ceramic and metal construction of the spacer resists thermal distortion, which is the primary cause of inconsistent boost readings on later Super Duty models. The 3-minute installation requires zero wiring — just remove the factory sensor, bolt on the spacer, and mount the new sensor.
Several users on 2017 F-250s report a small but noticeable improvement in MPG after installation, likely because the ECU is receiving a stable pressure signal rather than one corrupted by heat soak. One buyer noted the kit did not include an O-ring for the stem on the spacer block; a standard auto-parts O-ring solves this quickly. The alloy adapter also reduces soot buildup from the EGR system, which can clog the sensor port on high-mileage trucks.
If you are chasing P0236 or P0238 codes on a 6.7L and have already ruled out a vacuum leak, the spacer approach is a smart prevention upgrade. It is more expensive than a standalone sensor but eliminates the repeating failure pattern caused by the factory sensor location.
Why it’s great
- Spacer block reduces heat transfer to MAP sensor
- Prevents soot buildup from EGR contamination
- No wiring or tuning required
Good to know
- O-ring for spacer stem not included
- Designed for 6.7L, not 7.3L Powerstroke
4. TRITDT Adjustable Boost Elbow
While not a fooler in the traditional 7.3L powerstroke sense, this TRITDT boost elbow serves the exact same purpose for Dodge 5.9L Cummins owners: it allows you to mechanically raise the boost threshold to 28-35 psi without an electronic tuner. The 1/8-inch NPT thread screws into a drilled/tapped port on HY35W, HX35W, or HX40W turbos, and the set screw lets you adjust the wastegate opening point incrementally. At only 0.634 ounces, it adds no measurable weight.
Users on 1996-2002 Rams report a 5-8 psi increase at lower RPM, which translates directly to stronger pulling power when towing heavy trailers. A 1998.5 2500 owner noted a 28 psi boost after installation and improved high-gear towing, while a 1996 12V saw a small but noticeable gain at 3,000 RPM. The adjustment screw should be secured with Teflon tape or Loctite — without it, vibration will rattle the setting loose.
If you own a manual-transmission Cummins with a wastegated turbo and want a simple, mechanical way to increase boost without touching the ECU, this elbow works. It is not a boost fooler for a 7.3L, but it fills the same functional niche for the Cummins crowd.
Why it’s great
- Mechanical boost increase without a tuner
- Adjustable from 22 to 35 psi
- Proven on HY35W/HX35W turbos
Good to know
- Requires drilling/tapping 1/8 NPT port
- Set screw prone to vibration loosening
5. Motorcraft CX1961 MAP Sensor
When you need absolute confidence that the MAP sensor will not fail again in six months, the Motorcraft CX1961 is the pick. It is the genuine Ford OEM part for 7.3L and 6.0L Powerstroke engines, built with gold-plated electrical contacts that resist corrosion far better than aftermarket stainless steel terminals. The ±1% measurement accuracy ensures the ECU gets a repeatable pressure signal at every altitude and temperature.
Multiple 6.0L owners who tried cheap replacement sensors and got P0237 codes within weeks report that swapping to this Motorcraft unit permanently solved the issue. One user on a 2003 F-250 went three months with zero codes, and a 7.3L owner with an 18-year-old truck noted the factory sensor finally failed — this direct replacement restored normal operation immediately. The metal housing and 1.6-ounce weight provide a solid, vibration-resistant mount.
The price is a premium, but for a core engine management component, the reliability delta matters. If you are troubleshooting boost codes and your existing sensor is an unknown brand, starting here eliminates the sensor as a variable for good.
Why it’s great
- Genuine Ford OEM with gold-plated contacts
- ±1% accuracy for stable boost readings
- Resists corrosion and heat cycling
Good to know
- Highest price in this comparison
- No spacer kit included

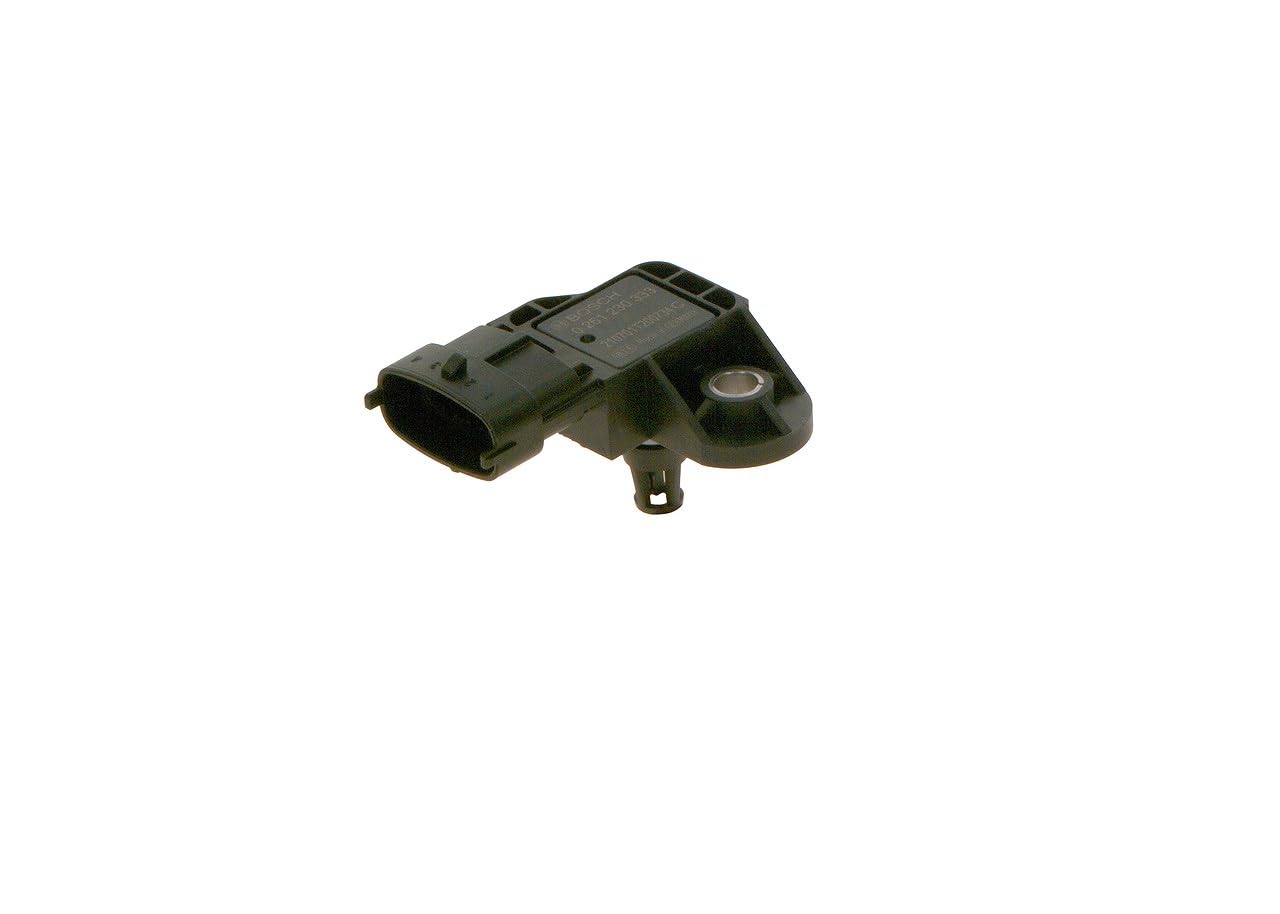

6. BOSCH MAP Sensor 0261230333
The Bosch 0261230333 is a premium sensor covering a wide range of Ford vehicles — from 2013 Escapes and 2011-2020 F-150s to 2017-2019 Super Duty trucks. Its 100-250 kPa measuring range means it can handle both naturally aspirated and boosted applications, though it is primarily used on gas engines. The special coating on the sensor element provides resistance to fuel vapors and chemical contaminants inside the intake manifold, extending service life in high-mileage vehicles.
Fitment is exact, with identical connector ports and attachment points to the original. Most users report a quick, trouble-free experience on models like the 2013 F-150 3.5L EcoBoost and various Transit vans. One buyer on a 2017 Transit-350 confirmed it fixed a boost-related check engine light. However, a reviewer with a 2013 F-150 noted the product shipped was actually a MAF sensor, not a MAP — verify your specific engine configuration before ordering to avoid the wrong sensor type.
For Ford diesel owners, this Bosch is not a direct 7.3L fit, but it is an excellent option for later-model gas Super Duties or Transits where the original sensor fails. The Bosch engineering pedigree makes it a reliable choice for factory-spec restoration.
Why it’s great
- Broad Ford compatibility (gas & diesel)
- Chemical-resistant coating for long life
- Factory-spec connector and mounting
Good to know
- May ship as MAF sensor for some listings
- Not a direct fit for 7.3L Powerstroke

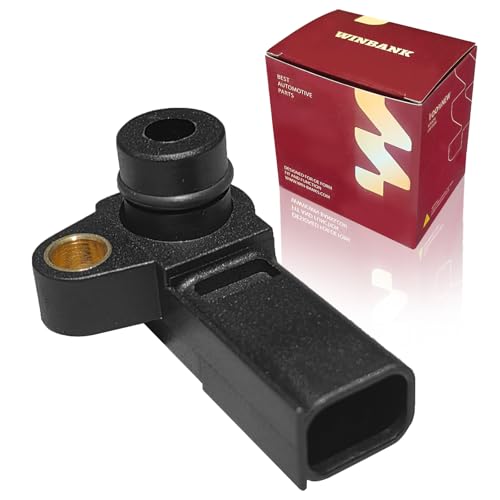

7. WINBANK MAP Sensor
The WINBANK MAP sensor is a direct plug-in replacement for 2011-2019 Ford 6.7L Powerstroke engines, covering F-250 through F-750 models. It replaces OEM numbers BC3Q9F479AD, BC3Z9F479A, and BC3Z9F479B with a matching 3-pin connector that requires no wiring modification. If you are seeing P0236, P0237, or P0238 codes accompanied by rough idle or black smoke, this sensor is designed to restore a clean boost pressure signal to the ECU.
Verified users report quick installation — one 6.7L owner noted the check engine light stayed off after three weeks of driving. Another reviewer with a Cummins swap used it as a fuel pressure sensor replacement on a Volvo S60, demonstrating the 3-pin connector’s compatibility beyond Ford if the pinout matches. The package includes only the sensor and an O-ring, so you should apply silicone grease to the O-ring before install.
At the price point, this is the most affordable way to test whether a failing MAP sensor is causing your derate condition on a 6.7L. If the code returns, you can then consider a spacer kit like the Rendrox to address heat-soak issues.
Why it’s great
- Direct replacement for 6.7L Powerstroke MAP
- No programming or wire modification
- Low price for a quick diagnostic swap
Good to know
- O-ring included, silicone grease recommended
- Not intended for 7.3L Powerstroke
FAQ
Can I use a 6.7L MAP sensor on a 7.3L Powerstroke?
Will an adjustable boost elbow work on a stock 7.3L turbo?
Why does my 7.3L go into limp mode when towing up a long grade?
Final Thoughts: The Verdict
For most users, the best 7.3 boost fooler winner is the RANSOTO Vacuum Harness & Solenoid Kit because it directly corrects the two most common failure points on the 7.3L’s wastegate system with stainless steel reliability. If you want a heat-isolating solution for a 6.7L Powerstroke, grab the Rendrox MAP Sensor with Spacer Kit. And for a Cummins turbo mechanical boost increase, nothing beats the TRITDT Adjustable Boost Elbow.
