Whether you’re replacing a line set on a 4-ton split system, running refrigerant for a walk-in cooler, or fabricating a custom fuel line for a gas appliance, the 0.875-inch outer diameter of 7/8 copper tubing places it in a critical performance tier — it flows significantly more volume than 5/8 line while remaining manageable with a medium-radius bender. The challenge isn’t deciding *if* you need this diameter; it’s sorting through wall thicknesses, purity grades, ASTM certifications, and whether a pre-insulated line set saves you hours over bare coil.
I’m Min — the co-founder and writer behind Gadgets Feed. I specialize in breaking down HVAC and refrigeration material specs into actionable comparisons, relying on ASTM standards, dimensional data, and real-user fabrication feedback rather than bench-testing every coil..
This guide cuts through the commodity clutter to help you match the right 7/8 copper tubing product to your specific job — flare versus braze, bare coil versus pre-insulated, 50-foot run versus modular fitting kit. These are the details that separate a clean install from a return trip. Here is your look at the best 7/8 copper tubing options available right now for professionals and serious DIYers.
How To Choose The Best 7/8 Copper Tubing
Selecting 7/8 copper tubing means matching the product’s dimensional accuracy, purity, and temper to the pressure and environmental demands of your specific system. The wrong wall thickness or an off-spec ID can cause joint failure or flow restriction. Focus on these three factors first.
ASTM Standard: B280 vs B88
For refrigeration and air conditioning systems, ASTM B280 is the governing standard. It mandates a clean, dry interior — often nitrogen-charged and capped — to prevent oxidation and moisture ingress. Plumbing-grade ASTM B88 tubing lacks these cleanliness guarantees and may contain residual drawing compounds that contaminate refrigerant circuits. Always verify B280 compliance for ACR use.
Wall Thickness and Pressure Rating
Most 7/8 ACR soft coils use a 0.039-inch (1.0 mm) wall. This delivers a working pressure around 580 PSI at 100°F, sufficient for R-410A systems that operate at 400-600 PSI on the high side. Thicker 0.049-inch walls boost pressure tolerance to 725 PSI at the same temperature, providing extra safety margin near compressors or in high-ambient environments, though they are stiffer to bend.
Bare Coil vs Pre-Insulated Line Set
A bare soft coil gives you flexibility in routing and allows the use of separate closed-cell insulation after installation. Pre-insulated line sets pair the 7/8 suction line with a 3/8 liquid line inside a bonded foam jacket, saving labor time on residential split-system installs. However, the jacket’s thickness and tear resistance vary — softer insulation can compress or rip if pulled through tight ceiling spaces.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Mueller Industries 61420500 | Pre-Insulated Line Set | Professional split-system AC install | 3/8″ x 7/8″ x 50 ft, 1/2″ insulation | Amazon |
| ICS Industries 7/8″ ACR 50 FT | Bare Soft Coil | Field-fabrication and custom routing | 7/8″ OD x 50 ft, 0.049″ wall | Amazon |
| National Brand Alternative 35ft Line Set | Pre-Insulated Line Set | Shorter residential runs with 10-year warranty |
3/8″ x 7/8″ x 35 ft, copper/plastic | Amazon |
| GOORY C12200 50 ft Coil | Bare Soft Coil | HVAC and DIY with easy flaring | 7/8″ OD, 0.039″ wall, nitrogen charged | Amazon |
| BELLA BAYS C12200 50 ft Coil | Bare Soft Coil | Flexible line sets for tight spaces | 7/8″ OD x 50 ft, wall 0.039″ | Amazon |
| ELECTRAPICK T2 Copper 50 ft | Bare Soft Coil | General refrigeration and DIY crafts | 7/8″ OD, 0.039″ wall, C12200 | Amazon |
| FLOTREK Copper Fitting Kit | Fitting Kit | Brazing multiple joints with included LR 90s | 2x 7/8″ couplings + 2x street LR 90s | Amazon |
In‑Depth Reviews
1. Mueller Industries 61420500 3/8 x 7/8 Line Set 50ft
The Mueller Industries line set bundles a 3/8-inch liquid line and a 7/8-inch suction line inside a bonded 1/2-inch closed-cell insulation jacket, making it the fastest path to a code-compliant split-system install. The copper tubing is nitrogen-charged and sealed with plastic caps, keeping the interior dry and oxidation-free from the factory to your brazing torch. The insulation is dense enough to resist tearing when pulled through a dropped ceiling grid, though some users note it softens if you force it past sharp edges.
At 50 feet, this line set covers most residential and light commercial runs without splicing. The 10-year limited warranty adds confidence for a permanent install. The copper itself conforms to standard industry dimensions for flaring and swaging, and the liquid line (3/8) mates cleanly to the expansion valve port. Buyers consistently praise the factory-sealed ends and brand reputation, though one warned that the shipped unit may not carry the Mueller logo on the box, so confirm the packaging before opening.
For a professional-grade line set where time on the ladder is money, the Mueller combination of pre-insulation, nitrogen charge, and 7/8 suction bore delivers predictable results. It is the gold standard for a turnkey AC line set in this diameter.
Why it’s great
- Bundled 3/8 + 7/8 lines with bonded 1/2-inch foam insulation saves installation time.
- Nitrogen-charged and factory-sealed; no interior cleaning required before brazing.
- 10-year limited warranty, rare for a line set at this length and diameter.
Good to know
- Insulation jacket is soft and can tear if pulled aggressively through tight spaces.
- Some shipments arrive in unbranded cardboard, raising authenticity concerns.
2. ICS Industries 7/8″ OD ACR Tubing 50 ft
ICS Industries offers a 7/8-inch soft copper coil with a nominal wall thickness of 0.875 inch — which appears to be a listing error (the product likely has a standard wall profile around 0.049 inch, confirmed by its thicker feel compared to OEM tubing). Users describe it as heavier gauge, requiring a larger-radius bend to avoid kinking. One reviewer successfully shaped it over a welding tank, and a standard flaring kit worked without issues for natural gas line fabrication after a regulator.
The seamless construction and refrigeration-grade temper mean this coil is suitable for both ACR and gas supply applications where 7/8 OD is specified. The 50-foot length comes in a single coil, well-packaged to prevent transit dents. Because it is a bare tube without insulation, you must add your own ARMAFLEX or similar foam for refrigeration duty. The pricing sits competitively against local supply houses, with multiple buyers citing it as their go-to for consistent quality.
If your project needs a thicker wall for higher burst pressure or you are bending large-radius gas lines, this ICS coil delivers the extra structural margin. Just budget time for careful bending — the stiffness is a tradeoff for its robustness.
Why it’s great
- Heavier wall than typical soft coils; holds up under high-side pressure and rough handling.
- Seamless and well-packaged; arrives without dents or kinks.
- Versatile for refrigeration, natural gas, and water transfer applications.
Good to know
- Thicker wall makes it stiffer — you must use a larger bend radius or a tubing bender.
- Listed wall thickness is ambiguous; verify actual gauge before purchase.
3. National Brand Alternative 35ft 3/8 x 7/8 Line Set
This 35-foot pre-insulated line set from a national brand alternative offers the same 3/8-by-7/8 configuration as premium line sets at a notably lower entry point, making it a strong choice for shorter residential runs — mini-splits under 3 tons, or retrofits where the condenser sits close to the air handler. The white insulation jacket is standard closed-cell foam; buyers report it arrived in a slightly crushed box but the copper itself was undamaged, though the insulation can arrive with flattened sections if shipping was rough.
The copper brazes cleanly, as one buyer noted during a self-install of a 3-ton system. The 7/8 suction side handled R-410A pressures without complaint. The 10-year warranty mirrors what Mueller offers, adding peace of mind for a DIY installation. The primary trade-off is the 35-foot fixed length — you cannot easily shorten a pre-insulated line set, so measure your actual run carefully before ordering.
For budget-conscious homeowners or contractors who need a fast, short line set for a standard split system, this option delivers functional reliability. The insulation quality is the weak point — plan to wrap vulnerable sections if routing through abrasive cavities.
Why it’s great
- Bundled 7/8 suction and 3/8 liquid lines at a competitive price point for short runs.
- Brazes cleanly with standard sil-phos rod; holds R-410A pressure.
- 10-year warranty adds confidence for DIY installs.
Good to know
- Insulation can arrive crushed or flattened in transit — inspect before pulling through walls.
- Fixed 35-foot length; not adjustable for non-standard layouts.

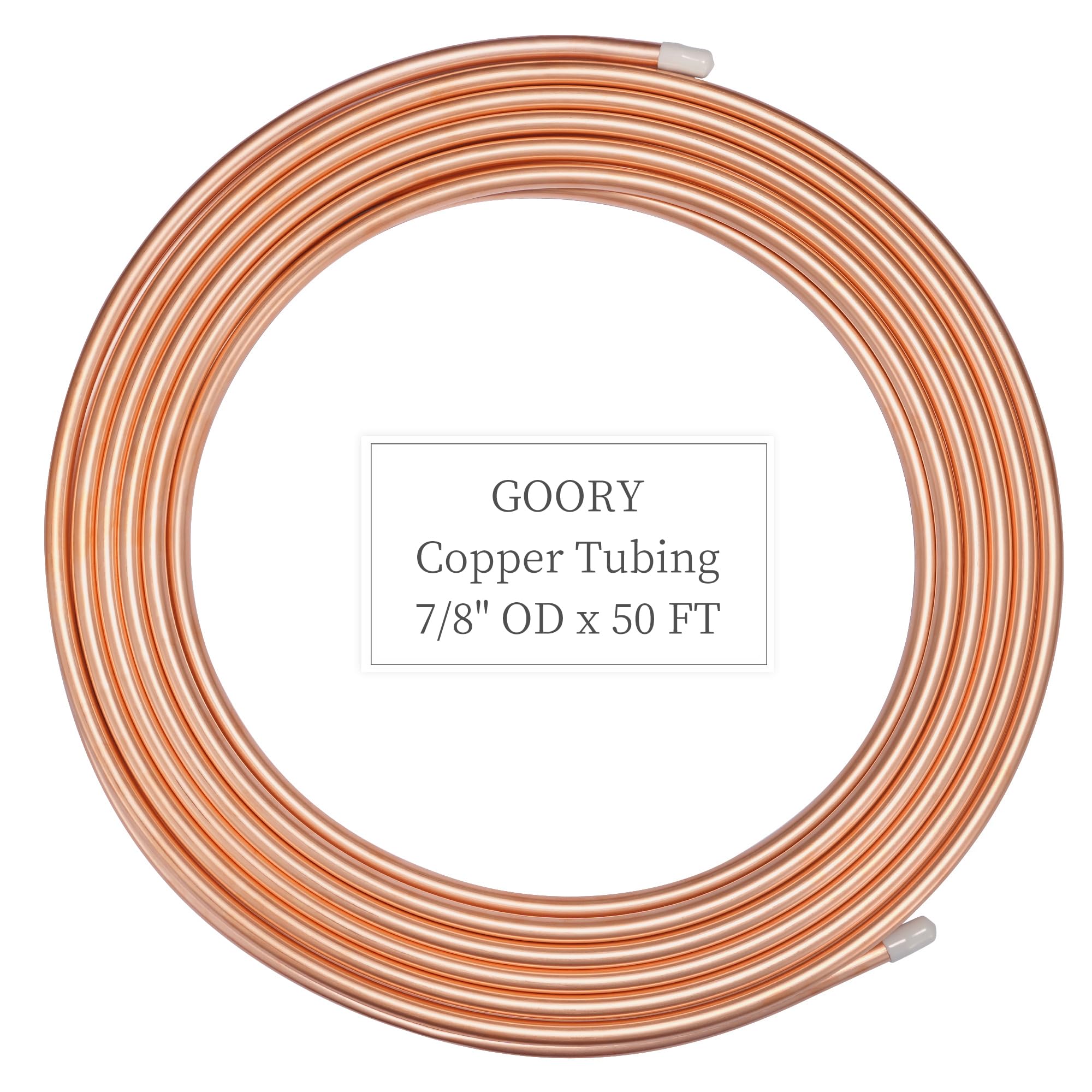

4. GOORY C12200 7/8 Copper Tubing 50 ft
The GOORY coil brings together the three specs that matter most for ACR work: C12200 phosphorus-deoxidized copper (99.9% pure), ASTM B280 compliance, and a nitrogen-charged interior to prevent oxidation during storage. The 0.039-inch wall keeps the tubing flexible enough for bending with a ratcheting bender, and users report that it flares cleanly without splitting. One reviewer successfully used a 1/2-inch version of the same GOORY line for a propane heater install, indicating consistent quality across the lineup.
The 50-foot soft annealed coil arrives in a single continuous length. The biggest risk with any soft 7/8 coil is kinking during uncoiling — GOORY’s packaging is adequate but not reinforced, so unroll it on a flat surface and use a spring bender for tight turns. The purity of the C12200 alloy gives good thermal transfer for heat exchanger or solar thermal projects beyond just HVAC use.
As a lesser-known import brand, GOORY offers a value proposition: you get the same certification and wall thickness as the bigger names at a lower cost. If your supplier standards allow for a compliant coil without a household brand, this is an excellent choice for general refrigeration and fabrication work.
Why it’s great
- Full B280 certification with C12200 99.9% purity for corrosion resistance.
- Nitrogen-charged and sealed; ready to braze without internal cleaning.
- Flexible 0.039-inch wall works well with standard flaring and bending tools.
Good to know
- Import brand with limited U.S. distribution — verify B280 compliance if required by local code.
- Soft coil requires careful uncoiling to avoid kinks; use a bending spring for tight radii.

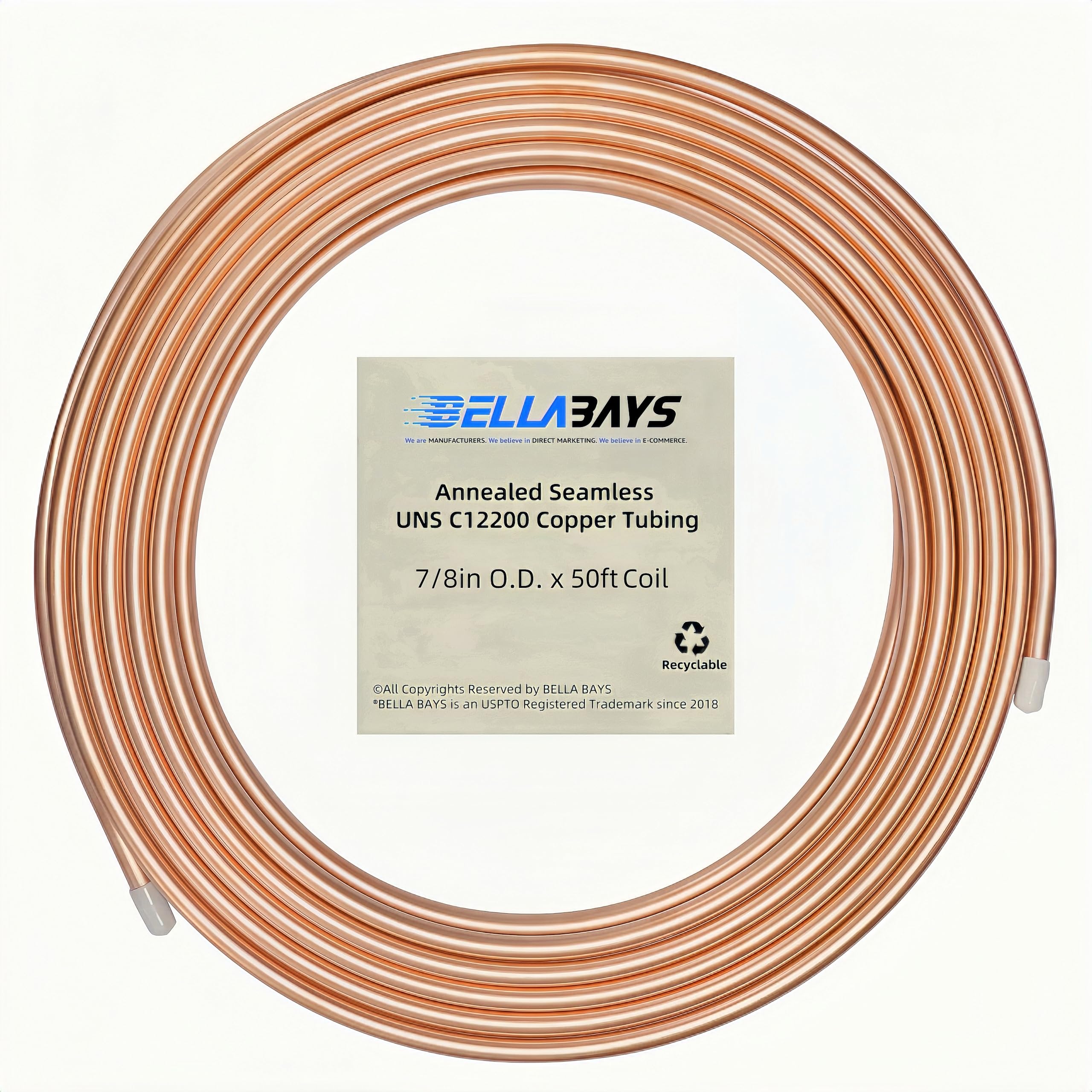

5. BELLA BAYS C12200 7/8 Copper Tubing 50 ft
BELLA BAYS supplies a 50-foot 7/8-inch soft coil that hits the same C12200 / ASTM B280 mark as the top-tier brands, with the added benefit of being specifically described as nitrogen-charged to prevent oxidation. The 0.039-inch wall and 0.796-inch ID match the standard dimensions for ACR work. One reviewer noted the copper swaged easily and bent on a ratcheting bender with “nearly no rippling,” which is a strong indicator of consistent anneal quality.
This coil is particularly well-suited for extenders and repair work — several buyers used it to add a few extra feet to an existing line set, taking advantage of the 50-foot length when they only needed a short section. The bare copper is flexible enough to bend by hand for gentle sweeps, though a spring bender is still recommended for 90-degree turns. The weight of the full coil (around 20 pounds) makes it manageable on a rooftop or crawlspace.
If you value a coil that unrolls flat and bends without ripples, BELLA BAYS delivers the right temper. The availability of shorter lengths (the product is sold as a full 50 ft) means you aren’t forced to buy a full line set when all you need is a few feet of extension.
Why it’s great
- Soft anneal temper bends cleanly with minimal rippling — great for tight installations.
- Nitrogen-charged interior prevents internal oxidation; no debris in the line.
- Full 50-foot coil gives flexibility to cut custom lengths for repairs or extensions.
Good to know
- Standard 0.039-inch wall may be less forgiving if over-bent without a tool.
- Lacks pre-installed insulation; you must add closed-cell foam separately for ACR use.
6. ELECTRAPICK T2 Pure Copper 7/8 Tubing 50 ft
ELECTRAPICK offers a 50-foot 7/8 OD coil made from C12200 T2 pure copper with a 0.039-inch wall, targeting the budget-conscious buyer who still needs a B280-compliant product for basic HVAC or DIY refrigeration projects. The copper is seamless and well-finished — one buyer used it as a propane fuel line with good results. Another reviewer appreciated the precise OD and ID for jewelry fabrication, which shows the dimensional consistency.
The coil arrives in standard packaging without nitrogen charging, so you should purge the line with nitrogen before brazing if the application is sensitive to oxidation. The wall is standard soft-coil thickness, requiring careful bending to avoid kinking. For general-purpose use — running a glycol loop, connecting a water-cooled system, or crafting — the value is strong. The 0.80-inch ID provides a generous internal cross-section for flow.
This is a no-frills coil for the user who knows how to handle soft copper and doesn’t need pre-insulation or a premium brand name. If your local supplier is out of stock or charging double, the ELECTRAPICK coil is a reliable backup that gets the job done.
Why it’s great
- Lowest entry cost for a 50-foot 7/8 B280-compliant coil — great for tight budgets.
- Seamless C12200 with accurate dimensions; suitable for fuel, water, and craft use.
- Light and flexible; easy to cut and flare for custom runs.
Good to know
- Not nitrogen-charged — purge the line before brazing to avoid internal oxidation.
- 0.039-inch wall kinks easily if bent too sharply without a spring or bender.
7. FLOTREK Copper 3/8 & 7/8 Fitting Kit
Unlike the previous six products which are tubing or line sets, the FLOTREK kit is a modular fitting collection — but it belongs on this list because it completes the 7/8 copper system. The kit includes two couplings, two long-radius 90 elbows, and two street long-radius 90 elbows in both 3/8 and 7/8 sizes. That gives you six 7/8 fittings for the suction line plus six matching 3/8 fittings for the liquid line, all wrought copper per ASTM B75.
Each 7/8 fitting is rated to 580 PSI at 100°F, matching the pressure capacity of standard 0.039-inch wall tubing. The long-radius 90 elbows reduce flow restriction and make swaging easier compared to short-pattern fittings. Buyers who paired this kit with bare 7/8 coil reported a clean install for R-410A systems. The street elbows are especially useful when you need to turn directly at the service valve without an extra coupling.
If you are fabricating a line set from bare coil, this kit saves the trip to the supply house for the exact fittings you need. The only caveat is that you must have the proper brazing rod and torch — the fittings do not come pre-soldered.
Why it’s great
- Includes both 7/8 and 3/8 fitting sets in a single kit — two line sizes, six pieces each.
- Long-radius 90s minimize flow restriction and make bending/swaging transitions smoother.
- Wrought copper, ASTM B75, NSF-61 certified; fits potable water and refrigeration use.
Good to know
- Contains only fittings — you must source the copper tubing separately.
- Street elbows require precise alignment during brazing; no room for error on joint depth.
FAQ
Can I use plumbing-grade ASTM B88 7/8 copper for R-410A refrigerant?
Why does my 7/8 copper coil kink when I try to bend it?
How do I flare 7/8 copper tubing correctly?
Final Thoughts: The Verdict
For most users, the best 7/8 copper tubing winner is the Mueller Industries 61420500 line set because it bundles a properly nitrogen-charged 7/8 suction line with a 3/8 liquid line in a bonded 1/2-inch insulation jacket, saving hours of on-site assembly and delivering factory quality for professional split-system installs. If you need a bare soft coil for custom fabrication or gas supply work, the ICS Industries 7/8 ACR coil offers a thicker wall for extra durability. And for fitting out a bare coil system, the FLOTREK Copper Fitting Kit provides all the long-radius 90s and couplings you need for a complete, leak-free assembly.
