One loose connection at a junction box or a corroded terminal block is all it takes to turn a weekend hauling trip into a frustrating afternoon of diagnosing dead brake lights and faulty turn signals. The 7-blade round connector is the backbone of modern towing, yet the market is flooded with plugs that crack under UV exposure, let moisture seep into the brass pins, or simply refuse to stay latched over a bumpy road. Finding a connector that actually seals out road salt and vibration is the difference between a reliable tow and constant electrical gremlins.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours cross-referencing technical datasheets and real-world user feedback to identify the few connectors that truly hold up to the specific demands of heavy towing, from die-cast zinc bodies to IP68-gland sealed wiring entries.
After analyzing terminal materials, strain relief mechanisms, and weatherproofing ratings across dozens of models, these are the top options that deliver genuine reliability for anyone needing a 7 wire trailer connector that won’t leave you stranded.
How To Choose The Best 7 Wire Trailer Connector
Selecting the right 7-pin connector is not just about matching the blade pattern. The real-world performance depends on three factors: how well it seals against moisture, the quality of its internal terminals, and the strain relief at the cable entry. A connector that fails on any of these points will lead to intermittent power loss or complete circuit failure on the road.
Weatherproofing and IP Rating
An IP68 rating is the gold standard for a 7-pin plug because it guarantees the connector can be submerged in water without damaging the terminals. Cheaper units rely on a simple dust cover that does nothing to stop water from creeping in through the back where wires enter. Look for compression nuts and rubber grommets that seal around the cable jacket — this is the primary entry point for moisture in real-world use.
Terminal Material and Wire Gauge
Brass terminals with tin plating offer the best balance of conductivity and corrosion resistance. Avoid connectors that use unplated steel or thin copper tabs. On the vehicle side, the internal wiring should match or exceed 14 AWG for the brake and auxiliary circuits — undersized wires create voltage drop that dims trailer lights and weakens electric brake response. On the trailer side, die-cast metal housings dissipate heat better than plastic and provide a more secure latch.
Strain Relief and Mechanical Locking
A built-in screw clamp that cinches down on the cable jacket prevents the wires from pulling loose when the connector is yanked or twisted during hitching. The same applies to the locking mechanism: a spring-loaded latch is convenient but can pop open under heavy vibration. A locking tab or a threaded collar provides a far more secure physical connection.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CURT 58180 | Die-Cast Metal | Heavy-duty towing and vibration resistance | Die-cast metal body with concealed terminals | Amazon |
| Oyviny 7 Pin Plug | IP68 Plastic | Full weatherproofing and easy DIY install | IP68 sealed with compression nut and brass terminals | Amazon |
| Nilight 50050R | Extension Cord | Extending 5th wheel or gooseneck wiring | 3-foot length with double-prong copper terminals | Amazon |
| MECMO USCAR Harness | OEM Splice-In | Replacing factory damaged harness on GM/Ford | 16-inch pigtail with 14-16 AWG pure copper wires | Amazon |
| MECMO OEM Socket | Vehicle Side Socket | Direct OEM replacement on GM/Dodge/Jeep | USCAR plug-in with silicone back seal | Amazon |
| Poweka 7 Way Socket | Universal Pigtail Kit | Installing a new vehicle-side connection | Prewired with mounting bracket and conduit | Amazon |
| Nilight 4-to-7 Adapter | 4-Pin Converter | Upgrading from a 4-flat to 7-round system | 4-flat female to 7-blade male with bracket | Amazon |
In‑Depth Reviews
1. CURT 58180 Trailer-Side 7-Pin Round Wiring Harness Socket
The CURT 58180 is the only connector in this lineup with a die-cast metal housing, which gives it a decisive advantage in durability over every plastic-bodied alternative. The metal shell resists cracking from UV exposure and impact, and the concealed terminals inside the body prevent direct exposure to rain, road salt, and mud that typically destroy exposed brass tabs on cheaper plugs. A spring-loaded locking tab on top keeps the plug secured in the socket even when towing over rough terrain or gravel roads.
The ergonomic side grips and an integrated extension spring make this connector easy to handle and position on the trailer tongue. Internally, the larger screw terminals provide a more solid bite on the spliced wires compared to the small set screws found on economy plugs. The CURT carries a Limited Lifetime Warranty, which reflects the manufacturer’s confidence in the metal housing and internal build quality.
One note for commercial users: the spring latch can fail under extreme continuous vibration in heavy-duty fleet applications. Some owners have reported the plug separating on long hauls, though this is rare in personal or light commercial use. For most trailer owners, the 58180 is the most rugged and reliable trailer-side option available at this tier.
Why it’s great
- Die-cast metal body resists cracking and corrosion far better than plastic
- Concealed terminals stay protected from road debris and salt spray
- Large screw terminals make wire splicing quick and secure
Good to know
- Spring latch can separate under extreme continuous vibration
- Wires are not included — you supply your own spliced leads
2. Oyviny RV 7 Pin Trailer Plug with IP68 Waterproof Seal
The Oyviny plug is the only male-end connector in this selection with an official IP68 rating, meaning it is fully protected against dust ingress and can handle continuous submersion in water. The secret is the detachable compression nut and rubber grommet at the cable entry, which seals around a 3/4-inch NPT wire inlet. The housing is made of thick gray plastic with two side grip hooks that make plugging and unplugging much easier than smooth-bodied alternatives.
Inside, the brass terminals are held firmly in place by a screw-down strain relief clamp that prevents the wires from pulling out under tension — a common failure point on connectors that rely on friction alone. Every terminal is clearly color-coded and the wiring diagram matches the standard RV-7 blade layout. Installation involves loosening the body screws, pulling the terminal end out, splicing each wire, and reassembling the housing.
The only trade-off is that the plastic shell, while tough, is still plastic and may crack under extreme cold or direct impact over many years. The included instructions have a minor misalignment in the wire-position diagram, so double-check the pin layout with a multimeter before powering up. For anyone who tows in wet climates or frequently launches boats, the Oyviny IP68 seal is the best defense against internal corrosion.
Why it’s great
- Genuine IP68 rating with compression nut and rubber grommet for total moisture exclusion
- Brass terminals with screw-down strain relief clamp prevent wire pull-out
- Side grip hooks make plugging into tight sockets easier
Good to know
- Plastic housing may crack under extreme cold or repeated hard impacts
- Wiring diagram in instructions has a minor misalignment — verify with a multimeter
3. Nilight 50050R 7-Way Trailer Plug Socket Extension Cable 3FT
The Nilight 50050R is not a standard connector — it is a 3-foot male-to-female extension cable designed specifically for accessing 5th wheel or gooseneck wiring that is normally buried deep in the truck bed. The double-prong copper terminals at each end provide a secure plug-and-play connection without requiring any permanent splicing or rewiring. The molded black plastic housing on both ends includes a spring-loaded dust cover on the female socket to keep debris out when not in use.
This extension uses 10-14 AWG copper wires internally, which is sufficient to handle the current draw of standard trailer lighting and electric brakes without significant voltage drop. The 3-foot length is ideal for routing around the hitch assembly, though some users will find it slightly longer than needed and may need to secure excess cable with zip ties. The Nilight carries a 2-year warranty, indicating decent confidence in the molded construction and terminal quality.
The main downside is that one of the latch clips on the male end can be stiff during initial insertion and may not fully lock on the first try. This is a minor break-in issue that resolves after a few connections. For anyone who needs to reach a hard-to-access 7-pin socket in their truck bed or extend a factory harness that is too short, this cable is a clean, no-splice solution.
Why it’s great
- Plug-and-play extension — no splicing or tools required
- Double-prong terminals provide a reliable, tight electrical connection
- 3-foot length is perfect for routing around 5th wheel and gooseneck hitches
Good to know
- Male latch clip can be stiff initially and may not lock fully on first few uses
- 3 feet may be too long for some setups — excess cable needs to be secured
4. MECMO OEM Style Replacement USCAR Connector Wiring Harness
The MECMO USCAR harness is a splice-in replacement for the vehicle-side factory connector on most GM, Ford, Dodge, and Toyota trucks that use the USCAR standardized 7-pin plug. The 16-inch pigtail comes pre-terminated with a USCAR socket on one end and six color-coded 14-16 AWG pure copper wires on the other, plus a ground ring terminal. The wires are fully enclosed in flexible plastic loom tubing for abrasion resistance. Six heat-shrink butt connectors are included to simplify the splice-in process.
What sets this harness apart is that it allows you to replace a corroded or damaged factory connector without cutting into the vehicle’s main wiring harness. The color-coded wires match standard USCAR pinouts, though some users have noted that the heavy 10-gauge black wire may carry 12V+ auxiliary power instead of ground on certain models — always verify with an ohmmeter before final connection. The copper wire gauge is adequate for standard braking and lighting circuits but is slightly undersized for high-amperage auxiliary loads.
Installation is straightforward: cut off the old connector, strip the vehicle wires, use the included butt connectors, and plug in the new USCAR socket. The whole process takes about 15 minutes. The only limitation is that this harness is designed specifically for USCAR-based factory systems — it will not work on vehicles with proprietary OEM connectors without additional adapters.
Why it’s great
- Pure copper wires with flexible loom tubing for long-term durability
- Includes heat-shrink butt connectors for a clean splice-in installation
- Direct USCAR replacement for most GM, Ford, and Dodge factory systems
Good to know
- Wire gauge may be undersized for high-amperage auxiliary loads
- Wire color coding may not match OEM pinout on all models — verify with a multimeter
5. MECMO OEM Style Replacement 7-Way RV Blade Socket
This MECMO socket is a direct-fit replacement for the vehicle-side female 7-way connector on Ford, GM, Dodge, Jeep, and Toyota trucks with a factory tow package. Unlike a universal splice-in unit, this socket uses a USCAR plug-in connector on the back that simply inserts into the existing vehicle harness and twists to lock. This makes it a true OEM-style swap — no cutting, no splicing, no heat shrink. The nylon-reinforced plastic housing is thicker than the stock part on many older trucks and includes a silicone seal at the back of the socket for weather protection.
The spring-loaded dust cover snaps shut firmly and seals the terminal openings against dirt and moisture when the plug is disconnected. The socket accepts a standard 7-blade round trailer connector with a snug fit that minimizes wiggle. Users report it fits perfectly on 1999-2005 Ford Super Duty and Excursion models, as well as 2003-2007 GM trucks. Note that the mounting bracket is not included — you reuse the factory bracket or purchase one separately.
The only drawback is that the silicone back seal, while effective against splash, is not a full submersion seal like the Oyviny’s IP68 gland. If you frequently back your vehicle into water to launch a boat, this socket may still allow moisture to reach the back of the terminals over time. For dry-land towing and occasional rain exposure, it’s an excellent, hassle-free OEM replacement.
Why it’s great
- True plug-in OEM replacement — no wire splicing required
- Nylon-reinforced plastic housing is thicker and more durable than original parts
- Silicone back seal and spring-loaded cover provide solid weather protection
Good to know
- Mounting bracket is not included — you must reuse or buy separately
- Back seal is splash-resistant, not submersion-rated like an IP68 connector

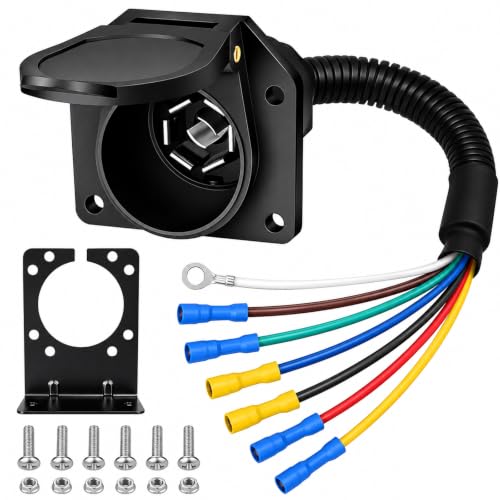

6. Poweka 7 Way RV Trailer Light Connector Socket with Mounting Bracket
The Poweka 7-way socket is a complete vehicle-side installation kit that includes the socket, a prewired pigtail harness, a mounting bracket, and all necessary screws and nuts. This is the best option for anyone installing a 7-pin connection from scratch on a truck or SUV that didn’t come prewired from the factory. The pre-attached crimp terminals and a dedicated ring terminal on the ground wire simplify the wiring process significantly compared to a bare socket.
The socket uses tin-plated 7-blade terminals inside a durable black plastic housing. The spring-loaded dust cover keeps the blade openings clean during extended periods between towing. The prewired pigtail runs through a protective wire conduit and is color-coded to the standard RV-7 wire layout. However, some users have noted that the pigtail wires are 14 AWG for the ground and brake circuits, which is thinner than the 10 or 12 AWG found on the vehicle’s original harness. If your tow vehicle uses heavier-gauge wiring, you may want to discard the pigtail and wire directly to the socket terminals.
The included bracket is a simple stamped steel design that bolts to the rear bumper or hitch frame. The bolts supplied are metric and the nuts are standard SAE, which is a minor mismatch that requires either using your own hardware or swapping to locking nuts. Despite these small issues, the kit offers excellent value for a complete install package — everything you need in one box.
Why it’s great
- Complete kit with socket, prewired harness, bracket, and hardware included
- Tin-plated terminals and spring-loaded cover for basic weather and dust protection
- Color-coded prewired pigtail simplifies hardwiring into vehicle system
Good to know
- Pigtail wires are 14 AWG — may be undersized if vehicle uses 10/12 AWG
- Included metric bolts don’t match the SAE lock nuts — supply your own hardware
7. Nilight 4 Way Flat to 7 Way Round Blade Trailer Adapter
The Nilight 4-to-7 adapter is a compact converter that takes a standard 4-way flat vehicle-side socket and outputs a 7-way round blade connection for the trailer. This is the ideal solution for older trucks or SUVs that have the basic 4-pin connector for lighting but need the additional circuits for electric trailer brakes and auxiliary power. The adapter itself is a short molded unit with a 4-pin male plug on one end and a 7-pin female socket on the other, plus a mounting bracket and all hardware included.
The construction is heavy-duty black plastic with a spring-loaded cover on the 7-pin socket to protect the terminals when the trailer plug is not connected. The wiring loom covers the short harness and keeps everything contained. Installation simply requires plugging it into the existing 4-pin vehicle socket and mounting the bracket to the hitch or bumper. The 7-pin socket accepts a standard round blade plug with a snug fit that eliminates wiggle and intermittent contact. Users confirm that all functions — turn signals, brake, running lights, and electric brakes — work correctly when the vehicle’s factory 4-pin is wired to standard automotive conventions.
The only limitation is that the adapter cannot create circuits that do not exist on the vehicle side. If your truck’s 4-pin connector only carries lighting circuits, the adapter will not provide power to the electric brake or auxiliary pins — it simply passes through whatever signals are present. For vehicles that already have a brake controller and a 4-pin with separate brake output, this adapter is a perfect bridge. It is a smart, budget-friendly way to gain 7-pin capability without rewiring the whole truck.
Why it’s great
- Simple plug-and-play conversion from 4-flat to 7-round — no cutting or splicing
- Includes mounting bracket, screws, and nuts for a clean permanent install
- Snug fit eliminates wiggle and prevents intermittent electrical contact
Good to know
- Can only pass through signals already present on the vehicle’s 4-pin connector
- Will not add electric brake or aux power if the vehicle’s 4-pin doesn’t carry them
FAQ
What is the difference between a vehicle-side and trailer-side 7-pin connector?
Can I replace a damaged 7-pin connector without cutting the vehicle harness?
Does a 4-pin to 7-pin adapter give me electric brake control?
What gauge wire should I use for a 7-pin trailer connector?
Final Thoughts: The Verdict
For most users, the 7 wire trailer connector winner is the CURT 58180 because its die-cast metal housing and concealed terminals offer unmatched durability in the face of road debris and vibration. If you need true weatherproofing and plan to tow near water often, grab the Oyviny IP68 plug for its certified submersion seal. And for a simple OEM-style swap without any wiring, nothing beats the MECMO USCAR socket as a direct plug-in replacement.
