Standing water after every heavy rain turns your driveway, patio, or lawn into a muddy mess that erodes soil, damages concrete, and creates slippery hazards. An effective drainage system captures that runoff at the surface and channels it safely away before it can pool, but not all trench drains handle the volume, traffic, and debris you will throw at them.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours digging into the technical specs, real-world install reviews, and load ratings of residential and light-commercial drainage systems to separate the kits that actually move water from the ones that crack or clog within a season.
After analyzing GPM flow rates, material composition, outlet compatibility, and concrete-embedment feedback across dozens of models, this guide delivers the clearest route to the right 8 channel drain for your specific yard, traffic, and budget constraints.
How To Choose The Best 8 Channel Drain
The correct trench drain for your property balances three non-negotiable factors: the volume of water it can handle per minute, the weight of traffic it will endure, and how easily it connects to your existing underground pipe network. Ignoring any of these leads to either a flooded surface or a cracked, heaving channel.
Flow Capacity: GPM and Open Surface Area
Gallons per minute (GPM) measures how much stormwater the drain can move at peak flow. A 4-inch channel with 53 square inches of open surface area and a 162 GPM rating handles moderate residential downpours, but if your driveway funnels runoff from a large roof area, aim for deeper channels with higher GPM-per-foot numbers. The open surface area on the grate determines how fast water enters the system — too small and the grate itself becomes a dam.
Load Class and Material Durability
Class B (up to 175 psi) suits passenger cars and light trucks driven under 20 mph. A15 load rating handles pedestrian and bicycle traffic only. Channel bodies made from high-density polyethylene (HDPE) outperform standard polypropylene in UV resistance and impact strength, especially in regions with intense sun or freeze-thaw cycles. Galvanized steel grates resist rust far longer than plastic grates in driveways, though plastic grates simplify debris cleaning.
Outlet Configuration and Pipe Compatibility
Most residential drain pipe is 3-inch or 4-inch schedule 40 PVC or corrugated tubing. A kit should include bottom and side outlet adapters that match these standard diameters without requiring proprietary fittings. Some drains include built-in outlet connectors; others require separate purchase. Check whether the knockouts align with pipe sizes you can source locally — non-standard metric knockouts create frustrating extra work.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| NDS 1200BKITRTL1PK | Catch Basin Kit | Stormwater collection in lawns | 162 GPM flow rate | Amazon |
| NDS Pro Series 864GMTL | Channel Drain Kit | Trench runs on concrete drives | 59 GPM per foot | Amazon |
| VEVOR 6-Pack HDPE | Trench Drain System | Long garden perimeter runs | 39.4″ per channel | Amazon |
| URA WATER UA-100 | Trench Drain Set | Light-duty patios and walks | 3″ deep profile | Amazon |
| Source 1 GLVCH | Channel Drain 3-Pack | Vehicle driveway drainage | Galvanized steel grates | Amazon |
| Natotela A15 HDPE | Trench Drain 6-Pack | Budget yard perimeter runs | 236″ total length | Amazon |
In‑Depth Reviews

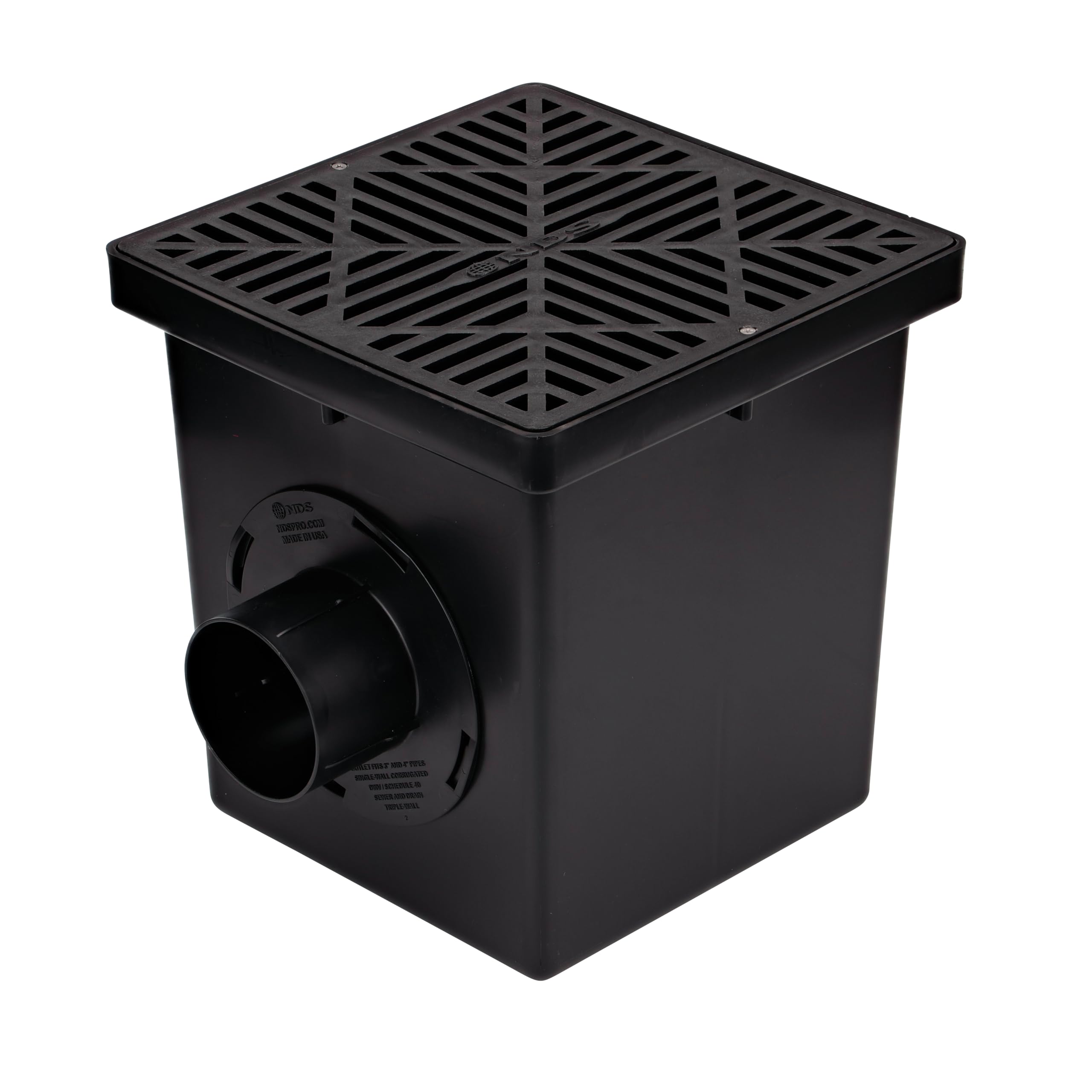

1. NDS 1200BKITRTL1PK Square Catch Basin Drain Kit
The NDS 1200BKITRTL1PK is a fully integrated catch basin kit that includes the basin, two outlet adapters, a plug, and the plastic grate right out of the box. Its 53.1 sq. in. open surface area and 162 GPM flow rating make it one of the most water-hungry surface drains in this roundup, capable of handling heavy stormwater from downspouts, lawns, and landscaped areas without overwhelming the pipe system downstream.
Keyed side openings accept 3-inch and 4-inch sewer-and-drain pipe connections, and the bottom knockout adds a third outlet if you need directional flexibility. The soil-tight outlet adapters seal against pipe without special gaskets, and the weephole knockouts eliminate stagnant water that would otherwise breed mosquitoes. Rated for Class B loads up to 175 psi, it supports light truck traffic when properly embedded in concrete.
The plastic grate prevents leaves and large debris from entering the pipeline, reducing clog frequency. At just 8 ounces, the entire kit is lightweight enough for a single person to move into position during trench prep. Reviewed buyers consistently praise the rugged construction relative to the mid-range investment, with hardscape professionals noting the price-to-quality ratio is unusually strong.
Why it’s great
- 162 GPM flow rate handles intense rainfall volume effortlessly
- Complete kit includes all adapters and plug — no extra parts to buy
- ADA compliant and Class B load rated for light vehicle traffic
Good to know
- Side screw inserts may not align perfectly with pre-cut holes on some units
- Square grate shape limits use to point collection, not long trench runs
2. NDS Pro Series Channel Drain Kit 864GMTL
The NDS Pro Series 864GMTL is a 39.375-inch deep-profile channel designed for linear trench runs along driveways, patios, and walkways. Its 5-inch depth and 19.32 sq. in. open surface area per linear foot deliver 59 GPM of flow capacity, which is sufficient for residential concrete slabs where water sheets across the surface rather than pooling in a single spot.
The galvanized steel grate resists corrosion better than plastic alternatives, and the removable design allows tool-free debris access. A bottom outlet accepts 3-inch and 4-inch fittings, while side and end outlets offer flexible tie-in points for complex pipe layouts. Modular interlocking clips let you connect multiple channels end-to-end, and the kit ships with an end cap and end cap/outlet to terminate the run cleanly.
Class B load rated up to 175 psi, this system handles passenger vehicle traffic when set in concrete, though the polypropylene body does not bond well with standard PVC cement — installers must rely on the mechanical interlock and concrete encasement for stability. Some reviewers report that the pre-cut side notches require a saber saw adjustment if rebar interferes with the trench alignment.
Why it’s great
- Galvanized steel grate resists rust far longer than any plastic grate
- Modular interlocking design enables custom-length trench runs
- Multiple outlet positions provide versatile pipe connection options
Good to know
- Polypropylene body resists adhesive bonding — concrete encasement is required
- Width does not accommodate side rebar notches without cutting
3. Source 1 Drainage GLVCH Channel Drain 3-Pack
The Source 1 GLVCH three-pack provides 12 feet of interlocking channel with galvanized steel grates, giving you a complete driveway-edge drainage solution at a mid-range investment. Each channel section features snap-in grates that remove without screws — a practical detail when leaves and grit accumulate after a storm — and the bottom outlet connects to both 3-inch and 4-inch drain pipe.
Buyers who have installed these against serious driveway flooding report that the channels hold up under vehicle traffic when encased in concrete. The steel grates distribute tire loads more evenly than plastic, and the interlocking tabs keep sections aligned during the pour. The kit includes one end cap and one end outlet, enough to terminate a single run or branch in one direction.
Installers note that the grates may not lock perfectly flush on very long runs if the channel sections shift during concrete work, so pre-assembling the full run and staking it in place before pouring is recommended. Overall, this system strikes a strong balance between load capacity, corrosion resistance, and ease of cleaning for residential driveway applications.
Why it’s great
- Galvanized steel grates handle vehicle traffic without cracking
- Tool-free snap-in grate removal simplifies debris cleaning
- Compatible with both 3-inch and 4-inch drain pipe connections
Good to know
- Grates may not stay locked during hanging-style installations without concrete support
- Long runs require careful pre-assembly and staking to maintain alignment
4. VEVOR Trench Drain System with Plastic Grate 6-Pack
VEVOR’s 6-pack delivers nearly 20 feet of continuous trench drain in one shipment, making it a compelling option for long garden perimeters, pool surrounds, or farm drainage projects. Each 39.4-inch channel measures 5.9 inches wide by 5.1 inches deep and is molded from HDPE plastic — a material that outperforms standard polypropylene in UV resistance and impact strength, reducing the risk of cracking after years of sun exposure.
The anti-flotation design eliminates the need to stake channels when pouring concrete, saving time during installation. Built-in bottom outlets accept 3.1-inch and 3.6-inch pipes directly — no separate outlet connector required — while the side outlet provides a 2.2-inch option for secondary tie-ins. Plastic grates snap on and off without screws or bolts, which speeds up cleaning cycles compared to bolt-secured grates.
The A15 load rating limits this system to pedestrian and bicycle traffic, so it is not suitable for driveways or areas where vehicles will cross. Some buyers report that the interlocking connection between sections is a friction fit rather than a positive snap, which can shift during backfill if not secured properly. VEVOR’s customer service is noted as responsive for replacement parts like end caps.
Why it’s great
- HDPE body resists UV degradation better than polypropylene alternatives
- Built-in bottom outlet eliminates need for separate connector purchase
- Anti-flotation design prevents channel lifting during concrete pour
Good to know
- A15 load rating restricts use to pedestrian zones only
- Sections do not snap together — friction fit can separate during backfill
5. URA WATER UA-100 Drainage Trench Set Gray 3-Pack
The URA WATER UA-100 is a shallow-profile trench drain system with a 3-inch channel depth, aimed at lightweight applications around patios, walkways, and pool areas where water volume is low and vehicle traffic never occurs. Each 39-inch section is molded in gray polypropylene with structural reinforcement ribs that add rigidity without increasing weight, and the grates are fully removable by hand — no tools required.
Interlocking connections simplify assembly, and anti-flotation feet grip the trench base during concrete pouring to prevent the channel from floating upward. The kit includes a bottom outlet connector and an end outlet connector that fit 4-inch sewer and drain pipe, plus one end cap to seal the run terminus. A 1-pack and 3-pack option are available; the 3-pack yields 117 inches of total length, suitable for a single patio edge or a short walkway.
Buyer feedback notes that the joints between sections do not always seat perfectly flush, requiring silicone sealant between each connection to prevent water seepage. The lightweight polypropylene body can float when water flows underneath the trench if weep holes are not drilled and the channel is not staked. These are manageable workarounds for a budget-friendly system, but installers seeking a thicker-walled, more rigid channel should look at HDPE alternatives.
Why it’s great
- Tool-free grate removal simplifies cleaning and maintenance
- Anti-flotation feet prevent floating during concrete pour
- Includes both bottom and end outlet connectors for flexible pipe routing
Good to know
- Joints may not seat flush; silicone sealant recommended between sections
- Polypropylene body can float if not staked or weep holes are omitted
6. Natotela A15 HDPE Trench Drain 6-Pack
The Natotela A15 HDPE trench drain 6-pack provides the longest total coverage in this comparison — 236.22 inches of combined channel — at a premium price point. Each channel measures 39.4 inches long, 6.1 inches wide, and 5.5 inches deep, with a perforated grate design that balances water intake speed with debris exclusion. The dot-patterned grate surface adds traction, making it suitable for poolside or walkway installations where slip resistance matters.
The HDPE construction provides higher tensile strength and hardness than standard polyethylene, reducing the risk of warping under foot traffic or light garden equipment runs. Back reinforcing ribs on the grate prevent flex damage, and the sliding connection between grate and channel uses no screws, clasps, or clips. Package contents include 12 grates, 6 channel bodies, and 2 outlet adapters that connect to both 3-inch and 4-inch drain pipe.
Several long-term reviewers report that the grating material warps and cracks after 12 months of direct sun exposure, which is concerning for an HDPE product that should outperform polypropylene in UV resistance. The knockout cutouts for pipe connections are not standard metric or imperial sizes, so connecting to 1.5-inch or 2-inch PVC may require a hole saw modification. Factor in UV-cure time for any adhesives used at connection points.
Why it’s great
- 236 inches of total length covers large perimeter areas in one purchase
- Dot-pattern grate surface improves slip resistance near pools
- HDPE body delivers higher impact strength than polypropylene
Good to know
- Grates reported to warp and crack after 12 months of direct UV exposure
- Knockout pipe openings are non-standard sizes requiring hole saw modification
FAQ
What is the difference between a catch basin and a trench drain?
Can I install a trench drain without concrete?
How do I connect my drain to existing 4-inch PVC pipe?
Why does my trench drain grate warp in the sun?
Final Thoughts: The Verdict
For most users, the best 8 channel drain winner is the NDS 1200BKITRTL1PK because it combines a 162 GPM flow rate, Class B load rating, and a complete all-in-one kit that eliminates guesswork for point-source collection. If you need a linear trench run for a driveway with galvanized steel grates, grab the Source 1 GLVCH 3-Pack. And for covering a large garden perimeter on a tight budget, nothing beats the total length of the Natotela A15 HDPE 6-Pack.
