Our readers keep the lights on and my morning glass full of iced black tea. As an Amazon Associate, I earn from qualifying purchases.7 Best 8 Gauge Butt Connector | Pure Copper That Grabs & Holds

Check Price on Amazon

These SVAAR connectors are built from 99.9% pure purple copper (C11000) with a matte tin-plating process that stops oxidation even when the splice sits in a damp bilge or an exposed engine bay. The flared (bell-mouthed) barrel makes it noticeably easier to insert 8 AWG flexible welding cable compared to straight-wall alternatives, and the enclosed seamless barrel physically blocks moisture and contaminant ingress from the sides. At 30 pieces per pack with a 600V rating, this kit provides enough quantity for a full battery-bank rewire or a multi-circuit auxiliary fuse panel.

The barrel is fully annealed, which means it deforms evenly under a crimp die without stress cracking—a critical detail for maintaining a gas-tight connection on stranded wire. Users confirm the connectors crimp cleanly without splitting, and the longer barrel length gives the crimp dies more surface area to bite into, resulting in extremely high pull-out force. The matte tin finish also provides a good surface for labeling with a marker if needed.

One practical consideration is that 8 AWG solid or stiff wire (like THHN) is a tight fit inside the flared barrel; you may need a heavy-duty hand crimper or a hydraulic crimper to achieve a proper compression. The included heat shrink tubing in some bundles is generous, but you should still order separate adhesive-lined tubing if you plan to use all 30 connectors at once. Overall, this is the most well-rounded premium option for marine and high-vibration environments.

Check Price on Amazon

Wirefy’s insulated heat shrink butt connectors come pre-assembled with dual-wall adhesive-lined polyolefin tubing that, when heated, creates a permanent watertight seal around the 8 AWG splice. The tubing has a 3:1 shrink ratio, meaning it collapses tightly around the crimp barrel and the wire insulation, blocking water intrusion even in submersion conditions. Each connector uses a thick, seamless tinned copper barrel that resists corrosion and provides a strong mechanical bite when crimped.

The yellow color-coded tube makes gauge identification instant, which is helpful when you are working through a bundle of wires. Users report that the tubing recovers fully at lower heat gun temperatures compared to some generic Chinese heat shrink, reducing the risk of melting nearby wire insulation. The barrel is slightly longer than some budget connectors, giving the crimp dies more room to create a secure hold—users consistently confirm that the wire does not pull out after a proper crimp and heat cycle.

Because these connectors come with the heat shrink already installed, you save the step of sliding separate tubing onto the wire before crimping. However, the pre-installed tubing makes it impossible to inspect the crimp after sealing, so you must be confident in your crimp before applying heat. For saltwater marine use, RV exterior wiring, or any splice exposed to spray or rain, this all-in-one design eliminates a failure point.

Check Price on Amazon

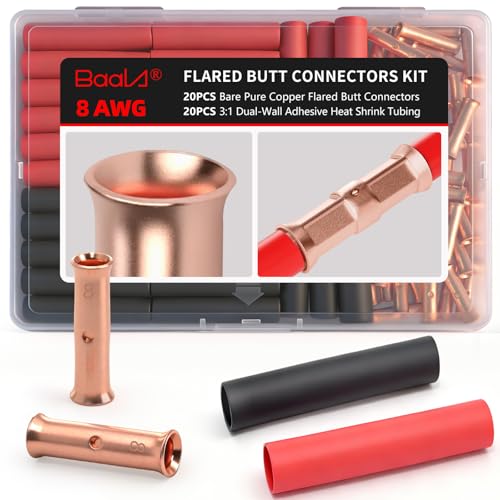

The BAALA flared barrel kit is built around a single size—8 AWG—and pairs 20 bare copper butt splices with 20 pieces of 3:1 dual-wall adhesive heat shrink tubing. The bare copper connectors are made from C11000 pure copper and feature an internal wire-stop that ensures you insert the wire to exactly the right depth on each side. The flared (bell-mouthed) opening makes a big difference when terminating 8 AWG fine-stranded cable, as the strands slide in without catching or fraying.

Users praise the “beefy” wall thickness of these connectors, describing them as heavy-duty and very malleable. The thick barrel deforms cleanly under a standard ratcheting crimper, and the resulting mechanical connection is strong enough to pass a pull test without the wire slipping. The included 3:1 heat shrink tubing has a meltable adhesive liner that bonds to both the copper barrel and the wire jacket, creating a fully sealed splice suitable for automotive, marine, and DIY applications.

One minor drawback is that the heat shrink tubing is sold in black only, so you lose the ability to color-code polarity unless you buy additional tubing. Also, the pack size is limited to 20 connectors, which is adequate for a single project but not a full vehicle rewire. If you need exactly 20 sealed splices and value the flared entry and wire-stop design, this kit is a very clean solution.

Check Price on Amazon

These SVAAR mechanical butt splices take a completely different approach: instead of crimping, you insert stripped 8 AWG wire into each end and tighten set screws down onto the conductor. The connectors are precision-machined from tinned brass, which offers good conductivity while avoiding the galvanic corrosion that can occur when directly connecting copper wire to steel or aluminum screw terminals. An inspection window in the center of the barrel lets you verify full wire insertion before you lock the screws down.

The kit includes both galvanized steel and brass screws, giving you the option to match the fastener material to the environment—use the brass screws in marine applications for maximum corrosion resistance. The barrel is longer than typical mechanical splices, providing more surface contact for the screws and increasing the mechanical hold. Users specifically highlight how easy these are to work with in tight spaces where a large crimp tool cannot fit, such as inside a junction box or behind a vehicle dashboard.

Because these are screw-type connectors, they are fully reusable: you can loosen the screws, remove the wire, and install a new conductor if you need to modify the circuit later. The downside is that the tinned brass barrel does not have the same raw conductivity as pure copper, and for very high-amperage 8 AWG circuits (60A+), a crimped pure copper connection will have lower resistance. The included 3:1 heat shrink tubing provides a finished look and seals the entry points.

Check Price on Amazon

This SVAAR kit offers 30 bare pure copper butt splices specifically for 8 AWG, with a flared barrel entry and a seamless construction. The copper is T2 grade (equivalent to C11000), and the barrels are 100% annealed to improve ductility for crimping. Because there is no tin plating, the raw copper surface provides maximum conductivity for applications where corrosion resistance is handled separately, such as inside a dry electrical panel or an enclosed battery box.

Users report that the copper sleeves are moderately thick—not quite as heavy as some ultra-premium brands, but sufficient to create a solid connection that does not crack or split during crimping. The flared barrel eases insertion of welding cable and other flexible 8 AWG conductors. The pack includes 30 connectors, making it a cost-effective option when you need a batch of bare splices for a dedicated project like building a set of battery cables.

Since these are non-insulated, you must add your own adhesive-lined heat shrink tubing if the splice will be exposed. The barrels have a longer usable crimp area than many budget connectors, which helps distribute the crimp force over a greater length. If you are connecting stiff 8 AWG THHN wire, check the wire outer diameter before buying, as some thick insulation jackets may not fit cleanly into the unflared section of the barrel.

Check Price on Amazon

BAALA’s 150-piece kit covers gauges from 26 AWG up to 8 AWG, making it a practical starter assortment for anyone who works on multiple wire sizes. The connectors are manufactured from C11000 pure copper with a tinned finish, giving them solid conductivity and a baseline level of corrosion resistance. The 8 AWG connectors in this kit (5 pieces) feature the same internal wire-stop and chamfered barrel design found in the single-size BAALA packs, ensuring proper insertion depth and easy wire entry.

Users consistently describe these connectors as “beefy” and “heavy duty,” noting that the wall thickness is generous for a multi-gauge kit. The tinned copper surface crimps cleanly without flaking or splitting. The kit comes in a small compartmentalized plastic box that keeps each gauge separate, which saves you the frustration of sorting through mixed sizes. Electrical customers specifically call out the low resistance and solid crimp hold.

The main limitation is that you only get five connectors in the 8 AWG size. If you are wiring an entire vehicle or multiple battery circuits, you will run out quickly and need to order a dedicated 8 AWG pack. Also, because these are non-insulated, you need to plan for separate adhesive-lined heat shrink tubing. For a general workshop drawer or someone who occasionally needs to splice larger wire, this is a very comprehensive and cost-effective kit.

Check Price on Amazon

For high-volume jobs where you need a huge count of connectors for many different gauges, the Sopoby 460-piece kit delivers an enormous quantity in a single package. The connectors are made from tinned copper, offering reasonable corrosion protection and electrical conductivity for general-purpose use. The assortment spans from 24 AWG up to 8 AWG, covering everything from signal-level splices to moderate-power 8 AWG circuits. The connectors are packed in a compartmentalized foam insert within a sturdy plastic case, ensuring the gauges do not mix during shipping or storage.

Users note that the copper material is slightly thinner than some premium brands, but still sufficient for creating solid mechanical connections when properly crimped. The connectors are easy to flatten and grasp even with a standard hand crimper. For DIY dune buggies, trailer wiring, or budget-conscious solar installations, this kit provides a generous pool of connectors at a very low per-unit cost. Multiple users confirm that the connections hold up well even on high-amperage 8 AWG circuits.

Because the wall thickness is not as heavy as marine-grade connectors, you should avoid using these in extreme saltwater submersion or constant high-vibration environments without adding your own high-quality adhesive-lined heat shrink. Some users also recommend adding a dab of solder for critical circuits to boost mechanical strength. For general shop use and large repair projects, this kit is the most economical way to stock up on tinned copper butt splices.
