That uneven stance between your front and rear wheels on a heavy-duty 8-lug truck isn’t just an eyesore — it compromises stability when you’re hauling or towing. Adding a set of precision-machined wheel spacers or adapters fixes the track width, levels the visual profile, and can correct caliper clearance issues that prevent you from running the tires you actually want. But with load ratings, stud grades, and bore diameters all in play, one wrong measurement means vibrations at highway speed or worse.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours cross-referencing bolt patterns, hub bore specs, and customer feedback on 8-lug adapters to find the sets that deliver a true, vibration-free fit on the first install.
This guide breaks down the best options for widening your stance and matching your wheels, giving you the full breakdown on the best 8×6.5 to 10 lug adapters to suit your rig.
How To Choose The Best 8×6.5 To 10 Lug Adapters
Unlike passenger car spacers, 8-lug adapters for HD trucks and vans must endure serious torque, weight, and heat. Picking the wrong set can lead to stud fatigue or a wheel separating at speed. Focus on these three factors to get it right the first time.
Hub Bore Match Is Non-Negotiable
Your truck’s hub has a specific outer diameter — typically 126.15mm for most Chevy/GMC 8-lug applications, but Ford and Ram trucks often use a different bore. If the adapter’s inner diameter doesn’t match your hub’s outer diameter, the wheel won’t be hub-centric. That means the lug nuts do all the centering work, which invites wobble. Always measure your hub pilot with a caliper before ordering.
Stud Grade and Material Dictate Safety
The studs pressed into the adapter are the weakest link. Cheap sets use Grade 10.9 studs which can stretch under heavy loads. Premium adapters use Grade 12.9 heat-treated studs that resist deformation. The spacer body itself should be forged 6061-T6 aluminum, not cast, because forged billet has a higher fatigue limit and won’t crack under repeated stress cycles from towing.
Correct Thickness for Your Wheel Offset
Thickness (1.5″ or 2″) determines how far the wheel sits from the hub. Going too thick pushes the wheel past the fender, which is illegal in many states. Too thin and you might not clear your brake calipers. Also confirm your factory studs are shorter than the spacer thickness — if the stud tips protrude past the spacer face, they’ll prevent the wheel from seating flush.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Wheel Accessories Parts 2″ | Hub-Centric | OE fitment on Chevy/GMC DRW front | 116.7mm hub bore, M14x1.5 | Amazon |
| KSP 2″ Black | Value | Cost-effective Silverado fit | 6061-T6 billet, 10.9 studs | Amazon |
| FLYCLE 2″ Ram/Ford | Ford/Ram | 9/16-18 stud pitch Ford/Ram trucks | 9/16-18 threads, 12.9 studs | Amazon |
| HHCSOP 2″ | Mid-Range | Dually rear spacer use | 126.15mm bore, M14x1.5 | Amazon |
| ECCPP 1.5″ | Entry | Budget track-width correction | 126.15mm bore, 1.5″ thick | Amazon |
| SCITOO 8×170 to 8×6.5 | Pattern Changer | Ford 8×170 to Chevy 8×6.5 swap | 130mm bore, 1.5″ thick | Amazon |
| Torchbeam 8×6.5 to 8×180 | Pattern Changer | Chevy/GMC to Dodge 8×180 wheels | 130mm bore, 12.9 studs | Amazon |
In‑Depth Reviews

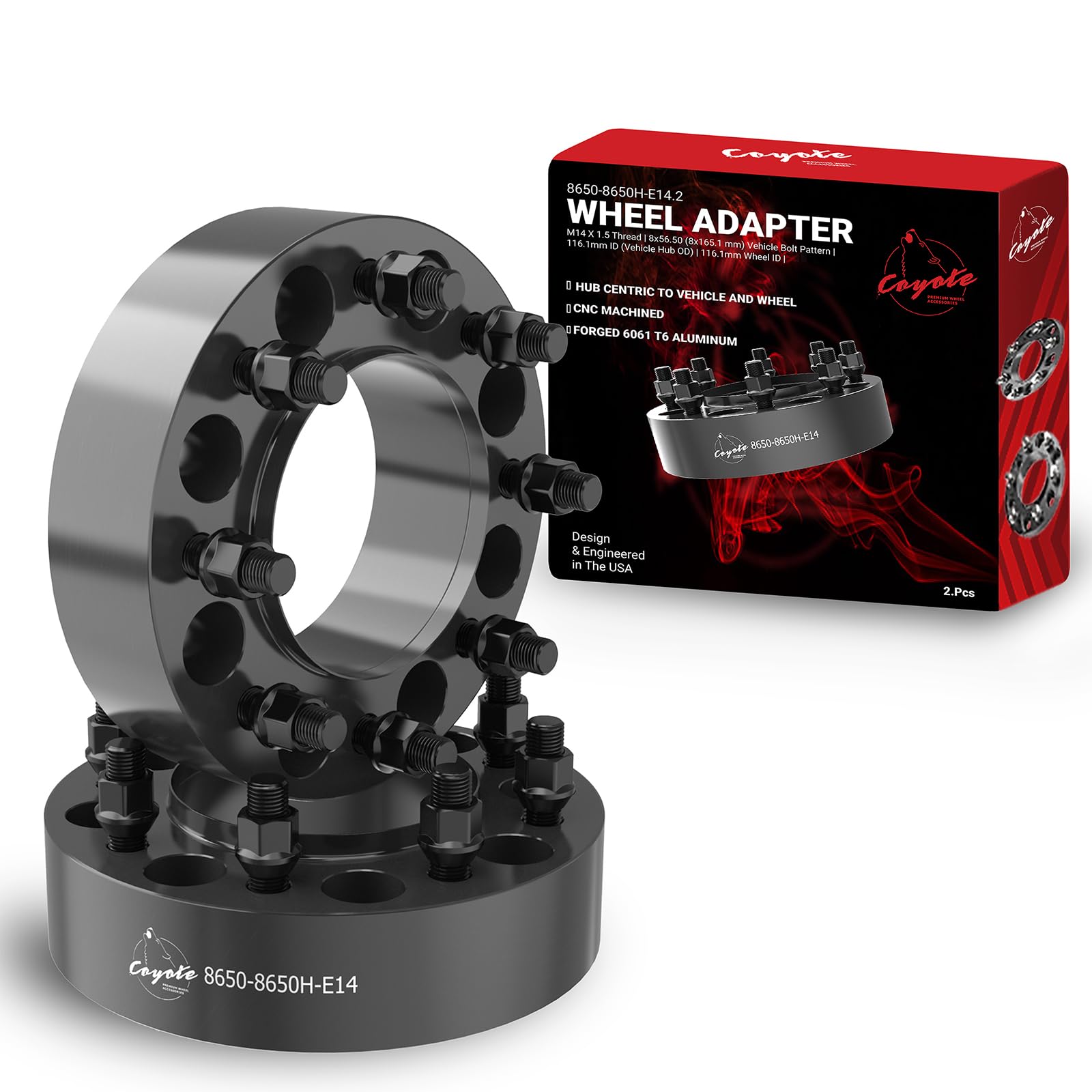

1. Wheel Accessories Parts 2″ Hub-Centric Spacers
This set stands apart because it is specifically engineered as a hub-centric spacer with a 116.7mm center bore that matches the factory hub pilot on Chevy/GMC SRW and DRW front axles. That tight pilot fit eliminates the guesswork around vibrations — the wheel centers on the hub, not the lug nuts. The 2″ thickness provides generous caliper clearance while keeping the tire within the fender on most HD trucks.
Forged from 6061-T6 billet with CNC machining and finished in black anodizing, the body resists corrosion from road salt and mud. The studs are SAE 10.9 heat-treated, which is adequate for most towing applications, though some users on full-float 14-bolt axles reported needing to trim their factory studs by roughly 3/8″ to get a flush seat. That’s common with a 2″ spacer and doesn’t indicate a design flaw.
Owner feedback on 2001-2010 Silverado 2500 HD and 2004 Suburban 2500 8.1L rigs confirms zero vibration after installation and a noticeable improvement in cornering stability. One Dodge 1-ton RV owner noted the 116.7mm bore required enlargement for Chrysler hubs, so this set is really optimized for GM applications.
Why it’s great
- True hub-centric design prevents wobble without relying on lug nuts
- Forged 6061-T6 billet is stronger than cast alternatives
- Black anodized coating resists corrosion from winter road salt
Good to know
- 116.7mm bore does not fit Dodge or Ford hubs without modification
- Factory studs on many GM full-float axles need trimming for flush wheel seat
2. KSP 2″ 8×6.5 Wheel Spacers Black
KSP hits a sweet spot where build quality meets a mid-range price. The spacers are machined from 6061-T6 aluminum billet (not cast) with a black anodized finish. The 10.9-grade flanged studs use a M14x1.5 thread, which is the standard GM 8-lug pitch, and the kit includes thread locker in the box. The 126.15mm center bore is a direct match for most GM 8-lug hubs from 1988 onward.
At 2″ thick, these adapters push the wheel out far enough to fix the front-to-rear track mismatch on Silverado 1500 HD and 2500 HD trucks. Users on 1994 K1500 and 2013 Silverado 1500 with aftermarket wheels reported a straightforward installation with no stud trimming needed. The included red thread locker is a smart addition because it prevents the spacer from loosening over time due to thermal cycling from brake heat.
The only trade-off is that the 10.9 studs are not as hard as the 12.9 grade found on more expensive sets. For daily driving and occasional towing, 10.9 is sufficient, but if you regularly haul near the GVWR, you may want to step up to a set with 12.9 hardware. Several reviewers confirmed the spacers ride smoothly with no vibration even after 1,000 miles.
Why it’s great
- 126.15mm bore matches GM 8-lug hubs without modification
- Thread locker included for secure installation
- Many users report zero vibration after thousands of miles
Good to know
- 10.9 studs are adequate but not the strongest available for heavy towing
- Some owners needed to trim factory studs on certain GM full-float axles
3. FLYCLE 2″ 8×6.5 Wheel Spacers
Most 8×6.5 spacers on the market are engineered for GM vehicles with M14x1.5 studs. FLYCLE breaks that pattern by offering a 9/16-18 thread pitch, which is the correct standard for 1994-2011 Ram 2500/3500 and 1988-1996 F-250/F-350 trucks. If you own a Ford or Ram heavy duty, this is one of the few sets that bolts directly without needing to swap studs.
The spacer body uses forged 6061-T6 aluminum with heat-treated 12.9 grade studs — the highest common hardness grade for wheel studs. The 12.9 rating means the studs can withstand higher clamping loads without stretching, which matters when you’re running larger tires that increase leverage on the hub. The 126.15mm center bore is correct for most Ram applications, though Ford Super Duty owners should verify their hub diameter before ordering.
Users on 1990 OBS Ford and 2016 E350 Super Duty chassis report a precise fit with no need to grind or modify factory studs at the 2″ thickness. The included high-strength thread locker and torque spec of 135-145 ft-lbs is higher than the GM standard, reflecting the larger 9/16″ stud diameter. One review noted that the nut design can be tight with a 13/16″ socket, so a thin-wall socket helps avoid marring the nut.
Why it’s great
- 9/16-18 thread pitch is correct for Ram and Ford 8-lug trucks
- 12.9 grade studs offer maximum fatigue resistance
- No stud trimming needed on most applications at 2″ thickness
Good to know
- Nuts can be tight with a standard 13/16″ socket; a thin-wall socket recommended
- Not hub-centric on all applications; verify vehicle-specific hub bore
4. HHCSOP 2″ 8×6.5 Wheel Spacers
The HHCSOP spacers are one of the few sets that come up consistently in dually applications. Several owners of 2005 Chevy 3500 DRW trucks used these as inner spacers to align dual rear wheels, and the 2″ thickness provided enough offset to center the tire pair without rubbing. The 126.15mm bore and M14x1.5 studs match the GM 8-lug pattern exactly.
Build quality is consistent with the mid-range segment: forged 6061-T6 aluminum, CNC machining, and anodized surface treatment. The studs are Grade 10.9, which is the industry standard for most OEM-equivalent spacers. The 2″ thickness gives you plenty of caliper clearance even with aftermarket big-brake kits, and the weight of about 15 pounds per pair suggests the material density is solid without voids.
The main limitation is the 10.9 stud grade. On a SRW truck used for daily driving and light towing, these are perfectly fine. On a DRW truck that regularly carries payload near the axle limit, upgrading to a set with 12.9 studs provides a higher safety margin. Installation on a 1999 K2500 required no stud trimming, and the spacer bolted flush against the factory hub with no runout.
Why it’s great
- Works reliably as dually rear spacers on Chevy 3500 trucks
- No stud trimming needed on most GM 8-lug applications
- Forged aluminum body resists cracking under load
Good to know
- 10.9 studs are adequate but not ideal for extreme heavy towing
- Some GM full-float axles may still require minor stud trimming
5. ECCPP 1.5″ 8×6.5 Wheel Spacers
If you just need to even out the track width on a tight budget, the ECCPP 1.5″ set is a solid entry-level option. The 1.5″ thickness is actually ideal for many Silverado 1500 HD and 2500 HD trucks because it pushes the wheel out just enough to match the front track without making the tires poke past the fender. The 126.15mm bore and M14x1.5 thread pitch are standard GM 8-lug dimensions.
The spacer body is CNC-machined from forged 6061-T6 aluminum with an anodized surface. At 10 pounds for the pair, they’re lighter than the 2″ sets, but that’s expected given the reduced material. One consideration with the 1.5″ thickness is that you are more likely to need to trim factory studs — the studs on many GM full-float axles measure longer than 1.5″, so the tips can protrude and prevent the wheel from seating.
Customer feedback on 1999 GMC K2500 and 2007 Duramax trucks is overwhelmingly positive, with multiple owners noting improved cornering stability and no vibration. One experienced user recommended replacing the included studs with aftermarket steel studs for extra peace of mind, which is a cheap upgrade if you plan to tow heavy loads regularly. The torque spec is 85-90 ft-lbs with thread locker.
Why it’s great
- 1.5″ thickness keeps tires within fender on most GM HD trucks
- Forged 6061-T6 aluminum at an affordable price point
- Proven track record with thousands of positive installations
Good to know
- 1.5″ thickness often requires factory stud trimming on full-float axles
- Bundled studs are adequate; steel stud upgrade recommended for heavy towing
6. SCITOO 4Pcs 8×170 to 8×6.5 Wheel Adapters
This is a dedicated bolt-pattern-changing adapter, not a simple spacer. It converts the Ford 8x170mm pattern (used on 2003-2022 F-250/F-350 Super Duty) to the 8×6.5″ (8×165.1mm) pattern used by Chevy/GMC. That means you can bolt Ford Super Duty wheels onto a GM 8-lug truck, or vice versa. The 130mm center bore accommodates the larger Ford hub without needing to bore the adapter.
The construction uses hot-forged aircraft-grade aluminum with 10.9 studs. At 1.5″ thick, these adapters add significant offset, so verify your wheel clearance before committing. The 4-piece set (sold as a pair of pairs) covers both axles. One critical note: these are listed as “no hubcentric” — meaning the adapter does not include a centering lip for the wheel. You must use conical or shank-style lug nuts to center the wheel properly.
There is a safety red flag in the review data: one customer reported that the lug bolts snapped after two months, causing the wheel to detach at speed. That is a serious failure mode. While the majority of users report a good fit and functional performance, the single catastrophic failure suggests that the 10.9 stud quality or the installation torque may be inconsistent. If you buy these, torque them meticulously and re-check after the first 50 miles.
Why it’s great
- Allows Ford Super Duty wheels to mount on GM 8-lug hubs
- Hot-forged aluminum is strong for the weight
- 4-piece set covers both front and rear axles
Good to know
- Not hub-centric; requires careful centering with proper lug nuts
- At least one verified report of stud failure leading to wheel detachment
7. Torchbeam 8×6.5 to 8×180 Wheel Adapters
Torchbeam takes the pattern-changing concept and applies a higher standard of hardware. These adapters convert your GM 8×6.5″ hub to accept 8x180mm wheels, which is the pattern used on newer Dodge/Ram HD trucks. The adapters use 12.9 grade studs with M14x1.5 threads and feature a 130mm center bore. The 1.5″ thickness provides the necessary offset while maintaining a relatively conservative stance.
The body is forged from 6061-T6 aircraft-grade aluminum with CNC finishing. Torchbeam states that each adapter undergoes a loading test before shipping, which is a quality-control step that most budget brands skip. The 25-pound shipping weight for a 4-piece set reflects the dense, solid construction. The recommended torque is 85-90 ft-lbs with thread locker, consistent with the GM standard for M14x1.5 studs.
A key detail: these are not hub-centric. There is no centering lip, so the wheel centers on the taper of the lug nuts. That makes precise installation critical — uneven torque can introduce runout. One user successfully used these to swap factory wheels on a 2006 Volvo S60 T5, which confirms the adapter can handle street-driven loads without issue. For a heavy-duty truck used off-road or for towing, verify the wheel nut seat angle matches the stud taper.
Why it’s great
- 12.9 grade studs provide maximum clamping strength for pattern-changing adapters
- Factory loading test adds quality assurance rarely seen in this category
- Enables fitment of Dodge/Ram 8×180 wheels on GM 8-lug trucks
Good to know
- Not hub-centric; wheel centering depends entirely on lug nut torque
- 130mm bore may require hub ring adapters for some vehicle-specific fitments
FAQ
How do I know if my factory studs are too long for the spacer?
What is the difference between a 10.9 and a 12.9 grade stud in this application?
Will a 2″ spacer make my tires stick out past the fender?
Final Thoughts: The Verdict
For most users, the best 8×6.5 to 10 lug adapters winner is the Wheel Accessories Parts 2″ Hub-Centric Spacer because it delivers genuine hub-centric fitment with forged 6061-T6 construction and correct 116.7mm bore for GM trucks. If you want the strongest studs available for heavy towing, grab the FLYCLE 2″ with 12.9 studs. And for converting your bolt pattern to run Ford or Ram wheels, nothing beats the Torchbeam 8×6.5 to 8×180 adapter for its 12.9 hardware and factory load testing.
